Nitrobenzene (NB) is widely used in the manufacture of different types of industrial products such as dyes, explosives and pesticides. It has also been used as a solvent to make paint, shoes and polishes [1, 2]. NB may be released into the environment during its varied uses and, because of its mutagenicity, environmental persistence and tendency to bioaccumulate, NB is listed as one of the priority organic pollutants by the United States Environmental Protection Agency (http:// iaspub.epa.gov/waters10/rpt_epa_num_criteria.run_report).
The direct oxidation of NB can be very difficult because of the low electron density around its benzene ring [3]. During the last two decades, a number of advanced oxidation processes (AOPs), such as photo-catalytic oxidation [4], ozonation [5], Fenton oxidation [6] and combined oxidation [7, 8], have been applied to the degradation of NB. Among these, wet air oxidation (WAO), initially proposed and developed by Zimmermann, appears to show particular potential with regard to wastewater treatment. Unlike other AOPs, WAO is an attractive method for the treatment of waste streams with chemical oxygen demand from 10-100 g/L that are too dilute to incinerate but too concentrated for biological treatment [9]. During WAO, the waste is oxidized into carbon dioxide, water and low molecular weight organic acids at elevated temperatures (150-325 °C) and pressures (0.5-20 MPa) using pure oxygen or air as the oxidant [10, 11]. WAO is not only eco-friendly but also more economical compared with other AOPs that often use harmful and/or expensive oxidizing agents, such as ozone and hydrogen peroxide. To achieve the oxidation of pollutants under milder conditions, catalytic wet air oxidation (CWAO) processes have been developed since the 1970s, especially for wastewater treatment [12, 13, 14].
In recent years, co-oxidation methods have been increasingly employed to further improve the oxidation efficiency of WAO processes. Willms et al. [15] first observed that the efficiency of m-xylene oxidation increased with the introduction of the more easily oxidizable phenol to the reaction system. Similar results have been reported in which the addition of cellobiose or phenol to solutions containing recalcitrant low molecular weight acids led to enhanced oxidation rates [16]. The degradation rate of thiocyanate was also significantly enhanced when it was simultaneously oxidized with cyanide under the same conditions [17]. We also reported that the presence of phenol in the reaction media greatly improves the conversion of NB [18, 19], and that the simultaneous degradation of trichlorophenol and nitrophenol is possible by wet air co-oxidation [20]. Although co-oxidation of pollutants has been previously reported, there has been little investigation of co-oxidation in the presence of catalysts.
Herein we report the first-ever catalytic co-oxidation of NB and phenol using homogenous catalysts. Homogeneous catalytic oxidation was chosen because of its simplicity and effectiveness, although in practice the catalyst, such as Fe(SO4)2, Cu(NO3)2, Ni(NO3)2, Co(NO3)2 or Ce(NO3)3, must be removed or recovered from the treated effluent afterwards to prevent the contamination of the receiving water. The aim of the present work was to gain insights into simultaneous catalytic NB and phenol oxidation, and to provide a working strategy for the degradation of refractory compounds by the batch addition of an initiator. We also expect this strategy to be useful with other active heterogeneous catalysts in the future as a means of accomplishing the economical and environmentally friendly oxidation of pollutants.
NB and phenol were purchased from Sigma-Aldrich Chemicals. All other chemicals were of analytical grade and were obtained from the Shanghai Chemicals Co. (China), while the solvents were all high performance liquid chromatography (HPLC) grade. Water was prepared with a Milli-Q water purification system (Millipore, Milford, MA) for use in all experimental trials.
The reactor was made of stainless steel (SS316) and had an inner volume of 400 mL, and the instrument structure was illustrated in a previous publication [18]. The reaction temperature was measured using a thermocouple and controlled by an intelligent regulator. The autoclave was charged with 200 mL of an aqueous solution in which the initial concentrations of NB and phenol were 400 and 800 mg/L, respectively. The reactor was subsequently pressurized with pure nitrogen to a pressure of 5.0 MPa and this pressure was maintained for 3 min after which the autoclave was evacuated to 0.1 MPa. This step was repeated three times to make sure that the original oxygen in the reactor was replaced with nitrogen. The reactor was then pressurized to 4.0 MPa with nitrogen and heated to the desired reaction temperature. Once this temperature was reached, pure oxygen (the pressure of which was determined using the equation pV = nRT) was supplied to the reactor and the reaction time was counted from this "zero" point. The stir speed was set at 500 rpm to allow for vigorous mixing so as to ensure that the oxidation rate was not controlled by mass transfer effects. Liquid samples were periodically withdrawn and analyzed for phenol and NB levels.
The liquid phase aliquots were analyzed by HPLC (Waters 2690-996 with a photodiode array detector) using a Kromasil C18 column (250 mm × 4.6 mm, 5 μm). The chromatograph was calibrated with standard solutions of NB and phenol in the range of 0 to 500 mg/L and 0 to 1000 mg/L, respectively, producing calibration curves with R2 values greater than 0.999. The mobile phase was a 60/40 (V/V) water/methanol mixture in the isocratic mode with detection at an absorbance wavelength of 265 nm. The flow rate was set to 1.0 mL/min, and the injection volume was 10 µL. Under these conditions, the retention time of the NB and phenol was 7.3 and 12.9 min, respectively.
It has been reported that Cu2+ shows good catalytic effects during the WAO of pollutants [13]. Therefore, in this work, we initially assessed Cu2+ as a homogeneous catalyst for the co-oxidation of NB and phenol. In a typical trial, a Cu(NO3)2 solution (2 mL, 0.2 mol/L) was added to 200 mL of a solution of NB and phenol, to produce a final Cu2+ concentration of 2 mmol/L. Under these conditions, a NB conversion of 91% was achieved after 1 h at 200 °C in the presence of phenol, while only 22% NB conversion was observed without phenol under the same conditions. In contrast, a previous study by our group found minimal NB conversion in the presence of phenol at 200 °C, with only slight improvements to 24% and 27% at 210 and 220 °C [16]. It therefore can be concluded that Cu(NO3)2 is indeed a very active catalyst for the co-oxidation of NB. Given this promising result, we expanded our efforts and screened a number of other homogenous catalysts for the co-oxidation of NB and phenol, examining the effects of the catalyst and the presence of phenol.

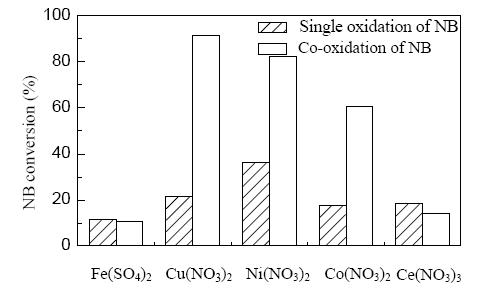

The effects of the homogenous catalysts Fe(SO4)2, Ni(NO3)2, Co(NO3)2 and Ce(NO3)3 during the catalytic co-oxidation of NB and phenol were studied at 200 °C with the a final metal concentration of 2 mmol/L. The other reaction conditions remained the same as those detailed in the prior section in which Cu(NO3)2 was used as the catalyst. Fig. 1 shows the catalytic NB conversion in the presence of phenol (that is, the catalytic co-oxidation of NB) and in absence of phenol (the catalytic single oxidation of NB) after 1 h of reaction time. Following the single catalytic oxidation, NB conversions of 11%, 22%, 36%, 18% and 18% were obtained when using Fe(SO4)2, Cu(NO3)2, Ni(NO3)2, Co(NO3)2 and Ce(NO3)3 as the catalysts, respectively. In comparison, only 3% NB conversion was found without catalysts under the same conditions [19]. Among these five homogenous catalysts, Cu(NO3)2 and Ni(NO3)2 provided the best catalytic activity. Because NB is a refractory pollutant, it is very difficult to be degraded and, even using Cu(NO3)2 and Ni(NO3)2 as the catalysts, the conversion was not sufficiently high. As seen in Fig. 1, in the presence of phenol, the NB conversions following 1 h of oxidation at 200 °C were 11%, 91%, 82%, 61% and 14% when employing Fe(SO4)2, Cu(NO3)2, Ni(NO3)2, Co(NO3)2 and Ce(NO3)3 as the catalysts. It is clear, therefore, that the conversion of NB during co-oxidation with phenol is increased significantly by the introduction of catalysts.

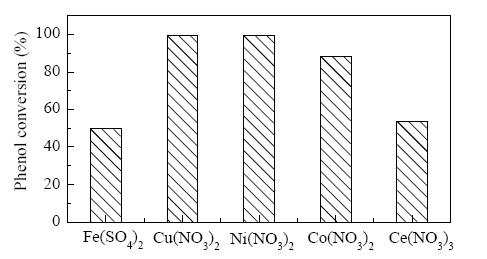

Fig. 2 summarizes the phenol conversions during the catalytic co-oxidation with NB. It can be seen that conversions after 1 h of degradation at 200 °C were 50%, 100%, 99%, 89% and 54% when using Fe(SO4)2, Cu(NO3)2, Ni(NO3)2, Co(NO3)2 and Ce(NO3)3, respectively. It is believed that, in the co-oxidation reaction, the phenol generates either active radicals or intermediates. Because phenol was evidently not degraded efficiently when applying Fe(SO4)2 or Ce(NO3)3 as the catalysts, the phenol did not provide sufficient radicals or intermediates to initiate NB degradation in conjunction with these catalysts. However, when combined with Cu(NO3)2 or Ni(NO3)2, phenol was completely degraded, thus presumably yielding active radicals or intermediates that in turn supported the oxidation of NB.
The catalytic co-oxidation of NB (400 mg/L) in the presence of phenol (800 mg/L) was performed under 1.0 MPa oxygen partial pressure with Cu(NO3)2 as the catalyst at 150-200 °C to examine the effect of temperature on the degradation reaction. Table 1 presents the results for the catalytic NB conversion and associated color changes obtained when performing the reaction both with and without phenol. It appears that temperature had little effect on the conversion of NB in the catalytic co-oxidation process, because good conversion was obtained throughout the temperature range. Even at 150 °C, the conversion of NB during the co-oxidation process reached 87% after 1 h. With increasing temperature, the conversion values were 88%, 90%, 90% and 91% at 160, 170, 180 and 200 °C, respectively. In the case of single catalytic NB oxidation, however, the conversions were only 6% and 7% at 170 and 180 °C, respectively, and even at 200 °C, the conversion was only 22%. Additionally, over the temperature range studied, the conversion of phenol was always more than 99%. Nevertheless, temperature was found to have a notable effect on the intermediate products.
The color change of the solution after the catalytic co-oxidation at different temperatures indicated that intermediate products were degraded to a greater extent at elevated temperatures. The solution following degradation at 150 °C was brown, indicating that quinone was formed while, at 160 °C, the solution turned light yellow with some dark sediment visible after degradation. As the temperature was further increased, the solution became almost colorless and the sediment gradually disappeared. At 200 °C, the post-reaction solution was clear and colorless and there was only a minimal amount of sediment, indicating that the quinone and other insoluble intermediates were almost completely degraded. The quality of the effluent thus improved as the temperature was increased, especially above 180 °C.

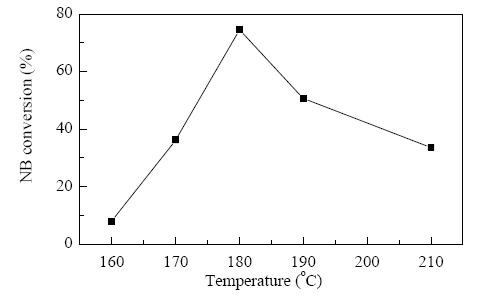

We also studied the co-oxidation process using Ni(NO3)2 (2 mmol/L) as the catalyst over the temperature range of 160-210 °C after 2 h reaction. It is clear from Fig. 3 that temperature had a more prominent effect, such that the NB conversions were 8%, 36% and 75% at 160, 170 and 180 °C, respectively. However, when the temperature was further increased to 190 °C, the NB conversion fell to 51% and further decreased to 34% at 210 °C. We propose that the active radicals or intermediates formed during the phenol oxidation in the co-oxidation process were degraded at higher temperatures, thus they could not initiate NB degradation efficiently under such conditions. This could explain why the NB conversion actually decreased at higher temperatures with phenol using Ni(NO3)2 as the catalyst. The optimal temperature for the catalytic co-oxidation of NB with Ni(NO3)2 as catalyst was thus 180 °C. Compared with Ni(NO3)2, Cu(NO3)2 was clearly a better catalyst for catalytic co-oxidation of NB because it allowed a greater degree of NB conversion (about 90%) in a shorter reaction time (1 h).
In the previous study, it was found that the conversion of NB could not be further increased once the co-oxidation of phenol was completed, and that the conversion plot would appears as a platform thereafter [18]. This observation led us to believe that we could increase the NB conversion by adding the phenol to the NB solution in multiple, small amounts to allow the active radicals or intermediates formed by phenol oxidation to continuously initiate the NB oxidation. To test this hypothesis, following a 60 min oxidation of solely NB, we added 10 mL of phenol solution (16 g/L) to 200 mL of the NB solution (400 mg/L) using a high pressure pump with an injection rate of 0.5 mL/min. This trial generated final concentrations of NB and phenol of 381 and 762 mg/L, respectively, the total amount of phenol added (160 mg) being the same as added during the original co-oxidation of NB and phenol as described above. Subsequently, equal amounts of phenol were added as a single 10 mL aliquot, two 5 mL aliquots, or three aliquots of 3, 4 and 3 mL and the NB conversion was recorded after 3 h at 200 °C. The results were shown in Table 2. Adding the phenol (10 mL) at the beginning of the reaction gave an NB conversion of only 36%, while addition of the phenol as a single aliquot after 60 min of degradation increased the conversion of NB to 71%. This result indicated that the active free radicals or intermediates produced by phenol were present over a longer time span, thus more effectively facilitating the conversion of NB. Addition of the same amount of phenol in two or three aliquots further increased the NB conversion to 84% and 88%, respectively.
The effect of the phenol addition mode on the catalytic co-oxidation of NB was also studied using Cu(NO3)2(2 mmol/L) as the catalyst, generating final concentrations of NB and phenol of 381 and 762 mg/L, respectively. Following a 1 h reaction period at 200 °C, the conversion of NB increased to 95% when phenol was added in two portions, while 91% conversion of NB was obtained when all the phenol was introduced in a single portion at the beginning of the reaction (Table 1). The color of the solution after the reaction with two additions of phenol was colorless with no dark intermediates. However, the single phenol addition reaction solution still had a small amount of sediment even the solution became colorless (Table 1). This result demonstrated that the addition of phenol in smaller portions resulted in more effective degradation of the intermediates produced during the NB oxidation. Additionally, the phenol itself was completely converted following the reaction. The above results, taken together, demonstrated that adding phenol in small portions, if combined with the use of a catalyst, can substantially increase the NB conversion.
Cu2+, Co2+ and Ni2+ are effective homogeneous catalysts for the co-oxidation of NB and phenol, and among these, Cu2+ is the best. The addition of phenol to the oxidation system in small portions also helps to increase the NB conversion. The conversion of NB reaches 95% with two batches phenol additions after 1 h when using Cu2+ solution (2 mmol/L) as the catalyst at 200 °C and 1.0 MPa oxygen pressure and complete conversion of phenol was observed after the reaction. The resulting post-reaction solution was clear and colorless. In summary, we have developed a novel catalytic co-oxidation method with batch-wise addition of the phenol initiator. This technique should provide an alternative and effective means of treating other organic pollutants in the environment.
