Because of environmental concerns and the ongoing depletion of fossil fuels, biodiesel has attracted considerable attention during the past decade as an alternative, green and renewable fuel [1]. Biodiesel is generally produced from vegetable oils or animal fats by transesterification of triglycerides [2, 3, 4] or by esterification of free fatty acids (FFAs) with short-chain aliphatic alcohols [5, 6, 7, 8, 9]. However, the mineral acids that are employed for this purpose in industrial processes cannot be recycled and have other disadvantages [10]. In addition, the rate of the esterification reaction with heterogeneous catalysts is adversely affected by mass transfer limitations resulting from the heterogeneous reaction conditions [11]. Hence, it would be beneficial to replace existing esterification methods with more environmentally benign processes.
Various ionic liquids (ILs) have been used as catalysts for preparing biodiesel from long-chain FFAs and can be easily recycled [12, 13, 14]. In particular, SO3H-functionalized ILs have been successfully used as catalysts and reaction media for biodiesel production, resulting in excellent performance and high yields [15, 16, 17, 18, 19, 20]. Among these, the dicationic ILs have received significant attention [21] because of their higher stability as compared with their monocationic analogues. Fang et al. [22] used halogen-free dicationic acidic ILs in the synthesis of biodiesel from FFAs and alcohols, while Zhang et al. [23] prepared three dicationic basic ILs for biodiesel production from soybean oil. Aghabarari et al. [24, 25] reported the use of acidic ILs based on bentonite as catalysts for the esterification of oleic acid with short-chain alcohols. However, the relatively high cost of ILs containing the imidazolium cation hinders their industrial applications. Thus, a more efficient, simple and biodegradable catalyst need to be developed.

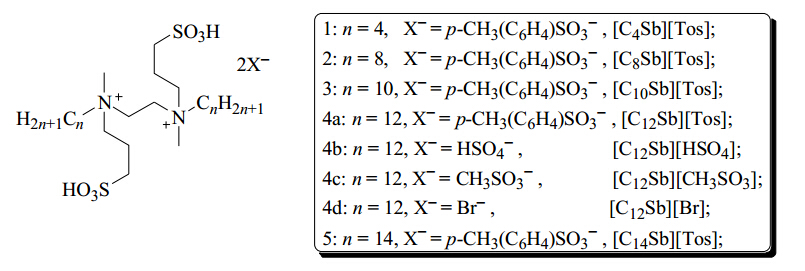

In the present work, we prepared quaternary ammonium Brönsted acid surfactant-combined dicationic ILs (BASDILs, Scheme 1) and explored their application as green catalysts for biodiesel production from FFAs and alcohols. To gain an understanding of the acidity-activity relationship, the Hammett method was also employed to evaluate the acidity of the BASDILs.
BASDILs were synthesized according to our previously described protocol [26]. The zwitterionic 1,2-bis[N-methyl-N- (3-sulfopropyl)-alkylammonium]ethane betaines (CnSbs) were prepared by the reaction of N,N’-dimethylethylenediamine with n-alkyl bromide, followed by reaction with 1,3- propanesulfonate. Zwitterion acidification was subsequently accomplished by mixing the zwitterions with p-toluenesulfonic acid monohydrate.
The Brönsted acidity of the ILs was determined by employing Hammett functions (H0) together with UV-visible spectroscopy data acquired on a Perkin Elmer Lambda 35 UV-Vis spectrophotometer, following a previously reported procedure [18, 27, 28]. In this process, the BASDIL and the indicator 4-nitroaniline (pKa = 0.99) were both dissolved at respective concentrations of 35 and 110 μmol/L in anhydrous ethanol.
The esterification reactions were carried out in a 10-ml tube with a reflux condenser. Portions of the catalyst (0.020-0.316 mmol) and of oleic acid (7.9 mmol, 2.23 g) were transferred into the reactor and preheated prior to the addition of the alcohol. Upon reaching the desired reaction temperature (25-70 °C), methanol (0.32-1.28 ml) was added into the reactor and the reaction was initiated. The reaction mixture was vigorously stirred at a constant rate for all runs. The oleic acid-methanol molar ratio, reaction time and temperature were all varied according to an experimental design. Upon reaction completion, the reactor was cooled to room temperature and phase separation was observed. Excess methanol was evaporated under vacuum and the IL settled to the bottom of the flask because it was immiscible with the ester, which formed the upper layer. Thus, the biodiesel could be separated by simple decantation and the catalyst was easily recycled by removal of water. The conversion of oleic acid was determined by acid-base titration [18].
The Hammett acidity function (H0) can effectively express the strength of an acid in an organic solvent, and the H0values of the different BASDILs are summarized in Table 1. These data allow an assessment of the effect of the BASDIL structure on H0. The results demonstrate that the acidity increased with elongation of the hydrocarbon chain (entries 2 and 3) and plateaued when the number of carbon atoms exceeded eight (entries 4, 5 and 9). Moreover, the acidity of BASDILs with different anions decreased in the order [C12Sb][Tos] > [C12Sb][HSO4] > [C12Sb][CH3SO3] > [C12Sb][Br] (entries 5-8), in accordance with the acidity of the anionic counterparts.

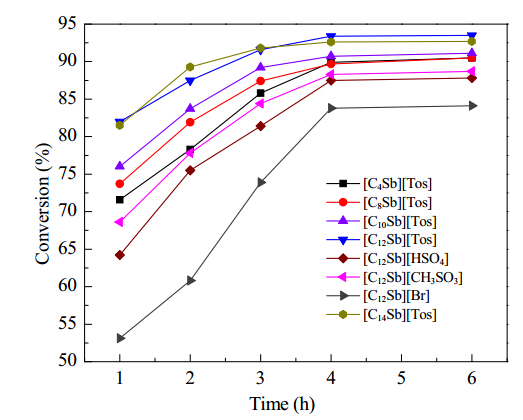

To simplify the screening process, oleic acid was used as a model substrate, since it is a major and key component of low quality feedstock. The catalytic performance of different BASDILs is shown in Fig. 1. The catalytic activity of ILs containing Tos− associated with different cations followed the order [C4Sb][Tos] < [C8Sb][Tos] < [C10Sb][Tos] < [C12Sb][Tos] ≈ [C14Sb][Tos]. These results suggest that acidity is not the sole factor influencing the efficiency of the catalytic process. [C12Sb][Tos] was found to dissolve well in methanol to form a homogeneous mixture, thereby accelerating the reaction (Fig. 2, (a)). We also observed that, upon reaction completion, the time required to achieve phase separation increased with elongation of the hydrocarbon chain. The activities of ILs with different anions were examined and were found to decrease in the following order: [C12Sb][Tos] > [C12Sb][CH3SO3] > [C12Sb][HSO4] > [C12Sb][Br]. This finding was attributed to the enhanced contact between the reactant and the catalyst resulting from the bulky Tos− anion in the IL, suggesting that the presence of a sufficiently acidic proton on the anionic component of the IL played an important role in activating the reaction. Thus, balancing the requirements for a fast reaction rate with low catalyst costs, [C12Sb][Tos] proved to be the most efficient catalyst. As shown in Fig. 1, the conversion increased until equilibrium was achieved after 4 h, and no significant improvements were obtained by further prolonging the reaction time.

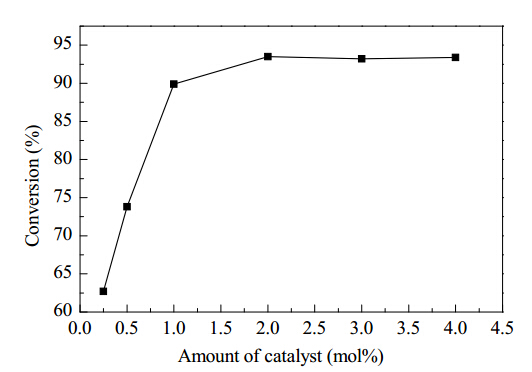

The amount of catalyst is an important factor in esterification efficiency. When using a low catalyst loading, the number of available active sites was insufficient to promote the reaction (Fig. 3). Increasing the amount of catalyst from 0.25 to 4 mol% resulted in a higher conversion of oleic acid, with the maximum yield of 93.5% occurring with a catalyst loading of 2 mol%. Further increasing the catalyst amount did not substantially improve the conversion. Therefore, a sufficient number of active sites were available for the reaction to occur when the catalyst loading was 2 mol%.
An excess of methanol contributed to the esterification of oleic acid by improving the reaction rate. Various methanol/oleic acid ratios between 1:1 and 4:1 were tested, and the results are summarized in Table 2. The highest conversion of oleic acid (93.5%) after 4 h was achieved with a molar ratio of 1.5:1. Further increases in the molar ratio did not result in improved conversion, probably because excess methanol overly diluted the reaction mixture and hampered the workup procedure. Taking into account the energy consumption and the yield, the optimal molar ratio of methanol to oleic acid was 1.5:1.

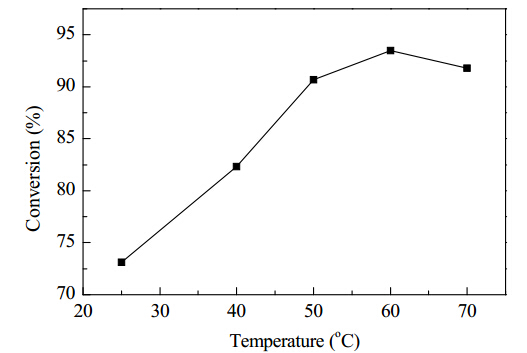

Temperature is another important variable affecting the rate of acid-catalyzed esterification reactions and its effect was examined by performing experiments in the range of 25-70 °C. The results are summarized in Fig. 4. As expected, because of the increase in the equilibrium constant, the conversion of oleic acid increased with temperature, reaching a maximum at 60 °C. Further increases in the temperature resulted in reduced conversion because of methanol evaporation. The observed increase in the conversion with temperature resulted both from the effect of temperature on the reaction rate and also from the significant improvement in the mass transfer between the reactant and the catalyst. Thus, the optimal esterification temperature was 60 °C.

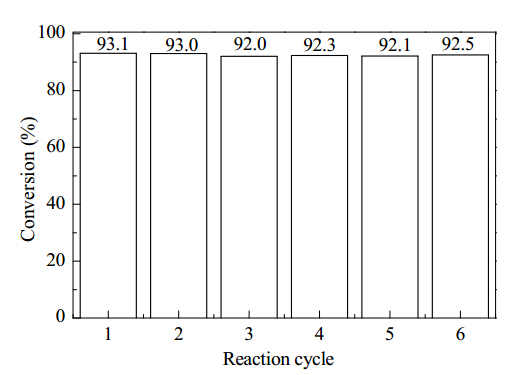

The recycling performance of [C12Sb][Tos] was investigated by performing several repeat reaction trials under optimum conditions. Upon completion, the reaction mixture was brought to room temperature and two phases were formed (Fig. 2, (b)). The product was isolated from the catalytic system by decantation. The catalyst was then recovered by centrifugation and washed with petroleum ether to remove the organic ester. The results are presented in Fig. 5, showing that there was negligible decline in the catalytic performance after six successive runs. Compared with traditional catalysts, the possibility of efficiently recycling [C12Sb][Tos] is of interest from environmental and economic perspectives.
To investigate the scope and limitations of [C12Sb][Tos] in terms of the preparation of fatty acid alkyl esters, different FFAs and alcohols were examined (Table 3). Excellent conversion rates were obtained in all cases. Notably, the alkyl chain lengths of both the alcohol and the fatty acid did not have a significant effect on the conversion. Hence, our investigation shows that [C12Sb][Tos] could be a good candidate for biodiesel production from non-edible oils.
Various BASDILs were synthesized and applied as green catalysts for biodiesel production from FFAs and alcohols. The results indicate that the activity of BASDILs is dependent not only on the properties of the anion, but also on those of the cation. [C12Sb][Tos] exhibited the best catalytic activity and biphasic behavior in the esterification reaction. BASDILs containing a long carbon chain were found to efficiently promote esterification because of a ‘phase transfer’ effect, in which the long carbon chains facilitate mass transfer in the reaction system.
