The products of selective oxidation of aromatic compounds are often used as raw materials and intermediates in chemical industries [1, 2, 3, 4, 5, 6]. For example, naphthol from the oxidation of naphthalene is widely used in medicines, dyes, perfumes, and antioxidants. Currently, naphthol is mainly produced by sulfonation/alkali-fusion from isopropyl naphthalene. However, these methods are time consuming and can produce toxic byproducts that cause environmental pollution. Thus, direct hydroxylation of naphthalene to naphthol has attracted considerable attention [7]. In particular, research has focused on the use of efficient catalysts for this reaction.
Many studies have looked at homogeneous catalysts, such as metalloporphyrins, because of their excellent catalytic activity in the direct hydroxylation of naphthalene [8, 9, 10, 11]. However, homogeneous catalysts are difficult to recycle, which may hinder their practical application. Heterogeneous catalysts, such as mesoporous silica loaded with transition metals, have been investigated for direct catalysis of the hydroxylation of naphthalene, but the final yields are low [12, 13].
Therefore, a heterogeneous catalyst with both high catalytic performance and good reusability needs to be developed. Mesoporous silica, such as MCM-41, is an ideal matrix for the base support material of such a catalyst because it has high specific surface area, appropriate pore size, and large pore volume and its surface is easy to modify.
The aim of this study was to produce a heterogeneous catalyst by immobilizing [5,10,15,20-tetrakis-(pentafluorophenyl) porphyrin] manganese chloride (TF20PPMnCl) on amino- functionalized MCM-41. Various characterization techniques were chosen to confirm anchorage of TF20PPMnCl on the MCM-41 support. In addition, the catalytic activity and reusability of materials in direct hydroxylation of naphthalene with meta-chloroperoxybenzoic acid (m-CPBA) as an oxidant were studied.
Cetyltrimethylammonium bromide, manganese chloride tetrahydrate (MnCl2·4H2O), sodium silicate nonahydrate, ethanol, acetonitrile, toluene, propionic acid, dimethylformamide (DMF), naphthalene, dichloromethane and pyrrole were purchased from Sinopharm Chemical Reagent Co. Ltd (Shanghai, China). Perfluorobenzaldehyde and 3- aminopropyltriethoxysilane (APTES) were purchased from Tokyo TCI (Shanghai) Development Co. Ltd (Shanghai, China). All reagents were of analytical grade. m-CPBA (purity 75%) was purchased from Aladdin (Shanghai, China).
Pure MCM-41 was prepared as reported previously [14]. Typically, 3.64 g of cetyltrimethylammonium bromide and 11.36 g of Na2SiO3·9H2O were dissolved in 100 mL of distilled water at 80 °C. After cooling to room temperature, the solution was adjusted to pH = 9.5 using sulfuric acid (1 mol/L). The obtained gel was transferred to a Teflon stainless autoclave and aged at 100 °C for 3 d. The product was centrifuged and washed with distilled water three times and then with ethanol three times. The sample was calcined at 550 °C for 5 h in a stream of dry air to obtain MCM-41.
According to the literature [15], 40 mL of toluene, 0.3 g of MCM-41, and 0.1 mL of APTES were added to a three-neck round-bottom flask equipped with a magnetic stirrer and a reflux condenser. After stirring in a 70 °C water bath for 12 h, the product was filtered, washed and dried at 60 °C. The product was labeled as N-MCM-41.
The free base porphyrin [5,10,15,20-tetrakis (pentafluorophenyl)porphyrin] (H2TF20PP) was prepared according to an established procedure [16]. For the metallation of H2TF20PP [17], in a three-neck flask, 200 mg of H2TF20PP and 1 g of CH3COONa were dissolved in 100 mL of DMF. Manganese chloride tetrahydrate (20 mmol) was added, and the mixture was refluxed at 80 °C under a nitrogen atmosphere for 2 h. After cooling the resulting solution to room temperature, the product was collected by centrifugation and washed with DMF and water, and the product was labeled as TF20PPMnCl.
Different amounts of TF20PPMnCl were immobilized on the MCM-41 support by controlling the TF20PPMnCl/N-MCM-41 mass ratio at 0.2, 0.3, 0.4, and 0.5. The synthesis of Mn(TF5PP)-MCM-41 was carried out as described previously [18]. Briefly, 0.1 g of N-MCM-41 was dispersed in 20 mL of a mixed solution of dichloromethane and ethanol (1:2, V/V) containing a set amount of TF20PPMnCl. The solution was stirred for 24 h in 50 °C water bath equipped with magnetic stirrer and a reflux condenser. Finally, the product was isolated by filtration and washed with ethanol several times to obtain the catalyst Mn(TF5PP)-MCM-41. For the TF20PPMnCl/N-MCM-41 mass ratios of 0.2, 0.3, 0.4, and 0.5, the products were labeled as x-Mn(TF5PP)-MCM-41, where x = 2, 3, 4, or 5, respectively.
X-ray powder diffraction (XRD) patterns were recorded on a Bruker AXS D8 Advance (Billerica, MA) powder diffractometer with Ni filtered Cu Kα radiation (λ = 0.154178 nm).
Nitrogen adsorption/desorption measurements were carried out at 196 °C on a Micromeritics ASAP-2000 (Norcross, GA). Before the measurements, the calcined samples were outgassed under vacuum at 100 °C for 4 h. The specific surface area and the pore size distribution were calculated by the Brunauer-Emmet-Teller (BET) and Barrett-Joyner-Halenda methods, respectively.
Fourier transform infrared (FT-IR) spectra of the samples were obtained in the range 400-4000 cm−1 with powders dispersed in KBr using a Bruker VECTOR 22 spectrometer.
X-ray photoelectron spectroscopy (XPS) was conducted on a PHI 5000 Versa Probe spectrometer (Physical Electronics, Chanhassen, MN) with Al Kα radiation (1486.6 eV). The C 1s peak at 284.6 eV was used as the reference for binding energy.
Field emission scanning electron microscopy images of the samples were recorded using a Hitachi S4800 (Tokyo, Japan).
Diffuse reflectance ultraviolet-visible (UV-Vis) spectra of the samples were obtained in the range of 200-800 nm by a Perkin-Elmer Lambda 35 spectrometer.
Thermogravimetric and differential scanning calorimetry (TG-DSC) patterns were obtained using a Hitachi TGA integrated thermal differential thermal analyzer (simultaneous thermal analyzer,EXSTAR TG/DTA7000).
Manganese contents in the catalysts were measured using a Jarrell-Ash 1100 inductively coupling plasma mass spectrometer.
Hydroxylation of naphthalene was carried out with 1 g of naphthalene, 20 mL of dichloromethane, 20 mL of acetonitrile, 0.1 g of catalyst, and 1.35 g of m-CPBA. After 4 h at 30 °C, the products were analyzed by an SP-6890 gas chromatograph (Lunan Ruihong Chemical Instrument Co. Ltd, Lunan, China) with an SE-54 capillary column (0.32 mm × 30 m). The conversion and selectivity were calculated by the internal standard method with 1,2-dimethoxybenzene.
To investigate reuse of the Mn(TF5PP)-MCM-41, the solid catalyst was separated from the reaction mixture by centrifugation and used again in a new reaction.

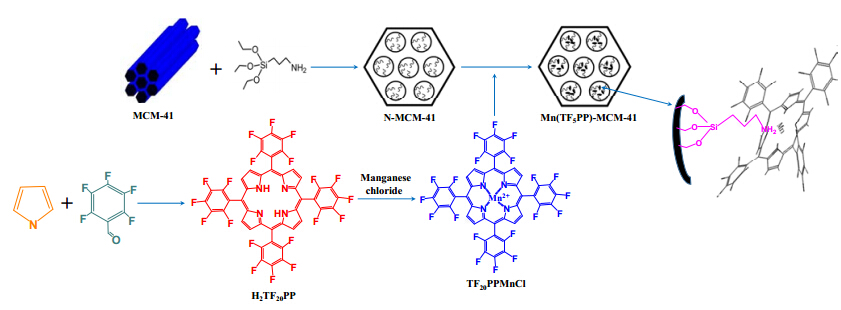

Scheme 1 shows the procedure for immobilizing TF20PPMnCl on APTES modified MCM-41. First, N-MCM-41 was prepared by reaction of APTES with MCM-41. In the next step, TF20PPMnCl was reacted with N-MCM-41, and this resulted in axial coordination to provide the catalyst.

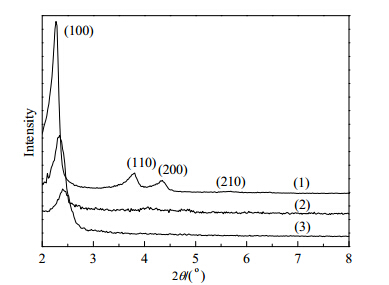

Fig. 1 shows the small-angle XRD patterns of some samples. The (100) diffraction peak at 2θ = 2°-3° indicated that all the samples exhibited the characteristics of a typical mesoporous structure. As for pure MCM-41, three weak peaks ascribed to (110), (200), and (210) reflections confirmed a highly-ordered two-dimensional hexagonal (p6mm) structure [19]. The peaks of N-MCM-41 and 5-Mn(TF5PP)-MCM-41 were weaker and broader than those of the matrix MCM-41, which demonstrated that the long-range order in the mesoporous material decreased with addition of APTES and TF20PPMnCl. Meanwhile, the (100) reflection peak shifted to a higher 2θ value, revealing a decrease in the d100 spacing, which may be caused by the organic compounds on the surface of MCM-41. Although the (110), (200), and (210) peaks were unable to be identified because of their low intensity, the existence of (100) diffraction peaks of N-MCM-41 and 5-Mn(TF5PP)-MCM-41 revealed that the mesophase of the host materials was still maintained.

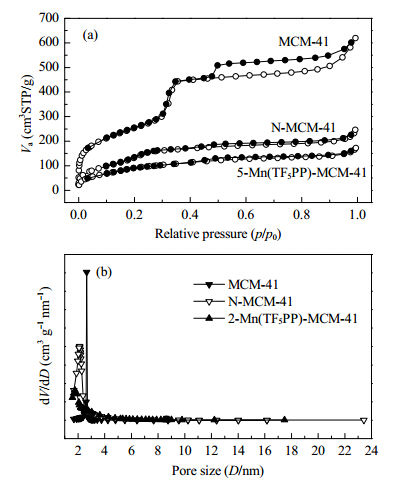

The N2 adsorption/desorption isotherms and pore size distributions of MCM-41, N-MCM-41, and 2-Mn(TF5PP)-MCM-41 are shown in Fig. 2. Pure MCM-41 exhibited a typical IV isotherm with an H1 hysteresis loop. A steep increase in the absorption volume at relative pressures (p/p0) ranging from 0.2 to 0.4 indicated that the sample had a highly ordered mesoporous structure. The N2 adsorption volumes of N-MCM-41 and 2-Mn(TF5PP)-MCM-41 decreased sharply, and the capillary condensation step shifted to a lower relative pressure, which indicated a gradual decrease in the pore size. Some structural parameters of the samples are summarized in Table 1. Compared with MCM-41, the N-MCM-41 and 2-Mn(TF5PP)-MCM-41 samples exhibited relatively low BET surface areas and pore volumes. Moreover, it should be noted that the pore size showed a significant decrease from 2.65 nm for MCM-41 to 2.17 nm for N-MCM-41 and 1.77 nm for 2-Mn(TF5PP)-MCM-41 (Fig. 2(b)). This decrease in pore size supports the small-angle XRD results (Section 3.1). These observations confirm that APTES and TF20PPMnCl were successfully incorporated into the substrate MCM-41.

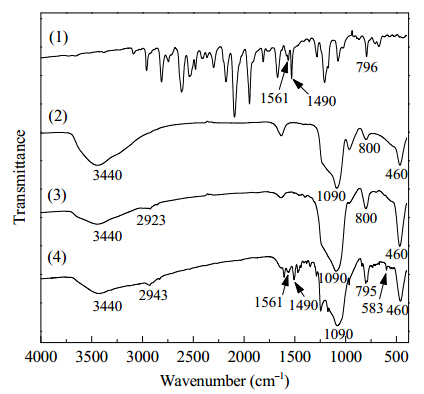

The FT-IR spectra of TF20PPMnCl, MCM-41, N-MCM-41, and 5-Mn(TF5PP)-MCM-41 are shown in Fig. 3. The peaks at around 1090 (shoulder at 1250) and 800 cm−1 could be attributed to asymmetric and symmetric stretching vibrations of Si-O, respectively. The broad band at approximately 3400 cm−1 could be attributed to the stretching vibration of surface O-H. For N-MCM-41, the peak around 2923 cm−1 was assigned to the stretching vibration of CH2. The intensity of the peak at 800 cm−1 increased for N-MCM-41 compared to MCM-41, which was attributed to the emergence of an out-plane bending vibration of N-H in N-MCM-41 [20]. Based on these findings, we concluded that APTES was successfully grafted on MCM-41.
In the spectrum of 5-Mn(TF5PP)-MCM-41, absorption peaks were observed at 1561 and 1490 cm−1. According to Zhu et al. [17], these two peaks are caused by the vibrations of C=N and C=C. Therefore, these results indicated that the porphyrin tetrapyrrole ring is anchored on the surface of the mesoporous silica. The red shift of the out-of-plane bending vibration of N-H from 800 to 795 cm−1 could be ascribed to a decrease in the electron density of N resulting from the coordination of N and Mn atoms. The additional band at 583 cm−1 could be attributed to Mn-N vibration because of axial coordination between Mn and N atoms [21, 22].

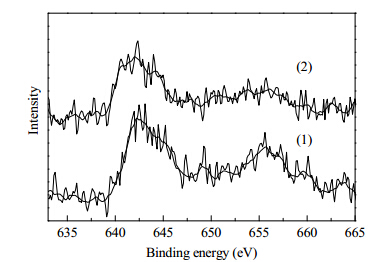

The Mn 2p XPS spectra of the samples are shown in Fig. 4. A peak centered at 642.1 eV was observed for TF20PPMnCl, which was in accordance with the binding energy of Mn 2p3/2 reported for Mn(III) porphyrins [23]. Meanwhile, a peak centered at 642.4 eV was observed for 5-Mn(TF5PP)-MCM-41. The slight shift (0.3 eV) demonstrated the difference in the coordination environment of the Mn atoms, which seemed to indicate axial coordination of manganese porphyrins with -NH2 grafted on the mesoporous MCM-41.
Fig. 5 shows SEM images for MCM-41 and 5-Mn(TF5PP)- MCM-41. Compared with MCM-41, 5-Mn(TF5PP)- MCM-41 had an irregular surface, possibly because of the formation of organic species on the surface of the catalyst. This observation may support the FT-IR results.

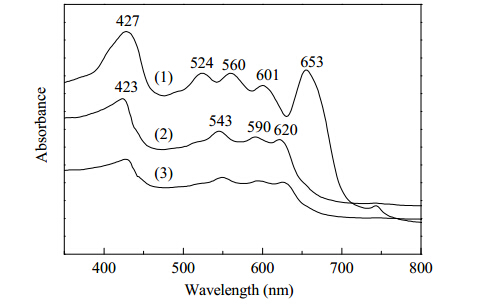

Diffuse reflectance UV-Vis spectra of H2TF20PP, TF20PPMnCl and 5-Mn(TF5PP)-MCM-41 are shown in Fig. 6. The UV-Vis absorption bands of porphyrins are attributed to electronic transitions from the ground state (S0) to the two lowest singlet excited states, S1 (Q state) and S2 (Soret state) [24]. The S0→S1 transition exhibits weak Q bands in the visible light region, while the S0→S2 transition produces a strong Soret band in the near UV region [25, 26]. In Fig. 5, H2TF20CPP showed a Soret band at 427 nm and four Q bands at 524, 560, 601, and 653 nm, which correspond to four characteristic absorptions of the transitions Qx(0,0), Qx(0,1), Qy(0,0), and Qy(0,1), respectively. For TF20PPMnCl, when Mn ions were anchored to the tetrapyrrole ring of the porphyrins, the symmetry of the molecule was changed from D2h to D4h [27]. Accordingly, the absorption spectra were also altered to some extent. Moreover, because of coordination between Mn and porphyrins, the fourth Q band (653 nm) disappeared while the other three Q bands became weaker and red shifted.
The spectrum of 5-Mn(TF5PP)-MCM-41 was similar to that of TF20PPMnCl, indicating that the structure of the manganese porphyrin did not alter after incorporation into the composite system.

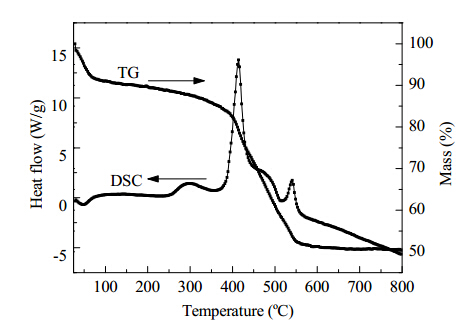

TG-DSC was conducted quantitatively to evaluate the content of the modifiers (Fig. 7). Several maxima were observed in the obtained DSC curve. The first change in the curve between 50 to 100 °C was assigned to removal of physically adsorbed water on the surface; this corresponded to an approximately 10% mass loss. Additional mass losses centered at 300, 425, and 542 °C were observed, which were attributed to elimination of surface bound organic groups. The results also indicated that the Mn(TF5PP)-MCM-41 catalysts were thermally stable up to 300 °C.
The catalytic activity of Mn(TF5PP)-MCM-41 catalysts with different Mn contents was evaluated in the hydroxylation of naphthalene using m-CPBA as the oxidant. The results in Table 2 demonstrated that increasing the loading of manganese porphyrin led to an increase in the catalytic activity of the material. The best overall result was obtained with 5-Mn(TF5PP)- MCM-41, which gave a maximum yield of 22.5% for 1-naphthol. Compared with other heterogeneous catalysts from earlier studies, the heterogeneous manganese porphyrins catalysts from the present study showed relatively high catalytic activity. This may be attributed to the unique catalytic process of the Mn(TF5PP)-MCM-41 catalyst. In aprotic solutions, manganese porphyrins are oxidized to manganese peroxy complexes (TF5PP)MnOOAr, which react with substituted sites on the naphthalene ring. During this reaction, manganese porphyrins play a role in transferring oxygen. The presence of fluorine substituents may lead to higher stability of manganese porphyrins and reduce over-oxidation. Meanwhile, fluorine substituents can reinforce the redox potential of manganese porphyrins and improve the catalytic activity [28].
Compared with homogeneous manganese porphyrin catalysts, Mn(TF5PP)-MCM-41 showed relatively low catalytic activity. This could be explained by the axial coordination between Mn ions and NH2- reducing the possibility of collisions between reactants and active metal ions [29]. However, the heterogeneous manganese porphyrin catalyst exhibited good reusability. As shown in recycling tests (Table 3), Mn(TF5PP)- MCM-41 showed high conversion and selectivity without observable leaching of the complex (Mn/Si mole ratio after five runs was 0.0072). The obtained catalytic results highlight the potential of the synthesized Mn(TF5PP)-MCM-41 as a catalyst for the catalytic oxidation of naphthalene in a heterogeneous system.
A catalyst was constructed by immobilizing manganese porphyrins on amino-functionalized MCM-41. The catalytic activity of this material could be changed by altering the amounts of metalloporphyrin immobilized on the MCM-41. Compared with existing homogeneous manganese porphyrins systems, the produced catalyst showed better stability and comparable catalytic activity. It gave much higher naphthalene conversion than other heterogeneous catalysts. The catalyst could be reused more than five times without obvious loss in its activity and selectivity.
