The coumarin moiety is an important structural motif in natural products and highly bioactive compounds. Coumarin-containing compounds exhibit broad biological activity with, for example, antioxidant, anticoagulant, antifungal, anthelmintic, cytotoxic or hypnotic properties ^{[1, 2, 3, 4, 5, 6, 7, 8, 9, 10]}. Because of their fluorescent properties, coumarins are also widely applied as agrochemicals; used in optical brighteners, cosmetics and food; and employed as scattered fluorescent and disciplined laser-dye optical agents ^{[11, 12]}. Chalcones, one of the major classes of natural products prevalent in fruits, vegetables, spices and soy-based foodstuffs, have been reported to have several biological properties ^{[13, 14]}. The chalcone moiety imparts biological activity upon the molecule, giving it, for example, anti-inflammatory ^[15], antifungal ^[16], antioxidant ^[17], antimalarial ^[18], antituberculosis ^[19], analgesic ^[20], anti-HIV ^[21] and antitumor ^[22] properties. Linking coumarins to pyrazoline rings may lead to compounds with important properties, as pyrazoline itself shows anti-inflammatory, antidiabetic, anesthetic, analgesic, and other potent selective activity, such as behavior as a nitric oxide synthase (NOS) inhibitor or a cannabinoid CB1 receptor antagonist ^[23].

Multi-component reactions (MCRs) are processes in which three or more reactants are joined in a single step to produce products that combine substantial portions of all the reactants ^{[24, 25, 26, 27]}. In recent years, MCRs have unfolded as a powerful tool for creating the substructures of novel and complex molecules due to their advantages over traditional multi-step synthesis. The major advantages of MCRs include their lower cost, shorter reaction time and high atom economy, lower energy requirements, and the avoidance of time consuming and expensive purification processes. MCRs are generally more eco-friendly than traditional syntheses, and offer fast access to wide libraries of compounds with different functionalities ^{[28, 29, 30, 31, 32]}. During recent years, Bi(III) salts have caught the attention of synthetic organic chemists as effective catalysts because of their low toxicity, eco friendliness, ease of handling, low cost and relative insensitivity to air and moisture ^{[33, 34, 35, 36, 37, 38]}. Among the Bi(III) salts, bismuth triflate [Bi(OTf)₃] is the most efficient catalyst, and is particularly attractive because it is commercially available or easily prepared from commercially available starting materials ^{[39, 40, 41, 42, 43, 44, 45, 46]}.

One of my aims in recent years has been the development of new tools and methodologies for the synthesis of heterocyclic compounds using an efficient catalyst. Following this aim I designed hybrid molecules based on naturally occurring compounds, coumarin-chalcone moieties and coumarines linked to pyrazolines, using multi-component reaction techniques in the presence of a catalytic amount (5 mol%) of the green catalyst Bi(OTf)₃.

All melting points were recorded on a Melt-Temp II melting point apparatus. IR spectra were measured as KBr pellets on a Shimadzu DR-8001 spectrometer. ¹H NMR spectra were recorded on a Bruker DRX 300 or 400 MHz spectrometer using TMS as an internal reference and DMSO-d6 or CDCl₃ as the solvent. The purity of all compounds was checked on thin layer chromatography (TLC) plates. All the synthesized compounds were prepared according to the method described by Sugino et al. ^[47] and Bhatnagar et al. ^[48]. Confirmation of the proposed structures of all prepared compounds by IR, ¹HNMR and ¹³C NMR spectroscopy are also reported.

Method A

In a 50 mL round bottom flask, salicylaldehyde 1 (1 mmol), methyl acetoacetate or ethyl acetoacetate 2 (1 mmol) and aromatic aldehyde 3 (1 mmol) were mixed in the presence of Bi(OTf)₃ (5 mol%) in dichloromethane (DCM, 5 mL). The reaction mixture was stirred at 50 °C for a specified time. The progress of the reaction was monitored by TLC. The products precipitated rapidly after 15 to 30 min (see Table 2). The solid material was filtered off, washed with water, dried, and recrystallized from ethanol to furnish pure 3-cinnamoylcoumarin derivatives (5a-5n).

Method B

First step: Synthesis of 3-acetylcoumarin (4)

A mixture of salicylaldehyde (1 eq.), methyl acetoacetate or ethyl acetoacetate (1 eq.) and a few drops of piperidine were stirred at room temperature without any solvent. Precipitation occurred immediately. The compound was then recrystallized from ethanol ^[47]. Yield 89%; M.P. 119-121 °C; ¹H NMR (300 MHz, CDCl₃, δ/ppm) 8.34 (s, 1H), 7.54-7.42 (m, 2H), 7.26-7.12 (m, 2H), 2.56 (s, 3H).

Second step: Synthesis of 5a-5n

A mixture of 3-acetylcoumarin 4 (1 eq.) and the corresponding aldehyde (1.2 eq.) were mixed in the presence of Bi(OTf)₃ (5 mol%) in DCM (5 mL). The reaction mixture was stirred at 50 °C for a specified time. The progress of the reaction was monitored by TLC. The products precipitated slowly after 4 h. The solid material was filtered off, washed with water, dried, and recrystallized from ethanol.

1-(3'-Coumarinyl)-3-phenyl-2-propen-1-one (5a). Yield 89%; M.P. 180-182 °C; IR (KBr, cm⁻¹): 3037 (Ar, C-H str), 2968 (alkane, C-H str), 1714 (C=O), 1683 (C=O), 1610 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.61 (s, 1H, C-H), 7.90 (d, 1H, =CH), 7.71-7.54 (m, 4H, coumarin), 7.419-7.266 (m, 5H, Ar-H), 6.87 (d, 1H, =C-H); ¹³C NMR (CDCl₃, δ/ppm): 196.52, 161.23, 153.22, 147.36, 138.69, 133.25, 132.00, 130.78, 129.89, 129.14, 128.55, 127.19, 124.74, 124.10, 122.05, 114.36; Anal. Calc. for C₁₈H₁₂O₃ (276.29): C 78.25%, H 4.38%; Found: C 78.17%, H 4.28%.

1-(3'-Coumarinyl)-3-(4″-methoxyphenyl)-2-propen-1-one

(5b). Yield 91%; M.P. 140-142 °C; IR (KBr, cm⁻¹): 3052 (Ar, C-H str), 1705 (C=O), 1681 (C=O), 1604 (C=C str), 1612 (C=C ); ¹H NMR (CDCl₃, δ/ppm): 8.54 (s, 1H, C-H), 7.80 (d, 1H, =C-H), 7.68-7.63 (m, 4H, coumarin), 7.44-7.21(m, 4H, Ar-H), 6.91 (d, 1H, =C-H), 2.74 (s, 3H, O-CH₃); ¹³C NMR (CDCl₃, δ/ppm): 190.12, 162.20, 161.54, 154.79, 147.30, 138.89, 131.88, 130.07, 130.78, 128.84, 128.04, 127.14, 124.80, 124.09, 122.08, 114.36, 55.20; Anal. Calc. for C₁₉H₁₄O₄ (306.32): C 74.50%, H 4.61%; Found: C 74.44%, H 4.58%.

1-(3'-Coumarinyl)-3-(4″-chlorophenyl)-2-propen-1-one

(5c). Yield 96%; M.P. 188-190 °C; IR (KBr, cm⁻¹): 3031 (Ar, C-H str), 1715 (C=O), 1679 (C=O); 1610 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.59 (s, 1H, C-H), 7.98 (d, 1H, =C-H), 7.67-7.52 (m, 4H, coumarin), 7.41-7.26 (m, 4H, Ar-H), 6.84 (d, 1H, =C-H); ¹³C NMR (CDCl₃, δ/ppm): 194.50, 162.20, 154.77, 147.47, 138.78, 135.54, 134.11, 130.78, 129.98, 129.41, 128.05, 127.84, 124.64, 124.09, 122.07, 114.62; Anal. Calc. for C₁₈H₁₁O₃Cl (310.74): C 69.58%, H 3.57%, Cl 11.41%; Found: C 69.55%, H 3.59%, Cl 11.09%.

1-(3'-Coumarinyl)-3-(2″-chlorophenyl)-2-propen-1-one

(5d). Yield 89%; M.P. 204-206 °C; IR (KBr, cm⁻¹): 3054 (Ar, C-H str), 1721 (C=O), 1684(C=O), 1610 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.61 (s, 1H, C-H), 7.96 (d, 1H, =C-H), 7.70-7.65 (m, 4H, coumarin), 7.45-7.26 (m, 4H, Ar-H), 6.26 (d, 1H, =C-H); ¹³C NMR (CDCl₃, δ/ppm): 193.41, 162.13, 154.77, 143.44, 138.58, 134.04, 133.57, 130.87, 130.08, 129.94, 128.76, 128.14, 127.84, 127.04, 124.71, 124.13, 122.06, 114.60; Anal. Calc. for C₁₈H₁₁O₃Cl (310.74): C 69.58%, H 3.57%, Cl 11.41%; Found: C 69.55%, H 3.59%, Cl 11.09%.

1-(3'-Coumarinyl)-3-(4″-hydroxyphenyl)-2-propen-1-one

(5e). Yield 91%; M.P. 176-178 °C; IR (KBr, cm⁻¹): 3389 (OH), 3038 (Ar, C-H), 1702 (C=O), 1689 (C=O), 1612 (C=C); ¹H NMR (CDCl₃, δ/ppm): 9.73 (s, 1H, OH), 8.67 (s, 1H,C-H), 7.95 (d,1H, =C-H), 7.77-7.60 (m, 4H, coumarin), 7.50-7.32 (m, 4H, Ar-H), 6.86 (d, 1H, =C-H); ¹³C NMR (CDCl₃, δ/ppm): 189.18, 162.38, 161.74, 154.77, 147.32, 138.30, 131.54, 130.04, 128.17, 127.79, 127.09, 124.64, 124.09, 122.07, 116.41, 114.62; Anal. Calc. for C₁₈H₁₂O₄ (292.29): C 73.97%, H 4.14%; Found: C 73.81%, H 4.11%.

1-(3'-Coumarinyl)-3-(2″-hydroxyphenyl)-2-propen-1-one

(5f). Yield 90%; M.P. 78-79 °C; IR (KBr, cm⁻¹): 3412 (OH str), 3041 (Ar, C-H), 1712 (C=O), 1680 (C=O), 1610 (C=C); ¹H NMR (CDCl₃, δ/ppm): 9.67 (s, 1H, OH), 8.76 (s, 1H, C-H), 7.75 (d, 1H, =C-H), 7.48-7.42 (m, 4H, coumarin), 7.10-6.93 (m, 4H, Ar-H), 6.64 (d, 1H, =C-H); ¹³C NMR (CDCl₃, δ/ppm): 191.47, 162.10, 154.79, 143.04, 138.78, 134.14, 133.47, 130.37, 130.08, 129.91, 128.74, 128.14, 127.84, 127.04, 124.71, 124.13, 122.06, 114.62; Anal. Calc. for C₁₈H₁₂O₄ (292.29): C 73.97%, H 4.14%; Found: C 73.81%, H 4.11%.

1-(3'-Coumarinyl)-3-(2″-furyl)-2-propen-1-one (5g). Yield 89%; M.P. 101-103 °C; IR (KBr, cm⁻¹): 3037 (Ar, C-H), 1716 (C=O), 1680 (C=O), 1608 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.58 (d, 1H, =C-H), 7.83 (d, 1H, =C-H), 7.70-7.60 (m, 4H, coumarin), 7.45-7.34 (m, 3H, furyl), 6.85 (d, 1H, =C-H); ¹³C NMR (CDCl₃, δ/ppm): 188.40, 162.65, 154.79, 151.32, 145.00, 138.84, 133.40, 130.07, 127.69, 125.61, 125.04, 124.54, 122.44, 120.32, 114.74, 106.47; Anal. Calc. for C₁₆H₁₀O₄ (266.25): C 72.18%, H 3.79%; Found: C 72.01%, H 3.61%.

1-(3'-Coumarinyl)-3-(2″,4″,6″-trimethoxyphenyl)-2-propen-1-one (5h). Yield 89%; M.P. 158-160 °C; IR (KBr, cm⁻¹): 3045 (Ar, C-H ), 1720 (C=O), 1680 (C=O), 1610 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.61 (s, 1H, C-H), 7.89 (d, 1H, =C-H), 7.78-7.60 (d, 4H, coumarin), 7.44-7.32 (s, 2H, Ar-H), 6.92 (d, 1H, =C-H), 3.94 (s, 9H, 3OCH₃); ¹³C NMR (CDCl₃, δ/ppm): 189.10, 162.38, 161.74, 161.05, 154.78, 147.29, 138.82, 130.04, 127.65, 126.78, 124.64, 124.19, 122.04, 114.66, 105.27, 90.81, 55.64, 55.18; Anal. Calc. for C₂₁H₁₈O₆ (366.37): C 68.85%, H 4.95%; Found: C 68.80%, H 4.91%.

1-(3'-Coumarinyl)-3-(3″,5″-dimethoxyphenyl)-2-propen-1-one (5i). Yield 88%; M.P. 147-149 °C; IR (KBr, cm⁻¹): 3026 (Ar, C-H), 1722(C=O), 1685 (C=O), 1606 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.61 (s, 1H, C-H), 7.89 (d, 1H, =C-H), 7.78-7.60 (d, 4H, coumarin), 7.44-7.36 (s, 3H, Ar-H), 6.84 (d, 1H, =C-H), 3.90 (s, 6H, 2OCH₃);¹³C NMR (CDCl₃, δ/ppm): 188.19, 162.65, 161.45, 154.84, 147.58, 138.83, 137.33, 130.04, 128.08, 127.69, 124.78, 124.14, 122.02, 114.74, 109.81, 100.04, 55.63; Anal. Calc. for C₂₀H₁₆O₅ (336.34): C 71.42%, H 4.79%; Found: C 71.50%, H 4.63%.

1-(3'-Coumarinyl)-3-(4″-dimethylaminophenyl)-2-propen-1-one (5j). Yield 89%; M.P. 108-110 °C; IR (KBr, cm⁻¹): 3035 (Ar, C-H), 1714 (C=O), 1681 (C=O), 1606 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.58 (s, 1H, C-H), 7.92 (d, 1H, =C-H), 7.77-7.66 (m, 4H, coumarin), 7.66 (d, 2H, Ar-H), 7.44 (d, 1H, =C-H), 6.72 (d, 2H, Ar-H), 3.07 (s, 6H, 2CH₃); ¹³C NMR (CDCl₃, δ/ppm): 188.51, 162.65, 154.77, 151.10, 147.23, 138.83, 131.29, 130.04, 128.07, 127.78, 124.64, 124.54, 123.47, 122.02, 114.71, 112.02, 39.71; Anal. Calc. for C₂₀H₁₇NO₃ (319.36): C 75.22%, H 5.37%, N 4.39%; Found: C 75.02%, H 5.29%, N 4.20%.

1-(3'-Coumarinyl)-3-(4″-fluorophenyl)-2-propen-1-one

(5k). Yield 88%; M.P. 171-173 °C; IR (KBr, cm⁻¹): 3031 (Ar, C-H), 1718 (C=O), 1666 (C=O), 1612 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.59 (s, 1H, C-H), 7.98 (d, 1H, =C-H), 7.67-7.52 (m, 4H, coumarin), 7.41-7.26 (m, 4H, Ar-H), 6.84 (d, 1H, =C-H); ¹³C NMR (CDCl₃, δ/ppm): 191.50, 162.20, 154.27, 147.47, 138.38, 135.78, 134.01, 130.78, 129.78, 129.21, 128.07, 127.64, 124.64, 124.06, 122.04, 114.60; Anal. Calc. for C₁₈H₁₁O₃F (295.29): C 73.22%, H 4.10%, F 6.43%; Found: C 73.35%, H 4.03%, F 6.29%.

1-(3'-Coumarinyl)-3-(4″-bromophenyl)-2-propen-1-one

(5l). Yield 89%; M.P. 189-191 °C; IR (KBr, cm⁻¹): 3034 (Ar, C-H), 1710 (C=O),1680 (C=O), 1610 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.57 (s, 1H, C-H), 7.90 (d, 1H, =C-H), 7.71-7.50 (m, 4H, coumarin), 7.40-7.16 (m, 4H, Ar-H), 6.59 (d, 1H,=C-H); ¹³C NMR (CDCl₃, δ/ppm): 190.44, 162.24, 154.27, 147.47, 138.47, 135.66, 134.04, 130.78, 129.78, 129.21, 128.07, 127.64, 124.64, 124.10, 122.02, 114.60; Anal. Calc. for C₁₈H₁₁O₃Br (356.19): C 60.70%, H 3.40%, Br 22.43%; Found: C 60.63%, H 3.98%, Br 22.20%.

1-(3'-Coumarinyl)-3-(4″-nitrophenyl)-2-propen-1-one

(5m). Yield 89%; M.P. 154-156 °C; IR (KBr, cm⁻¹): 3045 (Ar, C-H), 1714 (C=O), 1678 (C=O), 1611 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.74 (s, 1H, C-H), 7.65 (d, 1H, =C-H), 7.55-7.48 (m, 4H, coumarin), 7.37-7.20 (m, 4H, Ar-H), 6.56 (d, 1H, =C-H); ¹³C NMR (CDCl₃, δ/ppm): 190.50, 162.20, 154.27, 147.47, 138.38, 135.78, 134.01, 130.78, 129.78, 129.21, 128.07, 127.64, 124.64, 124.06, 122.04, 114.60; Anal. Calc. for C₁₈H₁₁O₅N (321.29): C 67.29%, H 3.45%, N 4.36%; Found: C 67.31%, H 3.38%, N 4.22%.

1-(3'-Coumarinyl)-3-(3″-nitrophenyl)-2-propen-1-one (5n). Yield 88%; M.P. 205-207 °C; IR (KBr, cm⁻¹): 3030 (Ar, C-H), 1710 (C=O), 1683 (C=O), 1610 (C=C); ¹H NMR (CDCl₃, δ/ppm): 8.97 (s, 1H, C-H), 7.87 (d, 1H, =C-H), 7.65-7.49 (m, 4H, coumarin), 7.44-7.21 (m, 4H, Ar-H), 6.68 (d, 1H, =C-H); ¹³C NMR (CDCl₃, δ/ppm): 188.51, 162.65, 154.84, 149.57, 147.25, 138.89, 138.28, 135.19, 130.88, 130.08, 128.24, 127.67, 125.61, 124.54, 122.02, 121.64, 114.47; Anal. Calc. for C₁₈H₁₁O₅N (321.29): C 67.29%, H 3.45%, N 4.36%; Found: C 67.31%, H 3.38%, N 4.22%.

A mixture of salicylaldehyde 1 (1 mmol), methyl acetoacetate or ethyl acetoacetate 2 (1 mmol), aromatic aldehyde 3 (1 mmol) and hydrazine hydrate 6 (1 mmol) were mixed in the presence of Bi(OTf)₃ (5 mol%) in DCM (5 mL). The reaction mixture was stirred at 50 °C for the specified time (see Table 3). The progress of the reaction was monitored by TLC. After completion of the reaction, the reaction mixture was allowed to stand overnight. The solid material was filtered off, washed with water, dried, and recrystallized from ethanol to furnish pure pyrazolyl coumarin derivatives.

3-(4,5-Dihydro-5-(4-methoxyphenyl)-1H-pyrazol-3-yl)-2H-chromen-2-one (7a). Yield 90%; M.P. 183-185 °C; IR (KBr; cm^-1): 1634 (C=N), 3268 (Ar N-H), 1172 (-OCH3); ¹H NMR (CDCl₃, δ/ppm): 6.72-7.27 (m, 13H, Ar), 7.46 (s, 1H, coumarin), 4.80 (d, 1H, 5-H of pyrazoline), 3.301 (d, 1H, 4-H_trans of pyrazoline), 3.305 (d, 1H, 4-H_cis of pyrazoline), 3.73 (s, 3H, -OCH3); Anal. Calc. for C₁₉H₁₆O₃N₂: C 71.24%, N 8.74%; Found: C 70.68%, N 8.55%.

3-(4,5-dihydro-5-(2-methoxyphenyl)-1H-pyrazol-3-yl)-2H-

chromen-2-one (7b). Yield 88%; M.P. 166-168 °C; IR (KBr; cm^-1): 1554 (C=N), 3245 (ArN-H); ¹H NMR (CDCl₃/DMSO-d6, δ/ppm): 6.72-7.27 (m, 13H, Ar), 7.65 (s, 1H, coumarin), 4.82 (d, 1H, 5-H of pyrazoline), 3.23 (d, 1H, 4-H_trans of pyrazoline), 3.30 (d, 1H, 4-H_cis of pyrazoline), 3.73 (s, 3H, -OCH3); Anal. Calc. for C₁₉H₁₆O₃N₂: C 71.24%, N 8.74%; Found: C 70.85%, N 8.34%.

3-(5-(4-Chlorophenyl)-4,5-dihydro-1H-pyrazol-3-yl)-2H-

chromen-2-one (7c). Yield 95%; M.P. 175-177 °C; IR (KBr; cm^-1): 1622 (C=N), 3282 (ArN-H), 1091 (Ar-Cl); ¹H NMR (CDCl₃/DMSO-d6, δ/ppm): 7.01-7.28 (m, 13H, Ar), 7.40 (s, 1H, coumarin), 5.01 (d, 1H, 5-H of pyrazoline), 3.30 (d, 1H, 4-H_trans of pyrazoline), 3.33 (d, 1H, 4-H_cis of pyrazoline); Anal. Calc. for C₁₈H₁₃ClO₂N₂: C 66.57%, N 8.63%; Found: C 66.43%, N 8.27%.

3-(5-(4-Fluorophenyl)-4,5-dihydro-1H-pyrazol-3-yl)-2H-

chromen-2-one (7d): Yield 91%; M.P. 180-182 °C; IR (KBr; cm^-1): 1634 (C=N), 3268 (Ar N-H), 1042 (Ar C-F); ¹H NMR (CDCl₃/DMSO-d6, δ/ppm): 6.813-7.5 (m, 13H, Ar), 7.49 (s, 1H, coumarin), 4.86 (d, 1H, 5-H of pyrazoline), 3.25 (d, 1H, 4-H_trans of pyrazoline), 3.307 (d,1H, 4-H_cis of pyrazoline); Anal. Calc. for C₁₈H₁₃FO₂N₂. C 70.12%, N 9.09%; Found: C 69.86%, N 9.13%.

3-(5-(4-Bromophenyl)-4,5-dihydro-1H-pyrazol-3-yl)-2H-

chromen-2-one (7e). Yield 89%; M.P. 176-178 °C; IR (KBr; cm^-1): 1623.53 (C=N), 3257 (Ar N-H), 658 (C-Br); ¹H NMR (CDCl₃/DMSO-d6, δ/ppm): 7.01-7.38 (m, 13H, Ar), 7.46 (s, 1H, coumarin), 4.89 (d, 1H, 5-H of pyrazoline), 3.28 (d, 1H, 4-H_trans of pyrazoline), 3.33 (d, 1H, 4-H_cis of pyrazoline); Anal. Calc. for C₁₈H₁₃BrO₂N₂. C 58.56%, N 7.59%; Found: C 59.02%, N 7.11%.

3-(4,5-dihydro-5-(4-nitrophenyl)-1H-pyrazol-3-yl)-2H-chromen-2-one (7f): Yield 86%; M.P. 199-201 °C; IR (KBr; cm^-1): 1558 (C=N), 3234 (Ar N-H), 1519 (Symmt =N-O of NO₂), 1340 (Asymmt =N-O of NO₂); ¹H NMR (CDCl₃/DMSO-d6, δ/ppm): 7.02-8.14 (m, 13H, Ar), 7.46 (s, 1H, coumarin), 4.86 (d, 1H, 5-H of pyrazoline), 3.301 (d, 1H, 4-H_trans of pyrazoline), 3.305 (d, 1H, 4-H_cis of pyrazoline); Anal. Calc. for C₁₈H₁₃O₄N₃: C 64.47%, N 12.53%; Found: C 64.30%, N 12.81%.

3-(4,5-Dihydro-5-(3-nitrophenyl)-1H-pyrazol-3-yl)-2H-

chromen-2-one (7g). Yield 87%; M.P. 189-190 °C; IR (KBr; cm^-1): 1622 (C=N), 3274 (Ar N-H), 1488 (Symmt =N-O of NO₂), 1350 (Asymmt=N-O of NO₂); ¹H NMR (CDCl₃/DMSO-d6, δ/ppm): 6.90-8.07 (m, 13H, Ar), 7.49 (s, 1H, coumarin), 4.86 (d, 1H, 5-H of pyrazoline), 3.30 (d, 1H, 4-H_trans of pyrazoline), 3.33 (d, 1H, 4-H_cis of pyrazoline); Anal. Calc. for C₁₈H₁₃O₄N₃: C 64.47%, N 12.53%; Found: C 64.52%, N 11.98%.

3-(4,5-Dihydro-5-p-tolyl-1H-pyrazol-3-yl)-2H-chromen-2-

one (7h). Yield 90%; M.P. 160-162 °C; IR (KBr; cm^-1): 1620 (C=N), 3284 (ArN-H); ¹H NMR (CDCl₃/DMSO-d6, δ/ppm): 7.00-7.27 (m, 13H, Ar), 7.42 (s, 1H, coumarin), 4.55 (d, 1H, 5-H of pyrazoline), 3.29 (d, 1H, 4-H_trans of pyrazoline), 3.31 (d, 1H, 4-H_cis of pyrazoline), 2.35 (s, 3H, CH₃); Anal. Calc. for C₁₉H₁₆O₂N₂ C 74.98%, N 9.20%; Found: C 73.84%, N 8.56%.

Initially, the synthesized compounds 5a-5n were obtained from the three-component reaction of salicylaldehyde, an α-ketoester (methyl acetoacetate or ethyl acetoacetate) and various aromatic aldehydes in DCM with the addition of a catalytic amount of the green catalyst Bi(OTf)₃ (5 mol%) (Scheme 1).

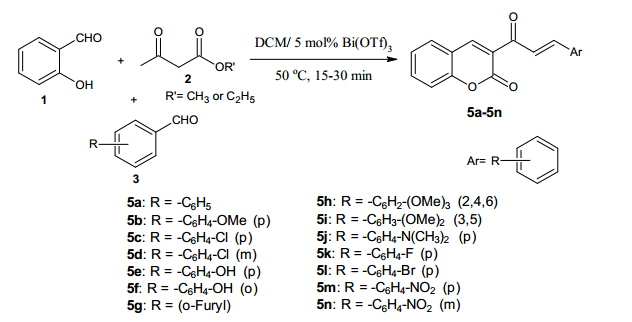

Scheme 1. Synthesis of 3-cinnamoyl coumarin derivatives (5a-5n).

The optimization of the reaction conditions was then studied for 5c. No product was obtained from the reaction of salicylaldehyde, ethyl acetoacetate and 4-chlorobenzaldehyde in the absence of the catalyst at 50 °C in DCM (Table 1, entry 1). The reaction was then performed in the presence of various simple metal complexes such as those of Fe, Zn, Mg and Cu to examine their catalytic activity (Table 1, entries 2-9). Among these metal salts (5 mol%), Bi(OTf)₃ was found to be the most effective catalyst and afforded the desired product 5c in 96% yield (Table 1, entry 11). When using methanol (MeOH), N,N- dimethylformamide (DMF), toluene (PhCH₃) and acetonitrile (CH₃CN) instead of DCM, relatively lower yields were observed (Table 1, entries 16-19). The desired products were rapidly precipitated in good yield on warming for 15-30 min (see Table 2).

Table 1 Optimization of the conditions for the synthesis of 5c. Entry Catalyst (mol%) Conditions Yield * (%) 1 No catalyst DCM, 50 °C, 6 h None 2 FeCl3·6H2O(5) DCM, 50 °C, 15 min 44 3 Fe(OTf)3(5) DCM, 50 °C, 15 min 56 4 ZnBr2(5) DCM, 50 °C, 15 min 51 5 Zn(OTf)2(5) DCM, 50 °C, 15 min 58 6 MgCl2(5) DCM, 50 °C, 15 min 50 7 Mg(OTf)2(5) DCM, 50 °C, 15 min 68 8 CuCl2(5) DCM, 50 °C, 15 min 54 9 Cu(OTf)2(5) DCM, 50 °C, 15 min 66 10 Bi(OTf)3(6) DCM, 50 °C, 15 min 96 11 Bi(OTf)3(5) DCM, 50 °C, 15 min 96 12 Bi(OTf)3(4) DCM, 50 °C, 15 min 90 13 Bi(OTf)3(3) DCM, 50 °C, 15 min 86 14 Bi(OTf)3(2) DCM, 50 °C, 15 min 73 15 Bi(OTf)3(1) DCM, 50 °C, 15 min 64 16 Bi(OTf)3(5) MeOH, 50 °C, 15 min 15 17 Bi(OTf)3(5) DMF, 50 °C, 15 min 56 18 Bi(OTf)3(5) PhCH3, 50 °C, 15 min 44 19 Bi(OTf)3(5) CH3CN, 50 °C, 15 min 62 Reaction conditions: 1 (1 mmol), 2 (1 mmol), 3c (1 mmol) and catalyst (0.05 mmol) in solvent (5 mL). * Isolated yields based on 5c.

Table 1 Optimization of the conditions for the synthesis of 5c.

Table 2 Reaction time for the synthesis of 5a-5n using a one-pot reaction protocol. Compd. Reaction time (min) Compd. Reaction time (min) 5a 22 5h 20 5b 18 5i 30 5c 15 5j 30 5d 25 5k 25 5e 20 5l 25 5f 20 5m 30 5g 20 5n 30

Table 2 Reaction time for the synthesis of 5a-5n using a one-pot reaction protocol.

Compounds 7a-7h were synthesized using a one-pot four-component reaction between salicylaldehyde, an α-ketoester (methyl acetoacetate or ethyl acetoacetate), several aromatic aldehydes and hydrazine hydrate in DCM under the same conditions used for the synthesis of 5. The products were precipitated after cooling for 2-4 h (see Table 3 and Scheme 2).

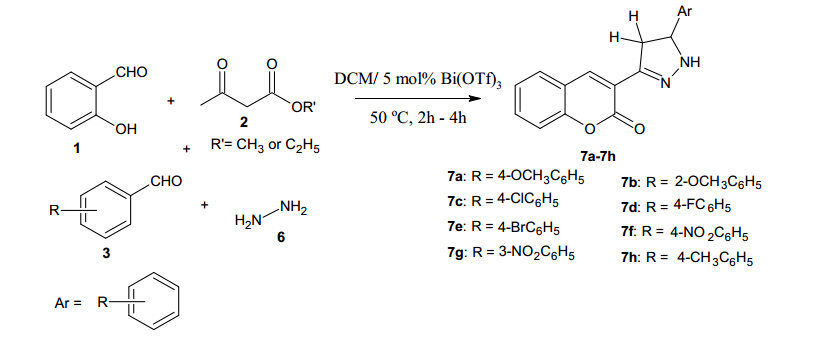

Scheme 2. Synthesis of coumarins linked to pyrazoline.

Table 3 Reaction time for the synthesis of 7a-7h using the one-pot reaction protocol. Compd. Reaction time (h) Compd. Reaction time (h) 7a 3 7e 4 7b 3 7f 3 7c 2 7g 4 7d 2 7h 4

Table 3 Reaction time for the synthesis of 7a-7h using the one-pot reaction protocol.

To gain further insights into the reaction, products 5a-5n were synthesized in two steps. In the first step, the precursor 3-acetylcoumarin 4 was prepared by a Knoevenagel reaction between salicylaldehyde and an α-ketoester (methyl acetoacetate or ethyl acetoacetate) under basic conditions in 89% yield ^{[47, 48]}. In the second step, 4 was reacted with various aromatic aldehydes to give the final products 5a-5n by a Claisen-Schmidt aldolic condensation. Under the same conditions as those used in the one-pot reaction, these reactions take a long time and have low yields. The same result was also seen for products 7a-7h, which wereobtained from coumarin-chalcone compounds with hydrazine hydrate (Scheme 3).

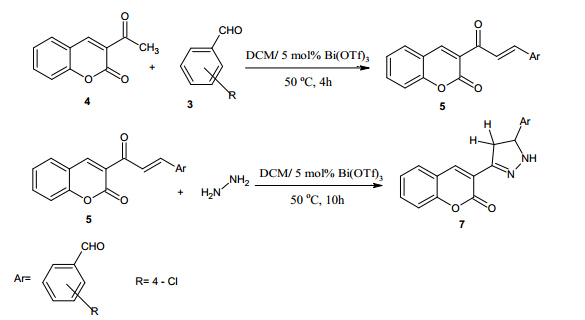

Scheme 3. Control experiments for the synthesis of 5c and 7c in a stepwise reaction.

The 2,2-diphenyl-1-picrylhydrazyl (DPPH) assay was based on the reported method ^{[49, 50]}. A rapid, simple and inexpensive method to measure antioxidant capacity of substances involves the use of the free radical, DPPH. DPPH is widely used to test the ability of compounds to act as free radical scavengers or hydrogen donors. Antioxidants tested on DPPH were also found extremely effective in cell systems. This simple test further provides information on the ability of a compound to donate electrons during antioxidant action ^[51]. The radical scavenging mechanism is based on the transfer of acidic H-atom from the compound to DPPH radical to form DPPH-H.

A DMSO sample of the compounds at 50 μg/mL was diluted to 4 mL using MeOH. To this, 1 mL of DPPH solution in MeOH was added. The mixed solution was incubated at room temperature for 30 min. The absorbance of stable DPPH was determined at 517 nm using UV/Vis spectroscopy, and the remaining amount of DPPH was calculated. Ascorbic acid (50 μg/mL) was used as a standard. The free radical scavenging activity was expressed as follows:

DPPH scavenging activity (%) = [A_c−A_s] / [A_c−A_b] × 100

where A_c,A_s and A_b are the absorbance of the control, the sample and the blank (MeOH+DMSO), respectively. Each sample was assayed at 50 μg/mL and all experiments were carried out in triplicate. The radical scavenging activity is shown in Table 4.

Table 4 DPPH radical scavenging assay of compounds 7a-7h. Compound DPPH scavenging (%) 7a 44.85 ± 0.32 7b 59.29 ± 0.24 7c 36.56 ± 0.37 7d 78.10 ± 0.42 7e 51.23 ± 0.45 7f 28.57 ± 0.31 7g 56.42 ± 0.32 7h 27.30 ± 0.34 Ascorbic acid 94.56 ± 0.34

Table 4 DPPH radical scavenging assay of compounds 7a-7h.

The synthesis of potential bio-active hybrid molecules obtained from naturally occurring coumarin-chalcone moieties and coumarins linked to pyrazoline using Bi(OTf)₃ as a highly efficient catalyst has been achieved using a one-pot multi-component reaction protocol. This method has the advantages of low cost, short reaction time, high atom economy, convenience and efficiency. It also offers a selective approach to the synthesis of coumarins, a structural motif found in a large number of natural products, pharmaceuticals and functionalized materials. Such a selective procedure offers energy saving advantages and reduces the expense of the purification process. The synthesized compounds showed DPPH scavenging activity. Applications of this protocol to the selective synthesis of bioactive molecules are in progress in our research group.

Acknowledgments

The author expresses his deep gratitude to Sohag University in Egypt for supporting and facilitating this study.
