Hydroisomerization of n-alkanes is a valuable reaction, and it is used in industry to improve the octane number of gasoline and upgrade the cold-flow properties of diesel and lubricating oil [1-4]. The rapid expansion of the automobile industry has resulted in continuing growth in the demand for high-octane gasoline. However, the presence of C5-C8 n-alkanes with low octane numbers decreases the quality of gasoline [5]. Therefore, many scientists devoted themselves to developing effective catalysts for converting n-alkanes to the corresponding branched isomers, especially multi-branched isomers [2, 6-10]. Hydroisomerization catalysts contain both a metal site and an acid site, which play important roles in hydrogenation/ dehydrogenation and skeletal isomerization, respectively [11, 12]. Classical hydroisomerization proceeds over bifunctional catalysts via a carbenium ion mechanism [13, 14]: alkanes undergo dehydrogenation at metal sites and generate alkene intermediates, which are protonated at Br nsted acid sites to form alkylcarbenium ions, which undergo rearrangement. Finally, isoalkanes are formed by hydrogenation at the metal sites. The metal sources used in hydroisomerization include noble metals (platinum or palladium) [4, 15-17], nickel [18, 19], and nickel phosphides [20]. The acid sites are usually provided by zeolites. Pt/SAPO-11 can be used for hydroisomerization because it has an appropriate metal activity, moderate acidity, and a suitable pore structure [7, 15, 21]. The catalytic activity and isomer selectivity in hydroisomerization reactions have been improved by modifying the metal component with a second metal [22-25]. Jao et al. [26] studied the effect of adding Ni to a Pt/mordenite catalyst. The formation rate of branched isomers increased when a moderate amount of Ni was added. Based on their experimental results, they suggested that a Ni-Pt bimetallic interaction occurred on the Ni-Pt catalyst. Yoshioka et al. [27] prepared Ni-Pt/HUSY catalysts and assessed them in n-hexane isomerization. They suggested that the presence of Pt promoted reduction of the Ni-containing catalyst. The Ni-Pt catalysts showed less deactivation and much higher activities than did Ni catalysts. Liu et al. [28] reported that modification of Pt/SAPO-11 with rare earths increased platinum dispersion and increased the catalytic activity and isomer yields. In our previous work, we investigated Sn-modified Pt/SAPO-11 catalysts in the isomerization of n-dodecane. We found that the isomer selectivities of Sn-modified catalysts were higher than that of Pt/SAPO-11 [29]. Saberi et al. [30-32] reported that zinc-modified Pt/HY catalysts had high selectivities for mono-branched heptane at low reaction temperatures (210-255 ℃) and high zinc loadings 2.0%-16.5%. They proposed the concept of a triangular site configuration to explain the role of zinc. However, there have been few reports of the use of modified Pt/SAPO-11 catalysts with zinc loadings less than 1% at high reaction temperatures (above 300 ℃).
In the present work, we prepared a series of zinc-modified Pt/SAPO-11 catalysts and assessed them in the hydroisomerization of n-octane. For comparison, an unmodified Pt/SAPO-11 catalyst was prepared and assessed. The catalyst with a zinc loading of 0.5% gave the maximum isomerization selectivity to dimethylhexanes (DMHs). The effects of zinc on the active metal sites, acid sites, and isooctane selectivity are discussed.
SAPO-11 was synthesized hydrothermally as follows. Pseudoboehmite (72.8 wt% Al2O3, Yantai Henghui Chemical Co., Ltd.; 13.35 g) was added to deionized water (49.25 g) under stirring. Phosphoric acid (85 wt%, Sinopharm Chemical Reagent Co., Ltd.; 21.97 g) diluted with deionized water (21.11 g) was added dropwise, and the mixture was stirred for 4 h. Di-n-propylamine (DPA; 98 wt%, Sinopharm Chemical Reagent Co., Ltd.; 11.58 g) was slowly added and stirring was continued for 2 h. A silica sol (30 wt% SiO2, Qingdao Haiyang Chemical Co., Ltd.; 5.73 g) was added to the mixture and stirring was continued for 2 h. The molar ratios of the components in the resulting gel were 1.0 Al2O3:1.0 P2O5:0.3 SiO2:1.2 DPA:45 H2O. The gel was placed in a Teflon-lined stainless-steel autoclave equipped with a magnetic stirrer, and crystallized at 200 ℃ for 24 h in dynamic mode. The product was separated by centrifugation and washed with deionized water to neutral pH, dried at 120 ℃ for 12 h, and calcined in air at 600 ℃ for 6 h to remove the template.
The calcined SAPO-11 powder was molded using a tablet press, and crushed to 20-40 mesh. The Pt/SAPO-11 catalyst was prepared by incipient wetness impregnation with H2PtCl6 (AR, Sinopharm Chemical Reagent Co., Ltd.) solution. The catalyst was dried at 120 ℃ for 2 h and calcined in air at 400 ℃ for 4 h. The final catalyst contained 0.5 wt% platinum. Zinc- modified Pt/SAPO-11 catalysts were prepared analogously, except that the impregnation liquid was a mixture of Zn (NO3)2 (AR, Sinopharm Chemical Reagent Co., Ltd.) and H2PtCl6 solutions. The obtained catalysts were denoted by PtxZn/SAPO-11, where x is the Zn loading.
Powder X-ray diffraction (XRD) patterns of the samples were obtained using an X'Pert PRO MPD diffractometer (PANalytical B.V., The Netherlands) with Cu Kα radiation (λ=0.15406 nm), operated at 40 kV and 40 mA. Data were collected in the 2θ range 5°-60° at a scanning speed of 10°/min.
Scanning electron microscopy (SEM) images of the sample were obtained using an S-4800 instrument (Hitachi, Japan) operated at 5 kV. Before the observations, the samples were sputtered with metal to reduce charging effects.
Nitrogen adsorption-desorption measurements were performed using an ASAP 2020 instrument (Micromeritics, USA) at-196 ℃. Prior to the measurements, all samples were degassed at 350 ℃ for 3 h under vacuum.
Pyridine-adsorbed infrared (Py-IR) spectra were recorded using a VERTEX 70 instrument (Bruker, Germany). Prior to analysis, the samples were placed in an in situ IR cell, degassed at 400 ℃ for 2 h, and cooled to room temperature. Pyridine was introduced into the cell under vacuum, and weakly adsorbed pyridine molecules were removed at 120 ℃ for 2 h. The IR spectra were recorded at a resolution of 4 cm-1 and 64 scans were performed.

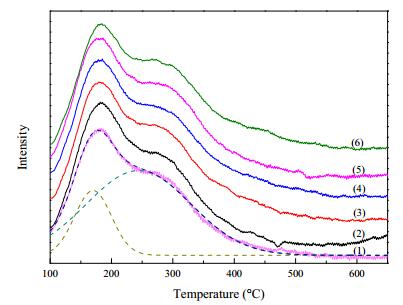

Temperature-programmed desorption of NH3 (NH3-TPD) was performed using an AutoChem 2950 HP instrument (Micromeritics, USA). The dried samples (0.1 g) were placed in a quartz reactor and pretreated at 600 ℃ in a helium flow for 2 h. The temperature was deceased to 100 ℃, and then 10 vol% NH3 in helium was introduced at a flow rate of 50 cm3/min for 1 h. After NH3 adsorption, the samples were purged with a helium flow for 1 h to remove physically adsorbed NH3. Desorption of NH3 was performed in the range 100-700 ℃ under a helium flow at a heating rate of 10 ℃/min.
Temperature-programmed reduction with H2 (H2-TPR) was performed using a ChemBET 3000 Chemisorption Analyzer (Quantachrome, USA). The dried samples (0.2 g) were placed in a quartz reactor. The samples were heated from 50 to 800 ℃ at a heating rate of 10 ℃/min under a flow of 10 vol% H2 in argon.
Temperature-programmed desorption of H2 (H2-TPD) was performed using the same instrument as for NH3-TPD. The dried samples (0.2 g) were reduced at 450 ℃ in a flow of 10 vol% H2 in argon for 2 h, and then H2 was adsorbed on the samples at 50 ℃ for 1 h. The adsorbed H2 was desorbed in the range 50-650 ℃ under an argon flow at a heating rate of 10 ℃/min.

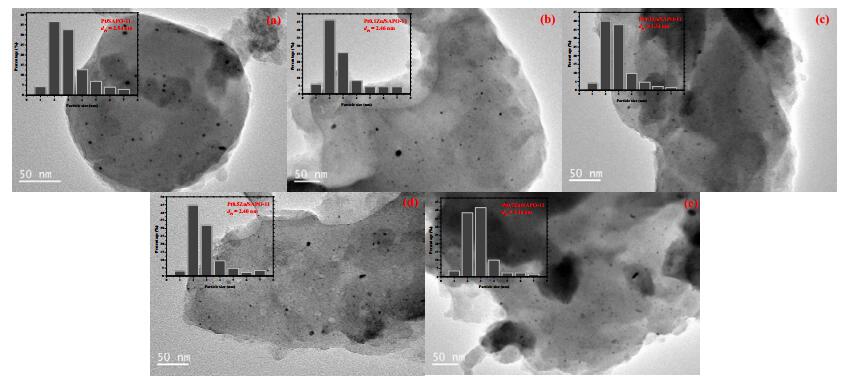

Transmission electron microscopy (TEM) images of the samples were obtained using a JEM-2100 UHR microscope (JEOL, Japan) operated at 100 kV. The average platinum particle sizes (dPt) of the reduced samples were calculated using Gatan DigitalMicrograph software.
The amount of dispersed Pt on the catalysts was determined by H2-O2 titration performed using the same instrument as for NH3-TPD. The dried catalysts (0.2 g) were placed in a quartz reactor, and H2 (or O2) was injected into the quartz reactor through a six-port valve with a sample loop. The amount of dispersed Pt was calculated by assuming that each exposed Pt atom chemisorbs one hydrogen atom.

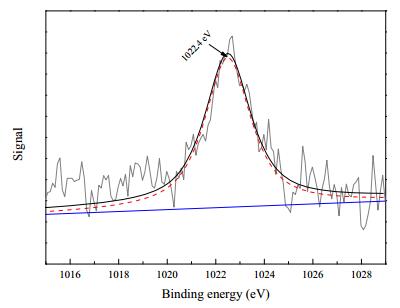

X-ray photoelectron spectroscopy (XPS) was performed using a K-Alpha instrument (Thermo Scientific, USA) equipped with an Al Kα X-ray source. Before the spectrum was recorded, the sample was reduced at 450 ℃ in a flow of 10 vol% H2 in argon for 2 h. The obtained spectrum was fitted using Gaussian and Lorentzian methods after Shirley background subtraction.
Hydroisomerization of n-octane (AR, Sinopharm Chemical Reagent Co., Ltd.) was performed in a fixed-bed microreactor. The reaction parameters were 280-380 ℃, 2.0 MPa, H2/ n-octane (V/V) ratio 400, and various weight hourly space velocities. Before assessment, the catalysts were pretreated in an H2 flow at 450 ℃ for 2 h and cooled to the reaction temperature. The feed was then injected into the reactor using a metering pump. After the reaction conditions were stable, the products were obtained by condensation and analyzed using an Agilent 7890A gas chromatograph equipped with a flame ionization detector and an HP-PONA capillary column (50 m × 0.2 mm).

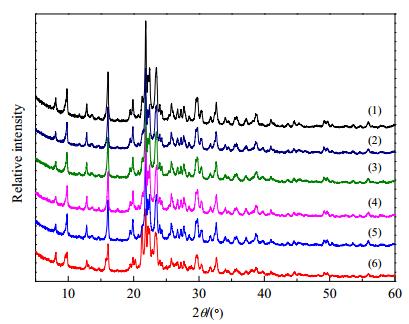

The XRD patterns of the samples are shown in Fig. 1. The XRD pattern of the calcined molecular sieve shows the typical AEL structure (2θ=8.1°, 9.8°, 12.8°, 16.1°, 20.0°, 21.9°, and 22.3°-23.5°; PDF 047-0614). No additional peaks were detected, suggesting that the sample is free from impurities. The positions and intensities hardly changed after impregnation of the SAPO-11 support with the metal component solution, indicating that the support structure was retained. No peaks attributable to metal oxide were observed, indicating that the particles of platinum or zinc oxides were too small to be detected using XRD.
The SEM image in Fig. 2 shows that SAPO-11 had cubic crystals of approximate size 600-800 nm. The sample did not contain spherical aggregates, which are often observed in SAPO-11 synthesized using common methods [17, 21, 33]. SAPO-11 is usually synthesized in static mode, which favors crystal aggregation. We synthesized SAPO-11 in dynamic mode and crystal aggregation was restrained by stirring.
Table 1 shows the pore structures and acidic properties of the samples. SAPO-11 had the largest Brunauer-Emmett-Teller (BET) surface area (148 m2/g) and pore volume (0.24 m3/g). The BET surface areas and pore volumes of the catalysts decreased slightly with increasing metal loading, indicating that the pores of SAPO-11 were not completely blocked by the supported platinum or zinc. Lee et al. [12] suggested that the platinum in catalysts prepared by incipient wetness impregnation is located on the external surface, whereas for catalysts prepared by ion exchange more platinum is located in the internal pores. The microporous volumes of all the catalysts were therefore almost constant and the platinum was mainly located on the external surface of the support.

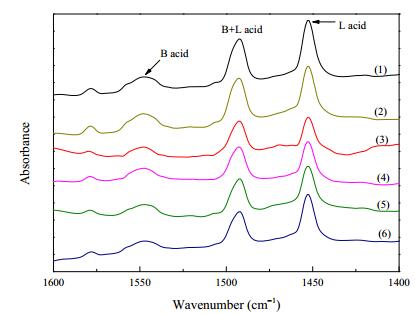

The Py-IR spectra of the samples are shown in Fig. 3. All the samples gave broad vibrational bands at ca. 1455 and 1545 cm-1, from pyridine molecules adsorbed on Lewis (L) and Br nsted (B) acid sites, respectively [6]. The band at ca. 1490 cm-1 corresponds to pyridine molecules adsorbed on both L and B acid sites [34]. The absorbance peaks for pyridine molecules adsorbed on the L or B acid sites hardly changed after the introduction of platinum and zinc, indicating that the acid sites were only slightly affected by the metal component. The NH3-TPD profiles of all the samples are shown in Fig. 4. All the samples showed similar acid distributions in the NH3 desorption temperature range from 100 to 700 ℃, indicating that the acid distribution was not significantly affected by metal loading [35]. SAPO-11 and the catalysts gave two NH3 desorption peaks centered at around 190 and 290 ℃, corresponding to weak and medium acid sites, respectively [36]. The acidic properties of the samples were compared by separating the NH3-TPD curves into two peaks by fitting curves with Gaussian functions (a typical profile for deconvolution of SAPO-11 is shown) [35-37]. The numbers of acid sites were calculated and are shown in Table 1. The distribution of acid sites in the SAPO-11 support differed slightly from those in the catalysts. Pt/SAPO-11 had the lowest medium acidity and the highest weak acidity among all the samples. The differences among the acidic properties can be attributed to interactions between platinum clusters and acid sites [38]. The amounts of weak and medium acid sites increased and decreased, respectively, with increasing zinc loading. The total acidities of the Pt0.1Zn/SAPO-11 and Pt0.3Zn/SAPO-11 catalysts were 258.3 and 256.4 μmol/g, respectively. These are higher than the total acidity of SAPO-11, suggesting that the incorporated Zn2+ ions behaved as Lewis acid species and increased the acidities of the samples [31]. Pt0.7Zn/SAPO-11 showed the lowest total acidity, possibly because the high zinc loading led to coverage of some of the acid sites.

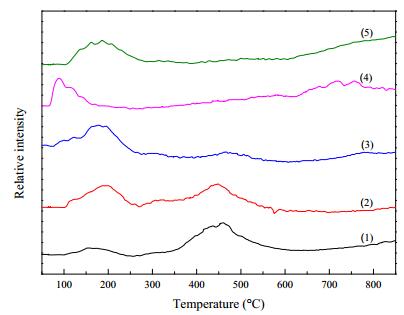

The H2-TPR profiles of the samples are shown in Fig. 5. For the Pt/SAPO-11 catalyst, two platinum reduction peaks were observed in the ranges 100-200 ℃ and 400-500 ℃, which are assigned to platinum supported on the external surface and in the internal pores of the catalyst, respectively [36, 39]. The intensity of the peak centered at about 450 ℃ in the profiles of the zinc-modified catalysts decreased with increasing zinc addition. When the impregnation mixture is attached to the support, Zn2+ cations, which have a smaller atomic radius than platinum, are easily adsorbed on the hydroxyl groups in the internal pores of SAPO-11, and this hinders incorporation of platinum. Zinc can therefore act as a competitive adsorbent, resulting in platinum being mainly supported on the external surface of SAPO-11.

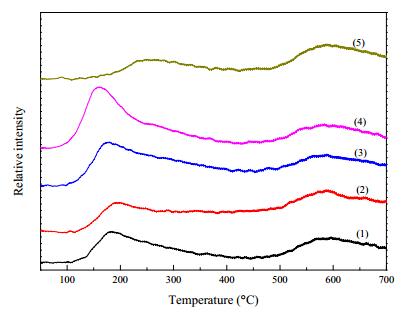

The H2-TPD profiles of the catalysts are shown in Fig. 6. Two peaks were observed in the temperature range 150-600 ℃. The H2 desorption peak below 400 ℃ arises from H2 adsorbed on the platinum active sites and the other peak, above 400 ℃, is ascribed to spilt-over hydrogen [40, 41]. The H2 desorption temperature decreased with increasing zinc loading, except in the case of the 0.7 Zn catalyst. Among all the catalysts, the Pt0.5Zn/SAPO-11 catalyst showed the lowest desorption temperature, indicating that the interactions between active H and platinum are weak and hydrogen is easily activated. The ability of platinum to activate hydrogen is related to its dispersion. Table 1 shows the dispersion of platinum on the catalysts. The dispersion of platinum decreased in the order Pt0.3Zn/ SAPO-11 > Pt0.5Zn/SAPO-11 > Pt0.7Zn/SAPO-11 > Pt0.1Zn/ SAPO-11 > Pt/SAPO-11, suggesting that the introduction of zinc favors platinum dispersion. The Pt0.3Zn/SAPO-11 and Pt0.5Zn/SAPO-11 catalysts had larger numbers of exposed platinum atoms; this benefits hydrogen activation, and is in accordance with the H2-TPD results. The TEM images in Fig. 7 show the Pt particle size distributions for all the catalysts; the corresponding average particle sizes are shown in Table 1. The Pt particles in the PtxZn/SAPO-11 catalysts were smaller than those in the Pt/SAPO-11 catalyst, indicating that the Pt particle size was affected by the zinc loading. This result is in accordance with the platinum dispersions shown in Table 1. The platinum dispersion of the Pt0.7Zn/SAPO-11 catalyst was higher than that of Pt/SAPO-11, but a clear H2 desorption peak was not observed. We identified the zinc species in the Pt0.7Zn/ SAPO-11 catalyst using XPS. The Zn 2p spectrum of the catalyst is shown in Fig. 8. A peak with a binding energy of 1022.4 eV was observed, indicating the presence of ZnO species [42]. Xia et al. [43] reported that ZnO enhances H2 adsorption and promotes the formation of spilt-over hydrogen. Pt0.7Zn/SAPO-11, which had the largest amount of ZnO, therefore gave an intense H2 desorption peak attributed to spilt-over hydrogen.

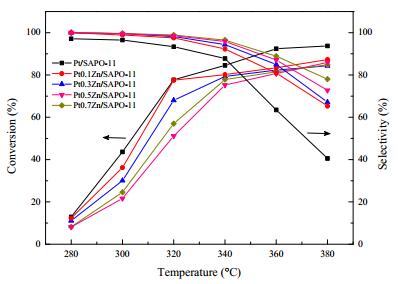

The hydroisomerization of n-octane was performed on Pt/SAPO-11 and the zinc-modified Pt/SAPO-11 catalysts. The n-octane conversions and isooctane selectivities as a function of reaction temperature are presented in Fig. 9. The conversion of n-octane increased with increasing reaction temperature. However, the selectivity for isooctane decreased with increasing reaction temperature, indicating that the hydrocracking reaction rate increased at higher temperatures. The hydroisomerization activities of the tested catalysts decreased in the order Pt/SAPO-11 > Pt0.1Zn/SAPO-11 > Pt0.3Zn/SAPO-11 > Pt0.7Zn/SAPO-11 > Pt0.5Zn/SAPO-11. It is generally accepted that the activity of a bifunctional catalyst is related to the type and number of metal sites and acid sites. The characterization results suggest that the zinc-modified Pt/SAPO-11 catalysts have higher metal activities and similar acidic properties to those of Pt/SAPO-11. Their hydroisomerization activities should therefore be higher than that of Pt/SAPO-11, but the results suggest otherwise. The selectivities to DMHs and the total selectivity to isooctane as a function of n-octane conversion are shown in Fig. 10. When the n-octane conversion was below 80%, the isooctane selectivity remained stable and the DMH selectivity increased with increasing conversion. However, the isooctane and DMH selectivities decreased at high n-octane conversions because hydrocracking was enhanced. When the n-octane conversion was greater than 80%, we observed dimethylbenzenes (DMBs) in addition to cracking products. These DMBs are probably formed by subsequent reactions of isooctane. At conversions below 80%, Pt/SAPO-11 and the zinc-modified Pt/SAPO-11 catalysts gave good isomerization selectivities ( > 90%). The DMH selectivities of the zinc-modified catalysts were higher than that of the Pt/SAPO-11 catalyst, especially at low conversions. In the reaction system, the critical molecular diameters of n-octane, monomethylheptane (MMH), and DMH are 0.49, 0.56, and 0.71 nm, respectively [9, 44]. Because of restriction by the pore diameter of SAPO-11 (0.39 nm × 0.63 nm) [9, 16], the n-octane molecule can be converted to MMH in the pore channels of SAPO-11. MMH is then converted to DMH at the pore mouths rather than in the microporous channels, according to the "pore mouth and key lock" concept [45]. The H2-TPR and H2-TPD results show that there were larger numbers of exposed platinum sites on the external surfaces of the zinc-modified Pt/SAPO-11 catalysts than on the external surface of the Pt/SAPO-11 catalyst. When MMH diffuses from the pore channels to the external surface of SAPO-11, further activation and conversion to DMH are therefore easier on the PtxZn/SAPO-11 catalysts. Among all the catalysts, Pt0.5Zn/SAPO-11 gave the highest selectivity to DMH. This is because of the larger amount of exposed platinum on the external surface of SAPO-11. However, Pt0.5Zn/SAPO-11 had the lowest isomerization activity under the same reaction conditions. This is because DMH, which has a large molecular diameter, suffers from diffusion limitation. When the zinc loading reached 0.7%, the selectivity for DMH decreased. This could be because zinc acted as desorption-transfer sites, therefore a higher zinc loading promoted MMH desorption [30, 31]. The Pt0.7Zn/SAPO-11 catalyst promoted formation of spilt-over hydrogen, and this also enhances MMH desorption [16]. A higher zinc loading therefore decreases the selectivity to DMH.

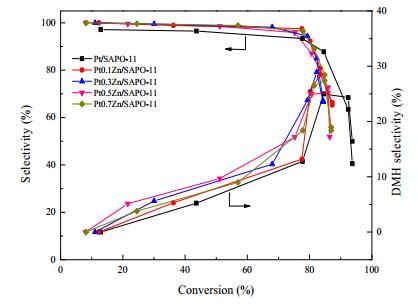

We further investigated the selectivities for DMH over Pt/SAPO-11 and Pt0.5Zn/SAPO-11 by assessing them at the same temperature, pressure, and H2/n-octane ratio, but different weight hourly space velocities. The results are shown in Fig. 11. The selectivity for DMH over both catalysts increased with increasing n-octane conversion. At the same conversion, the selectivity of Pt0.5Zn/SAPO-11 for DMH was higher than that of Pt/SAPO-11. Below 25% conversion, the selectivity to DMH over Pt0.5Zn/SAPO-11 was double that over Pt/SAPO-11, indicating that zinc addition improved the dibranched isomerization performance of the Pt/SAPO-11 catalyst. Table 2 shows the results for hydroisomerization of n-octane over the two catalysts at 30% conversion. Pt/SAPO-11 and Pt0.5Zn/SAPO-11 showed similar selectivities to isooctane, i.e., nearly 100%, but Pt0.5Zn/SAPO-11 gave a higher selectivity for DMH. For both catalysts, the selectivities for MMHs decreased in the order 2-methylheptane (2-MC7) > 3-methylheptane (3-MC7) > 4- methylheptane (4-MC7). The major DMH products were 2, 5- dimethylhexane (2, 5-DMC6), 2, 4-dimethylhexane (2, 4-DMC6), and 2, 3-dimethylhexane (2, 3-DMC6). A small amount of 3, 4- dimethylhexane (3, 4-DMC6) was obtained, but no 3, 3- dimethylhexane (3, 3-DMC6) was detected at this conversion. These DMH products were considered to be formed by further skeleton isomerization of the formed 2-MC7 [6]. No DMB species were detected at low n-octane conversions, but small amounts of p-xylene and o-xylene were formed at conversions above 80%.
Pt/SAPO-11 and zinc-modified Pt/SAPO-11 catalysts were prepared by incipient wetness impregnation. Zinc acted as a competitive adsorbate and therefore changed the location of platinum. The zinc-modified Pt/SAPO-11 showed higher dehydrogenation or hydrogenation activity because of improved platinum dispersion over SAPO-11. Among all the catalysts, Pt0.5Zn/SAPO-11 gave the highest selectivity for DMHs in the hydroisomerization of n-octane; this is because of the high dispersion of platinum and the location of platinum on the external surface. However, this catalyst also gave the lowest n-octane conversion under the same reaction conditions, possibly because DMHs have large molecular diameters and therefore suffer from molecular diffusion problems. When the zinc loading was increased to 0.7%, zinc provided desorption-transfer sites and more spilt-over hydrogen was formed; this promoted MMH desorption and restrained further MMH skeleton isomerization. We suggest that zinc-modified Pt/SAPO-11 is a promising catalyst for improving the selectivity for DMHs in the hydroisomerization of n-octane. We will do further work to overcome diffusion limitations and improve the hydroisomerization activity.
