The epoxidation of styrene is an extremely important industrial process, because the resulting styrene oxide (SO) is used in the manufacture of epoxy resins, paints, surfactants and pharmaceuticals. Despite this, the electrophilic addition of an oxidant to the styrene double bond is one of the most challenging steps in oxidation catalysis. Over the past several decades, considerable efforts has been devoted to designing appropriate and effective catalysts for the epoxidation of styrene [1]. Homogeneous catalysts, including polyoxometalate salts [2] and transition metals coordinated with porphyrins [3, 4] or salen [5], have been used to improve the conversion of olefins. However, these catalysts are difficult to separate from the product mixture and impossible to recycle. Thus, the immobilization of catalytically active metals on alumina [6], zeolites [7] or silica [8, 9] as heterogeneous catalysts would be useful.

KIT-6, developed by the Korea Advanced Institute of Science and Technology, is a cubic Ia3d mesoporous silica with a bi-continuous structure, tunable pores, thick pore walls and high hydrothermal stability [10, 11]. Unlike the two dimensional (2D) pore arrays in MCM-41 and SBA-15, KIT-6 incorporates unique 3D interpenetrating channels that facilitate the direct and open access of guest molecules without pore blockage. Thus, KIT-6 shows significant promise as a support for large molecule conversion reactions. Recently, numerous transition metals (such as Ⅴ [12], Fe [13], Ni [14] and Ti [15]) have been anchored on KIT-6 to catalyze organic reactions, including styrene epoxidation, methylcyclopentane conversion, fuel desulfurization and photocatalytic reduction.

So-called direct synthesis [16-19] is the main route to incorporating heteroatoms into the framework of mesoporous silicas. This process is time-efficient and simple, although only a small fraction of the metal in the initial synthetic system can be incorporated into the template matrix without reducing the structural periodicity. This is because the metal precursors are typically highly soluble and are primarily present in the synthesis solution as cations under highly acidic conditions, which reduces the formation of-O-M-O-Si-O-bonds (where M is the metal) during the condensation process. Several strategies have been developed to mitigate the difficulties associated with heteroatom grafting in acidic media. Xiao and co-workers [20] reported that Al³⁺ and Ti⁴⁺ can be substituted into SBA-15 at a pH of 7.5 using their so-called pH adjustment method, and that the finished products display highly ordered mesopores with large surface areas and uniform pore diameter distributions. Subsequently, Fe-[21], Cr-[22], Sn-[23], Ag-[24] and Ni-loaded [25] mesoporous SBA-15 materials were synthesized at pH values above 2. Inspired by this method, some groups incorporated Ga [26] and Cu [27] into silica frameworks in dilute acids. These heteroatom-containing mesoporous silicas were found to be effective catalysts for styrene oxidation. As an example, La-doped KIT-6 (with a La in Si mole fraction of 0.02) synthesized at a pH of 8 yielded a styrene conversion of 20.6% and a selectivity for benzaldehyde of 74.6% during the oxidation of styrene with hydrogen peroxide [28]. Similarly, our research group determined an optimal pH value of 7.5 for the introduction of Co into the framework of SBA-15, resulting in a styrene conversion of 22% and a benzaldehyde selectivity of 92% in the same reaction process [29].

Copper oxide, a simple and inexpensive transition metal oxide, exhibits excellent catalytic activity for styrene epoxidation due to its high selectivity for SO [30-33]. However, there have been few reports of the addition of Cu to KIT-6 by the pH adjustment method, and the effects of pH on the associated variations in structure and morphology remain unknown. A better understanding of the impact of structural properties on catalytic applications would enable the design of more efficient Cu-KIT-6 catalysts. In the present work, mesoporous Cu-KIT-6 materials were prepared using the pH adjustment method (with pH values from 1.43 to 6.62). The results demonstrate that the formation of different Cu species in the KIT-6 is very sensitive to the pH value. A detailed characterization and discussion of the varying catalytic behavior during the epoxidation of styrene are provided herein.

Pluronic P123 (poly (ethylene oxide)-poly (propylene oxide)-poly (ethylene oxide) triblock copolymer, EO₂₀PO₇₀EO₂₀, molecular weight=5800, Aldrich) was used as a structure-directing agent. Cu (NO₃)₂·2.5H₂O (Alfa Aesar) was employed as the Cu precursor. n-Butanol (n-BuOH), ethyl silicate (TEOS), concentrated HCl (37.0 wt%), NaOH and CH₃CN used in the synthesis as well as in catalytic experiments were all analytical reagent grade. Styrene (99.5%) and tert-butyl hydroperoxide (TBHP, 70 wt% aqueous solution) were supplied by Alfa Aesar. All chemicals were used as received without further purification.

Ordered mesoporous Cu-KIT-6 was synthesized via the pH-adjustment method. Briefly, 2.50 g of Pluronic P123 was added to 90 g of distilled water and 4.9 g of HCl with stirring at room temperature. After the P123 was completely dissolved, 2.5 g of n-BuOH was added to the solution and the mixture was allowed to stir for 1 h. Subsequently, 5.4 g of TEOS was added slowly in a dropwise manner and the solution was stirred for another 2 h, followed by the dropwise addition of a defined amount of NaOH solution (10 mol/L) to adjust the pH of the mixture (Table 1). Following this, 1.45 g of solid Cu (NO₃)₂·2.5H₂O was added to the solution and the resulting light green mixture was stirred vigorously for 22 h. In the final step, the mixture was transferred into a polypropylene bottle that was then sealed and heated for 24 h at 100 ℃ under static conditions. The TEOS:P123:HCl:H₂O:BuOH:Cu molar ratio in the synthesis gel mixture was 1:0.017:1.93:193:1.31:0.25. The final solid material was filtered off, washed several times with distilled water and dried at 100 ℃ for 6 h. Calcination was carried out at 550 ℃ in air with a ramp rate of 2 ℃/min and an isothermal period of 6 h to obtain a template-free mesoporous catalyst. The samples are denoted herein as Cu-KIT-6_x, where x indicates the pH value of the synthesis mixture. As a control, a Cu-KIT-6 catalyst was prepared without pH adjustment, following the above procedure, and a cubic mesoporous KIT-6 support was synthesized according to a standard procedure [10].

The mesoporous structures and crystalline phases of the catalysts were characterized by X-ray powder diffraction (XRD) using a D8 Advance diffractometer (Bruker) fitted with a LynxEye detector. Cu K_α radiation (λ=0.154 nm) was used and the X-ray tube was operated at 40 kV and 40 mA. The small-angle XRD patterns were acquired between 0.6° and 3° with a step width of 0.02° at a count time of 0.4 s per step, and the wide-angle patterns were recorded from 15° to 90° with the same step width at a count time of 0.1 s. Crystalline phases were assessed qualitatively via comparison with the Joint Committee on Power Diffraction Standards (JCPDS) database.

The textural properties of the catalysts (specific surface area, pore volume and average pore size) were determined by nitrogen physisorption studies conducted at-196 ℃ using a Tristar Ⅱ 3020 surface area and porosity analyzer (Micromeritics). Prior to N₂ adsorption, approximately 110-120 mg samples were evacuated at 150 ℃ for 10 h to eliminate water and gaseous impurities on the sample surfaces. Total pore volumes were obtained by calculating the adsorbed volume at a relative pressure of 0.99 and specific surface areas were determined by the Brunauer-Emmett-Teller (BET) method over the relative pressure range of 0.05-0.3. Pore size distributions were evaluated based on the adsorption branches of isotherms using the Barrett-Joyner-Halenda (BJH) method.

Surface morphologies were observed with a JEM-2100F (JEOL) transmission electron microscope (TEM) with a field emission gun operated at 200 kV. The calcined powder samples were first dispersed ultrasonically in ethanol and then drop-cast onto a 300-mesh copper grid.

Surface analyses and assessments of actual Cu contents of calcined catalysts were performed using X-ray photoelectron spectroscopy (XPS) and atomic absorption spectroscopy (AAS), respectively. XPS data were acquired with an ESCALAB instrument (Thermo) equipped with a monochromatized Al K_α X-ray source (hυ=1486.6 eV). The energy scale of the spectrometer was calibrated by setting the measured Si 2p binding energy to 103.5 eV. Prior to AAS measurements, all samples were successively digested in HF and HClO₄ solutions and were analyzed using a Z-2000 (Hitachi) graphite furnace atomic absorption spectrometer.

Styrene epoxidation reactions over the Cu-KIT-6_x catalysts were carried out at atmospheric pressure in a round-bottomed glass flask (50 mL) immersed in an oil bath and connected to a water-cooled reflux condenser. The reactant solution included 0.05 g of catalyst, 10 mmol of styrene, 10 mmol of TBHP and 10 mL of CH₃CN. A typical reaction was conducted at 70 ℃ for 6 h with continuous magnetic stirring. Following the reaction, the reactor was cooled to room temperature and a specific amount of toluene was added as an internal standard. The products in the liquid phase were analyzed quantitatively by gas chromatography (GC), using a Techcomp GC7900 equipped with a flame ionization detector and a 30-m TM-5 capillary column.

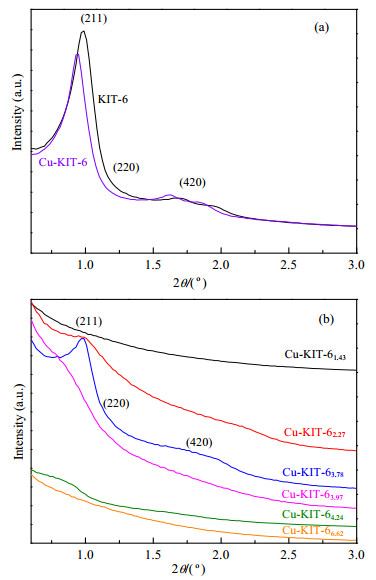

The low-angle XRD patterns indicate the crucial effects of the pH value on the structure of the mesophases (Fig. 1). Cu-KIT-6 synthesized without regulating the acidity generated well-resolved diffraction peaks at 2θ angles below 2°, corresponding to (211), (220) and (420) planes, respectively, and in good agreement with the XRD pattern of the parent KIT-6 (Fig. 1(a)). This result demonstrates that the Cu-KIT-6 had a typical structural order with a symmetry commensurate with the bicontinuous cubic Ia3d space group [10]. In Fig. 1(b), it can be seen that the Cu-KIT-6_2.27 and Cu-KIT-6_3.78 patterns display similar (211) diffraction peaks, indicating that the body-centered cubic mesoporous structure was retained to a certain degree. The overall decrease in the intensity of the diffraction lines may be a consequence of the reduction of scattering contrast between the channel wall of the silicate framework and the pore spaces, as this effect has been previously reported by several authors [34, 35]. In contrast, other Cu-KIT-6_x catalysts (x=1.43, 3.97 and 4.24) did not show well-ordered pore arrangements. It is likely that overly low or high amounts of NaOH could result in collapse of the cubic large mesopore structure. The continuous increase of the pH provides simpler thermodynamic control compared with the use of kinetic factors, thereby facilitating the flexible synthesis of mesoporous materials [36-38]. However, at pH values up to 6.62, the significant quantity of NaOH required to remove the silica template [39, 40] is also likely to significantly degrade the mesoporous silica, leading to a loss of structural regularity. As such, the facile tailoring of the mesophase requires the use of an appropriate pH value. The main diffraction peaks of these materials were also shifted to lower 2θ values compared with those of pure KIT-6, implying that the lattice parameter (d₂₁₁) and the corresponding unit cell parameter (a₀) were both increased (Table 2). This is attributed to structural expansion caused by the larger size of Cu²⁺ ions (Pauling radius: 70 pm) compared with Si⁴⁺ions (Pauling radius: 41 pm)[41-43]. These data provide evidence that Cu was partly incorporated into the framework of the KIT-6 to replace Si⁴⁺following the hydrothermal synthesis, such that Cu²⁺ ions were bonded with the silica matrix of KIT-6 through bridging oxygen atoms. Shah et al. [44] proposed a possible pathway for the incorporation of Cu²⁺ ions into the framework of SBA-16. In this mechanism, the appropriate pH value allows Cu²⁺ in the interstitial regions between the silica-block copolymer to transition to the oxo form and condense with adjacent silanols, resulting in the introduction of metal atoms into the mesoporous walls.

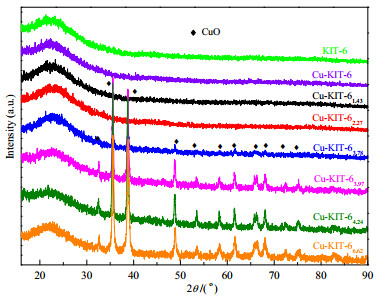

The wide-angle XRD patterns of all samples were obtained from 15° to 90°, as depicted in Fig. 2. Cu-KIT-6_x generated a broad peak at 2θ=23° that is attributed to amorphous features of SiO₂. Characteristic copper oxide peaks were not observed at x < 3.78. Interestingly, typical diffraction peaks for crystalline CuO with a monoclinic tenorite structure (JCPDS ^#45-1548) [45] were produced at pH values over 3.78, indicating that excessive amounts of Cu²⁺ had moved from the mesopores of the KIT-6 to the external surface and gathered to form CuO clusters. It is also noteworthy that the peaks generated at Cu-KIT-6_x for x values above 3.78 were more intense than those of the Cu-KIT-6_3.78. This is proof that the amount of CuO anchored on the external surface gradually increased with pH. In agreement with the XRD results in Fig. 2, the Cu content was found to be quite low at lower pH values (Table 3). The use of the appropriate pH thus has an important effect on the immobilization of Cu²⁺ on mesoporous KIT-6, and the subsequent incorporation of the metal into the mesophase channels. The bulk Cu concentrations were notably augmented with increases in the pH. At a pH of 6.62, the Cu level was close to the initial dosage (26.5%). As demonstrated by the XRD data (Fig. 2), this large quantity of the metal was present in the form of CuO rather than Cu²⁺.

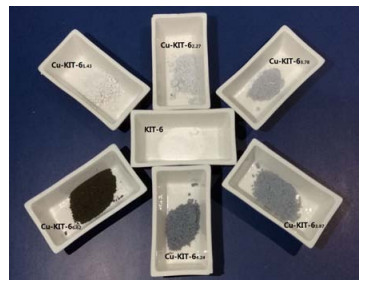

The gradual color change of these Cu-containing catalysts also gave a clear indication of the bulk composition (Fig. 3). It is well known that bulk CuO is black [46], while the calcined Cu-KIT-6_1.43 sample exhibited a white color similar to that of the parent KIT-6 support, suggesting that no bulk copper oxide existed. At pH=3.78, the color was grey green, as a result of the formation of-O-Si-O-Cu groups [47, 48]. The grey color gradually became darker until pH=4.24 and, at pH=6.62, the calcined catalyst became very dark, suggesting the presence of copper oxide.

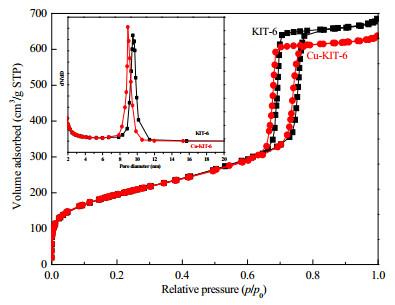

The textural parameters of the KIT-6 and corresponding Cu-KIT-6 materials were evaluated by nitrogen physisorption measurements. The N₂ adsorption-desorption isotherm of KIT-6 (Fig. 4) displayed a type Ⅳ isotherm with an H1-type hysteresis loop in the relative pressure (p/p₀) range of 0.6-0.8, a typical indication of mesoporous materials with well-ordered cylindrical pores [49]. Well-defined and steep hysteresis loops with parallel adsorption-desorption branches indicated a narrow pore size distribution, in keeping with the inserted pore size distribution curves. The calcined KIT-6 possessed a BET surface area of 676 m²/g and an average pore size of 6.1 nm (Table 2); these values are consistent with reported data [50]. After modification with Cu but without the addition of NaOH, the Cu-KIT-6 exhibited a N₂ adsorption isotherm, a BET surface area and an average pore size extremely close to those of the initial KIT-6. These results indicated that the ordered cubic mesoporous architecture was largely maintained and that little Cu²⁺ was incorporated into the KIT-6 under highly acidic synthesis conditions (pH=0.31 in the initial KIT-6 solution). This result is in agreement with previous reports that little Al³⁺ [51] or Co²⁺ [52] is introduced into the support in highly acidic SBA-15 solutions.

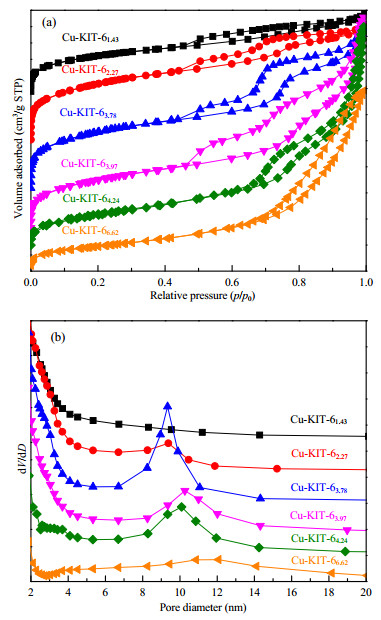

It was also determined that there were no notable changes in the isotherms or in the shape of hysteresis loops for Cu-KIT-6_x whenx was less than 4.24 (Fig. 5(a)). These isotherms showed almost identical mesopore structures. The sharpness of the adsorption branches of the isotherms also demonstrated uniformity of the mesopores in these samples. The evidence for empty cylindrical mesopores based on hysteresis at higher relative pressures (p/p₀=0.5) confirmed that the pore structure of the support was preserved to some extent after Cu incorporation. Additionally, the slightly less steep slopes and lower inflections of the Cu-KIT-6_1.43 and Cu-KIT-6_2.27 isotherms reflected wider pore size distributions (Fig. 5(b)), as summarized in Table 2. Generally, the introduction of Cu was found to decrease the BET surface area. The pronounced decrease in the BET surface of the Cu-KIT-6_1.43 is also attributed to the hydrolysis of the KIT-6 mesopore structure as a result of the pH values applied, rather than solely being due to the incorporation of Cu. The Cu-KIT-6_4.24 and Cu-KIT-6_6.62 displayed H3 hysteresis loops, a typical feature of slit pores [49], and the p/p₀ position of the inflection points of these isotherms were shifted to higher values, suggesting relatively wider pore size distributions (Fig. 5(b)). The increased pore size with Cu²⁺ incorporation could possibly be due to the longer Cu-O bond length compared with Si-O. The degraded mesopore structures resulted in a minimal BET surface at a pH of 6.62. According to the geometrical model [40, 53, 54], the wall thicknesses (Table 2) also changed with increasing pH. It can therefore be stated that our synthesis method uniquely permits the systematic control of pore dimensions in ordered cubic Ia3d materials simply via pH adjustment with NaOH. Moreover, among the fabricated Cu-KIT-6_x materials, Cu-KIT-6_3.78 exhibited a higher BET surface area, a similar pore size to that of KIT-6 and effective Cu loading, all of which would be expected to significantly promote the conversion of styrene during epoxidation.

TEM provided crucial evidence for the presence of ordered mesoporous architectures in the KIT-6 support (Fig. 6) and corresponding Cu-KIT-6_x materials (Fig. 7). KIT-6 displayed an ordered array of hexagonal mesopores over a wide range (Fig. 6(A)). The inset image obtained via fast Fourier transform (FFT) highlights the interconnectivity in the pore structure of the cubic Ia3d silica, a finding that is consistent with reports in the literature [10]. In addition, regular strip-like channels are observed in the side-view (Fig. 6(B)), and the silica walls are parallel to one another. The pore size obtained from TEM images was 6.6 nm, slightly lower than those previously reported [50]. These results are indicative of a high quality ordered mesoporous silica.

The TEM images clearly show the dependence of the channel order of the Cu-KIT-6_x materials on the pH value (Fig. 7). Without pH adjustment, the Cu-KIT-6 (Fig. 7(A)) presented a pore structure similar to that of the parent KIT-6, owing to the minimal amount of Cu introduced into the silica skeleton (Table 3). Fig. 7(B) shows disordered cubic Ia3d mesopores, which is consistent with the small-angle XRD analysis and pore diameter distribution. This result demonstrates that the Ia3d construction collapsed at pH=1.43. In Fig. 7(C) and (D), the pores exhibit various shapes, such as square grid, hexagonal, distorted hexagonal and linear, due to the different viewing directions [55, 56]. These well-regulated pore arrangements confirm the preservation of the host structure after modification with Cu via the pH-adjustment method. It is noteworthy that a perfectly resolved cubic diffraction pattern analogous to that of pristine KIT-6 is observed in the inserted FFT image in Fig. 7(D). This result demonstrates the coherence of these domains. The moderate introduction of Cu atoms at an appropriate pH therefore had a minimal effect on the cubic mesoporous framework of the KIT-6. It should also be noted that at a pH of 3.78, approximately 4.6 wt% Cu (Table 3) was introduced into the silica without distorting the pore array. The pore size determined from Fig. 7(D) is 5.7 nm, which is approximately equal to that calculated from N₂ adsorption-desorption data. Excessive NaOH evidently led to reduced symmetry, as seen in Fig. 7(E) and (F). At the highest pH value (Fig. 7(G)), the symmetry of the mesopore structure suffered significant degradation, with a sizeable decrease in the BET surface area and many mesopore defects, as is also evident from the N₂ adsorption-desorption isotherms (Fig. 5). Fig. 7(E-G) show the appearance of black spots, indicative of the agglomeration of metal oxides on the surface of the support as a result of the excessive incorporation of Cu. This effect was also observed in the large-angle XRD patterns (Fig. 2). Moreover, these black spots gradually increased with the addition of NaOH, highlighting the augmentation of the Cu content, as indicated in Table 3.

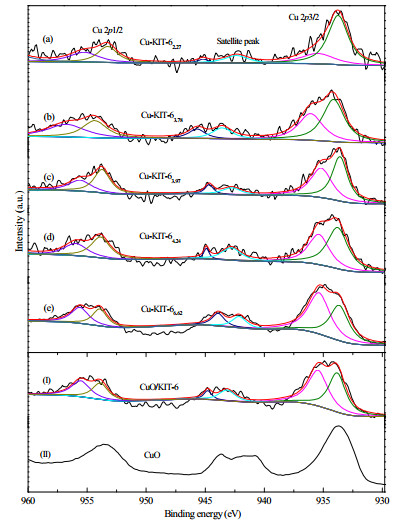

To further clarify the states of surface Cu species, Cu 2p XPS spectra were acquired. Neither Cu-KIT-6 nor Cu-KIT-6_1.43 generated a Cu peak, owing to the lower levels of Cu in these materials (data not shown). The other catalysts exhibited two primary peaks centered at 935 and 954 eV (Fig. 8), attributable to the characteristic spin-orbit splitting of Cu²⁺ into 2p_3/2 and 2p_1/2 peaks [57, 58]. The distinct shake-up satellite peak at 943.0 eV, approximately 10 eV higher than the Cu 2p_3/2 excitation position, confirms the presence of Cu²⁺with an open 3d⁹ structure instead of Cu⁺ or metallic Cu species with filled d levels [59-61].

The electron binding energy levels of certain elements depend not only on oxidation state but in most cases also on the chemical environment. The differing peak asymmetries of these Cu 2p_3/2 core level peaks reveal the presence of different Cu species. The chemical environment of each species was assessed by subsequent deconvolution of each Cu 2p peak into two doublets, using the XPS peak41 software package. All catalysts generated a peak at 933.7 eV, in accordance with that of standard bulk CuO (profile Ⅱ) [62-64], providing evidence for the complete decomposition of the copper nitrate upon calcination. Cu-KIT-6 adjusted to high pH values (profiles (c)-(e)) exhibited another contribution at higher binding energy values of 935.1-935.4 eV, similar to the results obtained with CuO/KIT-6 prepared by the impregnation method (profile Ⅰ). This peak can assigned to dispersed CuO and to intimate interactions between CuO and the mesoporous silica matrix [65, 66]. In contrast to the above catalysts, Cu-KIT-6 prepared at moderate pH values of 2.27 and 3.78 (profiles (a) and (b)) showed a distinct peak at a binding energy of 936.0 eV, indicative of the presence of-O-Si-O-Cu linkages in the matrix [66, 67]. Compared with Cu-KIT-6_2.27(profile (a)), the much more intense peak located at 936.0 eV in the Cu-KIT-6_3.78data (profile (b)) demonstrate that the majority of copper species incorporated into the silica matrix were present in the form of-O-Si-O-Cu.

Preliminary investigations of the reaction parameters over the Cu-KIT-6_3.78 catalyst showed that styrene conversion and selectivity for SO both increased with reaction temperature (50-80 ℃) and reaction time (2-10 h) (Table 4). However, reaction temperatures higher than 70 ℃ and reaction times longer than 6 h did not significantly improve the catalytic performance. Additionally, compared with TBHP, H₂O₂ was found to be an ineffective oxidant for converting styrene, giving a fairly low styrene conversion (3%).

A series of Cu-KIT-6_x mesoporous materials was evaluated for the epoxidation of styrene using TBHP as the oxidation agent under optimized reaction conditions (Table 5). The pure KIT-6 support showed poor performance, similar to that obtained from a blank trial, confirming that KIT-6 without active metal sites is inactive for styrene epoxidation. After the incorporation of Cu species, a slight enhancement in styrene conversion and SO yields from the Cu-KIT-6 and Cu-KIT-6_1.43 were observed. These results show the predominant role played by Cu²⁺ in the catalytic performance. The conversion of the substrate and the SO yield continually improved with increases in the Cu²⁺ concentration up to pH=3.78. The highest conversion of 43.5%, in conjunction with an SO selectivity of 86.6%, was obtained over the Cu-KIT-6_3.78. In addition to SO, benzaldehyde (selectivity 13.4%) was also detected. Cu-KIT-6_3.78, which possessed a higher BET surface area and a larger pore volume analogous to that of the parent KIT-6 (Table 2), exhibited minimal pore blockage and so provided a convenient route for reactant diffusion into the mesopores, leading to excellent catalytic activity [68, 69]. However, although the Cu content increased when x surpassed 3.78 (Table 3), the conversion and corresponding SO yields exhibited the opposite trend, indicating that the Cu loading was not the only factor contributing to the conversion of styrene. Specifically, the Cu-KIT-6_6.62 catalyst with a Cu content 3.5-fold (17 wt%) higher than that of the Cu-KIT-6_3.78(4.6 wt%) (Table 3) only gave moderate catalytic performance. This is believed to have occurred because the increased concentration of Cu species resulted in extra-framework CuO clusters (Figs. 2 and 7(G)) that covered some of the active Cu sites and blocked the pore interiors, thus hampering access to the active catalytic sites. The losses in activity along with the augmentation of the Cu content inevitably led to a dramatic decline in the turnover frequency (TOF). The catalytic performance tests also demonstrated that the performance was correlated with the concentration of-O-Si-O-Cu groups in the catalyst. Therefore, this Cu arrangement in the framework might represent active sites for the epoxidation of styrene. Other similar studies have found that incorporating Co²⁺ [70] or Fe³⁺ [71] species into the silica framework generates activity for oxidation reactions. Similarly, Selvaraj et al. [72] reported that isolated Ce⁴⁺ in the framework of SBA-15 led to high performance during the liquid phase oxidation of cyclohexane with hydrogen peroxide. This was attributed to the generation of a large number of Lewis acid sites that enhanced the catalytic activity.

Generally, the nature of the solvent (such as protic or aprotic, low or high dielectric constant) has an important effect on the yields and product distributions [73-75]. In the present study, different solvents, including protic (tert-butanol) and aprotic (CH₃CN, dimethylformanide (DMF), pyridine and 1, 4-dioxane), were employed to catalyze the epoxidation of styrene using TBHP (Table 5). The results showed that styrene conversion varied significantly depending on the nature of the solvent: the aprotic solvents favored the oxidation reaction, whereas in the protic solvent the reaction was slower. Using tert-butanol as the solvent, the reaction showed the lowest conversion, along with benzaldehyde as the main product. These results can be explained by the high steric hindrance and low electrophilicity of the solvent [76, 77]. Under the identical reaction conditions, the styrene conversion and epoxidation selectivity were both improved in conjunction with increasing polarity of the aprotic solvents (as indicated by their dielectric constants). The Cu-KIT-6_3.78 exhibited excellent catalytic behavior in terms of reactivity and SO selectivity in polar aprotic CH₃CN, which can be reasonably attributed to the higher dielectric constant of this solvent (36.6) [78]. Dramatic declines in SO selectivity in pyridine and 1, 4-dioxane solutions were related to their lower dielectric constants (13.3, and 2.22, respectively). Based on previous reports, this effect occurs because the higher dielectric constant and strong polarity of CH₃CN lead to higher concentrations of the substrate over the catalyst surface and also increase the solubility of the substrate and oxidant [79-81]. Based on these effects, the oxidant and substrate are able to readily reach the active sites of the catalyst [82, 83]. Nevertheless, one exception was found; although DMF has a dielectric constant of 38.3 (similar to that of CH₃CN), it yielded poor reaction performance, with only 9.0% styrene conversion. Previous studies have reported that DMF is the best solvent for styrene oxidation, especially when oxygen is used as the oxidant and cobalt species as catalysts [84-86]. This is because DMF has two effects in the reaction: an affinity for oxygen [87] and coordination with cobalt to form active sites [70]

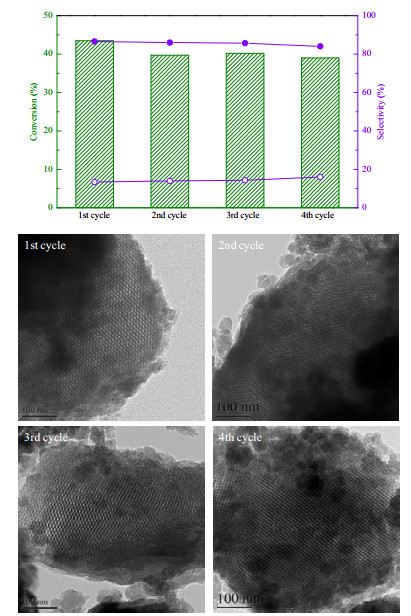

A representative catalyst, Cu-KIT-6_3.78, was found to exhibit excellent recyclability and stability in four consecutive runs (Fig. 9). Following each reaction (6 h, 70 ℃), the catalyst was separated from the liquid phase by filtration, thoroughly washed with ethanol and dried at 60 ℃ for 12 h to regenerate it. During four trials, the conversions of styrene and the selectivity for SO showed slight oscillations within the ranges of 40%-44% and 84%-87%, respectively, demonstrating very good reusability. Additionally, after each cycle, the Cu-KIT-6_3.78 maintained a well-ordered cubic Ia3d mesoporous architecture (Fig. 9) analogous to that of the fresh catalyst (Fig. 7(D)), confirming its structural stability. AAS analyses showed that the catalyst was highly resistant to leaching, with no significant loss of its Cu content (Table 3). Considering the aforementioned characterization results, Cu²⁺in the form of-O-Si-O-Cu groups among the mesoporous silica lattice evidently formed a constant Cu reservoir and this improved the stability of the catalytic behavior.

Compared with other studies based on Cu catalysts for olefin epoxidation, the selectivity for SO over the Cu-KIT-6_3.78 was superior and this material also appears to be easy to use and convenient to separate following the reaction. Several researchers have focused on anchoring Cu²⁺ on amine-functionalized mesoporous silica, and most of these compounds have shown selectivities towards SO of less than 70%, with unexceptional conversions even after lengthy reaction times[88, 89]. As an example, Cu (Ⅱ) acetylacetonate on a core-shell structured Fe₃O₄@SiO₂ presented a styrene conversion of 86.7% and SO selectivity of 51.4%, while requiring a rather complicated preparation process [90]. Cu-phthalocyanine catalysts exhibited 50% styrene conversion during epoxidation, although this required three times the usual amount of TBHP over 24 h, demonstrating a lower utilization rate for the oxidant [91]. Analogously, Cu-doped hydrotalcites exhibited mediocre styrene conversion even at high dosages of TBHP [92]. In conclusion, the Cu-KIT-6_3.78 catalyst obtained via pH-adjustment may have potential applications to the catalytic epoxidation of styrene.

Cu-containing mesoporous KIT-6 materials synthesized via pH-adjustment exhibited the formation of different morphologies, mesopore structures and physical properties. At the optimal pH of 3.78, approximately 4.6% Cu²⁺ was inserted into the silica support, the majority of which formed Cu-O-Si-O structures in the matrix without destroying the structural integrity of the cubic Ia3d mesophase. However, a high pH over 3.78 resulted in a less-ordered structure with particle agglomeration, and excessive Cu²⁺ was primarily dispersed on the surface of the KIT-6 support as CuO. It is evident that the pH of the initial gel can greatly affect the activity of the material for styrene epoxidation. Cu-KIT-6_3.78, which had the highest BET surface area and exhibited an ordered mesoporous construction, was the highest performing catalyst, and gave a styrene conversion of 43.5% and SO selectivity of 86.6%. These findings reveal that the structural order of mesoporous materials is an important factor in achieving enhanced styrene epoxidation. This pH adjustment method is expected to allow structural control and channel modification during the fabrication of 3D ordered mesoporous materials.
