Silicoaluminophosphate (SAPO) molecular sieves, first reported by the scientists at Union Carbide Corporation in 1984, are a class of important inorganic microporous materials[1, 2]. Among them, SAPO-34 is the most important member because of its successful application in the commercial methanol-to-olefins (MTO) process in 2010 [3-6]. Investigation of the synthesis and physicochemical properties of SAPO-34 molecular sieves remains of continuous interest. Many methods have been developed to synthesize SAPO-34, such as hydrothermal, solvothermal, dry-gel conversion, and solvent-free syntheses [7-11]. The presence of an organic template is necessary for all the methods to prepare SAPO molecular sieves, and the template has a crucial impact on the physicochemical properties of the products because of its structure-directing, charge-compensating and space-filling roles in the crystallization process [12-15]. Many organic amines have been used as templating agents to synthesize SAPO-34 [16-20]. The elemental composition, local microscopic structure and morphology of SAPO-34 may change with the use of different templates. Accordingly, the catalytic performance and adsorption properties of the materials obtained may be different [15-20].

The primary amine n-butylamine (BA) has been used to synthesize lamellar AlPO-kanemite [21]. Lamellar AlPO-kanemite can be transformed to SAPO-34 by adding a silica source and hexamethyleneimine (HMI) into the synthetic system under hydrothermal conditions [22]. SAPO-34 is co-templated by HMI and BA and pure SAPO-34 is synthesized in over a relatively narrow range of the SiO₂/Al₂O₃ molar ratio in the initial gel [22]. To the best of our knowledge, there is no report on the synthesis of SAPO-34 with a single BA template.

In this paper, we report the synthesis, characterization, and catalytic application of SAPO-34 with BA as a template for the first time. The importance of initial silica amount and crystallization temperature on the SAPO-34 synthesized was investigated. The hydrothermal crystallization process at two different crystallization temperatures was examined in order to better understand/control the synthesis system with a BA template. The physicochemical properties of the BA-templated SAPO-34 were characterized with powder X-ray diffraction (XRD), X-ray fluorescence (XRF), scanning electron microscopy (SEM), nuclear magnetic resonance (NMR), thermogravimetry-differential thermal analysis (TG-DTA), ammonia temperature-programmed desorption (NH₃-TPD) and N₂ physisorption. The catalytic performance of the samples was tested in the methanol amination reaction.

Organic amines used as templates in the syntheses were n-butylamine (BA, 99.5 wt%), n-propylamine (PA, 99.5 wt%), and cyclohexylamine (CyHA, 99.5 wt%). Pseudoboehmite (67.5 wt%), phosphoric acid (85 wt%), silica sol (31 wt%), tetraethyl orthosilicate (TEOS), and fume silica were used as inorganic precursors.

A typical hydrothermal synthesis procedure was as follows: the organic amine, Si source, pseudoboehmite, phosphoric acid and distilled water were added sequentially into a stainless steel autoclave. The typical molar composition of the gel was 2.0BA:0.8SiO₂:1.0Al₂O₃:0.8P₂O₅:50H₂O. The mixture was stirred until homogeneous, the autoclave sealed quickly and placed in a rotation oven. The gel was heated to the desired temperature under rotation and held for a certain time. After crystallization, the as-synthesized sample was obtained by centrifugal separation, washing and drying in air at 120 ℃. The catalyst was prepared by heating the sample in air at 600 ℃ for 2 h in a muffle furnace to remove the organic template.

The XRD data was recorded on a PANalytical X'Pert PRO X-ray diffractometer with Cu K_α radiation (λ=1.54059 ) operating at 30 mA and 40 kV. Sample morphology was determined by SEM on a Hitachi TM3000 microscope. The compositions of samples were determined with a Philips Magix-601 XRF spectrometer. Textural properties of the calcined samples were determined by N₂ adsorption-desorption at-196 ℃ on a Micromeritics ASAP 2020 system. The total surface area was calculated based on the Brunauer-Emmett-Teller (BET) equation. The micropore volume and surface area were evaluated using the t-plot method. Mesopore volume and surface area were evaluated from the adsorption isotherm by the Barrett-Joyner-Halenda (BJH) method. All the solid state NMR experiments were performed on a Bruker Avance Ⅲ 600 spectrometer equipped with a 14.1 T wide-bore magnet. The resonance frequencies were set at 150.9, 156.4, 242.9, and 119.2 MHz for ¹³C, ²⁷Al, ³¹P, and ²⁹Si, respectively. Chemical shifts were referenced to 1.0 mol/L Al (NO₃)₃for ²⁷Al, 85% H₃PO₄for ³¹P, 2, 2-dimethyl-2-silapentane-5-sulfonate sodium salt for ²⁹Si, and adamantane for ¹³C. The NH₃-TPD was carried out with Micromeritics Autochem 2920 equipment. The calcined samples (200 mg, 40-60 mesh) were activated at 650 ℃ for 60 min (10 ℃/min) under He flow, then cooled and saturated with ammonia at 150 ℃ for 30 min. The samples were purged with He (30 mL/min) for 30 min and measurements of the desorbed NH₃ were performed from 100 to 700 ℃ (10 ℃/min) under a He flow (30 mL/min). The TGA were recorded on a Q500 SDT thermogravimetric analyzer. In a typical measurement, a small amount (10-20 mg) of sample was heated in an Al₂O₃ crucible from ambient temperature to 800 ℃ at a heating rate of 10 ℃/min under a stream of air at a constant flow rate of 100 mL/min.

The methanol amination reaction was carried out with a fixed-bed quartz tubular reactor at atmospheric pressure. Typically, 300 mg of calcined SAPO-34 sample (40-60 mesh) was loaded in the reactor and activated under a He flow at 500 ℃ for 1 h, then the reactor was cooled to the reaction temperature (350 ℃). The reaction was carried out by feeding the reactor with a 2:1 mixture (on mole basis) of ammonia and methanol diluted in helium. Methanol was fed into the reactor by passing the carrier gas (He, 25.3 mL/min) through a methanol saturator maintained at 10 ℃. The weight hourly space velocity (WHSV) of methanol was 0.813 h^-1. The products were analyzed by an online gas chromatograph (Agilent GC 7890N) equipped with a flame ionization detector and CP-Volamine column.

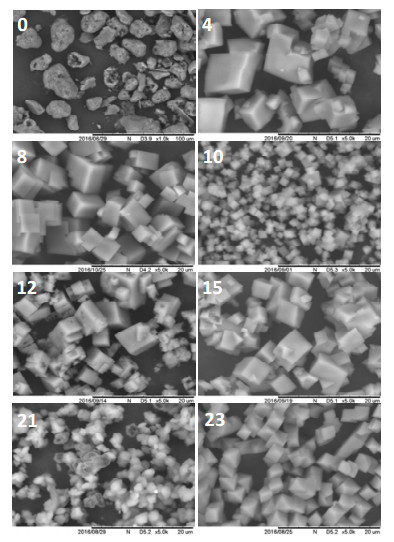

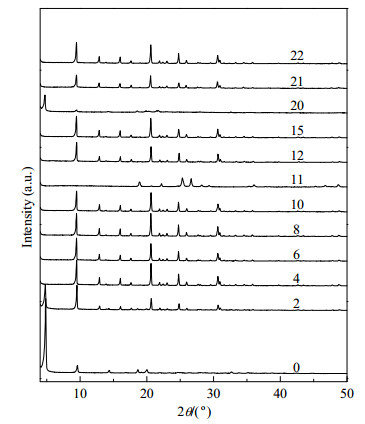

The effect of the initial silica amount on the SAPO-34 synthesis using silica sol as the Si source was investigated by fixing the other synthetic conditions. Table 1 shows the detailed gel compositions, crystallization conditions and product compositions. Figs. 1 and 2 display the XRD patterns and SEM images of the as-synthesized samples. Lamellar material AlPO-kanemite was obtained as the only product when a silica source was omitted in the initial gel. After inclusion of a small amount of silica sol, SAPO-34 starts to appear and gradually becomes the dominant product with increasing amounts of silica at the expense of AlPO-kanemite, suggesting the positive effect of silica on inhibiting the formation of lamellar material and facilitating the generation of SAPO-34. Pure SAPO-34 was obtained once the silica amount reached 0.6 equivalents relative to the pseudoboehmite or higher. However, greater Si amounts in the initial gel (n=1.6) resulted in the presence of an amorphous phase because of the unreacted silica residues, implying the capacity limitation of silica incorporation into the framework of BA-templated SAPO-34. The solid yields and elemental compositions of the samples are shown in Table 1. All samples templated by BA have high solid yields of > 80%. SAPO-34 products synthesized under hydrothermal conditions have characteristically high silica content, with Si molar concentration varying from 0.161 to 0.266. The SEM image of Sample 4 shows rhombohedra crystals with a size range of about 5-10 μm (Fig. 1).

The effect of the Si source on the syntheses was also investigated. Both fumed silica and TEOS gave similar synthetic results as silica sol. SAPO-34 synthesized with fumed silica has relatively high Si content (Table 1) and small crystal sizes (Fig. 1) as compared with SAPO-34 prepared with the other two silica sources.

The effect of crystallization temperature on the syntheses was investigated (Table 2). Only AlPO-kanemite was obtained at 160 ℃, even with a high silica feed. Raising the crystallization temperature to 240 ℃ in the absence of silica formed a dense phase instead of AlPO-kanemite. Pure SAPO-34 was readily produced when the SiO₂/Al₂O₃ molar ratio in the initial gel was increased to 0.2 or higher. This is very different from the syntheses at relatively low temperatures, as no molecular sieve products formed at 160 ℃ and higher Si content in the initial gel was required to achieve pure SAPO-34 at 200 ℃. The results are reasonable considering that lamellar materials generally have worse thermal stability than SAPO molecular sieves and higher crystallization temperatures impose negative effects on lamellar material formation. Crystallization temperature may be used to tune/optimize the crystal phase, especially for systems where lamellar material is an impurity.

Table 2 lists the elemental compositions of the products. The Si content in SAPO-34 synthesized at 240 ℃ varied from 0.089 to 0.245, which is a wider range than that of SAPO-34 synthesized at 200 ℃. The SEM images of selected samples are given in Fig. 2. The samples present rhombohedra morphology with crystal sizes of 4-6 μm, which are a little smaller than those obtained at 200 ℃.

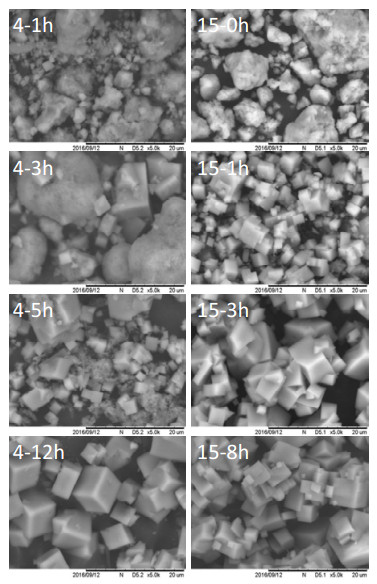

The crystallization processes of BA-templated SAPO-34 at 200 and 240 ℃ were examined based on the synthetic systems of Samples 4 and 15, respectively. Table 3 shows the detailed information about the product phases, elemental compositions, and solid yields. Fig. 3 displays the SEM images of the as-synthesized samples.

Just lamellar AlPO-kanemite was generated first for the synthesis at200 ℃ at the beginning of crystallization (1 h). The high solid yield of 60% suggests rapid and facile formation of lamellar material. The diffraction peaks arising from AlPO-kanemite become stronger after crystallization for 3 h. SAPO-34 begins to appear and the solid yield increased to 85%. Subsequently, SAPO-34 became the major phase at the expense of AlPO-kanemite. Only minor kanemite was detected after 5 h crystallization time and the relative crystallinity of the SAPO-34 reached 78%. Extending the crystallization time further gave pure SAPO-34 and the relative crystallinity increased until the end of the crystallization. The silicon content in the products rises continuously throughout the crystallization process (Table 3), which is consistent with our previous studies [7] and suggests the relatively slow reaction rate with the Si source as compared with Al and P sources.

According to the above results, the crystallization process at 200 ℃ can be established. AlPO-kanemite forms quickly in the initial stage of the crystallization because of its simple lamellar structure. Subsequently, SAPO-34 appears as a second phase with the participation of silica. SAPO-34 materials have higher thermodynamic stability than kanemite and the SAPO-34 products have more opportunity to survive in the synthetic gel. The growth of SAPO-34 may cause changes to gel pH and composition[18], which further prompt the dissolution of kanemite. Finally, SAPO-34 becomes the only product.

Only a small amount of amorphous materials was observed at t=0 h in the product formed at 240 ℃. Heating the gel for 1 h formed pure SAPO-34 with high crystallinity (83%) and solid yield (81%). The relative crystallinity of the SAPO-34 product reached 100% after 3 h and maintained at this level until the end of the crystallization, indicating a fast crystallization rate at high temperature. Kanemite or other lamellar materials were not detected throughout the crystallization process, which confirms the suppression of the generation of lamellar phase at high temperatures. The Si content in the product also shows an increasing trend with time, consistent with the findings of the crystallization process at 200 ℃. The above phenomena indicate that the crystallization process at 240 ℃ is simple as compared with that at 200 ℃, which consisted of initial dissolution of inorganic raw materials and their fast crystallization to SAPO-34.

We recently reported [8, 11] aminothermal synthesis as a method to synthesize SAPO molecular sieves, in which organic amines are used as both a solvent and template. The aminothermal method has shown some advantages including high yield and good methanol-to-olefins catalytic performance of the products [11, 23]. Primary amines, including BA, PA, CyHA and 1, 2-ethylenediamine (EDA), always lead to the formation of lamellar materials at 200 ℃ with the aminothermal synthesis method [9]. Herein, we investigated conducting the synthesis at the elevated temperature of 240 ℃ with three primary amines (BA, PA and CyHA) employed as the solvent and template. High temperature effectively inhibited the formation of lamellar materials and facilitated the synthesis of pure chabazite (CHA)-type SAPO products (Table 4), similar to those produced by the hydrothermal synthesis process. PA is a novel template for the synthesis of SAPO-34 (Figs. 1 and 2). From the elemental composition of the samples determined by XRF (Table 4), SAPO-34-PA possesses higher silicon content than SAPO-34-BA and SAPO-44-CyHA synthesized with the same initial molar composition. This is likely an effect of the smaller molecule size of PA.

The textural properties of Samples 4, 15 and 22 were characterized by nitrogen physisorption (Table 5). All of the samples have typical type Ⅰ isotherms. The BET surface area and micropore volume of Sample 4 are 585 m²/gand 0.27 cm³/g, respectively. The values of samples 15 and 22 are close to those of sample 4, confirming the good crystallinity and porosity of the samples.

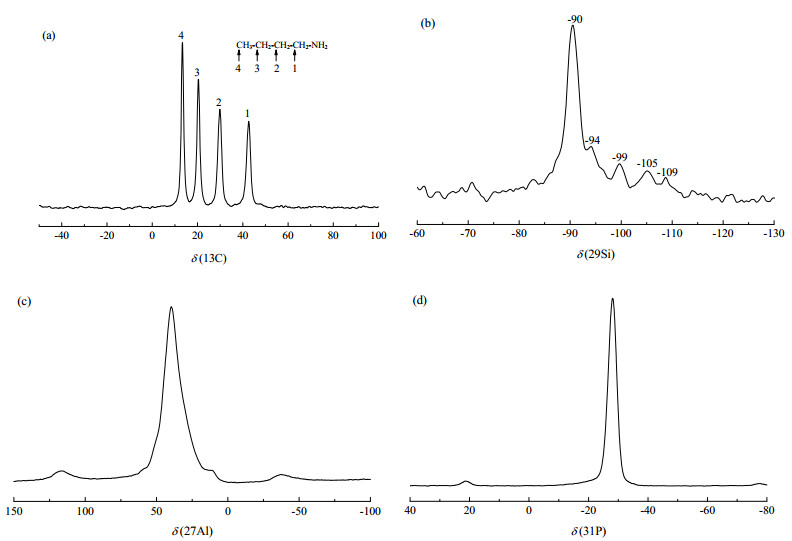

A ¹³C MAS NMR spectrum was recorded to verify the exact template species occluded in Sample 4 (Fig. 4). The spectrum exhibits four symmetrical peaks between 50 and 10 ppm, which can be ascribed to the carbon atom directly attached to the nitrogen atoms (C1) and the other three conjoint carbon atoms in the BA molecules, respectively. This result is in good agreement with previous literature [24] and implies that BA remains intact in the SAPO-34 crystals.

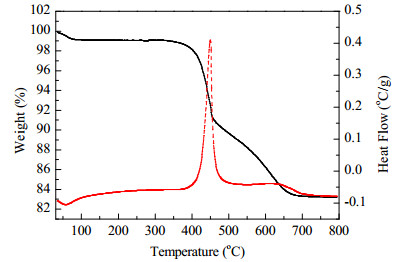

The TG-DTA curve of Sample 4 is shown in Fig.5 and the corresponding weight loss of each stage are summarized in Table 6. TG result shows that Sample 4 has three weight loss stages (Ⅰ, Ⅱ, Ⅲ) in the range of 30-800 ℃. The first weight loss stage at 50-200 ℃ is an endothermic process attributed to water desorption from the sample. The second and third weight loss stages between 200 and 700 ℃ are strongly exothermic processes attributed to the combustion decomposition of the template and organic residue, respectively. There is no weight loss and exothermic peak associated with structural collapse until 800 ℃, suggesting high thermal stability of SAPO-34 templated by BA. Samples 15 and 22 have TG curves similar to that of Sample 4, and the results of weight loss are listed in Table 6. The number of template molecules per CHA cage were calculated based on the elemental composition and topological structure of SAPO-34, with 1.88, 1.75 and 1.84 BA molecules for Samples 4, 15 and 22, respectively. These values are similar, suggesting little effect from crystallization temperature and synthetic method on the inclusion of the organic amine in SAPO-34. The BA number per cage, which is higher than that of tetraethylammonium hydroxide (TEAOH) [13] and close to diethylamine (DEA) [17], is reasonable considering the small molecule size of BA. The high number of BA molecules per cage also explains the easy production of SAPO-34-BA with higher Si content, because the organic amine can compensate for a more negative framework charge and thus prompt higher Si incorporation [25].

The ²⁹Si, ²⁷Al and ³¹P MAS NMR spectra were obtained to investigate the local atomic coordination environments in the as-synthesized Sample 4. The ²⁹Si spectrum is complex because of the high silica content of Sample 4, which consists of five peaks ranging from-91 to-110 ppm corresponding to Si (OSi)_n(OAl)_(4-n) (n=0-4) species, respectively (Fig. 4). The strong peak at-91 ppm suggests a dominant occupation of Si (4Al) species in the framework, which is consistent with the higher BA molecule number per cage in the SAPO-34 crystals revealed by TG analysis. This structure can compensate more framework charge and thus facilitate the existence of more single Si (4Al) environments.

The ²⁷Al MAS NMR spectrum of Sample 4 displays two peaks centered at around 37 and 9 ppm. The strong resonance at high field should arise from a tetrahedral Al species, and the weak one is attributed to penta-coordinated Al formed by an additional interaction of one water or template molecule with the framework aluminum. Only one strong resonance peak at 30 ppm can be observed in the ³¹P spectrum, suggesting a predominant P (4Al) environment in the framework.

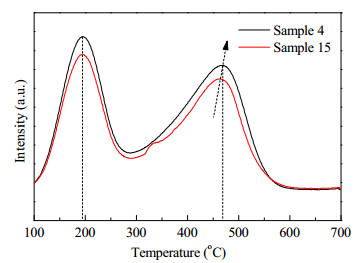

The acidic properties of Samples 4 and 15 were investigated by NH₃-TPD. There are two desorption peaks at about 190-200 and 450-470 ℃ for the samples (Fig. 6), corresponding to NH₃ desorbed from weak and strong acid sites, respectively. Although both samples have a similar Si content, their acidic properties are different, which is possibly because of the different Si distribution (Si coordination environment) in the crystals [26, 27]. Sample 15, which was synthesized at 240 ℃, possesses less acidity than the sample synthesized at 200 ℃, demonstrating that the crystallization conditions may exert influence on the acidic properties (Si distribution) of the samples.

Monomethylamine (MMA) and dimethylamine (DMA) are important intermediates in chemical industries. These compounds are mainly produced by the methanol amination reaction with amorphous acidic oxide (Al₂O₃ or SiO₂-Al₂O₃) as the catalyst at 390-430 ℃ and~20 atm. Trimethylamine (TMA) is the predominant product because of thermodynamic equilibrium during the process. Small pore molecular sieves with eight-membered rings are promising catalysts for the methanol amination reaction to improve the selectivity for MMA and DMA [28, 29].

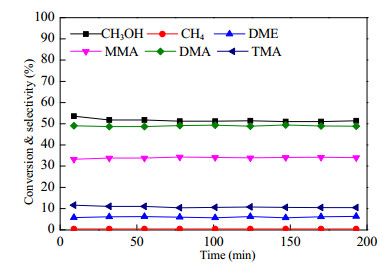

The catalytic performance of the BA-templated SAPO-34 samples were evaluated in the methanol amination reaction. The steady-state reaction data obtained with Samples 4 and 15 as catalyst at different reaction temperatures were determined after 170 min on stream and listed in Table 7. The dominant amination products were MMA and DMA for both catalysts, and only small amounts of TMA were generated. A higher methanol conversion and lower selectivity for MMA plus DMA was observed for Sample 4 compared with Sample 15 at each reaction temperature. This is possibly because Sample 4 has larger acid sites, which promote the acid catalyzed conversion of reactants and further methylation of products in the methanol amination reaction. The selectivity of MMA plus DMA in the three methylamine products over Sample 15 at 330 ℃ was 90.77%. Methanol conversion was greatly improved by raising the reaction temperature to 350 ℃, and the selectivity for DMA and TMA increased, implying an enhancement of the methylation degree. The (MMA + DMA) selectivity in the three methylamines presents a slight decline as compared with the results at 330 ℃. However, the (MMA + DMA) selectivity in all products is higher than that at 330 ℃ because of the decrease of dimethyl ether (DME) in the products. Methanol conversion exceeded 80% by further raising the reaction temperature to 380 ℃. The (MMA + DMA) selectivity drops under these conditions, but is still maintained at a high level ( > 80%). These results suggest that Sample 15 has excellent shape-selective catalytic effect because of the 8-membered windows in the structure of SAPO-34 and its suitable acidic properties. Fig. 7 shows the methanol conversion and selectivity of all products with time using Sample 15 at 350 ℃. Methanol conversion and the selectivities of all products are stable in the tested reaction time of 193 min. These preliminary results demonstrate that BA-templated SAPO-34 can be an excellent catalyst for the synthesis of methylamines.

SAPO-34 has been synthesized by using n-butylamine as a templating agent. The silica amount in the initial gel and crystallization temperature have great effect on the synthetic results. Only lamellar AlPO-kanemite was obtained at 160 ℃. Pure SAPO-34 was synthesized using a higher silica feeding amount at 200 ℃. Investigation of the crystallization process revealed that AlPO-kanemite is generated as an intermediate, which transforms to SAPO-34 under the assistance/participant of silica. SAPO-34 was synthesized with a wider range of silica content by further increasing the crystallization temperature to 240 ℃, showing that higher temperature can effectively suppress the generation of lamellar materials. Unlike the crystallization process at 200 ℃, no AlPO-kanemite intermediate was observed at 240 ℃ and SAPO-34 crystallizes directly from the amorphous gel. We successfully synthesized CHA-SAPO products at 240 ℃ by the aminothermal method and found PA a suitable template for the synthesis of SAPO-34. The BA-templated SAPO-34 has good crystallinity, high thermal stability and high Si (4Al) content in the framework because of the small size of BA. The as-synthesized SAPO-34 shows excellent shape-selective catalytic performance in the methanol amination reaction with high methanol conversion and good selectivity for MMA and DMA, implying that the BA-templated SAPO-34 has potential as a catalyst for the synthesis of methylamines.
