During the past fifteen years, reports of catalytic activity and unique selectivity of supported metals at the single-atom limit have sparked the interest of the catalysis research community, and many reactions have now been examined or are under investigation using single metal atoms coordinated and stabilized on various supports. The support may be a zeolite or an open support, such as the surface of an oxide or carbon with which the atoms stably coordinate through -O, -N, -Cl, or other linkages. The case of a metal atom embedded stably in the surface of another metal is that of single-atom alloys. When the metal atom is coordinated to a support with -O linkages, it is in essence a cation. At metal loadings higher than ~1 wt.%, metal nanoparticles, sub-nanometer clusters, and isolated metal atoms anchored on specific sites of the support can all be present on the surface. With the recent advances of atomic-resolution microscopy, the dispersed metal atoms, whether isolated or present as dimers, trimers, or sub-nm clusters, have been clearly imaged, and in some cases their evolution under reaction conditions has been documented and correlated to their reactivity. These developments will ultimately uncover the extent of "strong metal-support interaction" which has been freely used to describe intractable by current techniques but measurable catalytic effects at the interfaces between metal nanoparticles and supports. Thus, mechanistic elucidation and understanding of reaction pathways will be the first benefit realized by the design of single-atom metal catalysts. The second, and equally important benefit will be the development of 100% efficient and more cost-effective catalysts, using only a fraction of the noble metals currently in use, without compromising activity, and often by improving selectivity and yields of the desired products. The ultimate beneficiary will be the public, that is all of us, who will enjoy products with smaller carbon footprint by adopting new, greener and more energy-efficient processes for fuels and chemicals production.

While there are still significant challenges associated with the synthesis and characterization of single metal atoms on various supports, progress has been made on the synthesis side that allows designs of exclusively atomic distributions of the metal, which may then be characterized unambiguously. These developments are necessary to inform the debate regarding the reactivity of the supported single metal atoms. For some reactions, the atoms will be the active sites over the whole range of the operating parameters, while for others, deactivation will take place or a different pathway will open upon evolution of the atomic sites into metal clusters. The dynamics of structural evolution and their correlation to reactivity are currently poorly understood. Yet, for a practical catalyst, metal loadings of order 1 wt.% are desirable. How can one achieve this and still retain atom stability?

Looking back at the work that began in our lab more than twenty years ago on gold and copper oxidation catalysts dispersed on ceria supports [1, 2], we can trace the evolution in our understanding of the nature of the active site, first in ceria and then on other oxide supports. Defect-rich ceria is an excellent metal dispersant, and as such it has been used by the automotive industry to disperse and stabilize the Pt group metals to the atomic state in the designs of the three-way catalysts for exhaust gas treatment [3]. The high oxygen storage capacity of ceria in fast redox operation of the catalytic converter helps to keep the active site atomic and oxidized Pt-O_x-[3]. We first reported similar atomic sites for gold and platinum supported on ceria and demonstrated them as the exclusive active sites for the water-gas shift reaction in 2003 [4]. The atomic Au-O_x-and Pt-O_x-sites were not identified by atomic-resolution imaging, which was not accessible at the time, but by removing all other metal structures (nanoparticles, clusters) from ceria by leaching techniques and using spectroscopic methods to characterize the residual active metal phase [4–7]. Interestingly, for this reaction, the active atom sites operate independent of the presence of the other metal structures [4, 5]. Hence, while good catalyst designs should focus on maximizing the number of the active metal atom sites, the presence of other metal structures on the surface is not detrimental to the water-gas shift (WGS) reaction. This may of course be different for selective oxidation or hydrogenation reactions, where the selectivity may be adversely affected by the presence of extended metal surfaces, such as in metal nanoparticles.

Over the past decade, reports identifying isolated metal atom-species on supports as the active sites for certain reactions have enriched the relevant literature. Arguably, the most valuable development has been atomic and even sub-atomic resolution imaging techniques, especially the aberration corrected high angle annular dark field scanning transmission microscopy (ac-HAADF/STEM). With sub-Å ngstrom resolution, isolated metal atoms and cations stabilized by -O or other atoms on supports have been imaged and their evolution as a function of treatment followed in real time [8]. Several reactions have now been documented as occurring on single metal atom sites. In this account, a few such reactions are illustrated, including reactions of interest to hydrogen production and to the selective hydrogenation of butadiene to butenes, which takes place on a new type of catalyst, the single-atom alloys, comprising single atoms of one metal embedded in the surface lattice of another metal. A variety of open supports are considered, which often act as mere carriers of the active metal atom site, without participating in the reaction pathway. On the other hand, a strong electronic effect from the support has been reported for some reactions occurring on metal cations on a zeolite support, the latter serving as a ligand to the metal cation anchored on extra-framework -O, as exemplified in the extensive work of Bruce Gates on molecular catalyst designs over the past two decades.

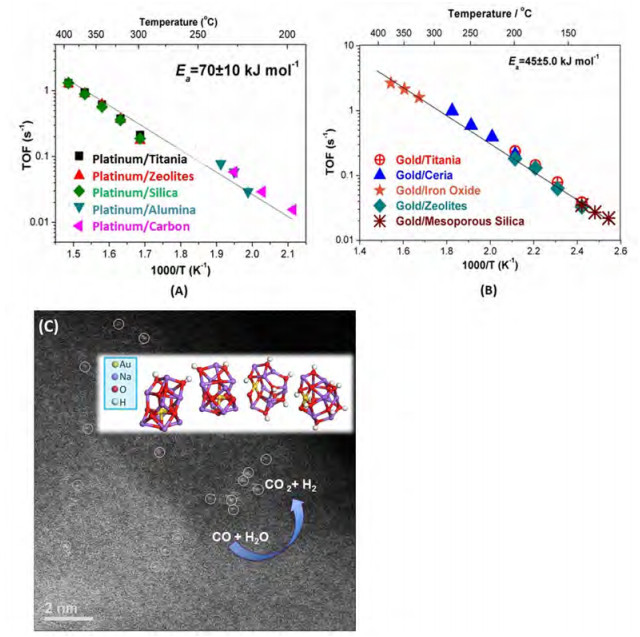

We begin here by an account of the WGS reaction which has been established over the years to take place on single M-O_x-species on a reducible oxide support like ceria [4–7], iron oxide [7, 8], titania [9–12], and others. Nanoparticles of the metal M (Pt, Au, Cu, etc.) do not catalyze the WGS reaction, except at their interfacial (basal, peripheral) sites with the support, which are cationic. Hence, a lot of metal can be saved by not preparing the catalyst in nanoparticle form in the first place. Of course, the WGS reaction does take place on single crystals, e.g. Cu(111) or Pt(111), but at a much lower rate. The M-O_x-S site, where S is the cation of the support oxide, catalyzes the dissociation of H₂O, the onset of which is facilitated (often by several hundred degrees) by the presence of the M-O_x-species. However, once regenerable -OH groups are formed proximal to CO adsorbed on the M-O_x-species, the identity of the "supplier support" is lost. Hence, it has been realized that the support effect is "indirect", as shown in Fig. 1 for the WGS turnover frequencies on atomically dispersed Pt-O_x-and Au-O_x-species on various supports [4–13], including irreducible ones, as will be discussed below. The TOF values are the same whether the metal atom is supported on CeO₂, Fe₂O₃, or TiO₂, etc. As expected, the TOF varies with the identity of the metal atom, Fig. 1(A) and (B). Thus, the key reaction step is:

CO_M-Ox- + S-OH → -COOH_M-Ox-+ S-

CO₂ and H₂ are desorbed in following steps while the metal cation may undergo a redox from a higher to a lower oxidation state during the reaction. Further evidence that the support effect is indirect has been garnered by using "inert" oxide supports that cannot dissociate H₂O at low temperatures (~ 100 ℃) even in the presence of a metal. In this case, addition of alkali ions to stabilize the M-O_x-species has been successfully applied. We may think of the alkali cations as equivalent to Ce⁴⁺, Fe³⁺, etc. providing -OH to the adsorbed CO. The alkali ions are themselves stabilized in a coordination sphere around the metal atom through -O linkages. Oxo clusters of the formula M-O_x-(OH)_y-Na_x are representations of the thus stabilized single metal atom. These can adsorb weakly on any support, including titania, zeolites, m-SiO₂, Al₂O₃ [9–12], carbon nanotubes [13], etc. Any extra amount of alkali is easily washed away from the surface of the support, but the amount coordinated with the active metal ion remains intact upon washing. The atomic ratio M/Na is ~1/10 in these clusters. Ab-initio Molecular Dynamics has been used to predict various such structures for both Pt and Au. Once coordinated with alkali ions through -O linkages, the metal atom center is stabilized, Fig. 1(C). The TOF of the atomic Au or Pt in the oxo clusters is the same on all the inert supports, and is the same as that on active supports where no alkali additive is used, Fig. 1. The clusters remain intact up to 200 or 350 ℃ respectively, for Au [11] and Pt [12], under realistic WGS conditions. The catalytic properties of these clusters for other reactions catalyzed by gold or platinum are presently under investigation. In general, they may present a strategy for applying them stably on various supports via a simple preparation method.

The SRM is an important reaction for the production of hydrogen at low temperatures for use in proton exchange membrane (PEM) fuel cells. The Cu/ZnO catalysts which are active for methanol synthesis, are also active for the SRM reaction. The catalytic reaction on Cu occurs through the direct dehydrogenation of methanol to CO₂ and H₂, thus it is not limited by the WGS reaction equilibrium, as no CO is produced in the process. In studies of supported Au/CeO₂catalysts, our group was first to report that catalysis of the SRM reaction by gold was similar to that of copper. Hence, supported gold catalysts could be developed as a more robust alternative to copper, for applications such as fuel processing for fuel cells where the Cu/ZnO catalyst is unstable to air exposure and to cyclic shut down/restart operation in full gas streams. The key step in the reaction mechanism is the formation of the ester, methyl formate, though the self-coupling of methanol (via methoxy and formaldehyde intermediates) [14, 15]. In the presence of H₂O, methyl formate is hydrolyzed to formic acid, which dehydrogenates to CO₂ and H₂ on Au-O_x-catalysts. Hence, no CO is formed in the process, and the Au/CeO₂ catalyst is 100% selective to CO₂and H₂. Further work on Au/ZnO has revealed that the kinetics of the SRM reaction on gold are the same whether ceria or zinc oxide is used as support [16]. And they were the same on a mixed oxide support, ZnO-ZrO₂ [17]. The acidity of the support was not important at low temperatures, where the chemistry of Au was exclusively observed. The atomic Au-O_x-species was identified as the sole catalytic active site. The confirmation came from a study of 1 wt.% Au/CeO₂ nanorods (mostly [110] surfaces) from which the nanoparticles and sub-nm clusters of gold were leached away by cyanidation and the remaining 0.5 wt.% Au (cations) on ceria, was equally active (per gram catalyst) as the parent [14, 15]. On the other hand, 1 wt.% Au on ceria nanocubes ([100] surfaces), was present mostly as 3 nm-size gold nanoparticles due to the lack of enough anchoring sites for gold on these surfaces, and had very low activity compared to the gold on the ceria nanorods. As found after cyanidation, which left only 0.03 wt.% Au on the cube surfaces, the low (per gram catalyst) activity matched the little amount of residual gold, present as isolated cations on the ceria surface, and was equal to the low activity measured for the parent catalyst. Hence, similar to WGS, the SRM reaction is catalyzed by single atomic Au-O_x-species, anchored on the support, the latter not participating directly in the reaction mechanism. It is noteworthy that the identified mechanism (through methyl formate) of the SRM reaction on supported gold atoms on ceria or zinc oxide is the same as for the partial oxidation of methanol producing methyl formate and water, reported both on oxygen-activated Au [111] surfaces in vacuum[18] and in catalytic studies on nanoporous Au (doped with Ag atoms) under 1 bar pressure [19]. In all cases, the oxidized Au-O_x-species are the active sites for the oxidative dehydrogenation and the self-coupling of methanol. The -O supplier, AgO_x, CeO_x, FeO_x, etc. is not part of the reaction mechanism.

In recent work, we reported that the ZnZrO_x composite oxide was a superior support for gold compared to either of the single oxides ZnO or ZrO₂ [17], better dispersing and anchoring the atomic Au-O_x-species needed to catalyze the methanol steam reforming reaction selectively to H₂ and CO₂. This was followed by a report that the same species catalyze the selective dehydrogenation of ethanol to acetaldehyde and H₂ at moderate temperatures [20]. Catalytic conversion of ethanol to targeted chemicals, like acetaldehyde and acetone, usually takes place in a cascade of reactions, where the nature of the catalyst plays an essential role in the reaction pathway.

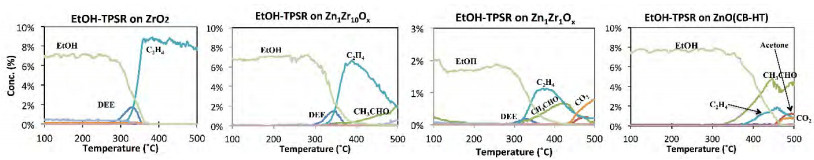

Bare ZnZrO_x oxides activate the ethanol conversion at ~300 ℃ (Fig. 2). Strong Lewis acidic sites on pure ZrO₂, whose occurrence is proved by pyridine-IR tests, primarily catalyze the dehydration of ethanol to produce ethylene. With increased ZnO loading, production of ethylene monotonically decreases as the dispersed ZnO clusters in the domain of ZrO₂ moderate the acidity of the ZnZrO_x mixture. One drawback of the bare ZnZrO_x composite oxide for ethanol dehydrogenation is that the temperature windows for the ethylene and acetaldehyde production mostly overlap, so that separation of the products would be an issue for practical applications [20].

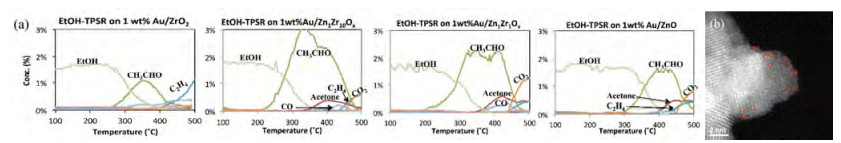

Addition of 1 wt.% Au to the bare mixed oxide supports by the anion adsorption method significantly changes the product distribution in the temperature range of 200–400 ℃ (Fig. 3(a)) [20]. Well dispersed Au on Zn₁Zr₁₀O_x and Zn₁Zr₁O_x activate the ethanol dehydrogenation at a temperature as low as ~200 ℃, while on pure ZrO₂ and ZnO the light-off temperature is shifted to ~300 ℃. As gold selectively catalyzes the dehydrogenation of ethanol at low-temperatures, a wide temperature window is now found between the production of acetaldehyde and ethylene, which can be exploited for the industrial application of this type of catalyst. The reaction takes place similarly with or without water added to the feed stream. Production of another valuable chemical, acetone, from acetaldehyde, was activated at intermediate temperatures before ethylene was produced at high temperature (≥ 450 ℃). Cyanidation of parent catalysts and imaging of the leached derivatives identified the active site as the isolated single atoms of gold anchored on specific sites of the composite oxide surfaces, Fig. 3(b).

The coordination of a metal atom with atoms other than -O on supports is of interest for other reactions, especially selective hydrogenations. In this brief account, illustrative, but not all inclusive, examples from the recent literature are mentioned, and the interested reader is prompted to explore the literature for additional examples. Single Au(Ⅰ) cations have been recently identified as the active sites for the Au/Carbon catalyst for the selective hydrochlorination of acetylene to produce the vinyl chloride monomer, VCM, used to make PVC, one of the world's most ubiquitous plastics [21]. The new catalyst, pioneered by Hutchings, is commercialized in China to replace the soon-to-be-banned highly toxic mercuric chloride catalyst. The gold cations are stabilized by -Cl linkages, and a redox between Au(Ⅰ) and Au(Ⅲ) appears to operate on the active catalyst. Carbons with a large number of anchoring sites should be used to achieve ~1 wt.% Au active sites (Fig. 4(a)).

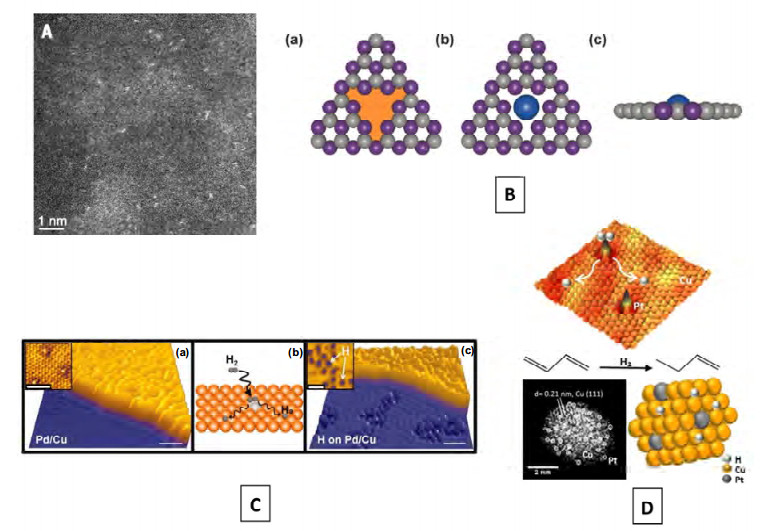

In another example, using Pd single atoms, anchoring the Pd atoms onto a mesoporous polymerized graphitic carbon nitride, mpg-C₃N₄, coordination with -N atoms and the ensuing stabilization of the Pd atom in the hydrogenation of 1-hexyne selectively to 1-hexene has been reported [22]. Strong bonds to the nitrogen atoms firmly anchor the Pd atoms inside the roughly triangular pores in the stacked, two-dimensional layers of C₃N₄, Fig. 4(b). The Pd atom was found electron deficient, electrons being withdrawn by the coordinating nitrogen atoms. This reaction goes to complete hydrogenation to hexane on Pd particles. The very different properties of a single Pd atom should be further explored using other stabilizers to potentially converge on common design principles.

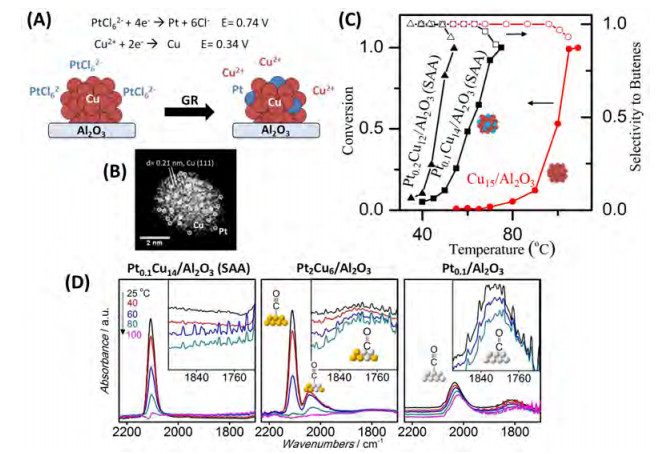

When metal atoms are deposited onto the surface of another metal, they may become bonded within the surface layer of the host metal, in isolation from each other. These materials are called single-atom alloys (SAAs). They are another new class of atomically dispersed site-isolated metal catalyst. The support ligands are the host metal atoms themselves, and the catalysts in this class display behavior markedly different from that of the afore-mentioned catalysts. Single atom alloys of Pt or Pd with Cu host surfaces, PtCu and PdCu, are shown to be bifunctional in selective hydrogenation reactions of alkynes and dienes to give alkenes [23–26]. The rate-limiting step at near-ambient temperatures is H₂ activation, which is facile on Pd or Pt atoms, but not on copper surfaces [23–25]. When Pd or Pt atoms are isolated in a single-crystal Cu(111) surface, H₂ dissociation occurs exclusively at the isolated noble metal atom sites, followed by spillover of atomic H onto the copper metal host, Fig. 4(C) and (D). This weakly bonded H is selective for the production of alkenes that desorb before further hydrogenation to alkanes can occur—thus the catalyst is selective in a way that conventional metals and alloys are not by virtue of being bifunctional. Furthermore, in 1, 3-butadiene hydrogenation, single isolated Pt atoms in copper activate H₂ and induce spillover, without breaking C–C bonds, thus preventing 1, 3-butadiene decomposition and the surface poisoning that occurs when the surface has higher platinum coverage (an ensemble effect) [25]. Ligand effects can also play a beneficial role in single atom alloy catalysts, with PtCu catalysts being more resistant to CO poisoning than extended Pt surfaces [26]. Fig. 5 illustrates the activity and selectivity of PtCu SSA nanoparticles supported on alumina in the selective hydrogenation of 1, 3-butadiene [25]. FTIR spectra in the carbonyl range of pre-reduced Pt_0.008Cu-SAA, Pt_0.39Cu-bimetallic, and Pt_0.1/Al₂O₃-monometallic nanoparticles are shown in Fig. 5(D) [26]. Much weaker CO adsorption on Pt atoms was found.

A major issue with supported single atom metal catalysts has been their preparation at high metal loadings. To achieve this, one should first understand what are the preferred support sites for metal atom anchoring and then try to maximize them on a given support. Accordingly, the support properties are important in this undertaking. While most of the conventional synthesis methods succeed in preparing metal atoms coordinated with the support, they are typically present along with various size clusters and nanoparticles on the surface. For some reactions, like the WGS and methanol reactions, as described above, this is inconsequential. These reactions proceed on the single M-O_x-sites unaffected by the presence of the nanoparticles. The practical designs are sub-optimal of course, as a lot of precious metal is wasted in these catalysts. However, this is not the case with other reactions, like selective hydrogenation reactions, where the selectivity is metal structure-sensitive. For example, an undesired reaction, i.e. the unselective butadiene hydrogenation to n-butane, is catalyzed by the formation of Pt atom chains and islands on the Cu surfaces [25]. It is possible to delay the formation of the undesired Pt structures by controlling the Cu particle properties, e.g. the density of step edges at which single Pt (and Pd) atoms preferentially anchor [23, 25]. In single atom alloys, it is relatively easy to prepare high loadings of the minority metal contained primarily in the surface of the host metal nanoparticles by properly distributing the SAA nanoparticles on various oxide or carbon supports, even exploiting core-shell designs or other such approaches.

An excellent account of the synthesis methods used to date to prepare single atom catalysts on various supports was recently given in a review paper by Liu [27]. These will not be covered here. For low (0.1–0.2 wt.%) loadings of single metal atoms, Liu, and Zhang and their colleagues at Dalian, show that the anchoring site is a vacant atom site in the support surface, e.g. Pt atom substitutes a Fe cation in the Fe₂O₃ surface [28]. Similarly, an Au atom substitutes a Ce⁴⁺ cation in the CeO₂ surface lattice, etc. [29]. The extent of this substitution, whereby the metal atom is in essence a dopant, is limited by the lack of extensive oxide solid solution formation between the transition metals and these oxides. An aliovalent metal atom substituent can also create oxygen vacancies by way of the different oxidation state of the dopant, e.g. two Au³⁺ in two Ce⁴⁺ sites, will create one oxygen vacancy for charge neutrality. This has further repercussions for some oxidation reactions.

Au₁/Fe₂O₃ was imaged by Allard et al. [8] at ORNL in 2009, using a catalyst prepared by coprecipitation, containing 5 wt.% Au/Fe₂O₃ by the World Gold Council (ref. no. 60C), and its leached (by NaCN solution) derivative catalyst, prepared by our group at Tufts [7], which contained ~1.8 wt.%Au, mostly as atoms on the surface of the support, and a few gold nanoparticles in the bulk, encapsulated inside the pores of the iron oxide, as shown in Fig. 6(A) and (B) [7, 8]. This stability of gold atoms on iron oxide, was understood by parallel surface science investigations where stability of Au adatoms over the uncapped -O sites on single crystal Fe₃O₄(111) was shown even after annealing at 500 ℃ (Fig. 6(C), [30]). The structural evolution of gold in fast heating in situ in the microscope to 500 ℃, is shown in Fig. 6(D) and (E). This was one of the first demonstrations by ac-HAADF/STEM microscopy of a stable (even after 400 ℃-air calcination or H₂-reduction [7]) single-atom catalyst on an open oxide support. Of course, other techniques had been used prior to these demonstrations by microscopy, including EXAFS and FTIR, to demonstrate isolated metal atoms on supports.

To achieve higher single atom metal loadings, other principles and approaches must be applied. Interestingly, if one makes a high gold or platinum content catalyst by co-precipitation or impregnation on the ceria support and then remove the "extra" gold or platinum from the surface by cyanidation, followed by several washings, and high-temperature calcination, loadings of 0.5–1.0 wt.% gold are possible [4, 5, 7]. The defect properties of the support control the number of anchoring points. A modified two-step method was used to make single-atom gold on titania, a support that does not disperse the gold, unlike ceria or iron oxide [9]. Accordingly, because titania is photoresponsive, a UV-assisted deposition-precipitation was used to create Au(Ⅰ)-O-Ti³⁺ sites, the Ti³⁺stabilized by the anchoring of the Au-O_x-as verified by EPR. After cyanidation to remove the weakly bound gold particles and clusters, the titania contained isolated gold atoms at a loading of 1.2 wt.%, the highest ever reported on this support. The catalyst was as active as the ceria or iron oxide supported Au-O_x-for the WGS reaction, Fig. 1(B). Single-step synthesis methods would be simpler, however, and remain an active area of research in the current literature.

Dopant and shape effects. The first demonstration that high-temperature annealed ceria is not an effective support of metal atoms (Au, Cu, Pt, …) came from our work on Cu and Au/CeO₂ [1, 2, 4, 5] and of course by the automotive exhaust literature on Pt-O_x-Ce catalytic sites that preceded ours [3]. It was realized that an oxygen defect-rich ceria was needed to atomically disperse the metals, and achieve high metal loadings. One approach to achieve this is to dope the ceria with trivalent lanthanide ions, e.g. La³⁺ or Gd³⁺, two of which create an oxygen vacancy in ceria for charge neutrality. The doped ceria is much more resistant to sintering upon high-temperature annealing in air, preserving 7 nm-avg. particle size after 600 ℃ calcination. Au³⁺ doped in ceria has a similar effect [4, 5]. The creation of oxygen vacancies was considered important in stabilizing Au atoms on ceria for the WGS and SRM reactions discussed above. A potential shape effect of ceria was next investigated and reported for the first time in 2008 [6]. Indeed, different facets of ceria, i.e. {100} facets in single crystal ceria nanocubes or {110} and {111} facets in ceria nanorods and nanooctahedra, have very different number of anchoring sites for gold, thereby proving the shape effect. The shape effect was shown to be "indirect" in the WGS and SRM reactions, as the intrinsic activity of the single Au-O_x-active site was the same on the different shapes; and was the same on different supports, like ZnO, FeO_x, and other supports, as discussed above. But the design principles from this work are clear: a nanosized, defect-rich ceria, with a preponderance of {111} planes is desirable for the creation of many anchoring sites for Au, Pt, Cu, Ni, or another metal. This early work did not specify whether the metal atoms were anchored on multiple defect sites of ceria; i.e. in a missing cerium atom; or over an oxygen vacancy or an uncoordinated oxygen, etc. DFT calculations have been evolving over the last ten years using such anchoring sites, still without answering this question uniquely. Complicating the matter of course, is the more difficult question to answer both experimentally and computationally; namely, which one of all these sites is stabilized under dynamic reaction conditions. This knowledge is the overarching goal in any catalyst design.

The combination of atomic-resolution surface science and microscopy is powerful in answering some of the above questions. From a series of papers, focusing on the Au/FeO_x catalyst for the WGS reaction, came the first images of Au atoms on iron oxide as the unequivocal sites for this reaction, using aberration-corrected HAADF/STEM and E-TEM [8], as stated above, Fig. 6(A) and (B). Interestingly, a significant parallel investigation of Au/Fe₃O₄(111) made by atomic-resolution Scanning Tunneling Microscopy (STM) in vacuum provided evidence of the preferential site of isolated Au atoms in this surface. These are the 3-fold hollow sites of Fe (Ⅲ) where the Au atom is found over the uncapped O-in the Fe(Ⅲ)-terminated Fe₃O₄ (111) surface, as depicted in Fig. 6(C) [30]. The distance between the isolated Au atoms is 0.52 nm. The Au atom adsorbs CO linearly and is slightly positively charged. In subsequent reports, this site was found to have the right properties for the WGS reaction as the -OH and hydrogen-bonded H₂O are preferentially adsorbed on the vicinal Fe cations, and DFT calculations show such a site to have the right properties for the WGS reaction [31].

Single-step synthesis methods. Active and inert oxides, carbon-based supports, metal surfaces and other supports have been used to atomically disperse metals. It would be desirable from a practical viewpoint to develop one-pot synthesis methods that achieve high single metal atom loadings in the various support surfaces. The preparation of the single atom alloys discussed above provides such a method through the galvanic replacement reaction to add noble metal atoms (Pt, Pd, Au, ...) on a less noble metal matrix (Cu, Ni, ...) by spontaneously removing an equal amount of Cu or Ni atoms as cations in the solution. When galvanic replacement is not appropriate, sequential deposition of the minority metal on the host one has worked for many metal pairs.

For the selective hydrochlorination of acetylene to VCM, the Hutchings group used a single-step method, involving impregnation with HAuCl₄ dissolved in aqua regia, to prepare 1 wt.% Au supported on carbon powders, almost exclusively as isolated Au(Ⅲ) cations [21]. During reaction, Au(Cl)_x-species comprising both Au(Ⅲ) and Au(Ⅰ) would form, activating the reactants. Other carbon supports, such as extrudates, are successfully employed as carriers of the active gold atom species in the commercial catalyst.

Yang et al. [11, 12] have demonstrated that Na, K ions can stabilize mononuclear Au or Pt through -O bonds and provide hydroxyls to the Au or Pt-centered oxo cluster. As mentioned above, the surrounding alkali cations are also stabilized in this way. The Au, Pt-O(OH)_x-Na, K cluster is prepared by single-step methods involving co-incipient wetness impregnation using a strong base (NaOH, KOH) and the precursor Au or Pt reagents; or by sequential incipient wetness impregnation of the metal precursor, and solid state base impregnation, the latter used when the support is silica-based to avoid its partial dissolution. This method was developed to achieve single atom preparations of Au or Pt on inert supports, such as zeolites, silica, alumina, carbon nanotubes, etc. where other methods fail to produce them as atomically dispersed species due to the lack of readily reducible surface oxygen species. But, it can also be used with "active" supports, adding more atomic gold or platinum on their surfaces and increasing the active site loading this way. Anchored on any high-surface area support, loadings may exceed 1 wt.% Au or Pt, exclusively as mononuclear species. This method may be extended to other metals and in the investigation of other reaction systems that may be catalyzed on single metal atoms.

While several methods now exist to prepare single metal atoms on various supports, it is well known and should be anticipated that the reaction conditions, or even simple heating protocols in different gases will alter the single-site catalyst. The evolution of structures during reaction is of great interest in our efforts to design more robust catalysts. For example, while ceria is one of the best oxide supports for atomically dispersing metals, it cannot preserve the M-O_x-species under highly reducing environments, or very high temperatures. Annealed ceria with few surface defects is not a good support because it lacks enough anchoring points to atomically disperse and stabilize the active metal species [5]. From recent surface science studies, we have learned that Pt anchors as Pt(Ⅱ)-O_x-on the step edges of CeO₂(111), but as Pt(0) over oxygen vacancies in ceria, long considered the important metal ion anchoring sites [32]. This needs to be investigated and documented in detail for practical ceria-based catalysts, and proper designs proposed for stable catalyst preparations.

What structure eventually stabilizes under working conditions depends on thermodynamics and reaction kinetics. This dynamic evolution of the active site must be elucidated and understood before one develops practical catalyst designs. At the fundamental level, it is important to understand the evolution through the different transition states, while the evolution with time-on-stream is important for the practical catalyst development. Considering the water-gas shift reaction as an example, a very reducing environment destabilizes the Au or Pt single cation species coordinated on the ceria surfaces, and metal clusters and nanoparticles are formed, with concomitant deactivation. Deng et al. [33] have shown this by using in situ EXAFS of the Au-O_x-Ce catalysts whereby at different temperatures the Au-Au coordination number increased. The deactivation may be prevented, if O₂-assisted WGS reaction is used, keeping the metal atom oxidized, as was shown for Au/CeO₂ [34]. It has also been realized that regeneration of the active gold atomic sites is possible by re-oxidation in air at ≥ 400 ℃. If prepared by co-precipitation, the bulk of the support serves as a reservoir of metal atoms which can diffuse to the surface and coordinate as additional atomically bound active species. The atomic Pt-O_x-Ce site in the automotive exhaust catalyst is preserved by the very fast redox between fuel-rich and fuel-lean operation to keep the catalyst running at the desired stoichiometric conditions [35].

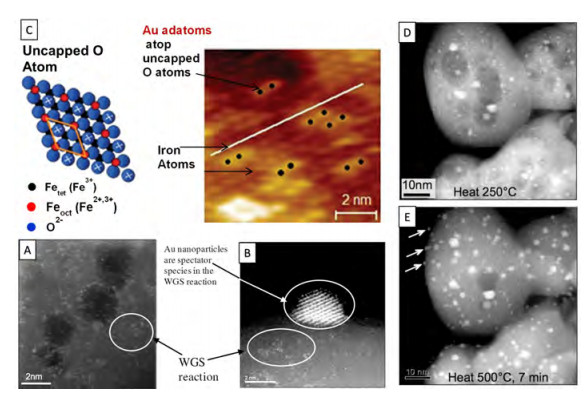

Atomically dispersed Au on FeO_x supports show a remarkable stability in heat treatments up to 500 ℃, as shown in Fig. 6 both as model catalysts, Fig. 6(C), and as nanoparticles, Fig. 6(A), (B), (D), with a high content of atoms and sub-nm clusters, resisting sintering. Thus, growth of gold particles and deactivation at working WGS conditions may be largely prevented on this type catalyst. The evolution of Au structures as a function of heating was followed by aberration-corrected microscopy for the Au/FeO_x catalyst, as shown in Fig. 6(D) and (E). Environmental microscopy (E-TEM) now permits direct observation of catalyst structure, atomically resolved, and its evolution under reaction conditions.

As mentioned earlier, the surge in investigations of atomically dispersed supported metal catalysts is enabled by the recent advances of atomic resolution microscopy techniques, most notably STM, STEM, and E-TEM [36, 37]. Key advances in the development of detection as well as in their operation under in situ or even in operando conditions, makes it now possible to avoid beam damage, and allow real time observation of catalyst formation and activity on the ms time scale. Other in operando techniques, include spectroscopies such as synchrotron-based XAFS, and vibrational spectroscopies such as IR and Raman, all enabling an unprecedented mechanistic insight into the correlation of structure and function as they allow the observation of catalysts switching states in real time. Moreover, advances in STM are particularly well suited for studies of single site model catalysts and offer the most amenable systems with which to unambiguously correlate the atomic scale structure of active sites with their chemistry. Recent advances in scanning probe technology, for example with non-contact AFM allowing Angstrom-level resolution of molecules and chemical intermediates, enable an unprecedented ability to characterize adsorption and reaction. This information is crucial for informing accurate theoretical models that in turn can offer insights in the mechanistic understanding and inform the design of practical catalysts, as shown by the examples of Pt/Cu(111) single atom alloys (Fig. 4(C), (D) and Fig. 5) and the Au/Fe₃O₄(111) single crystal system, Fig. 6(C). Finally, high-pressure STM offers a means to follow the evolution of catalytically relevant surfaces as the pressure gap is bridged. Theory has also advanced, allowing us to evaluate the interfacial interactions with more precision, providing an essential role in evaluating and interpreting experimental data.

In conclusion, a lot of new ground has been broken with the advances in the synthesis and characterization methods to enable us to design better catalysts in general, and robust single atom isolated catalysts in particular, for reactions catalyzed by such active sites. This promises that all three key catalyst properties; namely, activity, selectivity, and stability will be possible to optimize at the same time.
