Volatile organic compounds (VOCs) not only are harmful to human health but also cause air pollution leading to photochemical smog, ground-level ozone, sick building syndrome, and multiple chemical sensitivity. Many techniques have been developed to eliminate VOCs in the last decades. Among various control technologies for VOC emissions, catalytic oxidation has proven particularly effective, and allows VOCs to be completely oxidized into CO₂ and H₂O over catalysts at much lower temperature than direct thermal oxidation [1]. One of the most targeted components among VOCs is toluene, for which the main emission sources are petroleum industries. It also has numerous local sources, such as painting, printing, and pressing. Because of the chemical stability of toluene, its complete oxidation at low temperatures is problematic with current catalytic oxidation technology [2]. Noble metals such as Pt and Pd have proven effective catalysts for toluene elimination [3-5], but the high cost of noble metal catalysts has been a severe limitation. Various transition metals (including Mn, Fe, Co, Ni, and Cu) have been used for the toluene oxidation, but they require higher activation temperatures [6-8]. In recent years, Ag has attracted attention as an effective photocatalyst [9] and low-temperature oxidation catalyst in many reactions because of its high activity [10-12], better selectivity [13-15], and particular ability for the adsorption and activation of oxygen [16-18]. Ordered mesoporous silicas such as SBA-15 and MCM-41 have been considered as ideal supports for metals and metal particles [19, 20] because of their unique characteristics of high surface area, large pore volume, and well-defined pore size. Recently, the Ag/SBA-15 and Ag/MCM-41 catalysts have been investigated in the oxidation reactions of CO and HCHO, respectively, and have displayed highly favorable activity [21, 22]. However, less information is currently available on the performance of Ag-mesoporous silica-based catalysts for the oxidation of toluene.

It is well known that preliminary treatments have a strong influence on the structure and activity of these catalysts. The effect of pretreatment temperature has been discussed by many researchers. According to Van Steen et al. [23], higher temperatures for oxidation pretreatment lead to stronger metal-support interaction. Chen et al. [24] also observed that higher pretreatment temperatures enhanced the ability of Ag catalysts to form superoxide species over an activated carbon support, leading to better catalytic performance. Wang et al. [25] found that low-temperature treatment mainly affected the surface Pd species, while high-temperature treatment affected both the bulk Pd and CeO₂, with a strong synergetic effect between metal and support. The sample pretreated at 300 ℃ presented the highest activity for CO oxidation and oxygen storage capacity. However, too-high pretreatment temperatures can also lead to structural changes of the active species on the catalyst [26], leading to catalyst deactivation. In addition to the pretreatment temperature, the pretreatment atmosphere is also an important factor for the structure and activity of catalysts. Kim et al. [27] found that Pt particles prepared by incipient wetness impregnation in H₂were larger than those prepared in air. Pt-Au/ZnO/Al₂O₃ catalysts after H₂ reduction at 400 ℃ showed higher activity for the complete oxidation of toluene. Thus, different pretreatment conditions (temperature or atmosphere) result in different states of the active sites and different forms of activity. To the best of our knowledge, at least three kinds of oxygen species (molecular, atomic, and subsurface oxygen) [28] can be adsorbed on Ag-based catalysts, and subsurface oxygen has been suggested to play a pivotal role in several catalytic reactions that are responsible for the activation of catalyst surfaces [29-31].

In the present work, the Ag/SBA-15 catalyst was synthesized by an incipient wetness impregnation method. Different pretreatment conditions, achieved by varying the pretreatment temperature and atmosphere (O₂, H₂), were used to explore the relation between the structure of the catalyst and its catalytic activity for toluene oxidation. Moreover, the role of oxygen in the adsorption and desorption processes of toluene was also studied under different pretreatment conditions.

Ag/SBA-15 catalysts were prepared by incipient wetness impregnation of SBA-15 with AgNO₃aqueous solution (the weight loadings of Ag were 6%, 8%, 10%, 12%, 16%, and 25%) followed by drying at room temperature and then at 100 ℃ overnight. The series of catalysts were denoted Ag(x)/SBA-15 (x = 6, 8, 10, 12, 16, 25). In order to understand the effect of different pretreatment atmospheres on the catalytic properties and structure of the catalysts, each catalyst with a given Ag loading were separately pretreated at 500 ℃ for 2 h in 30% O₂/Ar flow (O500), 300 ℃ for 1 h in high-purity H₂ following O₂ pretreatment at 500 ℃ (O500-H300), or 500 ℃ for 2 h in high-purity H₂ (H500).

A continuous-flow fixed-bed quartz microreactor was employed to determine the catalytic activity at atmospheric pressure for the complete oxidation of toluene. 0.1 g of Ag/SBA-15 catalyst was loaded into the reactor at a space velocity of 37500 h^-1. The reaction stream was 1000 ppm toluene in air with a total flow rate of 50 mL/min, and the concentration was generated by passing an Ar flow through a bottle containing pure toluene (A.R. grade) chilled in an ice-water isothermal bath. The toluene conversion was determined after 40 min reaction at each temperature using an online Agilent 7890A gas chromatograph (GC) with flame ionization detector (FID) and thermal conductivity detector (TCD).

Nitrogen adsorption-desorption isotherms were measured at -196 ℃ on a Quantachrome QUADRASORB-SI. Before the measurements, the samples were degassed at 110 ℃ for 20 min and then at 300 ℃ for 4 h under vacuum. The specific surface areas of the samples were calculated with the Brunauer-Emmett-Teller (BET) equation. The pore volumes were determined at a p/p₀ value of 0.995. The mean pore diameters were calculated with the Barrett-Joyner-Halenda (BJH) equation from the desorption branches of the isotherms. X-ray diffraction (XRD) patterns were collected on a Rigaku D/max-gb (λ = 0.1542 nm) operated at 40 kV and 200 mA. Wide-angle patterns were recorded from 10° to 80° at a scan rate of 5°/min. The sizes of the Ag particles were calculated from the half-width of the main peak at 2θ = 38° according to Scherrer's method. Transmission electron microscopy (TEM) experiments were performed using a Tecnai G2 Spirit operated at an accelerating voltage of 100 kV. Diffuse reflectance spectra of the samples in the ultraviolet-visible (UV-vis) region were recorded using a Shimadzu UV-2450 UV-vis spectrophotometer equipped with an integrating sphere. A BaSO₄ disk was used as reference. All spectra were recorded under ambient conditions. An O₂ temperature-programmed desorption (O₂-TPD) experiment was carried out with a mass spectrometer (Pfeiffer vacuum OmniStar GSD320). He gas was passed through the reactor and the temperature was ramped from 30 to 800 ℃ at a heating rate of 10 ℃/min and a flow rate of 50 mL/min. The effluent O₂ (m/z = 32) from the reactor was monitored.

Adsorption and desorption experiments were performed in a fixed-bed quartz reactor with an inner diameter of 8 mm. The temperature was controlled by a programmable temperature controller (AI-708P). Prior to the experiments, 0.1 g sample (20-40 mesh) was pretreated in He at 300 ℃ for 1 h to remove adsorbed H₂O and other gases. After cooling the catalyst, toluene adsorption was carried out in a flow of 0.1% toluene/air (O₂-rich) or 0.1% toluene/He (O₂-lean) with the same flow rate of 50 mL/min. Following the saturation of adsorption, as indicated by stable signals of toluene in the GC and mass spectrometer, the reactor was purged with pure He for 1 h. For the TPD experiment, He was passed through the reactor by ramping the temperature from 30 to 400 ℃ at a heating rate of 10 ℃/min and a flow rate of 50 mL/min.

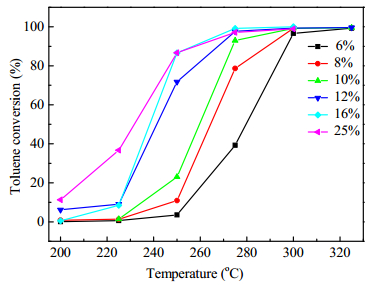

The toluene conversion over Ag/SBA-15 catalysts with different Ag weight loadings is shown in Fig. 1. The activity increases appreciably with the Ag loading. However, Ag(16)/SBA-15 has similar activity to Ag(12)/SBA-15, and further loading increase (> 16 wt%) does not enhance the activities. To elucidate the effect of the Ag loading, the turnover frequency (TOF) for toluene oxidation was measured at 200 ℃ and is shown in Table 1. The Ag(12)/SBA-15 sample displays the best activity for toluene oxidation among all the catalysts, indicating that 12% is the optimum loading to maximize the activity of Ag/SBA-15 catalysts.

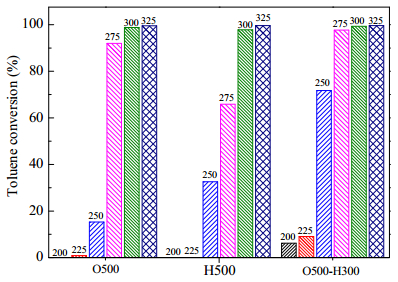

Fig. 2 exhibits the toluene conversion at several reaction temperatures on the Ag(12)/SBA-15 catalysts pretreated with H₂ (H500), with O₂ (O500), and with H₂ following O₂ pretreatment (O500-H300). No steady-state activity of toluene oxidation is found for pure SBA-15 (not shown here) in our experiments, which indicates that the Ag species is the catalytic active site for toluene oxidation. As shown in this figure, the catalytic activity greatly depends on the pretreatment atmosphere and temperature. The temperatures required for complete conversion of toluene are different for each pretreatment condition. The activities of H500 and O500 are rather low at 225 ℃. With the temperature increasing to 250 ℃, the toluene conversion of H500 increases to about 33% and increases further to 65% at 275 ℃. For the O500 sample, the conversion at 225 ℃ is low, and even at 250 ℃ only 13% is achieved. However, it reaches more than 90% when the temperature rises to 275 ℃. The complete conversion temperature for both H500 and O500 is 300 ℃. The H500 sample shows better toluene conversion at lower temperatures (< 260 ℃) than O500, but it does not retain this catalytic advantage when the reaction temperature is increased further. In comparison with those two samples, the conversion profile for the O500-H300 sample shows much better performance at the lowest temperatures, with the conversion reaching almost 7% and 10% at 200 and 225 ℃, respectively. At 250 ℃, the conversion is dramatically enhanced to 70%, and toluene is almost quantitatively converted at 275 ℃. In conclusion, the pretreatment atmosphere crucially affects the catalytic ability of Ag/SBA-15 catalysts. Specifically, pretreatment with O₂ at 500 ℃ followed by H₂ at 300 ℃ dramatically increases the activity of toluene elimination below 275 ℃. Catalytic activities are commonly evaluated using the metrics T₁₀, T₅₀, and T₉₀, and their values for the three samples are summarized in Table 2. The T₁₀, T₅₀, and T₉₀ values of O500-H300 are 225, 241, and 276 ℃, respectively, which are far more impressive than those for the other two catalysts (240, 261, and 274 ℃, respectively, for O500, while the T₉₀of H500 is 303 ℃). Hence, it is clear that treatment with H₂ at 300 ℃ exerts a positive effect on the ability for catalytic oxidation of toluene. The variation of catalytic activity as a function of pretreatment conditions has been suggested to be related to variation in the structure of the catalyst [32, 33]. Table 2 also shows the catalytic activities of several other Ag-based catalysts. For Ag/Al₂O₃, T₁₀ is roughly 330 ℃ and T₉₀ is about 380 ℃ [34]. An Ag catalyst supported on CeO₂ showed good performance for toluene oxidation, with a T₉₀ of 270 ℃ [35], while the T₁₀ and T₉₀ of Ag supported on three-dimensional ordered macroporou (3DOM) CeO₂-Al₂O₃ were 263 and 338 ℃ [36]. Therefore, O500-H300 shows highly competitive activity and outperforms several other Ag-based catalysts, indicating the importance of the pretreatment atmosphere and temperature.

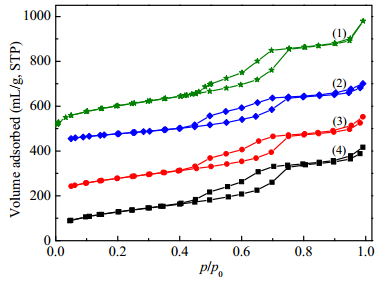

To examine the influence of pretreatment atmosphere on the properties of the Ag-based catalyst, the nitrogen adsorption-desorption isotherms were used to obtain textural information on the parent and pretreated catalysts. As shown in Fig. 3, the isotherms for SBA-15 and Ag/SBA-15 are of type IV and exhibit a hysteresis loop of type H1 according to the IUPAC classification, which indicates that the parent mesoporous structure was well maintained during the synthesis. The pore structure parameters of all the samples are summarized in Table 3. No major textural changes are found between the parent and the modified samples. The BET surface areas of the modified samples clearly decrease, but no change in the pore diameter of the SBA-15 sample after the impregnation procedure is observed, indicating that most of the metal species is located on the outer surface of the support. The large loss of surface area for the O500 sample is probably caused by the agglomeration of Ag species on the surface or by the nanoparticles' blocking the space after O₂ pretreatment at 500 ℃.

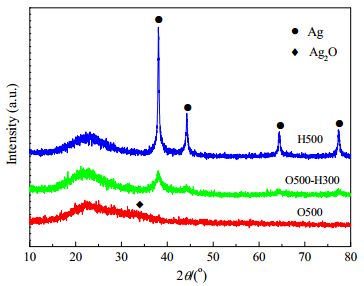

To further characterize the status of the Ag species after different pretreatments, the wide-angle XRD patterns for the three samples are shown in Fig. 4. In the patterns of the H500 and O500-H300 samples, four Ag diffraction peaks can be seen at 2θ = 38.0°, 44.3°, 64.4°, and 77.6°, which correspond to the (111), (200), (220), and (311) lattice planes of the structure of Ag, respectively (JCPDS card, File No.46-1043). A very broad signal is also seen at 2θ = 22.43° for amorphous silica. Thus, metallic Ag is the main species on the H500 and O500-H300 samples. In the present work, no obvious peaks for metal Ag particles are detected for the O500 sample: only a small Ag₂O peak appears at 2θ = 33°. Thus, it is suggested that Ag might exist as highly dispersed particles or as an amorphous species that cannot be detected by XRD. Combined with the N₂ adsorption-desorption results, the catalyst pretreated with O₂ shows the lowest surface area (S_Multi) and a relatively low pore volume (V_total), indicating that Ag probably exists as an amorphous species with large particle size [37]. In the Ag catalyst pretreated with H₂ at 500 ℃, most of the Ag is in the metallic state, and the Ag diffraction peak at 38.0° is markedly intensified, which can be attributed to the aggregation of Ag into large particles. As calculated from the half-width of the Ag peak in the XRD pattern, the particle size is about 11.4 nm for the H500 sample. For the sample in which Ag was further treated in H₂ atmosphere at 300 ℃ following O₂ pretreatment at 500 ℃, the diffraction peaks corresponding to Ag₂O disappear. At the same time, Ag diffraction peaks appear, and are lower and broader than in the H500 sample. Meanwhile, the surface area of O500-H300 is larger than that of O500, indicating that the Ag particles are smaller and are redispersed on the support surface. Fig. 5 shows the TEM images and the particle size distribution of the samples. The particle sizes of O500 range from 10 to 33 nm, while those of H500 have sizes of 3-20 nm. The particles of O500-H300 are the most homogeneous of the three samples. The average diameters for the three samples are 18.6, 11.3, and 7.3 nm, respectively. Thus, it is reasonable to suggest that the high activity for toluene oxidation is related to the thorough dispersion of Ag particles after H₂ reduction. Though H500 shows similar surface physical properties (Table 3) to O500-H300, its catalytic activity is lower, which we propose is closely associated with the Ag particle size and the structure of the Ag species.

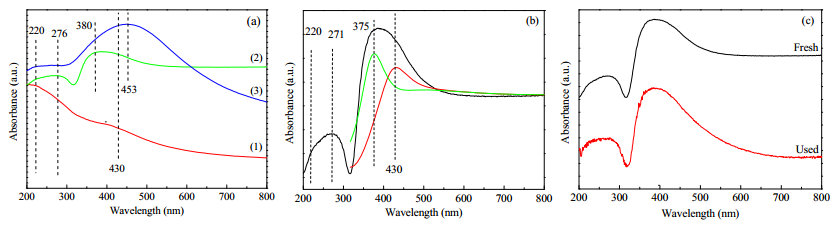

UV-vis spectroscopy (Fig. 6) was used to investigate the characteristics of the Ag nanoparticles in the mesoporous silica matrix after the different pretreatments. Two bands are observed in the O500 sample. The band at 220 nm can be assigned to the 4d¹⁰ to 4d⁹s¹ transition of Ag⁺ ions, and the weak band at 430 nm is characteristic of metallic Ag particles [13, 38]. Compared with the O500 catalyst, the band for H500 at about 380 nm is more intense, and contains two peaks at 375 and 430 nm, as shown in Fig. 6(b). Keshavaraja et al. [39] reported that the band at 350 nm was assigned to Ag_n^δ+, and disappeared as the Ag loading increased. Hence, in this work, the formation of Ag_n^δ+ on H500 was also very slight because of the high Ag loading (12%), and the peak at 375 nm is more likely to be assigned to metallic Ag. On the basis of Mie's theory [40], spherical Ag nanoparticles should give a single symmetric absorption band around 410 nm, whereas anisotropic nanoparticles should exhibit two or more bands. In addition, at about 276 nm a broad absorption band appears, indicating the formation of Ag_n clusters on H500 [41]. When the catalyst pretreated with O₂ at 500 ℃ was further reduced with H₂ at 300 ℃, the band at 430 nm redshifted to higher wavelength (453 nm), which indicates that the Ag⁰ particles became smaller. The corresponding peak was also broader and more intense in comparison with O500 and H500. This means that a high concentration of Ag⁰ was formed, suggesting the reduction of the Ag₂O species to small Ag particles after pretreatment with H₂ at 300 ℃ (Fig. 6(a)). To investigate the stability of the samples, a used sample of H500 was also investigated by UV-vis spectroscopy. The spectrum of the used sample is almost identical to that of the fresh one, indicating that the properties of the samples were unchanged during the reaction (Fig. 6(c)).

For the process of catalysis, first, reactant and O₂ molecules are diffused on and into the catalyst. Then, they are adsorbed onto the active site and activated. Finally, a chemical reaction takes place and the products are desorbed. The competitive adsorption between reactants and O₂, and the adsorption capability of the catalyst, are crucially related to its catalytic activity. Hence, it is essential to study the adsorption capability of catalysts, especially in the presence or absence of O₂.

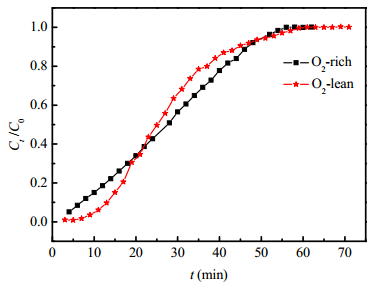

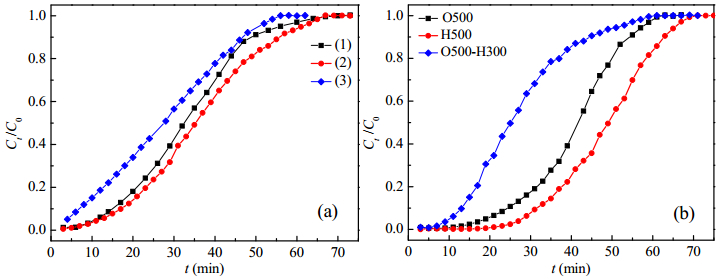

Fig. 7 shows the toluene adsorption breakthrough curves under the O₂-lean and O₂-rich conditions at room temperature over Ag/SBA-15 samples prepared with different pretreatments. First, the parent material SBA-15 was studied, to broaden our understanding of the adsorption characteristics of toluene on different samples, as shown in Table 3. For the bare SBA-15 support, no obvious change was observed for the breakthrough capacity for toluene adsorption under either of the O₂ conditions. That is to say, no competitive adsorption takes place between O₂ and toluene on SBA-15. When an Ag species is supported on the SBA-15, the adsorption capacity is greatly enhanced. Under both conditions, the adsorption capacities can be clearly ranked in the following order: H500 > O500 > O500-H300; however, the capacities of the catalysts vary greatly depending on the presence or absence of O₂. Under the O₂-lean condition, the capacity of H500 is 90.4 mg/g, which is 1.19 and 1.79 times those of the O500 and O500-H300 samples, respectively. An Ag-Y zeolite has also been reported to offer particularly high adsorption capacity via specific interactions [42, 43]. When toluene is adsorbed together with O₂ (O₂-rich), the capacity of H500 falls to 67.3 mg/g, while that of O500 falls slightly to 61.4 mg/g. The significant reduction in capacity results from the shorter breakthrough time (Fig. 7(b)). However, O500-H300 continues to display a similar capacity to that under the O₂-lean condition, indicating that the presence of O₂ has little influence on the toluene adsorption capacity of O500-H300, unlike the H500 and O500 samples. Comparing the two breakthrough curves of O500-H300, it is observed that in the absence of O₂, the breakthrough time is longer, and after breakthrough the concentration of toluene returns to its initial value faster than under the O₂-rich condition (Fig. 8).

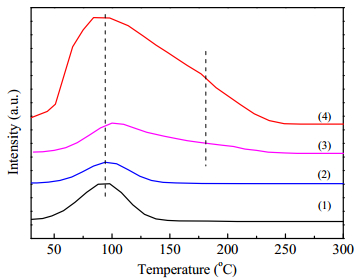

TPD was used to obtain information about the surface-adsorbed species and surface reactions. To investigate the surface properties of the pretreated samples, temperature ramping was carried out following adsorption of toluene under the O₂-rich condition at a range of temperatures, using He as the carrier gas. Fig. 9 shows the toluene TPD profiles of the Ag-based catalysts pretreated under different conditions, with the data for bare SBA-15 also presented for comparison. In all the TPD experiments, the temperature was ramped at 10 ℃/min to a final value of 400 ℃ with a He flow rate of 50 mL/min. As shown in Fig. 9, each sample exhibits a peak at about 100 ℃, with varying peak areas. Among the four samples, O500 has the largest peak area and H500 the smallest, meaning there is no strict correspondence between peak area and adsorption capacity and that toluene interacts more strongly with O500 than with H500. In addition, while H500 has only one desorption peak, for the O500 and O500-H300 samples another peak at about 180 ℃ appears, and a broader desorption window is observed at the temperature range of 100-250 ℃. Since no peaks above 100 ℃ are observed for SBA-15, one can conclude that the toluene desorbed at higher temperatures is bonded to Ag adsorption sites. In this work, the area of the peak at about 100 ℃ is notably smaller for H500 than that of the support, even though the adsorption capacity of H500 is the largest among all the samples.

Different pretreatments signally influence the structure of Ag/SBA-15 with respect to the state and particle size of the Ag species. Under H₂ pretreatment at 500 ℃, large Ag particles are formed, while on O500, Ag₂O particles coexist with Ag particles. H₂ pretreatment at 300 ℃ followed by O₂ at 500 ℃ fully reduces the Ag₂O content to Ag, and the Ag particles become smaller. These differences among the catalysts directly affect their adsorption and catalytic ability for toluene.

The study of dynamic adsorption indicated that the adsorption capacity of the catalysts for toluene follows the order: H500 > O500 > O500-H300 under both the O₂-lean and O₂-rich conditions. It is well known that high surface area is an essential contributory factor in achieving a large dynamic capacity for silica-based adsorbents [44]. However, in this study, the O500 sample exhibits lower surface (S_Multi) and pore volumes (V_total) than the other samples, while its adsorption capacity is much higher than O500-H300. Hence, the adsorption ability of these modified samples is no longer simply related to their surface physical nature, and the supported metallic species also exert a significant effect on the adsorption capacity compared with the bare SBA-15 support. In this work, the H500 sample, with a metallic surface state, shows a better adsorption capacity than the O500 and O500-H300 samples, especially under the O₂-lean condition. Some researchers have noted that the reduced state of Pd was more favorable than the oxidized form for the adsorption of VOCs, which was related to the existence of Lewis acid sites in the support and the interaction of the reduced metal with the support [45-47]. However, the O500-H300 sample also clearly contains Ag in the reduced state (Fig. 4 and Fig. 6), yet its adsorption capacity (50.5 mg/g in the O₂-lean condition) is much lower than the H500 sample (90.4 mg/g); this may be attributed to the different sizes of the Ag nanoparticles. The Ag⁰ particles located on the O500-H300 sample are small and highly dispersed, which seems to disfavor the adsorption capability.

In the O₂-rich condition, the breakthrough adsorption capacities for H500 and O500 are lower than in the O₂-lean condition, with an especially sharp decrease for the H500 sample. It is known from Table 3 that no competitive adsorption occurs on the SBA-15 support, so the difference in the capacities in the presence or absence of O₂ must be closely related to the Ag species. The results imply that O₂ competes strongly with toluene for adsorption on large Ag species: in this case, O₂ is adsorbed on Ag in preference to toluene and occupies the same adsorption sites, so that adsorption saturation is reached fast and the breakthrough time becomes short. Thus, we can conclude that O₂ is more easily adsorbed on the samples in the combined presence of toluene and O₂, and the presence of O₂ on the adsorption sites inhibits the adsorption of toluene. Although O500-H300 has the smallest breakthrough adsorption capacity under the O₂-lean condition, the reduction in capacity is minimal in the presence of O₂. This implies that small, highly dispersed Ag particles have a greater affinity for toluene than large Ag particles, while their adsorption capacity is unaffected.

It has been shown that the adsorption affinities of metallic sites were 5-620 times larger than those of the support, and that toluene was more strongly adsorbed on metallic sites than on the support regardless of the pretreatment methods [48]. In our results, it is clear that the areas of the desorption peaks do not follow the same order as the capacities of the samples. O500 shows the largest desorption peak of toluene, indicating that this sample has the strongest interaction with the target pollutant. Though H500 has the best adsorption capacity, 67.3 mg/g, its desorption peak in the TPD experiment is the smallest of all the samples, which probably indicates that most of the toluene was actually removed during the purge process, while the affinity of this sample for toluene is relatively weak. In addition, O500 and O500-H300 display two desorption peaks, in contrast to H500 and the SBA-15 support, which have only one. This shows that O₂pretreatment exerts some direct effect on the adsorption capability. Reports are prevalent in the literature that O₂ pretreatment of Ag-based catalysts leads to the formation of subsurface oxygen species, and oxygen located near the surface can alter the adsorption properties of surface Ag atoms [49]. In this study, O₂-TPD was performed only on the O500 and O500-H300 samples, since no subsurface oxygen was observed in the catalysts pretreated with H₂ at 500 ℃ [30]. From Fig. 10, the presence of oxygen species in both the O500 and O500-H300 samples is clear, implying that both samples contain subsurface oxygen. It is known that the chemisorption energy increases considerably if subsurface oxygen is present, and this is correlated with a stronger hybridization between Ag and toluene [50]. This effect is caused by the electronegative oxygen atoms, which induce a positive charge on neighboring Ag atoms, thus strengthening their interaction with the toluene-oxygen system. Combined with the result of the adsorption-desorption study, it is evident that the subsurface oxygen species contribute to enhancing the toluene adsorption affinities of the O₂-treated samples. After low-temperature pretreatment with H₂, the surface structure of the catalyst is not completely destroyed, so that subsurface oxygen species remain present in O500-H300, as shown in Fig. 10. This may be why the high-temperature desorption peak does not disappear in the sample pretreated with H₂ at low temperature.

It has been reported that subsurface oxygen species importantly affect the catalytic activity in different reactions on Ag catalysts. In this paper, it is observed that at temperatures under 260 ℃, H500 shows better activity than O500, probably because of its greater adsorption capacity for toluene; however, because of the lack of subsurface oxygen in H500, at higher temperatures toluene is easily desorbed because of the weakness of the interaction between toluene and Ag particles, so the activity of H500 is poor above 260 ℃. By contrast, the activity of O500 is superior to H500 at higher temperatures (> 260 ℃) because of the presence of subsurface oxygen, which enhances the interaction of toluene with Ag. According to XRD, a small number of Ag₂O particles are formed on O500. This might imply that at lower temperatures (< 260 ℃), metallic Ag tends to improve the catalytic activity against toluene while Ag₂O has a negative effect on the activity. Meanwhile, O500-H300 shows the best activity against toluene despite having less subsurface oxygen species than O500, which implies that high activity is caused by additional factors besides subsurface oxygen. The high-temperature O₂ treatment of O500-H300 induces the faceting of the Ag surface to high-index planes, while the subsequent reduction by H₂ at low temperature redisperses the Ag particles and results in a greater number of Ag particles with smaller sizes, as evidenced by the XRD results. The small size of the particles promotes their interaction with toluene. Besides this, the activation of O₂ is a crucial factor in catalytic reactions, and occurs more easily on smaller Ag particles [51]. Hence, O500-H300 gives an outstanding performance for toluene catalytic oxidation compared with the catalysts in which Ag is not redispersed. In summary, we conclude that small, redispersed Ag particles and subsurface oxygen are the key factors promoting catalytic activity of toluene oxidation.

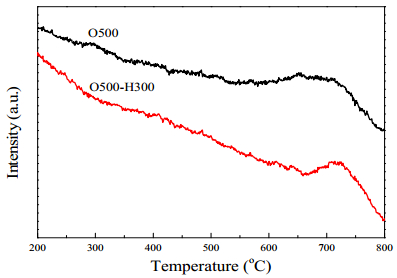

This study revealed that different pretreatment conditions greatly affect the structure of Ag-based catalysts and in turn their adsorption capability and catalytic activity against toluene. The BET, XRD, UV-vis, and O₂-TPD results showed that different pretreatments led to different effects on the formation of both Ag and O species on the Ag/SBA-15 catalyst. Under H₂ pretreatment at 500 ℃, large Ag particles are formed on the support. O₂ pretreatment at 500 ℃ leads to the formation of both Ag and Ag₂O, while H₂ treatment at 300 ℃ followed by O₂ pretreatment at 500 ℃ leads to the reduction of Ag₂O and redispersion of Ag, resulting in smaller Ag particles. The different Ag species directly influence the adsorption capacity for toluene. The large Ag particles formed by H₂ pretreatment at 500℃ endow the resulting catalyst with the largest adsorption capacity, which contributes to its good performance at lower temperatures. However, because of the lack of oxygen species, its affinity for toluene on Ag is poor, resulting in poor activity when raising the temperature. In the sample formed through O₂ pretreatment at 500 ℃, which contains both amorphous Ag particles and Ag₂O particles, the activity at lower temperature is hindered because of the reduced adsorption capacity and the existence of Ag₂O; however, the higher-temperature activity is better than that of H500, which is attributed to the existence of subsurface oxygen species, which increase the affinity between toluene and Ag, thus facilitating the reaction. On O500-H300, the Ag particles are redispersed and smaller, which does not directly benefit the adsorption capacity for toluene. However, the smaller Ag particles have a greater affinity for toluene, as well as being able to activate O₂ more easily, so that the activity of O500-H300 at lower temperatures is remarkably high. As this sample retains the subsurface oxygen species, which strengthens the interaction between toluene and Ag, at higher temperatures the O500-H300 catalyst still retains good activity. In summary, the subsurface oxygen species and smaller, dispersed Ag particles on O500-H300 endow it with higher activity than the O500 and H500 samples.
