Selective oxidation of alcohols to corresponding aldehydes or ketones is of fundamental importance in functional group transformation in both laboratorial and industrial applications. Traditionally, alcohol oxidations are performed by using stoichiometric and toxic permanganate or chromate as oxidants. From the viewpoint of green chemistry, the liquid-phase oxidation of alcohols with molecular oxygen or air as oxidants under mild solvent-free reaction conditions is highly desirable.

Over the past few years, a variety of heterogeneous catalysts have been developed for this transformation [1, 2]. Among the reported catalysts, supported palladium has been recognized as one of the best catalysts owing to its excellent activity [3-7]. Although supported palladium catalysts can be very active for the oxidation of benzyl alcohol, which is a model reaction for selective oxidation, the selectivity towards the desired product benzaldehyde is difficult to control. Previous investigations on the solvent-free oxidation of benzyl alcohol using palladium catalysts have demonstrated the formation of many products, including (a) benzaldehyde, benzoic acid, and benzyl benzoate from oxidation, dehydrogenation, and esterification, respectively (b) benzene from decarbonylation, (c) dibenzyl ether from dehydration, (d) dibenzyl acetal from condensation, and (e) toluene from disproportionation or hydrogenolysis of benzyl alcohol [8-10]. Among these products, toluene is the major byproduct under solvent-free conditions, which can lower the selectivity towards the oxidation product [6, 7]. To switch off toluene formation and achieve high aldehyde selectivity, one widely adopted approach is to use intrinsically basic or modified supports. Sankar et al. [9] reported MgO-and ZnO-supported catalysts did not produce any toluene. They interpreted that the basicity of the supports inhibited the cleavage of the C–O bond of benzyl alcohol that gives rise to toluene generation. Furthermore, N-doped mesoporous carbon [11], amino-group-functionalized TUD-1 and CNT [12, 13], and alkali-treated titanate nanobelts [14] also showed enhanced selectivity towards the desired oxidation product owing to the basic sites grafted on the surface of the supports. Another approach to suppress toluene formation involves the use of supported bimetallic or trimetallic catalysts. Pd-Au bimetallic nanoparticles are most frequently used, which improve the overall selectivity compared with monometallic Pd [15]. However, a considerable amount of toluene is inevitably formed when it comes to a higher reaction temperature or conversion [9, 16]. Recently, He et al. [17] demonstrated that the addition of Pt to the Pd-Au alloy catalysts could significantly minimize toluene formation. However, the full complexity of ternary alloys can be missed because the composition of such catalysts varies systematically with particle size.

It is generally accepted that bimetallic catalysts exhibit superior catalytic performance to monometallic catalysts owing to the synergetic interactions between the metals [18-20]. In terms of selectivity control, the introduction of a less active metal to a more active metal may selectively nullify some active sites for side reactions [21]. In the case of Pd-Au bimetallic catalysts, the catalytically more active Pd is perturbed by the inferior activity of Au, which makes Pd more atomic-like and suppresses the formation of byproducts [22]. Additionally, analogous Pd-M (M = Co, Cu, Zn, Ga, Ag, Sn, Pb, Bi) catalysts have been used in many Pd-catalyzed reactions and has resulted in enhanced selectivity [23-29]. For example, Pd-Ag and Pd-Cu bimetallic nanoparticles dramatically increased the selectivity towards the target alkenol in the semi-hydrogenation of alkynol reported by Yarulin et al. [24]. In an attempt to prevent the formation of nonselective reaction products, especially toluene, in solvent-free benzyl alcohol oxidation, we adopted a bimetallic catalysis strategy by alloying Pd with nonprecious transition metals instead of other noble metals such as Au and Pt. Herein, we report that a Pd-Ni bimetallic catalyst displayed high selectivity and overall productivity to the corresponding aldehyde.

The EP-FDU-12 support was synthesized as reported in the literature [30]. Typically, 0.50 g of Pluronic F127, 0.60 g of 1, 3, 5-trimethylbenzene (TMB), and 1.25 g of KCl were dissolved in 50 mL of HCl (1 mol/L) at 14 ± 0.1 ℃. After stirring for 1 h, 2.08 g of tetraethyl orthosilicate (TEOS) was added to this solution. After stirring at 14 ℃ for 24 h, the mixture was transferred into an autoclave and heated at 140 ℃ for 24 h. The product was obtained by filtration and dried at room temperature in air. The organic templates were removed by annealing at 350 ℃.

Pd nanoparticles (PdNPs) were synthesized according to a reported method [31]. In a typical synthesis, 112 mg of palladium acetate was mixed with 3.3 mL of oleic amine with stirring at 50 ℃ to form a clear solution. Oleic acid (3.2 mL) was then added and the mixture was kept at 50 ℃ for 1 h. Then, 386 mg of tetrabutylammonium borohydride (TBAB) dissolved in 2 mL of CHCl₃ was added in one portion. The mixture was heated for 1 h before it was cooled to room temperature. The PdNPs were precipitated by the addition of 15 mL of ethanol. The precipitate was separated by centrifugation and washed with ethanol. Finally, the precipitate was dried in a vacuum oven overnight. The size of the PdNPs was examined by transmission electron microscopy (TEM) and determined to be 2.83 ± 0.27 nm.

The synthesis of supported Pd-Ni bimetallic nanoparticles (BMNPs) was similar to our previous study with some modifications [32]. First, the required amount of nickel nitrate and 500 mg of mesoporous silica (EP-FDU-12) were added to 5 mL of ethanol. The mixture was stirred until the ethanol evaporated to form a powder, which was further dried under vacuum oven overnight. The as-obtained solid powder was added to a predetermined volume of a chloroform solution of PdNPs. After 24 h of stirring, the solid product was centrifuged and dried in air. Finally, the powder was calcinated under 5% H₂/95% Ar at 500 ℃ for 4 h. The loading mass of Pd was 1 wt% for all the samples. For comparison, supported monometallic Pd and Ni nanoparticles were prepared in a similar manner to the above procedure by omitting the deposition of nickel nitrate and PdNPs, respectively.

The TEM images were recorded on a Hitachi HT-7700 operated at 80 kV. High angle annular dark field scanning transmission electron microscopy (HAADF-STEM) and energy dispersive X-ray spectrometry (EDX) analysis were performed on a Tecnai G2 F20 operated at 200 kV. The sample was embedded in epoxy resin and then microtomed into a sub-100-nm ultrathin film at room temperature. These thin film samples floated on water or other solvents and were collected by a copper mesh with a polymer microgrid for HAADF-STEM imaging and elemental line scanning. X-ray diffraction (XRD) patterns were recorded on a Rigaku Ultima IV with Cu K_α radiation. X-ray photoelectron spectroscopy (XPS) measurements were performed in a VG Scientific ESCALAB Mark II spectrometer equipped with two ultra-high vacuum (UHV) chambers. All binding energies were referenced to the C 1s peak at 284.8 eV of the surface adventitious carbon. Diffuse reflectance Fourier transform infrared spectra of adsorbed CO (CO-DRIFT) were obtained on a Bruker Vertex 70 spectrometer equipped with a mercury-cadmium-tellurium (MCT) detector, a diffuse reflectance accessory, and a Harrick HVC-DRP cell. The sample loaded into the cell was purged with flowing argon (20 mL/min) and a spectrum was recorded as a background. Then, the CO adsorption on the sample was performed at room temperature by switching the gas flow to CO (20 mL/min) and then argon (20 mL/min). All the spectra were recorded with 64 scans at a 4 cm^-1 resolution.

Benzyl alcohol oxidation was carried out in a 50 mL glass stirred reactor. In a typical reaction, 20 mg of catalyst and 3 g (27.7 mmol) of benzyl alcohol were charged into the reactor, which was then purged with gas (O₂, H₂, or N₂) three times before closing. The pressure was maintained at 0.1 MPa (relative pressure) by connecting the reactor to a gas line to ensure that any consumed gas was replenished. The mixture was then heated and stirred vigorously at 120 ℃ in an oil bath. After a specific time, the stirring was stopped and the reactor was immediately cooled in an ice bath. After cooling to room temperature, the solid catalyst was removed by centrifugation and the organic products were analyzed by a gas chromatograph (FuLi GC-9790) equipped with a KB-5 capillary column and a FID detector. The structures of the products were confirmed by comparison with standard samples and by GC-MS (Shimadzu GCMS-QP2010). A standard normalization method was used to quantify the composition of the reaction mixtures. The conversion of benzyl alcohol and product selectivity were calculated using the following equations:

Conversion (%) = A_p / (A_r + A_p) × 100

Selectivity for i (%) = A_i / A_p × 100

in which A is the corrected FID chromatographic peak area, and r, p, and i represent benzyl alcohol, all the products, and a certain product, respectively.

Density functional theory (DFT) calculations were carried out using a plane-wave-based program, Castep [33, 34]. Model clusters, Pd₂₅ and Ni₂₁Pd₄, were used in the calculations. Whole structures were truncated from Pd and Ni crystals along the (111) orientation. For Ni₂₁Pd₄, the central four Ni atoms were replaced by Pd atoms. The lattice constants of the unit cell were a = b = 2 nm, c = 3 nm, and α = β = γ = 90°. The direction of the c-axis includes the vacuum region. Only the central four atoms and adsorbate were optimized. The Perdew-Burke-Ernzerhof (PBE) functional [35, 36] was used together with the ultrasoft-core potentials [37]. The basis set cutoff energies were set to 300 eV for geometry optimization, and 340 eV for the energy re-evaluation. The electron configurations of the atoms were: H, 1s¹; C, 2s²2p²; O, 2s²2p⁴; Ni, 3d⁸4s²; and Pd, 4d¹⁰.

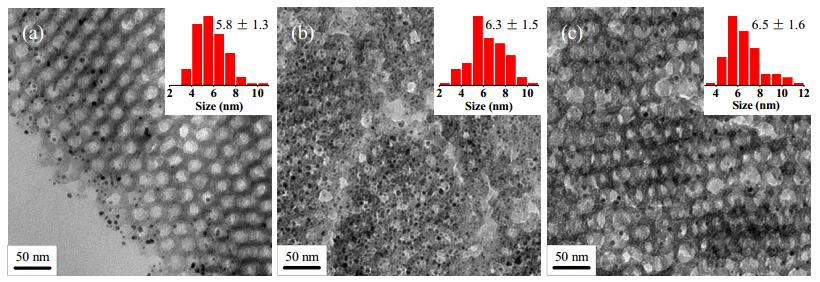

Supported Pd-Ni BMNPs were initially synthesized as an example of bimetallic catalysts. We prepared Pd-Ni BMNPs loaded on mesoporous silica (EP-FDU-12) by a general solid-state alloying method according to our previous study [32]. In brief, nickel nitrate was first loaded onto EP-FDU-12 by impregnation, and then colloidal Pd nanoparticles were deposited on the support as a seed for nickel growth before high-temperature reduction and solid-state alloying. The as-synthesized bimetallic catalysts with different Ni/Pd molar ratios in the precursors are denoted as Pd₁Ni_x (x = 1–20). The overall compositions of the bimetallic catalysts were confirmed by ICP-MS analysis. As shown in Table 1, the actual Ni/Pd molar ratios were slightly lower than the nominal ratios. Electron microscopy techniques were employed to reveal the morphology and structure of the Pd-Ni bimetallic catalysts. The particle size distributions of the monometallic Pd and bimetallic Pd-Ni samples were obtained by TEM, as depicted in Fig. 1. The TEM images show that the Pd nanoparticles in Pd/EP-FDU-12 were mostly at the outer edge of the mesoporous channels, whereas Pd-Ni BMNPs were uniformly dispersed in the EP-FDU-12 channels. This suggested that interparticle heteroatom migration occurred between Pd nanoparticles on the periphery and Ni clusters in the inner channels during the solid-state alloying process. The corresponding particle size distribution for each sample reveal that the average particle size was approximately 5.8 nm for monometallic Pd catalyst and 6.3 and 6.5 nm for the Pd₁Ni₅ and Pd₁Ni₂₀, respectively, for the bimetallic catalysts. These slight differences in the overall particle size distributions could rule out the effect of the particle size on the catalytic performances.

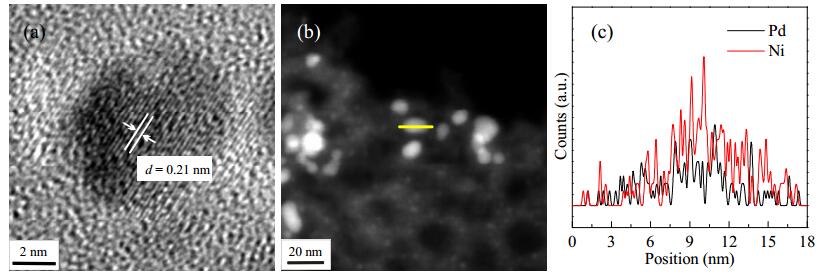

To confirm the formation of the bimetallic nanoparticles, HRTEM, HAADF-STEM, and EDX analysis were employed. Fig. 2(a) presents a HRTEM image of an individual Pd-Ni BMNP from a Pd₁Ni₅ sample. The lattice fringes of Pd₁Ni₅ display a fcc crystalline structure with interplanar spacings of 0.210 nm in the particle, which is between the interplanar spacing of pure Pd (0.224 nm) and pure Ni (0.203 nm) particles. Thus, the Ni/Pd molar ratio calculated according to Vegard's law is 2/1, which is lower than the actual ratio of 4.2/1 obtained by ICP analysis. This is mainly because some monometallic Ni clusters formed through self-nucleation and growth when there were no PdNPs nearby. Direct evidence of a bimetallic structure was also obtained from STEM-EDX line scanning. As shown in Fig. 2(b) and (c), the composition line scan profiles of Pd and Ni cross a representative Pd₁Ni₅ particle and show a similar intensity distribution over both elements, which confirmed the presence of both metals in the BMNPs with no signs of segregation.

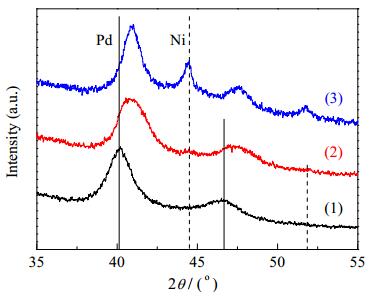

The formation of bimetallic nanoparticles was further confirmed by XRD. As shown in Fig. 3, monometallic Pd exhibited two peaks at 2θ values of 40.1° and 46.7°, corresponding to the (111) and (200) reflections of Pd (PDF# 46-1043), respectively. The diffraction peaks of the bimetallic Pd-Ni samples were shifted to higher 2θ values of 41.0° and 47.7° relative to the original peaks of monometallic Pd, suggesting that lattice contraction occurred as a result of substitution of the Pd atoms by Ni atoms. Furthermore, individual Ni diffraction peaks were observed in the XRD pattern of the Pd₁Ni₂₀ sample, indicating the formation of monometallic Ni particles at high Ni loadings.

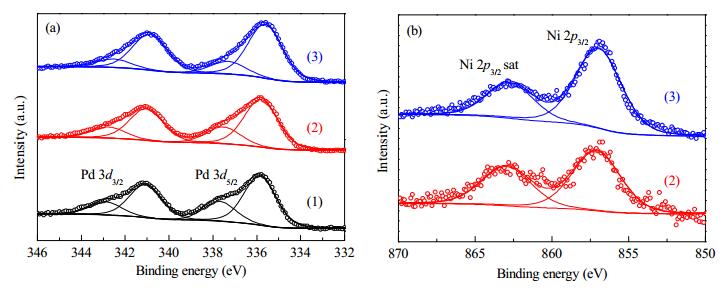

The surface composition and electronic properties of BMNPs were analyzed by XPS measurements. The spectra of Pd 3d and Ni 2p core levels are shown in Fig. 4, and the surface compositions are summarized in Table 2. As shown in Fig. 4(a), the monometallic Pd 3d spectra display a typical doublet, 3d_5/2 (335.9 eV) and 3d_3/2 (341.1 eV), which can be deconvoluted into four peaks corresponding to Pd⁰ and Pd²⁺. The appearance of Pd²⁺ peaks may originate from the partial oxidation of the Pd surface. However, the Pd⁰ percentage increased from 71% to 81% from monometallic Pd to bimetallic Pd₁Ni₂₀, which suggested that the higher oxidizing ability of Ni restricted the oxidation of Pd [38]. For bimetallic Pd-Ni samples, representative Pd 3d peaks shifted slightly (ca. 0.1–0.3 eV) to a lower binding energy (BE) with increasing Ni loading, in accordance with previous reports [39, 40]. It has been reported that BE shifts in BMNPs are caused by both changes to the electron density and lattice disturbance [41]. In Pd-Ni BMNPs, the lattice contraction of the Pd atoms that resulted from the inclusion of Ni atoms leads to higher BE shifts. Therefore, it partially counteracts the effect of the change in the electron density of Pd, which makes the overall BE shifts in the Pd 3d spectra relatively small. Nonetheless, the slight negative shift suggests the modification of the electronic structure of Pd owing to electron transfer from Ni to Pd. The Ni 2p spectra of the BMNPs in Fig. 4(b) show the presence of high BE satellite peaks adjacent to the main peaks, indicating the oxidation states of Ni in BMNPs. Deconvolution of the Ni 2p_3/2 spectra suggests a Ni³⁺ oxidation state in the Pd-Ni samples. The oxidation of the surface Ni is likely owing to exposure of the samples to air before the XPS measurements. The surface Ni/Pd atomic ratios in the Pd-Ni BMNPs determined by XPS were much lower than expected (Ni/Pd surface ratio of 1.1 vs. Ni/Pd bulk composition of 4.2), implying that the surface of the Pd-Ni BMNPs was enriched with Pd. Owing to the smaller surface energy of Pd (2.00 J/m²) than that of Ni (2.38 J/m²), the surface Ni atoms tend to diffuse into the Pd subsurface regions whereas the Pd atoms segregate to the topmost surface [42].

The as-synthesized catalysts were tested in the solvent-free benzyl alcohol oxidation reaction. The catalytic results are shown in Table 3. All Pd catalysts exhibited excellent activities. The main product was benzaldehyde. The monometallic Pd catalyst achieved the highest conversion of 89.3% at 120 ℃ within 4 h. However, the selectivity to benzaldehyde was rather low (58.3%), which was mainly owing to the formation of toluene as the major byproduct. Although the addition of Ni to Pd decreased the activity, it is obvious that all the Pd-Ni bimetallic catalysts exhibited high selectivity towards benzaldehyde (75.0%–88.2%) owing to the effective termination of toluene formation. Therefore, improved benzaldehyde productivity was achieved over Pd-Ni bimetallic catalysts except for Pd₁Ni₂₀. The lower activity and productivity of Pd₁Ni₂₀ can be ascribed to the presence of Ni particles, as revealed by XRD. Because the monometallic Ni catalyst exhibited a low benzyl alcohol conversion (8.5%), excess Ni nanoparticles may block the active sites of Pd, leading to decreased activities. Therefore, high activity and low selectivity towards toluene can be obtained by incorporating an appropriate amount of Ni into the Pd catalyst.

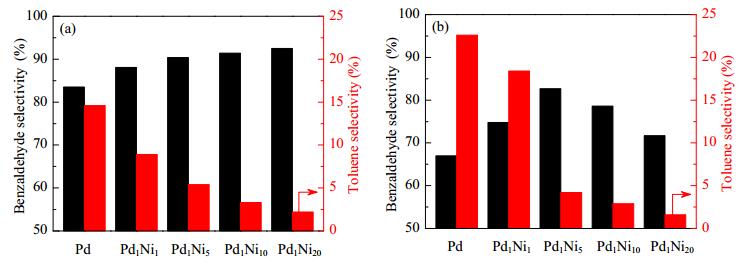

The effect of the Ni/Pd molar ratio on the catalytic selectivity of benzyl alcohol oxidation was further investigated by comparing products distributions at isoconversion levels. As shown in Fig. 5(a), at an isoconversion of 10%, the toluene selectivity significantly reduced whereas the benzaldehyde selectivity was improved with the increased addition of Ni. The same trend on the toluene selectivity was observed at a higher isoconversion of 80% (Fig. 5(b)). The selectivity towards toluene was reduced from 22.6% over monometallic Pd to 1.6% over bimetallic Pd₁Ni₂₀. Furthermore, the selectivity towards benzaldehyde at 80% isoconversion increased upon the addition of Ni but decreased with further increase in the Ni loading amount. The decrease in the benzaldehyde selectivity mainly resulted from over-oxidation to benzoic acid, which is a facile process at high benzyl alcohol conversion. As noted earlier, the addition of more Ni lowered the activities of the bimetallic catalysts, which may lead to a gradual conversion of benzaldehyde to benzoic acid. Hence, the highest selectivity towards benzaldehyde was obtained for the Pd₁Ni₅ catalyst. Nonetheless, a higher Ni loading amount contributed to the oxidation process in which toluene formation was hardly present.

Catalytic stability is an important factor to be considered for heterogeneous catalysts. Therefore, we investigated the recycling of the Pd₁Ni₅ bimetallic catalyst. The catalyst was recovered by centrifugation after each reaction run, washed with acetone, dried at 65 ℃, and re-used in a subsequent run. The recyclability of the Pd₁Ni₅ sample for 4 cycles is shown in Fig. 6. The conversion dropped slightly and the selectivities towards both benzaldehyde and toluene did not change significantly. No obvious leaching of Pd and/or Ni from the catalysts was evident. Therefore, the bimetallic catalyst was stable and could be readily reused.

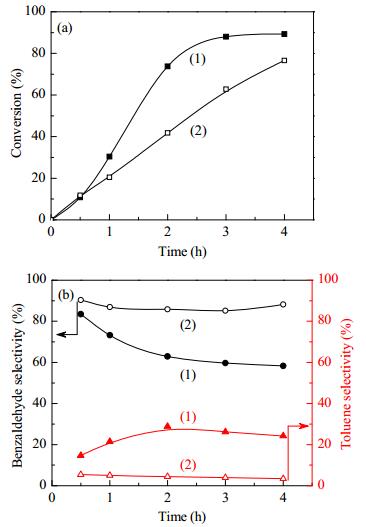

To clarify the role of Ni in the bimetallic catalysts, the catalytic performances of the Pd monometallic catalyst and Pd₁Ni₅ bimetallic catalyst were compared. Fig. 7 shows the time-dependent conversion and selectivity of the reaction over the two catalysts. As shown in Fig. 7(a), both catalysts had a comparative activity within 0.5 h. Thereafter, the Pd catalyst exhibited a higher conversion rate than Pd₁Ni₅catalyst. It appeared that the pure Pd catalyst required an induction period for re-structuring to an active form in benzyl alcohol oxidation, as previously reported [9]. This induction period was not present when Ni was added to Pd, which indicated that the interaction between Pd and Ni conduces to retain the active form of Pd. With respect to selectivity (Fig. 7(b)), it is noteworthy that the selectivity towards benzaldehyde gradually decreased over monometallic Pd as a function of reaction time, whereas it was maintained above 85% over the Pd₁Ni₅ catalyst. Toluene was initially formed over both catalysts, along with benzaldehyde at low conversions and at short reaction time, suggesting it probably undergoes a pathway parallel to the oxidation process. The toluene selectivity over monometallic Pd increased up to approximately 30% in 2 h, followed by a slight decrease owing to the formation of benzoic acid in a moderate amount. In contrast, the Pd₁Ni₅ bimetallic catalyst controlled the toluene selectivity below 5% throughout the reaction process, which implied that the Ni component integrated with Pd was stable and effectively suppressed the side reaction pathway.

It has been experimentally verified that oxygen is not required for the formation of toluene [9]. Therefore, solvent-free oxidation of benzyl alcohol under anaerobic conditions was performed using Pd and Pd₁Ni₅ as catalysts. The results are listed in Table 4. Under a N₂ atmosphere, benzaldehyde and toluene were formed exclusively over both catalysts. These two products were generated in almost equimolar amounts, evidencing the disproportionation of benzyl alcohol. However, the Pd₁Ni₅ catalyst showed lower activity than monometallic Pd for the disproportionation reaction. This indicated that the addition of Ni probably nullified some of the Pd sites that were active for the disproportionation reaction. In addition, the slightly higher amount of benzaldehyde catalyzed by Pd₁Ni₅ was ascribed to the presence of oxygen species either from adsorbed residual O₂ or from the lattice oxygen of surface nickel oxide, as revealed by XPS results. As the generation of toluene from benzyl alcohol necessarily involves the formation of a C–H bond, surface hydrogen is considered of great importance for toluene selectivity. Therefore, a H₂ atmosphere was also adopted to study this aspect. From the data in Table 4, toluene was predominantly produced through the hydrogenolysis of benzyl alcohol and more toluene was formed over pure Pd catalyst. This suggested that comparatively less surface hydrogen is involved in toluene formation when Ni is added to Pd.

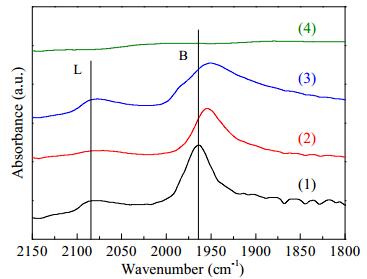

To further study the effect of Ni addition, CO-DRIFT spectra of Pd, Ni and Pd-Ni samples were collected after exposure to CO then Ar. As shown in Fig. 8, two distinct bands were clearly observed for monometallic Pd. The bands at 2084 and 1964 cm^-1 were assigned to linear (L) and isolated-bridged (B) CO adsorbed on the (111) facet of the Pd particles, respectively. Because the interaction between magnetic atoms and CO is rather weak [43, 44], no evident band was observed for the monometallic Ni sample. The Pd-Ni bimetallic catalysts exhibited spectra that were characteristic of Pd. However, a red shift of B band to lower frequencies (ca. 15 cm^-1) is observed due to either a geometric or an electronic effect. On the one hand, Pd ensembles are diluted by Ni, leading to a weaker lateral interaction between adsorbed CO molecules. On the other hand, the Ni-induced increase of d electron density on the Pd atoms in BMNPs enhances back donation in the 2π* antibonding orbitals of adsorbed CO molecules. Both the Pd and Pd-Ni samples showed a stronger relative intensity of the B band than the L band; the relative intensities of the L bands did not vary significantly when Ni was added. This indicated the Pd-enrichment of the BMNPs surface, in agreement with XPS results. However, we cannot exclude the geometric effect for sure from this result. Therefore, we concluded that the synergistic interactions between Pd and Ni may affect the adsorption of benzyl alcohol on the surface of BMNPs and play a part in the catalytic selectivity.

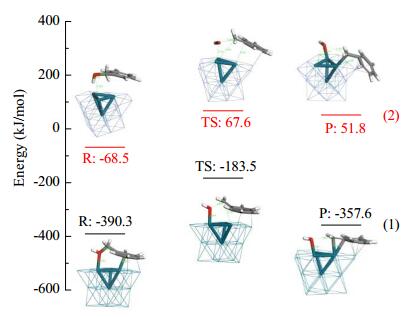

According to previous mechanistic studies, two possible reaction pathways have been proposed for the formation of toluene, namely (a) disproportionation of benzyl alcohol and (b) hydrogenolysis of benzyl alcohol [45]. Despite different dissociation modes and adsorption states in these two pathways, both necessarily involve cleavage of the C–O bond in benzyl alcohol and formation of the C–H bond in toluene [46, 47]. The DFT calculations were conducted for the C–O bond cleavage. Fig. 9 shows the energy profiles for dissociative adsorption of benzyl alcohol on a Pd₂₅ cluster and Ni₂₁Pd₄ cluster, respectively. The relative energy of the reactant on Pd₂₅ (-390.3 kJ/mol) was lower than that on Ni₂₁Pd₄ (-68.5 kJ/mol), which means that the adsorption of benzyl alcohol is more favorable on monometallic Pd. Although the activation energy is a considerable amount (ca. 2 eV) on the Pd₂₅ cluster, all the relative energies were below zero. Therefore, the cleavage of the C–O bond proceeded smoothly on the Pd₂₅ cluster. However, the product for dissociative adsorption on Ni₂₁Pd₄ could not be completely optimized. Although we modulated the benzyl moiety going down to the side of cluster, this configuration is not possible if the Ni₂₁Pd₄ structure is considered as a part of larger particles. Tentatively, a transition state (TS)-like structure was obtained between the reactant and this product. Nonetheless, the relative energies of the TS and product were above zero. Therefore, the dissociative adsorption of benzyl alcohol would hardly occur on the Ni₂₁Pd₄ cluster. The above calculation results can be associated with the synergistic effect of the Pd-Ni BNMPs. Previous theoretical work shows that both electronic and geometric effects will cause the degradation of surface adsorption and absorbate interaction [48]. In our case, CO-DRIFT results revealed the increase of the d electron density of Pd owing to charge transfer from Ni to Pd. According to the d-band center theory [49], such a change in the surface electronic structure will lead to a downshift of the d-band center away from the Fermi level, which in turn induces weakening of the Pd-adsorbate interaction. Lower binding energies for the adsorbed molecules on the Pd-Ni bimetallic catalyst have been reported in the selective hydrogenation of 1, 3-butadiene [50] and oxidation of formic acid [44]. Our DFT calculation results also confirmed the weaker adsorption of benzyl alcohol on Pd-Ni BMNPs. Moreover, Villa et al. [51] experimentally verified that there was a higher amount of benzyl alcohol on the surface of Pd than on Au-Pd by operando ATR-IR spectroscopy. Apart from electronic effects, geometric effects can also account for weakening of the dissociative adsorption of benzyl alcohol. To undergo either a disproportionation or hydrogenolysis reaction, the benzyl alcohol molecules need to adsorb on adjacent active sites. However, the geometric isolation of Pd active sites by Ni reduces the intermolecular interactions between adsorbed benzyl alcohol species, which hinders the C–O bond cleavage. Despite the Pd-enriched surface of BMNPs, the chemical composition of the surface ensembles changed. With the increased Ni loading, fewer continuous Pd ensembles were left on the surface of the BMNPs; therefore, toluene selectivity decreases accordingly, as shown by the catalysis results.

Concerning the C–H bond formation, the oxophilicity of Ni could also be responsible for the suppression of toluene formation because it can scavenge the adsorbed hydrogen through oxygen species. It has been reported that the elongated interatomic distances of Pd-Pd and Pd-Ni in BMNPs increased the binding energy of oxygen [52]. Therefore, increased coverage of oxygen species over the Pd-Ni BMNPs reduces the surface hydrogen concentration, yielding more oxidation products. The results of the catalytic reaction under a H₂ atmosphere also demonstrated less surface hydrogen was involved when Pd-Ni BMNPs were used. However, a high amount of Ni may also block the active sites of Pd and decrease the activity because Ni itself is less active than Pd for the oxidation reaction. Therefore, it will be more desirable to selectively suppress toluene at no cost of activity by further optimizing the bimetallic catalytic systems.

Supported Pd-Ni BMNPs were prepared using a solid-state alloying method. The addition of Ni to Pd enhanced the selectivity and productivity towards benzaldehyde by effectively suppressing the formation of toluene in the solvent-free benzyl alcohol oxidation reaction. We investigated the effect of adding Ni to Pd and demonstrated that it plays two roles. The first is weakening of the dissociative adsorption of benzyl alcohol and C–O bond cleavage owing to the synergistic effect of Pd-Ni BMNPs. The second role is the removal of hydrogen by the oxygen species on the Ni surface and inhibition of C–H bond formation.
