Synthesis of FER zeolite with piperidine as structure-directing agent and its catalytic application
Weifeng Chua,b, Fucun Chena, Ce Guoa,b, Xiujie Lia, Xiangxue Zhua, Yang Gaoa, Sujuan Xiea, Shenglin Liua, Nan Jiangc, Longya Xua
a. Dalian National Laboratory for Clean Energy, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian 116023, Liaoning, China;
b. University of Chinese Academy of Sciences, Beijing 100049, China;
c. Nanjing Rongxin Chemical Co., Ltd., Nanjing 210047, Jiangsu, China
* Corresponding author. Xiujie Li, Tel/Fax: +86-411-8437 9279; E-mail: xiujieli@dicp.ac.cn; Longya Xu, Tel/Fax: +86-411-8437 9279; E-mail: lyxu@dicp.ac.cn
Foundation item: This work was supported by the National Natural Science Foundation of China (21376235) and Natural Science Foundation of Liaoning Province (201602740)
Abstract: The synthesis of ferrierite (FER) zeolite using piperidine as an organic structure-directing agent was investigated. X-ray diffraction, X-ray fluorescence, N2-adsorption, and scanning electron microscopy were used to characterize the crystal phases, textural properties, and particle morphologies of the zeolite samples. The crystallization behavior of the FER zeolite was found to be directly related to crystallization temperature. At 150 ℃, pure FER phase was observed throughout crystallization. At 160-170 ℃, MWW phase appeared first and gradually transformed into FER phase over time, indi-cating that the FER phase was thermodynamically favored. In the piperidine-Na2O-H2O synthetic system, alkalinity proved to be the crucial factor determining the size and textural properties of FER zeolite. Furthermore, the obtained FER samples exhibited good catalytic performance in the skeletal isomerization of 1-butene.
© 2017, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: FER zeolite     Piperidine     Crystallization process     MWW zeolite     Skeletal isomerization
以哌啶为模板剂合成FER分子筛及其催化应用
楚卫锋a,b, 陈福存a, 郭策a,b, 李秀杰a, 朱向学a, 高扬a, 谢素娟a, 刘盛林a, 江南c, 徐龙伢a
a. 中国科学院大连化学物理研究所, 辽宁大连 116023;
b. 中国科学院大学, 北京 100049;
c. 南京荣欣化工有限公司, 江苏南京 210047
摘要:镁碱沸石(FER结构)是一种中孔沸石,具有垂直交叉的二维孔道系统.其一为沿[010]方向的八元环孔道(0.35 nm×0.48 nm),另一为沿[001]方向的十元环孔道(0.42 nm×0.54 nm).FER分子筛是工业化的沸石催化剂之一,主要应用于1-丁烯骨架异构化反应.此外,FER分子筛在氮氧化物分解和还原、二甲醚羰基化、甲醇制烯烃、烷烃加氢异构以及正构烷烃裂化等反应中也表现出极大的应用价值. FER分子筛通常在有机模板剂的辅助下合成.常用的有机模板剂主要为有机胺化合物,包括乙二胺、吡咯烷、吡啶和环己胺等化合物.四氢呋喃等含氧化合物也可以用于导向FER分子筛的合成.此外,通过两种不同尺寸的有机分子进行组合,也可以导向合成FER分子筛,且这些分子筛往往具有独特的物化性质和催化性能.以哌啶和四甲基氢氧化铵为组合模板剂,可以得到多级孔FER分子筛.与粒径较大的FER分子筛相比,其在低密度聚乙烯催化裂解反应中表现出更为优异的催化性能.以吡咯烷和有机硅烷为组合模板剂,可以得到多级孔FER纳米片团簇.与传统的微米FER分子筛相比,该多级孔FER纳米片团簇在甲苯与苄氯的苄基化反应中的催化活性得到显著提高.最近,有研究者以1,6-双(N-甲基吡咯烷)己烷和四甲基铵离子为组合,同样得到了FER分子筛. 本文以哌啶为有机模板剂合成了FER分子筛,详细考察了合成参数(碱度、水含量)和晶化条件(晶化温度、晶化时间)对FER分子筛合成的影响.结果表明,温度对FER分子筛的晶化过程影响比较大.在150 ℃晶化时,只有FER分子筛出现在其晶化过程中;在160或170 ℃晶化时,其晶化过程伴随有MWW分子筛的生成和消失.高温有利于FER分子筛的晶化,但其易于转化为其它杂相.凝胶硅铝比为40.0时,合成纯相FER分子筛的碱度比较高;而凝胶硅铝比为30.3时,合成纯相FER分子筛的碱度比较低.在低碱度晶化时,不同硅铝比的凝胶出现的杂相也不尽相同.凝胶硅铝比为40.0时,其产物为FER分子筛与MTN分子筛的混合物;而凝胶硅铝比为36.4时,其产物为MWW分子筛与MTN分子筛的混合物.水含量对FER分子筛的合成影响也比较大.当水含量较低时,其产物容易出现其它杂相;当水含量较高时,其产物为无定形物质.通过向高水含量的体系中添加FER晶种,可以得到高结晶度的FER分子筛.FER分子筛的化学组成、形貌和织构性质与初始凝胶的碱度密切相关.初始凝胶碱度较低时,产物的硅铝比较高,外表面积较大,一次粒子粒径较大且堆积疏松;初始凝胶碱度较高时,产物的硅铝比较低,外表面积较小,一次粒子较小且堆积紧密.此外,以哌啶为模板剂合成的FER分子筛在1-丁烯骨架异构化反应中表现出优异的催化稳定性和较高的异丁烯收率.
关键词FER分子筛    哌啶    晶化过程    MWW分子筛    骨架异构化

1 Introduction

Ferrierite (FER) zeolite is a medium-pore zeolite with two perpendicular intersecting channels, namely an 8-membered ring (MR) channel (0.35 nm × 0.48 nm) along the [010] direction and a 10-MR channel (0.42 nm × 0.54 nm) along the [001] direction [1]. FER zeolite is an industrialized zeolite that has been successfully applied as a catalyst to the skeletal isomerization of 1-butene [2-6]. FER zeolite has also been used in other reactions, including nitrous oxide decomposition and reduction [7, 8], dimethyl ether carbonylation [9-11], methanol-to-olefin (MTO) conversion [12], alkane hydroisomerization [13], and n-paraffin cracking [14, 15].

FER zeolite is usually synthesized with the assistance of organic structure-directing agents (OSDAs), which are generally organic amine compounds, such as ethylenediamine [16, 17], pyrrolidine [6, 18, 19], pyridine [20, 21], and cyclohexylamine [22]. Furthermore, oxygen-containing compounds, such as tetrahydrofuran, can be used to direct the synthesis of FER zeolite [23, 24]. FER zeolite can also be synthesized using two organic molecules of different sizes as co-OSDAs, with the resultant materials showing unique physical, chemical or catalytic properties. Hierarchical FER zeolite was synthesized using piperidine (PI) and tetramethylammonium hydroxide as co-OSDAs, leading to more than three-fold external surface area and better catalytic performance in catalytic low-density polyethylene cracking compared to the bulk zeolite [25]. Hierarchical FER zeolite nanosheet assemblies with ball-shaped morphologies have been prepared using an organosilane surfactant, 3-(trimethoxysilyl)propyl octadecyl dimethyl ammonium chloride, and pyrrolidine as co-OSDAs. Compared with conventional FER zeolite, these assemblies showed greatly improved catalytic activity in the benzylation of toluene with benzyl chloride [26]. Recently, FER zeolite was synthesized using a novel combination of OSDAs, namely 1, 6-bis(N-methylpyrrolidinium)hexane and tetramethylammonium [27].

Previously, Jongkind et al. [28] found that FER zeolite was synthesized using PI as an OSDA during the preparation of mordenite (MOR) zeolite using saturated cyclic amines as OSDAs. However, these products were always contaminated with the MOR phase. After that, FER zeolite was synthesized by solid-state recrystallization of aluminum-containing magadiite [29] and kanemite [30]. Generally, it is necessary to prepare the raw materials, magadiite or kanemite, before recrystallization, which makes this synthetic approach more complex. Furthermore, the products are always contaminated with magadiite or quartz. Wu et al. [31] found that FER zeolite was obtained from the crystallization of MCM-22 (MWW type) zeolite when the silica/aluminum molar ratio (SAR, SiO2/Al2O3) was lower than 25. However, synthesis of FER zeolite using PI as an OSDA in a simple and workable way is still needed to be resolved.

In this work, we focused on optimizing the synthetic conditions of FER zeolite using PI as an OSDA. The entire crystallization process at different temperatures was monitored by X-ray diffraction (XRD) and scanning electron microscopy (SEM). The influence of initial gel composition (alkalinity, water content, and SAR) on the crystal phase and morphology of the products was investigated in detail. The optimal synthetic conditions for FER zeolite using PI as an OSDA are summarized. Furthermore, the obtained samples were evaluated as catalysts in the skeletal isomerization of 1-butene.

2 Experimental
2.1 Zeolite synthesis

FER zeolite was synthesized using PI as an OSDA under traditional hydrothermal conditions. In a typically procedure, sodium aluminate solution (16.8 wt% Al2O3, 24.2 wt% Na2O, homemade), deionized water, sodium hydroxide (96.0%, Sinopharm Chemical Reagent Co., Ltd.), PI (99.0%, Sinopharm Chemical Reagent Co., Ltd.), and silica sol (29.7 wt% SiO2, Qingdao Haiyang Chemical Co., Ltd.) were added into a Teflon-lined stainless-steel autoclave. The batch composition obtained in the initial gel mixture was 2.1Na2O:0.55Al2O3:20SiO2:3.2PI:280H2O. After stirring for 30 min, the mixture was heated under rotation (60 rpm) at a specified reaction temperature for a given time. The reaction was quenched with tap water and the product was separated by repeated centrifugation several times until the solution was neutral. The solid was dispersed in water again and dried at 120 ℃ overnight.

After removing the OSDA by calcination at 540 ℃ for 3 h, the sodium-form zeolite was exchanged to the ammonium form by treatment with NH4NO3 solution (1.0 mol/L) at 80 ℃ for 2 h with stirring. This procedure was repeated twice for each sample. The sample was then washed with deionized water three times, dried, and calcined at 520 ℃ for 3 h to afford the proton-form zeolite.

2.2 Characterization

Powder XRD data were collected on a PANalytical X'Pert PRO diffractometer using Cu Kα monochromatized radiation operating at 40 kV and 40 mA. The samples were scanned in the 2θ range of 5°-50°with a step size of 0.02°. The relative crystallinity (RC) of samples was calculated from the characteristic peak heights (2θ = 9.3° ± 0.1°, 22.3° ± 0.1°, 23.5° ± 0.1°, 24.3° ± 0.1°, 25.2° ± 0.1°, 25.7° ± 0.1°, and 28.5° ± 0.1°). The sample (S15) with an initial gel composition of 3.0Na2O: 0.50Al2O3: 20SiO2:3.2PI:280H2O synthesized at 160 ℃ for 48 h was chosen as the reference sample. Chemical compositions were analyzed using a Philips Magix 601 X-ray fluorescence (XRF) spectrometer. Crystal morphology and particle size were observed by SEM using FEI Quanta-200F and Hitachi SU1510 microscopes. Samples were coated with gold before testing. N2 adsorption/desorption experiments were carried out at -196 ℃ on a Micromeritics ASAP-2020 HD88 instrument. Prior to analysis, samples were degassed at 350 ℃ for 10 h.

2.3 Catalyst evaluation

The 1-butene skeletal isomerization reactions were carried out at atmospheric pressure on a continuous-flow fixed bed microreactor with an inner diameter of 6 mm. In a typical procedure, catalyst (0.50 g) was activated under flowing N2 (20 mL/min) at 500 ℃ for 2 h and then cooled to 400 ℃. The mixture of 1-butene and N2 was then fed into the fixed bed. The 1-butene/N2 molar ratio was 1/1 and the weight hourly space velocity (WHSV) of 1-butene was 8 h-1. The products were analyzed using an online gas chromatograph (Agilent 7890B) equipped with a flame ionization detector (FID) and an Al2O3 capillary column.

3 Results and discussion
3.1 Crystallization process of FER zeolite

Crystalline phases of zeolites are sensitive to crystallization temperature and time due to the metastable nature of zeolites [32]. Initial gels were crystallized at different temperatures for a certain time, and the XRD patterns of the corresponding samples are shown in Fig. 1. Only FER zeolite appeared in the crystallization process when crystallized at 150 ℃ (Fig. 1(a)). At 160 ℃ and 170 ℃, the crystallization processes were significantly different from that at 150 ℃. MWW and FER composite zeolites were obtained when initial gels were heated at 160 ℃ for 32 h. When the crystallization time was extended to 36 h, both the MWW and FER zeolite contents increased, as shown in Fig. 1(b). As the crystallization time was further increased, FER zeolite gradually began to dominate the product and MWW zeolite completely disappeared, with pure FER zeolite obtained after 40 h. As PI could direct the synthesis of MWW zeolite [31, 33] and MWW zeolite could transform into FER zeolite [34-36], it was reasonable that MWW zeolite was present in the crystallization process of FER zeolite as a metastable phase that finally transformed into FER zeolite. Furthermore, high temperatures favored the crystallization of MWW zeolite in this system. This was further illustrated by the crystallization process at 170 ℃, which was similar to that at 160 ℃, while the crystallization rate was significantly increased and the FER zeolite was well crystallized after 34 h. With the crystallization time further extended to 48 h, the product was contaminated with cristobalite as an impurity phase, indicated by the peak at 21.7° in the corresponding XRD pattern.

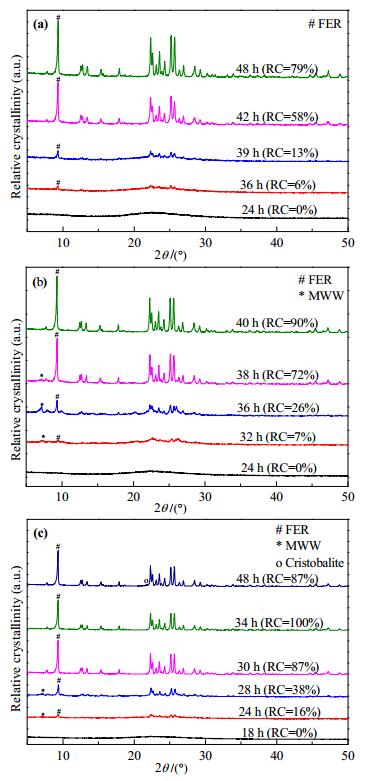

Fig. 1. XRD patterns of samples crystallized at different temperatures for a specified time with initial gel composition of 2.1Na2O:0.55Al2O3: 20SiO2:3.2PI:280H2O. (a) 150 ℃; (b) 160 ℃; (c) 170 ℃.

Crystallization curves of FER zeolite at different temperatures are shown in Fig. 2. The induction period was approximately 34 h when the initial gel mixture was crystallized at 150 ℃. Well-crystallized FER zeolite was obtained when the crystallization time was extended to 45 h. Further extending the crystallization time had little effect on the RC of the FER zeolite. When the crystallization temperature was increased to 160 ℃, a crystallization curve similar to that at 150 ℃ was obtained, but with the induction period shortened to 26 h. Well-crystallized FER zeolite was obtained after 40 h. When the temperature was further increased to 170 ℃, the induction period was just 18 h and FER zeolite was well crystallized after 34 h. However, with further increasing crystallization time, the RC of the FER zeolite declined rapidly. As mentioned previously, a peak not attributed to FER zeolite was found in the XRD pattern of the sample crystallized for 48 h (Fig. 1(c)), indicating that the decrease in RC was due to FER zeolite transforming into cristobalite. This was similar to the results reported by Pál-Borbély et al [30], who found that FER zeolite transformed into quartz over time when the crystallization temperature was above 147 ℃ using a solid-state recrystallization method.

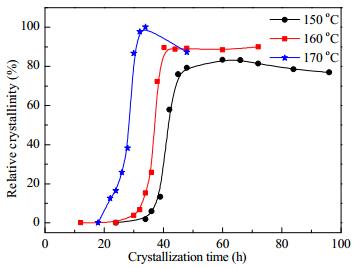

Fig. 2. Crystallization curves of FER zeolites at different temperatures with initial gel composition of 2.1Na2O:0.55Al2O3:20SiO2:3.2PI:280H2O.

SEM images were taken after crystallization at 160 ℃ (Fig. 3). An amorphous phase was obtained after crystallization for 24 h. Extending the crystallization time to 32 h afforded aggregates consisting of numerous platelets, which is the typical morphology of MWW zeolite. When the crystallization time was 36 h, block FER zeolite was clearly observed on the surface of the MWW aggregates. After 38 h, these MWW aggregates had largely disappeared, and the product was mainly composed of block FER zeolite. Pure FER zeolite was obtained after crystallization for 40 h. These observations were in accordance with the XRD results.

Fig. 3. SEM images of samples crystallized over different time at 160 ℃.
3.2 Effect of alkalinity on the synthesis of FER zeolite

XRD patterns of samples synthesized at different alkalinities are shown in Fig. 4, and detailed synthetic parameters are listed in Table 1. FER zeolites without any impurity phase were obtained using Na2O/SiO2 molar ratios of 0.090-0.140. When the Na2O/SiO2 ratio was lower (S1), no FER phase was found, with the products mainly consisting of MWW and MTN phases. In contrast, FER zeolite was obtained at a higher alkalinity (Na2O/SiO2 = 0.150), but was contaminated with MOR phase. Furthermore, samples were crystallized at different alkalinities when the SAR was 30.3 and 40.0 (Table 1). Pure FER zeolite was synthesized using Na2O/SiO2 molar ratios of 0.105-0.150 (initial gel SAR = 40.0), which were slightly higher than those used to prepare FER zeolite with an initial gel SAR of 36.4. When the alkalinity was increased, a mixture (S16) of FER and MOR was obtained, which was also observed for initial gels with low SARs (S6 and S10). However, FER zeolite doped with MTN phase (S11) was obtained at low alkalinity, which was different from the case at low alkalinity when the initial gels had an SAR of 36.4. The alkalinity used to synthesize FER zeolite was lower (Na2O/SiO2 ≤ 0.125) when the initial gels had an SAR of 30.3.

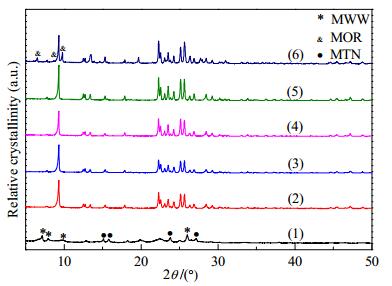

Fig. 4. XRD patterns of samples synthesized with different Na2O/SiO2 ratios. (1) 0.075 (S1); (2) 0.090 (S2); (3) 0.105 (S3); (4) 0.125 (S4); (5) 0.140 (S5); (6) 0.150 (S6).
Table 1
Synthetic parameters and properties of the obtained samples. a

Product morphology was closely related to alkalinity. SEM images of FER zeolites synthesized at different alkalinities are shown in Fig. 5. Well-dispersed lamellar samples were obtained at low alkalinity (S2, Na2O/SiO2 = 0.090), and the crystal size ranged from 0.5 μm to 1.0 μm. The morphology of the sample (S5) synthesized at high alkalinity was very different to that of S2, showing smaller primary particles (0.4-0.5 μm) and closer stacking. The SARs of the two products were also different, decreasing from 29.0 to 26.5 when the Na2O/SiO2 ratio was increased from 0.090 to 0.140 (Table 1).

Fig. 5. SEM images of (a, b) S2 (Na2O/SiO2 = 0.090) and (c, d) S5 (Na2O/SiO2 = 0.140).

N2 adsorption/desorption isotherms of FER zeolites synthesized at different alkalinities are shown in Fig. 6, all of which showed type-I N2 adsorption isotherms. Detailed data of the textural properties are summarized in Table 2. The micropore volumes of the three samples were large and similar to reported values [17], indicating that all three samples were well crystallized. The external surface area of S2 was larger than that of S5 (38 m2/g vs. 27 m2/g), which seemed abnormal because the crystal size of S2 (Fig. 5(a) and (b)) was larger than that of S5 (Fig. 5(c) and (d)). Notably, the crystal particles of S2 were loosely stacked, which resulted in each particle making a large contribution to the external surface area and mesopore volume. Therefore, the external surface area and mesopore volume of S2 was slightly larger than that of S5. Furthermore, the total volume of S2 was also larger than that of S5.

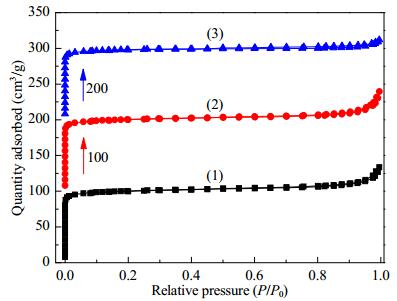

Fig. 6. N2 adsorption/desorption isotherms of FER zeolites synthesized at different alkalinities. (1) Na2O/SiO2 = 0.090 (S2); (2) Na2O/SiO2 = 0.105 (S3); (3) Na2O/SiO2 = 0.140 (S5).
Table 2
Effect of alkalinity on textural properties of FER zeolites.
3.3 Effect of water content on FER zeolite synthesis

Water content is important in FER zeolite crystallization [37]. Well-crystallized FER zeolite without any impurity phase was obtained when the H2O/SiO2 ratio was 14.0 (Fig. 7(2)). However, FER zeolite contaminated with impurity phase, as indicated by the peaks at 25.9° and 27.9°, was obtained when silica/aluminum species were concentrated in the initial gel mixture (H2O/SiO2 = 8.5). In contrast, a low concentration of silica/aluminum species (H2O/SiO2 = 25.0) diminished FER zeolite crystallization, affording amorphous phase with several weak diffraction peaks (S18, Fig. 7(3)). When H2O/SiO2 was further increased to 35.0, no peaks were observed in the XRD pattern. Nevertheless, well-crystallized FER zeolite was obtained by adding 5 wt% FER seeds to the high-water-content system (S19, Fig. 7(4)).

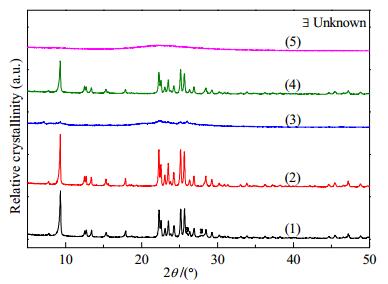

Fig. 7. XRD patterns of FER zeolites synthesized with different H2O/SiO2 ratios. (1) 8.5 (S17); (2) 14.0 (S3); (3) 25.0 (S18); (4) 25.0 using 5% FER seeds (S19); (5) 35.0 (S20).

In summary, well-crystallized FER zeolites were successfully synthesized at 150-170 ℃ with the following initial gel compositions: (1.8-3.0)Na2O:(0.50-0.66)Al2O3:20SiO2:3.2PI: 280H2O. The particle size was in the range of 0.4-1.0 μm and the Brunauer-Emmett-Teller (BET) surface area was around 395 m2/g.

3.4 Catalytic performance in 1-butene skeletal isomerization

FER zeolite is a good catalyst candidate in the skeletal isomerization of 1-butene [2, 5]. Herein, HS2 and HS5, obtained at different alkalinities, were chosen and evaluated as catalysts in the 1-butene skeletal isomerization reaction (Fig. 8). These two samples showed similar catalytic changing trends, as reported previously [6, 38]. 1-Butene conversion gradually decreased with time on stream, while the product selectivity for isobutene increased with reaction time. Therefore, the isobutene yield increased with time on stream. As shown in Fig. 8(c), the isobutene yield over HS5 was slightly higher than that over HS2.

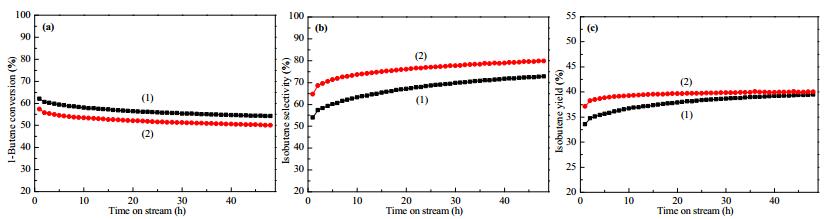

Fig. 8. Catalytic performance in 1-butene skeletal isomerization over HS2 (1) and HS5 (2) at 400 ℃, 0.1 MPa and WHSV1-butene of 8 h-1. (a) 1-Butene conversion; (b) Isobutene selectivity; (c) Isobutene yield.
4 Conclusions

The crystallization behavior and optimal synthetic conditions of FER zeolites directed by PI were investigated in detail. XRD patterns and SEM images showed that product evolution was closely related to the crystallization temperature. Only the FER phase was observed during crystallization at 150 ℃. However, MWW phase appeared as the interphase when crystallization occurred at 160-170 ℃. Alkalinity proved to be the key factor in obtaining FER zeolites with controllable chemical compositions, morphologies, and textural properties. FER zeolite with a large external surface area and loosely stacked large particles was obtained at low alkalinity, while high alkalinity led to the formation of FER zeolite with closely stacked small particles. MOR and MTN were the main impurity phases produced using this synthesis system. Based on the above experimental results, the optimal initial gel compositions for FER synthesis was (1.8-3.0)Na2O:(0.50-0.66)Al2O3:20SiO2:3.2PI: 280H2O. The obtained FER zeolites exhibited good catalytic performance in the 1-butene skeletal isomerization reaction.

References
[1] P. A. Vaughan, Acta Crystallogr., 1966, 21: 983–990. DOI:10.1107/S0365110X66004298
[2] W. Q. Xu, Y. G. Yin, S. L. Suib, J. C. Edwards, C. L. O'Young, J. Catal., 1996, 163: 232–244. DOI:10.1006/jcat.1996.0324
[3] B. de Ménorval, P. Ayrault, N. S. Gnep, M. Guisnet, Appl. Catal. A, 2006, 304: 1–13. DOI:10.1016/j.apcata.2006.02.016
[4] Y. P. Khitev, I. I. Ivanova, Y. G. Kolyagin, O. A. Ponomareva, Appl. Catal. A, 2012, 441-442: 124–135. DOI:10.1016/j.apcata.2012.07.010
[5] D. Jo, K. Lee, G. T. Park, S. B. Hong, J. Catal., 2016, 335: 58–61. DOI:10.1016/j.jcat.2015.12.011
[6] W. F. Chu, X. J. Li, X. X. Zhu, S. J. Xie, C. Guo, S. L. Liu, F. C. Chen, L. Y. Xu, Microporous Mesoporous Mater., 2017, 240: 189–196. DOI:10.1016/j.micromeso.2016.11.015
[7] P. Pantu, B. Boekfa, B. Sunpetch, J. Limtrakul, Chem. Eng. Commun., 2008, 195: 1477–1485. DOI:10.1080/00986440801967445
[8] M. Mauvezin, G. Delahay, F. Kisslich, B. Coq, S. Kieger, Catal. Lett., 1999, 62: 41–44. DOI:10.1023/A:1019078401694
[9] J. L. Liu, H. F. Xue, X. M. Huang, Y. Li, W. J. Shen, Catal. Lett., 2010, 139: 33–37. DOI:10.1007/s10562-010-0411-3
[10] X. J. Li, X. H. Liu, S. L. Liu, S. J. Xie, X. X. Zhu, F. C. Chen, L. Y. Xu, RSC Adv., 2013, 3: 16549–16557. DOI:10.1039/c3ra42197j
[11] P. Cheung, A. Bhan, G. J. Sunley, E. Iglesia, Angew. Chem. Int. Ed., 2006, 45: 1617–1620. DOI:10.1002/(ISSN)1521-3773
[12] M. A. Aramendia, V. Borau, C. Jimenez, J. M. Marinas, R. Roldan, F. J. Romero, F. J. Urbano, Chem. Lett., 2002: 672–673.
[13] J. H. Flores, M. E. H. M. da Costa, M. I. P. da Silva, Chin. J. Catal., 2016, 37: 378–388. DOI:10.1016/S1872-2067(15)61032-4
[14] C. L. Kibby, A. J. Perrotta, F. E. Massoth, J. Catal., 1974, 35: 256–272. DOI:10.1016/0021-9517(74)90204-8
[15] B. G. Anderson, R. R. Schumacher, R. van Duren, A. P. Singh, R. A. van Santen, J. Mol. Catal. A, 2002, 181: 291–301. DOI:10.1016/S1381-1169(01)00374-0
[16] T. J. Kim, W. S. Ahn, S. B. Hong, Microporous Mater., 1996, 7: 35–40. DOI:10.1016/0927-6513(96)00024-7
[17] X. X. Chen, T. Todorova, A. Vimont, V. Ruaux, Z. X. Qin, J. P. Gilson, V. Valtchev, Microporous Mesoporous Mater., 2014, 200: 334–342. DOI:10.1016/j.micromeso.2014.07.057
[18] K. Suzuki, Y. Kiyozumi, S. Shin, K. Fujisawa, H. Watanabe, K. Saito, K. Noguchi, Zeolites, 1986, 6: 290–298. DOI:10.1016/0144-2449(86)90083-7
[19] A. B. Pinar, P. A. Wright, L. Gómez-Hortigüela, J. Pérez-Pariente, Microporous Mesoporous Mater., 2010, 129: 164–172. DOI:10.1016/j.micromeso.2009.09.012
[20] W. J. Smith, J. Dewing, J. Dwyer, J. Chem. Soc., Faraday Trans. 1, 1989, 85: 3623–3628. DOI:10.1039/f19898503623
[21] Y. Kamimura, C. Kowenje, K. Yamanaka, K. Itabashi, A. Endo, T. Okubo, Microporous Mesoporous Mater., 2013, 181: 154–159. DOI:10.1016/j.micromeso.2013.07.029
[22] S. J. Xie, J. B. Peng, L. Y. Xu, Z. H. Wu, Q. X. Wang, Chin. J. Catal., 2003, 24: 531–534.
[23] X. W. Cheng, J. Wang, H. Yu, J. Guo, H. Y. He, Y. C. Long, Microporous Mesoporous Mater., 2009, 118: 152–162. DOI:10.1016/j.micromeso.2008.08.033
[24] X. W. Cheng, J. Wang, J. Guo, H. Y. He, Y. C. Long, Microporous Mes-oporous Mater., 2009, 119: 60–67. DOI:10.1016/j.micromeso.2008.09.038
[25] T. Xue, H. P. Liu, Y. M. Wang, RSC Adv., 2015, 5: 12131–12138. DOI:10.1039/C4RA14874F
[26] P. Wuamprakhon, C. Wattanakit, C. Warakulwit, T. Yutthalekha, W. Wannapakdee, S. Ittisanronnachai, J. Limtrakul, Microporous Mes-oporous Mater., 2016, 219: 1–9. DOI:10.1016/j.micromeso.2015.07.022
[27] R. K. S. Almeida, L. Gómez-Hortigüela, A. B. Pinar, J. Peréz-Pariente, Microporous Mesoporous Mater., 2016, 232: 218–226. DOI:10.1016/j.micromeso.2016.06.026
[28] H. Jongkind, K. P. Datema, S. Nabuurs, A. Seive, W. H. J. Stork, Mi-croporous Mater., 1997, 10: 149–161. DOI:10.1016/S0927-6513(97)00005-9
[29] G. Pál-Borbély, H. K. Beye, Y. Kiyòzumi, F. Mizukami, Microporous Mesoporous Mater., 1998, 22: 57–68. DOI:10.1016/S1387-1811(98)00094-8
[30] G. Pál-Borbély, Á. Szegedi, H. K. Beyer, Microporous Mesoporous Mater., 2000, 35-36: 573–584. DOI:10.1016/S1387-1811(99)00251-6
[31] B. Zhang, Z. D. Wang, H. M. Sun, W. M. Yang, P. Wu, Chem. React. Eng. Technol., 2013, 29: 19–23.
[32] J. Grand, H. Awala, S. Mintova, CrystEngComm, 2016, 18: 650–664. DOI:10.1039/C5CE02286J
[33] D. Nuntasri, P. Wu, T. Tatsumi, J. Catal., 2003, 213: 272–280. DOI:10.1016/S0021-9517(02)00052-0
[34] S. J. Xie, S. L. Liu, N. N. Gao, X. J. Li, Y. Gao, K. F. Liu, L. Y. Xu, New J. Chem., 2014, 38: 2514–2521. DOI:10.1039/c3nj01532g
[35] S. J. Xie, S. L. Liu, Y. Liu, X. J. Li, W. P. Zhang, L. Y. Xu, Microporous Mesoporous Mater., 2009, 121: 166–172. DOI:10.1016/j.micromeso.2009.01.027
[36] H. J. Wei, S. J. Xie, K. F. Liu, W. J. Xin, X. J. Li, S. H. Liu, S. M. Gu, S. L. Liu, L. Y. Xu, Chin. J. Catal., 2015, 36: 1766–1776. DOI:10.1016/S1872-2067(15)60887-7
[37] Y. Y. Hu, C. Liu, Y. H. Zhang, N. Ren, Y. Tang, Microporous Mesopo-rous Mater., 2009, 119: 306–314. DOI:10.1016/j.micromeso.2008.11.005
[38] B. T. Yang, J. G. Jiang, H. Xu, Y. M. Liu, H. G. Peng, P. Wu, Appl. Catal. A, 2013, 455: 107–113. DOI:10.1016/j.apcata.2013.01.024
