Human civilization is powered mainly by fossil fuels such as oil, coal, and natural gas. However, the combustion of these fuels causes environmental pollution and considerable CO₂ emissions. Solar power is widely recognized as a promising alternative to fossil-fuel-based energy sources. Considerable efforts have been made in the study, design, and synthesis of novel materials that can convert solar energy into heat, electricity, and chemical energy [1-4]. One such strategy is photocatalytic splitting of water molecules to generate hydrogen or to drive the reduction of CO₂ into valuable hydrocarbon fuels [5-8]. Currently, a myriad of materials has been shown to be potential candidates for such photocatalytic reactions. However, owing to limited light absorption and high rates of charge carrier recombination, the conversion efficiencies of current photocatalysts remain too low to meet commercial requirements. To enhance light harvesting, one important approach is to improve the interaction of light with the semiconductor, by manipulating light propagation in the various material structures. For instance, multiple scattering can be used to induce more photons to be absorbed under given incident light conditions [9, 10]. Random scattering by large particles [11] or spherical voids [12] has also been applied in dye-sensitized solar cells. Furthermore, hierarchically structured porous materials provide interconnected porosity at different length scales, which is favorable for light harvesting [13-15]. Photonic crystals are formed by specific periodic arrangements of dielectric materials, which have a unique role in regulating light, through light reflection, scattering, and the slow photon effect. The phenomena allow control over light propagation in the medium structure.

Photonic crystals are the best materials devised for light manipulation. Several papers have reviewed photochemical applications of photonic crystals, focused mainly on photocatalysis [14, 16-18] and photovoltaics [14, 17]. The slow photon effect has also been reviewed from the viewpoint of photocatalytic degradation [14, 16]. In this review, we discuss both theoretically and experimentally the importance of the slow-photon effect in light-harvesting enhancement and its applications in solar-to-fuel energy conversion, i.e., photocatalytic H₂ production and CO₂ photoreduction. The photoreactivity enhancement of slow photons is highlighted and we discuss the potential for making considerable improvements to light harvesting through several strategies, which are likely to attract attention in the near future.

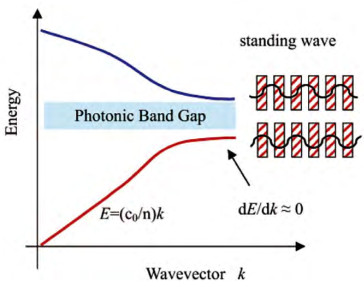

Photonic crystals are periodic ordered structures in space composed of two or more materials with different dielectric constants. When light propagates inside a photonic crystal, the periodic Bragg scattering modulates light to form a photonic band gap (PBG), which is analogous to the electronic bandgap in semiconductor materials. In photonic crystals, light with certain frequencies is forbidden from propagating owing to the photonic stop band arising from the periodic modulation of the refractive index [19, 20]. Slow light propagation near this stop band is a unique property of photonic crystals, and is an important principle for enhancing solar energy conversion efficiency [17, 21, 22]. As illustrated in Fig. 1, at the lower photon energy edge (red edge) of the photonic bandgap, the light standing wave peaks are primarily localized in the high refractive index sections of the photonic crystal, whereas at the higher photon energy edge (blue edge), the standing wave peaks are localized in the low refractive index sections [23]. This mechanism provides photonic crystals with the ability to manipulate light in a unique manner. Most importantly, at both the blue and red edges of the photonic bandgap, vanishing group velocity is observed. Photons with reduced group velocity are termed "slow photons" or "slow light" [14, 23].

The slow-photon effect has been demonstrated, both theoretically and experimentally to be a promising solution for increasing light absorption in semiconductors by extending the residence time of photons in the material. When the electronic bandgap of the material and either the red edge or the blue edge of the photonic bandgap of the structure overlap in the frequency (wavelength) domain, slow photons are expected to improve light harvesting. Irradiation at a photon energy related to the structured material means that slow photons on the edges of the photonic bandgap ensure a longer presence of that energy within the structure, and the electronic bandgap allows the photon energy to be transferred to electrons and holes [14]. Coordination of these three phenomena is essential to extracting the benefits of slow photons for solar energy harvesting, e.g. photocatalytic degradation [18, 24-27] and solar cells [23, 28-30]. There are also conventional uses in lasers [31-34] and some other optical applications [35-39]. In the following sections, we survey the properties of photonic crystal materials and give examples of their applications to solar-to-fuel conversion based on slow photons (mainly photocatalytic H₂ production and CO₂ photoreduction).

Energy and environmental problems are well-known currently issues. Hydrogen fuel is a clean energy source that could provide the ultimate solution to many pollution problems. In particular, hydrogen evolution from water splitting powered by renewable solar energy represents a promising but challenging method to a clean, sustainable and affordable energy system. In this review, photocatalysts are structured into photonic crystal architectures to maximize the usage and conversion of light energy. Photonic crystal segments show a great capacity for light harvesting owing to the slow photon enhancement at the stop band edge and multiple scatterings among the segments.

Since the pioneering work of Fujishima and Honda in 1972, photocatalytic water splitting to produce H₂ using solar energy as the driving force has drawn considerable attention [5, 8]. Generally, there are two configurations of photoconversion systems for water splitting. The first configuration of the photocatalytic system involves a suspension of the photonic crystal particles in a solvent [40, 41]. This kind of system is made up of simple devices and accessible photocatalysts, where the driving force for water splitting comes entirely from solar energy. The reduction and oxidation reactions occur at different surface sites of the same photocatalyst particles, and some sacrificial agents (Na₂S and Na₂SO₃ [41], methanol [42] and triethanolamine [43]) are used to improve the H₂ production. The other configuration is known as the photoelectrochemical (PEC) system, composed of a photonic crystal photoelectrode (working electrode), a counter electrode and usually a reference electrode. The photoelectrode harvests light to generate charge carriers and performs the oxidation reaction, often at the photoanode to produce O₂, whereas the reduction reaction takes place at a counter electrode to produce H₂. Compared with photocatalytic systems, PEC systems may achieve higher efficiency because an external bias can be applied to promote the separation of photogenerated electrons and holes [44-51]. Therefore, it is beneficial to perform H₂ production with the use of PEC systems although the preparation of the photoelectrodes is complicated and normally an external bias is needed.

The inverse opal (IO) structure is a kind of photonic crystal, which features an ordered arrangement of pores and has attracted considerable attention owing to the effect of this structure on light harvesting. A typical example is TiO₂ inverse opal, which has been studied extensively for improving the efficiency of photocatalytic processes [16, 52]. TiO₂ inverse opals can considerably increase the photocatalytic performance of TiO₂ owing to the slow light phenomenon, which improves light-matter interactions by reducing the group velocity of light at the PBG edges [53-55]. Therefore, the TiO₂ inverse-opal structure can promote light absorption of TiO₂, leading to more photogenerated electron-hole pairs and a high hydrogen evolution. To test the presence of a synergic effect between slow light and faster electron transfer, Sordello et al. have compared the activity of Pt-loaded TiO₂ inverse opals and of Pt-loaded macroporous disordered TiO₂ structures in hydrogen photoproduction experiments [40]. To discriminate the effects of slow photons, the hydrogen photoproduction experiments were performed at two different wavelengths, at 365 nm, where the effects of slow photons are maximized, and at 254 nm where the effects are negligible. Upon irradiation at 365 nm, the synthesized TiO₂ inverse opals showed a higher hydrogen production rate than that of the disordered macroporous structures without an ordered arrangement of pores, owing to the slow light phenomenon.

Liu et al. [42] demonstrated that the hierarchical inverse-opal Pt-TiO₂ photonic crystal segments could provide effective light harvesting and improve hydrogen evolution. In this work, TiO₂ materials were designed and structured into hierarchical photonic crystal segments with stop bands overlapping with the absorption of TiO₂. A series of TiO₂ photonic crystal films modified with Pt nanoparticles (NPs) with stop bands ranging from 307 to 434 nm were investigated in photocatalytic hydrogen generation experiments. The largest enhancement factors (EFs) under white light illumination occurred for photonic crystal films with stop bands of 307 nm (EF = 2.4) and 342 nm (EF = 2.5) relative to nanocrystalline TiO₂. The enhancement of photocatalytic activity was attributed to the slow photon enhancement at the stop band edge and multiple scatterings among the photonic crystal segments.

Waterhouse et al. [56] prepared Au/TiO₂ inverse-opal photocatalysts, which exhibited remarkable photocatalytic activity and stability for photocatalytic water splitting under UV and sunlight. The optical (PBG position) and electronic (TiO₂ absorption edge) properties of the TiO₂ inverse opal support coincided to enhance the slow photon effect and suppress electron-hole pair recombination in TiO₂. Thus, the photocatalytic activity of the Au/TiO₂ photocatalysts for H₂ production from water was improved. The supported gold NPs acted as sites for H₂ production, which might allow for visible light excitation of Au/TiO₂ photocatalysts via the gold surface plasmon.

In addition to TiO₂, CdS is also regarded as a promising material for water splitting. However, the relatively low PEC response and poor stability of CdS have restricted its practical applications. The propagation of light in photonic materials can be modified to increase the probability of photon absorption. Mitchell et al. reported the synthesis of composite materials comprising a photochemically inert photonic macroporous ZrO₂ support decorated with photocatalytically active CdS NPs [57]. The relative energies of the valence and conduction bands restricted photon absorption and catalysis of the CdS NPs. The generation of hydrogen from water under visible light illumination (> 400 nm) was studied for different photonic supports. A maximum 4.7-fold enhancement in hydrogen production was observed compared with that of a non-photonic support when the absorption band of the CdS NPs partially overlapped with the blue edge of the photonic ZrO₂ stop band. The photochemical activity of the NPs could be modified within a chemically inert photonic host to increase the yield of hydrogen production under broad band illumination. These data were consistent with increased photon absorption owing to the 'slow photon' effect induced by the photonic host. In these systems, the enhancement was maximized when the blue edge of the stop band overlapped with the onset of the photocatalyst absorption. This general strategy involves independent optimization of optical and photochemical processes to increase the overall conversion efficiency from solar to chemical energy.

Cui et al. successfully fabricated a photonic crystal-based CdS-Au-WO₃ heterostructure by orderly depositing Au and CdS onto the framework of structured WO₃ inverse-opal photonic crystal segments. [41] Their system showed superior activity toward photocatalytic water splitting for both hydrogen and oxygen evolution under visible light illumination. The excellent performance was attributed to the synergistic integration of good light harvesting of slow photons and efficient electron transfer within the heterostructure.

Graphitic carbon nitride (g-C₃N₄) has attracted considerable attention in photocatalysis owing to its extraordinary features, such as good thermal and chemical stability, metal-free composition, and easy preparation. Sun et al. have obtained freestanding macroscopic g-C₃N₄ photonic crystals by highly ordered, crack-free colloidal crystal templating [43]. Their g-C₃N₄ photonic crystals exhibited enhanced photodegradation and hydrogen evolution activity under visible light irradiation. The enhancement was attributed to the combination of slow photon effects, multiple scattering, the hierarchical porous structure, and a low rate of radiative recombination. The hydrogen evolution rate of 1979 μmol/g·h under λ > 420 nm irradiation was 8.82 times as high as that of bulk g-C₃N₄.

The ordered 2D structure of nanotube (NT) arrays confers photonic crystalline properties owing to the periodic modulation of the dielectric constant [58-60]. There are three advantages to the use of TiO₂ NTs that can be achieved from a photonic band structure: (1) the PBG can be used to confine incident light of a proper wavelength within the TiO₂ NT film, (2) the dielectric band can be used to concentrate the incident photons of the corresponding wavelength on the TiO₂ NT walls, and (3) the absorption efficiency of these photons is further boosted by their reduced group velocity (slow photons) owing to flattening of the photonic band in certain propagation directions. Chiarello et al. demonstrated that photonic crystals could be used to increase the efficiency of solar light harvesting and conversion and the photocatalytic performance on TiO₂ NT array-based photoanodes [61]. Further performance improvements could be attained by tilting the incident light angle, thus increasing the fraction of photons scattered parallel to the film, which can sense the photonic crystal properties. Theoretical calculations have demonstrated that the position and width of the PBG are both affected by the TiO₂ NT inner diameter, wall thickness, and the distance between the pores. Thus, the PBG could be easily tuned by adjusting the TiO₂ NT synthesis parameters to match with the semiconductor absorption band, with the aim of red-shifting the photoactivity threshold. In this way, a 50% higher H₂ production rate under polychromatic irradiation can be attained by simply increasing the inner TiO₂ NT diameter. This important result can in principle be transferred to any other semiconductor material and is useful in the field of solar fuel production for harvesting and converting a wide range of the solar spectrum.

The fabrication of novel photocatalysts faces challenges in attempting to satisfy the demand for wide visible light response and high quantum efficiency. In terms of photonic crystals, the exploration of new photocatalysts is key to making a breakthrough in photocatalysis. Some oxide semiconductors with relatively narrow band gaps, for example, WO₃ (band gap, E_g = 2.6–2.8 eV), have attracted attention as photoanode materials because of their visible light response and good photochemical stability. Chen et al. demonstrated that photonic crystals could be used to improve PEC performance under visible light irradiation [62]. Inverse opal WO₃ photoanodes with different stop-bands have also been prepared (Fig. 2). Considerable enhancement of the photocurrent intensity was achieved at an inverse opal photoanode by adjusting the wavelengths of the slow light to be closer to the electronic absorption edge of WO₃. The light harvesting and photon-to-electron conversion efficiency at specific wavelengths was remarkably enhanced due to the slow-light effect in inverse opals. The spectral range at which photon-to-electron conversion efficiency was enhanced moved to shorter wavelengths as the incident angle increased, which resulted from a blue-shift in the stop-band center.

Zhang et al. [63] reported the design and fabrication of 3D WO₃/BiVO₄/cobalt phosphate (Co-Pi) composite inverse opal electrodes for PEC water splitting by electrodeposition of a BiVO₄ layer and a Co-Pi water oxidation catalyst on the WO₃ inverse opal. In this novel electrode design, the continuous and conductive WO₃ inverse opals acted as host skeletons for the deposition of a BiVO₄ layer, which provided direct and fast electron transport pathways. The void spaces of the inverse opals were advantageous for the BiVO₄ layer filling, which facilitated excellent interfacial contact with a large surface area. The "slow photon effect" of the inverse opals provides additional benefits for light harvesting. Moreover, the surface decoration of the water oxidation catalyst was beneficial for improving the water oxidation kinetics of BiVO₄. Thus, the as-fabricated WO₃/BiVO₄/Co-Pi photoanode presented excellent PEC performance and achieved a maximum photocurrent density of 4.5 mA/cm² at 1.4 V versus Ag/AgCl, which was much better than that of the individual constitutes, i.e., WO₃ and BiVO₄.

Additionally, other photonic crystals have also been used to improve solar conversion efficiency, such as BiWO₄. Zhang et al. developed a facile and economical method to synthesize Bi₂WO₆ inverse-opal photonic-crystal structures, as an example of visible-light active ternary metal oxides [64]. Bi₂WO₆ inverse opals (i-Bi₂WO₆) exhibited much higher photocatalytic activities for degradation of methylene blue and salicylic acid, respectively, under visible light illumination compared with the performance of a reference Bi₂WO₆ nanofilm (n-Bi₂WO₆). A slow photon effect was observed in the angle dependent photodegradation of methylene blue under visible-light irradiation. The photon-to-hydrogen conversion efficiencies of PEC water splitting under visible-light irradiation exhibited an almost three-fold increase owing to the inverse-opal structure. Such enhancements in the photocatalytic activity and photoelectrochemical H₂ production activity were related to improved light-harvesting properties and the continuous porous structure of the inverse-opal structure.

In photonic crystals, there are two ways of enhancing the slow photon effect: one is to tune the photonic crystal stop band around the semiconductor band edge (as described above); the other is to tune the photonic crystal stop band around the excitation maxima of sensitizers such as plasmonic metal NPs, and quantum dots (QDs). In the field of PEC water splitting, plasmonic metals are becoming a material of choice for photoactive materials to boost efficiency in this process (i.e., to enable processes to occurs at very low voltages). These materials are highly stable and provide tunability in light matter interactions that are useful for absorption, activity, catalysis, and efficiency. Properties being assessed for PEC systems include: surface plasmon resonance (SPR) of metal NPs, absorption at the band edge of supporting semiconducting materials, angle dependence or enhanced light capture with the use of PBG materials in energy regions where the absorption of a material itself is poor, plasmon-photon coupling scenarios, and tuning of the slow photon effect to match the SPR resonances and thus charge injection, are all. We detail some of these advances in the references cited below.

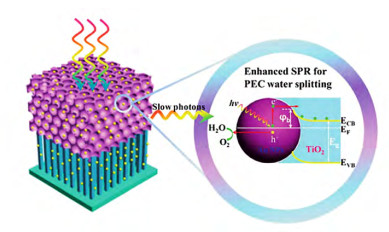

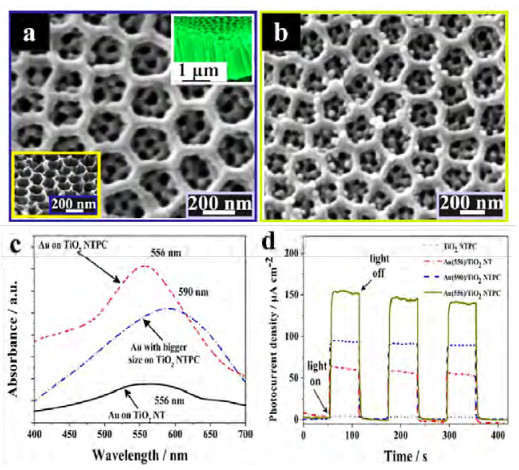

Zhang et al. [65] designed a visible light responsive plasmonic photocatalytic composite material by rationally selecting Au nanocrystals and assembling them on a TiO₂-based photonic crystal substrate. Plasmonic Au nanocrystals coupled with TiO₂ NTs with a top seamless photonic crystal layer showed excellent PEC water-splitting performance (Fig. 3). The matching of the Au SPR wavelength with the photonic crystal photonic band gap considerably increased the SPR intensity and thus boosted the PEC performance. Under visible light illumination (> 420 nm), the designed material produced a photocurrent density of ∼150 μA/cm², which is the highest value reported for any plasmonic Au/TiO₂ system under visible light irradiation owing to photonic crystal-assisted SPR. The rational design of the plasmonic-photonic crystal systems opens a new avenue of research into preparation of efficient visible light photocatalysts.

Zhang et al. [66] designed a series of Au/TiO₂ composite photoanodes by constructing two promising TiO₂ functional structures (i.e., nanorod arrays and photonic crystals) as scaffolds for Au NPs (Fig. 4). The enhanced PEC water splitting activity under visible light irradiation was attributed to energetic hot electrons and holes that were generated in the Au NPs through the excitation and decay of surface plasmons. By alternating the characteristic pore size of the TiO₂ photonic crystal layer, the slow photon region at the red edge of the photonic band gap could be tuned to overlap with the strong localized SPR region of the Au NPs. The matched slow photon effect of the TiO₂ photonic crystal (with a characteristic pore size of 250 nm) intensified the SPR responses (central at 536 nm) of the Au NPs. Consequently, more hot electrons were generated in the Au NPs and injected into the conduction band of the TiO₂, resulting in improved PEC water splitting efficiency in the visible light region. Under simulated sunlight illumination, the photoconversion efficiency of the well matching Au/TiO₂ photoanode approached 0.71%, which is among the highest values reported for Au/TiO₂ photoelectrochemical systems.

As novel nanomaterials, semiconductor QDs are often used as sensitizers with narrow-bandgap semiconductors in PEC water splitting, owing to their many unique properties such as quantum size effects and multiple exciton generation [67-69]. Coupling the phenomena of quantum confinement and slow light can enhance light conversion efficiency to improve the performance of QD-sensitized wide band gap semiconductors [70]. Cheng et al. [71] reported an innovative electrode design by combining a TiO₂ inverse opal with CdS QDs sensitizer for solar-light-driven hydrogen production. The 3D percolated periodic pore structure of the TiO₂ inverse opal provided a high surface area for QD loading, good electrical transport pathways, and intimate contact with the electrolyte. The QDs acted as "light antennas" greatly improving the visible-light harvesting, the type Ⅱ band alignment with TiO₂ also favored interfacial charge transfer and separation. Moreover, the slow photons facilitated photon-QD interactions, resulting in enhanced light absorption.

Among non-TiO₂ photonic crystals, important materials for water splitting are photonic crystals of BiVO₄, owing to a direct bandgap of 2.4 eV and the appropriate valence band position for O₂ evolution. Zhang and coworkers developed a photonic nano-architecture to improve charge carrier generation and separation by manipulating and confining light absorption in a visible-light-active photoanode constructed from a BiVO₄ photonic crystal and plasmonic nanostructures [72]. Synergistic effects of the photonic crystal stop bands and plasmonic absorption were observed to operate in this photonic nanostructure. Within the scaffold of an inverse opal photonic crystal, the surface plasmon resonance is considerably enhanced by photonic Bragg resonance (Fig. 5). These nanophotonic photoanodes showed AM 1.5 photocurrent densities of 3.1 ± 0.1 mA/cm² at 1.23 V_RHE, which is among the highest reported for oxide-based photoanodes and over 4 times as high as that of an unstructured planar photoanode.

Nan et al. [73] fabricated carbon quantum dot (CQD) coated BiVO₄ inverse opal (io-BiVO₄) structures, which showed markedly improved PEC hydrogen generation. The io-BiVO₄ maximized photon trapping through a slow light effect, while maintaining an adequate surface area for effective redox reactions. The CQDs were then incorporated into the io-BiVO₄ to further improve the photoconversion efficiency. Owing to the strong visible light absorption properties of CQDs and the enhanced separation of the photoexcited electrons, the CQD coated io-BiVO₄ exhibited a maximum photon-to-hydrogen conversion efficiency, which was 6 times as high as that of pure BiVO₄ thin films.

Moreover, some photonic crystals used as photocatalysts to produce H₂ through photocatalytic water splitting, where the slow photon effect has been observed to enhance H₂ production efficiency, such as TiO₂ NT-photonic crystals [59, 74], C@Cr-SrTiO₃/TiO₂ NT-photonic crystals [75], F-doped SnO₂/TiO₂/BiVO₄ [76], SnO₂/WO₃ [77, 78], TiO₂/F-doped SnO₂ [79], TiO₂-Au-CdS [80], and TaON [81].

Large amounts of anthropogenic CO₂ emissions associated with increased fossil fuel consumption have led to global warming and an energy crisis. Photocatalytic reduction of CO₂ into solar fuels such as methane or methanol is believed to be one of the best methods to address these two problems. In addition to light harvesting and charge separation, the adsorption/activation and reduction of CO₂ at the surface of photocatalysts remains a critical challenge, which greatly limits overall photoconversion efficiency and the selectivity of CO₂ reduction. This review describes recent advances in our fundamental understanding of CO₂ photoreduction on photonic crystal and provides an overview for enhancing the light adsorption of photonic crystals.

Ren et al. prepared a Cu/TiO₂ inverse opal generated in-situ on optical fibers by sol-gel technology, which was shown to be effective for improving the photon utilization rate in a photocatalytic reactor [82]. The TiO₂ inverse opal slowed photons and improved the quantum efficiency for photoreduction of gaseous CO₂ to CH₃OH in the presence of water vapor and UV light.

Wei et al. [83] prepared Au@CdS/IO-TiO₂ photocatalysts that consisted of core-shell-structured Au@CdS NPs uniformly dispersed on IO-TiO₂. The core-shell structured Au@CdS NPs with a CdS shell of adjustable thickness were dispersed on the inner walls of uniform macropores. The slow photon effect of the inverse opal structured TiO₂ with moderate pore sizes improved the light-harvesting efficiency. The vectorial electron transfer (TiO₂→Au→CdS) of the all-solid-state Z-scheme system with a CdS(shell)-Au(core)-TiO₂(support) nanojunction was favorable for separation of photogenerated electrons and holes. Combined with the synergistic effects of the photonic crystals and vectorial electron transfer, Au@CdS/IO-TiO₂ catalysts exhibited superior photocatalytic performance for CO₂ reduction to CH₄ under simulated solar irradiation. The highest photocatalytic activity and selectivity for CO₂ reduction were as follows: CH₄ formation rate of 41.6 μmol/g·h, and selectivity for CH₄ production of 98.6%. The formation rates of H₂, CO, O₂ were 18.2, 0.6, and 109.5 μmol/g·h, respectively. The highest formation rate of O₂ (109.5 μmol/g·h), was larger than the stoichiometric theoretical amount (92.6 μmol/g·h) calculated by the formation rates of CH₄, H₂ and CO, which suggests that some others hydrocarbon products may be produced but were undetected.

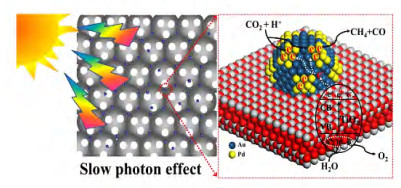

Additionally, Jiao et al. prepared a series of novel photocatalysts via the colloidal crystal template method, including AuPd/TiO₂ (Fig. 6) [84], CeO₂/TiO₂ [85], and Au/TiO₂ [86]. In these catalysts, 3D ordered macroporous (3DOM TiO₂) as the support decorated with AuPd NPs, CeO₂ nanolayers and Au NPs, which were homogeneously dispersed on the inner wall of the 3DOM TiO₂. They exhibited excellent photocatalytic activity for CO₂ reduction by gas bubbling-assisted membrane reduction method. The enhanced photocatalytic activity might originate from the excellent light-harvesting capacity and separation efficiency of photogenerated electrons and holes. The light-harvesting efficiency was improved by the slow photon effect of the 3DOM structured TiO₂ and the heterojunction between the TiO₂ with the AuPd NPs, CeO₂ nanolayers and Au NPs. Moreover, the Au NPs deposited on the TiO₂ surface could absorb more visible light and induce a stronger SPR effect on the Au NPs for excitation of electrons to TiO₂ to reduce CO₂ into CH₄.

Jiao et al. prepared a series of Pt/TiO₂ photonic crystal photocatalysts with a well-defined inverse opal structure, and Pt NPs with uniform sizes (approximately 2.5 nm) homogeneously dispersed on the inner wall of carriers [87]. The Pt/TiO₂ photonic crystal catalysts exhibited super catalytic activity for the reduction of CO₂ and H₂O, which was attributed to the slow photon effect of the inverse opal structure with moderate pore sizes, and the Pt NPs acting as electron trapping centers to improve charge separation of photoexcited TiO₂, as well as strong absorption of visible light and adsorption of CO₂ molecules induced by oxygen vacancies.

For the photonic crystal catalysts described above, CO₂ photoreduction was achieved in a CO₂–H₂O atmosphere via a gas bubbling-assisted method. The CO₂ gas flows through a water vapor generator (bubbler) and then into the reactor, with photonic crystals as the catalyst in the reactor. In the reaction of CO₂ by photoreduction with H₂O vapor, CH₃OH, CH₄, CO, H₂, and O₂ were produced by CO₂ reduction and H₂O oxidation. CO₂ is reduced in the presence of water owing to the properties of photocatalysts. TiO₂ photonic crystals act as a support modified with Cu, Au@CdS, AuPd, CeO₂, Au, and Pt, and these modifications showed considerable effects on the catalytic efficiency and selectivity. For example, Cu showed a high sensitivity for CH₃OH, Au for CH₄, and Pt for H₂. CO₂ and H₂O were reduced and water acted as a hole receptor being oxidized to produce O₂. No water oxidation catalysts or sacrificial reagents were used in the works described in this review. The amount of O₂ produced corresponded with the theoretical amount calculated from the hydrogen and hydrocarbon products obtained from the CO₂ and H₂O reduction.

To date, considerable achievements have been made in the design and fabrication of photonic crystal photocatalysts for efficient photocatalytic H₂ production and CO₂ reduction. Photonic crystals show great promise for improving solar-to-fuel conversion efficiencies through the slow photon effect, which has tremendous benefits for light harvesting. To enhance the slow photon effect, the photonic crystal stop band is tuned to the semiconductor band edge or the excitation maxima of the sensitizer (e.g., QDs, plasmonic metal NPs). The slow-photon effect in light-harvesting enhancement and its exploitation in photocatalytic H₂ production and CO₂ reduction may provide insights into the rational design and fabrication of photocatalytic systems for solar-to-fuel energy conversion.

Although in most cases photocatalytic activities can be enhanced by forming photonic crystals, actual solar-to-fuel conversion efficiencies are still a long way from meeting criteria for commercialization. This is because of the limitations of semiconductor photocatalysts such as the high overpotentials required for H₂/O₂ evolution and the very low activity for red-photons and near-IR light. Furthermore, long-term stability is a serious problem of photonic crystal structures and remains an important issue in the design and fabrication of photonic crystal photocatalysts in the future for achieving satisfactory efficiency in solar-to-fuel energy conversion.
