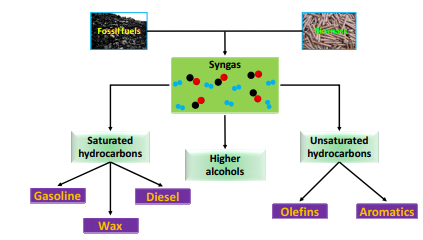

C1 chemistry, normally defined as the reactions of reactant molecules containing only one carbon atom, has attracted considerable interest because of its broad range of applications. In the early stages of C1 chemistry, this term mainly meant syngas (CO + H₂) conversion, whose history has already exceeded about 100 years [1-3]. Nowadays, developing clean energy in some countries and regions requires high-efficiency cleaning processes to improve energy consumption and develop abundant coal resources. Syngas conversion, the most important procedure in coal indirect liquefaction technology, has been already developed for diverse reaction systems to produce chemicals with rather high additional value: traditional Fischer-Tropsch synthesis (FTS) for diesel and gasoline, increasingly industrialized FTS for unsaturated hydrocarbons (olefins and aromatics), and syngas conversion to higher alcohols [4-12].

Fe and Co catalysts, two types of industrial and commercial catalysts, are the bright stars of fundamental research in syngas conversion. With various target products, the structures of the catalysts must be extensively tuned and modified, despite the similar chemical compositions. The choice of support [4, 13], modification of promoters [14, 15] and modulation of activation conditions [16, 17] can be used to change the size and dispersion of the active phases, change the electron density of active sites, and even induce the formation of new active species. These changes can promote the activation of reactants, weaken the adsorption of products, and increase the selectivity for the desired product. Moreover, the optimization of reaction conditions (temperature and pressure) [18], the transformation of reaction medium [19], and coupling with other reactions [20] allows excellent catalytic performance to be achieved. Accordingly, both direct modification of catalyst structure and indirect optimization of reaction conditions improve catalyst performance.

This article is organized into three parts. The first section will focus on the methodology and techniques applied to conventional Fe/Co catalysts toward increasing the oil yield in FTS. Then, we will overview the breakthroughs in the Fischer-Tropsch to unsaturated hydrocarbons process, especially concerning the design of the catalyst and understanding of the structure-performance relationship. Finally, we will summarize the preparation and characterization of different types of Fe/Co catalysts, as well as the impact of novel promoters and supports, for the syngas to higher alcohols process. The Fe/Co catalysts are a successful example of structure design, preparation, and structure-performance correlation in syngas conversion and provide clues for new developments in heterogeneous catalysis in C1 chemistry.

FTS is a process to convert syngas (CO + H₂) to liquid fuels. Among all the catalysts for industrial FTS processes, iron- and cobalt-based catalysts are two major categories whose active phases are, correspondingly, iron carbides and metallic cobalt. Traditionally, Fe-based catalysts are commonly considered to be catalysts of gasoline; in contrast, Co-based catalysts mainly produce diesel and wax. Because of energy demand and product diversity, several new methodologies and techniques have been used to improve catalyst selectivity. Moreover, breakthroughs in understanding the reaction mechanism have also been made.

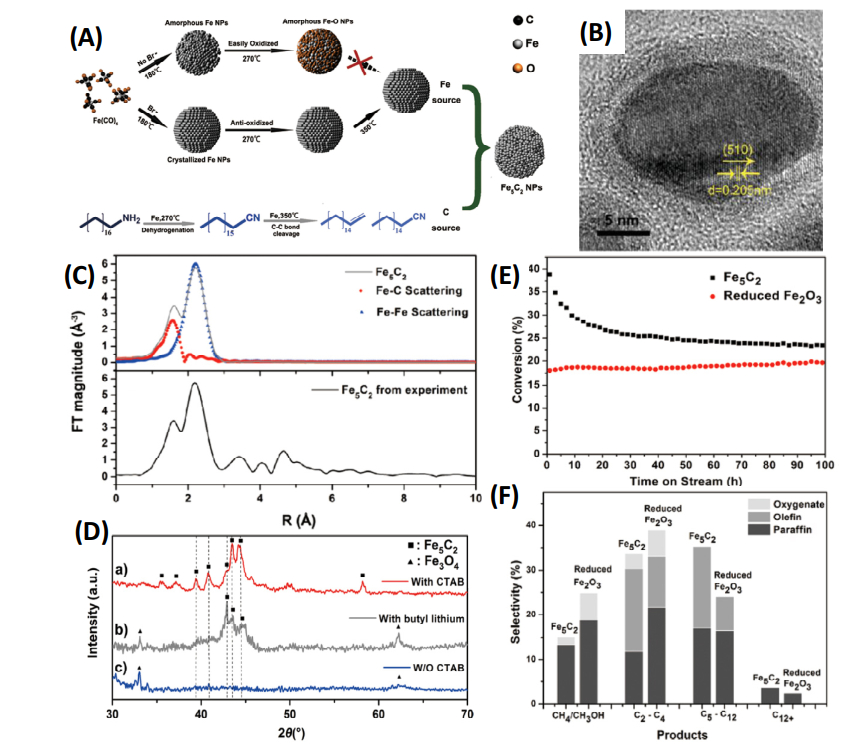

Although iron carbides are considered as the active phase, iron carbides are normally a mixture of various iron carbide phases, and it would be desirable to synthesize a single phase to verify its catalytic activity for FTS [1]. Yang et al. [2] synthesized Hägg iron carbide (Fe₅C₂) nanoparticles by a facile wet chemical route, in which bromide was found to be the key inducing agent for the conversion of Fe(CO)₅ to Fe₅C₂ in the synthetic process. The as-synthesized Fe₅C₂ nanoparticles exhibited intrinsic catalytic activity in FTS (CO conversion: ~20%, C₅₊ selectivity: ~40%). Compared with a conventional reduced hematite catalyst, the Fe₅C₂ nanoparticles showed enhanced catalytic performance, demonstrating that Fe₅C₂ is the active phase for FTS (Fig. 2). To visualize the structural evolution of the iron nanoparticles involved in the formation and growth of iron carbide nuclei directly, Liu et al. [21] used environmental transmission electron microscopy (TEM) under reaction conditions mimicking FTS; this allowed the formation of the iron carbide nuclei and surface reconstruction of the iron nanoparticle to be identified. Electron diffraction patterns and electron energy-loss spectra provided a detailed picture from initial activation to final degradation of iron under synthesis gas, and high-resolution (HR)-TEM images allowed the identification of carbide and oxide intermediates.

Fe_2.2C is considered as an active phase that possesses higher activity than that of Fe₅C₂. Chun et al. [16] activated the precipitated iron-based catalysts with syngas with different amounts of CO₂ (0%, 20%, 33%, and 50%). CO₂-containing syngas improved the performance of active iron carbides induced by an increased ratio of Fe_2.2C to Fe₅C₂ and a decreased fraction of inactive bulk carbons, as shown by X-ray diffraction (XRD), Mössbauer spectroscopy (MES), and temperature-programmed hydrogenation (TPH) measurements. The sample reduced in syngas with 50% CO₂ showed the best performance that the productivity of C₁₉₊ hydrocarbons at 50% CO₂ (0.160 g g_(cat) ^-1 h^-1) was about twice higher than the value at 0% CO₂ (0.0797 g g_(cat) ^-1 h^-1).

Although the process of FTS has been industrialized for almost one hundred years, performance enhancement remains a popular topic of investigation. Yang et al. [22] synthesized the Fe₅C₂/Co heterostructured nanoparticles (NPs) constructed by a secondary growth strategy, where the Fe/Co molar ratio was tuned from 3.3 to 25. Based on the FTS reaction evaluation, they found that the incorporation of 0.6 wt% Co (Fe/Co = 12) increased the Fe₅C₂/Co catalyst activity by more than four times that of the pure Fe₅C₂ catalyst (CO conversion 5%) at low temperature. The synergistic effect of both sites led to the catalyst having a similar product distribution to that of the Co catalyst because Co has a much lower energy barrier for CO dissociation compared with that of FeC_x and chain growth reaction can take place on the FeC_x sites at relatively low temperatures, as studied by pulse reaction.

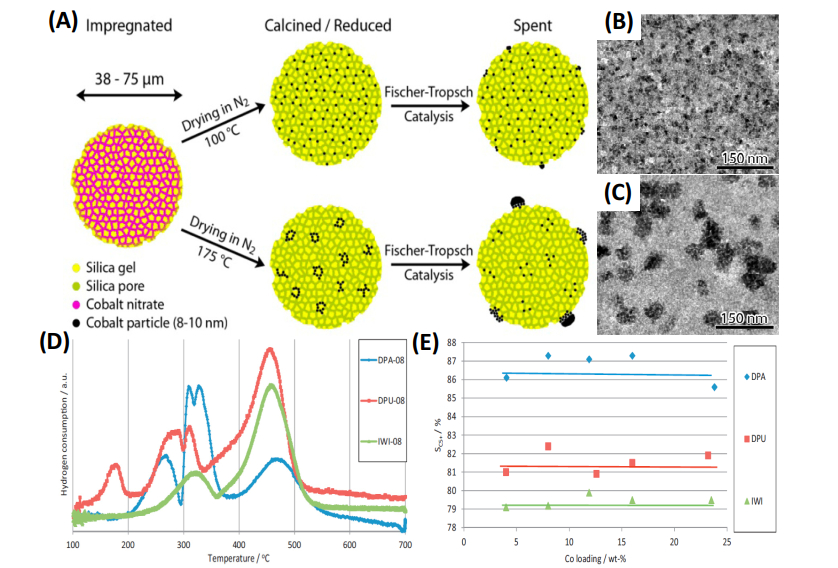

The supports have also been researched, including SiO₂ [17, 23, 24], Nb₂O₅ [6, 25], TiO₂ [13, 26], Al₂O₃ [4], and CNT [27]. Because the strength of interaction between Co and the supports is different, particle size control plays a vital role when SiO₂, Al₂O₃, and CNT are used as supports. For example, it has been found that the cause of the aggregation of cobalt nanoparticles during the synthesis of highly loaded silica-supported catalysts is the drying process after impregnation of the silica grains with the aqueous cobalt nitrate precursor (Fig. 3(A)-(C)) [24]. The maximal spacing of the Co₃O₄ nanoparticles was obtained by fluid-bed drying at 100 ℃ in N₂ flow, resulting from the silica support inside grains. This sample had high stability after 240 h, showing little aggregation and particle sizes of 9–13 nm. For Nb₂O₅ and TiO₂, the loading and synthesis method have a strong effect on the activity and selectivity. Three catalyst preparation procedures were reported for the preparation of Co/TiO₂ catalysts with 4–24 wt% Co (Fig. 3(D)-(E)): incipient wetness impregnation (IWI), deposition-precipitation using urea hydrolysis (DPU), and ammonia evaporation (DPA) [17]. The DPA catalysts displayed superior activity and C₅₊ selectivity for the entire cobalt loading range studied.

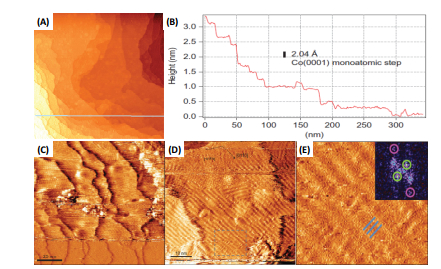

To observe the reaction mechanism directly, in situ methods have been developed. In situ scanning tunneling microscopy (STM) was used by Navarro et al. [3] to monitor a cobalt model catalyst and gain further insight into the fundamental mechanism under reaction conditions. They found that the terraces of the cobalt catalyst were covered by parallel arrays of stripes after 30 min and proposed that the stripes are formed by the self-assembly of linear hydrocarbon product molecules, as indicated by the width of the stripes, which corresponds to molecules that are 14 or 15 carbon atoms long (Fig. 4). A simple model that explains the accumulation of such long molecules is based on monomer-by-monomer synthesis and explicitly accounts for their thermal desorption. Similarly, Liu et al. [21] applied in situ environmental (E) TEM to detect the formation of the iron carbide nuclei mentioned in Section 2.1.

Theoretical calculations are a common method to reveal structure-performance relationships. Zhang et al. [5] established a reactive force field for molecular dynamics (MD) studies of the surface transformation of the cobalt (0001) surface induced by an overlayer of adsorbed carbon atoms. Significant surface reconstruction was observed with the upward movement of the Co atoms and some of the C atoms to positions below the surface. A driving force for the surface transformation is the preference of C adatoms to adsorb in 5- or 6-fold coordinated sites and the increasing strain in the surface because of the changes in surface metal-metal bond distances with the increasing surface overlayer concentration, which is dependent on the nanosize dimension of the surface covered with carbon. Then, Chen et al. [28] investigated the way in which the triple bond in CO dissociates on a Co catalyst. CO dissociation was probed by ¹²C¹⁶O/¹³C¹⁸O scrambling in the absence and presence of H₂. The initial scrambling rate without H₂ was significantly higher than the rate of CO consumption under CO hydrogenation conditions, as shown by temperature-programmed in situ IR spectroscopy, which indicated that the surface contained sites sufficiently reactive to dissociate CO without the assistance of H atoms. The positive H₂ reaction order was correlated to the fact that the hydrogenation of adsorbed C and O atoms was slower than CO dissociation. A similar conclusion was also obtained by Joos et al. [29].

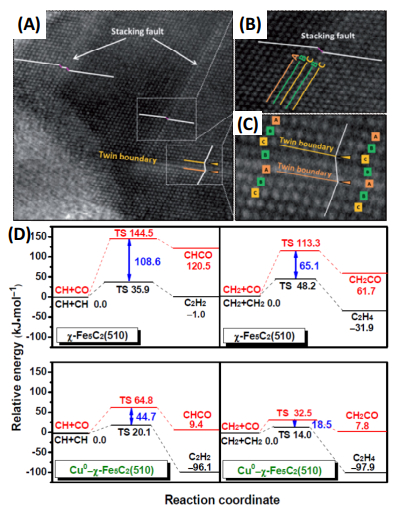

Based on the thermodynamically stable and terraced-like χ-Fe₅C₂ (510), Pham et al. [30] studied the mechanisms of CH₄ formation and C1-C1 coupling. The unfavorable formation of CH₄ under FTS conditions resulted from the high effective barriers to CH₄ formation. The C + CH and CH + CH are the most likely coupling pathways following the carbide mechanism. The effective barrier of C1-C1 coupling was lower than that of CH₄ formation. Therefore, this surface shows unexpectedly high C₂₊ selectivity, which indicates that manipulating the crystal facets of the χ-Fe₅C₂ catalyst could effectively tune the FTS selectivity.

Olefins, usually meaning lower olefins (such as ethylene, propylene, and butylene), have been utilized to basic building blocks in the chemical industry and are traditionally produced from the thermal or catalytic cracking of naphtha and oil in the refining process. Recently, the direct production of lower olefins from syngas has attracted much attention given supply limitations and environmental issues (Table 1).

Compared to Co-based catalysts, Fe-based catalysts have drawn much attention because the product from syngas conversion contains more olefins. Galvis et al. [9] synthesized catalysts comprising Fe nanoparticles (promoted by S and Na) homogeneously dispersed on weakly interactive α-Al₂O₃ or carbon nanofiber (CNF) supports. The Fe-supported catalysts were prepared by the multi-step incipient wetness impregnation of the selected support (α-Al₂O₃, β-SiC, γ-Al₂O₃, SiO₂, or CNF) with an aqueous solution of ammonium iron citrate contained low amounts of sulfur and sodium. Catalytic tests were performed at 340 ℃ and 2.0 MPa with a H₂/CO ratio of 1 after 64 h on stream, and the Fe/CNF sample displayed a high C₂–C₄ olefin selectivity (52%) that could be increased to 61% if the pressure was change to 0.1 MPa (Fig. 5). They found that the methanation reaction was suppressed by the promoters (Na and S) when using "inert" CNF and α-Al₂O₃ supports, which favor the proximity between iron and promoters. Through Mössbauer spectroscopy and TEM observation, the active iron phase was found to be iron carbide, and the particles only grew during the first 4 h of reaction at catalyst activation and initial usage.

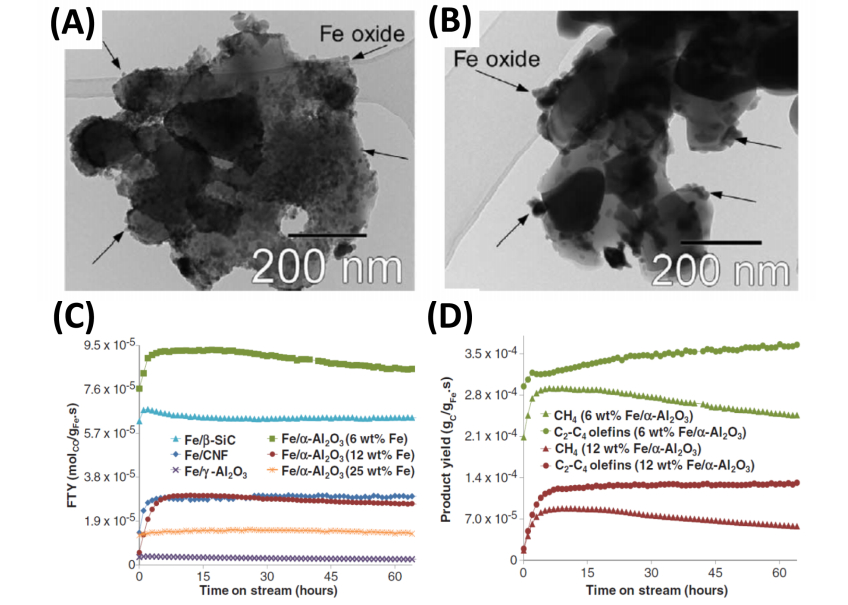

Then, based on the Fe-Na-S/CNF (α-Al₂O₃) catalyst, Galvis et al. [31] continued to try to promote the performance and study the structure-performance relationship of the best catalyst. First, different iron precursor salts were used to investigate the effects on the size of iron nanoparticles. Through tests under industrially relevant conditions (340 ℃, 2.0 MPa, and H₂/CO = 1 v/v), the catalyst synthesized with ammonium iron citrate not only displayed high selectivity to lower olefins (> 50% C) but also a higher catalytic activity and a much lower rate of carbon lay-down (by a factor of 4–6) compared to the sample prepared with other precursors. Several ordered mesoporous materials with a comparable pore size and pore symmetry have been used as model supports by Oschatz et al. [32, 33]. Ordered mesoporous carbon (CMK-3) as a support possesses higher activity (7.5 × 10^-6 mol_CO g_Fe^-1 s^-1) and C₂–C₄ olefin selectivity (~60%) than those of ordered mesoporous silica (SBA-15) and ordered mesoporous silicon carbide (OM-SiC) as a support under FTO conditions of 350 ℃, 0.1 MPa, H₂/CO = 1, and a gas hourly space velocity (GHSV) of 1800 h^-1. Nitrogen surface functionalization and the removal of surface groups on CMK-3 could further increase the activity of the catalysts in the presence of promoters. Subsequently, the effects of the calcination conditions on CMK-3 were investigated [34]. After testing under industrially relevant FTO conditions, the samples calcined at 300 and 500 ℃ showed higher olefin selectivities (50.4% and 54.6%, respectively) than those of samples calcined at 800 and 1000 ℃. Through XRD, TEM, and energy dispersive X-ray (EDS) spectroscopy elemental mapping, they found that a low calcination temperature led to a small particle size and low carbon deposition rate, although a high calcination temperature led to a higher ratio of catalytically active iron (carbide) species. Recently, to modulate Na and S promotors precisely, Casavola et al. [35] exchanged organic ligands adsorbed on the surface of iron oxide catalysts with inorganic species such as Na₂S. This was carried out not only to provide an active surface but also to introduce controlled amounts of Na and S, which act as promoters for the catalytic process.

Through previous research, the de Jong group determined that the size of the iron particles was the key factor affecting performance and deactivation. The particle size was controlled from 3 to 9 nm, and the samples were investigated under industrially relevant conditions (340 ℃, 2.0 MPa, and H₂/CO = 1) by Galvis et al. [7] and Xie et al. [36]. For the supported iron catalysts, iron particle growth may result in loss of catalytic activity over time, as shown by HRTEM observation. Upon the addition of promoters to the iron nanoparticles supported on carbon nanofibers, the initial catalytic activities were high. However, substantial deactivation was observed over a period of 100 h, along with an increase in Fe particle size to 20-50 nm, thereby supporting the proposal that the loss of active Fe surface area was the main cause of deactivation (Fig. 6(A) and (B)). Later, steady-state isotopic transient kinetic analysis and density functional theory (DFT) were also used by Xie et al. [37] to obtain a fundamental understanding and determine the coverage and residence times for reactive species on supported iron carbide particles, as well as H adsorption. The fitting of CH₄ response curves revealed the presence of parallel side-pools of reacting carbon. Hence, on Na₂S-promoted Fe₅C₂ surfaces, the adsorption on carbon sites is weaker and adsorption on iron sites is stronger, which is consistent with the lower H coverage, lower CH₄ formation, and greater olefin formation (Fig. 6(C) and (D)). Meanwhile, Koeken et al. [38] were the first group to apply the tapered-element oscillating microbalance (TEOM) to FTS research to investigate the process of carbon deposition. They obtained in situ information concerning the carbon deposition occurring during high-temperature FTS processes in combination with on-line product analysis. By calculating the rate of mass increase, they found that increasing the H₂ partial pressure or total pressure reduced the rate of carbon deposition.

Several specific Fe-based-catalyst-modulating supports and promoters have been developed. Chen et al. [39] applied graphene materials to support iron: N-doped graphene was used as an efficient electron donor and resulted in a high selectivity of around 50% for light olefins [39]; Fe nanoparticles encapsulated in pod-like carbon nanotubes gave a high selectivity of light olefins (45%) and high stability over 120 h reaction because of the agglomeration of Fe nanoparticles and carbon deposition was suppressed [40]. Liu et al. [41, 42] utilized macroporous silica (80 nm) modified with ethylene glycol as a support, which showed high selectivity for light olefins (46.2 mol%), as well as high activity (CO conversion 63.4%), because of the high diffusion efficiency and highly dispersed iron particles. Cheng et al. [14] focused on a systematic study on the effect of K in the reduced graphene oxide (rGO) supported iron catalysts on the catalytic performance in FTO. Unlike the reduction of the activity, the selectivity to lower olefins increased steadily with increasing K, giving the highest selectivity to lower olefins of 68% and an olefin/paraffin (O/P) ratio of 11 in the C₂-C₄ hydrocarbons over the FeK₂/rGO catalyst. Tian et al. [43] used KMnO₄ as a precursor and the support was coated uniformly with K-doped birnessite MnO₂, which acted not only as a structural promoter to anchor Fe₂O₃ nanoparticles but also as competition for H₂ adsorption, thus decreasing the H₂/CO ratio over active sites and reducing the possibility of further hydrogenation of olefins. Similarly, recently, Ordomsky et al. [44] showed that Bi and Pb, metals typically used in soldering, acted as promoters and facilitate CO dissociation by removing O atoms from iron carbide, resulting in a remarkable increase in the light olefin production rate. Recently, Lødeng et al. [45] tried to synthesize catalytic cartridges made from anodized Al plates (FeO_x/AAO-Al) for FTO, but the performance was unsatisfactory, having low olefin selectivity (< 5%) and yield (< 1%).

Zhai et al. [15] synthesized Zn- and Na-modulated Fe catalysts by a simple coprecipitation/washing method. Based on performance comparison, the Fe-Zn-0.81Na catalyst showed the best performance with a CO conversion of 77.2% and olefin selectivity of 58%, which originated from not only the great change of iron species size induced by Zn but also changes to the electronic structure induced by Na. By a combination of in situ X-ray photoelectron spectroscopy (XPS), pulse experiments, and DFT calculations, it was found that delocalized electrons were transferred from Na to Fe when the Na ion was distributed on the surface of Fe₅C₂, making the surface iron carbide species electron rich, which suppressed the hydrogenation of double bonds and promoted the desorption of the products.

Research into Co-based catalysts has rarely been reported because of their strong hydrogenation capacity. Qi et al. [46] combined experimental kinetic studies with theoretical calculations to reveal the factor dominating the olefin-to-paraffin ratio in Co-catalyzed FTS. The calculated olefin to paraffin ratio decreases with chain length, except for ethylene, which agrees well with the experimental results. They found that the carbon number was dependent on the adsorption energies of olefin rather than the activation energies of their hydrogenation reactions.

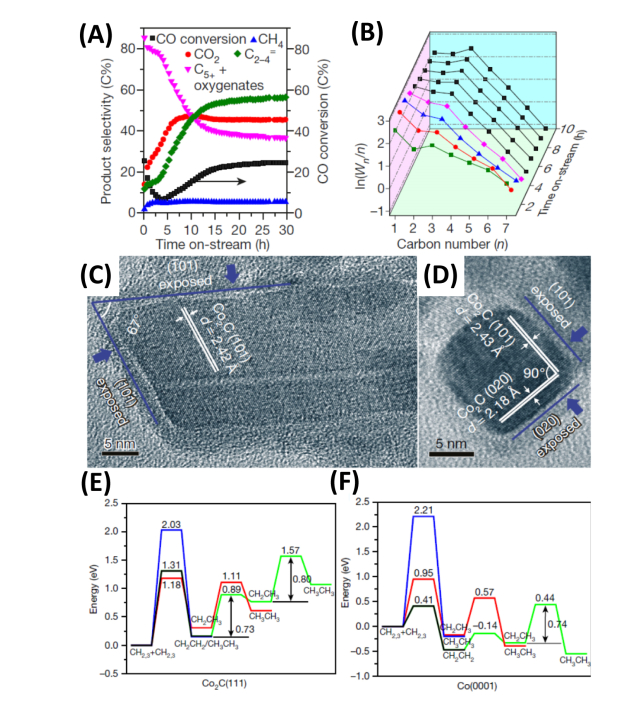

Co₂C is usually regarded as the inactive phase toward syngas conversion, but several recent works have made significant breakthroughs. Zhong et al. [8] prepared a cobalt-manganese composite oxide (CoMn catalyst) and investigated it for the FTO reaction under mild reaction conditions (250 ℃, 0.1 MPa, and a H₂/CO ratio of 2) (Fig. 7). This catalyst, after reaching the steady state, displayed a high selectivity for the production of lower olefins (60.8 C%) and a low methane selectivity (5.0 C%) at a CO conversion of 31.8%. The most interesting feature was that the ln(W_n/n) value of C₁ was higher than that of C₂ at the beginning (W_n is the fraction, by weight, of a carbon product with n carbon atoms), but the ln(W_n/n) values of C₁ and C₂ were similar after 10 h, and the ln(W_n/n) value of C₃ was the highest, consistent with the highest selectivity for C₃ product. This phenomenon, which is different from that of the typical cobalt-based Fischer-Tropsch catalyst, was attributed to the Co₂C nanoprisms formed by interaction with alkali elements and manganese, as indicated by HRTEM and EDS measurements. DFT calculations were used to examine three possible paths to CH₃CH₃ formation on the Co₂C (101), Co₂C (020), Co₂C (111), and Co (0001) surfaces, respectively, as well as two paths to CH₂CH₂ formation. Co₂C nanoprisms formed from the initial catalyst preferentially exposed the {101} or {020} facets, which exhibit high selectivity to olefins and low selectivity to methane.

Aromatics, mainly produced from petroleum refinement processes, are used as fuel additives and are important platform molecules for the polymer industry. Direct synthesis of aromatics from syngas requires high energy efficiency and low CO₂ emissions, making this process more competitive than the methanol-to-aromatics (MTA) process, which is challenging because of the severe operating conditions and low yield of aromatics. Because of the structural similarity between olefins and aromatics, the catalysts for aromatics are usually based on the FTO catalysts accompanied with molecular sieves, which provide acidic sites for cyclization [47]. Therefore, recent works have mainly concentrated on Fe-based catalysts. In 2014, Yan et al. [48] investigated the effect of Pd as a promoter on Fe/HZSM-5 catalyst and optimized performance with temperature, pressure, and GHSV. Yang et al. [49] prepared a composite catalyst comprising a mixture of Fe₂O₃-SiO₂ and Nb-/Ni-modified HZSM-5 (HZ) that showed high selectivity for benzene, toluene, and xylene (BTX, ∼30%), while CuO-ZnO-Al₂O₃ (CZA)/modified-HZ had high selectivity for durene (∼31%). The diverse distribution of aromatics was a result of the different reaction pathways, where alkenes and methanol were the intermediates on Fe/Ni-HZ and CZA/Ni-HZ, respectively. Zhao et al. [50] combined a Na-Zn-Fe₅C₂ catalyst that had been applied to FTO previously with hierarchical HZSM-5, resulting in 51% aromatic selectivity in the stable stage with CO conversion greater than 85%. The appropriate density and strength of the Brønsted acid sites and the hierarchical pore structure of HZSM-5 was tuned by controlling the alkali treatment conditions, as characterized by HRTEM, Brunauer-Emmett-Teller (BET), and NMR measurements, and the degree of ion exchange endowed the catalyst with an unprecedented aromatic yield.

A wide variety of heterogeneous catalysts have been evaluated in the direct conversion of syngas into oxygenates (mainly higher alcohols). Generally, higher alcohol synthesis (HAS) catalysts can be classified into four categories: Rh-based, Mo-based, modified FTS (Fe/Co), and modified methanol synthesis (MS) systems. However, research into modified FTS catalysts has been the most extensive among the materials for HAS. According to the mechanistic basis of HAS in relation to FTS and MS, there must be an active component for carbonyl insertion, although traditional Fe/Co catalysts hardly form higher alcohols (Table 2). Even in the presence of two or more active elements, further tuning of their electronic and geometric properties by the use of promoters and supports is necessary. Now, we discuss the recent progress achieved in the alternative catalyst synthesis routes and speculation of the mechanism.

The discovery of the production of oxygenates with Fe-based catalysts from syngas dates back to the pioneering work of Fischer and Tropsch. They chose a potassium-promoted iron catalyst for their experiments and found the oily product fraction contained oxygenates. Later, Kiennemann and coworkers [10, 12] published works on the effect of Dy and La on Fe/SiO₂, FeCu/SiO₂, or Fe-Cu-Mo-U catalysts prepared via co-precipitation. Fe is accepted to be involved in the dissociative adsorption of CO and providing carbon chain growth site, but Cu has been indicated to provide CO insertion sites, facilitating the molecular adsorption of CO.

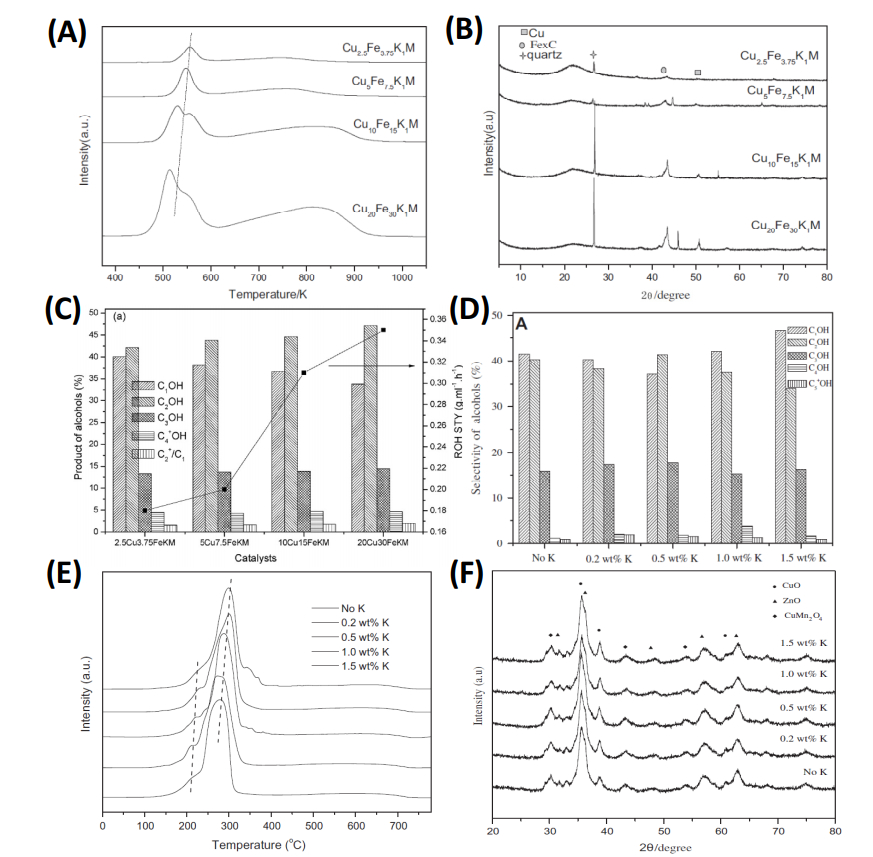

The preparation of these catalysts has been a research hotspot because the synthesis of higher alcohols requires the synergistic effect of Fe and Cu. Bao et al. [51] and Pei et al. [52] tested a Cu-Fe catalyst prepared by a co-precipitation method from Cu-Fe composite oxides with a molar Fe/Cu ratio of 0.05–0.67 at variable GHSV and temperature. The authors highlighted the high selectivity to C₂₊OH (90.1%) and C₆₊OH (53.4%) in the alcohol distribution. The lower reaction temperature and higher GHSV increased the total alcohol selectivity, indicating that there was a visible dehydration reaction of alcohol into hydrocarbons. In the same year, Xiao et al. [18] investigated Cu-Fe bimetallic nanoparticles synthesized by the co-reduction method as model catalysts. The 1Cu3Fe sample showed the best performance, having a high selectivity to C₆₊OH (73.7%) that exceeded that the physical mixture of Fe and Cu nanoparticles. They considered that the Cu-FeC_x center benefited alcohol formation, which led to higher selectivity to total alcohol. Subsequently, based on this research, they evaluated the performance in a 288-h test for higher alcohol synthesis deactivation studies. [53] During the reaction, the CO conversion and higher alcohol (HA) selectivity dropped from 17% to 14% and from 22% to 13%, respectively. This change was explained by the structural evolution of CuFe bimetallic nanoparticles during reaction. Phase separation of the Cu and Fe components was observed directly by TEM, scanning tunneling electron microscopy (STEM)-EDS, and MES. The fresh sample originally contained spherical NPs homogeneously composed of Cu and Fe and underwent phase separation during the reaction, leading to the formation of Fe₃O₄ and severely sintered Cu particles.

Lu et al. [54] recently synthesized a 3DOM FeCu catalyst with variable metal ratio via the glyoxylate route. The catalyst with molar Fe/Cu = 0.5 showed the highest surface area and the best performance (total alcohol selectivity = 31% and C₆₊ alcohols selectivity = 63%); this is significantly superior to an analog prepared by co-precipitation. The authors rationalized the catalytic data based on three main factors: (1) the unique ordered structure has a large pore size, and the interconnected macroporous tunnels of the catalyst with a large accessible surface area improves the catalytic activity; (2) the atomic steps on the Cu surface originating from planar defects and lattice strain, as indicated by HRTEM (Fig. 8(A)-(C)); (3) the formation of the glyoxylate dianion eased the generation of high-density and uniformly distributed defective Cu⁰ and Fe₅C₂ NPs, as visualized by HRTEM and STEM-EDS mapping. To reveal the structure-performance relationship, the authors observed the catalyst structure through MES, in situ XPS, and in situ XAFS and established the possible reaction pathway through DFT calculations [55]. They found that the d-band center close to the Fermi level of Cu⁰-χ-Fe₅C₂(510) surface and the electron-rich interface of Cu⁰-χ-Fe₅C₂(510) arising from the delocalized electron transfer from Cu⁰ atoms facilitated CO activation and CO insertion into alkyl species to C₂-oxygenates, thus enhancing the C₂H₅OH selectivity (Fig. 8(D)). Moreover, starting from CHCO intermediate, the proposed reaction pathway for CO hydrogenation to C₂H₅OH is CHCO + (H) → CH₂CO + (H) → CH₃CO + (H) → CH₃CHO + (H) → CH₃CH₂O + (H) → C₂H₅OH.

Layered double hydroxide (LDH) materials have also been applied to produce HA because of unique structural characteristic comprising uniformly distributed Cu²⁺ and Fe³⁺ ions, resulting in FeCu-based systems with high metal intermixing. Gao et al. [56] modulated the molar Cu/Fe/Mg ratio (0.4/1/3.6, 1.6/1/3.7, and 2.5/1/3.7, respectively) to achieve the highest CO conversion (57%) and total alcohol selectivity (49%, C₂₊OH selectivity 67%). High-angle annular dark-field (HAADF)-STEM-EDS images show the highly uniform distribution of Fe and Cu, which is claimed to be responsible for the high total alcohol selectivity. H₂-temperature programmed reduction (TPR) characterization of the catalyst and reference pure-phase materials indicate that the fine distribution of Fe and Cu in the former improved their reducibility.

The choice of carrier and promoter also play a vital role in the synthesis of higher alcohols. Ding et al. [57, 58] recently used commercially available silica gel (SG) and silica sol (SS) (SG/SS = 19/1, 4/1, 3/2, and 1/4) to produce a series of bimodal carriers with different pore structures by the incipient-wetness impregnation method. In particular, both the activity (31%–56%) and C₂₊OH selectivity (18%–45%) increased with the gradually decreasing bimodal carrier pore sizes (Fig. 9(C)). The results from BET, XRD, and TPR (Fig. 9(A)-(B)) measurements indicate that decreasing the carrier pore sizes leads to the dispersion of active Cu and Fe species inside the pore structures, which strengthened the synergistic effect of Cu-Fe via the confinement effect of bimodal pore structures, improving the higher alcohol selectivity. After that, the group studied the use of Mn as a promoter [59]. The incorporation of manganese into the Fe-Cu based catalysts facilitated the formation of a Fe-Mn-O solid solution and promoted the dispersion of both the iron and copper species through N₂ physisorption, XRD, TPR, and temperature-programmed desorption (TPD) measurements. The optimum performance (CO conversion = 26%, alcohols selectivity = 61%, C₂₊OH selectivity = 62%) is obtained at 270 ℃ and 6.0 MPa, which may be attributed to the good dispersion of both the iron and copper surface active sites with a higher manganese content. In addition, they investigated the effects of the application of K to a FeMnCuZn system for HAS [60]. A co-precipitated catalyst of molar Fe/Mn/Cu/Zn = 0.15/1/1/1 was impregnated with different amounts of K (0.2–1.5 wt%). Both the CO conversion (27%) and the C₂₊OH selectivity (63%) followed a volcano pattern as a function of K loading, having a maximum at 0.5 wt% K (Fig. 9(D)). Based on the BET, XPS, XRD, and H₂-TPD/TPR characterization results (Fig. 9(E)-(F)), the incorporation of K in the Cu–Fe based catalyst decreased the surface area of the particles, and the increase in K concentration weakened the H₂ chemisorption and restrained the reduction of both the Cu and Fe species, which explain why excess K resulted in the reduction in catalyst activity, that is, the loss in surface area and the blocking of the active sites. Lu et al. [61] investigated the effect of support pretreatment with ammonia on the performance of a Cu-Fe/SiO₂ conventional catalyst. The CO conversion and the space-time yield of alcohols of the Cu-Fe/SiO₂ catalyst increased after pretreatment with ammonia, from 14.8% and 89.0 g kg^-1 h^-1 to 17.4% and 107.0 g kg^-1 h^-1, respectively. As shown by XRD, N₂ adsorption-desorption, H₂-TPR, and N₂O chemisorption measurements, the pretreatment of SiO₂ with ammonia resulted in the formation of more active sites of Cu and higher dispersion of Fe species on the catalyst surface and enhanced the synergistic effect between the copper and iron species.

Attapulgite (ATP) was employed as a carrier by Guo et al. [62] in their assessment of CuFeCo-based catalysts featuring different molar Cu/Fe ratios (9.4/0.6, 7/3, 5.2/4.8, 3/7, and 0.5/9.5). Based on BET and TEM measurements, the enrichment of Fe facilitated the dispersion of oxide particles and the separation of the Cu-Fe alloy phase, and the catalyst particle size reduced from 2–4.5 to 1–2 nm. For Cu_9.4Fe_0.6, Cu₇Fe₃, and Cu_5.2Fe_4.8 samples, HRTEM and XRD observation showed the coexistence of CuO and CuFe₂O₄ phases in close vicinity. Excess Fe, however, led to the formation of Fe₂O₃, which can generate segregated FeC_x and Fe₃O₄ phases during the reaction. Accordingly, the coverage of CuFe₂O₄ by Fe₂O₃ was suggested to be the cause of inhibition of alcohol formation.

Research into Co-based materials for this reaction dates back to 1978 when the first patents were published. Similar to Fe-based catalysts, pure Co catalysts hardly produce higher alcohols, and a second active component or promoter is needed to provide CO insertion sites for higher alcohols synthesis.

Xiang et al. [63] have focused on CoCu-based catalysts for several years and determined some rules for performance modulation. They prepared CoCuMn core-shell NPs with equal molar amounts of the metals and a tailored shell composition using oxalate-based co-precipitation. The NPs were characterized by atom probe microscopy to reveal the intragranular structure of the nanoparticles, which indicated a diameter of 18 nm and the presence of a Co core and Cu-rich CoCuMn shell through 3D tomographic reconstruction (Fig. 10(A)-(B)). Using stoichiometric CO/H₂ feeds, the selectivity to 1-alcohols or combined 1-alcohols/1-alkenes are usually higher than 60% and occasionally up to 95% with very low CO₂ selectivity (below 10%). Subsequently, they showed the impact of the activation atmosphere (CO, H₂, syngas, and Ar) on the catalyst structure and, thus, on the catalytic performance of CoCu-catalyst [64]. The CO-activated catalyst shows significantly higher catalytic activity, but the alcohol selectivity is lower than those of H₂- or syngas-activated ones. An "onion-like" graphitic carbon shell was observed via TEM for the CO-activated Co₂Cu₁ catalyst in accordance with the temperature programmed decomposition (TPDec) profiles and XPS results, which probably originated from the Boudouard reaction (2CO → C + CO₂). The surface segregation of Co in a CO atmosphere results from syngas and CO activation, which results in higher than nominal Co/Cu surface ratios. The same synthesis method used for CoCuMn was applied to prepare another ternary system (CoCuNb) but following a two-step strategy [65]. Ammonium niobate (V) oxalate was first precipitated with oxalic acid in acetone and then Co and Cu nitrates were added to the mixture. The selectivity to primary alcohols with an optimized C2-C5 slate usually exceeded 50 wt%. As indicated by HRTEM, the bimodal nanosized particle distribution contained Co-Cu particles with sizes ranging from 25 to 40 nm and smaller Nb oxides particles between 4 and 8 nm as a structural dispersant and promoter. Recently, they found that the K-promoted CoMn catalysts without Cu also produced alcohols [11]. The selectivity of long-chain aldehydes, alcohols, olefins, and paraffin could be tuned by changing the H₂/CO pressure ratio. The sum selectivity of aldehydes and alcohols is usually 50 wt%, of which up to 97% can be aldehydes. While the product slate contains 60% n-aldehydes at pH₂/pCO = 0.5, a 65/35% slate of paraffins/alcohols is obtained at pH₂/pCO = 9 (Fig. 10(E)). The synergistic interaction between the Mn₅O₈ oxide and bulk Co₂C phase promoted by the presence of potassium was responsible for the unique product distribution (Fig. 10(C)-(D)).

One of the most relevant studies was recently reported by Prieto et al. [66], who combined DFT simulations and microkinetic modeling with experimental results over CoCu/MoO_x showing that mixed CoCu NPs slightly enriched in Co on the surface are responsible for selective HAS processes. The calculations predicted the selectivities for CH₄, methanol, and ethanol on surfaces possessing different proportions of Co and Cu. The authors then prepared materials with different molar Cu/(Cu + Co) ratios and summarized the evolution of the crystalline metal phases in the CuCo alloy by XRD. In addition, the extent of reduction of the surface Co was determined by XPS as a function of the catalyst composition. The highest time yield of total alcohols (27 mmol g_Cu+Co^-1 h^-1) was measured over a catalyst with Cu/(Cu + Co) = 0.3.

Wang et al. [67] prepared Co/Al₂O₃, Cu/Al₂O₃, and CoCu/Al₂O₃ materials with different mass Co/Cu ratios by the co-incipient wetness method. Based on the XRD and EXAFS results, they claimed that the strong interaction between Co and Cu oxide particles led to the formation of a CuCo₂O₄ mixed spinel structure. The generation of bimetallic CoCu particles in the reduced sample was confirmed by in situ magnetic measurements and resulted in superior alcohol selectivity (23%). Su et al. [68] conducted a comparative study of Co/SiO₂ and CoCu/SiO₂ to elucidate the role of Cu. Using XRD, Raman spectroscopy, and X-ray absorption spectroscopy (XAS), they demonstrated the presence of the CuCo₂O₄ spinel. Additionally, based on a kinetic study, they suggested that the roles of Cu were to reduce the formation of CH_x species by weakening the CO/HCO dissociation and to control the surface Co ensemble size inhibiting CH_x insertion.

An in situ growth method was used by Gao et al. [69] to fabricate Al₂O₃-supported NPs having a Cu-rich core and a CoCu-alloy shell. Cu and Co nitrates (Cu/Co = 0.2–5) were dissolved in water and the pH was adjusted to 6.5 using ammonia. Then, the mixture was heated at 80 ℃ for 48 h in an autoclave containing an Al foil onto which the CoCuAl-LDH precursor was formed. The precursor was activated by calcination in air followed by reduction. TEM and HAADF-STEM-EDS measurements confirmed the core-shell structure of the NPs and indicated an average diameter of 15 nm. The best catalyst featured a 0.5 value of Cu/Co ratio and displayed a CO conversion of 22% and a total primary alcohol selectivity of 51 wt%, being superior to the reference powdered CoCu/Al₂O₃ catalyst (13% and 39 wt%, respectively). The high HA selectivity was attributed to the presence of a CoCu-alloy at the shell of the NPs, which enabled intimate interaction between the metals with high stability over 48 h.

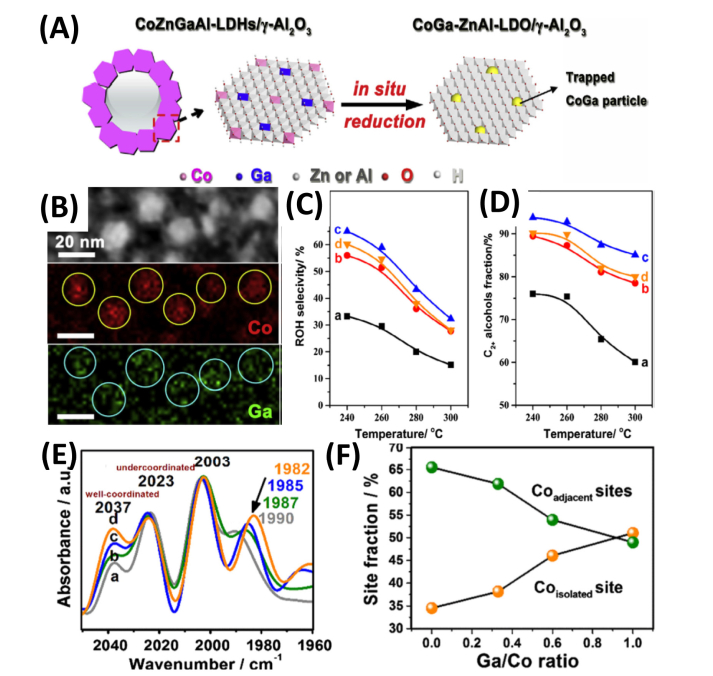

Ning et al. [70] synthesized a uniformly dispersed CoGa catalyst derived from CoZnGaAl-LDHs after direct reduction. As indicated by HRTEM and HAADF element mapping (Fig. 11(A)-(B)) and line scans, the CoGa particles were trapped in the oxide support, which is a unique structure that is not only highly active and selective but also distinctively stable compared to other control samples. A 43.5% CO conversion with an alcohol selectivity of 59% was achieved, and, in the alcohol products, the fraction of ethanol and higher alcohols reached 93% (Fig. 11(C)-(D)). More significantly, the trapped CoGa showed no visible changes in particle dispersion and homogeneous CoGa distribution in the reaction, resulting in stable catalytic performance. In the next year, An et al. [71] continued to reveal the promoting effect of Ga on the Co sites. Through HRTEM and EXAFS measurements, the Co₁Ga_0.6-ZnAl-LDO/γ-Al₂O₃ was found to have a uniform dispersion of CoGa particles and pseudo-homogeneous distribution of Co and Ga. The Ga atoms next to Co atoms not only contributed to isolating the Co centers but also donating electrons to neighboring Co sites, as shown by XPS measurements, which promoted dissociative CO adsorption and enhanced carbon chain growth. The isolated Co sites were responsible for linearly nondissociative CO adsorption, as shown by in situ FTIR measurements, boosting the CO insertion step to afford alcohol products (Fig. 11(E)-(F)). The match of CO insertion and C–C coupling gave rise to both enhanced activity in the syngas conversion and impressive selectivity to ethanol and higher alcohols.

Wang et al. [72] promoted Co-Cu catalysts with Zr, Al, or La. Under differential conditions, CoCuLa₂O₃ displayed the highest selectivity towards total alcohols (35%) and the lowest selectivity to hydrocarbons (14%). The authors suggested that the surface basicity provided by La₂O₃ favored alcohol formation. Co₂C is also considered to be an effective phase for CO insertion for the production of higher alcohols. Pei et al. [52] used up to 3.8 wt% Al₂O₃ as a promoter for Co (15 wt%)/AC. Both the CO conversion and the total alcohols selectivity reached maximal values at a loading of 0.2 wt% (69% and 28%, respectively, 96% HA in the alcohols). The authors claimed that the main effect of Al₂O₃ was to induce the formation of Co₂C and change the ratio between adsorbed H₂ and CO. Later, using DFT calculations they found that the formation of the stable cobalt carbide and the Co-Co₂C interface were essential for the observed reactivity [73]. The calculations show that Co₂C is highly efficient for CO nondissociative adsorption, whereas the Co metal is highly active for CO dissociative adsorption and subsequent carbon-chain growth. The interface between the cobalt metal and its carbide phase could be used for higher alcohol synthesis in syngas conversion.

The recent progress in the preparation, characterization, and mechanism of Fe/Co-based catalysts for syngas conversion reactions to oil, olefin/aromatic, and higher alcohols has been summarized in this review. Because of their comparable catalytic performance to noble metals catalysts, a great number of Fe/Co catalysts with high activity have been reported. However, several key issues, including harsh reaction conditions, low stability, and unsatisfactory selectivity, remain unresolved with respect to the demands of industrial applications. To develop advanced catalysts with high performance rationally, a deepening of the basic understanding of catalyst science in this area is imperative. The following problems have been identified: (1) although Fe/Co-based catalysts show good catalytic activity in these reactions, the specific selectivity and product distribution have not been well modulated; (2) it is rather difficult to maintain the structure of active sites as a result of aggregation/sintering, phase transformation, and carbon deposition under the harsh reaction conditions (e.g., high temperature and high pressure); and (3) because of the complexity of reaction system normally involving a number of elementary steps, the reaction mechanism must be urgently identified.

To solve the problems mentioned above, the following proposed strategies are feasible. First, further catalyst design and synthesis exploration are necessary, for example, through the development of new synthetic methods and activation conditions. Especially for higher alcohol synthesis, determining how to tune the synergistic effect between CO insertion site and C-C coupling site to enhance the selectivity is the key challenge that requires both a high homogeneous dispersion and a balanced rate of the two active sites. Therefore, polymetallic catalysts prepared by in situ growth methods, such as LDHs and montmorillonite, via the fine control of the reduction conditions could give rise to a precise tuning of the synergistic effect between individual active centers. This may lead to new developments in syngas conversion. Secondly, utilizing the strategy of the strong metal-support interaction (SMSI) for promoting specific product selectivity provides supplementary or even an indispensable approach to experimental studies. For the FTO process, the key issue is that the generated olefin must be immediately desorbed to prevent continuous hydrogenation to paraffin. Through the modulation of reducible oxides as supports, like TiO_x and MnO_x, the appropriate surface electronic and geometric structure at the interface, or even new active phases such as Co₂C, could be achieved; these not only promote the activity but also weaken the C-C coupling for increased selectivity for C₂-C₄ olefins. Finally, although calculations have been recognized as a powerful tool to simulate the reaction mechanism on a defined catalytic active site, the results are still far from reality. This is because the real crystal surfaces are more complicated than the ideal crystal surfaces used in calculations. Under reaction conditions, the actual catalyst surface has an abundance of step/corner sites and defects resulting from preparation technology and reconstitution through the adsorption of reactants and intermediates, and the simulation of these factors is challenging. Thus, in situ experimental studies are urgently needed to obtain detailed structural information on active sites and reaction mechanisms under practical conditions. For example, in situ XAS could not only provide the reversible valence state change to show the electron transfer between catalyst and adsorbate directly but also reflect the variation of coordination number and bonding situation resulting from the reconstruction on the bulk/surface of the catalysts; in situ IR can be used to monitor the structure change of reactant molecules directly and observe the intermediates of the main reaction path, which could also be identified in combination with mass spectrometry. Therefore, based on the results of in situ XAS and IR, the establishment of an intimate correlation can be employed to understand the active site-dependent reaction mechanism fully.

Moreover, novel reactive modes and strategies might trigger a new focus of research. Changing heterogeneous reactions to homogeneous reactions could not only optimize reaction conditions (reducing the reaction temperature and pressure), but also control the product selectivity and promote product separation through the modulation of solvent. In the case of FTS in the aqueous phase, the temperature can be reduced to 160 ℃ for improved FTS performance. Because of the polarity of higher alcohols, the desorption of the product can be promoted by using water as the solvent with new catalyst systems. Meanwhile, taking into account the tandem reaction applied in industrial production, the strategy of reaction coupling has been developed to promote specific product selectivities and space-time yields. In the FTO process, either methanol or ketene (the intermediates of the first reaction) should be able to react on the latter catalyst such as HZSM-5 molecular sieves. From the viewpoint of environmental protection and Mars exploration, the substitution of CO by CO₂ for analogous FTS could become a fast-growing field with wide-ranging research significance and prospective applications for mitigating the greenhouse effect. Owing to the more facile adsorption of CO₂ on the catalyst surface compared to CO, the use of CO₂ is appropriate to produce methanol and higher alcohols, although methanation is still the main problem. In addition, the extreme inertness of CO₂ and the high kinetic barriers for the formation of C–C bonds result in a great challenge to directly synthesize C₂₊ products from CO₂, and this area deserves an in-depth investigation on new catalysts and reaction pathway.
