Light olefins (ethylene and propylene) are the backbone feed-stocks of the petrochemical industry. During the past decades, the methanol-to-olefin (MTO) process has been developed as the most successful non-petrochemical route for the generation of light olefins due to the ever-increasing cost of crude oil and the demand of light olefins [1-3]. In particular, SAPO-34 with the CHA structure demonstrates excellent catalytic performance in the MTO reaction due to the contribution of small pore, medium acidity, and high thermal/hydrothermal stability. It is widely accepted that the MTO reaction follows the hydrocarbon pool (HCP) mechanism, with the cyclic organic species and the corresponding carbenium ions as the active HCP species [4-9]. The hydrogen transfer reactions between the HCP intermediates and alkenes or methanol result in coke species formation in the reaction network of MTO reaction [1]. Due to increasing diffusion barriers introduced by coke formation, the SAPO-34 catalysts display marked product shape selectivity, with an increase in ethylene selectivity and ethylene-to-propylene ratios with time on stream [10, 11]. The catalysts deposited with a certain amount of coke favor the selectivity to ethylene and light olefins, and an optimal operation window exists with a certain coke content. Therefore, pre-coking strategy is often adopted in the industrial MTO reaction so as to increase the selectivity to ethylene and light olefins [2, 10].

Metal modification, as an efficient approach to optimize the catalytic performance of SAPO-34 catalysts, has been deeply investigated. In general, metal modification is classified into isomorphous substitution (MeASPO-34) or post-treatment such as ion-exchange and impregnation. Hitherto, considerable effort has been devoted to the catalytic activity of MeASPO-34 (Me = Mg, Mn, Fe, Co, Ni, Zr, Ce, La, etc.) [12-16]. By contrast, there are relatively few studies focusing on the catalytic performance of ion-exchanged SAPO-34 in MTO reaction, and unsatisfying results are often obtained [17-19].

Recently, we have demonstrated that zinc cation-modified SAPO-34 catalysts prepared from conventional ion exchange (CIE) process exhibit promoting effect similar to the pre-coking approach, with enhanced selectivity to ethylene and light olefins. The zinc cations accommodation in the cavities of the shell layer and the facilitated aromatic formation over the zinc cation-modified SAPO-34 form a core-shell like structure, which introduces extra diffusion limitation for bulky hydrocarbons and increases the selectivity to ethylene and the ratio of ethylene to propylene in the MTO reaction [20]. Furthermore, a straightforward template-assisted ion incorporation (TII) process was developed, without the necessary template pre-removal and the preparation of NH₄-SAPO-34 intermediate. The zinc-modified SAPO-34 catalysts prepared by the TII process also exhibit desired effect on enhancing the selectivity to ethylene and light olefins [21].

In the present study, SAPO-34 was modified with metal cations by various approaches (conventional ion exchange (CIE), template-assisted ion incorporation (TII) and alcoholic ion exchange (AIE)), the chemical state and distribution of the metal species over the metal-modified SAPO-34 catalysts were comprehensively characterized, and the impacts of metal species on the product selectivity in MTO reaction were thoroughly investigated.

The SAPO-34 powders were supplied by the Nankai University Catalyst Co., Ltd, and denoted as SP-34. The SAPO-34 powders were calcined at 600 ℃ for 2 h to remove the template and denoted as H-SP34. The metal cations-modified SAPO-34 catalysts were prepared by conventional ion exchange (CIE), template-assisted ion incorporation (TII) and alcoholic ion exchange (AIE) process, respectively.

H-SP34 was exchanged with 1 mol L^–1 NH₄NO₃ solution twice with liquid-to-solid (L/S) ratio of 10 mL g^–1 at 80 ℃ for 2 h, which was followed by a filtration, washing and drying procedure, and the sample was denoted as NH₄-SP34.

For the CIE process, the NH₄-SP34 was exchanged with 0.01 mol L^–1 Zn(NO₃)₂·6H₂O/Cu(OAC)₂·H₂O/Co(NO₃)₂·6H₂O/ Ni(NO₃)₂·6H₂O solution with L/S ratio of 30 mL g^–1 at 50 ℃ for 4 h, which was followed by filtration, washing and drying. The powder was calcined at 600 ℃ for 4 h.

For the TII process, the uncalcined SP34 was stirred in 0.01 mol L^–1 Zn(NO₃)₂·6H₂O/Cu(OAC)₂·H₂O solution with L/S ratio of 30 mL g^–1 at 50 ℃ for 4 h, which was followed by a filtration, washing and drying procedure. The powder was calcined at 600 ℃ for 4 h [22].

For the AIE process, the H-SP34 was exchanged with 0.01 mol L^–1 Zn(NO₃)₂·6H₂O/Cu(OAC)₂·H₂O solution in ethanol with L/S ratio of 30 mL g^–1 at 50 ℃ for 4 h, which was followed by filtration, washing with ethanol and drying. The powder was calcined at 600 ℃ for 4 h [23].

For comparison, the zinc-modified SAPO-34 catalysts were also prepared by impregnation (IMP). The NH₄-SP34 was impregnated with Zn(NO₃)₂·6H₂O solution at room temperature with the theoretical amount of 0.4 wt%. The powder was dried and calcined at 600 ℃ for 4 h [24].

X-ray diffraction (XRD) was conducted on a PANalytical X'Pert PRO X-ray diffractometer operated at 40 mA and 40 kV. Cu K_α radiation (λ = 1.54059 Å) was used as the X-ray source. XRD patterns were recorded in the range of 2θ = 5°–40°.

X-ray fluorescence (XRF) was conducted with a Philips Magix-601 spectrometer.

Nitrogen adsorption-desorption was conducted with a Micromeritics ASAP 2020 system at –196 ℃ after the sample was degassed at 350 ℃ under vacuum. The total surface area was calculated according to the BET equation. The micropore volume, external surface area and micropore surface area were calculated by the t-plot method. The total pore volume was determined from the amount adsorbed at the relative pressure of 0.99.

Ultraviolet-visible (UV-vis) spectra were recorded at room temperature using a VARIAN Cary-5000 UV-Vis-NIR spectrophotometer equipped with an integration sphere in the 200–800 nm wavelength range.

Temperature-programmed reduction by H₂ (H₂-TPR) measurements were performed with a Micromeritics Autochem Ⅱ 2920. The samples were pretreated at 550 ℃ for 60 min in Ar. The TPR procedure was conducted from 50 to 900 ℃ under 10% H₂/Ar. The consumption of H₂ was detected by TCD.

Electron paramagnetic resonance (EPR) was performed on a Bruker A 200. The samples were dehydrated in He for 60 min at 500 ℃. The EPR spectra were recorded at –186 ℃. The location and the intensity of g factor were measured by Bruker's WINEPR program according to hv = gβH, where h is Planck constant, H is the actual magnetic field, and β is the Bohr magneton.

Scanning electron microscopic (SEM) images were taken with a Hitachi TM3000 operated at an acceleration voltage of 15 kV. The sample was attached onto conductive double side carbon tapes. The crystal size distribution was calculated with software Nano Measurer.

Energy-dispersive X-ray spectroscopic (EDS) analysis was conducted with a cold field emission SEM Hitachi SU8020 equipped with a Horiba X-max silicon drift X-ray detector operated at an acceleration voltage of 20 kV.

X-ray photoelectron spectra (XPS) were determined with a Thermo ESCALAB 250Xi. The X-ray excitation was provided by a monochromatic Al K_α source (1486.6 eV, 15 kV, 10.8 mA). Binding energy (BE) values were referenced to the C 1s line of residual carbon at 284.8 eV. The atomic ratio was calculated using the peak areas of Si 2p, Al 2p, P 2p, Zn 2p and Cu 2p, respectively. Prior to the XPS measurements, the powders were pressed into disks with a diameter of 5 mm.

Temperature-programmed desorption of ammonia (NH₃-TPD) was conducted with a Micromeritics Autochem Ⅱ 2920. The samples were activated at 550 ℃ for 60 min in He, then cooled down to 100 ℃ and subjected to 10% NH₃/He for 30 min to be saturated with NH₃. The sample was then purged with He for 30 min to remove the physically adsorbed NH₃. The measurement of the desorbed NH₃ was performed from 100 to 650 ℃ at a rate of 10 ℃/min under He.

¹H MAS NMR spectra were measured on a Bruker Avance Ⅲ 600 spectrometer equipped with a 14.1 T wide-bore magnet and a 4 mm H-X magic angle spinning (MAS) probe. The samples were dehydrated at 400 ℃ for 20 h at a pressure of less than 10^–3 Pa. The resonance frequencies were 600.13 MHz. Chemical shifts were referenced to admantane at 1.74 ppm.

Typically, the catalyst (100 mg, 40–60 mesh) was loaded in the tubular quartz fixed-bed reactor and activated under a He flow at 500 ℃ for 45 min. Methanol was fed by switching the carrier gas (8 mL/min) to pass through the saturator containing methanol at 33 ℃, corresponding to the molar ratio of carrier gas to methanol of 3 and the weight hourly space velocity (WHSV) of 2.0 h^–1. The exit gas was quantitatively analyzed by an online gas chromatograph (Agilent GC 6890N) using a flame ionization detector (FID) with capillary column CP-PoraPlot Q-HT (27.5 m × 0.53 mm × 20 µm) and a thermal conductivity detector (TCD) with packed column TDX-01 (2 m × 3 mm). Hydrocarbons were determined by FID, while CO, CH₄ and CO₂ were analysed by TCD. CH₄ was taken as a reference bridge between FID and TCD. The temperature of the effluent line was maintained at 150 ℃ by heating belt to ensure the products were in gas phase. Conversion and selectivity were computed on a carbon mole basis, reported selectivity was normalized by the total selectivity of the products observed, and dimethyl ether in the effluent is considered as a reactant.

The adsorption isotherms of ethane and propane were determined on a high precision intelligent gravimetric analyser (IGA100, Hiden Isochema Ltd., Warrington, UK). A sensitive microbalance (resolution of 0.1 µg) was mounted in a thermostatted enclosure to remove thermal coefficients of the weighing system and provide a high stability and accuracy. Typically, about 100 mg samples were loaded into the microbalance bucket and outgassed under a vacuum less than 10^–3 Pa at 400 ℃ for more than 10 h prior to the sorption measurements. The sample temperature was regulated within 0.1 ℃ by a furnace. The adsorption isotherms were obtained at 20 ℃ and the pressure was determined by two high-accuracy Baratron pressure transducers. For each step, the amount of adsorbate (ethane > 99.99% purity, propane > 99.8% purity) introduced into the system was kept small enough to keep the adsorption process isothermal. The dosing continued until the entire equilibrium adsorption isotherm was obtained. The adsorption kinetics curve of ethane was recorded at a pressure of 10 mba.

The retained organics in the catalysts after reaction were analyzed with GC-MS. The catalysts were dissolved in 20% HF solution in a screwcap Teflon vial, and the organic compounds were extracted with CH₂Cl₂ and analyzed by an Agilent 7890A Gas Chromatograph equipped with an Agilent 5795C Mass Selective Detector with a HP-5 capillary column (30 m, 0.25 mm i.d., stationary phase thickness 0.25 µm) and an FID detector. The structures annotated onto the chromatograms are peak identifications reference to NIST database. The amount of hydrocarbon compounds was normalized with C₂Cl₆ as the internal standard [25].

Thermo-gravimetric analysis (TGA) and differential thermogravimetric (DTG) with an SDT Q 600 were used to measure the coke removal. The sample was heated from room temperature to 900 ℃ at a rate of 10 ℃ min^–1 under flowing air (100 mL min^–1). The samples after methanol reaction at 500 ℃ for 5 min were kept isothermal in 150 ℃ for additional 30 min for complete removal of adsorbed water.

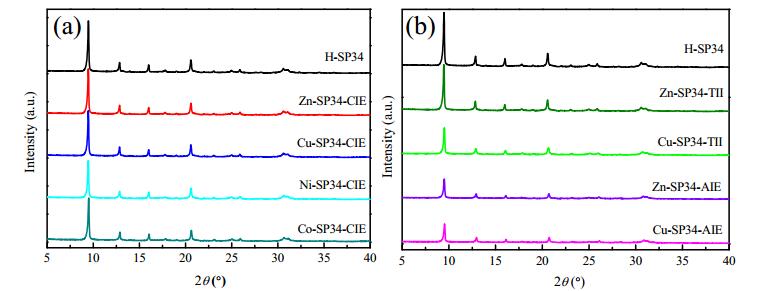

The morphology and crystal size observed from SEM of H-SP34 are typical cubic crystals with average size of approximately 7 μm (Figs. S1 and S2). As shown in Fig. 1, no phases related to the corresponding metal species are observed; for instance, no diffraction peaks can be detected for ZnO crystallites (JCPD = 31.6°, 34.2°, 36.1°) [26] nor for CuO phase (JCPD = 35.29° and 38.49°) [24, 27, 28], indicating that the exchanged metal species are dispersed homogeneously. The crystallinity of samples modified with the conventional ion exchange (CIE) was maintained well, indicating the integrity of the texture property after the CIE process. For the samples prepared from the template-assisted ion incorporation (TII) process, the crystallinity of Zn-SP34-TII was maintained well, while the crystallinity of Cu-SP34-TII decreases to some extent, which might be attributed to the different metal salt precursors adopted. On the contrary, the samples prepared from alcoholic ion exchange (AIE) suffered marked decrease in the crystallinity, which is attributed to the high polarity of ethanol and the lack of protection of the H-SAPO-34 framework without the aid of ammonia ions as in the NH₄-SP34 intermediate.

The chemical compositions of metal-modified SAPO-34 are summarized in Table S1. The Zn and Cu cations exhibit higher exchanged amount by contrast to Ni and Co cations under the identical CIE condition, which might be ascribed to the difference in dissociation energy of ligands (H₂O) from hydrated metal ions [22]. Furthermore, for the samples prepared from the TII process, close Zn and Cu amounts compared with those prepared from the CIE process are observed. As for the samples prepared from the AIE process, relatively lower Zn and Cu amounts are observed, which might be attributed to the decreased crystallinity and the lower solubility of metal salt in ethanol by comparison to water.

The texture properties of H-SP34 and Me-SP34-CIE (Me = Zn, Cu) were further investigated by N₂ adsorption-desorption. As shown in Fig. S3, isotherms for the samples are similar in pattern, and classified as a type Ⅰ isotherm. As shown in table S2, the H-SP34 and Me-SP34-CIE (Me = Zn, Cu) exhibit similar surface area and pore volume, indicating the well maintenance of the texture property after the CIE process, which is in good agreement with the XRD analysis.

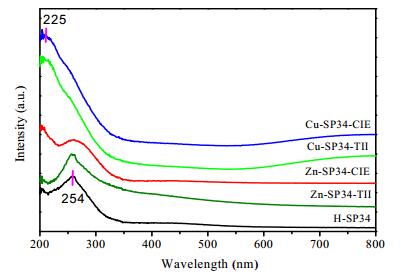

The chemical states of metal species were characterized with UV-Vis spectroscopy (Fig. 2). H-SP34 exhibits a band located at around 254 nm, which is assigned to a charge transfer (CT) band of the SAPO framework [27, 29]. And the band might be attributed to the impurities, special entities embedded in the molecular sieve matrix, or intrinsic parts of the molecular sieve lattice [29, 30]. For the Zn-modified samples, beside the CT band of the SAPO framework, no absorption peak attributed to the ZnO particle (at around 370 nm) is observed [31-34], which is well in accordance with the XRD result that no peaks of ZnO species could be detected. The Cu-modified samples exhibit peak at about 225 nm with a marked increase in intensity, which is ascribed to the ligand-to-metal charge transfer (LMCT) transitions from O_zeolite to isolated Cu²⁺/Cu⁺ ions. Meanwhile, the broad band at around 788 nm is assigned to d-d transitions of isolated Cu²⁺ ions [27]. The nearly identical band position of Cu-modified samples indicates the similar chemical environment of the Cu species [27].

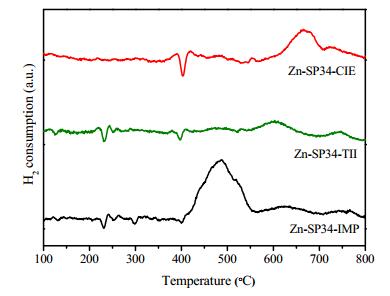

H₂-TPR measurements were performed to investigate the reducibility of metal species (Fig. 3, S4). It has been reported that the strongly stabilized Zn²⁺ cations in exchangeable site cannot be reduced even at 800 ℃, the binuclear (Zn–O–Zn)²⁺ clusters should be reduced at around 400 ℃ [35, 36], and the reduction of bulk ZnO particles occurs at lower temperature relative to the strongly stabilized Zn²⁺ cations [31, 35] Zn-SP34-IMP with similar Zn amount was prepared and presented a remarkable H₂ consumption peak in temperature range of 400–600 ℃. By contrast, Zn-SP34-CIE and Zn-SP34-TII show very low H₂/Zn ratio (Fig. 3), indicating that the zinc species mainly exist in the form of zinc cations for Zn-SP34-CIE and Zn-SP34-TII. As for Cu-modified samples (Fig. S4), the H₂ consumption signal at low temperature (from 200 to 400 ℃) is assigned to the reduction of isolated Cu²⁺ to Cu⁺ and CuO to Cu⁰, and the H₂ consumption signal at high temperature (from 400 to 650 ℃) is ascribed to the reduction of highly stable Cu⁺ to Cu⁰ at the exchangeable sites [24, 27, 37].

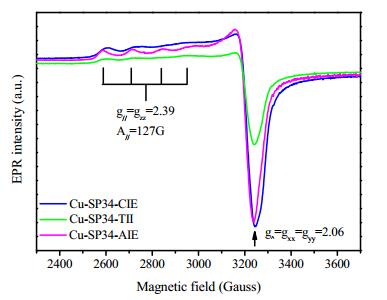

In particular, the coordination environments of isolated Cu²⁺ ions are probed with EPR (Fig. 4). Since Cu species including Cu⁺ ions and CuO do not produce EPR signals [38], for Cu-modified samples, the isolated Cu²⁺ at g_// = 2.39 (hyperfine splitting originated from the coupling between the unpaired electron and Cu nuclear) and g_⊥ = 2.06 are discerned, corresponding to the Cu²⁺ cations that display axial symmetry and are coordinated to three framework oxygen atoms in site (Ⅰ) shown in Fig. S5 [28, 39, 40].

The chemical states of metal species in metal-modified SAPO-34 were measured by XPS. Similar to the possible ionic Cu species in Cu/molecular sieve (Fig. S6(a)) [41], the zinc species can exist as ZnOH⁺ ions that located on Brönsted sites or as isolated Zn²⁺ cations (O–Zn²⁺–O) that replace two protons. In addition, the (Zn–O–Zn)²⁺ species can be formed from two ZnOH⁺ groups through the reaction as given in Fig. S6(b) [32, 34].

As shown in XPS spectra (Fig. S7), Zn-SP34-CIE shows the binding energy (BE) of Zn 2p_3/2 core level at 1023.0 eV and the Zn 2p_1/2 core level at 1046.0 eV, and the area of Zn 2p_3/2 peak is roughly twice the area of Zn 2p_1/2 peak. Both of the peaks are symmetrical and narrow, indicating the single metallic state of Zn species [26]. It has been reported that the Zn species localized at the cation exchanged sites show a high BE than ZnO due to the higher electronegativity of the lattice oxygen of the zeolite than the O^2- ligand in bulk zinc oxide [34, 42, 43]. Therefore, the peak with BE 1023.0 and 1046.0 eV can be reasonably assigned to Zn²⁺ cations in the exchangeable sites [44]. Similar chemical states are observed for Zn-SP34-TII and Zn-SP34-AIE. As for Cu-SP34-CIE, Cu 2p_3/2 peak locates at 933.6 eV while the Cu 2p_1/2 locates around 953.3 eV, which is attributed to the existence of isolated Cu²⁺ cations [22, 27, 45]. Likewise, the Cu cations also exist in the form of isolated Cu²⁺ cations for Cu-SP34-TII and Cu-SP34-AIE based on XPS analysis.

The distributions of metal species were further investigated by XPS. As shown in Table 1, for the Zn-modified samples, the Zn/Si ratios in the subsurface is higher than the bulk, indicating that the incorporated Zn cations mainly locate on the sublayer near the external surface, which is strongly related to the Si-rich subsurface in the pristine SAPO-34 crystals [46, 47]. Defining the (Zn/Si)_surface/(Zn/Si)_bulk as surface Zn enrichment index R_Zn to indicate the degree of surface enrichment degree of Zn cations, the R_Zn index increases in the following order: Zn-SP34-CIE < Zn-SP34-TII < Zn-SP34-AIE. Therefore, the Zn-modified SAPO-34 exhibit core-shell like structure, with a thin Si-rich and Zn-rich shell.

By contrast, for the Cu-modified samples, the Cu/Si ratios in the outer subsurface are basically equivalent to those in the bulk, indicating that the incorporated Cu cations are distributed homogeneously, which is in good agreement with the study that high-temperature activation is beneficial for the homogeneous distribution and the migration of Cu cations inward into the crystal [45]. Additionally, the distribution of Cu species over Cu-SP34-CIE was investigated by EDS. As shown in Fig. S8, homogeneous Cu distribution over the crystal is observed, and the low EDS signal of Cu cations is ascribed to the low exchanged amount less than 0.4 wt% (Table S1).

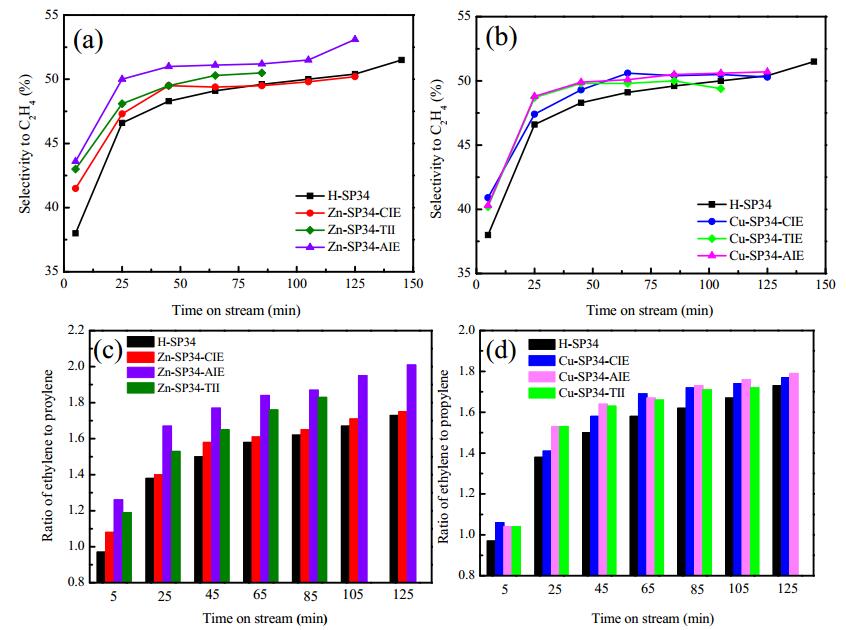

Catalytic tests of MTO performed at 500 ℃ under the conditions close to the industrial application are summarized in Fig. 5(a) and (b). Compared with H-SP34, both the Zn-modified SAPO-34 catalysts and Cu-modified SAPO-34 catalysts improve the selectivity to ethylene, and much marked improvements are obtained over Zn-modified SAPO-34 catalysts. The initial selectivity to ethylene increases from 38% for H-SP34 to approximately 42%, 43% and 44% for Zn-SP34-CIE, Zn-SP34-TII and Zn-SP34-AIE, respectively. Consequently, the ratios of ethylene to propylene are enhanced after the metal modification (Fig. 5(c) and (d)). Likewise, higher ratios of ethylene to propylene are obtained over the Zn-modified SAPO-34 catalysts. The initial ratio of ethylene to propylene increases from about 1 for H-SP34 to 1.1, 1.2 and 1.3 for Zn-SP34-CIE, Zn-SP34-TII and Zn-SP34-AIE, respectively. After the metal modification, with the predominant generation of ethylene, the selectivity to products with higher carbon number (e.g. C₃H₆, C₃H₈, C₄, C₅₊) are decreased (Fig. S9-S11). However, catalyst lifetimes are slightly reduced over metal-modified SAPO-34 catalysts (Fig. S12).

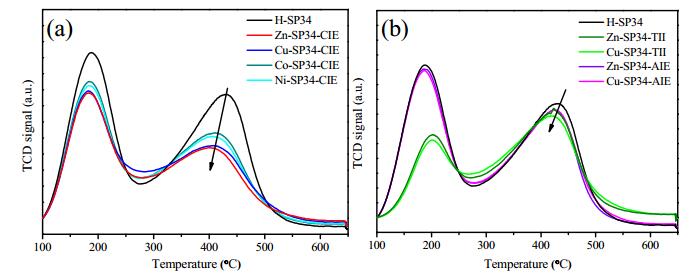

The acidity of catalysts plays a vital role in the product selectivity in MTO reaction. Therefore, the acidity of the H-SP34 and the metal-modified samples was measured by NH₃-TPD (Fig. 6). All the samples show two desorption peaks at 100–300 ℃ and 300–500 ℃. The low-temperature desorption peak corresponds to the ammonia adsorbed on the weak acid sites originated from the structural defect OH groups (e.g. Si–OH, P–OH and Al–OH). The high-temperature desorption peak is ascribed to the ammonia attached to Brönsted acid sites in the form of bridging hydroxyl groups. Both the two peaks decrease in intensity after the CIE process, indicating the decreased amount of both weak and strong acid sites, which is strongly related to the exchanged metal amount obtained by the XRF analysis (Table S1). The higher exchanged metal amounts, the more distinct decrease in the acid amounts of both weak and strong acid sites. Additionally, the position of the high-temperature peak shifts to lower temperature, indicating that the slight decrease of strong acid sites.

Similarly, decreased acid amounts of both weak and strong acid sites (manly weak acid sites) are observed for the samples prepared by the TII process, which is consistent with the high incorporated metal amount confirmed by the XRF analysis (Table S1). By contrast, the acid amount only decreases slightly for the samples prepared by the AIE process, which is ascribed to the low exchanged metal amount.

In particularly, it should be noted that the catalytic active sites of MTO reaction are the Brönsted acid sites of molecular sieves, and the Brönsted acid sites cannot be classified from the Lewis acid sites by NH₃-TPD. Therefore, the Brönsted acid sites of H-SP34 and Me-SP34-CIE (Me = Zn, Cu) are characterized by ¹H MAS NMR spectroscopy (Fig. 7). Signals at 3.6 ppm is characteristic of Brönsted acidic sites from bridging OH groups [Si(OH)Al]. Signals at 0–2.4 ppm are assigned to P-OH, Si-OH, and Al-OH groups [48]. After the CIE process, the density of Si(OH)Al decreased from 0.86 mmol g^–1 for H-SP34 to 0.82 and 0.67 mmol g^–1 for Zn-SP34-CIE and Cu-SP34-CIE, respectively.

It is generally believed that enhanced selectivity to propylene is observed over catalysts with milder acidity, owing to the facilitated olefin-based reaction route for the generation of propylene and higher olefins, as well as the inhibition of hydrogen transfer reactions that consume olefin products, especially propylene [1, 49]. In the present work, even the lowered acid density was observed over metal cations-modified SAPO-34 catalysts, the propylene generation was depressed. Therefore, the enhanced ethylene selectivity and ethylene to propylene ratio cannot be attributed to the acid property adjustment with metal ion incorporation.

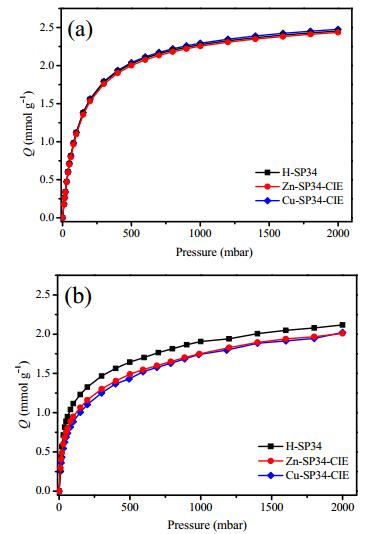

The adsorption isotherms of ethane and propane on H-SP34, Zn-SP34-CIE and Cu-SP34-CIE measured by IGA (Fig. 8) are typical Langmuir type-Ⅰ form according to IUPAC isotherm classification, which is saturated at low pressure and then increases slightly with further increase of pressure [50]. The adsorption capacity of ethane is higher than that of propane for the samples, which is ascribed to the larger molecular size of propane. Compared with H-SP34, Zn-SP34-CIE and Cu-SP34-CIE show similar saturation adsorption capacities of ethane and decreased saturation adsorption capacities of propane.

The diffusion properties during the initial stage of uptake are described with the derived equation from Fick's second law [51]:

where q(t)/q(m) is the normalized loading, D is the diffusivity, r is the characteristic diffusion length, and t is time.

The adsorption kinetics curves of ethane and propane under 10 mba are shown in Fig. S13. The characteristic diffusion time (D/r²) of Zn-SP34-CIE and Cu-SP34-CIE is lower than that of H-SP34 for ethane and propane. Combined with characteristic diffusion length r = 7 μm, the diffusivity D is obtained and shown in Table 2. The diffusivity of ethane is higher than that of propane over the samples, and diffusivity of ethane and propane over Zn-SP34-CIE and Cu-SP34-CIE is lower than that over H-SP34. The IGA results demonstrate that the incorporated metal cations in the CHA cavity introduce extra diffusion limitation for the products with both small molecular size (e.g. ethane) and relatively large dynamic diameter (e.g. propane), but much increased diffusion hindrance is encountered for bulky molecules.

In the MTO reaction, the diffusion of the generated products (e.g. ethylene and propylene) from the cavity of SAPO-34 crystals to the effluent phase is a critical step. Based on the IGA analysis, it is deduced that the incorporated metal cations introduce extra diffusion limitation for the generated products, and an increased diffusion hindrance is encountered for the relatively large-sized products such as propylene, butylene and C₅₊, which results in the enhanced selectivity to ethylene and increased ratio of ethylene to propylene [20].

In particular, the Zn-modified SAPO-34 exhibits core-shell like structure, with a thin Zn-rich sublayer near the external surface, which might result in more marked diffusion limitation for the generated bulky products. As shown in Fig. 5, much marked increased selectivity to ethylene and ratio of ethylene to propylene are obtained over Zn-modified SAPO-34 compared with Cu-modified SAPO-34. The higher selectivity to ethylene is strongly correlated with the enrichment of incorporated Zn cations in the cavity near the external surface. Furthermore, higher selectivities to ethylene are observed over Zn-SP34-TII and Zn-SP34-AIE compared with Zn-SP34-CIE, which effectively rationalizes the relationship between the enhanced selectivity to ethylene and the enrichment of Zn cations in cavity of shell layer in the Zn-modified SAPO-34 with core-shell like structure.

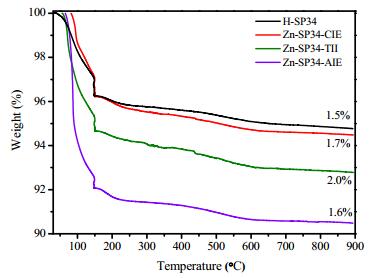

Beside metal species incorporation, coke formation over the metal-modified SAPO-34 may impart extra diffusion hindrance for generated products. The retained species over H-SP34 and Zn-modified SAPO-34 catalysts were analyzed by GC-MS and TG-DTA. As shown in Fig. S14, the deposited coke mainly composed of benzene, methyl-substituted benzene, naphthalene and methyl-substituted naphthalenes. TG-DTA was performed to determine the amount of coke deposition (Fig. 9). The weight loss below 150 ℃ corresponds to the removal of physically adsorbed water, while the weight loss between 150 and 900 ℃ corresponds to trapped organic species. The weight loss from coke removal of the catalysts after reaction for 5 min is 1.5%, 1.7%, 2.0% and 1.6% for H-SP34, Zn-SP34-CIE, Zn-SP34-TII and Zn-SP34-AIE, respectively. Zn modification slightly increases the coke amount and introduces extra diffusion hindrance for the generated products, especially those with relatively large molecular size (e.g. propylene, C₄, C₅₊), which results in the enhanced selectivity to ethylene and ratio of ethylene to propylene in the MTO reaction.

The incorporation of metal cations into SAPO-34 introduces extra diffusion hindrance for the generated products, especially the products with relatively large diameter (e.g. propylene), leading to enhanced selectivity to ethylene and the increased ratio of ethylene to propylene in MTO reaction. In particular, the Zn-modified SAPO-34 catalysts exhibit core-shell like structure, with the incorporated Zn cations mainly located in the cavity of the shell layer. Zn modification for SAPO-34 catalysts favored the quick establishment of catalytic environment for effective MTO reaction with the selective production of ethylene. The core-shell like structure and slightly increased coke deposition over Zn-modified SAPO-34 exerted extra diffusion limitation of the generated products, especially the bulky products, leading to significantly enhanced selectivity to ethylene and the increased ratio of ethylene to propylene in MTO reaction. The relationship between the core-shell like structure, diffusion hindrance and product selectivity in MTO reaction is established, which lays the foundation for the proposed product modulation strategy for the SAPO-34 catalysts in the industrial MTO process.
