The demand for energy has significantly increased due to the global economic development. In the atmosphere, the amount of CO₂ generated has surpassed the consumption capacity of plants and microorganisms by photosynthesis, resulting in a rapid increase in the CO₂ concentration. In 2015, the concentration of CO₂ crossed 400 ppm, leading to global warming [1]. Therefore, it is important for governments to adopt new policies to decrease CO₂ emissions. However, CO₂ could also be regarded as the most abundant carbon feedstock in the C1 family, with several advantages, such as low cost, nontoxicity, as well as non-flammability [2-7]. Thus, the conversion of CO₂ into high-value products has several economic advantages [8]. Among these products, five-membered cyclic carbonates, which can be synthesized via the coupling reaction of CO₂ and epoxides, have gained significant attention [9-13]. These cyclic carbonates are extensively used not only as favorable polar aprotic solvents, but also as electrolytes in batteries and as important precursors in the synthesis of chemicals, drugs, and polymers [14-16].

In recent decades, especially, the cycloaddition of CO₂ with epoxides has attracted an unprecedented research interest. Various catalytic systems have been developed for this reaction, including homogeneous [17-38] and heterogeneous catalysts [39-57]. In particular, in the category of inexpensive green catalysts, alkali metal salts have played an important role in developing a new catalyst system for coupling reactions [58-67]. Generally, homogeneous catalytic systems exhibit high catalytic activities in coupling reactions. However, it is challenging to separate the products and recover catalysts from these systems. To avoid the problems caused by homogeneous catalysts, several heterogeneous systems, which can be separated easily, are used as catalysts for these reactions. Nevertheless, harsh reaction conditions, such as high temperature, high pressure, and long reaction times, are required, which hinder the application. Therefore, there is an urgent need to discover a system that offers high catalytic activity, as well as easy recovery of catalysts.

To overcome the aforementioned disadvantages, ionic liquids can be used. They provide a powerful approach to resolving mass transfer limitations with catalytic reactions [68, 69]. They are in a homogeneous phase with the reactants, while the products are formed during the catalytic reaction at the reaction temperature. Moreover, the temperature-responsive ionic liquids, which precipitate spontaneously at lower temperatures, can be easily separated from the reaction systems [70]. Some temperature-responsive ionic liquids composed of polyether tags, polyoxometalate, and carboxylic acid were used in catalytic reactions, such as hydroformylation [71], coupling reactions [72], oxidation reactions [73], biomass conversion [74], condensation [75], esterification [76], and cycloaddition of CO₂ with epoxides [77]. All of the aforementioned catalytic systems exhibited excellent catalytic activities and easy recovery of catalysts. In the light of these advantages, a series of sulfonate functional zwitterionic-type quaternary ammoniums (ZTQAs) (Scheme 1) combined with KI were explored for the coupling reaction of CO₂ and epoxides.

All tertiary amines were purchased from Energy Chemicals, including N, N-dimethyl butylamine, N, N-dimethyl octylamine, N, N-dimethyl dodecylamine, N, N-dimethyl tetradecylamine, N, N-dimethyl hexadecylamine, and N, N-dimethyl stearylamine. CO₂ was supplied by Handan Anke Factory with a purity of 99.99%, while 1, 3-Propane sultone (99%) was purchased from Aladdin Reagent Co., Shanghai, China. Propylene oxide, butylene oxide, epichlorohydrin, and cyclohexane oxide were obtained from Energy Chemicals. Styrene oxide and phenyl glycidyl ether were supplied by J & K Chemicals. All reagents purchased were of analytical grade. They were purchased from commercial sources and used without any further purification. DBPS, DOPS, DDPS, DTPS, DHPS, and DSPS were synthesized according to the previously described protocol [78, 79].

An amount of propylene oxide (PO; 50 mmol) was placed into a 100-mL stainless steel autoclave equipped with a magnetic stirrer and an automatic temperature control system. The desired amounts of ZTQAs and KI were introduced into the autoclave. The sealed container was charged with carbon dioxide at an appropriate pressure. The reaction was started at the predetermined temperature. After the reaction was complete, the container was cooled to room temperature and the unreacted CO₂ was vented. The crude product was separated from the system by centrifugation. The catalyst was washed by Et₂O and dried under vacuum for future use.

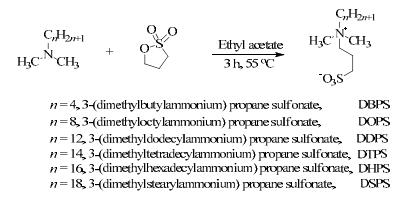

Generally, the polarity of molecules can be modified by changing the length of the alkyl chain, which has a profound impact on catalysis. Therefore, a series of ZTQAs with varying alkyl chain lengths was synthesized (Scheme 1). The effect of various ZTQAs with KI on the coupling reaction of CO₂ was investigated. The results are illustrated in Table 1, with the model reaction of PO and CO₂. Nearly no reaction was observed with ZTQAs as the only catalyst, whereas KI could catalyze the coupling reaction alone, although the yield was relatively low (entry 1). Notably, when both ZTQAs and KI were in the reaction, an increase in the yield of propylene carbonate (PC) was detected (entries 2–7). Thus, it is clear that ZTQAs play an important role in realizing the coupling reaction. In addition, ZTQAs with varying alkyl chain lengths exhibited different catalytic performances, even though similar catalytic activity was observed for the alkyl chain group ranging from butyl to tetradecyl, as demonstrated (entries 2–5). Unfortunately, by prolonging the length of the alkyl chain further, an opposite tendency was observed (entries 6, 7). When the catalyst was DTPS with tetradecyl, the best yield obtained was 75.5%. To investigate this, the solubility of various ZTQAs in PC was analyzed and listed in Fig. S1 and S2. At the initial stage of heating, all the catalytic systems, except for those of DHPS/KI and DSPS/KI, dissolved completely in PC, resulting in lower activities for these two systems. After cooling, both DDPS/KI and DTPS/KI precipitated spontaneously. The temperature-controlled self-separation behavior that can be achieved by modifying the length of the alkyl chain (Scheme 2) provided a convenient method to reuse catalysts. Meanwhile, the temperature-controlled phenomenon was observed in the reaction process for the catalytic system and listed in Fig. S3. Furthermore, the system of DTPS/KI was further investigated in detail.

Since pressure can play an important role in gas-liquid phase reactions, the effect of CO₂ pressure on the reaction system was evaluated. As summarized in Fig. 1, the catalytic activity increased with the increase in CO₂ pressure from 0.5 to 1.5 MPa, thus increasing the product yield. Further increasing the pressure resulted in a sharp decline in the product yield, because of the reduction of the concentration of PO in the vicinity of the catalyst. The reaction was unfavorable at lower concentrations of the reactant, PO, as previously reported [80-82]. Therefore, the optimal reaction pressure is 1.5 MPa.

Temperature plays a significant role in organic reactions. The effect of reaction temperature in the range of 100 to 130 ℃ was investigated for the coupling reaction. As shown in Fig. 2, the yield of PC improved rapidly after the reaction reached 110 ℃, when the catalyst dissolved into the reaction system completely. When the temperature increased from 110 to 125 ℃, an excellent yield of 95.1% was obtained. Although the PC yield increased slightly, a light-yellow product without any by-product was collected at 130 ℃, since the yield of PC increased only slightly after 125 ℃. Although the decomposition temperature of DTPS and DTPS/KI is above 210 ℃, as shown in Fig. S4, the trace catalyst could be decomposed under the reaction conditions.

The PC yield is strongly affected by the catalyst loading of DTPS/KI in this coupling reaction in the range of 0.2 to 1.2 mol%. As demonstrated in Fig. 3, at a low catalyst loading of DTPS/KI, insufficient active sites were available to promote the coupling reaction. Increasing the catalyst loading enhanced the activity of the catalyst system because of the increasing synergistic interaction between DTPS, epoxide, and KI. An excellent PC yield of 95.1% was observed at a catalytic loading of 1.0 mol%. No significant increase in yield was observed by increasing the catalytic loading to higher than 1.0 mol%.

With regard to utilizing catalysts in several applications, the reusability of catalysts is an essential factor. A recycling experiment was carried out at the optimized condition. As shown in Fig. 4, the catalyst could be reused 4 times without significant loss of activity. The catalyst could be easily separated by centrifugation after use.

In terms of synthesis of cyclic carbonate, various epoxides catalyzed by DTPS/KI were investigated at optimized conditions to determine their applicability. As summarized in Table 2, the catalytic system of DTPS/KI was compatible with a series of terminal epoxides and generated corresponding cyclic carbonates with excellent yields, although aromatic epoxide and cyclohexene oxide needed a longer reaction time because of steric hindrance.

As described in Table 1, an improved yield of PC was detected when both ZTQAs and KI were in the reaction. The interaction between ZTQAs and KI could weaken the interaction between I^- and K⁺. This hypothesis was confirmed by the binding energies of KI and DTPS/KI, which are 619.0 and 618.1 eV for I(3d), and 293.0 and 292.5 eV for K(2p), respectively, as demonstrated in Fig. 5 and S5. To further explore the interaction between ZTQAs and KI, geometry optimization was calculated at the B3LYP/def2vp level of theory [83]. As shown in Fig. S6 and Table S1, an interaction was observed between K⁺ and the oxygen atoms of sulfonate, which led to the reduction of the Mayer bond order of KI by approximately half. The Mayer bond order is a physical parameter that reflects the intensity between adjacent atoms [84], which can be calculated by a multifunctional wavefunction analyzer [85]. As a consequence, the nucleophilicity of I^- was strengthened, which favored the coupling reaction. The proposed mechanism catalyzed by ZTQAs with KI is illustrated in Scheme 3. The sulfonate group in ZTQAs interacts with KI. Subsequently, the I^- with increased nucleophilicity attacks the terminal carbon of the epoxide activated by the quaternary ammonium. This results in ring opening of the epoxide, which produces an alkoxide. Finally, after CO₂ insertion into alkoxide intermediate, a cyclic carbonate is generated by intramolecular ring-closure, with subsequent regeneration of the catalyst.

The effect of the catalytic system of ZTQAs combined with KI on the coupling reaction of epoxides and carbon dioxide to synthesize cyclic carbonates was investigated. The ZTQAs with long alkyl chains exhibited temperature-responsive self-separation in PC. We can conclude that DTPS/KI was the most efficient system for the coupling reaction and can be used for various terminal epoxies, because the synergetic interaction between DTPS and KI efficiently promoted the coupling reaction. The behavior of self-separation provided an efficient approach to achieve high catalytic activity of the homogeneous catalyst and easy recovery of the heterogeneous catalyst.
