With the fast development of human society, the increasing consumption of fossil fuels has resulted in serious environmental degradation and global warming [1, 2]. The International Energy Agency reported that in 2017 the total primary energy supplied by fuels has increased up to 13647 Mtoe globally and is still increasing year-on-year. It should be noted that the major energy supply is from non-renewable energy resources such as coal, oil, and natural gas. To confront the abovementioned issues, it is necessary to develop clean, renewable, highly efficient energy conversion strategies for replacing fossil fuels [3-5]. Electrocatalysis, as a part of electrochemistry, is closely related to electrochemical energy conversion, functional material synthesis, environmental protection, and other relevant industries, and enables the sustainable development of future technologies [1, 3]. Currently, direct methanol fuel cells (DMFCs) and water splitting (WS) have been recognized as two promising new energy and renewable energy technologies that have received increasing interest owing to their advantages such as high efficiencies, low pollutant emissions, and mild operational conditions [6-9]. However, the wide commercialization of the two types of energy conversion techniques is limited by their slow dynamic processes, low catalytic performances, and poor stabilities of the catalysts. Therefore, the crucial challenges encountered in DMFCs and WS are how to enhance the catalytic performance and appropriately balance the efficiency and selectivity of electrocatalysts for the chemical transformations involved. From the point of view of catalytic processes, a DMFC involves two half-reactions (Fig. 1(a)), namely, methanol oxidation reaction (MOR) and oxygen reduction reaction (ORR). For the scheme of methanol oxidation on the anode and oxygen reduction on the cathode, electrons migrate from the anode to the cathode, which results in the protons also flowing from the anode to the cathode in order to maintain the charge balance of the electrolyte solution; thus the chemical energy is converted into electrical energy. On the other hand, WS, which requires a theoretical potential of about 1.23 V, consists of the following two half-reactions: hydrogen evolution reaction (HER; occurring at the cathode) and oxygen evolution reaction (OER; occurring at the anode) (Fig. 1(b)). Regarding the commercialization of these energy devices, the electrocatalysts currently developed for the four abovementioned half-reactions have certain critical limitations. The main challenge arises from the large overpotentials (η) of the pair reactions occurring in the systems (the sluggish anodic MOR/OER and the cathodic ORR/HER). Therefore, it is urgent that outstanding electrocatalysts with high activities and stabilities are developed and that the related reaction mechanisms are fully understood.
The two fundamental strategies to improve the activity of an electrocatalyst system and thus minimizing the overpotentials of the electrode reactions are (1) increasing the number of active sites per unit area and (2) increasing the inherent activity of each active site, e.g., by exposing the special high-index surface planes. Although remarkable progress has been made in the design of catalysts, there is still substantial room for improvement. Among the various catalytic materials, metal nanomaterials, especially noble-metal nanostructures, display great potential for the catalytic field. Compared with the corresponding bulk metal materials, the metal nanostructured materials normally exhibit larger specific surface/interface areas and expose more reactive sites, and therefore, possess superior catalytic activities. Currently, carbon black-supported zero-dimensional Pt nanoparticles (Pt/C) have been widely used in energy electrocatalysis. However, owing to surface energy minimization and Ostwald ripening, the corrosion of the carbon carrier at high potentials may cause the loss and aggregation of the Pt nanoparticles. In addition, as a class of unique structured materials, metal single atom catalysts have attracted increasing attention in recent years owing to the maximum atomic utilization and their high efficiencies in the electrochemical energy conversion and storage processes [10-14]. However, the single atom catalysts generally have to be embedded within various matrices, including metals, metal oxides, and carbon materials. These substrates often have great influences on their catalytic performances, and the minimal amounts of the active materials in the matrices results in low current densities, which is not suitable for practical applications [15-17]. Different from nanoparticle and single atom catalysts, one-dimensional (1D) nanostructures reveal numerous unique structural advantages and superior surface properties, and therefore, exhibit enhanced electrocatalytic activity and stability [18, 19]. 1D nanostructures such as nanowires (NWs), nanotubes, nanobelts, and core-shell nanostructures have been recognized as a class of ideal structures that have promising applications in numerous areas, such as electronic and magnetic devices, optoelectronic devices, transparent and stretchable electrodes, and electrochemical devices [20, 21]. Rational design of well-defined functional 1D nanostructures can maximize their structural advantages and properties. Recently, various types of 1D nanostructured electrocatalysts have been synthesized, which can be roughly classified into two categories: (Ⅰ) 1D Pt-based nanostructures, and (Ⅱ) 1D non-Pt-based nanostructures, which mainly include transition metals (Mo, Cu, Mn, Ni, Co, Fe) and non-metals (C, N, S, P, Se). These developed 1D materials and the related theoretical studies provide the possible ways for catalyst optimization that can lead to their application in future not only in fuel cells and WS electrochemical energy conversion devices but also in environmental catalysis and biocatalysis, apart from other vital chemical reactions.

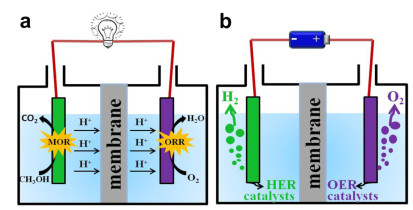

In this review, we first introduce and elaborate the four half-reactions and the reaction procedures involved in fuel cells and WS. Then, we summarize and discuss the recent developments on 1D nanomaterials as electrocatalysts for the ORR, MOR, HER, and OER. Finally, the future developments in this research area are also predicted.
A fuel cell is a promising clean energy conversion device; however, the sluggish kinetics of the cathodic ORR is still a great challenge that affects its practical application and commercialization [22]. Hence, it is of importance to develop more efficient electrocatalysts for the ORR. Meanwhile, in-depth understanding of the ORR mechanism will be helpful in rationally designing electrocatalysts. Normally, the ORR follows two pathways: (1) direct four-electron reduction, which involves complex intermediates (O*, OH*, OOH*) and is a desirable pathway for fuel cells, and (2) indirect two-electron reduction, with H2O2 as the intermediate. In these processes, O2 is converted into H2O or OH–, depending on the nature of the electrolyte solution used [7, 23-25]. The related reactions can be described as follows.
4e– process:
2e– process:
According to the Sabatier principle, an excellent catalyst should have balanced adsorption and desorption energies for the key reaction intermediates. In the ORR reaction, too weak or too strong a binding of the O on metal catalysts is unfavorable for catalysis. If adsorbed weakly, the associative mechanism of electron transfer to O2* or the dissociative mechanism of the splitting of the O–O bond of O2 may limit the reaction rate and efficiency; on the contrary, in the case of strong absorption, electron transfer to O* or OH* may become the limiting step. A volcano-type plot (Fig. 2(a)) has been established for relating the surface adsorption energies ∆E0 with the catalytic activities of the given materials for the ORR, which provides a new avenue for optimizing electrocatalysts for the ORR [26-28].
Up to now, Pt metal has exhibited superior ORR catalytic performances than others, and the kinetic calculations revealed that the ORR on Pt occurs mainly via the four-electron transfer process in both acidic and alkaline media. Owing to the easy electron flow, intrinsically high stability, and ready exposure of the high-index active crystal planes, 1D Pt-based nanostructures show high catalytic activities for the ORR, irrespective of whether they are in the alloy form or the core/shell form. There are several effective strategies for improving the activity and stability of ORR catalysts [29-31]: (1) tailoring or controlling the shape of the catalyst; (2) enlarging the active area or improving the activity of the sites; (3) doping or alloying with other components; (4) controlling the surface components; and (5) loading the catalyst on special supports. For example, according to density functional theory (DFT) calculations, in HClO4 solution, the ORR activity increases in the order of Pt [110] < Pt [100] < Pt [111] < Pt with high-index facets. Therefore, 1D Pt NWs with [111] facets have been studied as a new type of electrocatalysts for the ORR.

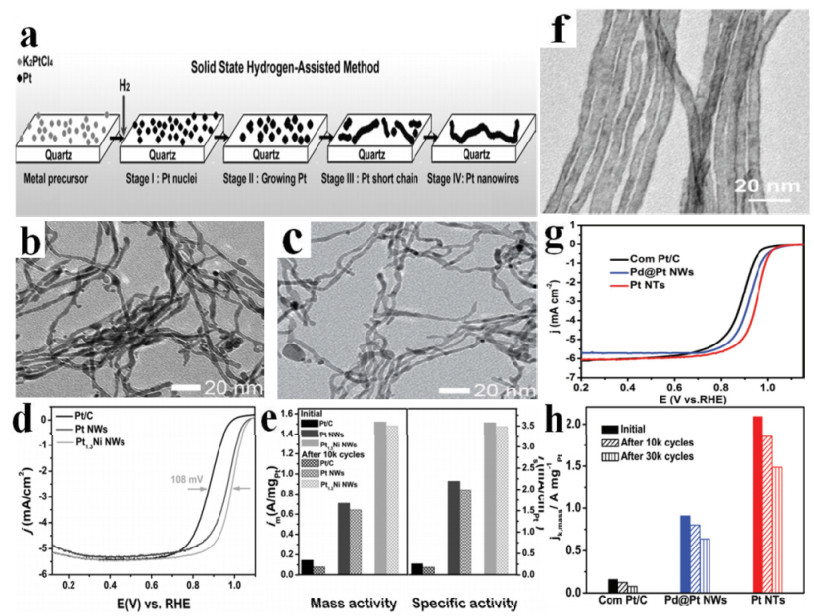

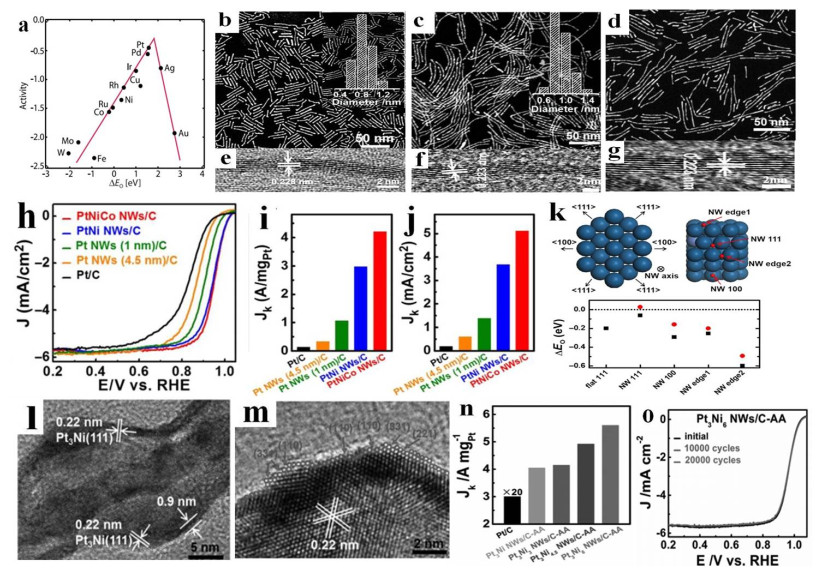

In 2017, Huang and coworkers reported a series of sub-nanometer Pt and Pt alloy NWs with different compositions: Pt NWs, PtNi NWs, and PtNiCo NWs [32]. The synthesized NWs exhibited enhanced catalytic performances for the ORR in terms of both activities and stabilities. The Pt NWs, PtNi, and PtNiCo alloy NWs are about 0.8 nm in diameter, which corresponds to a thickness of only 4–5 atomic layers, and the length of the PtNiCo alloy NWs can be controlled through the amount of Mo(CO)6 added, which varied from 9 to 35 nm (Fig. 2(b)–(d)). As shown in the HRTEM images of Fig. 2(e)–(g), the NWs crystallize in the face-centered cubic (fcc) structure and are enclosed by the [111] planes. Fig. 2(h) shows the linear voltammetry polarization curves of the ORR on the NW catalysts, which were recorded in O2-saturated 0.1 M HClO4 at room temperature. It can be obviously seen that the half-wave potentials of the sub-nanometer Pt and Pt alloy NWs are more positive than that of the commercial Pt/C. In Fig. 2(i) and (j), the PtNiCo NWs exhibit mass activities and specific activities that are a dozen times those of the commercial Pt/C, which could be ascribed to the exposed [111] facets. Accelerated durability tests (ADT) were performed between 0.6 and 1.1 V vs RHE to examine the electrochemical stabilities of the NW catalysts in 0.1 M HClO4. The results revealed that PtNi NW/C and PtNiCo NW/C only showed small decreases in their initial electrochemical active surface area (ECSA) and mass activity after 30000 cycles, indicating their much higher stabilities compared to that of the commercial Pt/C. The related DFT calculations (Fig. 2(k)) indicate that the active [111] facets of the sub-nanometer Pt NWs contribute to the high ORR catalytic activity. Meanwhile, the heteroatom Ni could modulate the ∆EO (the difference between a given EO and the optimal value), thus reducing the adsorption energy of oxygen on the catalysts and boosting the ORR activity. In the same year, the authors also reported another type of composition-segregated porous Pt3Ni NWs with high-index facets and an ultrathin Pt shell [33]. After the process of sacrificial component etching with acetic acid (Fig. 2(l) and (m)), the unstable Ni species can be selectively removed, and the numerous high-index planes of [110], [221], and [331] are exposed. The obtained porous Pt3Ni6 NWs with a Pt-rich shell, uneven surfaces, and high aspect ratios (~100) exhibited a superior ORR activity (5.60 A/mg) that was 37 times that of the commercial Pt/C (0.15 A/mg) and excellent stability, with 93.6% of the activity remaining after 20000 cycles (Fig. 2(n) and (o)).
In another study, Wu and coworkers [34] investigated the growth mechanism of Pt NWs with the help of in situ TEM. Through a clear growth mechanism, the catalytic activity of the materials can be effectively improved and the shape can be controlled at the atomic level. In this research, the authors found that the NW growth involves three steps: nucleation, crystal growth, and attachment of small particles. (Fig. 3(a)) Free-standing NWs were obtained through the generic gas-solid technique with the assistance of H2. The growth begins with small nuclei, which grow and show a tendency to coalesce in 10 min. Some particles then adhere together to form distinctive NWs in 20 min. Finally, free-standing NWs are successfully obtained in 30 min (Fig. 3(b)). During the growth, the in situ TEM study illustrated that surface diffusion and particle attachment along a specific orientation ([110] planes) are the main formation mechanism of the Pt NWs. Based on this mechanism, by simply modifying the approach by adding an appropriate amount of NiCl2·6H2O to the pre-treatment step, ultrathin Pt1.3Ni NWs could also be obtained (Fig. 3(c)). Electrochemical studies showed that although the surface areas of the Pt and Pt1.3Ni NWs are smaller than that of the commercial Pt/C, their half-wave potentials for the ORR are superior to that of Pt/C, with positive shifts of 86 and 108 mV, respectively. The prepared nanowires also exhibited greater stability than Pt/C (Fig. 3(d) and (e)). The excellent ORR catalytic performances could be ascribed to the exposure of the Pt [111] planes, together with the merits of 1D nanostructures. Meanwhile, Gao and coworkers [35] synthesized a Pt nanotube catalyst with ultrathin walls and a high aspect ratio. The nanotubes preserved the morphology of the template perfectly without any disaggregation and revealed growth along the [110] direction. The thickness and diameter of these Pt nanotubes are about 1 and 5.5 nm, respectively, with the length being up to the micrometer scale (Fig. 3(f)). The Pt nanotubes exhibit a large ECSA of about 91.43 m2/gPt owing to the hollow helix structure. These nanotubes have been proved to be a more efficient catalyst for the ORR than the commercial Pt/C (Fig. 3(g) and (h)).
Apart from the activity, the stability or durability is another important parameter for evaluating the performance of a catalyst. Incorporating certain metals into Pt-based catalysts has become a favorable method to improve the durability [36-38]. For example, Zeng and partners reported Rh-doped Pt NWs to be an extraordinary ORR catalyst [39]. Combining the advantages of the 1D anisotropic nanostructure, high utilization of Pt atoms, doped Rh atoms, and interaction between the two types of atoms, the as-synthesized NWs exhibited superior activity and durability for the ORR. According to the studies on the formation mechanism, the nanocrystals first grow anisotropically to form NWs and then template-directed growth and/or defect-induced growth occurs, which results in fcc metal nanocrystals. The EXAFS results confirmed the ultrafine diameter of the NWs and the tiny radius of the Rh atoms. The length of the Pt–Pt bond decreased about ∼0.7% compared with that in a Pt foil (2.76 Å), and this compressive strain in turn contributed to the enhanced specific activity. DFT calculations were also performed, and the d-band center of Pt7Rh [111] downshifted; a weaker ΔEOH can rationalize the higher ORR activity of the Rh-doped Pt NWs. Hence, the high ORR activity and stability may be derived from (1) the exposure of special planes, such as Pt [111], which is the main facet on the surface of 1D nanostructures with higher activity/stability than the NPs; (2) the hollow 1D structure obtained by the etching process, which enlarges the surface that is beneficial for enhancing mass transport and improving the electronic conductivity; (3) the charge transfer and compressive strain resulting from the incorporation of the heteroatom for optimizing the adsorption/desorption energy of the hydroxyl group, which is important for the catalytic performance.

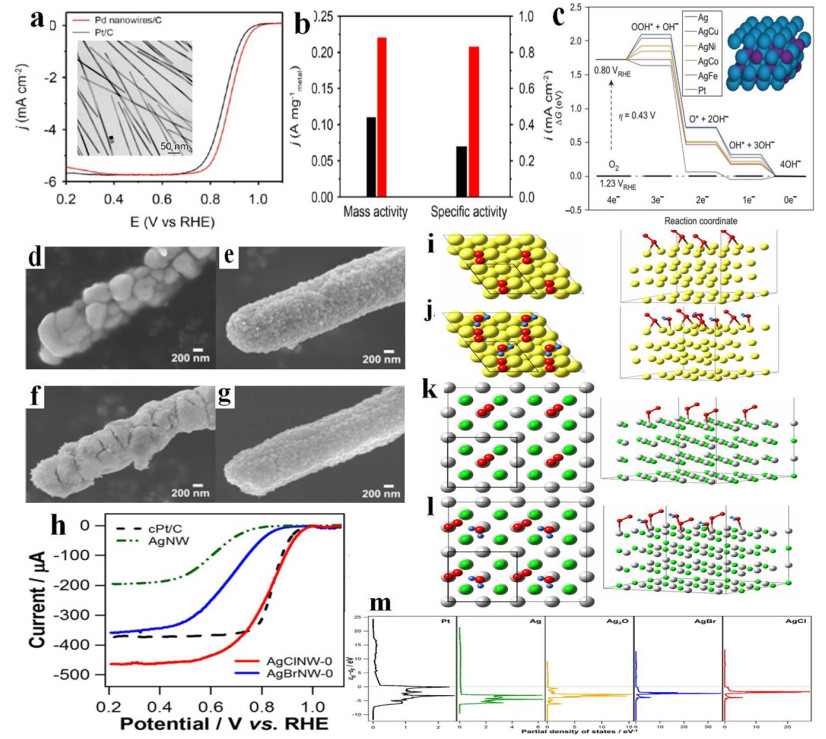

Apart from the Pt-based materials, non-Pt-metal compounds are a class of promising materials that can substitute Pt as ORR electrocatalysts, and include transition metal catalysts and even carbon materials [42-46]. Recently, numerous efforts have been made to improve the catalytic activities of 1D non-Pt metal nanostructures for the ORR. The materials investigated include transition metals, such as Pd, Ag, Co, and Mn, or their alloy nanostructures [47-53]. As a promising alternative, Pd has received much attention because it is an excellent catalyst for the ORR. Recently, Xia and coworkers developed a method to synthesize penta-twinned Pd NWs with diameter of about 8 nm in one pot (Fig. 4(a)). The axis of the as-synthesized Pd NWs grows along the [110] direction. The distinctive structural characteristics and the unique morphology can optimize the inner electronic structure and thus significantly boost the activity for the ORR in 0.1 M aqueous KOH solution. The prepared Pd NWs exhibit greater ORR activity than Pt/C, and the mass activity and specific activity are 2–3 times higher than those of the Pt/C (Fig. 4(b)). The superior ORR catalytic activity can be mainly ascribed to the unique structural characteristics. The special 1D morphology, with an ultrathin diameter and a surface strain, can optimize the absorption and desorption energies of O2 and thus enhance the ORR activity. In addition to Pd, as a relatively abundant, inexpensive (about 50 times cheaper than Pt), and highly conductive metal, Ag is another good alternative for an efficient ORR catalyst. In general, metals with weaker interactions with oxygen are less active than Pt and the O–O bond cleavage is less favorable on Ag. On the other hand, the rate of the initial OOH formation step determines the overall reaction rate on Ag, and a pure Ag catalyst exhibits inferior ORR characteristics than the Pt-based counterparts. Doping Ag with a heteroatom can regulate the surface strain and change the bonding energy between O2 and the catalytic sites, which has been proved to be a good method for boosting the ORR catalytic activity and stability of Ag. The related studies testified that Ag 3d metal alloys, particular those formed with Co, can change the reactivity of Ag for the ORR via the ligand effect or a synergistic effect [49, 54, 55]. Linic and coworkers in 2014 designed low-cost AgCo alloy nanoparticles for oxygen reduction [51]. The authors studied the elementary reaction energy of the ORR based on the DFT. As shown in Fig. 4(c), compared with the pure Ag electrocatalyst, a more active Ag-based catalyst can bind an O-containing species (OOH or OH) more strongly, but not to the extent that subsequent removal is difficult, which promotes the rate-limiting reaction.
Compared with AgCo nanoparticles, Lee and coworkers reported a type of bimetallic AgCo nanotubes as ORR catalysts [56]. Electrochemical studies showed that the AgCo nanotubes are superior to simple Co nanotubes, Ag NWs, and pure Pt for the ORR. Furthermore, Ag-nonmetal hybrid nanomaterials also exhibited potential for application in catalysts. Lee et al. [50] synthesized two types of Ag halide NWs, AgCl NWs and AgBr NWs, through the galvanic replacement reaction between a halide precursor and Ag NWs. After the galvanic replacement reaction, the smooth surface and pentagonal cross-section of the Ag NWs changed into rough surfaces with many large particles (Fig. 4(d)–(g)). Electrocatalytic measurements in alkaline media revealed that AgCl NW-0 (without PVP) exhibits the best ORR property in terms of limiting current (–460.8 μA) and onset potential (1.01 V vs. RHE), which are even better than those of commercial Pt/C (Fig. 4(h)). Moreover, the DFT calculations elucidated the interrelation between the surface structure of the catalyst, adsorption of O2 molecules, and the related ORR products (Fig. 4(i)–(l)). First, the authors calculated the relationship between the d-band center energy and the Fermi level (εd-εF) of the metal to determine the reactivity. Electronegativity (O > Cl > Br) is an important impact index, and the density of states and εd of Ag are upshifted by a great degree in the order of Ag < Ag2O < AgBr < AgCl < Pt (Fig. 4(m)). The abnormal position of Ag2O in the order could be attributed to the O shared by the two Ag atoms in Ag2O. Secondly, it was found that during the reaction, O2 molecules are adsorbed on different sites through two different modes: bridged adsorption on Pt (111) sites and adsorption on AgCl (100) at the Ag atom sites. The oxygen adsorption energy and O–O bond length (dO–O/ ) were calculated to be as follows: on bare Pt, 0.7347 eV, 1.354 ; H2O-adsorbed Pt (111), 0.7551 eV, 1.348 , AgCl (100), 0.2331 eV, 1.293 , and H2O-adsorbed AgCl (100) surface, 0.7645 eV, 1.307 . It is obvious that the adsorption energy (–Ead, O2) and O–O bond length of the O2 molecules adsorbed on AgCl (100) are smaller than those of the O2 adsorbed on the commercial Pt/C, resulting in a superior catalytic performance.
In recent years, both enhanced activity and enhanced stability of 1D metal nanostructures for the ORR have been realized. The developed NWs or nanotubes exhibited superior catalytic properties—excellent activity compared to Pt/C and superb stability over a thousand cycles. However, there are still several challenges that need to be addressed when the catalysts are used in membrane electrode assemblies (MEA). (1) Catalysts can be only obtained in small-scale experiments with low productions or poor repeatabilities; (2) the harsher terms in the MEA place higher demands on the activity and stability of the catalyst. Hence, future research should pay more attention on improving the productivity, leading to the realization of industrial catalysts with improved performance in severe reaction conditions for the real-time application of 1D metal nanocatalysts.
A DMFC is a clean power device that is used in portable mini electrical applications. DMFCs have many advantages, such as high energy density, high efficiency, and low pollution [58-60]. On the anode side of the MEA, methanol, as the fuel, reacts with water to transform into carbon dioxide, protons, and electrons, along with the release of chemical energy. The reaction can be described as

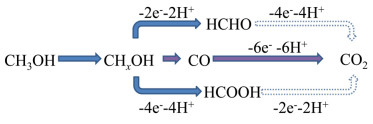

However, this reaction exhibits sluggish kinetics even on a Pt surface, which significantly reduces the fuel efficiency. The reaction mechanism of methanol electrooxidation on Pt catalysts has been studied for years and it has been well accepted that it involves three parallel oxidation pathways: complete oxidation into CO2 (C1 pathway), and partial oxidation—incomplete oxidation into HCHO or HCOOH (C2, C3 pathways) [61-63]. It is worth noticing that the three pathways may occur simultaneously and therefore highly selective catalysts are needed to control the nature of the final product. The detailed reaction mechanism and pathways are illustrated in Fig. 5. The C1 pathway, with 6e– transfer, results in the production of CO2, CO32–, or HCO3–, depending on the nature of the medium used. For the C2 or C3 pathway, methanol is incompletely electrooxidized to formaldehyde or formic acid, with 2e– or 4e– transfer, and then further oxidized into CO2.
These three pathways could be further divided into two steps: (1) gradual dehydrogenation of methanol, and (2) further oxidation of the carbon-containing species. It has also been revealed that different types of defects in the electrocatalysts play different roles in the MOR [64]. Therefore, the composition, electronic structure, and morphology of the catalysts have a certain influence on the selection of the reaction pathway and the efficiency of methanol oxidation.
In the case of anode catalysts, the current efforts mainly focus on improving the performance and reducing the cost. Until now, Pt-based metal nanomaterials have been indispensable as MOR catalysts [65-68]. Wang and coworkers [19] adopted a facile solvothermal method to synthesize Pt NWs with 3 nm in diameter. The NWs grew along the [111] direction, with many exposed high-index facets and step structures. Such a crystal surface is beneficial for methanol dehydrogenation because the step-type adsorption sites are highly active. The HRTEM image also shows lattice fringes, with an interplanar spacing of about 0.227 nm, which matches well with that of the Pt (111) planes. The NWs exhibited higher mass and specific activities than commercial Pt/C in an acidic medium. The outstanding electrocatalytic performance can be ascribed to the unique anisotropic structure of the 1D NWs, including their high stability, good crystallinity, high surface area, and large porosity with an interconnected network structure. However, some poisonous intermediates like CO could be firmly adsorbed onto the Pt-Pt interface, resulting in the poisoning of the partially active sites and a serious degradation of the catalytic performance. Many studies, including experiments and DFT calculations, have illustrated that the CO poisoning has a severely negative effect on methanol oxidation, and have put forward the possible CO poisoning route. During the methanol oxidation, the CO generated is first adsorbed on the Pt atom sites to form Pt-COads, and is then further oxidized into CO2 at high overpotentials [69-71]. Therefore, if CO is strongly adsorbed on the Pt atom sites, it can hardly be further oxidized, resulting in greater consumption of energy. Hence, adsorbed CO has been recognized as a poisoning intermediate, as it can block the further oxidation of methanol on a catalyst surface. One effective method to reduce the CO poisoning and minimize the usage of Pt is to prepare Pt alloys with other metals, especially earth-abundant transition metals. After regulating and controlling the composition and tuning the surface electronic structure, 1D Pt-based alloys with large surface areas, high electronic conductivities, rich surface defects, and quantum effects have become a class of promising materials [72-74]. For example, bimetallic PtRu nanomaterial electrocatalysts display excellent resistance to CO poisoning. In a PtRu alloy, Ru interacts with Pt and tends to offer the adsorbed hydroxyl groups (OHads) at a relatively lower potential compared to pure Pt, which act as an oxidant to get rid of the poisoning species adsorbed on Pt [75]. The reactions are as follows:

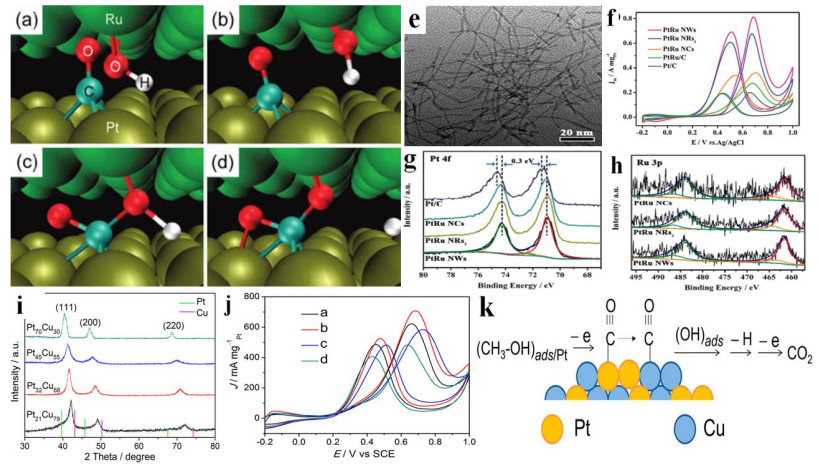

In fact, as shown in Fig. 6(a)–(d), previous DFT calculations illustrated that only those atoms that are close enough (≤4.0 ), i.e., the adsorbed Pt-COads and Ru-OHads species, are able to interact to form Pt-CO−OH-Ru, and that there is no influence between the OHads and COads species [76]. Thus, the alloying structure of PtRu materials with near-distance connection between the Pt and Ru atoms has more merits than the core-shell and heterostructured counterparts.
Dong and coworkers synthesized highly anisotropic PtRu NWs (Fig. 6(e)) [77]. These PtRu NWs exhibited a much higher MOR activity than Pt/C in 0.1 M HClO4 with 0.5 M CH3OH (Fig. 6(f)). The XPS results (Fig. 6(g) and (h)) indicate that the higher electronegativity of Pt can change the charge distribution and result in partial charge transfer from Ru to Pt, which then changes the adsorption energies of COads and OHads on Pt and Ru. Additionally, compared to PtRu [100], the two adsorption energies on PtRu [111] are much closer to the optimal values. Therefore, the PtRu [100] facet has inferior methanol oxidation activity and anti-CO-poisoning capacity compared to the [111] facet. However, the composition of the PtRu NW catalyst may reveal some changes under the DMFC operating conditions, because the Ru atom is easy to be depredated. It is desired to develop mature methods for controlling and maintaining the atomic ratio precisely and effectively. However, the cost of PtRu catalysts is still too high to be widely used in real applications. Fortunately, the properties of many other Pt-metal catalysts developed exceed that of the PtRu catalyst in terms of activity [79-83]. Zhong and coworkers [78] prepared ultrathin PtCu alloy NWs with different compositions. Pt32Cu68 alloy NWs were determined to have the optimal atomic ratio for methanol oxidation. Two Cu atoms surrounding one Pt atom in the catalyst result in an ensemble effect and a ligand effect, which contribute to the significantly improved electrocatalytic activity. The number of Cu atoms has an effect on the electronic structure and activity area of the alloy (Fig. 6(i) and (j)). For the MOR, the adsorption of methanol molecules on Pt sites, followed by dehydrogenation, occurs first. Then, the adsorption of the intermediate species (COad) on the catalytic sites can result in a decrease in the catalytic activity. The COad species may transfer from the Pt sites to the Cu sites to form Cu-COad and the surface interactions of Pt-COad + Cu-OHad or Cu-COad + Cu-OHad can yield CO2 (Fig. 6(k))
Despite the considerable improvements in the tolerance to CO-poisoning and the catalytic activity of Pt-based metal nanomaterials, DMFCs suffer from an unavoidable disadvantage: the high cost of the noble Pt and the low utilization. Hence, further research is required to develop more effective catalysts in terms of cost, activity, and stability. It is highly necessary to design Pt-free electrocatalysts having high activity and long life for the MOR. As far as we know, designing and synthesizing 1D non-noble metal materials with high MOR catalytic activities is still a challenge.

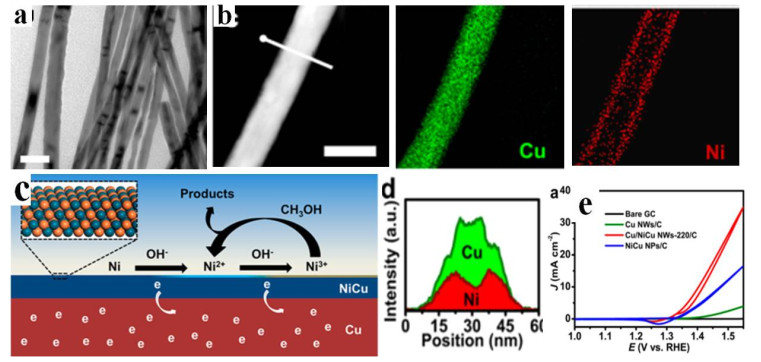

Several non-Pt materials have been reported to exhibit catalytic activities for the MOR [87-90]. Among the diverse Pt-free transition metal catalysts, Ni is considered to be a great alternative. Cheng and coworkers [86] adopted a facile one-pot strategy to prepare unique Cu/NiCu core-shell alloy NWs (Fig. 7(a)). As shown in Fig. 7(b) and (d), the NW is composed of a Cu core and a NiCu alloy shell. The Cu core can greatly increase the surface charge transfer of the NWs. Meanwhile, the NiCu alloying shell can affect the entire distribution of electrons between the Ni and Cu atoms, and the synergistic effect can enhance the electrocatalytic performance. Furthermore, the core-shell structure can maximize the utilization of Cu and Ni. The current density of the MOR on Cu/NiCu NWs is 34.9 mA/cm2, which is 9 and 2 times higher than those on Cu NW/C and NiCu NPs, as shown in Fig. 7(e). The electrocatalytic mechanism of methanol oxidation on Cu/NiCu NWs can be formulated as follows (Fig. 7(c)):
During multiple CV scanning in an alkaline medium, the Ni in the catalyst is activated to form a NiOOH layer and, therefore, an alkaline solution is necessary for Ni-based catalysts to be activated. Meanwhile, the reaction mechanism still remains unclear for other transition metals, though they may be similar to that for Ni. It should be noted that although the catalytic properties of some non-noble metal catalysts are comparable to those of Pt-based catalysts, the poor quality of the ion exchange membrane in the alkaline medium still limits their widespread application.
Recently developed non-noble metal catalysts show significantly enhanced MOR performances, which increases their prospects for actual commercial applications. It should be pointed out that although great progress has been made on anode catalysts in terms of the design, preparation, and application, much work still needs to be carried out in order to overcome the following challenges: (1) Severe performance degradation caused by the dissolution of transition metals during actual operation; (2) MEA has a detrimental influence on gas diffusion and proton transfer; and (3) The catalytic performance measured by using a three-electrode system in the lab may be much different from that observed in practical fuel cells. In summary, further research is still needed to design and develop low-cost high-performance non-Pt catalysts for large-scale practical applications.
Economic hydrogen (H2) production from WS can provide clean renewable energy, which could reduce the energy crisis brought about by the excessive consumption of fossil fuels [91-93]. Electrochemical HER is a half-reaction that comprises the WS reaction, which can be conducted over a wide pH range, from neutral, acidic, to alkaline media. In fact, the performance and actual application of HER catalysts are greatly limited in acidic media owing to the poor durability and an unsatisfactory membrane. Pt and Pt-based noble metal catalysts have been recognized as the most efficient for the HER, while non-noble transition metal catalysts have also displayed attractive HER catalytic performances. The HER occurs through the Volmer-Tafel or Volmer-Heyrovsky route [94, 95].
In an acid medium:
In an alkaline medium:
Here, Hads represents surface-adsorbed H. The binding of hydrogen onto the electrode is considered as the rate-limiting step, which is dependent on the intrinsic conductivity and active sites of the electrocatalysts. If the desorption of Hads is fast, the rate-determining step is the Tafel (Tafel slope is about 30 mV/dec)/Heyrovsky reaction (about 40 mV/dec) or the Volmer process with a Tafel slope of 120 mV/dec. Several important strategies need to be adopted in the design of novel HER catalysts: (1) Optimizing the adsorption-desorption Gibbs free energies of the reactants to avoid the Volmer process as part of the overall reaction; (2) Increasing the conductivity of the catalyst in order to boost charge transfer; and (3) Enhancing mass transfer to maximize the efficiency of the catalyst [91, 96].

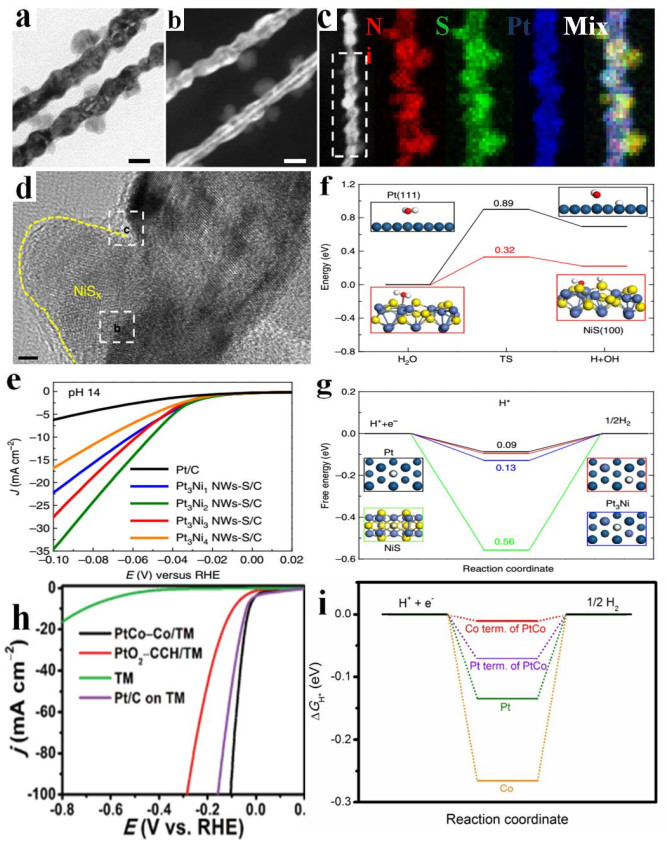

Although Pt and Pt-based noble metal catalysts show the best catalytic activities for the HER, the reaction kinetics on Pt in alkaline media is limited by the water-dissociation rate, which can be hundreds of times smaller than that in an acid [97, 98]. In alkaline solutions, as described by equation 17, water dissociation occurs first, and then, the Hads recombines into H2 molecules. The first step requires significant energy for splitting water into Hads. Therefore, designing functional groups that are efficient in cleaving the H–OH bonds of water may be helpful for the dissociation step and can accelerate the overall reaction. Recently, various Pt-based nanostructures have been studied as HER catalysts in alkaline media [99]. Huang and coworkers [100] designed four types of PtNi NW/C, in which the shell is Pt-rich in and the inner region is Ni-rich. After annealing in air, a filmy NiOx shell can be formed outside the Pt3Ni3 NW/C surface and Pt is concentrated in the interior. Therefore, the pristine Pt3Ni3 NWs are converted into novel NiOx/Pt3Ni heterostructures. The nanostructures showed the following order with respect to the HER activity: Pt3Ni4 NWs/C-air < Pt3Ni1 NWs/C-air < Pt3Ni2 NWs/C-air < Pt3Ni3 NWs/C-air. The formed Pt3Ni3 NWs/C-air exhibited an extremely low overpotential in 1 M KOH (η10 = 40 mV at 10 mA/cm2). The high activity was attributed to the existence of a NiOx/Pt3Ni interface. The NiOx on the surface of the catalyst could boost the water dissociation and the electrostatic affinity with the offspring OH–. The vacant Pt sites close to the NiOx would adsorb Hads to quickly generate H2 molecules, and such a synergistic effect can finally enhance the HER in alkaline media. Besides, by taking advantage of the PtNi NWs, the authors developed another class of Pt3Nix/NiS metal/sulfide heterostructures through a simple sulfuration process [101]. During sulfuration, the original structure of the Pt-Ni NWs was maintained, but NiS nanoparticles were formed on the surface at the same time (Fig. 8(a)–(d)). The synthesized Pt3Ni2 NWs-S/C, containing a high density of NiS-Pt3Ni interfaces, showed the highest HER activity among the samples (Fig. 8(e)), which is about ten times higher than that of commercial Pt/C. DFT calculations (Fig. 8(f) and (g)) revealed that the energy barriers of water dissociation on Pt [111] and NiS [100] surfaces are 0.89 and 0.32 eV, respectively, which suggest that breaking the OH–H bond of water into Hads and OH is easier on NiS [100] than on Pt [111]. In this heterostructure, the active NiS sites can adequately enhance the water dissociation, and H2 is generated from two close Hads adsorbed on the Pt sites through the Tafel or Heyrovsky step. The Pt3Ni [111], NiS [100], and Pt [111] surfaces have different free hydrogen adsorption energies. The calculations revealed that the free energy GH* on the Pt3Ni [111] surface is much closer to the optimal value (GH* = 0 eV). However, the GH* is high on the NiS surface (GH* = 0.56 eV), which can severely suppress the desorption step of Hads. Therefore, it is the synergistic effect between Pt3Ni and NiS that largely increases the HER activity in alkaline media.
In another study, PtCo alloy nanomaterials were found to be capable of effectively accelerating the sluggish kinetics of the HER [103]. The LSV curves shown in Fig. 8(h) indicate that the PtCo alloy exhibits a superior activity for the HER than PtO2. The activity of PtCo for hydrogen adsorption and the conversion of Hads into H2 is superior to that of Pt. The DFT calculation result reveals the different free energy barriers of PtCo [100], Pt [111], and Co [111] for the HER in an alkaline electrolyte. The ΔGH* on a PtCo [100] surface is smaller than those on the original Pt [111] and Co [111] and is close to the optimal value (ΔGH* ≈ 0) (Fig. 8(i)). The strong electronic synergistic effect between the Pt and Co atoms can reduce the energy barrier of water desorption. In the PtCo structures, the Co species plays an active role in dissociating water and the PtCo atoms act as the active sites that are responsible for the adsorption of the Hads intermediates and the fast transformation of Hads into H2, which enhances the HER performance. It is worth noting that the principle to increase the HER performance by using Pt-based metal nanostructures is similar. Pure Pt cannot effectively dissociate water into Hads and OH, and integration with the atoms of another transition metal can alter the entire electronic structure and the energy barriers associated with hydrogen adsorption and conversion on catalysts.

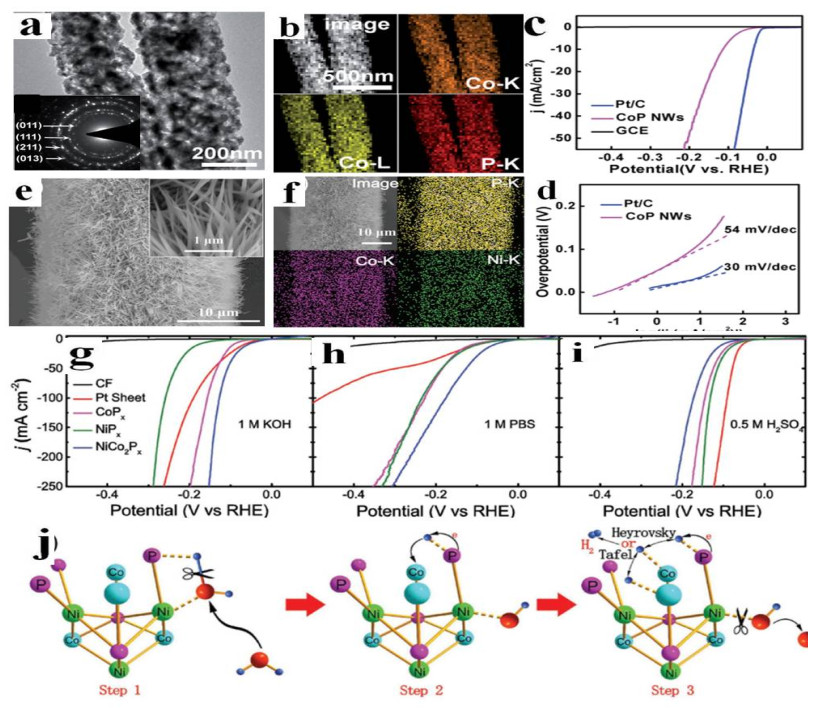

At present, Pt and Pt-based materials are the most efficient HER catalysts owing to their small overpotentials and Tafel slopes [104, 111, 112]. However, the high cost and the relative scarcity of noble metals greatly limit their widespread application for economically obtaining hydrogen through WS. Therefore, earth-abundant metals with efficient WS activities may be a good alternative to reduce the cost associated with actual use [113]. Among the earth-abundant non-noble metals, Ni- and Co-based metal nanomaterials with unique electronic properties and synergistic effects have become the focus point as electrocatalysts for the HER. For example, Sun's group developed CoP NWs with excellent HER activity and durability in an acidic solution [102]. The CoP NWs having a porous structure exhibited large surface areas and the Co and P are uniformly distributed over the NWs (Fig. 9(a) and (b)). It is amazing that the CoP NWs exhibited a small overpotential (η10 = 40 mV) and a small Tafel slope (54 mV/dec) (Fig. 9(c) and (d)), which indicated that the reaction proceeds through the Volmer-Heyrovsky mechanism. Most importantly, the CoP NWs could survive the long durability test (of duration at least 50 h) and the supercatalytic activity could be maintained during the long process. According to previous calculations [106], charge can be partially transferred from Co to P in Co-P covalent bonds, which can result in the metal center of Co (δ+) and the base P (δ–). The Co (δ+) acts as a hydride-acceptor and the basic P (δ+) functions as proton-acceptor centers to promote the HER activity. Subsequently, Hu's research group reported a unique NiCo2Px bimetallic phosphate NW catalyst (Fig. 9(e) and (f)) [107]. The NWs exhibited excellent HER activity and durability in pH-universal electrolytes (Fig. 9(g)–(i)), including an alkaline electrolyte (1 M KOH), a neutral solution (1 M PBS), and an acidic medium (0.5 M H2SO4). To be specific, the NWs only required 58, 63, and 104 mV for the current density to reach 10 mA/cm2 in 1 M KOH, 1 M PBS, and 0.5 M H2SO4, respectively, which exceed those of Pt sheets in alkaline and neutral media. Such high-efficiency catalytic behavior can be attributed to the effective increase in the Volmer reaction by NiCo2Px. In addition, the NiCo2Px also exhibited outstanding operational stability and durability; it could withstand 5000 CV cycles or 30 h of the chronoamperometry test at high current densities. The reaction mechanism was also proposed (Fig. 9(j)). First, water enters the surface of NiCo2Px, and the H–OH bond is weakened by the electronic effects produced from the interaction between the heteroatom metal centers (Mδ+, M = Ni, Co) and the heteroatom non-metal centers (O atom, P atom (Pδ–), and H atom). Secondly, with the help of free electrons, water is dissociated into OH– and H atom, followed by the adsorption of OH– on the Mδ+ of the surface, and the H atom is shifted to a vacant site to form Hads (Volmer reactions). Finally, the Hads recombines via the Tafel pathway or the Heyrovsky pathway to produce a H2 molecule, along with the desorption of OH– from the interface. For the NiCo2Px NWs, the Ni sites are active for water dissociation, while the recombination of Hads into H2 likely occurs on the surface Co sites in the form of a fast Heyrovsky or Tafel step. This type of synergistic effect from NiCo2Px is similar to those observed in the abovementioned catalysts.
It has been accepted that the HERs on different metal complex catalysts share the same mechanism in alkaline media. For all the catalysts, there should be active sites for water dissociation and other vacant positions for the adsorption of H (Hads) in an appropriate force. If the binding force of Had is low, the first step of the Volmer reaction will become the rate-determining step. Meanwhile, the Heyrovsky reaction or the Tafel reaction is the important reaction process in HER catalysis. A small Tafel slope implies a fast reaction, which has a positive effect on the overpotential. 1D NW catalysts have the following structural advantages: (1) Large active surface/interface area and high density of active sites for different functions; (2) Small charge transfer resistance and fast electrode kinetics; and (3) Facilitating the diffusion of gas bubbles to prevent the catalyst from being destroyed.
The electrochemical OER is another half-reaction of the WS process. The product O2 molecule is useful for the chemical industry [114, 115]. Up to now, Ru and Ir oxides are deemed as the high-performance OER electrocatalysts. On the other hand, Pt oxides exhibit very sluggish kinetics for the OER, which is even inferior to those of most transition-metal oxides. Transition-metal oxides are a class of low-cost high-efficiency catalysts that are promising alternative candidates for WS. It has been well accepted that the OER is multistep and includes the following reactions: (1) Formation of *OH from the H2O/OH– adsorbed on the active sites; (2) Decomposition of *OH to *O; (3) Transformation of *O into the *OOH intermediate; and (4) Generation of O2 molecules from *OOH. The OER processes in acid and alkali media are described as follows [8, 116, 117].
In acidic solutions
In alkaline solutions
Here, * represents the active site, whereas OH*, O*, and OOH* refer to the adsorbed intermediate species.
It is obvious that O2 gas is formed via multistep reactions and that a high overpotential is needed for the four-electron transfer process. Developing nanostructured catalysts with abundant electrochemically active sites is an effective strategy to improve the electrocatalytic activity and reduce the overpotential for the OER. In particular, 1D nanocatalysts with fast charge transfer and large surface areas demonstrate great potential in OER electrocatalysis.
Currently, noble metals, including Ir, Ru, Pt and their compounds, exhibit outstanding catalytic activities for the OER in both aqueous acidic and alkaline media [118]. The first investigation on the electrode kinetics of the OER on Pt, Rh, and Ir can be dated back to 1966. The study showed that the activities of the metal catalysts for the OER in acidic solutions follow the order of Ru > Ir > Pd > Rh > Pt and that Pt was not an effective catalyst for the OER [119, 120]. It was found that during the OER process, it is easy to convert a single precious metal into a metal oxide film at high anodic potentials. Among the metal oxides, Ru/Ir-based oxides are the most efficient OER electrocatalysts (Fig. 10(a)). According to theoretical studies on the binding energies of the reaction intermediates, IrO2 is a highly active metal oxide catalyst in an acidic medium, but is not a desired OER catalyst from the perspective of stability. Recently, Zhang and coworkers [121] synthesized PtIr alloy nanocatalysts with tunable shapes that showed excellent catalytic activities for the OER. The activity tests indicated that the amount of the Ir/IrOx species on the surface is positively correlated with the catalytic ability for water dissociation; in contrast, the amount of surface Pt atoms showed a negative correlation with the activity. After the alloying of Pt with Ir, partial charge transfer from Ir to Pt occurs that produces a surface alloying effect, which can weaken the water adsorption and dissociation processes and thus alter the rate-determining step of the reaction. Several studies have indicated that the actual catalytic properties of electrocatalysts are largely dependent on the surface properties, such as crystal facets, ECSA, roughness factors, and the local electronic structures [105, 119, 122, 123].

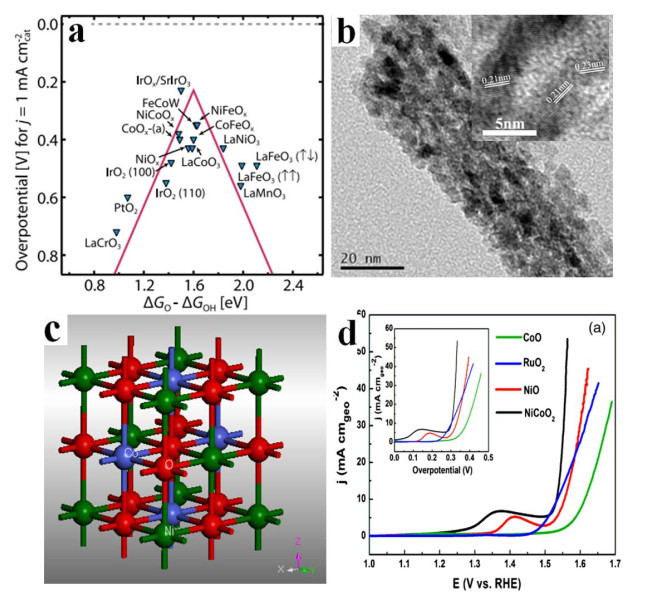

The exorbitant price and the relative scarcity of the noble-metal-based catalysts mentioned above severely restrict their universal practical application. Recently, non-precious metal-based nanostructures have become the focus point, as they are promising alternatives for the expensive precious metals [131-133]. Owing to their interesting electronic properties, high elemental abundances, high conductivities, and high corrosion resistances, Ni- and Co-based metal catalysts, such as alloys, oxides (hydroxides), and phosphates, exhibit highly efficient catalytic performances for the OER [125, 134-137]. For example, Co3O4 NWs were reported to exhibit ideal OER performance with high activity and corrosion resistance. Wu and coworkers [126] prepared Ni-doped Co3O4 NW catalysts for the OER. The authors found that after the incorporation of Ni into Co3O4, the surface of the NWs became rough, thereby exposing more active sites. Compared with the Co3O4 NWs, NixCo3-xO4 NWs exhibited enhanced OER electrocatalytic properties. The synergistic effect between two different heteroatoms can improve the surface adsorption performance of NWs, which is beneficial for the electrocatalytic properties. Subsequently, Zhang and coworkers synthesized NiCoO2 NWs on a carbon fiber paper [124]. The NiCoO2 NWs with NaCl-type structure are highly efficient catalysts for the OER in 0.1 M KOH (Fig. 10(b)), displaying only a small overpotential (η10 = 0.303 V). Such a structure showed a tendency to transform in situ into an hydroxide/oxyhydroxide species, which present active sites for the OER [138]. This process occurs at around 1.35 V as follows:
Furthermore, the carbon fiber paper substrate helps to improve the stability and conductivity of materials. The NiCoO2 NWs can undergo 12 h of continuous operation without exhibiting an obvious drop in the current density. Meanwhile, Fe doping is also a feasible strategy to further promote the catalytic activities of Ni-based catalysts for the OER [127]. Zhang et al. [128] designed and synthesized a unique mesoporous NiFeO NW network structure. One structure of Ni2Fe1O showed a relatively low overpotential (η10 = 244 mV) and excellent long-term stability (60 h, with negligible degradation) for the OER in 1 M KOH. In particular, the NixFeyO NWs with various Ni: Fe ratios exhibited different performances: Ni2Fe1O (η10 = 244 mV) > Ni1.5Fe1.5O (η10 = 290 mV) > Ni1Fe2O (η10 = 316 mV) > IrO2 (η10 = 339 mV). The results suggest that a high Ni content can increase the electron transport capability and facilitate the OER process to a great extent. Besides, the obtained results are in good agreement with the previously reported results of maximum OER activity for Fe-doped NiOOH when the concentration of Fe is as high as 35% [139]. In another study, Zhang et al. [129] synthesized an advanced porous Mo-doped NiFeO NW catalyst. Compared with the NixFeyO NWs, the Mo-doped NiFeO NWs exhibited enhanced OER activity, with a small overpotential (η10 = 231 mV) in 1 M KOH. For the Mo-doped NiFeO NWs, the outstanding catalytic properties observed can be attributed to a well-designed heteroatom-doped porous NW network, an enlarged active surface area, the synergistic effect between Mo and NiFe, and the enhanced electrical conductivity. Overall, the following factors may have an influence on the OER performances of the catalysts: (1) composition; (2) crystal structure or shape; (3) electrical conductivity; and (4) hierarchical porous structure and the surface chemical states of the metals.
Energy electrocatalysis has been recognized as a hot research field in recent years owing to its importance in fundamental technological applications. In the past few decades, numerous research efforts have been devoted to searching for novel cost-efficient electrocatalysts for DFMCs and WS. Herein, we have reviewed the recent developments in 1D nanomaterials and their applications for the ORR, MOR, HER, and OER. We have also briefly discussed the reaction mechanisms. Based on previous studies, we note that there are still some promising catalysts, but a few challenging tasks must be accomplished. First, it is of crucial importance to understand the real active sites of various catalysts, especially 1D nanostructures, for the different reactions. To this end, both experimental and computational studies should be carried out simultaneously so that high-performance catalysts can be designed and prepared purposefully. Secondly, morphology and composition are two crucial factors that determine the catalytic activity, stability, and durability of materials. The 1D nanostructure has showed excellent catalytic stability, with negligible aggregation, during the electrochemical reactions. How to further improve the catalytic performances of the 1D nanostructures by controlling the composition and surface facets is still a challenge. Thirdly, the electrocatalysts should have large surface areas to speed up the proton and electron transfers and the desorption of the intermediates and gas products from the surface of the catalysts and to release more active sites for further electrochemical reactions. Therefore, much effort is needed in the synthesis of ultrathin but stable 1D nanomaterials.
It is promising that the electrocatalytic properties of 1D nanostructures, including selectivity, activity, and durability, can be effectively enhanced through continuous optimization on the basis of multiscale principles. This review summarizes the application of 1D nanostructures in energy electrocatalysis, which is also useful for understanding the other electrocatalytic processes, such as the CO2 reduction reaction, nitrogen reduction reaction, and chlorine production. In summary, developing novel electrocatalysts with optimal compositions and surface structures to solve the drawbacks of the present catalysts will always be desired, but there is still a long way to go in this regard.
