Molecular nitrogen is relatively inert owing to the strength of its triple bond, its non-polarity, and high ionization potential. As a result, the fixation of atmospheric nitrogen to ammonia under mild conditions has remained a challenge to chemists and has been frequently studied as a prototype reaction for more than a century. Based on this reaction, many heterogeneous catalysis concepts have been developed [1]. Ru-based catalysts have been regarded as second-generation catalysts owing to their excellent performances and energy efficiencies at low temperatures and low pressures [2, 3]. C materials have been extensively used as supports in heterogeneous catalysts because they satisfy the most desirable properties required of a suitable support, such as high chemical resistance, low cost, high surface area, and good electron and heat transport. C-supported Ru catalyst exhibits the highest performance among all types of supports that include MgO, BN, Al₂O₃, etc., and is the only catalyst that has been commercialized [4-7]. Although most scientists thought that methanation of the C support is inevitable, the BP company successfully solved this problem by using graphitized C as the support [8]. Aika et al. [9] reported that a moderate degree of methanation of AC support in Ba-promoted Ru/AC catalysts increases the surface area and pore volume of the catalyst significantly, rather than destroying the porous structure. However, the methanation of a C support might accelerate the growth of Ru particles, which can finally lead to a low activity. Thus, a respective control of the degree of methanation during the catalyst preparation and activation processes was thought to be very important for practical use of promoted Ru/C catalysts.

With the development of nanocarbon materials with specific pore and framework structures, such as graphene and CNTs [10], the role of C structure on the catalytic performance of C-supported metal clusters has gained much attention recently. There are several reports that discuss the effect of the interaction of the C support with Ru on the catalytic performances of Ru catalysts for ammonia synthesis. Bao et al. [11] reported a Ru/CNTs catalyst, in which Ru nanoparticles (NPs) were confined inside CNTs; this catalyst displayed higher activities for CO hydrogenation and ammonia synthesis than these with Ru NPs outside the CNTs. This significant improvement has been attributed to be the uniquely confined environment that essentially shifts the volcano curves of the catalytic activities toward metals with higher confinement energies. Kitano et al. [12] reported a Ru-loaded electride [Ca₂₄Al₂₈O₆₄]⁴⁺(e^–)₄ (Ru/C12A7:e^–) as an efficient catalyst for ammonia synthesis, which exhibits an activity that is an order of magnitude higher than those of other previously reported Ru-loaded catalysts and the reaction activation energy being almost half. Kinetic analysis with infrared spectroscopy reveals that C12A7:e^– markedly enhances N₂ dissociation on Ru by the back donation of electrons and that the poisoning of Ru surfaces by H adatoms can be suppressed effectively because of the ability of C12A7:e^– to store H reversibly. All these reports indicate that new concepts in heterogeneous catalyst design are very important to fulfill the need for highly efficient catalysts for ammonia synthesis.

Recently, Ru NPs semi-embedded in a porous C matrix showed a promisingly higher performance for the hydrogenation of various reactants than its supported counterpart owing to the strong interaction between Ru and the C support [13-17]. Moreover, it is widely accepted that N₂ dissociation is the rate-determining step [18] and that this step is sensitive to the electronic structure of a catalyst [19]. A higher electron density around metal centers facilitates N₂ dissociation because it is an electrophilic process [20]. The bond of a N₂ molecule is weakened by the incorporation of an electron into its antibonding orbital, which is evidenced by an increase in the work function. The strong interaction between Ru and the C support of the Ru-C catalyst with semi-embedded Ru nanoclusters will greatly improve the electron transport. Therefore, the Ru-C catalyst with semi-embedded Ru nanoclusters could be a more suitable candidate for ammonia synthesis.

Here, a Ba-K/Ru-MC catalyst with Ru particles embedded in mesoporous C materials and promoted with Ba and K was tested for ammonia synthesis and compared with its supported counterpart. The Ru-MC with homogenous Ru NPs embedded in C matrix was prepared via a sucrose-assisted in situ carbonization method and Ba and K were added by the impregnation method. It is generally accepted that dual promoters are necessary for ammonia synthesis, wherein K acts as an electron donor [21, 22] and Ba electrostatically modifies the potential around the B5 sites (electronic promotion), making them significantly more active for N₂ dissociation [23]. Therefore, dual promoters are used to assist Ru-MC catalysts in ammonia synthesis.

Commercialized nanosilica with particle size of 15 ± 5 nm and surface area of 250 ± 30 m²/g provided by Hangzhou Wanjing New Material Co., Ltd. was used as hard templates. The other reagents used were obtained from Shanghai Chemical Reagent Inc. of Chinese Medicine Group. All the materials were of analytical grade and were used without any further purification.

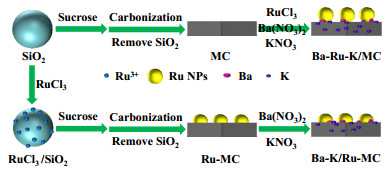

The method used for the synthesis of Ru-MC materials was the same as the nanoreplication method employed for Ru-OMC, which was described in our previously published papers [13, 15], except for the fact that SiO₂ was used as the template instead of SBA-15. The typical method for the preparation of Ru-MC can be described as follows. 1.0 g of SiO₂ was impregnated with 2.5 ml of an aqueous solution containing 0.1 g of ruthenium chloride hydrate. After being dried at 100 ℃ for 3 h, RuCl₃/SiO₂ was obtained. A precursor solution containing sucrose (1.25 g) and oxalic acid (0.1 g) in distilled water (1.5 ml) was prepared, and the solution was allowed to infiltrate the mesopores of RuCl₃/SiO₂, which was then precarbonized at 100 ℃ for 6 h and at 160 ℃ for another 6 h. Another precursor solution was prepared in the same fashion as the first step, except that the amount was two-thirds that of the first case. Further, the precarbonization process was the same as that employed in the first step. Then, the composite was carbonized at 850 ℃ for 3 h under N₂ flow. Subsequently, the silica was removed by using a sodium hydroxide solution (NaOH : CH₃CH₂OH : H₂O = 1 : 22 : 44; molar ratio) at 70 ℃. Finally, Ru-MC was obtained after filtering and drying in air at 110 ℃ overnight. The method used for the synthesis of MC was the same as that used for the Ru-MC described above, except that the SiO₂ was directly impregnated with the sucrose solution.

The obtained Ru-MC was subsequently impregnated with Ba(NO₃)₂ and KNO₃ salt solutions to introduce the respective promoters [24]. The obtained Ba-K/Ru-MC catalyst was reduced under a flow of H₂ at 400 ℃ for 4 h. The nominal Ba and K loadings of the catalyst were 4% and 14%, respectively.

The synthesized MC material was impregnated with RuCl₃ solution for 12 h at room temperature. Then, the wet sample was precipitated by diluted ammonia solution at room temperature for 12 h. After deposition, the solid was washed with deionized water several times at the desired temperature until no Cl⁻ could be detected by AgNO₃ solution, and dried at 110 ℃ for 12 h. Finally, this sample Ru/MC was reduced under a flow of H₂ at 400 ℃ for 4 h.

The preparation procedures of Ba-Ru-K/MC and Ba-Ru-K/AC were the same as the method reported in our previous papers [7, 24]. First, the MC or AC materials was impregnated with Ba(NO₃)₂ solution for 12 h at room temperature and dried at 110 ℃ for 12 h. Subsequently, RuCl₃ and KNO₃ solutions were used for impregnation in the same manner as that described above. The catalysts were reduced under a flow of H₂ at 400 ℃ for 4 h. The nominal Ba, Ru, and K loadings of the catalysts were 4%, 4%, and 14%, respectively. The details of the preparation process of the various catalysts are given in Scheme 1.

Ammonia synthesis reactions over the samples were carried out in a fixed-bed reactor having an inner diameter of 14 mm at the temperature of 375–450 ℃, space velocity of 10000 h^‒1, and pressure of 10 MPa. The catalyst bed was diluted with quartz (1.0–2.0 mm) that was loaded in the isothermal zone of the reactor, and both ends of the catalyst bed were also filled with quartz to prevent the synthesis gas from channeling. The catalysts were activated by the synthesis gas at the pressure of 5.0 MPa and space velocity of 30000 h^‒1 at 400, 425, 450, and 475 ℃ for 4, 8, 8, and 4 h, respectively. After the activation, the temperature was lowered to 400 ℃ and the initial activity was measured. Then, the temperature was increased to 475 ℃ for 16 h, with the space velocity being 30000 h^‒1 and pressure 5 MPa, in order to test the stability of the catalysts. After the thermal resistance test, the final activities were measured. The concentration of ammonia in the exit gas of the reactor under the given conditions was measured by the method of sulfuric acid neutralization.

The mixture of N₂ and H₂ was derived from the dissociation of ammonia, with deep removal of H₂O, CO, CO₂, and residual NH₃ over Pd, 13X, and 5A molecular sieves.

The mass reaction rate of ammonia synthesis was calculated from the following equation [24]:

where r_m: mass reaction rate, mmol∙g^‒1∙h^‒1; W_c: quality of the catalyst, g; V_c: volume of the catalyst, cm³; S_v: space velocity of the reaction, h^‒1; φ_NH3: concentration of ammonia in the exit gas of the reactor, vol%.

Nitrogen sorption isotherms were determined at –196 ℃ by using a Quantachrome Autosorb-IQ instrument in static measurement mode. Before the measurement, the samples were degassed at 240 ℃ for 3 h. The surface area of the C was calculated from the adsorption isotherms by the MultiPoint BET method. The pore size distribution of the supports was determined by the BJH method based on the desorption branch.

High resolution transmission electron microscopy (HRTEM) was performed on a TECNAI G2 F30 S-TWIN FEI Tecnai electron microscope operated at 300 kV, with a field emission gun acting as the source of electrons. The samples were mounted and ultrasonically dispersed in ethanol, and then, a few droplets of the suspension were deposited on a Cu grid coated with a holey C film, followed by drying under ambient conditions. The particle size distribution was determined for two hundred particles, and the average particle size was calculated based on the following equation:

Raman spectra were collected on a T6400 Raman spectrometer. An excitation laser line of wavelength 325 nm was used. The laser power impinging on the sample was less than 2.0 mW. The spectral resolution was estimated to be 4.0 cm^–1.

CO chemisorption experiment was carried out at 40 ℃ on a Quantachrome Autosorb-IQ Chemisorb apparatus. Prior to the measurements, the prereduced catalysts were further reduced in situ for 4 h at 400 ℃ in H₂. The metal dispersion and particle size were also estimated based on the assumption of spherical geometry of the particles and adsorption stoichiometry of one H atom and one CO molecule on one surface Ru atom. The average Ru particle size, d, was calculated from d × D = M × 6 × ρ_site ÷ (ρ_metal x N), where D is the dispersion, M is the molecular weight (for Ru, it is 101.07 g/mol), ρ_site is the Ru surface site density (16.3 atoms/nm²), ρ_metal is the metal density (12.3 g/cm³ for Ru), and N is the Avogadro number (6.022 × 10²³ mol^–1); the relation thus reduced to d = 1.33/D (nm) [10, 14].

H₂-temperature-programmed reduction analyses (H₂-TPR-MS) were carried out by using a self-made TPD/TPR instrument. The mass spectra were collected by an online Hiden gas analyzer (QIC 20). Prior to the analysis, the sample (ca. 50 mg) was placed in a fixed bed of a U-shaped quartz tube located inside an electrical furnace and dehydrated at 110 ℃ for 0.5 h under flowing Ar. Then, the temperature was increased at a rate of 10 ℃/min from 50 up to 900 ℃ under a flow of 5% H₂/Ar (40 ml/min). The following mass signals were monitored simultaneously by using a quadrupole mass spectrometer: m/e = 2, 15, 16, 17, 18, 28, and 44 amu.

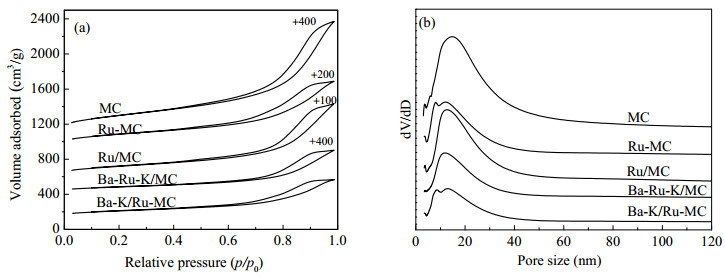

Table 1 lists the physical properties of MC, Ru-MC, Ru/MC, and the other catalysts used for ammonia synthesis. The specific surface area of MC is 1038 m²/g, and the pore size is around 14.8 nm, which is a good replication of the size of SiO₂ particles. The specific surface area of Ru-MC is 881 m²/g, and the pore size is around 13.9 nm. The incorporation of Ru decreases the surface area of MC by ca. 15%, with the pore size decreasing by about 1 nm. This may indicate that the existence of Ru affects the formation of the mesoporous C structure. The N₂ adsorption-desorption isotherms and the pore size distributions of MC, Ru-MC, Ru/MC, Ba-Ru-K/MC, and Ba-K/Ru-MC are given in Fig. 1. All the samples reveal the typical type Ⅳ adsorption isotherm with a hysteresis loop at a high relative pressure range 0.7–1.0 for mesoporous materials with large pores. The sharpness of the peaks in the pore size distribution curves indicate the narrowness of the size distributions of all the samples. Although the surface areas of Ru/MC and Ba-Ru-K/MC decreased from 1038 to 588 and 295 m²/g, respectively; the shapes of the N₂ isotherms do not change much. The pore size decreased to 12.7 and 11.6 nm from 14.8 nm. This may indicate that Ru and the promoters are deposited in the mesopores of the C supports and that the mesopores are not blocked. The surface area of Ba-K/Ru-MC is 382 m²/g, and the decreasing trend is much lower compared to that of the Ba-Ru-K/MC catalyst. This result indicates that the relatively larger pores of the MC prepared by using SiO₂ are beneficial for catalysts with high loadings of multiple promoters.

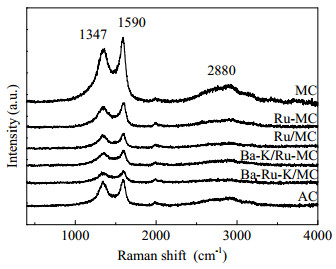

The structure of the obtained MC and Ru-MC was characterized by Raman spectroscopy. The Raman spectra of the MC, Ru-MC, Ru/MC, and AC are given in Fig. 2. Two bands at 1347 and 1590 cm^‒1 were observed. The band at 1347 cm^‒1 is referred to as the D band and is attributed to the vibrations of C atoms with dangling bonds in the planar terminations of a disordered graphite-like structure. The band around 1590 cm^‒1 is referred to as the G band, which corresponds to the E2g vibrations (aromatic C=C; sp² C) [25]. The intensity ratio I_D/I_G reflects the degree of graphitization, with a decrease in its value suggesting that the degree of graphitization has increased. The I_D/I_G values (Table 1) of all the samples are almost the same, ca. 0.83–0.84. This value is typical of C materials with an amorphous framework. On the other hand, the I_D/I_G values of Ba-Ru-K/MC and Ba-K/Ru-MC are increased to about 0.89 and 0.86, respectively, which could be caused by the activation of the C support during the reduction of the catalysts after loading Ba(NO₃)₂ and KNO₃ to the as-prepared MC and Ru-MC [31]. The I_D/I_G value of MC is lower than that of AC, which is 0.89, indicating that the degree of graphitization of MC is higher than that of AC. Moreover, the emergence of the G′-band around 2880 cm^–1 indicates the formation of a-few-layers structured graphitic C [26, 27]. This band is more obvious for the MC and Ru-MC samples than for AC. This result may indicate that the MC and Ru-MC synthesized via sucrose contain a-few-layers structured graphitic C. The pore and framework structures of MC and Ru-MC were characterized via HRTEM, and the results are given in Fig. 3. As discussed above, the pore structures of MC, Ru-MC, and Ru/MC are similar. The typical TEM and HRTEM images of MC are given in Fig. 3(a) and Fig. 3(b), respectively. It can be observed that the mesopores are disordered, with pore sizes in the range 10–20 nm, and the C wall is quite thin compared with that of AC (Fig. 3a). A few layers of the graphitic structure can also be observed in the HRTEM image.

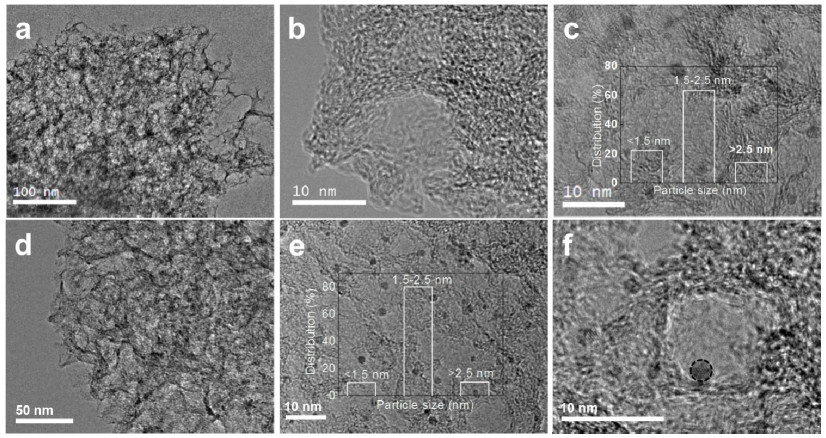

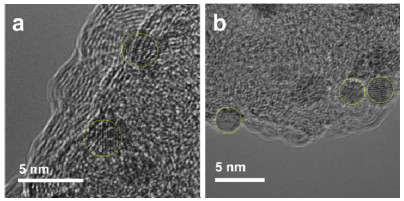

The status of Ru NPs was examined by HRTEM. It is known that the Ru NPs supported on AC are difficult to be observed by TEM owing to the influence of C, especially in the cases of catalysts with small nanoparticles (less than 2 nm). The HRTEM images of Ru-MC at different resolutions are given in Fig. 3(d‒f). For a comparison, the TEM image of Ru/MC is provided in Fig. 3(c). The black dots distributed in the HRTEM images are Ru particles. It can be seen that the Ru NPs both in Ru-MC and Ru/MC are uniformly distributed on the supports and no aggregation is observed. The particle size distributions of Ru-MC (Fig. 3(e)) and Ru/MC (Fig. 3(c)) are both in the range 1.5–2.5 nm, and the average particle size is ca. 2 nm. Fig. S2 shows the STEM images and particle size distributions of Ru NPs for Ba-K/Ru-MC and Ba-Ru-K/MC catalysts. It can be seen that the particle size distributions of the abovementioned catalysts are relatively narrow. The average particle size of Ba-K/Ru-MC is 2.2 nm, whereas that of Ba-Ru-K/MC is 2.3 nm (Table 2), which is almost the same as those of the Ru-MC and Ru/MC samples. As is known, ammonia synthesis is a structure-sensitive reaction. The most active sites for N₂ dissociation and ammonia synthesis are ensembles of five Ru atoms, named B5-type sites [28]. Jacobsen et al. [19] reported that the B5 sites are only present on Ru particles larger than 0.7 nm. The probability of existence of B5 sites is maximum for Ru particles of size 1.8–2.5 nm, and monotonically decreases for particles larger than 2.5 nm. Therefore, if only the particle size is considered, both the Ba-K/Ru-MC and Ba-Ru-K/MC catalysts with Ru particles in the size range 1.5–2.5 nm are appropriate for forming more active B5-type sites. From Fig. 3(f), it can be seen that most of the Ru NPs on the Ru-MC catalyst are semi-embedded in the mesoporous C framework. This phenomenon has been observed in Ru-OMC catalysts as well and has been fully discussed [13-15]. Uniform Ru NPs were obtained by thermal reduction; the consumption of C during the reduction of Ru³⁺ to Ru enables the Ru NPs to sit in or semi-embed in the C matrix. To estimate the degree of embedding of the Ru NPs, the dispersion of Ru particles was characterized by CO chemisorption for the Ru-MC and Ru/MC catalysts, and the results are included in Table 2. The dispersion of Ru for Ru-MC is 35.2%, while it is 65.6% for Ru/MC, according to the CO chemisorption measurements. The CO monolayer uptakes of Ru-MC and Ru/MC are 138.4 and 258.0 μmol/g, respectively. Based on the chemisorption data and assuming the adsorption of one CO per metal atom, one can estimate the exposed surface area of the metal catalysts. It can be seen that the exposed active Ru surface areas are 5.1 and 9.5 m²/g. On the other hand, the Ru NPs sizes of Ru-MC and Ru/MC obtained by HRTEM are almost the same. This indicates that a fraction of the Ru NPs are embedded in the C matrix. The degree of embedding was calculated by the formula D_embedding = (1 - N_s ÷ N_c) × 100%, where N_s refers to the number of metal atoms present on the surface, as measured by CO chemisorption, and N_c refers to the number of metal atoms present on the surface, based on the average crystallite size determined by HRTEM. The estimated degrees of embedding of the Ru NPs are given in Table 2. It can be seen that the degree of embedding of Ru-MC is 47.1%, whereas it is 1.4% for Ru/MC, thus indicating that the Ru NPs of Ru-MC are semi-embedded in the C structure. However, the dispersions of Ru in the Ba-K/Ru-MC and Ba-Ru-K/MC catalysts are 36.2% and 29.4%, respectively. This may be due to the addition of promoters, which cover some of the Ru NPs and, thereby, affect the dispersion of the catalysts. It can be considered that the degrees of embedding of Ba-K/Ru-MC and Ba-Ru-K/MC do not represent the state of existence of the Ru NPs on the C surface.

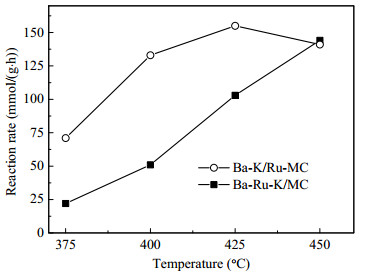

It is generally accepted that both Ba and K are necessary for ammonia synthesis, as K acts as an electron donor [21, 29] and Ba electrostatically modifies the potential around the B5 sites (electronic promotion), rendering them significantly more active for N₂ dissociation [23]. Therefore, Ru-MC and Ru/MC were impregnated with Ba(NO₃)₂ and KNO₃ as promoters. The catalytic performances of Ba-K/Ru-MC and Ba-Ru-K/MC were investigated at various temperatures in a four-tube reactor under 10 MPa, and the results are given in Fig. 4. It is obvious that the activity of Ba-K/Ru-MC at 375 ℃ is almost twice that of Ba-Ru-K/MC. The reaction rates observed at 450 ℃ are the same because the ammonia synthesis process has reached thermodynamic equilibrium. The best catalyst always performs well at lower temperatures. This indicated that Ba-K/Ru-MC with semi-embedded Ru NPs is much more active than Ba-Ru-K/MC.

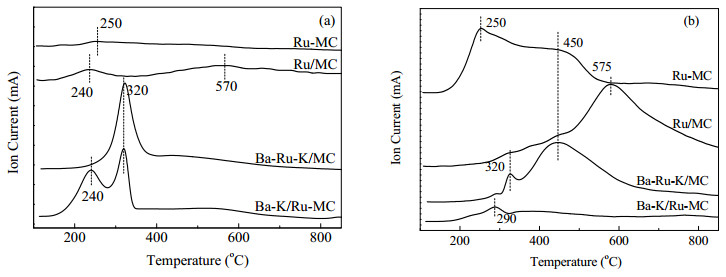

To understand the high performance of Ba-K/Ru-MC and clarify the interaction between the Ru NPs and the mesoporous C, a series of temperature-programmed treatments of the Ru-MC, Ru/MC, Ba-K/Ru-MC, and Ba-Ru-K/MC samples were performed under 5% H₂/Ar. H₂-TPR patterns were obtained with a mass spectrometer. As is known, the presence of Ru metal can catalyze the methanation of the C support in the range 300–500 ℃. Therefore, methane signals were detected together with the H₂ signals. The H₂-TPR profiles with the H₂ and methane signals are provided in Figs. 5(a) and (b). It can be seen that the peaks corresponding to the consumption of H₂ are totally different for the Ru-MC and Ru/MC samples. Compared to the methanation peaks of the Ru/MC samples, the methane peaks of the Ru-MC samples are observed at relatively lower temperatures. This observation can be interpreted as easier methanation of the C support in the embedded Ru-MC catalysts than in the supported Ru/MC catalysts, owing to the strong interaction between Ru and the C support. This result is similar to those of Ru-OMC and Ru/OMC [15]. Otherwise, the adsorption properties of H₂ play an important role in ammonia synthesis. Fig. S1 gives the H₂-TPD profiles of the Ba-K/Ru-MC and Ba-Ru-K/MC catalysts. Two H₂ desorption peaks at about 140 and 450 ℃ could be observed in the Ba-K/Ru-MC, and the total amount of desorbed H₂ for Ba-K/Ru-MC is much higher than that for Ba-Ru-K/MC. The trend could explain the activities of these catalysts for ammonia synthesis. On the other hand, the methanation of C in the dual-promoted Ba-Ru-K/MC occurs at 320 and 450 ℃, and the temperature is much lower than that for Ru/MC. However, it is interesting to observe that the methanation of C was greatly suppressed for the Ba-K/Ru-MC catalyst, compared with the Ba-Ru-K/MC catalyst. The methanation may result in a weight loss of the C support, which can affect the stability of the catalyst.

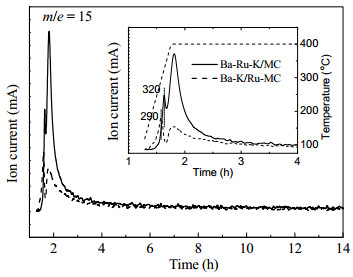

To further verify the degrees of methanation of Ba-K/Ru-MC and Ba-Ru-K/MC, the catalysts were tested by keeping them under H₂ atmosphere at 400 ℃ for more than 15 h. Fig. 6 shows the methanation signals for the Ba-K/Ru-MC and Ba-Ru-K/MC catalysts when the temperature first increased to 400 ℃ and was then kept constant (at 400 ℃) for more than 15 h. The methanation resulted in two peaks being observed in the temperature range 100–400 ℃. The first peak appears at 320 ℃ for Ba-Ru-K/MC and 290 ℃ for Ba-K/Ru-MC catalyst. The areas under the methanation peaks are much lower for Ba-K/Ru-MC compared to Ba-Ru-K/MC. The methanation of C only occurs at the start of the reaction, and the peaks significantly decreased in intensity to zero in 4 h. Therefore, the lives of the catalysts may not be affected by the methanation process. This could because the surfaces of the catalysts contain small amounts of unstable C, which is beneficial for methanation at low temperatures. It is well known that methane can be a source of C for the preparation of nanocarbons over Ru catalysts [30]. Therefore, some methane would be consumed to form deposited C, and thus, the formation of methane has a negligible influence on the activities of catalysts [31, 32].

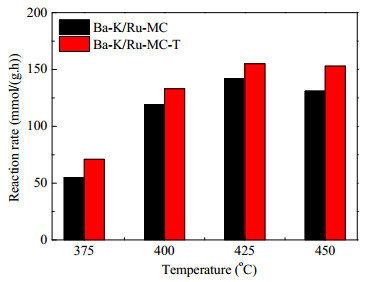

To test the stability of the Ba-K/Ru-MC, a thermal resistance experiment was carried at 475 ℃ for 16 h at 5 MPa, with space velocity being 30000 h^‒1, and the catalytic performance of Ba-K/Ru-MC before and after the test is shown in Fig. 7. Fig. S3 shows the ammonia synthesis rates as functions of the time on stream. The catalytic performance of Ba-K/Ru-MC is improved, instead of it being deactivated. This indicates that the catalysts are stable under high pressures and temperatures. The HRTEM images of Ba-K/Ru-MC before and after ammonia synthesis are shown in Fig. 8. It is seen that the Ru NPs after ammonia synthesis maintain almost the same size as fresh Ba-K/Ru-MC. It indicates that the semi-embedded catalyst Ba-K/Ru-MC is stable with respect to the Ru NPs. This can be explained by the much stronger interaction between Ru and C in the case of a semi-embedded structure.

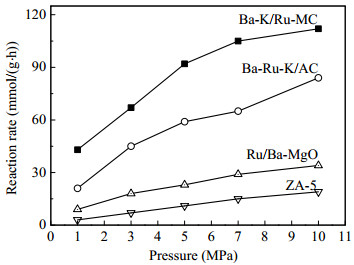

The catalytic performance of Ba-K/Ru-MC was compared with those of Ba-Ru-K/AC, Ru/Ba-MgO, and commercialized ZA-5 fused Fe catalysts. These four catalysts were tested together in a four-tube reactor under 400 ℃ at various pressures, and the results are presented in Fig. 9. The performances of all the catalysts for ammonia synthesis improved with increasing pressure. Obviously, the semi-embedded catalyst Ba-K/Ru-MC revealed the highest activity, compared with the optimized Ba-Ru-K/AC and Ru/Ba-MgO, that was almost 10 orders higher than that of the commercial Fe_1-xO-based catalyst (ZA-5). The reaction rate over Ba-K/Ru-MC reaches a maximum (133 mmol/(g∙h)) at 10 MPa and 400 ℃, whereas the slopes of the reaction rate with pressure for Ru/Ba-MgO and ZA-5 are much smaller than those for Ba-K/Ru-MC and Ba-Ru-K/AC. The increasing trend of the activity with pressure indicates less H₂ poisoning in Ba-K/Ru-MC compared to the other Ru catalysts. This could be explained based on its reversible H₂ absorption/desorption capability, which results from the intensive Ru-C surface contacts of Ba-K/Ru-MC [33]. In addition, the Ba-K/Ru-MC catalyst shows a much higher activity than similar composite catalysts that have been reported in the literature, and a comparison of the activities obtained in this study with the data reported in the literature is presented in Table S2.

A highly stable and active Ba-K/Ru-MC catalyst for ammonia synthesis with semi-embedded Ru NPs in the size range 1.5–2.5 nm that were confined in mesoporous C materials was prepared by a RuCl₃/SiO₂-templated approach. The activity of this catalyst is much higher than that of the Ba-Ru-K/MC catalyst, especially at temperatures below 450 ℃. In addition, the Ba-K/Ru-MC catalyst has a higher activity than the AC-supported Ru and commercial Fe catalysts. The high catalytic activity and stability of Ba-K/Ru-MC is attributed to the strong interaction between the Ru and the mesoporous C and the high dispersion of the Ru particles. The specific three-dimensional mesoporous structures may be beneficial for the dispersion of active components and promoters, and the thin and locally graphitized structure of MC can be beneficial for electron transport.
