As important fine chemicals, ethylene amines are widely used as solvents, stabilizers, and for the synthesis of pharmaceuticals, chelating agents, resins, surfactants, and fabric softeners. In chemical industry production [1-4], the amination of monoethanolamine (MEA) represents an economical and environmentally benign method to prepare valuable ethylene amines, mainly including ethylenediamine (EDA) and piperazine (PIP). The amination reaction of MEA is generally driven by Ni-, Co-, or Cu-based metallic catalysts via a borrowing hydrogen mechanism (Scheme 1) [5-8]: initially, MEA is dehydrogenated to form a 2-aminoacetaldehyde compound; next, an imine is formed through condensation of the aldehyde with ammonia or another MEA molecule; finally, the intermediate imine is reduced to ethylene amines. During the catalytic amination process (Scheme 2), various competitive and consecutive reactions can take place through the participation of product amines in the condensation step. These reactions unavoidably generate a variety of by-products, including N'-(2-aminoethyl)ethanolamine (AEEA), N'-aminoethylpiperazine (AEP), and N'-(2-hydroxyethyl)piperazine (HEP). The formation of by-products would result in economic losses and product separation issues. The development of efficient catalysts with a high yield of desired amines (EDA and PIP) is thus an important and challenging research target.
In the case of supported metal catalysts, the surface chemical properties and electronic structure of the metal particles are influenced by their size [9-17]. Upon increasing the size of the metal particles, the fraction of terrace sites increases linearly, while the fraction of step/corner sites decreases slowly. These changes in the distribution of surface sites may alter the coordination environment of surface metals, thus influencing the adsorption and activation capabilities of the catalysts. The effects of the metal particle size in catalysis have been investigated for many structure-sensitive reactions. Typically, for the Pd-catalyzed dehydrogenation of alcohols, Wang et al. [11] concluded that a suitable ratio of surface atoms (terrace Pd) to coordinatively unsaturated atoms (edge and corner Pd) favors the adsorption and β-H activation steps. Jensen et al. [18] studied the effects of the Ni particle size of Ni/SiO2 catalyst in the hydrodeoxygenation of phenol. They found that deoxygenation and hydrogenation reactions are facilitated on step/corner and terrace Ni sites, respectively. Zhu et al. [9] investigated the influence of the Ni particle size in m-cresol hydrodeoxygenation. They reported that the selectivities to products are influenced by the Ni particle size of Ni/SiO2 catalysts. For the amination reaction, a few papers on particle size effects have been reported. Shimizu et al. [19] reported the N'-alkylation of amines with alcohols on Ni/Al2O3 catalysts in a slurry reactor at 144 ℃. They concluded that the turnover frequency (TOF) increases with a decrease in Ni particle size, and low-coordinated Ni combined with acid-base sites represents the active phase for the dehydrogenation and hydrogen transfer steps. In catalytic amination reactions, the effects of the metal particle size may be influenced by various factors, including catalyst support, particle size distribution, reaction substrate, and reaction conditions. Therefore, previous studies of structure-activity relationships have not yet reached a common conclusion. Moreover, to the best of our knowledge, the effects of the metal particle size on the product distribution of the amination of alcohol amines have never been investigated.
In this work, SiO2 was selected as inert support in order to avoid or reduce the complications associated with the interaction between metal and support. Ni-Re/SiO2 catalysts (Ni 20 wt%, Re 1.5 wt%) with a wide range of Ni particle sizes (4.5–18.0 nm) were prepared and characterized by N2 physisorption, H2 temperature programmed reduction (H2-TPR), H2 temperature programmed desorption (H2-TPD), X-ray diffraction (XRD), transmission electron microscopy (TEM), H2 chemisorption, as well as Fourier transform infrared (FT-IR) spectroscopy measurements of adsorbed CO and MEA. We investigated the MEA amination over supported Ni-Re catalysts in a trickle-bed reactor in order to understand the effects of the Ni particle size on the catalyst activity and selectivity to product amines.
Ni-Re/SiO2 catalysts (Ni 20 wt%, Re 1.5 wt%) were prepared by incipient-wetness impregnation. Silica (Qingdao Haiyang Chemical Co., Ltd., China) was used as support while Ni(NO3)2·6H2O (99.9% purity) and NH4ReO4 (99.99% purity) were employed as metal precursors. After impregnation, the materials were dried at 120 ℃ for 4 h. The following Ni-Re/SiO2 catalysts, with varying particle sizes, were prepared under different calcination atmospheres and reduction temperatures.
Catalyst 1: The materials were calcined in a tubular oven under a flow of NO/Ar (1% v/v) at 450 ℃, corresponding to a space velocity of about 8.4 × 103 h–1. The calcined catalysts were denoted as Ni-Re/SiO2-NO. Before reaction, the Ni-Re/SiO2-NO catalysts were reduced in situ in a trickle-bed reactor under a H2 flow of 100 ml·min–1 for 4 h at 440 ℃. The obtained catalysts were denoted as Ni-Re/SiO2-4.5.
Catalyst 2: The materials were calcined in a tubular oven under a flow of Ar at 450 ℃, corresponding to a space velocity of about 3.6 × 103 h–1. The calcined catalysts were denoted as Ni-Re/SiO2-Ar. Before reaction, the obtained Ni-Re/SiO2-Ar catalysts were reduced in situ in a trickle-bed reactor under a H2 flow of 100 ml·min–1 for 4 h at 440 ℃. The obtained catalysts were denoted as Ni-Re/SiO2-10.5.
Catalyst 3: The materials were calcined in a tubular oven under a still air atmosphere at 450 ℃. The calcined catalysts were denoted as Ni-Re/SiO2-Air. Before reaction, the obtained Ni-Re/SiO2-Air catalysts were reduced in situ in a trickle-bed reactor under a H2 flow of 100 ml·min–1 for 4 h at 440 ℃. The obtained catalysts were denoted as Ni-Re/SiO2-14.6.
Catalyst 4: The materials were calcined in a tubular oven under a still air atmosphere at 450 ℃. The calcined catalysts were denoted as Ni-Re/SiO2-Air. Before reaction, the obtained Ni-Re/SiO2-Air catalysts were reduced in situ in a trickle-bed reactor under a H2 flow of 100 ml·min–1 for 4 h at 640 ℃. The obtained catalysts were denoted as Ni-Re/SiO2-18.0.
Monometallic Ni/SiO2 (Ni 20 wt%) and Re/SiO2 (Re 1.5 wt%) catalysts were also prepared for comparison. The preparation process was the same as that employed for the Ni-Re/SiO2-14.6 catalyst.
N2 physisorption isotherms were recorded on a Quantachrome Autosorb instrument. Before the measurements, the samples were outgassed at 300 ℃ for 3 h under vacuum. The total specific surface area and pore size distribution were calculated by Brunauer-Emmet-Teller (BET) and Barrett-Joyner-Halenda (BJH) analyses. The total pore volume was determined from the amount of N2 adsorbed at a P/P0 ratio of 0.99.
The metal loadings of Ni or Re in the Ni-Re/SiO2 catalysts were determined by inductively coupled plasma optical emission spectroscopy (ICP-OES). A Perkin Elmer Optima 7300 DV spectrometer was used for elemental detection.
H2-TPR and H2-TPD measurements were carried out using an Altamira Instruments AMI-300 analyzer equipped with a thermal conductivity detector (TCD). For the H2-TPR measurements, about 100 mg of calcined catalysts were placed in a quartz reactor. To remove impurities, the catalysts were treated in a flow of Ar at 400 ℃ for 0.5 h, followed by cooling to 50 ℃. Next, the temperature was increased to 900 ℃ at a heating rate of 10 ℃·min–1 in a 30 ml·min–1 flow of H2/Ar (10% v/v). The amount of H2 consumption was measured by the TCD. For the H2-TPD measurements, the catalysts were reduced for 4 h in a H2 flow, followed by cooling to 30 ℃ in Ar flow. Afterward, the catalysts were exposed to a flow of H2/Ar (10% v/v) for 1 h at 30 ℃. After being purged in Ar flow for 30 min at 40 ℃, the catalysts were heated linearly at 10 ℃·min–1 to 800 ℃ in Ar flow (30 ml·min–1). The amount of desorbed H2 was measured with the TCD.
The XRD patterns of the reduced Ni-Re/SiO2 catalysts were recorded using a PANalytical X'Pert PRO diffractometer equipped with a Cu Kα radiation source. After reduction, the catalysts were passivated by exposing them to N2O/He (10% v/v) at 70 ℃ for 1 h. The patterns were recorded with a step size of 0.013° and a scan speed of 0.04° s–1.
TEM micrographs of the Ni-Re/SiO2 catalysts were acquired in bright-field mode using a Tecnai G2 F30 S-Twin electron microscope operated at 300 kV. The reduced catalysts were passivated by exposing them to N2O/He (10% v/v) at 70 ℃ for 1 h. The samples were prepared by dispersion of the catalysts powder on a carbon film-supported Cu grid. The particle size distribution was determined by measuring the sizes of more than 200 particles in different selected regions of the TEM images.
H2 chemisorption experiments were performed by a static chemisorption method using a Quantachrome Autosorb instrument. The experiment was carried out using ~0.5 g of the Ni-Re/SiO2 catalysts. The samples were reduced in situ in a flow of H2. After reduction, the sample was evaluated for 1 h to remove the residual H2 and cooled to room temperature. The H2 adsorption isotherms were measured at room temperature. The irreversible H2 uptake, determined from the total and reversible H2 uptakes, was used to calculate the amount of surface metal sites [20]. The H/Ni ratio in the chemisorption experiments was taken as 1. No detectable H2 uptake was observed on the monometallic Re/SiO2 catalyst.
CO- and MEA-adsorbed FT-IR measurements were recorded on a Thermo Scientific Nicolet iS50 spectrometer, equipped with a mercury-cadmium-tellurium (MCT) detector and operated at a resolution of 4 cm–1. For the CO-adsorbed FT-IR measurements, 15–20 mg powder samples were compressed into a self-supporting wafer and reduced in a cell with H2 for 1 h. Following reduction, the cell was evacuated to 10–2 Pa and cooled to room temperature. Background spectra were collected before CO adsorption. After cooling, CO gas was introduced into the cell for 20 min at room temperature. Finally, the cell was evacuated again and the spectra were recorded against a background of the sample. For the MEA-adsorbed FT-IR measurements, the cell was evacuated to approximately 40–50 Pa and cooled to 50 ℃ after reduction. The IR spectra of the samples were recorded as backgrounds. MEA vapor was introduced in the cell at 50 ℃ for about 10 min. After MEA adsorption, physically adsorbed MEA was desorbed in vacuum (40–50 Pa) at 50 ℃ for about 10 min. Next, the temperature of the cell was increased at a heating rate of 10 ℃·min–1 and the spectra of the samples were recorded.
X-ray photoelectron spectroscopy (XPS) spectra of the catalysts were recorded using a Thermo ESCALAB 250Xi spectrometer. A monochromatic Al Kα X-ray source of 15 kV was employed. The ex situ reduced powder catalysts were pressed into self-supported pellets. The chamber was evacuated to about 7.1 × 10–5 Pa. The binding energy (BE) values were referred to the Si 2p line at 103.4 eV.
The catalytic performance of the Ni-Re/SiO2 catalysts for MEA amination was evaluated in a trickle-bed reactor. As described previously [21, 22], about 3.6 ml (1.9 g) of oxide state catalysts were placed in the center of a stainless steel reaction tube, and the residual space was filled with silica sand. Before reaction, the catalyst was reduced in situ. Following reduction, the temperature was decreased to the reaction temperature. The feed, consisting of MEA and liquid NH3 (molar ratio 1:10), was injected into the reactor by a syringe pump. According to the industrial production conditions, MEA amination was performed at 170 ℃ under a total pressure of 8.0 MPa, a liquid hourly space velocity (LHSVMEA) of 0.5 h–1, and a H2 gas hourly space velocity (GHSV) of 60 h–1. The products were collected at intervals of about 6–12 h and analyzed using a gas chromatograph (Agilent 7890) fitted with a flame ionization detector and a DB-35 capillary column. The conversion and selectivity were calculated using the following equations:
where nMEA, in and nMEA, out are the number of moles of MEA initially added and remaining in the products, respectively, while ni represents the molar amount of compound i in the products.
In order to determine the TOF of MEA, the amount of used catalysts was varied in order to keep the conversion at a low level (below 20%). The effects of internal and external diffusion were excluded in the experiments. The reaction temperature and pressure remained the same, while the LHSVMEA was varied from 3.0 to 17.9 h–1. The TOF values of MEA were calculated using the following equations:
where r is the intrinsic reaction rate of catalyst, mcat. denotes the mass of catalysts, t is the reaction time, and nNi represents the molar amount of surface Ni sites measured by H2 chemisorption.

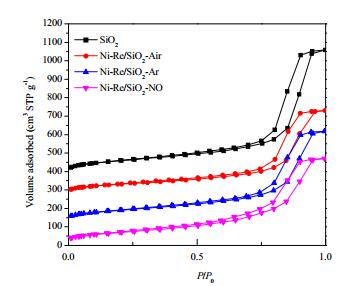

The porous nature of the SiO2 carrier and the calcined Ni-Re/SiO2 catalysts was confirmed by the analysis of N2 adsorption-desorption data. The N2 adsorption-desorption isotherms are shown in Fig. 1. All samples exhibited type Ⅳ isotherms with H1-shaped hysteresis loops, indicating the presence of uniform cylindrical mesoporous channels. The values of the BET surface area, total pore volume, and pore diameter are listed in Table 1. The SiO2 support exhibited a surface area of 285 m2·g–1, a pore volume of 1.1 cm3·g–1, and a pore diameter around 12.5 nm. After being impregnated with metal species and calcined under different atmospheres, the Ni-Re/SiO2 catalysts showed surface areas in the range of 226–259 m2·g–1. The pore volume and diameter were around 0.7–0.8 ml·g–1 and 12.3–12.6 nm, respectively. The decrease in surface area and pore volume was due to the partial blockage of the mesopores after Ni and Re were loaded on the support.

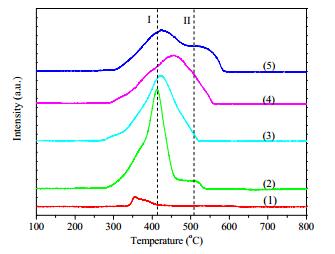

The interaction between metal species and SiO2 support was investigated using H2-TPR measurements. As shown in Fig. 2, the monometallic Re/SiO2 sample displayed a broad H2 consumption peak in the range of 330–420 ℃, corresponding to the reduction process of ReOx with different oxidation states [21, 23]. The Ni/SiO2 sample showed two reduction peaks: (Ⅰ) a broad peak around 412 ℃ ascribed to the reduction of bulk NiO particles weakly interacting with SiO2, and (Ⅱ) a small peak at 510 ℃ that was attributed to highly dispersed Ni2+ species that were difficult to reduce [24-27]. After being modified with the Re promoter, the Ni-Re/SiO2-Air catalyst showed a broad peak at 420 ℃. Among the Ni-Re/SiO2 catalysts pretreated in a flow of different gases, the Ni-Re/SiO2-Ar sample showed a reduction peak at 455 ℃, while the Ni-Re/SiO2-NO catalyst displayed a reduction peak at 420 ℃ and a shoulder at 530 ℃. A shift of the reduction peak to higher temperature was observed in the Ni-Re/SiO2 catalysts pretreated using either Ar or NO. This phenomenon may be attributed to the stronger interaction between NiO and the SiO2 support, due to the high dispersion of Ni species after calcination under dynamic Ar/NO atmosphere [28-31]. The H2-TPR results indicate that the calcination atmosphere could influence the reducibility of NiO species and the interaction between NiO and support in Ni-Re/SiO2 catalysts.

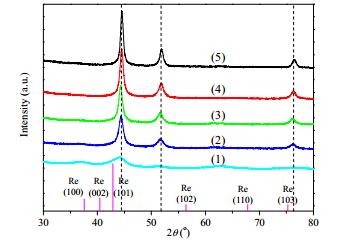

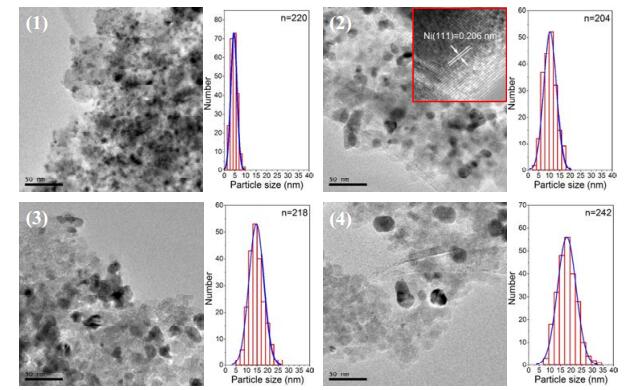

The crystal phase and dispersion of the Ni particles in the reduced catalysts were further investigated by XRD and TEM measurements. The XRD patterns are shown in Fig. 3. The pattern of monometallic Ni/SiO2 is also shown for comparison. The Ni/SiO2 catalyst exhibited three peaks at 44.5°, 51.9°, and 76.4°, which are characteristics of the (111), (200), and (220) crystal planes of metallic Ni (JCPDS 65-2865). In the Ni-Re/SiO2 catalysts, the introduction of Re did not affect the position of the Ni peaks. However, the Ni-Re/SiO2 catalysts that were thermally treated with different calcination atmospheres or reduction temperatures displayed different peak intensities, indicating different average crystallite sizes of the Ni particles in the four Ni-Re/SiO2 catalysts. Moreover, as shown in Fig. 3, no peaks corresponding to Re species (JCPDS 65-7974) were detected in any of the Ni-Re/SiO2 catalysts. This result could be ascribed to the low loading and high dispersion of the Re species. The Ni particle size distribution of the reduced Ni-Re/Al2O3 catalysts was analyzed by TEM. The corresponding images are shown in Fig. 4 and the average particle sizes are listed in Table 2. The high-resolution TEM image of a metal particle in Ni-Re/SiO2-10.5 is shown in the inset of Fig. 4(2). The metal particle exhibited an interplanar spacing of 0.206 nm, which was assigned to the lattice fringe of the Ni(111) plane. As shown in Fig. 4, the size distributions obtained from Gaussian fitting confirmed that the Ni particles were uniformly dispersed on the SiO2 surface. The TEM results indicate that Ni-Re/SiO2 catalysts with various Ni particles sizes (4.5–18.0 nm) were successfully synthesized. The number of surface Ni sites and the metal dispersion values were calculated from the H2 chemisorption data and are summarized in Table 2. It should be noted that H2 chemisorption was not detected on monometallic Re/SiO2. Therefore, the H2 consumption on the Ni-Re/SiO2 catalysts was used determine the number of surface Ni sites. For the Ni-Re/SiO2 catalysts, this number increased by about seven times (from 64.1 to 424.6 μmol·gcat.–1) as the Ni particle size decreased from 18.0 to 4.5 nm. This result could be ascribed to the enhanced Ni dispersion in Ni-Re/SiO2 catalysts calcined in a flow of either Ar or NO [28, 29].

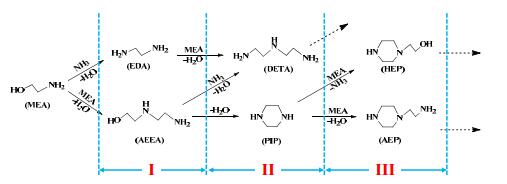

The MEA amination reactions were carried out in a trickle-bed reactor at 170 ℃ and 8.0 MPa. The LHSVMEA was maintained at around 0.5 h–1, according to the industrial production conditions [4, 32, 33]. The product amines collected at ~30 h were used to assess the catalytic performance. The results of the amination reaction over the Ni-Re/SiO2 catalysts are shown in Table 3. Upon increasing the particle size from 4.5 to 18.0 nm, the MEA conversion decreased from 85.7% to 51.1% and the selectivity to EDA showed a linear increase (from 51.5% to 65.6%). Moreover, decreasing of the particle size significantly improved the selectivity to PIP, while also reducing the generation of the AEEA by-product. At the same time, the selectivities to DETA, HEP, and AEP showed a slight increase as the particle size of the Ni-Re/SiO2 catalysts decreased. The results show that the Ni-Re/SiO2-4.5 catalyst, with the lowest metal particle size, exhibited the highest yield (66.4%) of the desired EDA and PIP amines. To the best of our knowledge, the value obtained in this work is higher than those reported in previous studies or patents. Zhang et al. [34] studied the amination of MEA on Co/H-ZSM-5 catalysts and obtained a total (EDA and PIP) yield of 42.5% at 230 ℃ and 6.0 MPa. Ding and coworkers [33] assessed the catalytic performance of Ni-Re/Al2O3 catalysts for MEA amination in a fixed bed reactor. The Ni-Re/Al2O3 catalyst showed a yield of 52.3% at 160 ℃ and 8.0 MPa. Chang et al. [32] described Ni-based catalysts for the MEA amination reaction. The highest total yield of EDA and PIP was reported to be 41.0% at 180 ℃ and 16.5 MPa. Another example is Ni-Re/Al2O3 that showed an EDA and PIP total yield of 57.8% for the amination of MEA at 180 ℃ and 12.5 MPa [4]. According to the reports, the MEA amination reaction was always performed under high pressure (> 12 MPa), because the formation of supercritical NH3 at a high reaction pressure was deemed crucial to improve the catalyst activity [35, 36]. In conclusion, the Ni-Re/SiO2-4.5 catalyst, with the lowest particle size (4.5 nm), exhibited a higher yield of the desired EDA and PIP amines under a lower reaction pressure (8.0 MPa) compared to those of the catalyst systems previously used for MEA amination.
It should be noted that the activity of Ni-Re/SiO2 catalysts depends on the number of surface Ni sites [19, 37]. The decrease of the Ni particle size improves the dispersion and number of surface Ni sites in Ni-Re/SiO2 catalysts. Therefore, the NO-pretreated Ni-Re/SiO2-4.5 catalyst, with the largest number of surface Ni sites (Table 2), exhibited the highest MEA conversion under the same reaction conditions (Table 3). As shown in Scheme 1, at the beginning there are two competitive reaction pathways for MEA amination: (1) the reaction of MEA with NH3 to form EDA, and (2) the self-amination reaction between two MEA molecules to form AEEA. Next, as the MEA conversion increases, the EDA and AEEA amines take part in the subsequent amination reactions to form other secondary or tertiary amines, including PIP, DETA, HEP, and AEP. The Ⅰ:Ⅱ:Ⅲ molar ratio was used to measure the progress of the MEA amination reaction. As shown in Table 3, the Ⅰ:Ⅱ:Ⅲ ratio decreased with an increase in MEA conversion, indicating that higher amounts of secondary (PIP and DETA) and tertiary (AEP and HEP) amines were generated. Furthermore, we calculated the ratio between primary (EDA) and secondary (AEEA, PIP, and DETA) amines (Pri.:Sec.), which is representative of the product distribution. As shown in Table 3, the Pri.:Sec. ratio increased with an increase in Ni particle size. However, it is unclear whether these differences were due to the reaction progress or to the Ni particle size. To investigate the effects of the Ni particle size on the amination activity and product distribution, the MEA conversion should be controlled at a low and similar level. The effects of the Ni particle size are discussed in the following section.

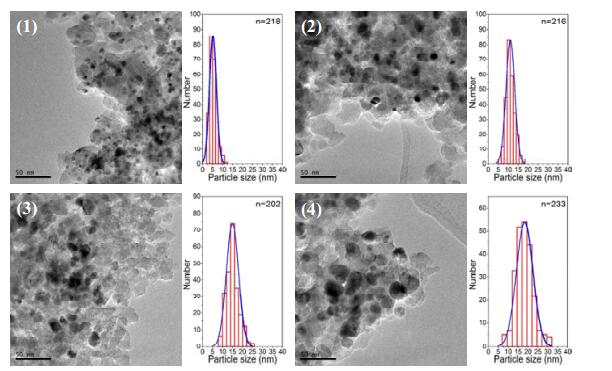

The morphology and particle size of the spent Ni-Re/SiO2 catalysts were also characterized by TEM. The TEM images and Ni particle size distributions are shown in Fig. 5 and Table 2. The comparison of the fresh and spent Ni-Re/SiO2 catalysts reveals that the Ni particle sizes showed very little changes after amination.
The intrinsic reaction rates and TOFs measured for the Ni-Re/SiO2 catalysts are shown in Table 4. The Ⅰ:Ⅱ:Ⅲ ratios for all catalysts were around 89/10/1, indicating that the amination reaction proceeded to a low and similar extent. The MEA amination results are listed in Table S1. The intrinsic reaction rate decreased by more than five times (from 83 to 15 mmol·gcat.–1·h–1) as the Ni particle size increased from 4.5 to 18.0 nm. The TOF of MEA conversion of the Ni-Re/SiO2 catalysts showed a slight increase from 193 to 253 h–1 with the increase of the Ni particle size, indicating that the larger size of the Ni particles had a positive effect on the activity of the Ni-Re/SiO2 catalysts. Shimizu et al. [19] reported that the TOF of per surface Ni site increased with a decrease in Ni particle size. Such difference might be due to the different substrates and reaction pressure used. Turning to the product distribution, the Pri.:Sec. molar ratio increased linearly from 1.0 to 2.0 as the Ni particle size increased, demonstrating that the surface Ni sites in larger particles favored the formation of primary amines. Furthermore, the EDA:AEEA ratio was used to study the competitive reactions of carbonyl compounds (2-aminoacetaldehyde) with NH3 and another MEA molecule (Scheme 1). As shown in Table 4, the EDA:AEEA ratio increased from 1.3 to 2.7 when the Ni particle size increased from 4.5 to 18.0 nm. As the selectivity to DETA of the four Ni-Re/SiO2 catalysts was almost equal (4.7%–5.8%), the increase in EDA cannot originate from the inhibition of the second amination reaction of EDA. The higher EDA:AEEA ratio indicates that the condensation between 2-aminoacetaldehyde and NH3 was facilitated, or that the condensation between 2-aminoacetaldehyde and MEA was inhibited during the first amination process (Scheme 1). To further analyze the size effects on the reaction pathway, the TOF values of EDA and AEEA formation on Ni-Re/SiO2 catalysts are also listed in Table 4. Upon increasing the size of the Ni particles, TOFEDA increased from 63 to 119 h–1, while TOFAEEA remained almost constant (44–49 h–1). These results indicate that the Ni particle size affected the competitive reactions during the amination reaction. The amination between MEA and NH3 molecules to form EDA was more favorable on larger Ni particles of the Ni-Re/SiO2 catalysts during the first amination process.

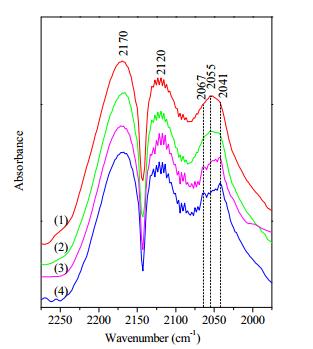

It is well known that the surface chemical properties and electronic structure vary with the metal particle size [38, 39]. To understand the relationship between metal particle size and catalytic performance, the electronic state of the nanoparticles of Ni-Re/SiO2 catalysts was studied using CO-adsorbed FT-IR spectroscopy [40, 41]. The FT-IR spectra are shown in Fig. 6. In general, all samples showed two absorption peaks centered at 2170 and 2120 cm–1, due to the physisorbed CO species on the Ni-Re/SiO2 catalysts [42, 43]. The bands corresponding to linearly adsorbed CO on surface step/corner Ni sites with lower coordination numbers were observed at 2067 and 2055 cm–1. The band around 2041 cm–1 could be ascribed to linear CO adsorbed on high-coordinated terrace Ni sites [44-46]. As indicated by the CO-adsorbed FT-IR results, the relative intensity of the band at 2041 cm–1 gradually increased with an increase in metal particle size in the Ni-Re/SiO2 catalysts. The absorbance ratios of the peaks at 2041 and 2055 cm‒1 are also listed in Table S2. These ratios increased with an increase in Ni particle size, indicating a greater proportion of surface Ni sites with high coordination number. The CO-probed IR results indicate that the electronic structure of the Ni-Re/SiO2 catalysts was influenced by the Ni particle size, which was probably the main reason for the difference in catalytic performance.

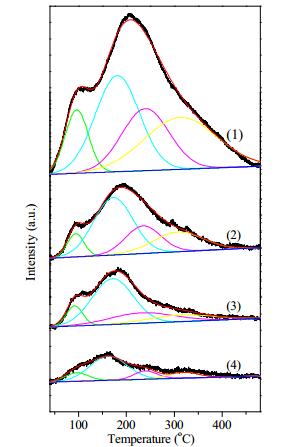

The H2-TPD method was used to further investigate the surface properties of Ni in the Ni-Re/SiO2 catalysts. The H2-TPD profiles and corresponding deconvoluted peaks are shown in Fig. 7. No H2 desorption on reduced Re/SiO2 and unreduced Ni-Re/SiO2 catalysts was detected by TCD. Therefore, the H2 amount detected in the Ni-Re/SiO2 catalysts was ascribed to the hydrogen adsorbed on Ni sites. All samples showed a broad peak in the range of 50–480 ℃, which included several components. Four peaks around 94, 170, 238, and 315 ℃ were obtained after deconvolution. It has been reported that Ni atom at different sites (terraces, steps, and corners) show different hydrogen adsorption strength [9, 47, 48]. Hydrogen was weakly adsorbed on high-coordinated terrace Ni. In contrast, corner Ni sites with low coordination number showed the highest hydrogen adsorption strength. According to a previous study, the peak at 94 ℃ was attributed to the desorption of weakly adsorbed H2. The three other peaks at higher temperature could be assigned to desorption of hydrogen from Ni at terrace, step, and corner sites, respectively. The calculated proportions of different Ni surface sites are shown in Fig. 8. The proportion of terrace Ni sites increased linearly with the particle size, while the proportion of step/corner Ni showed the opposite trend. The H2-TPD results further confirm that the proportion of different surface Ni sites varied with the particle size of the Ni-Re/SiO2 catalysts.

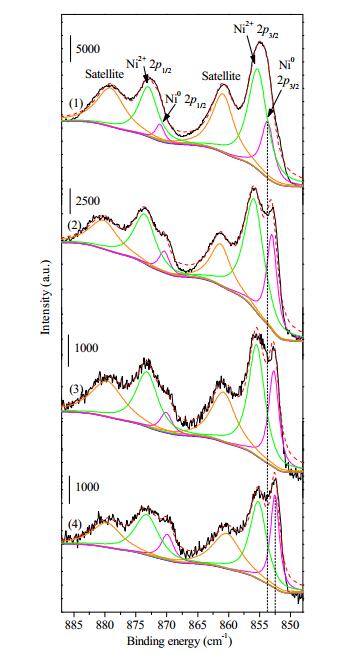

XPS was used to analyze the electronic structure of the Ni-Re/SiO2 catalysts. The of Ni 2p XPS spectra the ex situ reduced Ni-Re/SiO2 catalysts and the deconvoluted peaks are shown in Fig. 9, while the curve-fitting data are listed in Table 5. The peaks around 860 and 879 eV were ascribed to the shake-up satellite peaks of Ni2+ 2p3/2 and Ni2+ 2p1/2, respectively [21, 49]. It can be observed that the Ni0 2p3/2 peak shifts from 853.7 to 852.5 eV with an increase in size of Ni particles, probably due to the different atomic relaxation in large and small nanoparticles [50, 51]. The surface Ni sites showed a lower electron density in small than large particles. Furthermore, oxidation of the catalysts took place during their preparation, and varying degrees of oxidation were observed in the four catalysts. The decrease in particle size led to a significantly higher proportion of Ni2+ (around 855 eV), indicating that small Ni particles were more easily oxidized. The Ni:Si atomic ratio decreased from 0.087 to 0.011 upon increasing the Ni particle size, which was ascribed to the lower Ni dispersion. In conclusion, the XPS results indicate that the electronic properties of surface Ni sites were influenced by the particle size. The electron density of Ni increased with an increase in particle size.
Few previous reports investigated the effects of the metal particle size on the amination of alcohol amines. In this study, to focus on the effects of the Ni particle size, we employed inert silica to eliminate support interferences. As shown in Fig. S1, the activity of monometallic Ni/SiO2 decreased rapidly in the initial reaction stage. According to previous studies, the deactivation of Ni/SiO2 catalysts is due to the sintering of metallic Ni particles under H2 and NH3 atmospheres at high pressure [21, 52, 53]. Therefore, the Re promoter was introduced in the Ni/SiO2 catalyst system in order to maintain the stability of the Ni particle size. To assimilate the effect of Re, the metal loading of Re in all Ni-Re/SiO2 catalysts was kept constant at 1.5 wt% (Table 2). By adjusting the calcination atmosphere and reduction temperature, Ni-Re/SiO2 catalysts with varying Ni particle sizes (4.5–18.0 nm, Table 2) were synthesized. The monometallic Re/SiO2 catalyst showed no activity in MEA amination. In addition, the XRD and high-resolution TEM results reveal that the structure of Ni was not modified by Re. After amination, the Ni particle sizes in spent Ni-Re/SiO2 catalysts (Table 2) showed very little changes compared to the fresh catalysts.
The catalytic performances of the Ni-Re/SiO2 catalysts (Table 3) reveal that the MEA conversion and yield of desired amines (EDA and PIP) increased with a decrease in Ni particle size. The Ni-Re/SiO2-4.5 catalyst showed the highest yield (66.4%). To the best of our knowledge, this is the highest MEA amination yield reported to date. As the MEA amination reaction is catalyzed by metallic Ni sites, the main reason for the high MEA conversion is the increased surface Ni area of the Ni-Re/SiO2-4.5 catalyst.

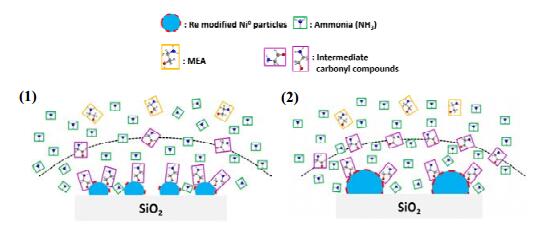

The structure-activity relationship between Ni particle size and MEA amination was then investigated. The experimental results (Table 4) indicate that the TOFMEA and molar ratio of primary to secondary amines increased with an increase in Ni particle size of the Ni-Re/SiO2 catalysts. Based on the above results, we conclude that increasing the size of Ni particles of Ni-Re/SiO2 catalysts not only has a positive effect on their activity for MEA amination, but also improves their selectivity to primary amines. Further analysis reveals that the TOFEDA increased from 63 h–1 for Ni-Re/SiO2-4.5 to 119 h–1 for Ni-Re/SiO2-18.0. On the other hand, the Ni particle size had only minor effects on the TOFAEEA value. These results indicate that the Ni particle size affected the reaction pathway of the amination reaction (Scheme 1). More specifically, increasing the metal particle size could promote the amination reaction between MEA and NH3 molecules over Ni-Re/SiO2 catalysts. This phenomenon could be attributed to the changes in surface electronic structure of the metal particles, as shown by CO-adsorbed FT-IR, H2-TPD, and XPS measurements. The change in electronic properties may have an impact on the adsorption and/or dehydrogenation progress of MEA during amination, leading to a different product distribution. Taking Ni-Re/SiO2-4.5 and Ni-Re/SiO2-18.0 catalysts as an examples, the adsorption strength of MEA would be lower on the Ni-Re/SiO2-18.0 than Ni-Re/SiO2-4.5 catalyst, due to the difference in the electron density and the coordinatively unsaturated environment of surface Ni atoms. After dehydrogenation of MEA, the carbonyl compounds would be more easily desorbed from the high-coordinated terrace Ni sites and transferred to the liquid phase to react with NH3 (Scheme 3), compared to the same process on surface step/corner Ni sites. For these reasons, the Ni-Re/SiO2-18.0 catalyst with a higher proportion of terrace Ni sites was more active in the formation of EDA.

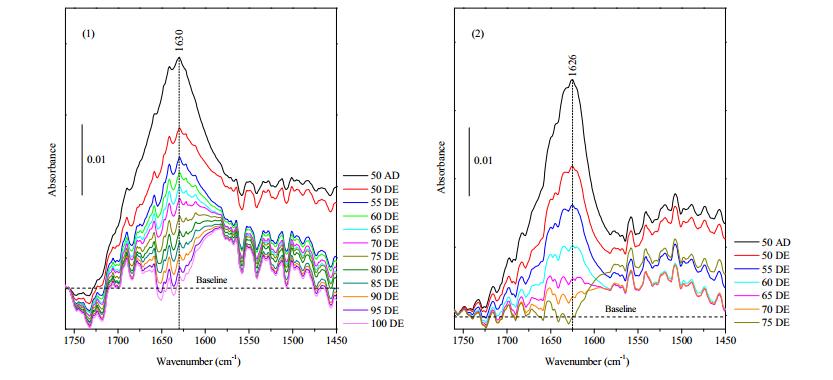

To prove this hypothesis, we tested the adsorption strength of MEA on Ni-Re/SiO2-4.5 and Ni-Re/SiO2-18.0 catalysts using in situ FT-IR measurements. The adsorption of MEA on Ni-Re/SiO2 took place at 50 ℃ and physically adsorbed MEA was desorbed in vacuum at about 40–50 Pa. Next, the changes in the MEA-adsorbed IR spectra were recorded during a temperature programmed process in vacuum. The FT-IR spectra are shown in Fig. 10. For comparison, we also recorded the IR spectra of liquid and vapor MEA, shown in Fig. S2. Liquid MEA showed three peaks at 1599, 1460, and 1358 cm–1, which were assigned to the deformation vibration of NH, –CH2, and OH groups, respectively [54]. An adsorption peak at 1625 cm–1 was detected in the spectrum of MEA vapor. Combined with the characteristic peaks of the CH stretching vibration at 2931 and 2864 cm–1 and the NH stretching vibration at 3334 cm–1, the peak at 1625 cm–1 was assigned to the deformation vibration of NH, which was blue-shifted compared to that in the spectrum of liquid MEA. In the case of MEA vapor adsorbed on Ni-Re/SiO2 catalysts (Fig. 10), NH deformation bands were observed around 1630 cm–1. The peak intensity decreased gradually with an increase in temperature, indicating that MEA was desorbed from the surface of the Ni-Re/SiO2 catalysts. The peak intensity of the Ni-Re/SiO2-4.5 catalyst (Fig. 10(a)) was nearly level with the baseline when the temperature reached approximately 100 ℃, indicating that MEA was almost completely desorbed from surface of catalyst. However, in Fig. 10(2), the peak disappeared at a lower temperature (70–75 ℃), demonstrating that MEA desorbed more easily from the Ni-Re/SiO2-18.0 catalyst. The MEA-adsorbed FT-IR results prove that the adsorption strength of MEA was weaker on the Ni-Re/SiO2-18.0 than Ni-Re/SiO2-4.5 catalyst.
In conclusion, increasing the Ni particle size in Ni-Re/SiO2 catalysts slightly improved the TOF of MEA amination, and enhanced the selectivity to EDA. Further analyses indicate that increasing the Ni particle size affected the reaction pathway by promoting the amination between MEA and NH3 to form EDA. In practical applications, the decrease in Ni particle size could improve the utilization of Ni species by enhancing the metal dispersion of the Ni-Re/SiO2 catalysts. Although the decrease in Ni particle size partly reduced the TOFMEA, it could improve the yield of desired amines. In our study, the Ni-Re/SiO2-4.5 catalyst with Ni particle sizes of 4.5 nm exhibited the highest yield of EDA and PIP amines.
In this study, we provided insights into the effects of the Ni particle size of Ni-Re/SiO2 catalysts on MEA amination. Ni-Re/SiO2 catalysts (Ni 20 wt%, Re 1.5 wt%) with variable Ni particle sizes were prepared by adjusting the calcination atmosphere and reduction temperature. The Ni particle sizes of the Ni-Re/SiO2 catalysts remained almost unchanged after the amination reaction. The Ni-Re/SiO2-4.5 catalyst, with an average particle size of 4.5 nm, showed the highest yield (66.4%) of the desired amines (EDA and PIP), which was higher than the yields reported in previous studies and patents. The high MEA conversion of the Ni-Re/SiO2-4.5 catalyst was due to its high Ni dispersion and abundant surface Ni sites.
The amination of MEA was a structure-sensitive reaction. The variation of the Ni particle size affected the activity of the Ni-Re/SiO2 catalysts and their product distribution during the reaction. The experimental results indicate that the TOF values of MEA amination were higher for larger Ni particles. For the amination products, the TOFEDA and Pri.:Sec. values increased with an increase in Ni particle size. Further analyses show that the Ni particle size influenced the electron density and coordination environment of surface Ni sites in Ni-Re/SiO2 catalysts. Increasing the Ni particle size enhanced the proportion of terrace Ni sites and increased the electron density of surface Ni sites. Large Ni particles were more beneficial for the desorption of intermediate products, thus facilitating the amination between MEA and NH3 to form EDA.
