Aliphatic amines are important chemicals widely used for the synthesis of pharmaceuticals, agrochemicals, bioactive compounds, polymers and dyes [1, 2]. The liquid-phase hydrogenation of nitriles conducted at high hydrogen pressures in presence of metal catalysts is an important route to produce the corresponding saturated amines at industrial level. The reaction proceeds through consecutive hydrogenation/condensation steps forming a mixture of primary, secondary and tertiary amines. The most accepted reaction mechanism for nitrile hydrogenation to amines is based on the pioneer work of Sabatier and Senderens [3], Braun et al. [4], and others [5, 6], and is illustrated in Fig. 1 for butyronitrile hydrogenation. Butyronitrile (BN) is initially converted to butylimine that is consecutively hydrogenated to n-butylamine (BA). Butylimine is a highly reactive intermediate that interacts with n-butylamine to form 1-aminodibutylamine which gives by deamination the secondary imine, butylidene-butylamine (BBA), that is finally hydrogenated to dibutylamine (DBA). Similarly, butylimine may react with dibutylamine giving 1-aminotributylamine that after consecutive deamination and hydrogenation leads to the formation of tributylamine (TBA).

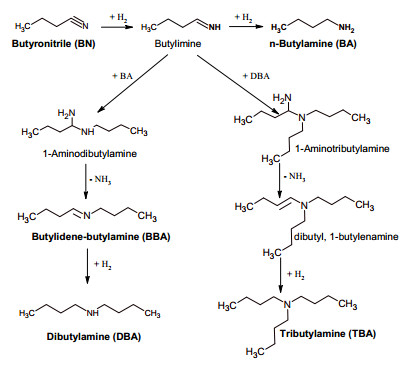

According to the reaction network of Fig. 1, butyronitrile forms initially BA that is then converted to DBA and TBA through consecutive condensation reactions. Frequently, high selectivity to a given amine is wanted in order to eliminate the cost of the product separation process. Thus, increasing research efforts have been devoted to gain fundamental knowledge on the selectivity of nitrile hydrogenation toward different amines [7, 8]. Several papers have reported that the activity and selectivity of nitrile hydrogenation on metal-supported catalysts depend mainly on the nature of the metal [9, 10]. For example, Ni, Co and Ru show high selectivity towards the production of primary amines while noble metals such as Pt, Pd and Rh promote the formation of secondary and tertiary amines [8, 10, 11]. However, the reaction selectivity also depends on other parameters such as the support acid/base properties, the solvent nature and the catalyst preparation method. In previous works, we have thoroughly studied the effect of solvent on nitrile hydrogenation selectivity and activity using metal-supported catalysts [12-14]. The influence of support acidity on catalyst selectivity has also been investigated, but while some authors propose that the surface acidity favors the condensation reactions and is detrimental for the formation of primary amines [15, 16], others suggest that acidity has no influence on the reaction selectivity [17]. Finally, there are very few studies dealing with the effect of the preparation method of the catalyst on the reaction selectivity. The incipient wetness impregnation method has been used to prepare Ni/SiO₂ catalysts highly selective for obtaining primary amines from nitrile hydrogenation [10]. In this method, the pH of the synthesis environment is fixed by the solution of the precursor salt. In this way, when silica is impregnated with a solution of nickel nitrate, the metal is deposited at pH between 5 and 6. Catalysts prepared by incipient-wetness impregnation typically presents large metal particles and weak metal-support interactions. Other preparation procedures such as ion-exchange, deposition-precipitation, and the ammonia method have been employed to obtain well-dispersed Ni/SiO₂ catalysts [18, 19]. In particular, the ammonia method was developed to prepare Ni/SiO₂ catalysts exhibiting uniform dispersion of small nickel particles at relatively high metal loadings [20, 21]. Essentially, the ammonia method consists of contacting silica with Ni(Ⅱ) ammonia solutions prepared by adding concentrated solutions of NH₄OH to an aqueous solution of nickel nitrate at pH between 9 and 11. Cation complexes such as [Ni(NH₃)₆]²⁺ are formed and exchanged with acidic protons on the support surface.

In the present work, we studied the effect of the catalyst preparation method on the performance of Ni/SiO₂ for the hydrogenation of nitriles using butyronitrile as model molecule. Ni/SiO₂ catalysts were prepared by both the incipient wet impregnation and the ammonia methods. Results show that Ni/SiO₂ prepared by incipient wet impregnation forms selectively butylamine (primary amine) whereas prepared by the ammonia method produces essentially dibutylamine (secondary amine) and tributylamine (tertiary amine), thereby indicating that the reaction selectivity may be tuned by selecting the proper catalyst preparation method.

Nickel-on-silica catalysts were prepared by incipient-wetness impregnation (Ni/SiO₂-Ⅰ) and ammonia (Ni/SiO₂-A) methods. Ni/SiO₂-Ⅰ (3.5% Ni) was obtained by impregnating at room temperature a commercial SiO₂ sample (Davisil Grade 62, 300 m²/g) with a aqueous solution (0.33 mol/L) of Ni nitrate (Ni(NO₃)₂.6H₂O, Fluka 98%). Then, the impregnated sample was dried for 12 h at 373 K and calcined in air at 673 K for 2 h. Before performing the catalytic tests, Ni/SiO₂-Ⅰ was reduced in H₂ for 1 h at 673 K. Ni/SiO₂-A (3.2% Ni) was prepared by adding NH₄OH 28% to a suspension of 5 g of dry support in 80 mL of a solution 0.5 mol/L of Ni(NO₃)₂.6H₂O (Anedra) until pH = 10 to generate the adsorbed nickel hexamine complex. The green solid was then separated by filtration, washed with a NH₄OH solution (pH = 10) and dried for 12 h at 373 K. Before performing the catalytic tests, Ni/SiO₂-A was reduced in H₂ for 1 h at 823 K. A Ni/SiO₂-Al₂O₃-Ⅰ (4.1% Ni) sample was prepared by incipient-wetness impregnation following the same procedure detailed above for preparing Ni/SiO₂-Ⅰ and using a commercial SiO₂-Al₂O₃ support (Sigma-Aldrich Grade 135, 467 m²/g, Si/Al = 6.7). This sample was reduced in H₂ at 773 K for 1 h prior to carry out the catalytic tests.

BET surface areas (S_BET) were measured by N₂ physisorption at 77 K in a Micromeritics Accusorb 2100E sorptometer and the nickel loadings were determined by inductively coupled plasma atomic emission spectroscopy (ICP-AES), using a Perkin-Elmer Optima 2100 unit. The metal dispersion (D_Ni, surface Ni atoms/total Ni atoms) was determined by H₂ chemisorption performing volumetric adsorption experiments at room temperature (RT) in a conventional vacuum unit. Catalysts were reduced in H₂ at the same conditions used to activate them prior to catalytic tests, and then outgassed for 2 h prior to perform gas chemisorption experiments. The hydrogen uptake was determined using the double isotherm method as detailed elsewhere [22]. D_NI was obtained based only on the amount of nickel reducible to metallic nickel; that is, the amount of unreducible nickel was assumed to interact so strongly with the support that it would not be part of the metal particles. A stoichiometric atomic ratio H/Ni_s = 1, where Ni_s implies a Ni atom on surface, was used to calculate D_Ni. Average Ni crystallite sizes were determined by assuming cubic particles and a cross-sectional area of 0.065 nm² for a Ni atom [23].

The temperature programmed reduction (TPR) experiments of calcined samples were performed in a Micromeritics AutoChem Ⅱ 2920 equipped with a TCD detector, under a 5% H₂/Ar gaseous mixture at 60 cm³/min STP. Samples were heated from RT to 1073 K at 10 K/min.

The calcined and reduced Ni samples were analyzed by X-ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS) techniques. Prior to analysis, the reduced samples were passivated before exposing to air by treating them at RT in a O₂(2%)/He mixture for 30 min. The solid structure and crystal size of calcined and reduced-passivated samples was determined by XRD in the range of 2θ= 10°‒70° using a Shimadzu XD-D1 diffractometer and Ni-filtered Cu K_α radiation. Mean crystallite size were calculated using the Scherrer equation.

XPS analyses were performed in a SPECS multianalysis device, equipped with a dual Mg/Al X-ray source and a PHOIBOS 150 hemispherical analyzer. Spectra were obtained under ultra-high vacuum conditions, using the monochromatic Mg K_α radiation with a 200-W source power and a fixed analyzer pass energy of 30 eV. The pressure in the analyzing chamber was lower than 5.10^‒7 Pa. The spectral region corresponding to Ni 2p core level was analyzed for each sample. Casa XPS software (Casa Software Ltd., UK) was used for data treatment. The spectra were corrected by referencing the XPS C 1s binding energy (284.6 eV).

Acid site densities were determined by temperature-programmed desorption (TPD) of NH₃ preadsorbed at 373 K. Samples (200 mg) were exposed to a 1% NH₃/He stream (60 cm³/min) for 1 h. Weakly adsorbed NH₃ was removed under a 60 cm³/min flow of He at 373 K during 1 h. Finally, the temperature was increased at 10 K/min and the NH₃ concentration in the effluent was followed by mass spectrometry (MS) in a Baltzers Omnistar unit.

The nature and strength of surface acid sites were determined by Fourier transform infrared spectroscopy (FTIR) in a Shimadzu FTIR-8101M spectrophotometer using pyridine as a probe molecule. Samples were ground to a fine powder and pressed into wafers (20‒40 mg) at 5 ton/cm. The discs were mounted in a quartz sample holder and transferred to an inverted T-shaped Pyrex cell equipped with CaF₂ windows. Samples were outgassed in vacuum at 623 K during 4 h and then a background spectrum was recorded after being cooled down to RT. Data were obtained at RT after admission of pyridine and degassing at 423, 573, and 723 K for 30 min. Spectra were recorded by subtracting the background spectrum. The spectral resolution was 2 cm^-1 and the spectra are the average of 50 scans.

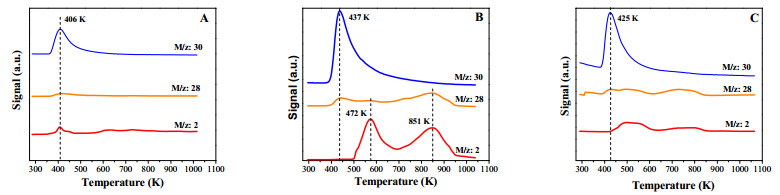

The butylamine interactions with the catalysts were studied by temperature-programmed desorption (TPD) of butylamine preadsorbed at RT. Calcined samples (200 mg) were reduced between 673 and 873 K for 1 h and then cooled down to RT. Afterwards, a He stream was bubbled through the reagent to saturate the gaseous stream with butylamine vapor and the sample was contacted to this stream for 1 h. The effluent composition was monitored by mass spectrometry (MS) in a Baltzers Omnistar unit. Weakly adsorbed butylamine was removed by flushing with He (60 cm³/min) at RT for 1 h. Temperature was then increased at 10 K/min and the composition of the reactor effluent was measured by mass spectrometry.

Catalytic tests for the liquid-phase hydrogenation of butyronitrile (Aldrich, > 99%) were performed in a stainless-steel autoclave at 13 bar (H₂) and 373 K, using ethanol (Cicarelli, ACS) as solvent. The reactor was loaded with 150 mL of solvent, 1.0 g of catalyst, 3 mL of butyronitrile, and 1 mL of n-dodecane (Aldrich > 99%) as internal standard. Samples were activated ex-situ in hydrogen for 1 h at 673 K (Ni/SiO₂-Ⅰ), 773 K (Ni/SiO₂-Al₂O₃-Ⅰ) and 823 K (Ni/SiO₂-A), and loaded under inert atmosphere to the reactor. The reaction mixture was stirred at 800 rpm and heated gradually to the reaction temperature; the H₂ pressure was then rapidly increased to 13 bar.

The composition of the reaction mixture was analyzed by ex-situ gas chromatography using an Agilent 6850 GC chromatograph equipped with flame ionization detector, temperature programmer and a 50 m HP-1 capillary column (50 m × 0.32 mm ID, 1.05 μm film). Samples from the reaction system were taken by using a loop under pressure in order to avoid flashing. Data were collected every 15-40 min for 550-700 min. Interparticle and intraparticle diffusional limitations were verified as negligible. Conversion of butyronitrile was calculated as , where is the initial concentration of butyronitrile and C_BN is the concentration of butyronitrile at reaction time t. Selectivities (S_j, mol of product j/mol of butyronitrile reacted) were calculated as where v_BN and v_j are the stoichiometric coefficients of butyronitrile and product j, respectively. Yields (Y_j, mol of product j/mol of butyronitrile fed) were calculated as Y_j= S_jX_BN.

The metal loading and the physicochemical properties of the catalyst are given in Table 1. Specific surface areas of Ni/SiO₂-Ⅰ (290 m²/g) and Ni/SiO₂-A (285 m²/g) were slightly lower than that of SiO₂ support (300 m²/g) while S_BET of Ni/SiO₂-Al₂O₃-Ⅰ (460 m²/g) was like that of SiO₂-Al₂O₃ (467 m²/g). These results show that there is not any significant blockage of the support porous structure by the addition of the metal. Fig. 2(A) shows the XRD patterns obtained for calcined samples. Ni/SiO₂-Ⅰ and Ni/SiO₂-Al₂O₃-Ⅰ presented a single phase of NiO (ASTM 4-835). The NiO particle sizes were 12 and 11 nm for Ni/SiO₂-Ⅰ and Ni/SiO₂-Al₂O₃-Ⅰ, respectively (Table 1). The Ni/SiO₂-A diffractogram presented diffraction signals that based in previous results [24, 25] may be associated with the presence of Ni²⁺ ions in Ni-containing phyllosilicates (layered nickel silicates) widely dispersed on the surface. Ni phyllosilicates consist of brucite-type layers containing Ni²⁺ in octahedral coordination and one or two sheets of tetrahedral SiO₄ units [26, 27]. The sandwich-like structures of Ni phyllosilicates with formula Ni₃Si₄O₁₂H₂ (Ni 2:1 PS) and Ni₃Si₂O₅(OH)₄ (Ni 1:1 PS) have been detailed described elsewhere [28, 29].

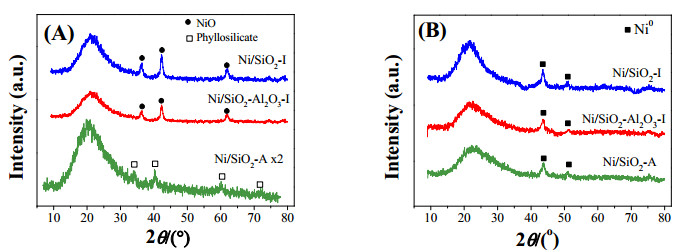

After reduction for 1 h at 673 K (Ni/SiO₂-Ⅰ), 773 K (Ni/SiO₂-Al₂O₃-Ⅰ) and 823 K (Ni/SiO₂-A) the three samples presented only a single crystalline phase of metallic Ni (Fig. 2(B)). No diffraction signals corresponding to Ni-phyllosilicate structures were detected in reduced Ni/SiO₂-A. The Ni⁰ crystallite sizes as determined by Scherrer equation are included in Table 1 and show that Ni⁰ particles on Ni/SiO₂-A were smaller than on samples prepared by wet impregnation.

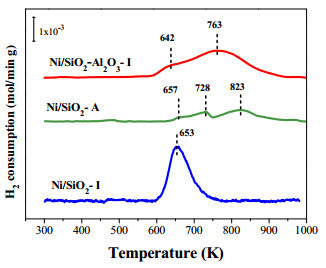

Fig. 3 shows the TPR profiles of calcined samples. In the case of Ni/SiO₂-Ⅰ, a single consumption peak with a maximum at 653 K was observed. According to literature [30, 31], this peak arises from the reduction of large particles of bulk NiO interacting weakly with the silica support. The TPR profile of Ni/SiO₂-Al₂O₃-Ⅰ exhibited a broad reduction band that was well deconvoluted into peaks centered at 642 and 763 K, respectively (Fig. 3). Other authors have also reported that the TPR curves of Ni/SiO₂-Al₂O₃ catalysts prepared by wet impregnation present two superimposed reductions peaks [32-34]. The low-temperature at 642 K corresponds to the direct reduction of NiO to metallic nickel, while the high-temperature peak can be assigned to the reduction of Ni²⁺ species interacting strongly with the support, probably formed by partial cation exchange with the support during the impregnation [32, 34]. Finally, the TPR profile of Ni/SiO₂-A showed three peaks at 657, 728 and 823, respectively: the first small peak was assigned to the reduction of NiO particles, while the second and third one was attributed to the reduction of Ni⁺² compounds that interact strongly with the support in the form of phyllosilicate-type compounds [35, 36].

In order to establish the reduction degree (RD) of our Ni-supported samples at the beginning of the catalyst tests, we performed additional TPR experiments using the Ni samples reduced in H₂ at the same conditions employed for activated them prior to catalytic tests; i.e. samples Ni/SiO₂-Ⅰ, Ni/SiO₂-Al₂O₃-Ⅰ and Ni/SiO₂-A were reduced for 1 h at 673, 773 and 823 K, respectively, and then characterized by TPR. Results are reported in Table 1. The RD values for Ni/SiO₂-Ⅰ and Ni/SiO₂-Al₂O₃-Ⅰ were 100% and 95%, respectively, thereby showing that Ni was almost completely reduced to Ni⁰ for the samples prepared by wet impregnation. In contrast, RD was only 55% for Ni/SiO₂-A, thereby indicating that a significant part of nickel remained oxidized in Ni-phyllosilicate structures after the sample reduction at 823 K. This is in agreement with previous work showing that reduction temperatures higher than 973 K are required to completely reduce Ni-containing phyllosilicates [24, 37]. In summary, results from Fig. 3 and Table 1 show that the sample reducibility follows the order Ni/SiO₂-Ⅰ > Ni/SiO₂-Al₂O₃-Ⅰ >> Ni/SiO₂-A.

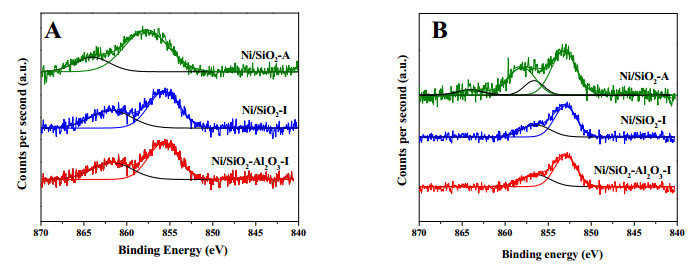

The chemical state of surface Ni species was investigated by XPS and the results are presented in Fig. 4 and Table 2. The Ni 2p_3/2 XPS spectra for calcined Ni/SiO₂-Ⅰ and Ni/SiO₂-Al₂O₃-Ⅰ samples showed a Ni 2p_3/2 signal at 855.7 eV (Fig. 4(A)) that has been assigned to NiO [38, 39]; this assignment is supported by the fact that the BE value of the satellite peak is 6.1 eV higher than Ni 2p_3/2 primary line (Table 2) [40]. In the case of Ni/SiO₂-A, the main peak of Ni 2p_3/2 was shifted to 857.7 eV, which reflects the formation of Ni phyllosilicate-type compounds [40, 41]. The surface analysis of Ni/SiO₂-Ⅰ and Ni/SiO₂-Al₂O₃-Ⅰ reduced for 1 h at 673 and 773 K, respectively, is presented in Fig. 4(B) and shows that the Ni 2p_3/2 spectra exhibit a peak at 853.0 eV, which is indicative of metallic Ni⁰ [40, 42]. Ni/SiO₂-A reduced for 1 h at 823 K presented the peak at 853.1 eV characteristics of Ni⁰ and also an additional peak at 857.8 eV arising from the presence of Ni²⁺ species in Ni phyllosilicates. This latter result confirms that Ni is only partially reduced to Ni⁰ in Ni/SiO₂-A by H₂ reduction at 823 K, as it was inferred from the TPR experiments.

Table 1 shows that the Ni dispersions obtained by H₂ chemisorption for reduced Ni/SiO₂-Ⅰ and Ni/SiO₂-Al₂O₃-Ⅰ were 3% and 5%, respectively. These low D_NI values are consistent with the presence of large NiO particles in the calcined samples detected by XRD technique (Fig. 2). In contrast, the metal dispersion of Ni/SiO₂-A (D_NI = 25%) was markedly higher as compared to those of Ni samples prepared by wet impregnation. Such a difference in Ni particle sizes probably reflects the stronger metal-support interaction in Ni-containing phyllosilicates that also decreases the Ni reducibility.

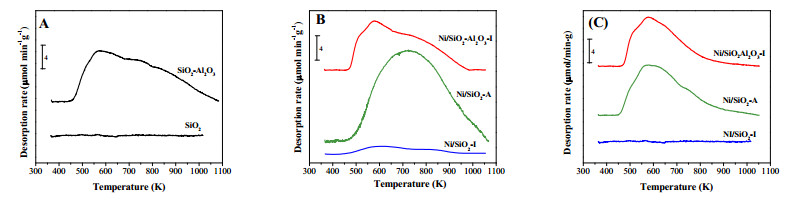

The acid properties of SiO₂, SiO₂-Al₂O₃ and Ni-supported samples were probed by TPD of NH₃. The TPD curves are shown in Fig. 5 while the NH₃ surface densities for acid sites obtained by deconvolution and integration of TPD traces are presented in Table 3. The NH₃ evolved from SiO₂ was negligible. The TPD curve of SiO₂-Al₂O₃ showed an asymmetric broad band between 470 and 1100 K with a maximum at about 575 K (Fig. 5(A)). Calcined Ni/SiO₂-Ⅰ presented two small NH₃ desorption peaks at 573 and 773 K (Fig. 5(B)), which reflect the presence of NiO on the catalyst surface. After reduction, Ni/SiO₂-Ⅰ sample did not show any NH₃ desorption peak, thereby indicating the absence of surface acid sites (Fig. 5(C)).

Calcined Ni/SiO₂-Al₂O₃-Ⅰ exhibited an asymmetric NH₃ desorption band with a maximum at around 545‒580 K, qualitatively similar to that of SiO₂-Al₂O₃ support (Fig. 5(B)) However, the acid site density was lower on calcined Ni/SiO₂-Al₂O₃-Ⅰ (251 μmol/g) than on SiO₂-Al₂O₃ (320 μmol/g), probably because of the covering of acid sites by NiO crystallites. On the other hand, the amount of NH₃ evolved from the reduced Ni/SiO₂-Al₂O₃-Ⅰ sample was less than that of the calcined one (Table 3) due to the reduction of acid Ni²⁺ species to metallic Ni. The NH₃-TPD of calcined Ni/SiO₂-A showed a broad desorption band between 473 and 1023 K, centered at 723 K (Fig. 5(B)). This sample exhibited the highest density of surface acid sites (539 μmol/g), derived from the presence of Ni²⁺ species in phyllosilicate-type nickel compounds. After reduction in H₂ at 823 K for 1 h, the concentration of acid sites on Ni/SiO₂-A diminished to only 228 μmol/g indicating that much of the Ni²⁺ ions were not reduced by the H₂ treatment, which is in agreement with the results obtained by TPR and XPS.

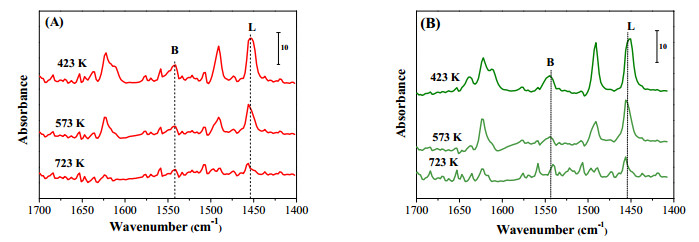

The nature and strength of surface acid sites for reduced Ni/SiO₂-Al₂O₃-Ⅰ and Ni/SiO₂-A samples were investigated by analyzing the FTIR spectra obtained after adsorption of pyridine at RT and outgassing at 423, 573 and 723 K (Fig. 6). Pyridine adsorbed on Brønsted acid sites (B) shows absorption bands at 1540, 1480‒1500 and 1640 cm^‒1 while coordinately bound pyridine on Lewis acid sites (L) produces characteristic bands at 1440‒1460, 1480‒1500 and 1600 cm^‒1 [43-45]. Here, we determined the relative contribution of Lewis and Brønsted acid sites by deconvolution and integration of pyridine absorption bands at around 1455 and 1545 cm^‒1, respectively. Results in Table 4 show that both catalysts contain mainly Lewis acid sites; the L/B ratios for reduced Ni/SiO₂-A and Ni/SiO₂-Al₂O₃-Ⅰ were, in fact, 2.9 and 2.6 after degassing at 423 K, respectively. Moreover, the L/B ratio increased with degassing temperature, thereby revealing that both samples possess strong Lewis acidity. The total density of (L+B) acid sites determined for Ni/SiO₂-A was about 30% higher than for Ni/SiO₂-Al₂O₃-Ⅰ after degassing at 423 K, and two times higher after degassing at 723 K (Table 4). Besides, Fig. 7 shows the FTIR spectra in the hydroxyl stretching region of reduced Ni/SiO₂-Al₂O₃-Ⅰ and Ni/SiO₂-A samples obtained after degassing at 723 K for 4 h, and after pyridine adsorption at room temperature and degassing at 423 K for 0.5 h. Difference spectra are also included. The position of the IR band for the O‒H stretching modes over degassed samples was about 3742‒3745 cm^‒1. The difference spectra in Fig. 7 give insight on Brønsted acid site strength. It is observed that after desorption at 423 K of the pyridine adsorbed at room temperature, the base is almost completely eliminated on Ni/SiO₂-Al₂O₃-Ⅰ but remains adsorbed to a significant extent on Ni/SiO₂-A. This result reflects the stronger acidity of surface OH groups on Ni/SiO₂-A compared to Ni/SiO₂-Al₂O₃-Ⅰ, probably formed from the Ni phyllosilicates phase. No absorption bands were detected in the O‒H stretching region on Ni/SiO₂-Ⅰ, indicating that the hydroxyl group concentration on the surface was negligible. All these results obtained by FTIR of adsorbed pyridine reveal that Ni/SiO₂-A reduced 1 h in H₂ at 823 K contains more and stronger acid sites than Ni/SiO₂-Al₂O₃-Ⅰ reduced 1 h at 773 K.

In brief, the results of catalyst characterization show that Ni/SiO₂-Ⅰ and Ni/SiO₂-A present different physicochemical properties. Calcined Ni/SiO₂-Ⅰ contains large NiO particles of low interaction with the support, that are completely reduced to large Ni⁰ crystallites following treatment in H₂ at 673 K; reduced Ni/SiO₂-Ⅰ is a non-acidic catalyst. In contrast, calcined Ni/SiO₂-A contains small NiO particles along with Ni²⁺ species strongly interacting with the support. Treatment of Ni/SiO₂-A in H₂ at 823 K reduces only about 55% of nickel to metallic Ni. Reduced Ni/SiO₂-A is an acidic catalyst containing mainly Lewis sites due to the presence of Ni²⁺ species in Ni phyllosilicates of low reducibility.

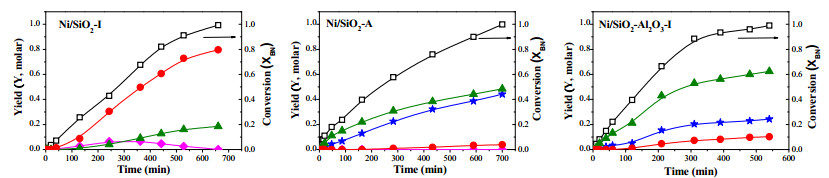

Fig. 8 shows the evolution of BN conversion (X_BN) and yields (Y_i) as a function of time for the three catalysts used in this work. Quantitative data obtained from catalytic tests are given in Table 5. Specifically, Table 5 presents the initial BN conversion rates per gram of metal (r_BN⁰, mmol/(h g_Ni)), the initial turnover frequencies (TOF, min⁻¹), and the values of X_BN and selectivities (S_i) obtained at the end of the runs. The r_BN⁰ values were determined from the experimental curves of Fig. 8 by polynomial regression and numerical differentiation at t = 0. In all the cases, the carbon balance was approximately 100%.

Regarding the catalyst activity, data in Table 5 show that r_BN⁰ and TOF followed the trend Ni/SiO₂-Al₂O₃-Ⅰ > Ni/SiO₂-A > Ni/SiO₂-Ⅰ, although the values were of the same order and BN was completely converted at the end of the runs on the three catalysts. The higher activity observed on Ni/SiO₂-A as compared to Ni/SiO₂-Ⅰ probably reflects the presence of a high density of acid sites on Ni/SiO₂-A (Table 3) whereas Ni/SiO₂-Ⅰ is a non-acidic catalyst. In contrast, the product distribution was markedly different when comparing the results obtained with Ni/SiO₂-Ⅰ and Ni/SiO₂-A catalysts. Ni/SiO₂-Ⅰ formed initially BA and BBA. The BA yield increased with the progress of the reaction reaching 80% at the end of the run (Fig. 8). The local slopes of the Y_i curves in Fig. 8 give the formation rate of product i at a specific BN conversion and reaction time. The DBA formation curve on Ni/SiO₂-Ⅰ presented a zero initial slope indicating that DBA is a secondary product, which agrees with the reaction pathways depicted in Fig. 1 for BN hydrogenation. At the end of the run, DBA was the only byproduct of the reaction (Y_DBA = 18%). BBA was formed at the beginning of the reaction and then went through a maximum because it was progressively hydrogenated to DBA.

Ni/SiO₂-A formed selectively a mixture of DBA and TBA from the beginning of the reaction (Fig. 8). At the end of reaction, for X_BN = 100%, the selectivities to DBA y TBA were 49% and 45% respectively. In contrast with the results obtained on Ni/SiO₂-Ⅰ, BBA was not detected during the entire catalytic run whereas BA was observed in negligible amounts only at the end of the run.

Ni/SiO₂-Al₂O₃ -Ⅰ formed preferentially DBA during the entire catalytic test together with minor amounts of TBA and BA (Fig. 8). At the end of the run, the DBA yield was 63% while Y_TBA and Y_BA were 25% and 10%, respectively (Table 5).

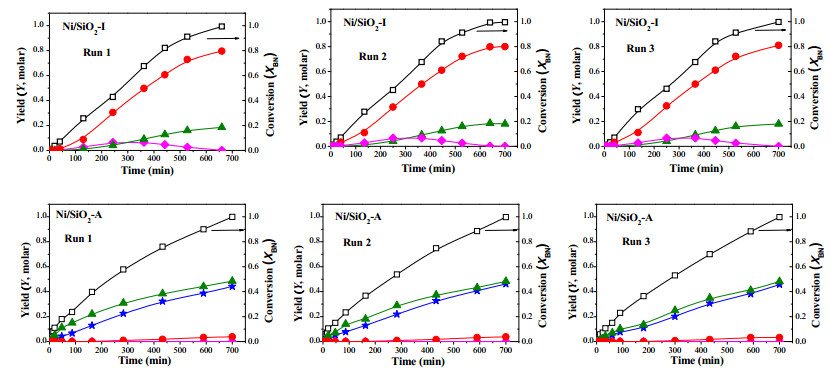

The possibility of reusing Ni/SiO₂-Ⅰ and Ni/SiO₂-A for butyronitrile hydrogenation was evaluated by performing three consecutive catalytic tests and regenerating the catalyst at the end of the runs. The following catalyst regeneration procedure was employed: (1) the catalyst was recovered by filtration at the end of the run, dried at 373 K for 12 h and calcined in air (60 ml/min) for 2 h at 773 K; (2) then the catalyst was reduced ex-situ in H₂ (1 h at 673 and 823 K for Ni/SiO₂-Ⅰ and Ni/SiO₂-A, respectively) and loaded under inert atmosphere to the reactor to perform the catalytic run under standard conditions (373 K, 13 bar). Results in Fig. 9 show that the X_BN vs tand Y_i vs tcurves were similar in the three consecutive catalytic runs for Ni/SiO₂-Ⅰ and Ni/SiO₂-A, thereby showing that both catalysts may be successfully regenerated and reused after reaction.

The catalytic results of Fig. 8 and Table 5 clearly show that the preparation method may drastically change the activity and selectivity of Ni/SO₂ catalysts for the hydrogenation of nitriles. Ni/SiO₂-Ⅰ, obtained by incipient wetness impregnation, was a non-acidic catalyst containing large Ni⁰ particles of low interaction with the support. Ni/SiO₂-Ⅰ formed essentially BA, which is in agreement with previous reports showing that Raney-Ni and Ni-supported catalysts prepared by wet impregnation yield selectively the primary amine when BN hydrogenation is conducted in alcohols such as ethanol [6, 8, 10, 46]. The selective formation of BA from BN on Ni catalysts has been explained by considering that BN is adsorbed on Ni via nitrene intermediates [47, 48]. The strong binding of BN with Ni through the nitrogen atom would promote fast hydrogenation of the carbon atom in the nitrile group, which prevents secondary condensation reactions. Ni/SiO₂-A, obtained by the ammonia method, was an acid catalyst containing small Ni⁰ particles in close interaction with Ni phyllosilicates of low reducibility. In contrast with the product distribution observed on Ni/SiO₂-Ⅰ, Ni/SiO₂-A formed from BN essentially DAB and TBA and only negligible amounts of BA.

Our characterization data show that the main difference between reduced Ni/SiO₂-A and Ni/SiO₂-Ⅰ catalysts is that the former contains a high density of surface acid sites (228 μmol NH₃/g) while the latter is a non-acidic catalyst. In this regard, is significant noting that very few papers have investigated the effect of the acid properties of support on the Ni selectivity for nitrile hydrogenation reactions. Volf et al. [49] in a review paper on nitrile hydrogenation concluded that the catalyst selectivity is essentially determined by the metal nature and the reaction conditions, while the support has a minor influence on the reaction. Huang et al. [17] studied the acetonitrile and butyronitrile hydrogenations on Ru-supported catalysts and reported that the acidity of the support has no significant effect on selectivity. In contrast, Verhaak et al. [15] stated that in the hydrogenation of acetonitrile on Ni supported on different solids, the formation of condensation products, diethyl- and triethylamine, increases with the support acidity. Similarly, Hao et al. [16] observed that in the butyronitrile hydrogenation on Pd-supported catalysts the acidity of support favors the condensation steps.

Regarding the effect of the metal nature on nitrile hydrogenation selectivity, it is generally accepted that that the selective formation of primary amines takes place via nitrile intermediates, while the formation of secondary and tertiary amines occurs via carbene or aldimine intermediates [8, 50-52]. According to the reaction network in Fig. 1, the formation of DBA requires the readsorption of BA on the catalyst surface to react with butylimine and produce the secondary amine. Similarly, DBA readsorption is required to form the tertiary amine. The DBA formation mechanism involves the nucleophilic addition of BA via the lone electron pair on the nitrogen atom at the unsaturated carbon atom in the aldimine (or carbene) intermediate, forming 1-amino-dialkylamine that by deamination and final hydrogenation transforms to DBA. In a previous work [12], we found that on Pd and Pt the formation of BA from BN is almost completely suppressed, and both metals produce preferentially DBA and TBA, which is qualitatively similar to the results obtained here on Ni/SiO₂-A. We explained the results obtained on Pt and Pd by considering that the butylimine/BA condensation leading to DBA (Fig. 1) occurs between adsorbed species, i.e. without desorption of BA to the liquid phase. This proposal was supported by BN TPD experiments showing that BN-derived intermediates are strongly adsorbed on both metals [12]. A similar explanation may account here for the selective formation of DBA and TBA on Ni/SiO₂-A by considering that BA is not release to the liquid phase because it is strongly adsorbed on surface acid sites contiguous to Ni⁰ atoms. In order the verify this assumption, we investigate the strength of BA-catalyst interactions by performing additional BA TPD experiments on reduced Ni/SiO₂-Ⅰ, Ni/SiO₂-A and Ni/SiO₂-Al₂O₃-Ⅰ. The obtained TPD curves are presented in Fig. 10. On the three catalysts, the signals of m/z = 2, 28 and 30 corresponding to fragments of H₂, C2 and BA, respectively, were followed by mass spectrometry. The desorption of BA on Ni/SiO₂-Ⅰ (Fig. 10(A)) occurred as a small peak at 406 K, suggesting that a substantial amount of BA was eliminated from the catalyst by the pretreatment with He at RT. Besides, no signals of evolved compounds accounting for possible decomposition of BA molecule were detected thereby revealing a weak interaction between BA and Ni/SiO₂-Ⅰ. The TPD of BA on Ni/SiO₂-A (Fig. 10(B)) shows a large peak corresponding to the most abundant BA ion (m/z= 30 signal) with a maximum at 437 K, i.e. shifted about 30 K to higher temperatures as compared to BA evolution on Ni/SiO₂-Ⅰ. Two additional broad bands corresponding to high temperature H₂ evolution (m/z = 2) were detected at 573 and 851 K respectively, which were accompanied by the C2 fragment evolution (m/z = 28). These evolutions indicate the presence of surface sites on which BA adsorbs very strongly and decomposes at high temperatures. The BA TPD curve on Ni/SiO₂-Al₂O₃-Ⅰ (Fig. 10(C)) presents the m/z = 30 peak at 425 K while the evolutions of H₂ and the C2 fragment (m/z= 28) gave rise to two broad bands at about 520 and 748 K. Qualitatively, the evolutions of m/z = 2, 28, 30 signals on Ni/SiO₂-A and Ni/SiO₂-Al₂O₃-Ⅰ were similar, but the peak maxima appeared at lower temperatures on Ni/SiO₂-Al₂O₃-Ⅰ thereby revealing that BA adsorption was stronger on Ni/SiO₂-A. In summary, the BA TPD profiles in Fig. 10 show that the BA-catalyst interaction strength follows the trend Ni/SiO₂-A > Ni/SiO₂-Al₂O₃-Ⅰ >> Ni/SiO₂-Ⅰ. The weaker adsorption of BA, a basic molecule, on Ni/SiO₂-Ⅰ reflects the absence of acid sites at the catalyst surface.

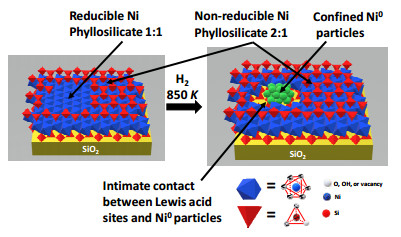

Results from Fig. 10 support the interpretation that the preferential formation of DBA nd TBA on Ni/SiO₂-A is due to the strong adsorption of BA on phyllosilicate acid sites in the vicinity of metallic Ni nanoparticles. BA is not release to the liquid phase and reacts on the catalyst surface with adsorbed imine intermediates to form secondary and tertiary amines, probably on the interphase of surface acid sites-Ni⁰ nanoparticles. Our results show, in fact, that reduction of calcined Ni/SiO₂-A with H₂ at 823 K partially destroys Ni phyllosilicates and forms highly dispersed Ni⁰ nanoparticles in close contact with remaining unreduced phyllosilicates. Consistently, Sivaiah et al. [37] reported that the Ni phyllosilicates of formula Ni₃Si₂O₅(OH)₄ (Ni 1:1 PS), consisting of a layer containing one tetrahedral sheet (Si coordinated to four oxygen atoms) and one octahedral sheet (Ni²⁺ cations coordinated to six oxygen atoms or hydroxyl groups), are partially destroyed by H₂ reduction at temperatures higher than 773 K. Characterization of reduced Ni/SiO₂-A by IR of adsorbed pyridine revealed that it contains Lewis and Brønsted acid sites in a L/B = 3 ratio. Probably, the Lewis acid sites are coordinatively unsaturated Ni²⁺ sites near the edges/surfaces of phyllosilicate, as it has been proposed in previous work [53, 54]. Fig. 11 illustrates the formation of dual Lewis acid-Ni⁰ sites on Ni/SiO₂-A upon reduction with H₂ at 823 K of Ni²⁺ into Ni⁰ in the octahedral sheets of Ni 1:1 PS phyllosilicates. The resulting Ni⁰ nanoparticles would remain confined in the structure of unreduced Ni 1:2 PS phases that prevents the sintering of metallic Ni crystallites. Previous studies have reported, in fact, that reduction of Ni 1:2 PS phyllosilicates, consisting of layers of tetrahedral-octahedral-tetrahedral structure, does not take place for temperatures lower than about 973 K [37].

Like Ni/SiO₂-A, Ni/SiO₂-Al₂O₃-Ⅰ contains Ni⁰ and Lewis acid sites and produces mainly DBA and TBA with only minor amounts of BA. Nevertheless, the DBA/TBA ratio was lower on Ni/SiO₂-A (1.1) than on Ni/SiO₂-Al₂O₃-Ⅰ (2.5). This is because Ni/SiO₂-A contains more and stronger acid sites than Ni/SiO₂-Al₂O₃-Ⅰ and would promote better the surface reactions leading to TBA which involve the strong adsorption of BA and DBA intermediates.

The activity and selectivity of Ni/SiO₂ catalysts for the liquid-phase hydrogenation of butyronitrile to butylamine, dibutylamine and tributylamine depend significantly on the catalyst preparation method. Ni/SiO₂ catalysts obtained by incipient-wetness impregnation (Ni/SiO₂-Ⅰ) do not contain acid sites and the active sites are metallic Ni atoms located at the surface of large Ni particles of low interaction with the support. Ni/SiO₂-Ⅰ promotes the formation of butylamine, the primary amine; here, the butylamine selectivity on Ni/SiO₂-Ⅰ was 80% at complete conversion of butyronitrile at 373 K and 13 bar. Ni/SiO₂ catalysts prepared by the ammonia method (Ni/SiO₂-A) present highly dispersed Ni⁰ nanoparticles in close contact with Ni phyllosilicates containing a high density of Lewis acid sites. Ni/SiO₂-A forms essentially similar amounts of dibutylamine and tributylamine, and only negligible amounts of butylamine. This is because butylamine is strongly adsorbed on phyllosilicate acid sites and reacts on the catalyst surface with adsorbed imine intermediates to form secondary and tertiary amines, probably on the interphase of surface acid sites-Ni⁰ nanoparticles. The results presented in this work show that selective formation of primary, secondary or tertiary amines from nitrile hydrogenation on Ni/SiO₂ may be tuned by selecting the proper catalyst preparation method.
