A combination of Pd and Rh metals is present in the active component of modern automotive three-way catalysts [1, 2]. Moreover, bimetallic Pd-Rh nanoparticles (NPs) are known to efficiently catalyse, beyond purification of car exhaust gases [3], reactions of CO₂ methanation [4], methanol oxidation [5] and ethanol steam reforming [6], just to mention a few processes. Pd-Rh NPs reveal remarkably easy surface restructuring under reaction conditions due to interactions with oxidizing and reducing environments [7-9] as well as with oxide supports [10]. Notably, Pd and Rh immiscible at low temperatures in bulk [11-13] can mix in NPs [3-10, 14].

Atomic-level understanding various peculiarities of catalytic Pd-Rh NPs requires reliable information on their thermodynamically stable surface arrangements in the absence of perturbations by reactants and/or supports. Obtaining such reference data experimentally is complicated by high sensitivity of the surface atomic ordering of Pd-Rh NPs to environment. This sensitivity resulted in a variety of surface arrangements [3-10] different from the ordering Pd-shell/Rh-core expected in vacuum for strongly surface segregated Pd on the basis of its lower surface energy compared to Rh [15] and in line with the surface segregation propensity of Pd impurity in Rh metal [16]. Hence, the knowledge about the detailed structure of such versatile entities as Pd-Rh NPs is crucial for tuning their properties in order to extend and make more efficient their catalytic applications.

Computational modelling of bimetallic nanoparticles using density functional theory (DFT) methods can provide valuable information on the structure-properties relations, complementary to experimental data. DFT calculations of bimetallic nanoparticles containing over hundred atoms (~1.5 nm large) became feasible more than a decade ago [17]. Yet, the dramatically increased complexity of alloy NPs due to the presence of two types of metal atoms hinders their extensive computational studies. Two more degrees of freedom characterise a bimetallic particle A_mB_n of a specified geometry (shape) and number of atoms m + n compared to the corresponding monometallic particles A_m+n and B_m+n: (1) the composition – m : n ratio and (2) the atomic ordering – pattern of positions that atoms A and B occupy in this particle geometry. Structures different only by positions of atoms A and B in a given particle geometry, denoted as homotops [18], rapidly increase in number with particle size. For instance, already for ~1 nm large A₄₀B₄₀ particle of just 80 atoms the number of homotops (including symmetry-equivalent ones) reaches an astronomical value of 10²³. This limits comprehensive exploration of the homotop landscape to much smaller particles than those consisting of many hundred to several thousand atoms common in catalytic applications.

State-of-the-art modelling atomic ordering of alloy particles combines DFT calculations [19] with cluster expansion method [20]. Extension of this sophisticated approach to treat bimetallic particles with adsorbates allowed Wang et al. [21] to comparatively study bare and oxygen-covered cuboctahedral 55-atomic Pd-Rh particles at various Pd : Rh compositions. Bare NPs were shown to exhibit a simple alloying behavior and strong Rh-core/Pd-shell preference. Gradual increase of oxygen coverage caused Rh atoms to emerge on the surface, up to a total reversal to Pd-core/Rh-shell. Yet, the studied 55-atomic Pd-Rh particles with very high ratio of surface to inner atoms may not be in the scalable-with-size regime [22-24] required to represent in sufficient details surface structures and segregation of atoms in Pd-Rh NPs of much larger sizes typical for technical catalysts. In order to address this issue, we modelled in the present work Pd-Rh NPs of different Pd : Rh ratios formed of 140 to 3630 atoms (1.4 to 5.4 nm, respectively) using a novel efficient tool for optimising atomic ordering of large bimetallic NPs [25, 26].

Among the main goals of our study are: (1) to quantify using DFT calculations atomic ordering and segregation effects in Pd-Rh NPs containing up to 201 atoms at varying Pd : Rh compositions; (2) using these data to describe with DFT accuracy energetically preferred atomic orderings in inaccessible by DFT larger Pd-Rh NPs with sizes 4-5 nm common for catalytic metal particles; (3) to illustrate how one can evaluate induced by adsorbates expected segregation effects on the surface arrangement of Pd-Rh nanoalloy catalysts.

DFT calculations were performed with the help of a plane-wave code VASP [27, 28]. A gradient-corrected Perdew-Becke-Ernzerhof (PBE) exchange-correlation functional [29] was employed in combination with the projector augmented wave representation of core electrons [30, 31]. Only Γ-point was used for the Brillouin zone sampling. Cutoff energy for the wave functions was 250.925 eV. One-electron levels were smeared by 0.1 eV and the converged energies were finally extrapolated to the zero smearing. All atoms were locally relaxed without any restrictions until forces on each atom became less than 0.02 eV.

Our common DFT models of Pd-Rh nanoalloy particles with varying Pd : Rh composition comprised 201 atoms. These truncated octahedral NPs with fcc structure were located in 2.5×2.5×2.5 nm large periodically repeated cells with the ≥0.9 nm separation between adjacent particles. Interactions of metal NPs at such distances are shown to be negligible [32].

We determined contributions governing the atomic arrangement (atomic or chemical ordering) in Pd-Rh nanoalloys employing our recent method [25] for the global optimization of the ordering in a NP of a given shape, size and composition. As described in details elsewhere [25, 26], this method, hereafter denoted TOP, is based on simple energy expressions defined by locations of atoms of two metals in crystalline positions of the NP, i.e. solely by the topology of the latter. The TOP method is widely applicable to bimetallic nanocrystallites composed of different metals. Deviation from the crystallinity, e.g. in small, sub-nanometer particles or in combinations of metals with large mismatch of the atomic sizes, is one of few factors limiting the applicability. The method involves the use of ε_i parameters (descriptors) associated either with the surface segregation energy of Pd atoms or the interaction energy of Pd-Rh pairs of the nearest atoms (denoted hereafter Pd-Rh bond energy, which can also be destabilising). The values of ε_i were obtained via fitting to DFT energies of several dozens of NP structures with different chemical orderings. The resulting TOP expressions were employed in efficient Monte-Carlo (MC) simulations to find globally optimised atomic orderings in Pd-Rh NPs with the accuracy of DFT calculations.

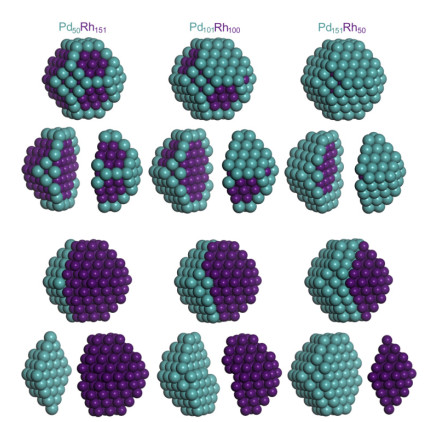

Our DFT results calculated for two types of truncated octahedral model Pd-Rh NPs with different Pd : Rh compositions, Pd₅₀Rh₁₅₁ (1:3), Pd₁₀₁Rh₁₀₀ and Pd₇₀Rh₇₀ (1 : 1) and Pd₁₅₁Rh₅₀ (3 : 1), are presented in Figs. 1 and 2 in the form of structural sketches corresponding to the lowest-energy optimised atomic ordering for each kind of the NPs. Pre-screening of various atomic orderings for finding putative lowest-energy homotops was performed by MC simulations [25] using the TOP energy descriptors ε_i listed in Table 1. The descriptors define TOP expressions for energy difference ΔE_TOP between any two homotops of a given Pd-Rh NP.

(1)

which depends on the number of Pd-Rh bonds (>) and the numbers of corner (), edge () and terrace () surface Pd atoms in each homotop.

The following individual TOP expressions (in eV) correspond to four kinds of the calculated by DFT Pd-Rh NPs with 140 and 201 atoms:

(2)

(3)

(4)

(5)

Fig. 1 displays the lowest-energy homotop of the Pd₇₀Rh₇₀ NP. Pd forms there a part of the 96-atomic monolayer thick shell, in which all 70 Pd atoms are located. They occupy all 48 available corner and edge positions along with 22 of 48 available positions on the {111} terraces. The remaining 26 surface terrace sites of the NP are occupied by compact nano-islands of Rh atoms. The inner part (core) of the NP completely consists of 44 Rh atoms. These results illustrate propensity of Pd atoms to be strongly energetically stabilised in low-coordinated surface sites of Pd-Rh particles. Indeed, the TOP descriptor values (Table 1) estimate the energy gain to be 814 meV for each Pd atom emerging from the NP core in a 6-coordinated corner position, assuming unchanged total number of nearest-neighbor Pd-Rh contacts (bonds). The corresponding energy gains are 588 and 456 meV for the appearance of a core Pd atom in 7-coordinated edge and 9-coordinated {111} terrace positions, respectively. This revealed by our DFT calculations behavior of Pd to surface segregation in nanoalloys with Rh (atoms of which are only 3 pm smaller than Pd ones) is fully consistent with the already mentioned for extended systems lower surface energy of Pd compared with Rh [15] and a clear preference of Pd (Rh) atom impurities in Rh (Pd) slabs to surface (inner) locations [16].

Data in Table 1 for the Pd₇₀Rh₇₀ NP point to destabilising interaction between the nearest Pd and Rh atoms (Pd-Rh bond) vs. a half of the sum of two monometallic Pd-Pd and Rh-Rh bonds, by 21 meV on average. Hence, the immiscibility of Pd and Rh in the bulk (vide supra) still noticeably affects alloying propensity of these metals in 1.5 nm large 1 : 1 Pd:Rh NPs.

Next we explore how the findings for the Pd₇₀Rh₇₀ NP depend on the size and composition based on our DFT data for larger 201-atomic Pd-Rh NPs with varying Pd : Rh contents.

Pd₁₀₁Rh₁₀₀nanoparticle. Results for larger 1 : 1 Pd-Rh NP Pd₁₀₁Rh₁₀₀ (Table 1 and Fig. 2) are similar to those for Pd₇₀Rh₇₀ NP. Again, Pd atoms are notably stabilised on the surface with the stabilisation magnitude correlating with the coordination numbers of the surface sites. The stabilisation ranges from 755 meV in corner sites with the lowest coordination to 356 meV in {111} terrace sites with the highest surface coordination. Notably, these descriptors characterising surface segregation energy of Pd atoms in the Pd₁₀₁Rh₁₀₀ NP practically coincide (with the statistical accuracy) with the corresponding descriptors for the Pd₇₀Rh₇₀ NP and the Pd-Rh bond energy descriptors are also statistically indistinguishable for the both NPs with the same 1 : 1 Pd : Rh composition. Hence, it is not surprising that the atomic ordering in the Pd₁₀₁Rh₁₀₀ NP (Fig. 2) essentially does not alter with the particle size increase from Pd₇₀Rh₇₀. As in the latter, Pd atoms form a monatomic shell in the Pd₁₀₁Rh₁₀₀ NP, which is not complete solely because of the insufficient number of 101 Pd atoms to occupy all exposed surface sites. These observations indicate that the general structural and related features of quite small Pd₇₀Rh₇₀ and Pd₁₀₁Rh₁₀₀ NPs should be representative of the corresponding features of notably larger Pd-Rh NPs with the same composition, in line with results for other bimetallic NPs of similar sizes [25, 26, 33, 34]. But what about atomic ordering in Pd-Rh NPs with other compositions different from 1 : 1?

Pd₅₀Rh₁₅₁ nanoparticle. The surface segregation propensity of Pd atoms in 201-atomic Pd-Rh NP at smaller Pd content remains substantial. Yet, the noticed for 1 : 1 Pd-Rh NPs clear dependence of the segregation energy on the coordination numbers of particular surface sites becomes less expressed in the Pd₅₀Rh₁₅₁ NP (Table 1). There, the segregation of Pd to 6-coordinated corner sites is not the most energetically preferable anymore and 7-coordinated edge sites turn out to be similarly stabilising for Pd atoms. The lowest-energy atomic ordering Pd₅₀Rh₁₅₁ homotop (Fig. 2) exhibits all 50 Pd atoms located solely in the corner (19), edge (27) and {100} terrace (4) sites, with the shell completed by 72 Rh atoms. The core is formed of only Rh atoms, Rh₇₉. No statistically significant alteration of the energetics of pair Pd-Rh interactions is observed.

Pd₁₅₁Rh₅₀ nanoparticle. No important differences in segregation and bonding properties of Pd and Rh atoms are calculated for 3 : 1 Pd-Rh NP Pd₁₅₁Rh₅₀ (Table 1, Fig. 2). Due to higher Pd content, there are sufficient atoms to form a purely Pd shell in it. A 79-atomic core of Pd₁₅₁Rh₅₀ consists of 50 Rh and 29 Pd atoms. The clear trend of more stabilised Pd atoms in less coordinated surface positions is the same as for the 1 : 1 Pd-Rh NPs addressed above. Pd-Rh interactions are calculated slightly more destabilising than for the other compositions under scrutiny. Notably, core-shell atomic ordering of Pd and Rh components remains characteristic for the studied 201-atomic Pd-Rh NPs at all compositions. This deserves a closer look in view of the known immiscibility of Pd and Rh in bulk [11-14].

One way to analyse and quantify miscibility of Pd and Rh at the nanoscale is to compare stability of the lowest-energy Rh-core/Pd-shell homotops (Fig. 2, upper panels) with stability of the homotops featuring as much as possible separated components of these two metals. As such models of most separated components of the 201-atomic Pd-Rh NPs we have chosen homotops with the so-called Janus-type atomic ordering (Fig. 2, lower panels). Number of the nearest-neighbour Pd-Rh pairs, which destabilise mixing of these two metals according to the positive Pd-Rh bond energy descriptors ε_BOND^Pd-Rh (Table 1), is in the Janus-type structures only a half of that in the corresponding core-shell structures: 96 vs. 197 for Pd₅₀Rh₁₅₁, 128 vs. 270 for Pd₁₀₁Rh₁₀₀, and 96 vs. 208 for Pd₁₅₁Rh₅₀. Nevertheless, DFT (TOP) energies of the Janus structures are higher than those of the respective optimised lowest-energy structures by as much as (in eV): 9.68 (7.56) – Pd₅₀Rh₁₅₁, 18.21 (18.79) – Pd₁₀₁Rh₁₀₀ and 14.47 (14.32) – Pd₁₅₁Rh₅₀. Such overcoming of the destabilising effect of the Pd-Rh contacts in the bimetallic particles is related to a very substantial energy gain due to strong propensity of Pd atoms to segregate on the surface forming a shell around a core of Rh. We note here in passing that the good agreement of the DFT and TOP relative energies of the NPs with Janus and core-shell orderings corroborates applicability of the TOP expressions to estimate (almost with DFT accuracy) stabilities of various homotops, both low-lying and quite high in energy.

One can also evaluate miscibility of Pd and Rh at the nanoscale by calculating so-called excess energy of Pd-Rn NPs versus monometallic Pd and Rh NPs with the same numbers of atoms and structure. For the studied Pd_201–nRh_n NPs the excess energy per atom [35, 36] is:

(6)

The negative E_exc values (Fig. 3) indicate miscibility, in full agreement with our observation of the preference of Rh-core/Pd-shell atomic orderings over Janus-type ones with more separate Pd and Rh components. Interestingly, the E_exc values of 0.06 – 0.09 eV per atom corresponding to the Pd : Rh ratios 1:3, 1:1 and 3:1 are close to the values calculated for nanoalloys with such well miscible atoms as Pd-Au [11-14].

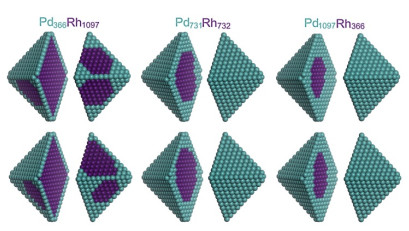

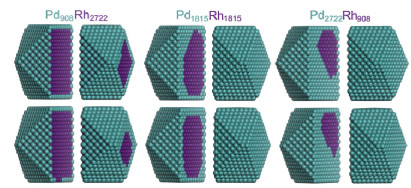

Using TOP descriptors from Table 1 determined for 140- and 201-atomic Pd-Rh NPs and defined by them TOP Eqs. (2) – (5) we performed a MC search for the lowest-energy homotops of truncated octahedral and cuboctahedral Pd-Rh NPs formed of 1463 and 3630 atoms, respectively. The sizes of these NPs, ca. 4.4 and 5.4 nm, relevant for catalytic applications are well beyond sizes accessible by ordinary DFT calculations. The Pd : Rh compositions 1 : 3, 1 : 1 and 3 : 1 have been studied for both 1463- (Fig. 4) and 3630-atomic (Fig. 5) NPs.

In all cases the lowest-energy homotops of these NPs exhibit core-shell structures with the shells consisting of Pd atoms and the cores formed of Rh atoms. Hence, the atomic ordering patterns of quite large NPs with somewhat different shapes are qualitatively very similar to the patterns of the NPs smaller than 2 nm. The main effect causing some differences in the surface compositions of the smaller and larger NPs at a given Pd : Rh content is the ratio of surface (corner + edge + terrace) to inner atoms, which rapidly decreases with increasing particle size. This ratio (24+36+62) : 79 = 1.54 for the 201-atomic NPs drops to (24+108+440) : 891 = 0.64 for the 1463-atomic NPs and to just (24+192+744) : 2670 = 0.36 for the 3630-atomic NPs.

What justifies application of the TOP descriptors and expressions determined for the 140- and 201-atomic NPs to model realistically enough atomic ordering in much larger NPs? The evidence for that discussed in the TOP studies of other bimetallic NPs [25, 26, 33, 34] is that TOP descriptors calculated for ca. 100-atomic particles change only insignificantly for still accessible by DFT larger NPs having the same proportion of two metals. This is also the case for the Pd-Rh NPs under scrutiny, as revealed (vide supra) by very close resemblance of the TOP descriptors for 1 : 1 NPs of two sizes, Pd₇₀Rh₇₀ and Pd₁₀₁Rh₁₀₀ (Table 1). This resemblance is evidenced by images in the central columns of Fig. 4 (for Pd₇₃₁Rh₇₃₂) and of Fig. 5 (for Pd₁₈₁₅Rh₁₈₁₅). The upper images sketch atomic ordering of the lowest-energy homotops optimised using the TOP descriptors obtained for the larger Pd₁₀₁Rh₁₀₀ NP, whereas the lower images with very similar orderings correspond to the lowest-energy homotops optimised using the TOP descriptors for Pd₇₀Rh₇₀. The TOP energy differences between these differently optimised pairs of Pd₇₃₁Rh₇₃₂ and Pd₁₈₁₅Rh₁₈₁₅ homotops are negligibly small, only 0.14 eV (ΔN_BOND^Pd-Rh=6) and 0.29 eV (ΔN_BOND^Pd-Rh= 12), respectively. Applicability of the TOP descriptors to notably larger Pd-Rh NPs is also supported by another important finding, which was not made previously for bimetallic NPs [25, 26, 33, 34]. Namely, that very similar ordering patterns of the lowest-energy homotops result from the application of the TOP descriptors for both the same and different Pd : Rh ratios. One can see, for instance, qualitatively very similar orderings in the upper and lower images of 1 : 3 Pd₃₆₆Rh₁₀₉₇ NP in Fig. 4 optimised using TOP descriptors for NPs with the same ratio 1 : 3 (Pd₅₀Rh₁₅₁) and with different ratio 1 : 1 (Pd₁₀₁Rh₁₀₀), respectively. The same conclusion could be drawn for the other pairs of homotops Pd₁₀₉₇Rh₃₆₆, Pd₉₀₈Rh₂₇₂₂ and Pd₂₇₂₂Rh₉₀₈ shown in Figs. 4 and 5.

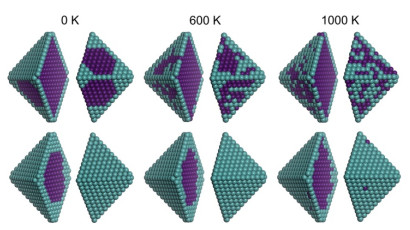

DFT and TOP data presented so far correspond to 0 K. The TOP method allows estimating properties associated with the Boltzmann population of different homotops of a particular NP at a given temperature by accounting for entropy contributions related with atomic ordering, not considering atomic vibrations [26]. We applied this protocol to calculate probabilities of occupying each site by either Pd or Rh atoms and to estimate average atomic orderings in the 1463-atomic NPs with Pd : Rh ratios 1 : 3 and 1 : 1 at 600 K and 1000 K (Fig. 6 and Table 2).

Temperature increase mainly acts on Pd₃₆₆Rh₁₀₉₇ NP to exchange Pd atoms, all of which are on the surface, with surface Rh atoms. It transforms compact surface Rh islands present at 0 K into smaller and less regular ones at 600 K and causes complete disappearance of the islands of Rh at 1000 K. This enhanced mixing is manifested by substantially increased number of Pd-Rh pairs of atoms and more terrace Pd atoms formed by displacements from corner and edge sites (Table 2). Interestingly, the propensity of Pd atoms to remain on the surface in Pd-Rh nanoalloys revealed by the TOP descriptors (Table 1) is so strong that almost no temperature-induced exchange of surface Pd atoms with inner Rh atoms has been calculated. Even at 1000 K the representative homotop of the Pd₃₆₆Rh₁₀₉₇ NP is predicted to exhibit just one inner Pd atom (Table 2). Pd₇₃₁Rh₇₃₂ NP featuring at 0 K a compact Rh core covered by a Pd shell thicker than one atomic layer exhibits even weaker temperature effects (see bottom images in Fig. 6 and Table 2) than Pd₃₆₆Rh₁₀₉₇ NP. Only at 1000 K emergence of few single Rh atoms on the surface of Pd₇₃₁Rh₇₃₂ NPs becomes energetically feasible. Such small influence of temperature on the atomic ordering of Pd-Rh NPs compared, for instance with that of Pd-Au NPs [26], is related with both the immiscibility of Pd and Rh atoms and quite strong preference of Pd atoms to stay on the surface. Notably, the simple TOP descriptors allow rationalising and predicting atomic ordering differences in the surface segregation of different nanoalloys and their temperature dependence.

As mentioned in the Introduction, atomic orderings of Pd-Rh NPs under experimental conditions can be very different from the Pd-shell/Rh-core arrangement predicted by our modelling as energetically the most stable in vacuum. Provided that experimentally prepared catalytic Pd-Rh NPs were annealed long enough at sufficiently high temperature to minimise the internal energy, the major effects triggering their atomic ordering to deviate from Pd-shell/Rh-core are usually interactions of the NPs with adsorbates and supports [7, 10].

There are several levels of the computational modelling approaches to address surface restructuring of bimetallic NPs caused by interactions with adsorbates present in reactive environments. A rigorous approach, albeit too computationally intensive for routine applications to particles larger than 1 nm, is an extension of the cluster expansion method to DFT treatment of bimetallic particles with adsorbates [21]. The TOP approach used in the present work was also employed to evaluate surface segregation effects induced by adsorbates in quite large bimetallic NPs [34, 37]. The latter predictions of the surface ordering relied on a simple concept that an adsorbate more strongly interacting with surface sites formed by atoms of metal one than by atoms of metal two energetically stabilises surface atoms of the metal one and the degree of such stabilisation is defined by the adsorption energy difference for the most strongly binding sites of these metals forming the studied nanoalloy. In this way, DFT calculations of CH_x adsorbates on Cu and Ni sites of Cu-Ni NPs in combination with the TOP descriptors defining surface segregation in the bare NPs quantified coverages of the CH_x adsorbates required to cover under reaction conditions Cu-Ni NPs by active Ni atoms instead of inert Cu ones, as was desired for improving the catalytic function[34]. Similarly, employment of TOP descriptors together with DFT adsorption energies of CO molecules on Pd and Au sites of Pd-Au NPs enabled predicting CO coverages, at which experimentally observed significant CO-induced surface segregation of Pd takes place [37].

In case of well-ordered metal NPs with abundant sites at extended terraces that bind adsorbates similarly strong as the corresponding single-crystal surfaces [22] one can greatly reduce computational expenditures employing adsorption preference energy defined as a difference of binding energies of a given adsorbate on surfaces of two metals forming bimetallic NPs under study [38]. If less quantitative predictions of the adsorbate-induced surface segregation are sufficient, one can merely use published adsorption energies of the most relevant reactants and intermediates on single-crystal monometallic surfaces and thus to completely avoid expensive DFT calculations of NPs with adsorbates.

To shed light on induced by adsorbates changes of the surface atomic ordering in Pd-Rh NPs we calculated adsorption energies of O atom as well as CO and NO molecules on 6-layers thick Pd(111) and Rh (111) slabs with 3×3 surface cells. The following DFT (PBE) adsorption energies (in eV) are obtained on Pd(111) and Rh (111), respectively: O – 4.64 and 5.22, CO – 2.16 and 1.99, NO – 2.37 and 2.49. From these data the adsorption preference of O to the Rh surface vs. Pd one is 0.58 eV and that of NO is 0.12 eV. Negative CO adsorption preference, -0.17 eV, indicates stronger adsorption on Pd(111) than on Rh(111). Combining these data with TOP descriptors from Table 1 defining surface segregation energy of Pd and Rh atoms on {111} nanofacets, , being respectively ca. –0.54 and –0.36 eV for 1 : 3 and 1 : 1 201-atomic Pd-Rh NPs, one can rationalise surface atomic ordering of various Pd-Rh NPs in the presence of the chosen adsorbates and predict variation of the ordering with the coverage of the adsorbates. Of course, this simple approach cannot account for surface reconstruction effects expected in case of strong adsorbate-metal interactions.

For instance, surface segregation of Rh atoms on the {111} terraces of Pd₃₆₆Rh₁₀₉₇ NP to substitute all 234 Pd atoms located there at 0 K (Table 2) will destabilise the NP by the amount equivalent to the energy gained by adsorption on Rh terrace sites of 218 O atoms, each stabilising the system by 0.58 eV. Thus, ca. 0.5 monolayer (ML) O coverage of in total 440 {111} terrace sites exposed on the Pd₃₆₆Rh₁₀₉₇ NP is estimated to be energetically sufficient to make all these metal atomic positions occupied by Rh atoms. For Pd₇₃₁Rh₇₃₂ and Pd₁₀₉₇Rh₃₆₆ NPs, which feature complete Pd shells (Fig. 4), the estimated O coverage required to stabilise the orderings with Rh atoms segregated on all available 440 {111} terrace sites is ~0.6 ML (or 273 O atoms). This small coverage increase is due to lower terrace segregation propensity of Pd atoms in case of higher Pd contents.

The outlined above evidences of triggered by adsorbed oxygen Rh surface segregation in Pd-Rh NPs featuring Pd shell arrangement without adsorbates strongly suggests that the experimentally found arrangements of the as-synthesised large Pd-Rh NPs with Rh-rich shells [7] correspond to surface oxidised situations. According to the present calculations, NO shows preference to be adsorbed on Rh rather than Pd sites of Pd-Rh surfaces (although expressed 5 times weaker than that for O), whereas CO adsorption is preferred on Pd sites vs. Rh ones. These calculated data are in qualitative agreement with the Rh-rich shell structure observed in the presence of NO (or O₂) adsorbates and substantially increased Pd concentration in the shells in the presence of adsorbed CO [7]. However, the latter experiments have been performed under too complicated conditions, including catalytic ones, to be described in more details by the simplified computational approaches applied in the present study.

This theoretical modelling study addressed atomic ordering in bimetallic Pd-Rh nanoparticles of different compositions formed of up to more than 3600 atoms. Pd-Rh nanoalloy materials are widely used for applications in catalysis. One of their peculiarities is that the surface composition is very easily adjustable to interactions with adsorbates present in reactive environment. Therefore, the work was focused on detail analysis of the surface composition of bare Pd-Rh nanoparticles and its dependence on the particle size and Pd : Rh stoichiometry.

First, DFT calculations were employed in combination with a novel topological (TOP) approach to quantify atomic ordering and segregation effects in Pd-Rh nanoparticles of ≤201 atoms and Pd : Rh compositions 1 : 3, 1 : 1 and 3 : 1. In all these nanoparticles Pd atoms were notably stabilised in surface positions forming a Pd shell, whereas Rh atoms preferred to occupy inner positions forming a Rh core. Due to high surface to volume ratio in such particles it was enough Pd atoms to form a complete Pd-shell/Rh-core lowest-energy structure only in the particle Pd₁₅₁Rh₅₀ with the highest Pd content. TOP analysis of the DFT data provided quantitative estimates of the energy gained (lost) by appearance of an inner Pd (Rh) atoms in particular surface positions of the studied nanoparticles. This analysis also revealed that the nearest-neighbour Pd-Rh contacts (bonds) do not stabilise mixing of these two metal components, in line with experimental observations for bulk materials. Nevertheless, as follows from both DFT and TOP data, at the nanoscale the strong propensity to form the Pd-shell/Rh-core ordering triggers mixing of Pd and Rh atoms with respect to the Janus-type ordering with the most separated compact Pd and Rh regions.

Next, the knowledge on the atomic arrangements and the energetics obtained from the DFT and TOP modelling of smaller nanoparticles was used to describe (with DFT accuracy) energetically preferred atomic orderings in the so far inaccessible by DFT 4–5 nm large Pd-Rh particles approaching the size common for catalytic metal particles. The lowest-energy atomic orderings were determined for 1 : 3, 1 : 1 and 3 : 1 Pd-Rh fcc crystallites consisting of 1463 and 3630 atoms. The latter, similarly to the aforementioned smaller particles, were found to be energetically the most stable as core-shell structures with the shells consisting of Pd atoms and the cores built of Rh atoms. Variation of Pd : Rh compositions affected the preferred atomic ordering mainly due to the shortage of Pd atoms to form complete Pd shells for the 1 : 3 stoichiometry, resulting in the appearance on the surface terraces of Pd₃₆₆Rh₁₀₉₇ and Pd₉₀₈Rh₂₇₂₂ particles of Rh patches affecting surface reactivity. The 1463- and 3630-atomic 1 : 1 and 3 : 1 Pd-Rh particles are predicted to expose perfect Pd shells.

Finally, it was outlined, how the information on atomic ordering in bare bimetallic nanoparticles, in particular, the TOP data, can be used for predicting effects of reacting media on the surface composition and arrangement of the nanoparticles under experimental conditions. For such predictions one usually needs additional data from (often quite intense) calculations of adsorption systems. Employing the TOP analysis makes it possible to estimate surface re-segregation and the resulting surface composition of a nanoalloy in the presence of given amount of adsorbed reactants or intermediates without additional expensive DFT calculations, only using readily available adsorption energies on extended monometallic surfaces. This approach was illustrated for considering surface re-segregation of Rh in Pd-shell/Rh-core nanoparticles in the presence of adsorbed oxygen, CO and NO reactants. Such simple predictions are expected to be widely applicable to various catalytically important bimetallic particles and to help bridging the gap between idealised surface models and surfaces of technical catalysts.

Work of LV was financed by the Generalitat de Catalunya via a pre-doctoral grant 2018FI-B-00384. HAA is grateful to the Operational program "Science and Education for Smart Growth", project BG05M2OP001- 2.009-0028 for funding his research stay in the University of Barcelona and for financial support by the Bulgarian Ministry of Education and Science under the National Research Programme "Low-carbon Energy for the Transport and Domestic Use (EPLUS)" approved by DCM # 577/17.08.2018" (contract DО1-214/28.11.2018). KMN acknowledges a support by the Spanish grants PGC2018-093863-B-C22, CTQ2015-64618-R and MDM-2017- 0767 as well as by the grant 2017SGR13 of the Generalitat de Catalunya. LV and KMN thank the Red Espa ola de Supercomputación for providing computer resources and technical support.
