Copper catalysts are among the most used heterogeneous catalysts in the chemical industry. In particular Cu chromites are used in hydrogenation and dehydrogenation reactions while Cu/Zn/Al systems are the catalysts of choice for the synthesis of methanol [1]. For these catalysts the nature of the active species of copper has been the center of debate for many years, focussing mainly on the role of Cu(0) and Cu(I). In general it was accepted that Cu(I) is involved in the active site in copper chromite catalyzed hydrogenations while the role of Cr is to stabilize it from being reduced [2] although more recently the role of reduced metallic Cu has been recognized [3]. Monovalent copper sites are significantly more active than the sites of metallic copper also in cyclohexanol dehydrogenation over Cu/Zn, Cu/Mg[4] and Cu/Al2O3 systems [5].
On the other hand, there are several parameters that influence the activity of a metallic catalyst beside the oxidation state. Among them, the role of metal particle morphology has often been understimated whereas a lot of attention has been devoted to metal support interactions and to the support itself.
Surface atoms are composed of face atoms, edge atoms and corner atoms. Face (terrace) atoms are also called high-coordination-number atoms, on the other hand edge and corner represent the low-coordination number atoms, since they are the most defective sites on the surface. Geometry and coordination number of the surface atoms reflect by weight on their electronic, thus catalytic, properties.
When particle size becomes very small, catalytic reactions can show a significant change in turnover frequency. In this case the reaction, according to Boudart definition, [6] is structure-sensitive. Acetone hydrogenation over a series of Cu/SiO2 catalysts at 150 ℃ and 1 atm of H2, has shown to be structure sensitive. Thus, by comparing 3 catalysts with different Cu loadings the TOF was found to increase very much with the Cu particle size, varying from 0.056 s-1 on the most highly dispersed Cu catalyst (0.5% Cu, dm=1.5 nm) to 0.17 s–1 on the 5% Cu material (dm= 14 nm) to 2.4 s–1 occurring on 110 nm crystallites, due to modification of electronic properties of the particle itself [7]. Similar results were also obtained by comparing a Cu/Al2O3 catalyst with Cu/Cr2O3. In this case, the former with an average particle size of 3 nm was found to be 6 times less active than the latter with a mean particle size of 23 nm [8].
Also for methanol synthesis over Cu and Cu/Zn catalysts TOF decreased for copper particle sizes below about 8 nm [9] by a factor of about 3 going from particles of 8 to 2 nm. In this case the copper particle size effect is due to the increase in the fraction of atoms with lower coordination numbers below 8 nm. Thus, methanol synthesis reaction predominantly takes place at step-edge sites like Cu [211] facets, that small particle are not able to accommodate.
Research on Cu/SiO2 systems in the last decade has increased continuously due to the interest in finding non-noble and non-Cr based catalysts for the very many hydrogenation steps in the pathway from cellulose or hemicellulose to fuel and chemicals. [10, 11] Moreover Cu/SiO2 systems show high activity in the hydrogenation of dimethyloxalate to ethylene glycol, a reaction of relevant interest since DMO can be obtained from syngas[12].
Here we wish to shed some light on role of different sites on the metal particle obtained by the CH method. A comparison is also made with catalysts prepared starting from the same precursor, namely a Cu[(NH3)4]2+ solution, but with a different method, namely Ammonia Evaporation.
Silica A (BET = 460 m2/g, PV= 0.74 ml/g) was obtained from Sigma-Aldrich, silica B (BET = 267 m2/g, PV= 1.65 ml/g) from Evonik (Aeroperl 300/30).
Catalysts were prepared by chemisorption-hydrolysis method by adding the support to a solution containing Cu[(NH3)4]2+ prepared by dropping aqueous NH3 to a Cu(NO3)2·3H2O solution until pH = 9 had been reached. After 20 min under stirring, the slurry, held in an ice bath at 0 ℃, was diluted with water. The solid was separated by filtration with a Büchner funnel, washed with water, dried overnight at 120 ℃, and calcined in air at 350 ℃ for 4 h. Two samples with a nominal Cu loading of 8% (silica A) and 16% (silica B) were obtained.
High-resolution transmission electron microscopy (HRTEM) and high angular annular dark field scanning electron microscopy (HAADF-STEM) micrographs of copper catalysts were carried out with a ZEISS LIBRA 200FE (analytical transmission electron microscope) equipped with FEG source. Samples were gently crushed in an agate mortar, ultrasonically dispersed in isopropyl alcohol, and a drop of the suspension was deposited on a lacey carbon supported film on Cu TEM grids (300 mesh). Histograms of the particle size distribution were obtained by counting onto several TEM micrographs at least 500 particles, spanning over different grids area. The mean particle diameter (dm) was calculated by using the formula where ni was the number of particles of diameter di.
Temperature-programmed reduction (TPR) analysis was performed with a modified version of the Pulse chemisorb 2700 apparatus from Micromeritics. Catalysts (samples containing ca. 2 mg of Cu) were diluted with quartz, calcined at 500 ℃ under O2 (40 mL/min), and then reduced at 8 ℃/min under a flow (15 mL/min) of a 8% H2/Ar mixture. The H2 consumption was detected by a thermal conductivity detector (TCD).
For Fourier transform infrared (FT-IR) studies (FT-IR Thermofisher Nexus instrument, 100 scans, OMNIC software), powdered catalysts have been pressed in self supporting disks (average weight 30 mg), reduced in pure hydrogen and outgassed at 270 and 500 ℃ directly in the IR cell connected to a conventional gas manipulation apparatus. CO adsorption was performed at liquid nitrogen temperature in the presence of 10 torr CO gas. FT-IR spectra have been recorded outgassing at increasing temperature in the range –130 ℃/room temperature at decreasing CO coverage. Deconvolution spectra have been obtained using OMNIC software (type of band Gaussian-Lorentzian, no fixed baseline, range 2230–2080 cm–1).
In a typical reaction test, 100 mg of the catalyst was pre-reduced in H2 (1 atm) at 270 ℃ in a glass reactor. Next 100 mg of 3-methylcyclohexanone and 6 mL of n-heptane were added under N2 atmosphere, then N2 was removed under vacuum and substituted with H2. Reactions were carried out under atmospheric pressure and magnetic stirring (1000 rpm) at 60 ℃.
The products were analyzed by GC-MS and GC-FID (5%-phenyl-methyl polysiloxane column) using an internal standard for the quantification. Conversion and selectivity were calculated on the basis of the following equation:
Assuming that the catalyst nanoparticles are cubooctahedral in shape with a face-centered cubic (fcc) structure, it is possible to calculate the number of different sites depending on the size of the nanocrystals [13, 14]. The total number of atoms of a copper nanoparticle for a fcc crystal (as is the case of copper) can be calculated from dnp= 1.105dat NT1/3, in which dnp is the average diameter of nanoparticles obtained by HRTEM and dat is the atom diameter of copper (2.56 Å ). The formula does not depend on particle shape.
Eq. (3) allows one to calculate m, the length of an edge expressed as an atom.
All of the following, including NB (bulk atoms), NS (surface atoms), NHS (high coordination atoms), and NLS (low coordination atoms), are given from Eqs. (4)-(7):
Turnover frequencies were calculated using the Eq. (8):
Where TOFx is the turnover frequency normalized for a specific site (NS, NHL, NLS), nconv are the converted moles of the reactant, t is the time in hours and nx are the moles of the specific atom site. The nx values (nS, nHS, nLS, ) were calculated multiplying the fraction of a specific site on a single particle (NX/NT, where NX = NS, NHL or NLS) for the total moles of copper (nCu) present in the reaction (Eq. (9)):
We have long been involved in the study of several reactions promoted by Cu catalysts prepared by the chemisorption hydrolysis (CH) method (Fig. 1). This method exploits the electrostatic interaction between the support and the solution of the precursor thus favouring high dispersion of the metallic phase and high hydrogenation activity, particularly when compared with catalysts prepared by incipient wetness, as we could show in the hydrogenation of 1, 3-cyclooctadiene [15].
The particular morphology of the very small particle obtained by the CH method is also responsible of the acidic behaviour of pre-reduced Cu/SiO2 catalyst in some particular conditions, e. g in the one pot transformation of GVL into valeric esters. Thus, by comparing the FTIR spectra of adsorbed pyridine on the catalyst before and after reduction, namely CuO/SiO2 and Cu/SiO2, we could show that not only Lewis acid sites are present on the surface of both materials, but also that they increase after the pre-reduction treatment [16].
The pre-reduced Cu/SiO2 catalyst was tested in the one-pot transformation of γ-valerolactone into pentyl valerate and showed comparable activity (91% vs 92% conversion) and improved selectivity (92% vs 72%) with respect to the previously reported copper catalyst supported on acidic material [17].
The Lewis acidity expressed by unreduced CuO/SiO2 was ascribed to the defectivity of the highly dispersed CuO phase, shown to be in distorted octahedral configuration by means of EXAFS and DRUV spectroscopic analysis [18]. Reduction of copper oxide into well-formed cuboctahedron Cu(0) particles in a face cubic centered (fcc) crystal structure as shown by TEM enhances even more this defectivity. Moreover, the comparison of turnover frequencies obtained for an 8% Cu/SiO2-ZrO2 and a 16% Cu/SiO2 catalysts with respect to total surface atoms, high coordination sites, and low coordination sites according to a cuboctrahedron model, as well as with respect to Lewis sites as evaluated from pyridine adsorption spectra put in light that the acidity of the catalyst in this particular reaction is linked with low coordination sites on the metal particle (Table 1).
Thus, the ratio between the two values calculated for low coordination sites (1.06) and for Lewis sites (1.04) are close to 1. This unequivically shows that very small metal particles can exhibit catalytically relevant Lewis acidity and that this behaviour is linked to low coordination atoms.
However, we were never able to show the role of the different atoms in the isolated hydrogenation activity because most substrates give acid catalyzed side-products in the presence of Cu/SiO2, particulalry deoxygenation ones [19].
In this paper we wish to report results obtained in the hydrogenation of 3-Me-cyclohexanone over two Cu/SiO2 catalysts prepared by CH, the first one on a mesoporous silica hereafter called A, and the second one on a granulated fumed one hereafter called B to get some more insight into the features affecting catalytic activity.

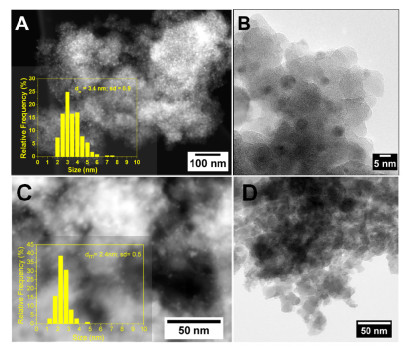

A detailed characterization of the two catalysts was carried out by TEM techniques in order to investigate the structural features of the silica-supported copper catalysts (Fig. 2). HAADF-STEM micrographs at low magnifications pointed out a highly homogeneous dispersion of the copper phase within the silica grains in both samples (Cu/SiO2 A and Cu/SiO2 B). A narrow size distribution (ranging 2.0–6.0 nm) of copper nanoparticles was revealed, with a mean diameter of 3.4 nm for the porous silica and 2.4 nm for the fumed one (Figs. 2(A) and 2(C), respectively). Moreover, HR-TEM micrographs showed well-formed roundish particles in agreement with previously observed cuboctahedron copper particles supported on silica obtained by the same approach [16].

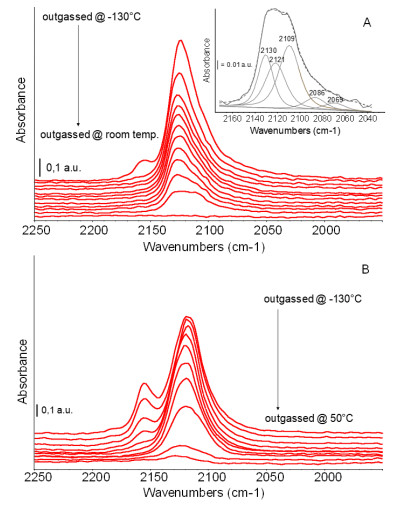

The adsorption of CO probe molecule on the reduced Cu/SiO2 A catalysts was also studied. FT-IR spectra of adsorbed surface species were recorded starting from CO adsorption at –130 ℃ and following progressive warming upon outgassing until room temperature. In Fig. 3 spectra of the surface species arising from CO adsorption over the reduced Cu/SiO2 A sample are reported (reduction temperatures 270 and 500℃).
At high CO coverage, under our experimental conditions Fig. 3(A), a main band centered at 2120 cm–1 can be detected, showing a shoulder at 2154 cm–1. The latter component can be assigned to some liquid-like CO and to CO interacting with the support OH groups, corresponding to a weak negative band in the subtraction spectrum in the OH stretching spectral region (spectrum not reported). Possibly, this band overlapped with band due to carbonyl species coordinated over residual Cu2+ ions, characterized by absorptions in the range 2180–2150 cm–1 [2, 20, 21]. Following outgassing this band disappears almost immediately, confirming its assignation to species weakly bound.
The assignment of the complex band at 2120 cm–1 due to CO interacting with copper centers is widely discussed in the literature. Following results reported by several authors on CO adsorption over Cu-supported catalysts, the strong band centered at 2120 cm–1 asymmetric towards lower frequencies has been assigned to CO linearly bound to Cu+ centers [2, 22], but also to CO coordinated over Cu metal particles [23]. In particular, for Cu/SiO2 and Cu/TiO2 systems, Boccuzzi et al. [23] suggested the attribution of the band at 2128 cm–1 to CO adsorbed over flat 2D Cu metal particles, strongly interacting with the support, on the basis of the decreased resistance to outgassing. Bands at lower frequencies (2100–2090 cm–1) have been assigned by the same authors to CO adsorbed over metallic copper in more structured microparticles, exposing steps and well defined facets.
Over alumina supported Cu catalysts, Escribano et al. [24] assigned a strong band at 2115 cm–1 to carbonyls on copper ions or copper zerovalent clusters (which should correspond to the previously mentioned two dimensional metal cluster) and another component centered at 2100 cm–1 and tailing towards lower frequencies to terminal carbonyls on copper zerovalent particles. This assignation has been supported also by the different stability of these species to outgassing: in fact carbonyls on reduced Cu adsorbs weakly [25]. In the inset in Fig. 3(A) we reported the deconvolution spectra for the band centered at 2120 cm–1, recorded upon warming up to –20/–10 ℃. Clearly, several components are still detected at 2130, 2121, 2109, 2086 cm–1 and even at lower frequency. Keeping in mind the literature data discussed above, we propose the following assignations: bands in the range 2130–2120 cm–1 characterizing mainly carbonyls over Cu+ ions and, at a lower extent, a highly dispersed metal phase, strongly interacting with the oxide surface, described as metal cluster [26] only in partial disagreement with Boccuzzi et al. [23], who proposed the assignation of all the bands in this range to zerovalent copper clusters; bands around 2100 cm–1 mainly assigned to carbonyls over zerovalent Cu clusters, i.e. 2D particles interacting with the support, as reported by Dandekar et al.[2]; components below 2100 cm–1 characterizing CO coordinated over zerovalent copper in structured microparticles. In particular, the detection of a component at 2086 cm–1 is in agreement with the presence of carbonyl species over metal Copper particles, likely exposing well defined crystallographic planes although unusually resistant to outgassing.
The reduction of Cu/SiO2 A in hydrogen at lower temperature (270 ℃) leads to the detection of almost the same band pattern (Fig. 3(B)). The increased intensity of the band at 2150 cm–1, assigned mainly to CO interacting with surface OHs, is in agreement with the pretreatment at lower temperatures which leads to a more hydroxylated surface. The components at low frequency of the main band centred at 2110 cm–1 ca are less evident. Nevertheless, a component of the absorption below 2000 cm–1 can be detected particularly at the lowest temperatures, assignable to structured Cu nanoparticles.
In summary, all the analysis agree on the formation of a CuO phase, easy reducible to Cu (0) particles or clusters by treatment with hydrogen, as the main species on the catalyst surface. Well formed Cu cristallites are responsible for the hydrogenation activity observed.

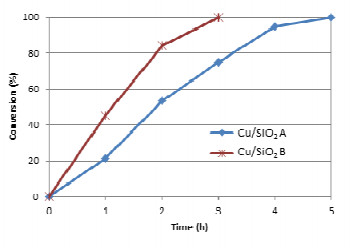

Both catalysts were very effective in the hydrogenation of 3-Me cyclohexanone reaching complete conversion to the corresponding cyclohexanol in few hours at 60 ℃ and 1 atm of H2 (Fig. 4).
To better understand the features affecting the activity of a metal particle it is interesting to evaluate the TOF not only with respect to the total metallic surface area, but also with respect to different coordination sites on the particle. Metal nanoparticles exhibit a variety of facets, edges, and corner sites with different degrees of coordination, which can be crucial for the catalytic activity. The role of different low index Cu crystal facets in H2 activation has been investigated since a very long time from the theorical point of view by means of quanto mechanical calculations [27-30] but from the experimental point of view the role of different metallic sites has not been deeply investigated.
By assuming that the particles are cubooctahedral in shape is possible to calculate the total number of surface atoms and the fraction of high-coordination sites (HS) and low-coordination sites (LS). The structure sensitivity of the reactions was evaluated considering the TOF for the different atom sites lying on the particles surface.
From the data reported in Table 2 it is apparent that high coordination sites (HS), that is atoms on planar faces, are responsible for the hydrogenation activity. Thus, the ratio between the two TOF is close to 1 (0.95) whereas the ratio of TOF calculated with respect to low coordination sites (edges) is much different (1.50).
To the best of our knowledge this is the first evidence of the determining role of face atoms on the hydrogenation activity of Cu/SiO2.
The preparation method adopted by our group is quite similar to the ammonia-evaporation method [31] widely used in the hydrogenation of esters, particularly DMO to ethyleneglycol and dimethyladipate to 1, 6-hexandiol [32-34]. For this kind of catalysts the presence of both Cu(0) and Cu+ on the pre-reduced material has often been evidenced through XPS although no consensus has been reached on the role of the two species in C–O hydrogenation [35]. According to the work of Ma et al. [36] the catalytic activity was influenced by the amount of Cu species on the catalyst surface, but Cu0 species may not be the determining factor for this reaction. Thus, a linear dependence of ethyleneglycol space time yield on the surface area of Cu+ was found, suggesting that the latter activates the ester group while the former adsorbs H2, best activity and selectivity being observed on the 30% Cu catalyst [36]. The presence of Cu+ is ascribed to formation of copper phyllosilicate during the preparation of the catalyst that under the pre-treatment conditions used is reduced to Cu+ and not to Cu(0). The presence of a single reduction peak in the TPR profile is ascribed to the reduction of Cu-phyllosilicate to Cu+ and of CuO to Cu(0) taking place at the same temperature, although some authors propose that the phyllosilicate could be reduced directly to Cu(0) [37]. Recently a catalyst containing only Cu0 obtained via Ar plasma sputtering allowed to obtain up to 87% selectivity to methyl glycolate, the intermediate in the reduction of DMO to EG, with a DMO conversion of 29%. The authors therefore suggest that Cu+ is determining in promoting complete hydrogenation to EG [38].
In the case of catalysts prepared by the chemisorption-hydrolysis method the presence of Cu+ or phyllosilicate on the surface of the catalysts is uncertain. For the sake of comparison we prepared a sample by using silica A and the AE method by following the procedure described by Dong et al. [37] but lowering the Cu loading to 8%. We compared the textural properties, TPR profiles and the hydrogenation activity of this sample, hereafter called Cu/SiO2 C, with the catalysts prepared by CH.

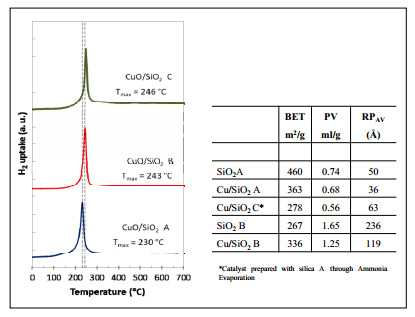

TPR profiles for all the catalysts (Fig. 5) show a single very sharp peak with a maximum at 230 ℃ for catalyst A and slightly higher for the other two. In particular as both Cu/SiO2 A and Cu/SiO2 C are prepared on the same support and with the same Cu loading the preparation method may give account of the difference in T. As far as textural features are concerned we can observe that the lowering of surface area is more significant for the catalyst prepared by AE.
On the other hand, a dramatic difference was observed in the hydrogenation reaction of 3-methyl-cyclohexanone. The catalyst prepared by AE was found to be almost inactive, conversion after 24 h being limited to 25% under the experimental conditions used for the other two catalysts (Table 2).

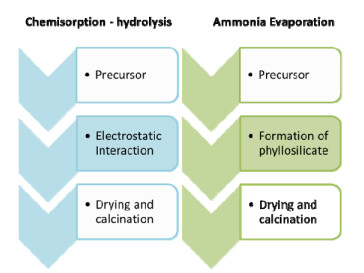

This unequivocally witnesses the deep difference between the two systems due to the significative formation of phyllosilicate for the ammonia evaporation system, as shown by several authors (Fig. 6).
In conclusion, we have shown that the activity of Cu/SiO2 catalyst prepared by CH in the hydrogenation reaction of ketone groups is strongly linked to the metal particle morphology in turn determined by the preparation method, as was already observed for the Cu/TiO2 systems in the hydrogenation of conjugated dienes [15].
Thus, hydrogenation of 3- methyl-cyclohexanone strongly depends on the presence of high coordination sites located on the faces of the metal particle that appears well formed in cuboctahedral geometry.
On the contrary, catalysts prepared by AE although easily reducible as shown by TPR and very well dispersed as shown by TEM [37] are not able to hydrogenate this substrate under the same conditions (1 atm H2, 60 ℃) probably due to the different morphology of the particles.
