With the increasing depletion of traditional fossil energy sources and related environmental problems, the demand for clean and sustainable energy has increased rapidly [1-4]. Therefore, the development of renewable energy technology is considered as one of the most promising ways for the solution of these problems [5-8]. Among the various strategies, electrocatalytic water splitting constitutes an attractive strategy to produce hydrogen fuel, including the oxygen evolution reaction (OER: 2H₂O → O₂ + 4H⁺ + 4e^-) at the anode and hydrogen evolution reaction (HER) (HER: 2H⁺ + 2e^- → H₂) at the cathode [9-11]. HER is a two electron-transfer reaction with low-energy consumption (low overpotential) [12-14]. However, the OER is a sluggish, four electron-proton coupled kinetic reaction, with high-energy consumption (high overpotential) that limits the practical application of electrocatalytic water splitting [15-17]. OER is also the core reaction in metal–air batteries and fuel cells [18, 19]. Their applications are hindered by the slow kinetics of OER [20, 21].

Noble metal oxides (RuO₂ and IrO₂) are regarded as the state-of-the-art OER catalysts with increased activities in acidic and alkaline media [22-24]. Nonetheless, their high costs, scarcity, and low stability, have restricted considerably their large-scale applications [25-27]. Therefore, designing low-cost and active catalysts is highly desirable. The earth-abundant, transition metal-based (Ni, Co, Mn, Fe, etc.) materials, including oxides/hydroxides [28-31], chalcogenides [31-33], phosphides [34, 35], nitrides [36, 37], and borates [2, 38], have been extensively investigated, and are expected to replace the noble, metal-based catalysts to promote the practical application of electrocatalytic water splitting.

Layered double hydroxides (LDHs) have been extensively studied as highly efficient OER electrocatalysts owing to their low cost and abundance [39, 40]. Specifically, LDHs, a family of two-dimensional (2D) layered nanomaterials, consist of brucite-like layers with positively charged multimetal cations and interlayer compensating anions [41-43]. In general, most of the LDHs can be described as [MII_1–xMIII_x(OH)₂]^x+(A^n-)_x/n·yH₂O, in which MII are divalent metal ions (such as Co, Fe, Ni, Cu, Zn, etc.), MIII are trivalent metal ions (such as Ga, Cr, Fe, Mn, Co, Al, etc.), where x is in the range of 0.2 to 0.33, and A^n- is the interlayer anion (such as F^-, SO₄^2-, CO₃^2-, NO₃^-, and ClO₄^-) [44, 45]. Compared to single metal hydroxides, mixed metal hydroxides with electron transfers and orbital transitions are considered to be beneficial to the enhancement of the catalytic activity toward the OER [46, 47]. In particular, the interlayer balanced anions can be exchanged by other organic and inorganic anions [48, 49]. Furthermore, LDHs have been extensively applied in various fields owing to their unique, 2D layered structure, easily tailored properties, and versatility of chemical compositions [50, 51]. However, the limited number of active sites and the inferior intrinsic activity of the catalytic sites have hindered the development of LDHs as high-performance OER catalysts [52, 53].

Numerous strategies have been developed to solve the aforementioned problems. An effective approach is the exfoliation of the structures of bulk LDHs into 2D ultrathin structures to increase the number of active sites [40, 54]. The 2D ultrathin structure has high-specific surface area, abundant active sites, fast charge transfer rate, and convenient diffusion pathways that are conducive to the enhancement of catalytic performance [55]. For instance, Huang et al. [56] reported an ultrathin cobalt oxyhydroxide (γ-CoOOH) nanosheet as an efficient OER electrocatalyst. The as-synthesized ultrathin γ-CoOOH nanosheet associated with the unsaturated coordination of the CoO_6–x sites can optimize the electronic structure of the material and facilitate the electron transfer and conversion [56]. Thus, this compound exhibited high-catalytic activity toward the OER compared to the bulk counterpart and the state-of-the-art IrO₂ electrocatalyst.

In addition, the regulation of the electronic structure is another effective approach and has been extensively studied because it can increase the intrinsic activity of the active sites, thus promoting the enhancement of the electrocatalytic performance of the catalysts [46, 57]. In particular, the electronic structure regulation could modify the intrinsic activity of the active site by changing the lattice and bond length of the crystal [7, 58]. Some results showed that the optimal adsorption capability of oxygenated intermediates toward higher electrocatalytic activity could be obtained by tuning the electronic structure of the catalysts [56, 57]. Furthermore, the regulation of the electronic structure is usually accompanied by the electron transfer and the improvement of the electrical conductivity within the material [14]. Specifically, the electronic regulation can be achieved by optimizing the composition, tailoring the coordination states, tuning defects/phase/interface, and doping heteroatoms [59, 60]. For instance, suitable oxygen vacancies existing in transition metal oxides/hydroxides could assist the adsorption of oxygen-containing species and promote their catalytic performances [61, 62]. Accordingly, metal vacancies could allow various electron and orbital distributions to increase the valence state of nearby metal sites and promote the activity of OERs [57, 63].

Compared to other transition metal compounds, the LDH electrocatalysts exhibited superior OER activity owing to their unique electronic, 2D layered structures, easily tailored properties, and versatility of chemical compositions. Therefore, LDHs constitute typical electrocatalysts in the study of the regulation of electronic structures on catalytic performance. However, there are a few reviews that study the effect of electronic structure regulation on LDHs for promoting their OER catalytic performance. In this review, we focus on recent progress in the electronic structure regulation of LDHs in promoting water oxidation. Various types of electronic structure regulations on LDH electrocatalysts are also introduced. Specifically, the electronic structure regulation includes cationic regulation, anionic regulation, defect engineering, regulation of intercalated anions, and surface modifications. In addition, we focus on the effects of electronic structure regulation on the OER activity. Finally, the challenges and outlook of LDHs are also presented. This review will provide some knowledge for the development and design of superior OER catalysts based on the regulation of the electronic structure.

The OER process could be expressed according to the following elementary steps [64-66]. In alkaline conditions,

4OH^- → OH* + 3OH^- + e^-

OH* + 3OH^- → O* + 2OH^- + H₂O+ e^-

O* + 2OH^-+ H₂O → OOH* + OH^-+ H₂O + e^-

OOH* + OH^- + H₂O → O₂ + 2H₂O + e^-

In acidic conditions,

2H₂O → OH* + H₂O + H⁺ + e^-

OH* + H₂O → O* + H₂O + H⁺+ e^-

O* + H₂O → OOH* + H⁺ + e^-

OOH* → O₂ + H⁺ + e^-

The OER process involves *OH, *O, and *OOH intermediates that are absorbed and desorbed on the surfaces. The OER activity is poor when the adsorption energy of the intermediates is too strong or too weak [67, 68]. The performance of the catalyst is optimal when the adsorption and desorption energies are close to zero [64, 69]. Previous studies revealed that the introduction of a second or third metal cation in materials could optimize the adsorption energy of the active sites [68]. For instance, FeCo oxyhydroxides have been extensively studied as OER catalysts. Zhang et al. incorporated W⁶⁺ into FeCo oxyhydroxides to optimize the adsorption energy of the intermediate, thus leading to an obvious improvement in the OER activity [68]. Conversely, the introduction of the high oxidation state of tungsten (W) could a) alter the local coordination environment of the catalysts, b) tune its local coordination environment, and c) optimize the consequent energetics of the OER. Additionally, density functional theory plus U (DFT+U) calculations revealed that high-valence tungsten could change the geometric and electronic structures surrounding metal sites, thus providing the near-optimal energetics for the OER intermediates and an optimal catalytic performance [68]. Therefore, it is found that the introduction of a second or third metal can provide additional active sites, cause lattice defects, distortion, and promote electron interactions [71, 72]. Moreover, the electronic structure of the catalyst plays an important role in the determination of the adsorption energy of the intermediate [59, 72, 73]. It is well known that cationic/anionic regulation can effectively regulate the electronic structure of catalysts [74, 75]. According to the previous literature, cationic regulation has been demonstrated as an effective approach for tuning the local coordination environment and for fabricating the defect of the catalyst to expose more active sites and optimize its adsorption states and charge transfer properties [59, 76].

Cationic regulation can be achieved by doping, etching, or replacing other cations [77]. Recently, many single-valence metal cations have been studied as the doping elements for LDHs, including Co, Zn, Al, Ir, and others.

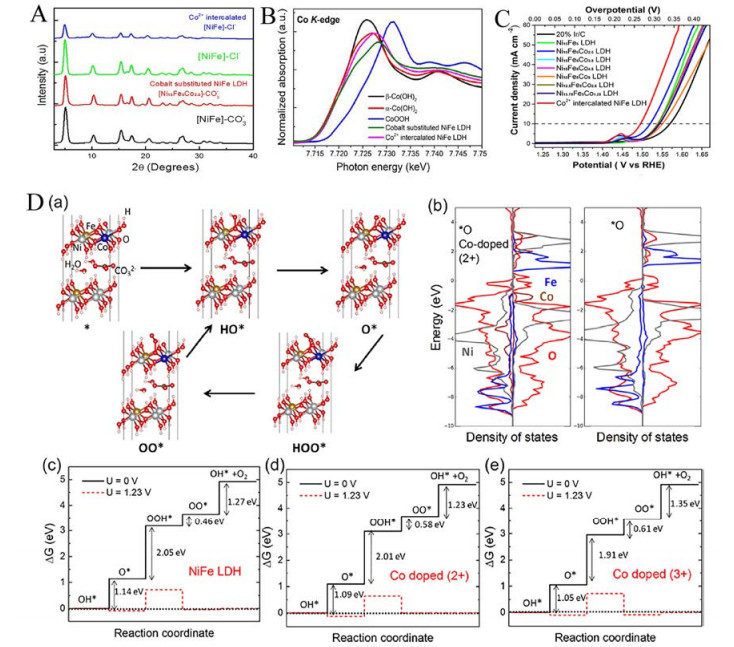

Density functional theory (DFT) calculations revealed that the Co incorporation of LDHs can effectively modify the energetics of the OER reaction intermediates and decrease its overpotential to improve its electrocatalytic performance [78]. In 2015, Long et al. [78] synthesized an LDH which incorporated a tri-metal (Fe, Ni, and Co) by controlling the ratio of the trivalent ion as an advanced electrocatalyst. The thicknesses of the LDHs decrease with the increase of the Co content. The as-synthesized ultrathin FeNiCo LDHs showed the enhanced OER activity, increased the number of the active sites, and improved the conductivity of catalysts, which was ascribed to the modulated electronic structures of catalytic centers by the incorporation of Co. Two years later, Thenuwara et al. [79] reported the highly efficient electrocatalytic activity of NiFe LDHs based on the Co incorporation using substitution or intercalation. X-ray diffraction (XRD) patterns showed that the interlayer spacing of the NiFe LDH with the intercalated Co²⁺ increased, while that of the NiFe LDH with the substituted Co did not change (Fig. 1(A)). The X-ray absorption near edge structure (XANES) spectra indicated that the NiFe LDH sample with the substituted Co had a higher proportion of Co³⁺ than the intercalated ones (Fig. 1(B)). As shown in Fig. 1(C), the NiFe LDH with the intercalated Co exhibited an optimal OER catalytic performance with an overpotential equal to 265 mV at 10 mA cm^-2 owing to the synergistic effects among the interlayer water and active cobalt sites. Additionally, the NiFe LDH with the substituted Co led to an obviously enhanced performance compared to pristine NiFe LDH. The DFT calculation (Fig. 1(D)) shows that the hybridization of the Co 3d state with the O 2p state modified the state density near the maximum of the valence band to effectively change the energetics of the OER reaction intermediates of O*, thus resulting in a significantly increased OER activity.

Furthermore, zinc (Zn) regulations of LDHs have also been studied. Foruzin et al. [80] synthesized the ternary-component nickel-zinc-iron layered double hydroxides (Ni_xZn_yFe_z-LDHs) by the co-precipitation method. In this case, physical characterizations (using scanning electron microscopy (SEM), XRD, and diffuse reflectance spectroscopy) showed that the Ni₂Zn_0.5Fe-LDH had the highest crystallinity and the lowest gap band energy than other ternary LDH components, binary LDH components, Ni₂Fe-LDH, and ZnFe-LDH. Therefore, high-electrical conductivity of Ni₂Zn_0.5Fe-LDH was achieved by the incorporation of Zn to regulate the electronic structure. Thus, the Ni₂Zn_0.5Fe-LDH with modified carbon paste electrodes showed outstanding OER catalytic performances with a low-onset potential, small Tafel slope compared to other samples, and outstanding structural stability.

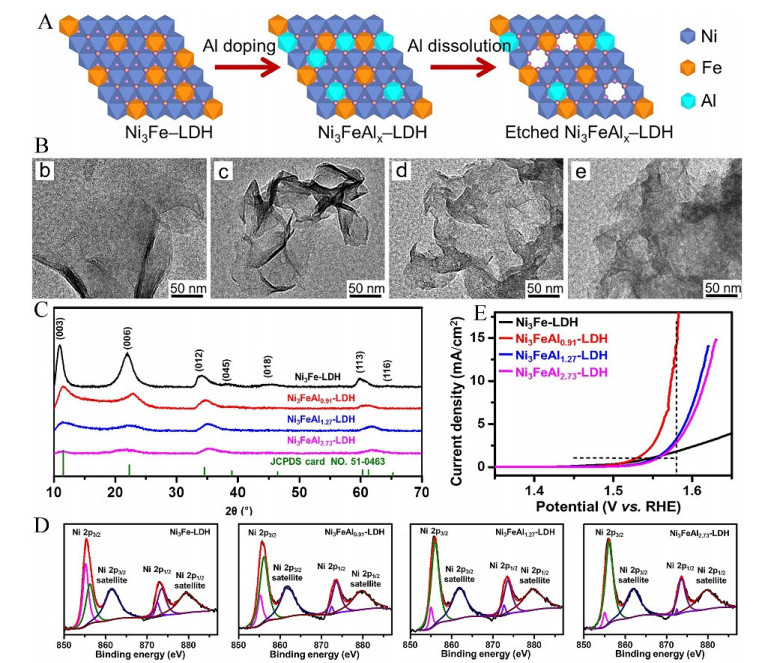

Furthermore, based on the literature, the introduction of trivalent aluminum (Al) ions will greatly increase the fraction of low-coordination active sites in LDHs [81]. Correspondingly, the etching of Al is beneficial in creating metal vacancies [81]. Thus, Al ions were usually used to regulate the surface electronic configurations of LDHs. For example, the ultrathin Ni₃FeAl_x trinary LDH nanosheets were reported by Jin's group [81]. In this work, the ultrathin Ni₃FeAl_x trinary LDH nanosheets were obtained by the substitution and the etching of Al species, as illustrated in Fig. 2(A). The acquired transmission electron microscopy (TEM) images indicated that the morphology of the Ni₃FeAl_x-LDH nanosheets become rough and with low crystallinity following the increase of their aluminum content (Fig. 2(B)). The XRD results confirmed that the Al substitution increased the structural disorder and decreased the crystallization degree of the Ni₃FeAl_x-LDH sample (Fig. 2(C)). The X-ray photoelectron spectroscopy (XPS) characterization suggested that the concentration of Ni³⁺ in Ni₃FeAl_0.91-LDH increases when the atomic ratio of Al³⁺ increases (Fig. 2(D)). The electrocatalytic activity of Ni₃FeAl_x-LDHs is also evaluated (Fig. 2(E)). The Ni₃FeAl_0.91-LDH nanosheets yield the highest catalytic performance in OERs with a low-overpotential (350 mV) at a current density of 13.2 mA cm^-2 compared to the nanosheets of Ni₃Fe-LDH, Ni₃FeAl_1.27-LDH, and Ni₃FeAl_2.73-LDH. Furthermore, the nanosheets of Ni₃FeAl_x-LDH exhibited high long-term durability and electrochemical stability in alkaline solutions. The ultrahigh activity was attributed to the increased content of active sites of Ni³⁺ on the catalyst surface owing to the use of the appropriate ratio of Al³⁺. Additionally, the partial etching/dissolution of Al³⁺ in a strong alkaline solution would create more defect sites in the N₃FeAl_x-LDH lattices to increase the electrochemically active surface area and expose more Ni and Fe active sites, thus leading to the enhancement of the OER catalytic activity.

Ir⁴⁺-doped NiFe LDH (NiFeIr LDH) was synthesized by a facile hydrothermal method using urea as a precipitant [82]. The NiFeIr LDH compound showed a nanosheet structure with a uniform distribution of Ni, Fe, Ir, and O. The XPS results confirmed that the valence state of the Ir was +4. The NiFeIr LDH compound exhibited a superior OER activity after the Ir⁴⁺ doping with a low overpotential of 200 mV at 10 mA cm^-2. Additionally, the NiFeIr LDH had a Pt-like HER performance with an overpotential of 34 mV at 10 mA cm^-2. The excellent electrocatalytic performance of NiFeIr LDH was ascribed to the fact that Ir⁴⁺ doping promoted the water dissociation process (Volmer step) and regulated the electronic structure.

In addition to single-valence metal cations, the multivalence metal cations, such as Fe, Cr, Ce, V, Mn, have been extensively investigated. Studies have shown that compared to single-valence metal cations, the introduction of mutivalence metal cations can not only regulate the electronic structure of LDHs but also affect the water dissociation process [71, 83]. For example, previous results have shown that the introduction of iron (Fe) into the structure could increase the conductivity and create more active sites owing to the fabrication of crystal structural distortion, thus leading to an enhanced OER performance in the case of the catalyst [84, 85]. More recently, Wang et al. [86] introduced the NiCoFe LDH nanosheet arrays via the exchange of cations of Co, Ni, and Fe, in the modified carbon fiber cloth of NiCo-LDH (NiCoFe-LDH/CFC) at room temperature. After the cation exchange reaction (1 h), the NiCoFe-LDH/CFC could maintain the original nanosheet structure, while the incorporation of Fe could cause a slight crystal structure disorder. After the introduction of Fe, the NiCoFe-LDH/CFC exhibited an enhanced OER activity compared to pristine NiCo-LDH. The significantly improved OER activity of NiCoFe-LDH/CFC was ascribed to the incorporation of Fe that led to the exposure of more active sites by building disorders in the crystal structure and by reducing the thickness of the nanosheets. Furthermore, the incorporation of Fe could increase the conductivity of the material and enhance the intrinsic electrocatalytic activity of the catalyst [86].

Moreover, it has been reported that the introduction of chromium (Cr) cations into LDH structures can buffer the multi-electron process necessary for the OER because the Cr metal has several oxidation states (from +1 to +6) [83]. Accordingly, addition of Cr introduces additional active sites [83]. Jin et al. [83] reported the existence of tri-metallic NiFeCr LDH within the unique 2D structure as the OER electrocatalyst. After the introduction of Cr, the crystal structure of NiFeCr LDH remained unchanged. After the additional F^- ions, the crystallinity and nanostructure morphology of NiFeCr-F LDH was improved. Correspondingly, the oxidation state of Cr was confirmed to be +3. X-band electron paramagnetic resonance spectroscopy (EPR) results suggested that the incorporation of Cr could regulate the electronic structure of NiFe-based LDH. The NiFeCr-6:2:1 sample yielded the best OER activity with favorable kinetics and higher electrochemically active surface areas (ECSA) compared to the NiCr, NiFe, and NiFeCr LDH materials. The high catalytic activity of NiFeCr LDH was attributed to the following characteristics: (1) the modular 2D layered structure that facilitated charge transport, (2) the incorporation of multivalent Cr that tuned the electronic structure of LDHs and buffered the multielectron process necessary for OER, and (3) the strongly synergistic interactions among Ni, Fe, and Cr.

As commonly known, cerium (Ce) has a flexible coordination number [71]. When Ce is introduced into the structure of LDH, it will cause lattice defects and promote the interaction between active sites, thus modifying the electrocatalyst properties of the catalyst [71]. Xu et al. [71] prepared Ce-doped NiFe-LDH nanosheets/carbon nanotubes (denoted as NiFeCe-LDH/CNT) by a facile and low-cost in situ self-assembly strategy as the electrocatalyst for OER. In this case, it was found that NiFeCe-LDH nanosheets were uniformly distributed on carbon nanotubes (CNT). CNT combined with the LDH-based catalyst could enhance the electrical conductivity and improve the specific surface area and the number of active sites. Given that the ionic radius of Ce³⁺ (102 pm) was much larger than that of Fe³⁺ (55 pm), isomorphic substitution of Fe³⁺ by Ce³⁺ resulted in lattice defects. Therefore, the introduction of a high, flexible coordination number of Ce³⁺ into the NiFe-LDH structure could increase the interlayer spacing and promote the formation of rich oxygen vacancies. These defects are more conducive to the exposure of more active sites and to the enhancement of the coupling with CNT. Thus, 5.0% Ce-NiFe-LDH/CNT led to a highly efficient OER activity with a lower overpotential of 227 mV as well as delivered a current density of 10 mA cm^-2 and a low Tafel slope of 33 mV dec^-1, which were better than those exhibited by the counterpart and the most reported NiFe-based electrocatalysts.

Vanadium (V) has been extensively studied owing to its low price, series of valence states, and potential catalytic activity [87, 88]. V-doped NiFe LDH nanosheet arrays on Ni foam were prepared by a one-step hydrothermal method [87]. V-doping did not change the layered structures of NiFe LDHs, and thus maintained their crystal structures. The XPS analysis indicated that the V element in the NiFeV LDHs existed in the +3, +4, and +5 oxidation states, owing to the fact that V³⁺ was partially oxidized by oxygen to the V⁴⁺ and V⁵⁺ states during the synthesizes of LDHs. As a result, the NiFeV LDHs exhibited superior OER performances with a lower overpotential of 195 mV at a current density of 20 mA cm^-2, and a Tafel slope of 42 mV dec^-1 compared to the commercial RuO₂, NiV LDHs, and NiFe LDHs. In addition, the NiFeV LDHs exhibited a favorable OER kinetics response with a higher turnover frequency (TOF) value (0.04 s^-1) and more electrochemical active sites with larger C_dl values (6483 uF cm^-2). DFT calculations demonstrated that doping of V in NiFe LDHs could narrow the bandgap to improve the electrical conductivity of the material [87]. Therefore, the NiFeV LDHs nanosheets showed an outstanding OER activity owing to the enhanced electrical conductivity and increased number of active sites as well as promoted electron transfer caused by the modulation of the electronic structure and the narrowing of the bandgap.

The DFT results showed that the Mn⁴⁺ doping of LDH could narrow the bandgap between the valence and conduction and improve the electrical conductivity [89]. Lu et al. [89] reported Mn⁴⁺ doped NiFe LDHs (denoted as NiFeMn LDHs) through a simple co-precipitation method. The NiFeMn-LDH has a flower-like nanoplate structure, and an average size and thickness of ~50 nm and ~3.7 nm, respectively. The crystal structure of the LDHs remained unchanged, which indicated that the Mn doping did not cause any structural deformation. The XPS results demonstrated that the Mn in the NiFeMn-LDH oxidation states was +4. The NiFeMn-LDH exhibited excellent OER activity with a low-onset potential of 1.43 V, fast increasing OER current, low-Tafel slope, and a high-TOF value, which were superior to those for NiFe-LDH and NiMn-LDH. In addition to the high-catalytic activity toward OER, the ternary NiFeMn-LDH catalyst yielded significant durability in alkaline solutions. The author attributed the high OER activity of the NiFeMn-LDH to the Mn⁴⁺ doping into the layered structure, which caused a tunable electronic structure, and higher electronical catalyst conductivity.

In addition to the cationic and anionic regulations as additional, effective approaches used to tune the electronic structure, the increase of the conductivity and optimization of the chemical adsorption to promote the interaction with reactants has been attracting increased attention [58, 90, 91]. Specifically, the metal cations of LDH-based catalysts are the actual active sites of the OER, and are conducive to the absorption of hydrogen but do not facilitate the desorption of oxygen [77, 91]. Appropriately polarized anions can optimize the electronic structure of active sites by adjusting the ionic-covalency properties of the material to facilitate reactant adsorption, electron transfer, and product desorption, thus greatly enhancing their OER catalytic activities [92, 93]. For instance, Shi and co-workers [94] reported the N-doped CoS₂ as the OER electrocatalyst. In this case, the as-prepared N-doped CoS₂ exhibited a low overpotential of 240 mV at 10 mA cm^-2 and a high durability in the alkaline electrolyte. The DFT calculations suggested that N doping could adjust the valence state of the adjacent Co atoms and minimize the adsorption free energy of intermediates, which reduced the reaction barriers, and thus exhibited increased activities for OER [94]. In short, anionic regulation has been proven to be an effective way to tune the electronic properties and increase reactive sites [59]. Similarly, the electronic structure of the LDH-based catalyst is regulated by doping, etching, or the substitution of anions.

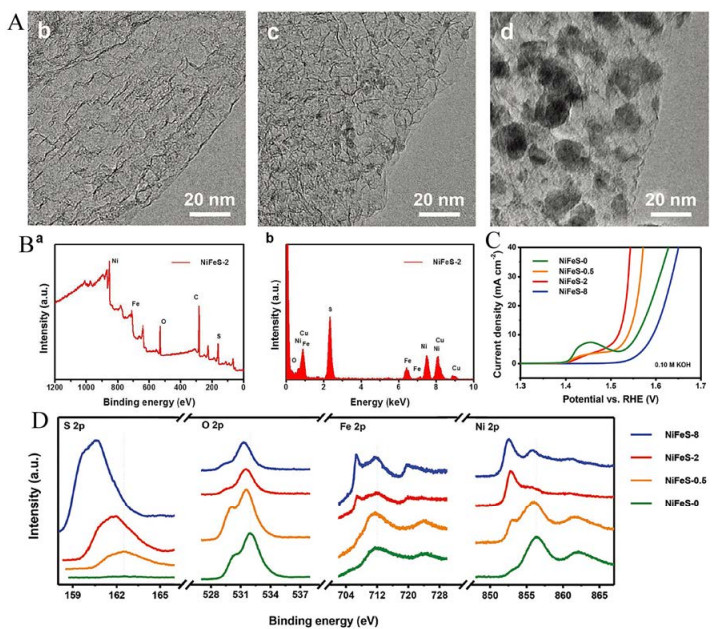

Oxygen and sulfur belong to the same group in the periodic table. Moreover, O^2- is a hard base which is difficult to polarize, while S^2- is a soft base, and is easily polarized in compounds [93, 95]. When polarized S^2- partially substitutes O^2-, it weakens the metal bond strength to promote oxygen desorption [47]. Recently, anionic regulated NiFe oxysulfide for oxygen electrocatalysis was reported by Zhang's group [93]. In this study, authors revealed that the optimized electronic structure achieved by regulating the ratio of O^2- and S^2-, can facilitate the adsorption of reactants, electron transfer, and product desorption, and can thus greatly improve the OER catalytic performance. The S-doped NiFe LDH, which was named as NiFeS-x (x is the mass ratio of TAA:NiFe LDH), could be achieved by the sulfurization of NiFe LDH precursors using thioacetamide (TAA) as the sulfurization reagent. NiFeS-x exhibited the morphology of nanoparticles on the 3D graphene framework (GF) surface (Fig. 3(A)). The XPS and energy dispersive spectroscopy (EDS) analyses confirmed that the sulfur gradually substituted the original oxygen to form anionic regulated electrocatalysts (Fig. 3(B)). As a result, the NiFeS-2 electrocatalyst possessed an optimized catalytic activity with a low overpotential of 286 mV at 10 mA cm^-2 and the fastest kinetics (Fig. 3(C)). With the increased content of sulfur, the high-resolution XPS spectra of O 2p and S 2p shift to a lower binding energy, while the Fe 2p and Ni 2p shift to a lower binding energy (Fig. 3(D)). This result suggests that the polarized sulfur anions tend to give their dispersive electrons to adjacent metal ions. When sulfur and oxygen reach a certain proportion, NiFeS-x possesses the optimal electronic structure and exhibits a superior catalytic performance in OERs.

Zhang's group [96] was the first to propose a method to synthesize hydroxysulfides using a room temperature sulfurization methodology. The CoAl layered double hydroxide (denoted as CoAl-OH) precursors were immersed in a high concentration of S^2- to form hydroxysulfides based on the continuous replacement of OH^- by S^2-. The anion-regulated CoAl hydroxysulfide (Co₅AlS_1.5(OH)₁₀) exhibited excellent electrocatalytic performances toward the OER compared to pristine CoAl-OH. At the same time, the graphene-supported CoFe hydroxide nanoparticles (CoFe-OH) were treated similarly. After the treatment, the CoFeS_1.6(OH)_1.8-HT showed an outstanding OER activity.

Recently, Wang's group [46] synthesized S^2- regulated CoAl LDHs with an Al³⁺ defect (denoted as PS-CoAl LDHs) using a modified water DBD plasma treatment in the Na₂S solution. In this case, the DBD plasma treatment could achieve a rapid and highly efficient transformation from OH^-/O^2- to S^2- and induce the generation of metal defects. Al³⁺ defects could expose more active sites and the S^2- regulation could significantly improve the intrinsic conductivity as well as optimize the electronic structure of the PS-CoAl LDHs. Moreover, the surface amorphization could increase the flexibility of the structure to provide abundant unsaturated sites. Thus, the PS-CoAl LDHs showed a lower overpotential of 329 mV at the current density of 10 mA cm^-2 and possessed faster reaction kinetics during the OER process compared to the CoAl LDHs. Qian et al. also reported S-doped Co-Ni LDHs on conductive substrates through a one-step electrodeposition method [97]. The S-doped Co-Ni LDHs with improved conductivity yielded higher electrocatalytic activities than the undoped one. Recently, Lu and co-workers [98] also reported the template-directed synthesis of the three-dimensional (3D) porous sulfur which incorporated the NiCoFe LDH nanosheets (S-NiCoFe LDH) in the carbon cloth. The 3D hierarchical porous nanosheets provided abundant active sites, and the doping with sulfur enhanced the electrical conductivity. Additionally, the as-prepared S-NiCoFe LDH showed excellent OER catalytic activity and increased stability.

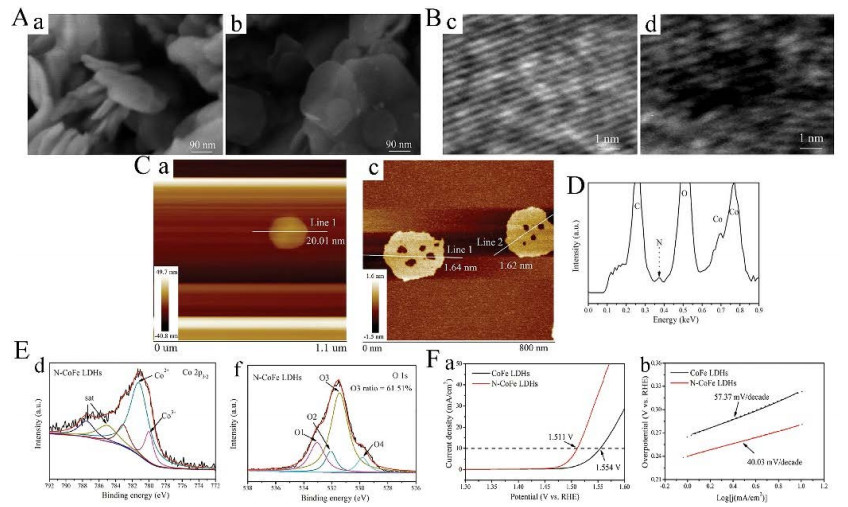

N doping is another effective way used to promote the electrochemical performance. Specifically, introducing N into the lattice could optimize the catalytic performance by overcoming the intrinsic activation barrier during the catalytic reaction [94]. Recently, Wang's group [99] reported exfoliated and edge-rich ultrathin CoFe LDHs nanosheets with nitrogen doping (denoted as N-CoFe LDHs) as the OER electrocatalyst. The N-CoFe LDHs were synthesized by treating the bulk CoFe LDHs with the N₂ plasma. After the N₂ plasma treatment, the morphology of the hexagonal nanosheet structure was maintained as shown in the SEM and TEM images (Fig. 4(A) and (B)). The atomic force microscopy (AFM) images (Fig. 4(C)) showed that the thicknesses of the N-CoFe LDHs nanosheets (1.6 nm) were much smaller than the bulk CoFe LDHs (20.01 nm), thus suggesting that the bulk CoFe LDHs was efficiently exfoliated. The EDX results indicated that the N element was successfully introduced to the ultrathin CoFe LDHs nanosheets (Fig. 4(D)). The XPS results confirmed the presence of Co³⁺, nitrogen, and the increased content of oxygen vacancies in ultrathin N-CoFe LDHs nanosheets (Fig. 4(E)). The linear sweep voltammetry (LSV) curves of bulk CoFe LDHs and ultrathin N-CoFe LDHs nanosheets in 1 mol/L KOH electrolyte are presented in Fig. 4(F). The ultrathin N-CoFe LDHs nanosheets exhibited an outstanding OER performance with a lower overpotential of 281 mV at 10 mA cm^-2 and a smaller Tafel slope of 40.03 mV dec^-1 compared to the bulk CoFe LDHs. The significantly increased electrocatalytic activity was attributed to the ultrathin nanosheet structure which had an increased number of reactive sites, an increased number of dangling bonds, and a lower number of coordination atoms caused by efficient plasma exfoliation. In addition, nitrogen doping could alter efficiently the electronic arrangement of the adjacent Co or Fe atoms to facilitate the adsorption of OER intermediates.

Previous results confirmed that the surface defects may have a positive effect on the electrochemical reaction [100, 101]. Defects in catalysts can tune the electronic structure and surface properties of nanomaterials by changing the distribution of electronic charge and by increasing the degree of disorder [102]. Additionally, the formation of the lower coordination number of metal atoms with high-energy hanging bonds through defect engineering is conducive in the increase of the catalytic performance of the reactive sites [103, 104]. Anionic vacancies (such as oxygen vacancies) are the most common vacancies in transition metal compounds. The presence of anionic vacancies in a catalyst can adjust its surface electronic properties and bandgap to greatly change its physical and chemical properties [105, 106]. For example, Wang's group [61] designed a Co₃O₄-based OER electrocatalyst with oxygen vacancies and high-surface area by an Ar plasma-engraving strategy. In this case, the plasma treatment could effectively engrave the Co₃O₄ nanosheet structure to increase the surface area. In addition, the plasma-engraved Co₃O₄ with oxygen vacancies on its surface could expose more surface sites to significantly enhance its electrocatalytic activity for OER. In addition to anionic vacancies, cationic vacancies also have considerable effects on the OER performance. The introduction of metal cationic vacancies in the catalyst can alter the valence state of the adjacent metal sites to enhance its electrochemical performance [107]. For instance, Wang's group [57] synthesized the SnCoFe perovskite hydroxide with abundant Sn vacancies by Ar plasma. In this study, it was preferred to produce Sn vacancies instead of Co or Fe vacancies owing to the relatively lower lattice energy and weaker chemical bonds of Sn(OH)₄. The as-formed Sn vacancies could promote the exposure of additional CoFe sites, form an amorphous surface layer to effectively regulate the surface electronic structure and lead to a significant enhancement of the OER activity. Moreover, other types of defects (such as lattice dislocations, expansion, and distortion have also been extensively investigated. Therefore, the defect engineering of electrocatalysts is considered to be an effective method that is used to improve the catalytic activity.

Oxygen vacancies are most common in anionic vacancies [108]. Suitable oxygen vacancies can tune the electronic structure of the catalyst, increase the active sites, improve its electrical conductivity, and optimize the adsorption energies of its OER intermediates [109, 110]. Furthermore, oxygen vacancies can serve as the active sites of catalytic reactions [111]. There are several ways to generate vacancies. The reduction, thermal treatment, corrosion, and plasma technology are the most common strategies used to create vacancies [112]. Specifically, the use of different reducing agents can generate anionic vacancies [113]. In thermal treatments, reducing agents regulate the formation of vacancies mainly related to the carrier gas, annealing temperature, and heating ramp rates [114]. In addition, plasma technology is a quick and convenient approach used in vacancy engineering and has been extensively investigated [57]. For example, Yang's group [115] demonstrated that the exfoliated CoFe LDH nanosheets with rich oxygen vacancies could be used as bifunctional electrocatalysts. The CoFe LDHs-C (CO₃^2- as intercalated anions) was treated with N, N-dimethylformamide (DMF) and was mixed with ethanol as a solvent to obtain CoFe LDH-F (F^- as intercalated anions). Compared to CoFe LDH-C, the as-obtained CoFe LDH-F had thinner structures and more defect sites (oxygen vacancies), which could create more unsaturated metals as active sites and improve their intrinsic electronic conductivities. Therefore, the CoFe LDH-F exhibited a remarkable electrocatalytic performance. Besides, Xiong et al. [62] introduced oxygen vacancy defects on the surface of NiFe LDH by the treatment with NaBH₄. Compared to pristine NiFe LDH, the as-designed defective NiFe LDH electrocatalysts exhibited a significantly enhanced OER activity with a low-onset potential of 1.40 V and a small overpotential of 200 mV to derive the current density of 10 mA cm^-2. The DFT+U calculations revealed that the introduction of oxygen vacancies tended to reduce the valence state of Fe and narrow the bandgap so that the electrons could be easily excited into the conduction band, thus leading to an enhanced conductivity and to an improved OER performance. It is concluded that the superior OER activity of defective NiFe LDH was owing to the tuned electronic structure, enhanced electrical conductivity, and improved exposed active sites.

According to previous publications, the metal cationic vacancies usually have a positive effect on the electrochemical reactions for their various electron and orbit distributions [104]. The introduction of metal cationic vacancies can regulate the surface electronic structure around the reactive sites to facilitate the adsorption of OER intermediates, thus leading to a significantly improved electrocatalytic activity [32, 116]. However, compared to anionic vacancies, the formation energy of cationic vacancies is large, which makes it more difficult to study its role [104]. Recently, Sun's group [117] prepared a NiFe LDH with atomic M(II)/M(III) defects as highly efficient OER catalysts. In this study, base-soluble Zn(II) or Al(III) atoms were introduced into the lattices of NiFe LDHs which were then selectively etched to create atomic M(II)/M(III) defects. Electrochemical results showed that M(II) defect-rich NiFe LDHs were superior to those of M(III) defect-rich NiFe LDHs. The DFT calculations revealed that the generation of many unsaturated O-coordinations of the Ni(II)–O–Fe(III) coupling sites by selective defect engineering decreased the Gibbs free energy of the deprotonation step. Therefore, it can be concluded that the increased ECSA and changed electronic structures of the metal sites around the atomic defects could significantly enhance the OER activity.

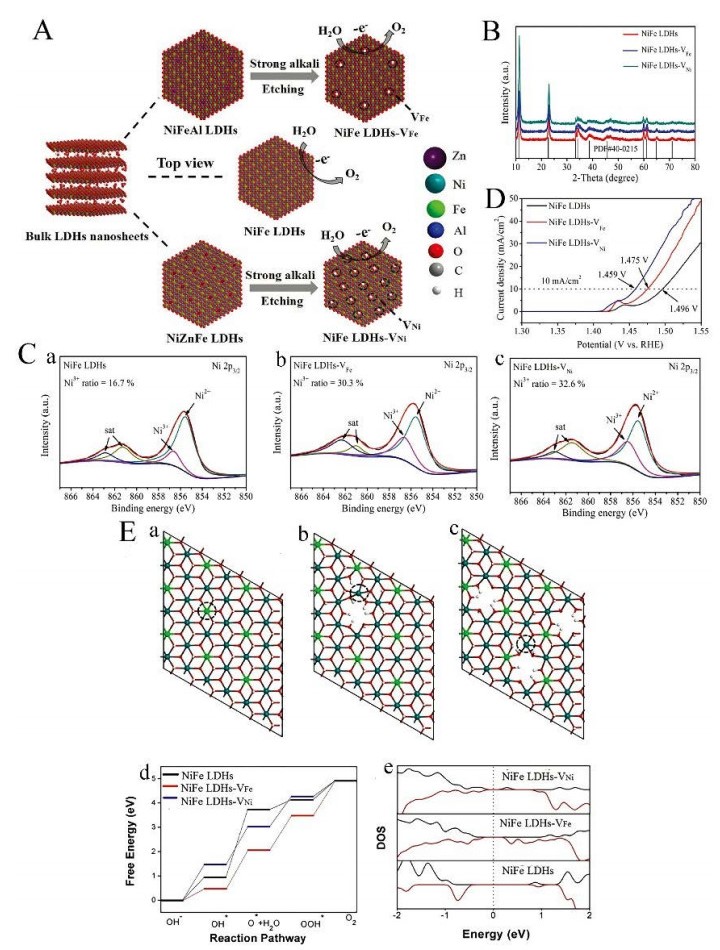

Furthermore, Wang's group [63] designed two NiFe LDHs nanosheets with Ni²⁺ or Fe³⁺ vacancies as OER electrocatalysts, as shown in Fig. 5(A). In this study, NiFe LDHs nanosheets with Ni²⁺ vacancies (denoted as NiFe LDHs-V_Ni) or Fe³⁺ vacancies (denoted as NiFe LDHs-V_Fe) were obtained by etching the as-synthesized NiZnFe LDHs and NiFeAl LDHs nanosheets. According to the XRD patterns, the as-obtained NiFe LDHs-V_Fe and NiFe LDHs-V_Ni maintain the host crystal structure of NiFe LDHs (Fig. 5(B)). The NiFe LDHs-V_Fe and NiFe LDHs-V_Ni maintain their plate-like morphologies. The Ni 2p_3/2 XPS spectrum (Fig. 5(C)) of NiFe LDHs, NiFe LDHs-V_Fe, and NiFe LDHs-V_Ni, reveal that the introduction of iron or nickel vacancies caused the chemical valence state to increase from Ni²⁺ to Ni³⁺, which effectively regulates the surface electronic structure of the NiFe LDHs nanosheets. Thus, the NiFe LDHs-V_Fe and NiFe LDHs-V_Ni nanosheets yield better OER catalytic activities with lower overpotentials equal to 245 and 229 mV at the current density of 10 mA cm^-2 compared to NiFe LDHs of 266 mV (Fig. 5(D)). The improvement of the OER performance was attributed to the optimized surface electronic structure of the active sites around Fe, or the Ni vacancies and the unsaturated coordinated sites generated by the introduction of the Fe or Ni vacancies. Spin-polarized density functional theory computations suggested that Fe³⁺ or Ni²⁺ vacancies facilitated the adsorption of O* intermediates (Fig. 5(E)). Furthermore, the electric density of state computations revealed that the presence of Fe or Ni vacancies lowered the bandgap and improved the electrical conductivity of NiFe LDHs.

According to the discussion outlined above, it is deduced that the introduction of oxygen and metal vacancies into nanomaterials cannot only decrease the coordination number of catalytic sites but can also regulate the electronic structure of the electrocatalyst [107]. Recently, Wang's group [107] developed an Ar plasma technology to etch bulk CoFe LDHs to obtain ultrathin LDH nanosheets as an excellent electrocatalyst for the OER, as shown in Fig. 6(A). Ar plasma treatment could preserve the nanosheet structure during the exfoliation process. The AFM confirmed that the thickness of the ultrathin LDH nanosheet (denoted as CoFe LDHs-Ar) is equal to 0.6 nm, and that it is smaller than that for pristine CoFe LDH, which is equal to 20.6 nm (Fig. 6(B)). The diffraction peaks corresponding to the disappearance of the 003 and 006 planes on the XRD pattern show that the LDHs nanosheets are successfully exfoliated into monolayer nanosheets (Fig. 6(C)). The XANES spectroscopy results indicate the presence of multiple vacancies (V_o, V_Co, and V_Fe) in the ultrathin CoFe LDHs-Ar nanosheets (Fig. 6(D)). The electrochemical data show that the CoFe LDHs-Ar exhibit an enhanced OER activity compared to the bulk CoFe LDHs (Fig. 6(E)). The increased performance of the CoFe LDHs-Ar nanosheets could be attributed to the following factors: (1) the as-obtained ultrathin nanosheet structure with a larger surface area for the exposure of more active sites owing to Ar plasma etching, and (2) the formation of multiple vacancies for tuning the surface electronic structure, which leads to the decrease of the coordination numbers and the increase of the structural distortion.

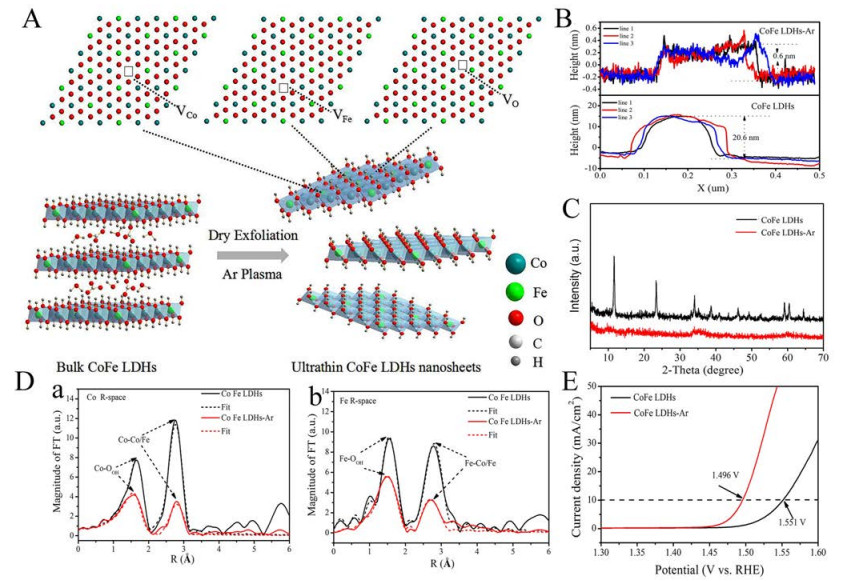

Furthermore, ultrathin CoFe LDHs nanosheets with multivacancies which were obtained by a water plasma treatment were proved to be an efficient OER electrocatalyst according to Wang's group [118]. In this case, the water-plasma exfoliated CoFe LDHs nanosheets led to an enhanced electrocatalytic activity for OERs compared to pristine CoFe LDHs. This was ascribed to the structures of the ultrathin nanosheets increased surface areas that generated multivacancies (O, Co, and Fe vacancies) with lower coordination numbers, increased structure distortion, and dangling bands on the surface. Wang's group [119] also reported an excellent OER electrocatalyst of CoFe LDHs using an acid etching method. In this study, the acid etched CoFe LDHs (denoted as E-CoFe LDHs) were prepared by immersing pristine CoFe LDHs into 1 M HNO₃. After their treatment with HNO₃, the regular and smooth nanosheets became smaller and contained multiple holes, while CO₃^2– was partially replaced by NO₃^- in the acid etching process. The XANES analysis indicated the appearance of multiple defects (O, Co, and Fe vacancies) in the exfoliation process. The E-CoFe LDHs yielded a superior OER activity with the lower potential of 1.576 V to generate the current density of 10 mA cm^–2, and a lower Tafel slope of 41 mV dec^-1 compared to the pristine CoFe LDHs of 1.532 V and 78 mV dec^-1. This was owing to the larger interlayer space caused by the intercalation of some NO₃^–, tuning of the electronic properties, increased degree of disorder, and the exposure of more active sites by the multiple vacancies. At the same time, a two-dimensional (2D) single-unit-cell-thick LDH nanosheets (~1.3 nm) catalyst for OER was prepared by reducing the reaction time to 5 min [120]. Owing to the ultrathin structure which had more surface defects, increased active site density, and an enhanced electrical conductivity, an improved electrocatalytic activity on the OER results compared to that of the bulk LDHs.

In addition to the aforementioned defect types, many types of lattice defects (such as lattice dislocations, expansion, and distortion) also have positive effects on the promotion of electrocatalysis [121-122]. These defects can effectively regulate the electronic structure and optimize the electrocatalytic performance [104]. They can be generated by doping, substitution, etching, and amorphization [104]. For example, Tang and co-workers [123] introduced the NiFe LDH nanosheet array catalyst with partially amorphous characteristics. The results revealed that partially amorphous NiFe LDH possessed native Ni³⁺ ions compared to the highly crystalline catalysts. Furthermore, partially amorphous NiFe LDH could not only provide abundant high-valence active sites for electrochemical reaction, but also generated abundant crystalline-amorphous interface to improve the electrical conductivity. Therefore, this compound exhibited enhanced OER activity than fully amorphous and highly crystalline catalysts. Correspondingly, Ni–Co amorphous double hydroxides (ADHs) nanocages were synthesized by Guo and co-workers [124]. The EXAFS results demonstrated that amorphous Ni-Co ADHs had a more pronounced structural disorder as compared to crystalline materials. Accordingly, it had a higher surface reactivity and structural stability in promoting its OER activity. Yang and co-workers [125] synthesized ultrathin NiAl-LDH nanosheets using the one-step liquid-phase exfoliation method. The exfoliation process of LDHs resulted in the formation of Ni (III) active sites. Yan et al. [126] presented ultrathin NiFe LDH nanosheets as efficient OER catalysts. The enhanced OER activity was ascribed to a better conductivity and to the large specific surface area owing to exfoliation. Tang and co-workers reported a facile in situ self-assembly strategy that was used to synthesize Ce-doped NiFe-LDH on CNT [71]. Compared to the pristine NiFe-LDH, the Ce-doped NiFe-LDH exhibited better OER performance. The enhanced OER activity was derived from the doping of Ce³⁺ in NiFe-LDH which led to lattice defects and induced imperfections in the layers. The lattice defects could induce the formation of thin nanosheet structures to expose more active sites.

The intercalated anion regulation of LDHs electrocatalysts is another effective way to improve the OER performance, which can in turn improve the ion exchange capacity, enlarge the interlayer distance, facilitate diffusion of the reactants and products, and enhance its intrinsic catalytic activity [54, 127, 128]. Initially, most studies focused on the introduction of different inorganic nonmetal anions in LDHs. Sun and co-workers synthesized NiFe LDHs with different anion intercalations at room temperature as an excellent oxygen evolution catalyst [129]. In this study, different interlayer ions could be achieved by changing the ratio of NO₃^– and CO₃^2- in the synthesis process. Increased NO₃^– intercalation of NiFe-LDH led to superior OER activities with a low-onset overpotential equal to 240 mV, and a Tafel slope value of 33.6 mV dec^-1. This was owing to the fact that the wider interlayer space could expose more active sites, promote the anion-exchange ability, and decrease the charger transfer resistance. Additionally, Chen and co-workers [130] reported the NiCo-LDH hollow nanoprism (HNP) intercalated with multiple anions (including CH₃COO^-, NO₃^-, OH^-, and CO₃^2-) through a facile sacrificial template route. The NiCo-LDH HNP yielded an enlarged interlayer spacing and an increased specific surface area achieved by the intercalation of multiple anions, which was favorable for accelerating the insertion of electrolyte ions and transport. In addition, the hollow architecture facilitated the exposure of electroactive sites, and the transfer of mass and charge. Thus, NiCo-LDH HNP demonstrated an excellent electrocatalytic activity toward OER with a low overpotential of 0.35 V at 10 mA cm^-2 and good stability.

Subsequently, Duan and co-workers [131] reported phosphorus-based (including phosphate, phosphite, and hypophosphite anions) NiFe-LDHs intercalated with oxoanions by a co-precipitation method that were used as oxygen evolution electrocatalysts. After the intercalation of the phosphorus oxoanion, NiFe-LDH had an enlarged interlamellar space compared to that of the carbonate counterpart. The XPS results revealed that the NiFe-LDHs intercalated with hypophosphite had a lower valence state than phosphate, or NiFe-LDHs intercalated with phosphite, thus suggesting that the intercalation of phosphorus oxoanion could alter the electronic structure of the Ni sites in the LDHs. The as-prepared NiFe-LDH intercalated with hypophosphite yielded an excellent OER performance with the smallest onset potential of 1.45 V and a smaller Tafel slope of 37.7 mV dec^-1, which was superior to that of the phosphite, phosphate, and NiFe-LDH catalysts intercalated with carbonate. The enhanced OER activity was attributed to the tuned electronic structure of the surface Ni sites by the intercalated hypophosphite anions. Meanwhile, Li and co-workers synthesized borate, ion-intercalated, Ni-Fe LDH nanosheets as an efficient electrocatalyst for OERs [132]. The Ni-Fe LDH with borate ion intercalation yielded an expanded interlayer distance and an increased pore size compared to the bulk Ni-Fe LDH. In addition, the increased specific surface area achieved by the intercalation of the borate ion could facilitate mass transport and charge transfer. Thus, after borate ion intercalation, the Ni-Fe LDH exhibited the optimal OER electrocatalytic activity with a low-onset overpotential of 270 mV and a Tafel slope of 42 mV dec^-1.

In addition to inorganic nonmetal anions, inorganic metal anions have been extensively studied. Ultrathin NiFe-LDH nanosheets intercalated with molybdate anions were prepared by Li's group [133]. After the intercalation of molybdate ions, the thickness of NiFe-LDH nanosheets was 0.5 nm and the interlayer distance was 0.7 nm, thus confirming the intercalation of molybdate ions and the formation of the ultrathin structure with an enlarged interlayer distance. Thus, the ultrathin NiFe-LDH nanosheets possessed a better OER activity with a low overpotential of 280 mV to drive the current density to 10 mA cm^-2, and good electrochemical stability compared to the regular NiFe-LDH. Moreover, Zn-Fe LDHs intercalated with vanadate and molybdate anions were also fabricated by Rezvani and co-workers using a co-precipitation method [134]. During the intercalation of the vanadate and molybdate anions, the interlayer spacing of LDHs had not changed. The Zn-Fe LDHs with the vanadate anion intercalation yielded an increased OER activity with a smaller overpotential in 0.1 mol/L KOH. It also yielded a stronger durability with the intercalation of vanadate anion compared to Zn-Fe LDHs and Zn-Fe LDHs with the intercalation of molybdate anion. This was owing to the increased catalytic active sites that facilitated electrode charge transfer.

To understand the effect of interlayer spacing and interlayer ions on OER activity, many studies have been conducted. Guan and co-workers [128] investigated the correlation between the interlayer distance and the OER catalytic performance of the electrodeposited NiFe LDH with formamide as the intercalated anion using the in situ intercalation method. In this study, the interlayer distance of NiFe LDH was increased from 7.8 to 9.5 Ǻ by the immersion of the electrode in formamide. After the immersion of the NiFe LDH electrode in formamide with ultrasound, the intercalated electrodes yielded lower overpotentials and higher current densities at a specific potential, and larger TOFs than the original NiFe LDH electrode. The reason for the enhancement was attributed to the fact that the extension of the interlayer distance could expose more catalytic sites and facilitate the diffusion of the reactants and products. Müller and co-workers [135] prepared a series of NiFe-LDH nanosheets with different interlayer anions to study the role of intercalated anions on the OER activity. The incorporation of different interlayer anions in the NiFe-LDH nanosheets was achieved by pulsed laser ablation in liquids (PLAL) or anion exchange. It was found that the measured basal spacings of LDH nanosheets were linearly related to the interlayer anion radius. Surprisingly, the overpotentials did not depend on the basal spacings. The OER activity was correlated to the pKa of the conjugate acid of the interlayer anions. Specifically, the pKa of the anion could bind to the active iron sites in the catalyst to influence their OER activities. Thus, the higher pKa value of the conjugate acid of the interlayer anion is the result of its higher OER activity.

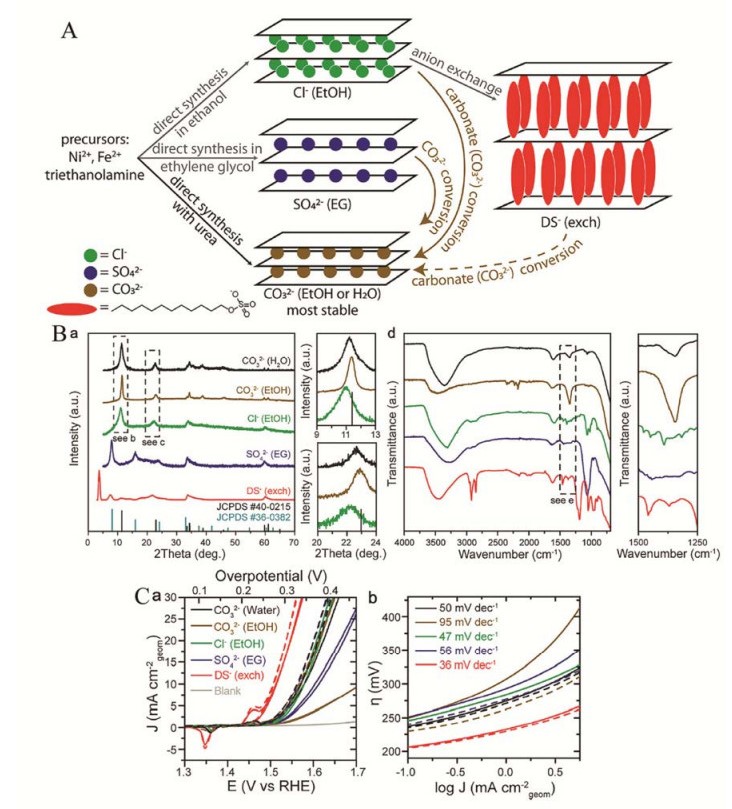

Recently, Yang and co-workers [136] synthesized a series of NiFe LDH materials with different interlayer anions, including carbonate (CO₃^2-(H₂O) and CO₃^2-(EtOH)), chloride (Cl^-(EtOH)) and sulfate (SO₄^2-(EG)), with one-step hydrothermal synthesis, as shown in Fig. 7(A). The powder X-ray diffraction (PXRD) pattern (Fig. 7(B)) suggests that the crystalline domain size of the CO₃^2-(EtOH) sample is smaller than that of the CO₃^2-(H₂O) sample. Additionally, the Cl^-(EtOH) sample has a larger interlayer spacing compared to that of the CO₃^2-(H₂O) sample, while the SO₄^2-(EG) sample has a different crystal structure compared to other samples. The attenuated total reflectance infrared spectroscopy (ATR–IR) and the PXRD patterns confirmed that the Cl^-(EtOH) and SO₄^2-(EG) NiFe LDH samples contained a small amount of carbonate anions in the interlayer (Figure 7B). The OER electrocatalytic activity was evaluated in 1 mol/L KOH (Fig. 7(C)). Both the CO₃^2-(H₂O) and Cl^-(EtOH) electrodes have a similar electrocatalytic performance with overpotentials of 341 and 343 mV at a respective geometric current density of 10 mA cm^-2. These were better than those of the CO₃^2-(EtOH) and SO₄^2-(EG) electrodes which respectively equaled 486 and 375 mV. The respective normalized CV curves for C_dl and the J-V curves are shown by the dashed traces in Fig. 7(C). There were no significant differences with the values normalized by the geometric area, thus indicating that these NiFe LDH catalysts with different interlayer anions (CO₃^2-, Cl^-, SO₄^2-) had the same intrinsic activities. Moreover, these interlayer anions were easily exchanged with carbonates in the OER electrolyte in ambient conditions. Furthermore, through anion exchange, the Cl^-(EtOH) powder was transformed into NiFe LDH intercalated with dodecyl sulfate anions (DS^-) to study the impact of a large redox-inactive anion. The DS^- intercalated NiFe LDH with larger interlayer spacings exhibit enhanced OER performance than the LDH with other intercalated anions (CO₃^2-, Cl^-, SO₄^2-), as shown in Fig. 7(C). Moreover, it could resist the anion exchange to form the carbonate LDH. This result showed that the DS^- intercalated NiFe LDH possessed higher intrinsic catalytic activity than other samples.

In summary, the intercalation anion regulation of LDHs with a unique 2D layered structure can effectively improve the OER activity. Compared to the cationic/anionic regulation, the intercalated anion regulation can also promote the OER activity. However, it has a lesser effect on the crystal structure. The improved OER performance mainly included the (1) expansion of the interlayer spacing of the LDHs that increase electrochemically the active specific surface area and facilitate the diffusion of the reactants and products, and (2) increased the catalytic active sites by enhancing the intrinsic catalytic activities of the active sites.

The surface modifications of LDHs with electronegative noble metals can effectively enhance their electrocatalytic activities [110, 137]. The noble metals were combined with LDHs to form heterojunctions to facilitate the electron transfer and increase the interfacial interaction between the metal nanoparticles and LDHs layers [138, 139]. Recently, Kundu and co-workers [140] reported an electrocatalyst with increased efficiency toward OER and HER of the NiFe LDH decorated with Pt nanoparticles (NPs) based on a two-step reaction. In this study, Pt-tethered, NiFe LDH crystalline sheets, showed that Pt NPs tethered uniformly on the surface of NiFe LDH crystalline sheets and their mean diameter was 4 ± 1 nm. Pt-NP tethered, NiFe LDH crystalline sheets, yielded a significantly enhanced OER activity with a lower overpotential of 280 mV at 50 mA cm^-2, a lower Tafel slope, and better stability than the co-precipitated NiFe LDH. Similarly, Pt-NP tethered, NiFe LDH crystalline sheets, showed a better activity toward HER. The enhanced OER performance of the Pt-NP tethered coprecipitated NiFe LDH was attributed to the large ECSA and the increased degree of crystallinity.

Hasheminasab and co-workers reported gold nanodendrite-CuMgFe LDH composites as a bifunctional electrocatalyst for OER and HER [141]. The Au nanodendrite-CuMgFe-LDH electrodes exhibited a lower onset potential in OERs compared to the Au CuMgFe-LDH and CuMgFe-LDH NPs. Moreover, Au CuMgFe-LDH nanodendrites also exhibited a much lower HER onset potential and a higher current density than other samples. This enhancement in catalytic activity could be related to the improved electrical conductivity, the increased active surface area, and the synergistic effect between the Au nanodendrites and the CuFeMg-LDH. Furthermore, Wang and coworkers constructed NiFe LDH nanoarrays with electronegative noble metals of Au on Ni foam (NiFe LDH@Au/Ni foam) for OER [142]. The highly electronegative Au could tune the electronic structure and the electron adsorption to generate and stabilize Ni cations to achieve the high oxidation state (Ni³⁺), which facilitated the formation of the intermediate hydroperoxy species (OOH). In addition, the unique 3D structure was beneficial in improving material conductivity and in increasing the number of active sites. Thus, the NiFe LDH@Au/Ni foam exhibited a superior OER catalytic performance with the lower overpotential of 243 mV to achieve a current density of 100 mA cm^-2 compared to the NiFe LDH/Ni foam.

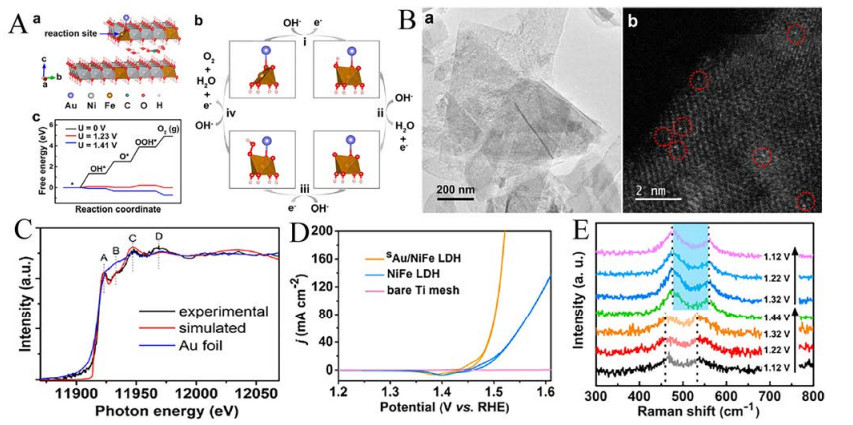

Zhang and coworkers [143] synthesized ^SAu supported on NiFe LDH to predict and investigate the origin of OER activity. The DFT calculations plus the Hubbard-U approach results revealed that the LDH substrate and interlayer CO₃^2- anions in ^SAu/NiFe LDH maintained the charge balance of oxyhydroxide, and thus stabilized the surface NiFeOOH layer. This resulted in optimal adsorption energies for the OER intermediates on Fe active sites (Fig. 8(A)) [143]. The SEM and TEM images revealed that ^SAu/NiFe LDH still maintain the nanosheet morphology of NiFe LDH without the nanoparticles (Fig. 8(B)). The XANES spectrum of Au indicates that ^SAu/NiFe LDH has single-atom Au and an Au-O bond distance, which is different from the metallic Au (Fig. 8(C)). The OER activity is examined in 1 mol/L KOH (Fig. 8(D)). The ^SAu/NiFe LDH yielded a higher OER activity with a lower overpotential, a smaller Tafel slope, and a larger turnover frequency compared to the NiFe LDH. In situ Raman technology of ^SAu/NiFe LDH confirm that LDHs have been transformed into oxyhydroxides using the oxygen evolution potential, and act as the catalytic species for OER (Fig. 8(E)). In situ synthesized oxyhydroxide also formed the local Au catalyst interface sites to enhance the electrocatalytic performance.

In summary, LDH materials have been extensively studied in recent years as the most promising electrocatalysts for OER owing to their unique 2D layered structures, easily tailored properties, and chemical composition versatility. This review highlighted the progress of LDH materials in promoting the OER performances based on the regulation of their electronic structures. The electronic structure regulation of LDHs effectively enhanced the intrinsic activity of the active sites, which is an adopted strategy for designing highly efficient electrocatalysts for OER. Specifically, it promoted the OER activity by optimizing the composition, tuning defect/phase/interface, and regulated the interactions between active sites and reactants, intermediates, and products. We consider that the regulation of the electronic structure can be achieved through the following strategies:

(1) Cationic/Anionic regulation: The cationic/anionic regulation was demonstrated as an effective approach used to regulate the OER activity. This process involved the replacement of cations/anions or the use of etching to form vacancies. Cationic/anionic regulation may tune the local coordination environment and fabricate the defect of catalysts to expose more active sites and enhance the electrical conductivity. Furthermore, doping atoms can serve as active sites to improve the intrinsic activity of LDHs catalysts

(2) Defect engineering: Introducing defects in the structure can regulate the electronic structure surrounding the active site near the defect site. Specifically, it changed the distribution of electronic charge and increased the degree of disorder and exposed more active sites. In addition, the presence of defects in the catalyst could create more surface metal atoms with a low-coordination number and more dangling bonds, thus leading to increased surface energy and to an improved number of electrocatalytic sites. When oxygen vacancies are introduced into the catalyst, the electronic structure of the catalyst, catalytically active sites, electrical conductivity, as well as adsorption energies of OER intermediates will be regulated. The introduction of metal cationic vacancies in the catalyst can adjust the valence state of nearby metal centers, and thus leads to an excellent OER activity

(3) Intercalated anion regulation: Intercalation of different anions was favorable for enlarging the interlayer distance to facilitate ion diffusion and increase the activity of the specific surface area. Moreover, the intercalated anions were able to regulate the electronic structure around the active site to effectively promote the intrinsic activity of the catalyst

(4) Surface modifications: Combined with the electronegative noble metals, they facilitated the electron transfer to effectively tune the electronic structure and form noble metal–catalyst interface sites. It was also beneficial to increase the electrical conductivity. Thus, the modified LDH catalysts by the noble metals showed enhanced electrocatalytic performances

However, the understanding of the catalytic mechanism of OER and the identification of catalytically active sites of LDHs is not enough. The understanding of the catalytic mechanism is beneficial for the rational design of catalysts. Moreover, determining the catalytically active sites of LDHs contributed to the understanding of how the interactions between metals improved the properties of the catalyst. Nevertheless, the definite roles of different metal ions in LDHs have not been determined yet. Although the electronic structure regulation is extensively used, it is not sufficient for the study of the effects of the interactions between electronic structure regulation and LDHs on the performance of electrocatalysts. For example, the understanding of the relationship between the catalytic activity and electronic structure needs to be enhanced. To accurately determine the regulation process and mechanism of catalysis, in situ or in operando techniques, and theoretical analyses, will be applied for future development. Additional research of the regulation of the electronic structure and highly active advanced energy materials are expected to be developed that will be suitable for water splitting or for use in other fields.
