The electrolysis of water by hydroelectric power or solar electrical energy is an environmentally friendly method to produce high-purity hydrogen [1]. However, due to the sluggish reaction kinetics during the electrolysis of water, electrocatalysts are needed to improve the reaction rate and efficiency of the electrocatalytic hydrogen and oxygen production [2-5]. Precious metals generally have better activities and stabilities in the hydrogen evolution reaction (HER) [6], but the low reserves and high price limit the large-scale application of the precious metals [7-9]. Therefore, it is important to develop a catalyst that has abundant reserves, low price, and high activity and stability. Nickel-based materials exhibit platinoid electronic structure, are low priced, and have abundant reserves [10], which have attracted much attention, in combination with nonmetals such as Ni-O [11, 12], Ni-P [13, 14], Ni-S [15, 16], and Ni-B [17, 18], for HER. These nonmetallic dopants play a pivotal role in improving the catalytic activity and efficiency of the electrocatalytic hydrogen production by adjusting the electronic structure of the catalyst surface. The structure–activity relationship of these materials is becoming clearer from the investigations by a vast number of researchers. The strong electron affinity of S and O leads to a significant decrease in the electron density on Ni, which is not conducive for the adsorption of H. On the other hand, the weak electron affinity of P leads to a high electron density on Ni, which is not conducive for the adsorption of water and hydroxide. In this regard, although Ni-B has a unique electronic structure [19-23], research on its effect in the hydrogen evolution is rare, and thus, its structure–activity relationship is worth exploring. Herein, Ni-B electrocatalysts were synthesized by a chemical reduction–annealing process (Fig. 1). Ultrafine Ni-B nanoparticles possess more active sites and higher activity. After the annealing treatment, amorphous Ni-B is transformed into Ni-B crystals, resulting in lattice expansion and a good electrocatalytic hydrogen evolution activity.

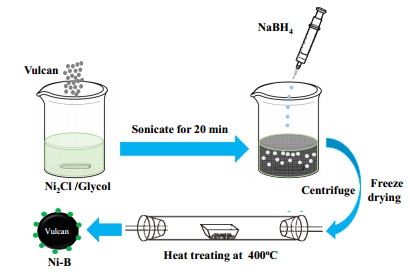

Ni-B catalyst was prepared by the chemical reduction method. Vulcan XC-72 (0.3 g) and NiCl₂·6H₂O (0.81 g) were dispersed into a 50 mL ethylene glycol solution. After stirring for 5 min and sonicating for 25 min, the solution was placed in an ice bath for cooling and stirred. Then, 50 mL NaBH₄ solution (0.01 g mL^-1) was added dropwise into it. When the solution stopped bubbling, the mixture was centrifuged and washed thrice with deionized water. Ni-B was obtained after freeze-drying. The obtained materials were annealed at 200, 300, 400, and 500 ℃ for 2 h in an argon atmosphere to obtain Ni-B-200, Ni-B-300, Ni-B-400, and Ni-B-500, respectively.

X-ray diffraction (XRD) patterns of the Ni-B samples were recorded on an X'Pert PRO diffractometer from 15° to 85° at a sweep rate of 10° min⁻¹. Transmission electron microscopy (TEM) images were captured on an FEI-Talos transmission electron microscope. X-ray photoelectron spectroscopy (XPS) data were recorded on an AXIS-ULTRA DLD-600W spectrometer. Thermal gravimetric analysis (TGA) was carried out on TA Q500 instrument under flowing air at a heating rate of 10 ℃ min⁻¹. Inductively coupled plasma–atomic emission spectroscopy (ICP-AES) was carried out on an IRIS Advantage (Thermo Elemental Co. USA) spectrometer to obtain the composition of the catalyst.

All the electrochemical measurements of Ni-B samples were conducted in a typical three-electrode system in 1 mol L^–1 KOH solution on an Autolab PG302N Potentiostat/Galvanostat. Glassy carbon electrode (GCE, diameter: 5 mm) coated with sample was used as the working electrode, a graphite rod and a reversible hydrogen electrode (RHE) served as the counter electrode and reference electrode, respectively. Catalyst samples (5 mg) were dispersed in 1 mL Nafion/isopropanol hybrid solution (1 wt%) by sonication to form a homogeneous ink. Then, 16.5 µL ink was loaded onto the GCE (catalyst loading: 0.168 mg cm^‒2).

Linear sweep voltammograms (LSVs) were recorded from 0.2 to −0.4 V at a scan rate of 5 mV s⁻¹ in H₂-saturated electrolytes at 25 ℃. The double-layer capacitances were obtained by utilizing the cyclic voltammograms from 0.2 to 0.4 V at scan rates ranging from 20 to 200 mV s^–1. The LSV test was conducted after repeating the potential scan for 3000 cycles in the range between 0.2 and −0.2 V on the carbon cloth. The durability was tested at a constant cathode potential of 150 mV for 20 h. All the electrochemical data were original, without any corrections.

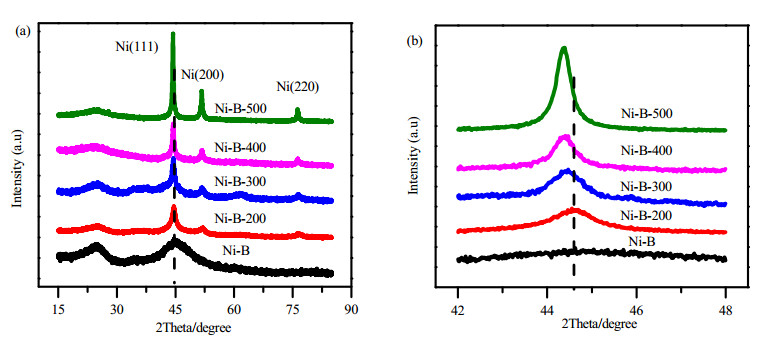

Fig. 2a illustrates the XRD patterns of the Ni-B catalysts. It shows a wide and weak peak at around 45^o for the Ni-B sample without calcination, indicating an amorphous structure. The peak at around 25^o is mainly the crystalline plane, (002), of the C material [24]. After the annealing treatment, all the four samples show three distinct diffraction peaks at approximately 45°, 52°, and 76°, which are indexed to (111), (200), and (220) characteristic diffractions, respectively, of Ni (JCPDS87-0712). Specifically, the positions of the diffraction peaks shift slightly to the lower angles as the temperature increases (Fig. 2b), indicating a slight expansion of the Ni lattice (Table S1). According to the previous report [20], the lattice expansion is strengthened as the calcined temperature increases. Meanwhile, the peak intensity also gradually increases, suggesting that the particle size of Ni-B gradually increases. The particle sizes of the samples were calculated to be 8.6, 10.0, 15.4, and 18.5 nm for Ni-B-200, Ni-B-300, Ni-B-400, and Ni-B-500, respectively, according to the Scherrer equation [25].

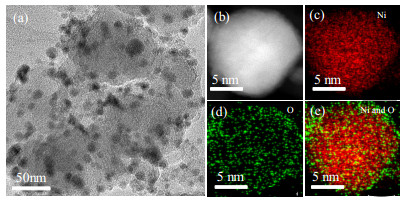

TEM characterization was utilized to better understand the morphologies and size distributions of the prepared Ni-B catalysts. The Ni-B particles are uniformly loaded on the carbon support (Fig. 3a, Fig. S1, and Fig. S2). The average particles sizes are calculated to be about 9.0, 11.0, 16.4, 17.9, and 20.6 nm for Ni-B, Ni-B-200, Ni-B-300, Ni-B-400, and Ni-B-500, respectively, based on the statistics of more than 200 nanoparticles. The particle sizes increase with increasing temperature because of aggregation at high temperature [26-28], which is consistent with the sizes calculated from the XRD patterns using the Scherrer equation.

The element distribution of Ni-B-400 NP was estimated by EDX elemental mapping (Fig. 3b–e). It is seen that Ni is mainly distributed in the core, while O is concentrated and present in the outer layer. It is worth noting that the distribution of B cannot be determined due to the interference from the adventitious carbon [18]. A comparison of the mapping diagrams of Ni-B-400 (Fig. 3) and Ni-B (Fig. S1) reveals a more uniform distribution of O in Ni-B-400.

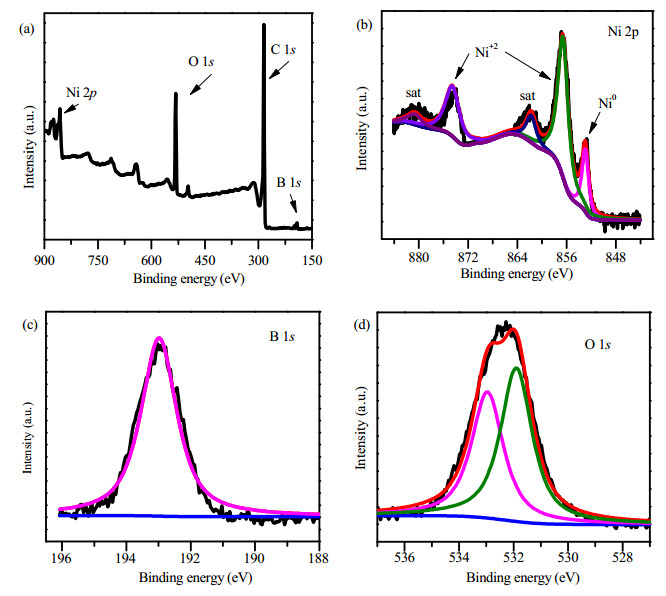

The composition and valence states of the elements on the surface of the materials were analyzed by XPS. The valence ratio of the elements can be estimated qualitatively by the peak areas in the photoelectron spectra. The XPS spectra of the Ni-B-400 catalyst show that there are Ni, B, and C on the surface of the sample, along with O, which is mainly present due to the oxidation of the sample exposed in air (Fig. 4a). In order to investigate the composition and valence distribution of the particles, fine scanning of Ni, B, and O was carried out. Fig. 4b is the fine spectrum of Ni in Ni-B-400. The characteristic peaks at 856.56 and 874.50 eV, with satellite peaks at 861.73 and 880.60 eV, could be assigned to the Ni 2p_3/2 and 2p_1/2 energy levels of Ni²⁺ in Ni 2p. The peak at 852.94 eV corresponds to the Ni 2p_3/2 core level of a Ni⁰ species [17, 19, 29, 30]. Comparing with the characteristic peaks of Ni in other materials (Table S2), the binding energy of Ni in Ni-B-400 increases slightly, indicating that the electron density decreases. Additionally, the Ni⁰/Ni²⁺ ratio can significantly account for the electrocatalytic HER [31, 32]. The ratio of Ni⁰ and Ni²⁺ species is reckoned from the fitted peak area.

The Ni⁰/Ni²⁺ ratios in Ni-B, Ni-B-300, Ni-B-400, and Ni-B-500 are calculated to be 0.06, 0.21, 0.28, and 0.25, respectively (Table S2). The characteristic peak at 192.98 eV is corresponding to B 1s, probably from the amorphous B₂O₃. The binding energy of B in Ni-B-400 increases slightly in comparison with other materials (Figs. S3c, S4c, and S5c), indicating that the electron density of B decreases significantly, and the electrons of B are more biased toward Ni or O. The peaks of O 1s at 532.45 and 531.42 eV correspond to B₂O₃ and Ni-O-B, respectively [29]. B was detected in the XPS, but not in EDX elemental mapping. Combining XPS data and EDX elemental mapping analysis, it can be inferred that the catalysts possess a structure with a metal core and Ni-O-B and B₂O₃ shells.

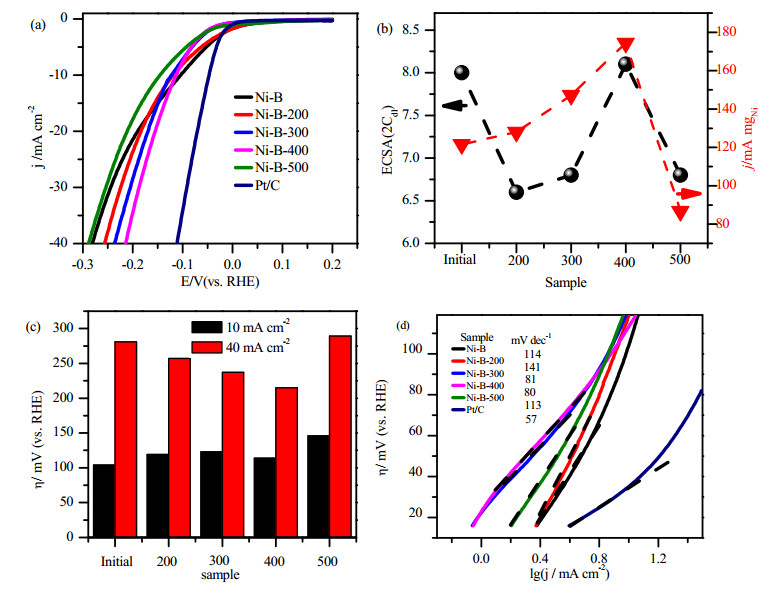

The polarization curves of Ni-B samples were measured in 1 mol L^–1 KOH (Fig. 5a). The overpotentials of the materials at 10 mA cm⁻² were 104, 119, 123, 114, and 146 mV for Ni-B/C, Ni-B/C-200, Ni-B/C-300, Ni-B/C-400, and Ni-B/C-500, respectively. At 40 mA cm⁻², the overpotentials of the materials were 281, 257, 237, 215, and 289 mV, respectively (Fig. 5c). After annealing, the materials show a relatively small overpotential at large current. The measured double-layer capacitance (C_dl) values were 8.0, 6.6, 7.2, 8.1, and 6.8 mF cm^-2 for Ni-B, Ni-B-200, Ni-B-300, Ni-B-400, and Ni-B-500, respectively (Fig. S6). The values of C_dl change with a change in temperature, as shown in Fig. S6f. Ni-B is amorphous and has a large C_dl, which can explain its high activity at low potential. However, at high potential, the inappropriate proportion of Ni²⁺ and Ni⁰ on the surface is not conducive for the process of hydrogen evolution, because of which the activity decreases. After annealing, the C_dl decreases slightly, possibly due to the transformation of the amorphous material into Ni crystals. With the increase in calcining temperature, the surface structure of the materials changes, as revealed in the XPS analysis, and the C_dl slightly increases. The results of the TGA suggest that the material residues are basically stable after 650 ℃, and the proportions of the remaining NiO are 48.03%, 50.77%, 52.21%, 52.81%, and 55.01%, respectively. The Ni contents were calculated to be 42.06%, 44.76%, 46.18%, 46.78%, and 48.99%, respectively (Fig. S7). According to the loading of the catalyst and the Ni content in the catalyst, the mass-normalized current density at an overpotential of 200 mV of the catalyst was calculated (Fig. 5b). This is basically consistent with the change in the trend of C_dl. By comparison, it is found that amorphous Ni-B particles exhibit a large C_dl value, but due to the lack of an active site with higher catalytic activity, the inherent hydrogen evolution current is small. Upon increasing the annealing temperature to 500 ℃, the particles of the materials become larger, and the specific surface area decreases. This becomes the main decisive factor affecting the hydrogen evolution activity of the material and the decrease in the mass-normalized current density.

Tafel plots were calculated to understand the mechanism and the rate determining step of the HER in the presence of these samples [33, 34]. In the low overpotential region, the Tafel slopes of Ni-B-400 was calculated to be 80 mV dec_,^–1 which was lower than that of Ni-B (114 mV dec cm^–1) (Fig. 5d), suggesting that the rate determining step is the discharge reaction (Volmer step) or the H desorption from the surface of the catalyst. The results reported previously [36, 37] suggest that hydroxide has a high electron density. Due to the strong electron affinity, it can be adsorbed by Ni²⁺ ions, which have a low electron density. Nickel atoms near Ni²⁺ can adsorb hydrogen atoms, imparting a synergistic HER catalytic activity of Ni²⁺/Ni⁰. The results of XPS confirmed the Ni²⁺–Ni structure (Table S2), and the dominant form of Ni on the material surface was Ni²⁺. So, a certain amount of Ni⁰ is important for a favorable H adsorption. Therefore, we speculated that Ni-B-400 has the appropriate proportion of Ni⁰/Ni²⁺, and therefore, it has the best activity for the electrocatalytic hydrogen evolution. Surprisingly, the HER activity of Ni-B-400 in the basic media was outstanding in contrast to other noble metal-free HER electrocatalysts listed in Table S3.

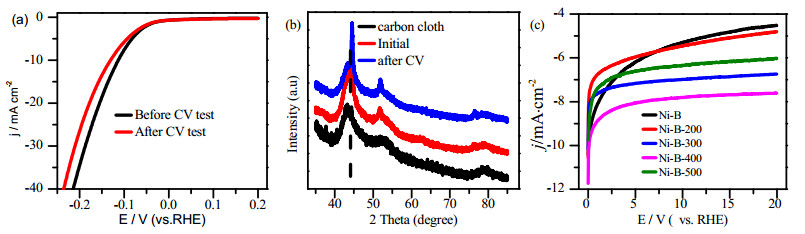

Stability is an important parameter for HER catalysts [38]. Here, LSV measurement after 3000 cycling between −0.2 and 0.2 V (vs RHE) at a scan rate of 200 mV s^‒1 was performed to evaluate the stability of the Ni-B-400 catalyst (Fig. 6a). The results show that Ni-B-400 exhibits excellent durability in 1 mol L^–1 KOH with 21 mV over potential increasing at 40 mA cm^–2. The XRD results of Ni-B-400 before and after the cycling measurements on the carbon cloth are illustrated in Fig. 6b. By comparing the XRD data before and after the test, the positions of the peaks are found to shift slightly to the higher angles, suggesting a slight lattice contraction. The lattice of Ni-B expands to a certain extent, and the catalyst possesses good catalytic activity.

The XRD data after CV scanning suggest that the lattice of Ni shrinks, while the activity of the catalyst decreases (Table S4). ICP-OES indicated a B/Ni atomic ratio of 0.897 after the CV test, which is smaller than the original ratio of 0.934 (Supporting Information). It can be inferred that the loss of B in the catalytic process leads to the lattice shrinkage and the decrease of catalytic hydrogen evolution activity. In order to simulate an industrial production, the corresponding time-urrent curve was obtained under a potential of 150 mV. Remained current densities of 4.52, 4.80, 6.74, 7.62, and 6.02 mA cm^‒2 for Ni-B, Ni-B-200, Ni-B-300, Ni-B-400, and Ni-B-500, respectively, were obtained during the 20 h stability test, confirming the excellent durability of Ni-B-400 (Fig. 6c).

Ni-B electrocatalysts were synthesized by the chemical reduction–annealing process. During the annealing process, Ni forms an alloy with B, which regulates the electronic structure of Ni. At the same time, an appropriate ratio of Ni⁰ and Ni²⁺ can be obtained, which is conducive for the entire process of HER and a better activity of hydrogen evolution. The Ni-B-400 electrocatalysts display excellent HER performance in 1 mol L^–1 KOH with a small overpotential of 114 mV at 10 mA cm^‒2, low Tafel slope of 80 mV dec^‒1, and high electrochemical durability. The excellent electrocatalytic HER performance of Ni-B-400 can be as attributed to the following reasons: a proper lattice expansion; an appropriate proportion of Ni⁰/Ni²⁺; and the Ni-B alloy obtained by the annealing treatment that has more stable structure and performance, so that a long-term stability in hydrogen evolution is maintained.

This work was supported by the National Natural Science Foundation of China (21573083), the 1000 Young Talent (to Deli Wang), and initiatory financial support from Huazhong University of Science and Technology (HUST). The authors thank the Analytical and Testing Center of HUST for allowing use of its facilities.
