For high catalytic efficiency at low temperatures, Au nanoparticles (NPs) supported on metal oxides have generally been used to catalyze an increasing number of reactions [1], since they were used for the first time in the low-temperature CO oxidation by Haruta et al. [2] in 1987. It was found that catalytic performance is strongly influenced by the size of the Au NPs, the valence states of the Au species, and the nature of the support material, as well as the preparation method and activation procedure of the catalysts [3-7]. For instance, CO oxidation is found to be sensitive to the size of the Au NPs. Generally, Au NPs with optimal particle sizes in the range of 1–3 nm are critical to the high catalytic activity [8-14]. Moreover, some studies reported that the deposition-precipitation method produces more active Au/Fe₂O₃ catalysts in CO oxidation than conventional impregnation [15]. Notably, the metal oxide support may play the most important role in the remarkable catalytic activity of Au NPs [16]. In the past decade, extensive attention was focused on the Au catalysts using reducible metal oxides as supports (e.g., TiO₂, CeO₂, Fe₂O₃, etc.) due to their capability to generate strong metal-support interactions (SMSI) or provide reactive oxygen for the rational design of catalysts with high efficiencies [17-19]. Iron oxide is one of the most widely used transition metal oxides for Au NPs support, due not only to its excellent performance and abundance but also to the new reaction pathways that it can provide [20-27]. In spite of numerous research works devoted to uncovering the origin of the unexpectedly high activity of iron oxide supported Au catalysts [28], the metal-support interfacial interactions and the role of the surface properties of iron oxide in the reaction mechanism are still under debate [29-33].

Currently, there are many research works focused on unraveling the active sites of catalysts and the reaction mechanisms in CO oxidation [27, 34-35], while few papers on the influence of the surface structure of iron oxide on the dispersion as well as the stability of Au NPs, have been reported. However, the surface nature of the iron support would play an important role in the CO oxidation, due to the different possible sites to anchor metal NPs and further tailor the catalytic behavior. To obtain accurate structure-activity relationships of the iron oxide supported Au catalysts, it is necessary to systematically study the role of the surface structure of iron oxide in CO oxidation.

In this study, iron oxide nanorods with different surface properties were synthesized by calcination of the β-FeOOH precursor at different temperatures and further used as supports for Au NPs to obtain a Au/iron oxide series of catalysts through a urea coprecipitation process. The correlation between the iron oxides with varied surface properties and the supported Au NPs in CO oxidation was established. Furthermore, the structure evolution of the iron oxide supported Au NPs catalysts during the CO oxidation was studied by the gas-phase identical location transmission electron microscopy (IL-TEM). By comparing and quantifying a series of TEM images, the behavior of supported Au NPs and the structure evolution of the catalysts related to the surface properties were explored in detail.

β-FeOOH nanorods, the precursor for different iron oxide supports, were obtained by coprecipitation, as previously reported by our group [36]. FeCl₃·6H₂O (1.35 g), carbamide (750 mg), sodium chloride (2.9 g), and polyethylene glycol (PEG: 2.5 mL) were dissolved in a 100 mL round-bottom flask with 25 mL of deionized water. After stirring for 10 min, the flask was placed in the center of an oil bath pot to be refluxed at 100 ℃ for 4 h, followed by the injection of aqueous Na₂CO₃ solution (40 mL, 1 M) using a syringe pump at a rate of 1 mL·min⁻¹, after which continued refluxing at 100 ℃ for 1 h. Eventually, the product was collected by filtration and washed severally with deionized water. Finally, FeOOH, FeO_x, and α-Fe₂O₃ were prepared by the calcination of the β-FeOOH precursor at 250, 400, and 500 ℃, respectively, for 4 h under Ar atmosphere.

The iron oxide nanorods supported Au catalysts were prepared by a urea coprecipitation method. First, 300 mg of iron oxide nanorods and 200 mg of carbamide were dispersed in 25 mL of deionized water in a 100 mL round-bottom flask, followed by the addition of 2 mL of chloroauric acid (HAuCl₄, 3 mg·mL⁻¹). The resulting solution was stirred for 30 min at room temperature. Afterward, the flask was placed in the center of an oil bath pot to be refluxed at 80 ℃ for 5 h. Eventually, the product was collected by filtration and washed severally with deionized water until it was free of Cl^-. The final powders were dried at 60 ℃ in a vacuum oven overnight. The as-synthesized catalysts were denoted as Au/FeOOH-fresh, Au/FeO_x-fresh, and Au/α-Fe₂O₃-fresh; the fresh catalysts were further calcined at 200 ℃ under air flow (100 mL·min⁻¹) and marked as Au/FeOOH, Au/FeO_x, and Au/α-Fe₂O_3, respectively.

TEM and high-angle annular dark field scanning TEM (HAADF-STEM) images were acquired using an FEI Tecnai G2 F20 microscope equipped with a high-angle annular detector operating at 200 kV. The X-ray diffraction (XRD) patterns of the catalysts were obtained using an X-ray diffractometer (D/MAX-2400) with the Cu K_α source at a scan rate of 2°·min⁻¹. X-ray photoelectron spectroscopy (XPS) spectra were obtained using an Escalab 250Xi instrument with Al K_α X-rays (1489.6 eV, 150 W, 50.0 eV pass energies). The loading amounts of Au for the different catalysts were determined by Leeman Laboratories Prodigy inductively coupled plasma mass spectrometry (ICP-MS), and the experimental process is described as follows: A fraction (10 mg) of each catalyst was dispersed in 5 mL of nitromurlatic acid with a 1:3 volume ratio of HNO₃:HCl. After the sample completely dissolved, the acid aqueous solution was diluted to 50 mL in a volumetric flask.

The catalytic activity for the CO oxidation was performed using a continuous-flow fixed-bed reactor system. The Au/FeOOH catalysts (containing 0.5 mg Au) were used for the CO oxidation, while the amounts of the other catalysts were adjusted to maintain the same Au content according to the ICP results. The feed gas consisted of 1% CO and 99% air or 1% CO and 0.5% O₂ with a balance of He. (Total flow rate = 15 mL·min⁻¹; gas hourly space velocity (GHSV) = 1800 mL·mg⁻¹·h⁻¹). The reaction products were analyzed by GC (Agilent 7890A) equipped with a thermal conductivity detector (TCD).

IL-TEM was performed using a TEM grid with alphabetical or numerical codes. The TEM grid acts as a support, which allows the transfer of the catalyst between the electron microscope and gas-phase reaction environment [37]. In this study, before the reaction, small amounts of the catalysts were dissolved in ethanol and ultrasonicated for 10 min to obtain a homogeneous suspension. Very low amounts of the catalysts were deposited on a TEM copper grid with alphabetical codes, followed by drying under infrared light. Subsequently, the grid with the samples was inserted into TEM to capture the initial states of the catalysts. Afterward, the TEM grid was transferred to a gas phase reactor, where the catalysts participated in the CO oxidation reaction. Finally, the TEM grid was taken out after the reaction and transferred to the electron microscope once more to acquire the TEM images at identical locations. The accurate locations of the catalyst were tracked using the alphabetical codes on the TEM grid. The entire process was performed without modifying the structure of the TEM device.

FeOOH, FeO_x, α-Fe₂O₃ were prepared by the calcination of the β-FeOOH precursor at 250, 400, and 500 ℃, respectively, for 4 h, under Ar atmosphere, and were further used as supports for Au NPs. The powder XRD patterns (Fig. S1(a)) confirm the FeOOH and α-Fe₂O₃ phase structures for β-FeOOH treated at 250 and 500 ℃, according to JCPDS 18–0639 and JCPDS 79–0009, respectively. FeO_x, obtained after calcination at 400 ℃, exhibits a transient structure between those of FeOOH and α-Fe₂O₃. The support structures are further confirmed by corresponding Raman spectra, as shown in Fig. S1(b). Along with the increase in the calcination temperature, the specific surface area of the material exhibits an evident decrease from 105.1 via 65.6 to 53 m²·g^-1, and the corresponding pore diameter exhibits a concomitant increase from 3.5 via 7.1 to 11.7 nm, as displayed in the nitrogen adsorption-desorption isotherms in Fig. S1(c) and Table S1. The low-magnification HAADF-STEM and TEM images in Figure S2 indicate regular nanorods structure for all the synthesized supports. Furthermore, it can be easily observed that a gradually enlarged pore structure can be obtained with the elevated calcination temperature for the iron oxides.

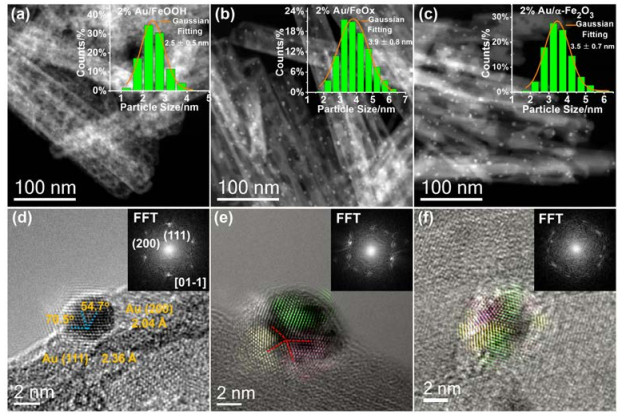

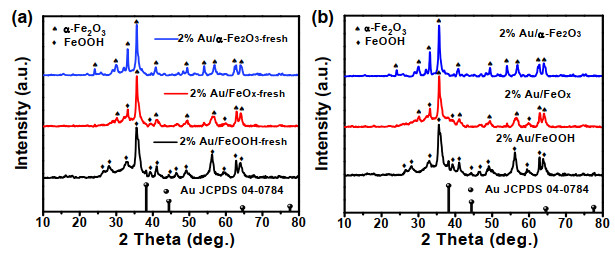

Fresh Au/iron oxide series of catalysts were obtained by a urea coprecipitation process, and the catalysts were named Au/FeOOH-fresh, Au/FeO_x-fresh, and Au/α-Fe₂O₃-fresh. The as-prepared fresh catalysts, after undergoing further calcination at 200 ℃ for 2 h, under pure airflow, were designated as Au/FeOOH, Au/FeO_x, and Au/α-Fe₂O₃, respectively. The ICP results listed in Table S2 show that the loading amounts of Au for the Au/FeOOH, Au/FeO_x and Au/α-Fe₂O₃ catalysts are 1.9, 2.1, and 2.4 wt%, respectively. The XRD patterns of the fresh and activated Au-based catalysts after calcination, are exhibited in Fig. 1(a) and 1(b). All the catalysts display strong peaks, which are indicative of the support structures. No obvious peak assignable to the Au NPs is found in the fresh catalysts (Fig. 1(a)), indicating the significantly small sizes of the Au NPs. In addition, low-magnification HAADF-STEM together with corresponding particle size distributions (PSDs) and TEM images in Figure S3 verify the ultra-small-sized Au clusters in the fresh catalysts; the mean particle sizes are measured to be 0.7 ± 0.2, 1.0 ± 0.3, and 0.9 ± 0.2 nm for Au/FeOOH-fresh, Au/FeO_x-fresh, and Au/α-Fe₂O₃-fresh samples, respectively. The energy dispersive X-ray spectroscopy (EDX) elemental maps of these fresh catalysts in Fig. S4 also exhibit the well-distributed O, Fe, and Au elements in each sample. After calcination under air, at 200 ℃, a small peak at 38.2° ascribed to the Au (111) plane (JCPDS 04–0784) appears on the FeOOH support; this peak is observed to be weaker on the FeO_x and α-Fe₂O₃ supports (Fig. 1(b)). The representative low-magnification HAADF-STEM images and corresponding EDX elemental maps of the three activated Au/iron oxide catalysts are further shown in Fig. 2(a)–(c) and Fig. S5. Statistical analyses of the PSDs were carried out by measuring ca. 400 Au NPs in corresponding HAADF-STEM images for each sample, and the mean diameters of Au NPs are estimated to be 2.5 ± 0.5, 3.9 ± 0.8, and 3.5 ± 0.7 nm regarding Au/FeOOH, Au/FeO_x, and Au/α-Fe₂O₃ catalysts, respectively. The size of supported Au NPs exhibits a close relationship with the surface properties of different iron oxides, and the supported Au NPs is more likely to be positioned on the pore edges of the iron oxide surface, particularly for the Au/FeO_x catalyst with medium pore sizes. For the Au NPs with the smallest sizes, high dispersion on the FeOOH support is clearly observed. The crystal structures of the supported Au NPs for the calcined catalysts were revealed by high-resolution TEM (HRTEM) images with local fast Fourier transforms (FFTs), as shown in Fig. 2(d)–(f). The measured lattice spacings of 0.236 and 0.204 nm, obtained by forming an angle of 54.78° for the Au nanocrystals from HRTEM images of Au/FeOOH catalyst, correspond to the (111) and (200) crystal planes of the face-centered cubic (FCC) phase of Au. In addition, sharp bright diffraction spots are shown in FFTs, illustrating the high crystallinity of the small-sized Au NPs. Therefore, the appearance of a Au peak in the XRD pattern for the calcined Au/FeOOH sample is not only owing to the increased particle size, but also mainly to the good crystallization of the supported Au NPs. However, the Au NPs supported on FeO_x and α-Fe₂O₃, as multiple twinning structures, are shown in Fig. 2(e) and (f) due to the particle growth during the thermal treatment, which is consistent with the weak peak of Au observed in the XRD patterns. It is widely reported that Au NPs with large sizes always adopt the multi-twinned structure by reducing their surface energies [38, 39].

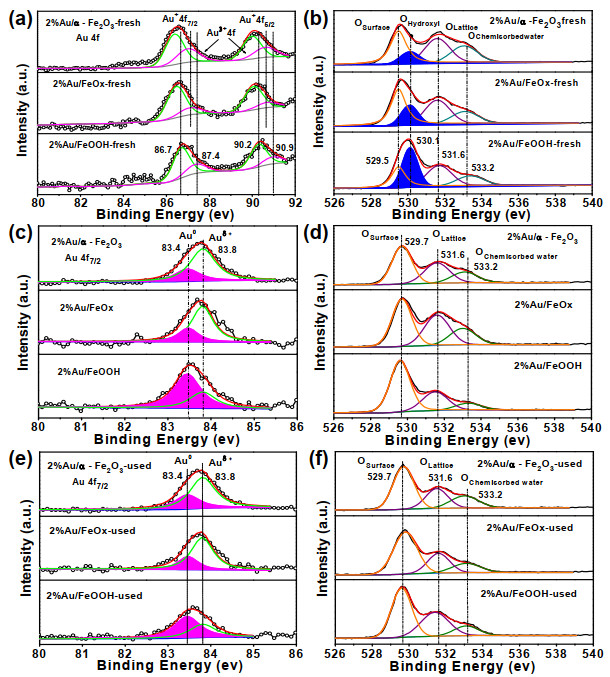

To study the surface properties of the supports and the chemical states of Au for the Au/iron oxide series catalysts, XPS analysis was carried out and the results are summarized in Fig. 3. The Au 4f XPS spectra for the fresh samples were analyzed, as shown in Fig. 3(a). The Au 4f spectra can be deconvoluted into two couples of speaks due to the spin-orbit split doublet of Au 4f_7/2 and 4f_5/2, which represent two kinds of Au species, with binding energies (BE) of about 86.7 and 90.2 eV for Au¹⁺, and 87.4 and 90.9 eV for Au³⁺ [40, 41]. Most of the Au NPs are in the form of Au³⁺ in the fresh samples and there is no obvious difference among them before calcination. While the O 1s spectra for the as-prepared fresh samples (Fig. 3(b)) show a clear difference after division into four components. According to previous reports, the BE of oxygen at 529.5, 530.1, 531.6, and 533.2 eV for the fresh catalysts can be ascribed to the surface oxygen, the surface hydroxyl (-OH), lattice oxygen, and chemisorbed water, respectively [42]. Along with the increased preparation temperatures of the supports, the surface hydroxyl component exhibits an evident decrease from FeOOH to α-Fe₂O₃. For the catalysts after calcination, two main peaks at the BE of 83.4 and 83.8 eV assigned to the 4f_7/2 of Au⁰ and slightly positive charged Au^δ+ (0 < δ < 1), respectively, were identified for the Au/FeOOH, Au/FeO_x, and Au/α-Fe₂O₃ catalysts in Fig. 3(c) [43, 44]. Notably, the Au 4f spectra of different Au/iron oxide catalysts present apparent distinctions. The shift of the BE of Au 4f_7/2 in the Au/FeOOH sample toward the low-energy side, can be clearly observed, implying that the Au NPs supported on FeOOH tend to have more Au⁰ species than the other two catalysts do, which is consistent with the deconvoluted results, as highlighted in the pink-filled area in Fig. 3(c). Besides, the surface hydroxyl species are absent on the surfaces of the activated catalysts, as displayed in Fig. 3(d). In this study, the FeOOH support with the most surface -OH groups before the calcination possesses had the highest Au⁰ content after thermal treatment, strongly demonstrating that the surface hydroxyl groups on the iron oxide supports are crucial in the formation of Au⁰ species [45].

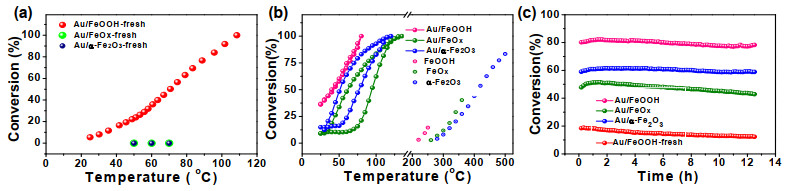

The conversion of CO as a function of the reaction temperature for the fresh and activated Au-based catalysts is shown in Fig. 4(a) and (b). Au/FeOOH-fresh exhibits low-temperature CO oxidation reactivity at 25 ℃ (CO conversion 5.8%), and the conversion reaches 100% when the temperature is elevated to 110 ℃. Conversely, the Au/FeO_x-fresh and Au/α-Fe₂O₃-fresh catalysts display no reactivity at room temperature. Reportedly, the surface –OH species on the transition metal oxides can readily react with the CO adsorbed nearby to directly yield CO₂ and simultaneously produce coordinatively unsaturated sites for O₂ activation, offering the Pt or Au based catalysts with low-temperature reactivity in CO oxidation [46-48]. From the characterizations and analyses performed in this study, the low-temperature reactivity of the Au/FeOOH-fresh catalyst may be attributed to the abundant -OH species on the FeOOH support surface, which can assist the Au cation with oxygen adsorption and dissociation. To determine the stability of the Au/FeOOH-fresh catalyst, a long time-on-stream experiment was performed at 45 ℃ for 12 h. As can be observed in Fig. 4(c), the Au/FeOOH-fresh catalyst exhibits gradually decreased activity, indicating the poor stabilities of the surface -OH groups under the reaction condition. Furthermore, the Au/FeOOH-fresh catalyst after a durability test by TEM (Fig. S6), displayed the growth of Au NPs due to the reduced surface -OH anchoring sites. The catalytic performances of the activated Au-based catalysts in CO oxidation are shown in Fig. 4(b). The conversion of CO on the Au/FeOOH catalyst was readily 36.8% at 25 ℃ and approached 100% at 80 ℃. For the Au/FeO_x catalyst, the conversion of CO was only 9.1% at 25 ℃, and the full conversion of CO was achieved until 125 ℃. For the Au/α-Fe₂O₃ sample, a 14.9% conversion of CO was obtained at 25 ℃ and 100% conversion of CO occurred at 115 ℃. The results clearly demonstrate that Au/FeOOH exhibits the highest reactivity among the as-synthesized catalysts after calcination under air at 200 ℃. In addition, the Au/FeO_x and Au/Fe₂O₃ catalysts exhibit an obvious increase in catalytic performances during the programmed cooling process. The stabilities of the activated Au-based catalysts were evaluated in the CO oxidation reaction for 12 h after the programmed heating and cooling procedure. No obvious degradation was observed for the Au/FeOOH and Au/α-Fe₂O₃ catalysts, as shown in Fig. 4(c). However, the activity of the Au/FeO_x sample decreased gradually as the reaction proceeded, from 51% to 42% after 12 h. The above results unambiguously show that the Au/FeOOH catalyst is not only highly active but also extremely stable in CO oxidation after calcination. As discussed previously, the Au NPs on FeOOH after thermal treatment are highly dispersed as Au⁰ with a small mean particle size of 2.5 nm, which greatly contributes to the high catalytic activity in the CO oxidation. Conversely, the wide PSDs with a large mean Au NP size and low Au⁰ content for the Au/FeO_x and Au/α-Fe₂O₃ samples can, in principle, provide a reasonable explanation for the much relatively low activity.

The XRD patterns of the calcined Au/iron oxide catalysts after usage and durability tests in CO oxidation are shown in Fig. S7. Characteristic peaks similar to those before the reaction, are observed. In addition, XPS analysis of Au 4f and O 1s spectra for the used catalysts are shown in Fig. 3(e) and (f), illustrating the barely changed chemical states of Au NPs. The HAADF-STEM images of the samples after usage and durability tests are exhibited in Figs. 5(a)–(c) and S8. The statistical analyses of the PSDs are shown in the corresponding HAADF-STEM images, and the mean diameters of the Au NPs are 2.3 ± 0.5, 3.6 ± 0.8, and 3.0 ± 0.7 nm, regarding the used Au/FeOOH, Au/FeO_x, and Au/α-Fe₂O₃ catalysts, respectively, and 2.1 ± 0.6, 3.5 ± 0.8, and 3.2 ± 0.7 nm for the cycled ones. Negligible changes in the Au NPs sizes for the Au/FeOOH catalysts were observed, while a slightly reduced mean Au NP size together with an increase in the number of small-sized Au is found for the used Au/FeO_x and Au/α-Fe₂O₃ catalysts, which exemplifies the increased catalytic performance for the prepared catalysts during the cooling process. Besides, with the increase in the amount of small-sized Au for the cycled catalysts, some large Au NPs also appear on the FeO_x support, which can be observed from the tail of the corresponding PSD after a long reaction time (Fig. S8). HRTEM images for the used and cycled samples demonstrate a well-crystallized Au on FeOOH, and seldom-changed multiple twinning structures on FeO_x and α-Fe₂O₃. All the results obtained here strongly suggest a support-dependent structure evolution of Au particles on varied iron oxides during the CO oxidation.

Traditionally, the investigation on the structure evolution of nanocatalysts is always achieved by the comparison of TEM analyses results between the fresh and used samples. The conclusions drawn from different areas of the sample are useful, but not always accurate and intuitive. Moreover, it is hard to distinguish whether the structural changes originated from the synthesis procedure or the reaction process; more so, some detailed information was not easily noticeable. An advanced IL-TEM technique can well complement the standard microscopic study, thereby providing a simple method to track the catalyst at the same location during the reaction. Moreover, the technique offers a new insight into the structure evolution of the catalytic materials [49-51].

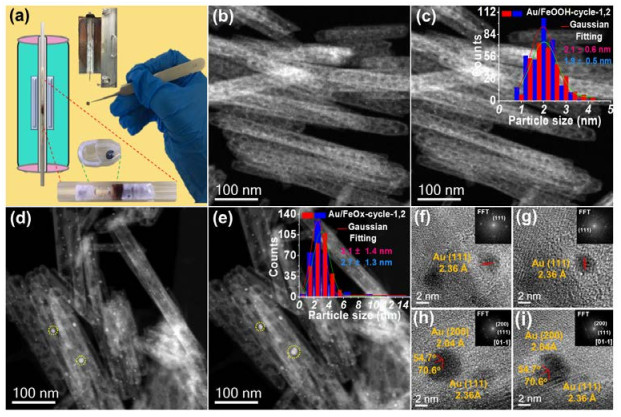

The stability of the Au NPs dispersed on iron oxide support is important for their extensive use as efficient catalysts in CO oxidation. To further explore the relationship between the Au NPs behavior and the stabilities of the catalysts, a gas-phase reaction in an IL-TEM reactor designed by our group, as shown in Fig. 7(a), is used to accurately record the structure evolution of identical locations of the Au-oxides series catalysts at different reaction stages during the CO oxidation. The low-magnification HAADF-STEM and HRTEM images of the Au/FeOOH and Au/FeO_x, Au/α-Fe₂O₃ catalysts at identical locations before and after application and after durability tests in CO oxidation, are shown in Fig. 6 and Figs. S9–12. Statistical analyses of an ensemble of Au NPs on FeOOH and α-Fe₂O₃ showed that the particles exhibit only a slight decrease from 2.2 ± 0.6 to 2.0 ± 0.7 and 2.8 ± 0.9 to 2.2 ± 0.7 nm, respectively, and that the proper dispersion is maintained after a long time-on-stream reaction. Whereas a notably different phenomenon is observed on the Au/FeO_x catalyst, some irregular relatively large particles with sizes more than 8 nm, highlighted with green circles, appeared on the FeO_x support. In addition, the PSD shape changes from an initial Gaussian distribution to a log-normal distribution with a tail in the PSD towards relatively large sizes after 10 h durability tests, as shown in Fig. 6(g) and (h) [52, 53].

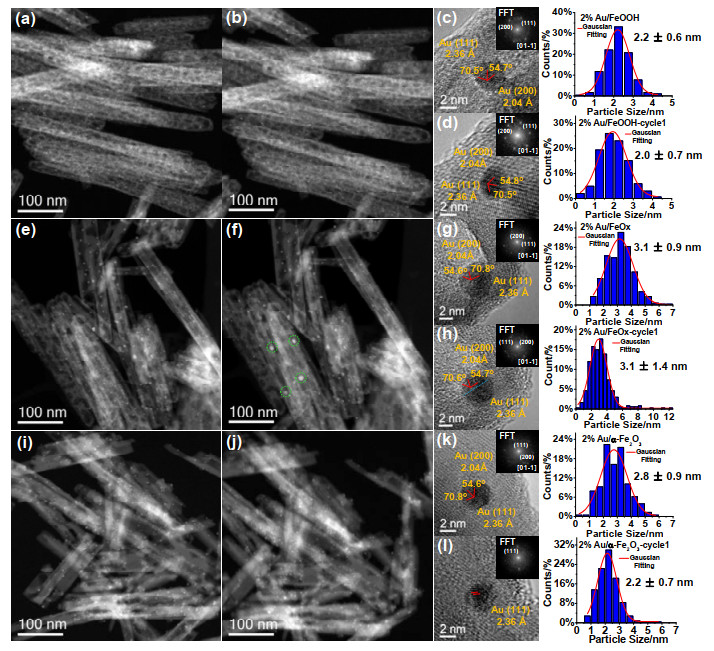

To further analyze the detailed behavior of the Au NPs, consecutive HRTEM images for the as-prepared catalysts were recorded at different reaction stages. From the HRTEM images of all the samples, it can be observed that the Au NPs with high-index rough surfaces adopt more flat facets, accompanied by a little reduced particle size after a long CO oxidation time, which is in accordance with the increased amount of small Au particles in the range of 1–2 nm determined by comparing the PSDs statistics in Fig. 6. According to previous research and the result from the experiment, it can be deduced that the mobility of the surface Au atom may increase through the chemical adsorption interaction with reactants under a working condition; therefore, the Au species can migrate along with the gas flow [54-56]. To clarify further the dominant factor for this phenomena, the gas composition was changed from a mixture of 1% CO with 99% air to 1% CO and 0.5% O₂, with a balance of He, by reducing the O₂ content. The results are shown in Figs. 7 and S12. The continued growth of the large Au particles marked with yellow circles is clearly observed on the Au/FeO_x catalyst and the number of small Au particles within 1–2 nm increased both for the Au/FeO_x and Au/FeOOH catalysts. Based on the evidence obtained, the hypothesis , that the behavior of Au NPs mediated by a process similar to Ostwald ripening on Au/iron oxide catalysts, probably owing to the interaction between Au and the CO component, is established. The large particles grow at the expense of small ones in the Au/FeO_x catalyst, possibly owing to the interparticle transport of the Au(CO)_x mobile species. The formation of large Au particles on the FeO_x support indicated the decline in the active surface area for the CO oxidation, which is consistent with the gradually lowered activity observed in the durability test. Furthermore, the different behavior of supported Au NPs on varied iron oxides may be due to the diffusion length limitation of Au(CO)_x species which is caused by the pore structures on the support surfaces. The edges of the pore show unsaturated coordination points, which can act as anchor sites to capture Au(CO)_x species and redisperse the Au NPs; FeO_x with a medium pore size shows a stronger trapping capacity than α-Fe₂O₃, which has a large pore, does. Therefore, through quantifying a series of identical location STEM at low magnification and HRTEM images of the individual NPs, the sophisticated behavior of Au NPs on iron oxides with different structures can be speculated to some degree and the relationship between the active site structure and catalytic performance can be well understood.

Herein, the gas phase IL-TEM method offers an intuitive insight into the delicate structure evolution of the catalysts, which provides a new approach to accurately studying the structure-performance relationship in some gas phase reactions. Most importantly, the nondestructive gas phase IL-TEM can be well extended to some electron beam sensitive materials or can deal with some unfavorable reaction conditions, e.g., some corrosive gases, which are difficult to operate under environment TEM or harmful to the in situ holder device, to uncover the real active site generated under the reaction condition or the reason for deactivation of the reaction.

Au NPs supported on iron oxide nanorods with different surface properties were synthesized by a urea coprecipitation process. For the catalysts before calcination, the ultra-small-sized Au NPs exist on iron oxides with varied surface properties and mainly adopt the form of Au³⁺. The surface hydroxyl species on the FeOOH support is considered the main reason for the Au/FeOOH-fresh catalysts exhibiting reactivity at room temperature compared to the cases of the Au/FeO_x-fresh and Au/α-Fe₂O₃-fresh catalysts. For the activated catalyst, the positively charged Au species on different iron oxides partly change to Au⁰ along with the disappearance of the surface -OH species for the support materials. Au/FeOOH with the highest Au⁰ content and smallest particle size exhibits the highest catalytic activity among the as-synthesized catalysts. Besides, no obvious decrease in the activity of the Au-FeOOH catalyst was observed in the CO oxidation within 12 h. Furthermore, a gas phase IL-TEM method was adopted to explore the delicate structure evolution of the series of catalysts. The results indicate that the behavior of the Au NPs depends on both the support structure and the size of the supported NPs. For the Au NPs supported on FeOOH and α-Fe₂O₃, an increase in the amounts of small particles in the range of 1–2 nm is shown after a long CO oxidation reaction time. Conversely, with the increased amount of small particles, some irregularly large Au particles with sizes more than 8 nm appear simultaneously on the FeO_x support after the long reaction. The behavior of the Au NPs mediated by a process similar to Ostwald ripening on the Au/iron oxide catalysts is probably owing to the interaction between Au and the CO component. The large particles grow at the expense of the small ones in the Au/FeO_x catalyst possibly owing to the interparticle transport of the Au(CO)_x mobile species. Herein, a new insight into the metal-support interaction of Au/iron oxide catalysts by combining the traditional characterizations used previously and a gas phase IL-TEM method is obtained, which offers valuable guidance to the rational design of new generation catalysts.
