Accelerated separation of photogenerated charge carriers and enhanced photocatalytic performance of g-C3N4 by Bi2S3 nanoparticles
Qiang Haoa,b,†, Ci'an Xiea,†, Yongming Huanga, Daimei Chena, Yiwen Liub, Wei Weib, Bing-Jie Nib
a. Beijing Key Laboratory of Materials Utilization of Nonmetallic Minerals and Solid Wastes, School of Materials Science and Technology, China University of Geosciences Beijing, Beijing 100083, China;
b. Centre for Technology in Water and Wastewater (CTWW), School of Civil and Environmental Engineering, University of Technology Sydney (UTS), Sydney, NSW 2007, Australia
* Corresponding author. Daimei Chen, chendaimei@cugb.edu.cn;
Bing-Jie Ni, Tel: +61-295147401; E-mail: bingjieni@gmail.com
These authors contributed the same to this manuscript
This work was supported by the National Natural Science Foundation of China (21577132). Bing-Jie Ni acknowledges the support of the Australian Research Council (ARC) Future Fellowship (FT160100195). The authors are grateful to the research collaboration, especially Dr. Guojin Zhang's help of LC-MSMS
Abstract: Employing photothermal conversion to improve the photocatalytic activity of g-C3N4 is rarely reported previously. Herein, different ratios of g-C3N4/Bi2S3 heterojunction materials are synthesized by a facile ultrasonic method. Advanced characterizations such as X-ray diffraction, Fourier transform infrared spectroscopy, X-ray photoelectron spectroscopy and high-resolution transmission electron microscopy are employed to analyze the morphology and structure of the prepared materials. Compared with sole counterparts, the heterojunction materials CN-BiS-2 exhibit significantly enhanced photocatalytic performance, which is 2.05-fold as g-C3N4 and 4.42-fold as Bi2S3. A possible degradation pathway of methylene blue (MB) was proposed. Based on the photoproduced high-energy electrons and photothermal effect of Bi2S3, the transfer and separation of electron-hole pairs are greatly enhanced and more active species are produced. In addition, the relatively high utilization efficiency of solar energy has synergistic effect for the better photocatalytic performance.
© 2020, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Graphitic carbon nitride    Bismuth sulfide    Photocatalyst    Wastewater treatment    High-energy electron
利用硫化铋纳米颗粒增强类石墨相氮化碳的光生载流子分离效率和光催化活性
郝强a,b,†, 谢赐桉a,†, 黄永明a, 陈代梅a, 刘轶文b, 魏薇b, 倪丙杰b
a. 中国地质大学(北京), 材料科学与工程学院, 北京 100083, 中国;
b. 悉尼科技大学, 土木与环境工程系, 悉尼2007, 澳大利亚
摘要:二氧化钛,氧化锌,磷酸铋等传统的紫外光响应光催化剂虽然具有良好的光催化性能,但是对太阳能利用率很低(紫外光只占太阳光能量的4%左右).近年来,类石墨相氮化碳(g-C3N4)受到了广泛的关注.g-C3N4的带隙约2.7eV,它只能吸收460 nm以下的光,对太阳能的利用率依然比较低.构筑异质结是一种有效的提高光催化活性的方法.BiOCl/g-C3N4,TiO2/g-C3N4,Bi2MoO6/g-C3N4,Al2O3/g-C3N4,Ag3PO4/g-C3N4等异质结光催化剂曾被广泛的报道.硫化铋是属于正交晶系的窄带隙半导体,它的带隙约1.3-1.7eV.由于其独特的电子结构和光学特性,硫化铋在光催化,光检测器和医药成像等领域有着广泛的应用.另外,硫化铋还具有优异的光热转换性能,在光热癌症治疗领域有显著的效果.微波辅助法,水热法,惰性气体下高温煅烧法等都曾被用来合成g-C3N4/Bi2S3异质结光催化剂.不同的文献也提出了不同的催化机理.如何使用更简单环保的方法来合成g-C3N4/Bi2S3异质结光催化剂?电子和空穴的转移路径是怎样的?本文利用简单的低温方法合成了硫化铋,利用超声法得到了g-C3N4/Bi2S3异质结光催化剂,分析了其微观形貌,结构,并探讨了光催化的反应机理和提高光催化性能的因素.X射线衍射,傅里叶变换红外光谱,X射线光电子能谱和透射电子显微镜的结果表明,硫化铋纳米颗粒被成功地引入到g-C3N4中.使用亚甲基蓝为分子探针研究了所制材料在模拟太阳光下的光催化活性.结果发现,CN-BiS-2表现出最佳的光催化活性,是g-C3N4的2.05倍,是Bi2S3的4.42倍.利用液相色谱二级质谱联用分析了亚甲基蓝的降解路径.硫化铋的引入拓展了复合材料的吸收边,使其向可见光区红移,且在整个可见光区的光吸收能力都有明显的增强.光电流的增强和交流阻抗谱圆弧半径的减小,表明光生载流子的迁移与分离速率得到了增强.自由基捕获试验表明,最主要的活性物种是光生空穴,次之是羟基自由基和超氧自由基.在CN-BiS-2样品中羟基自由基和超氧自由基的电子顺磁共振信号都比g-C3N4有明显的增强,表明复合样品中能够产生更多的羟基自由基和超氧自由基.基于光电流,交流阻抗,荧光光谱,自由基捕获和电子顺磁共振的结果,我们提出了高能电子由硫化铋转移到g-C3N4,同时空穴由g-C3N4转移到硫化铋的电子空穴转移机制.此外,红外热成像的结果表明,g-C3N4/Bi2S3异质结材料具有更强的光热转换能力,从而有利于加速光生载流子分离.
关键词类石墨相氮化碳    硫化铋    光催化    水处理    高能电子

1 Introduction

Photocatalytic technology is a kind of advanced oxidation technology, which uses light to excite electrons to produce highly oxidizing species [1-4]. It can mineralize organic molecules to carbon dioxide and water, thus eliminating organic pollutants from water completely [5, 6]. Traditional photocatalyst such as titanium dioxide (TiO2), zinc oxide (ZnO) and bismuth phosphate (BiPO4) have outstanding photocatalytic performance for water splitting and/or organic pollutant degradation [7-10]. However, their application is highly limited by their wide bandgap (e.g., 3.2 eV, that can only be excited by UV light) and low utilization ratio of solar energy (i.e., UV light accounts for about only 4% of solar light) [11].

In recent years, visible light response photocatalysts arise increasing interests. A series of new photocatalyst such as bismuth oxide (Bi2O3) [12-14], bismuth vanadate (BiVO4) [15, 16], cadmium sulfide (CdS) [17, 18], ferric oxides (Fe2O3) [19, 20] or graphitic carbon nitride (g-C3N4) [21-23] were developed to overcome the shortages of UV light response photocatalysts. Among these semiconductors, g-C3N4 attracted extreme attentions due to its advantages of metal-free, wide resource, non-toxicity and facile preparation [24-27]. However, the bandgap of g-C3N4 is about 2.7 eV, which means that it can only absorb the light lower than 460 nm and its utilization ratio of solar light is still not high [28, 29]. In addition, the rapid recombination of photogenerated charge carriers is another aspect limiting the application of g-C3N4 [30].

Constructing heterojunctions with other semiconductors is an efficient way to improve the photocatalytic performance of g-C3N4. Several g-C3N4 based heterojunctions such as BiOCl/g-C3N4, TiO2/g-C3N4, Bi2MoO6/g-C3N4, Al2O3/g-C3N4, Ag3PO4/g-C3N4 have been developed previously, nevertheless, the poor light absorption is still limiting their application [31-35]. Therefore, better g-C3N4 based heterojunction materials should be synthesized to facilitate its high-efficient application. Sulfur-based materials have been widely used to improve the performance of photocatalysts [36-39], Bismuth sulfide (Bi2S3) is the main component of bismuth glance that belongs to orthorhombic crystal system with a narrow-bandgap of 1.3-1.7 eV [40]. Because of its distinctive electron structure and optical property, Bi2S3 has wide application prospect in different areas such as photocatalyst [41, 42], photodetector [43, 44] or medical imaging [45]. Due to the Peltier effect of Bi2S3, it can be used in thermoelectric-cooling technologies [46, 47]. The excellent photothermal conservation effect also makes Bi2S3 a unique material in photothermal cancer treatment [48, 49].

In fact, combining Bi2S3 with g-C3N4 to create heterojunction has been demonstrated to be a highly efficient way to improve the photocatalytic activity of g-C3N4. However, the reported methods in literature are rather complicated. For instance, Xuan et al. [50] used the microwave-assisted method to prepare g-C3N4/Bi2S3, in which microwave oven and nitrogen must be used. Chen et al. [51] put g-C3N4 and the precursor of Bi2S3 in a Teflon-lined steel autoclave and heated it at 160 ℃ for 30 h. After that, the product was collected, washed and dried in a vacuum oven. The final product includes g-C3N4/Bi2S3 and Bi. Yin et al. [52] reported another method to prepare g-C3N4/Bi2S3 composite materials, through calcining the mixture of ammonium thiocyanate (NH4SCN) and bismuth chloride (BiCl3) at 550 ℃ in nitrogen atmosphere. In addition, the potential mechanisms for the enhanced photocatalytic activity of g-C3N4/Bi2S3 heterojunctions in these previous studies remained unclear or even contradictory. In particular, Xuan et al. [45] claimed that the enhanced separation of electron and hole pairs should be assigned to the transfer of electrons rather than holes. In contrast, Chen et al. [46] stated that the transfer of holes should be the key reason for the better photocatalytic performance. Thus, the questions remained to be answered include: Can g-C3N4/Bi2S3 heterojunctions be synthesized more facilely? How does Bi2S3 influence the photocatalytic performance of g-C3N4? What is the transfer path of electrons and holes?

Herein, we employed a facile coprecipitation method to prepare Bi2S3 at low temperature. Bi2S3 was induced to g-C3N4 nanosheets by ultrasonic and the obtained g-C3N4/Bi2S3 heterojunctions exhibited better photocatalytic performance than g-C3N4 nanosheets and Bi2S3 particles. The morphology and structure of the prepared materials are comprehensively characterized. The potential mechanisms for the enhanced catalytic performance are then analyzed. The findings of this work are expected to provide insights into the synthesis and application of g-C3N4 based heterojunction photocatalysts.

2 Experimental
2.1 Reagents

Bismuth ammonium citrate was bought form Tianjin Guangfu Fine Chemical Research Institute. Thioacetamide and melamine were bought from Sinopharm Chemical Reagent Beijing Co., Ltd. All the chemicals were analytical reagent and used without further purification.

2.2 Preparation of materials

g-C3N4 nanosheets were prepared as follow. Firstly, 2 g of melamine was located in a 50 mL corundum crucible and heated to 540 ℃ for 4 h. The heating rate was 4 ℃/min and the atmosphere was air. After that, the product (bulk g-C3N4) was ground uniformly and reheated at 500 ℃ for 2 h in air. Then g-C3N4 nanosheets are obtained [53].

Bi2S3 was synthesized by using the coprecipitation method. Firstly, 30 mL of bismuth ammonium citrate solution (0.0075 M) and 30 mL of thioacetamide solution (0.005 M) was put into two 100 mL flasks. Then the flasks were stirred for 10 min at 90 ℃ in water bath. After that, the thioacetamide solution was slowly added to the bismuth ammonium citrate solution. The mixture was kept at 90 ℃ for 2 h to form Bi2S3. Finally, the prepared Bi2S3 was washed by water and ethanol, and freeze-dried.

The g-C3N4/Bi2S3 heterojunctions were prepared by the ultrasonic method. The details are as follow: 1 g of g-C3N4 nanosheets, a certain amount of Bi2S3, 60 mL of water and 60 mL of ethanol were put in a 200 mL beaker. Then the mixture was strong stirred for 10 min and sonicated for 8 h. Afterwards, the powder was collected, washed 3 times and dried at 60 ℃ for 12 h. The amount of Bi2S3 was 2, 20 and 50 mg, besides, the samples were named as CN-BiS-1, CN-BiS-2 and CN-BiS-3 respectively.

2.3 Characterization of materials

The X-ray diffraction (XRD) of the samples was tested with a D/max-2400 X-ray diffractometer at 25 ℃ with intense Cu Kα radiation. A Bruker V70 Fourier transform infrared spectrometer was employed to test the Fourier transform infrared spectroscopy (FTIR) of C3N4/Bi2S3 heterojunction samples and the wavenumber range was from 4000 to 600 cm-1. X‐ray photoelectron spectroscopy (XPS) of the prepared samples was obtained from a PHI Quantera XPS microprobe. JEOL2100F thermal field high resolution scanning transmission electron microscope (STEM) with an Oxford M-max 80 energy-dispersive X-ray spectroscopy (EDS) was used to explore the morphology and structure of CN-BiS-2. The UV-vis diffuse reflectance spectroscopy (DRS) of the samples was obtained from a Hitachi U-3900 scan UV-vis spectrophotometer from 800 to 250 nm, the blank baseline of which was tested with high purity barium sulfate (BaSO4). Photoluminescence (PL) spectra were tested with a Hitachi F-4600 fluorescence spectrometer excited at 325 nm and the wavelength range was from 300 to 700 nm. The electrochemical impedance spectroscopy (EIS) and photocurrent of the samples were tested by using a CHI 760E electrochemical workstation. A platinum (Pt) wire was used as counter electrode, a saturated calomel electrode (SCE) was used as reference electrode and the solution was 0.1 M sodium sulfate (Na2SO4). The preparation of working electrodes was as fallow: 1 mL of water and 5 mg of samples were put into 5 mL cuvettes; then the cuvettes were sonicated 4 h to disperse the samples in the solvent evenly; then the suspension was evenly coated on indium-tin-oxide (ITO) glasses (5 × 2 cm) and dried in air for 12 h. The light resource of photocurrent was provided by a 300 W xenon lamp (PLS-SXE-300) and the light intensity was 50 mW/cm2. The frequency of EIS was from 1 to 1 × 105 Hz; the initial voltage was 0 V and the amplitude was 0.005 V. The electron spin resonance (ESR) spectra of pure g-C3N4 and CN-BiS-2 were tested with a Bruker ESR 300E spectrometer and 5, 5-dimethyl-1-pyrroline-N-oxide (DMPO) was used as the radical scavenger. Thermal images were gained from Xinsite HT02 thermography with a 300 W Xe lamp (PLS-SXE300) irradiation.

2.4 Photocatalytic activity and product tests

Methylene blue (MB) was used as the molecular probes to evaluate the photocatalytic activity of the prepared samples. The photocatalytic reaction test was carried out with a PhchemIII photochemical reactions instrument and the light resource was a 500 W xenon lamp with average light intensity being 35 mW/cm2. Firstly, 50 mg of the samples were weighted and located in five 50 mL quartz cuvettes. Then 50 mL of MB solution (5 ppm) was added to the cuvettes and the suspension was strong stirred for 2 h to reach the adsorption-desorption equilibrium. Afterwards, 3 mL of suspension was collected and the light was turned on. The photodegradation process lasted for 5 h and 3 mL of suspension was sampled per hour. The concentration of MB solution was measured with a Hitachi U-3900 scan UV-vis spectrophotometer at the wavelength of 664 nm. The total organic carbon (TOC) of the solutions during the photocatalytic degradation process was analyzed with a Shimadzu TOC-L. The degradation products were analyzed by a Shimadzu LCMS-8060 liquid chromatograph with tandem mass spectrometry (LCMSMS).

3 Results and discussion
3.1 Structure and morphology

Bi2S3 belongs to orthorhombic crystal system, crystallizing in the space group of Pnma (62) with the unit cell parameters a = 11.2690 Å, b = 3.9717 Å, c = 11.1290 Å, and Z = 4 [54]. Fig. 1 shows the crystal structure of Bi2S3. The formation of Bi2S3 presents a serrated chain-like structure, which is formed by the connection of the trigonal pyramid structure of [Bi2S3]. This structure grows along the (001) direction and two chains can connect with each other and form [Bi4S6]n. The strong and short Bi-S in the chains are between 2.584 to 2.7439 Å, while the longer Bi-S between the chains are 3.056 Å [55].

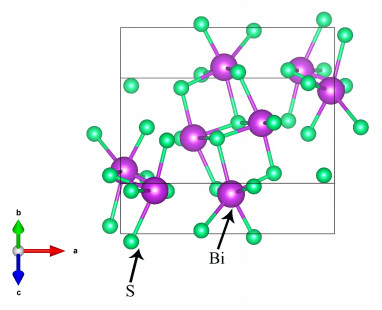

Fig. 1. The crystal structure of Bi2S3.

Firstly, XRD patterns were used to explore the component and crystallinity of prepared materials. Fig. 2 is the XRD patterns of g-C3N4, Bi2S3 and g-C3N4/Bi2S3 heterojunction samples. The two peaks of g-C3N4 at 13.1 and 27.1° can be attributed to the (100) and (002) crystal plane diffraction respectively (JCPDS 87-1526). The XRD pattern of Bi2S3 well matches the reference card (ICSD 153946) that has not strong crystallinity like g-C3N4. After sonicated with Bi2S3 in water and ethanol solution, the diffraction intensity of g-C3N4 gradually decreased, which illustrates that the crystallinity of the g-C3N4 was decreased. The effect of ultrasonic and solution can help further nanosize g-C3N4 and the Bi2S3 nanoparticles have a positive effect on the tailor of g-C3N4 [56, 57].

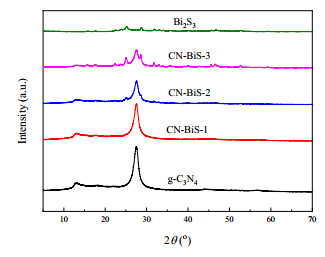

Fig. 2. XRD patterns of g-C3N4, Bi2S3 and g-C3N4/Bi2S3 heterojunction samples.

Afterwards, FTIR were employed to explore the surface functional groups of g-C3N4, Bi2S3 and g-C3N4/Bi2S3 samples (Fig. 3). The inorganic Bi2S3 had no obvious peaks in FTIR. For the g-C3N4 based samples, the wide peak at around 3400 cm‒1 was attributed to the hydroxyl form water, which was adsorbed on the surface of the samples. The peaks at 1200, 1234, 1317 1457 and 1631 cm‒1 were all assigned to the skeletal vibration peaks of (C6N7).[58] The peak at 1400 cm‒1 belonged to the stretching vibration of C3N3 and the vibration peaks of the out-of-plane skeleton of triazine rings showed a strong and sharp peak at 808 cm‒1 [59]. Compared with g-C3N4, no new peak appears in the FTIR of g-C3N4/Bi2S3 samples, indicating that the interaction between g-C3N4 and Bi2S3 is physical interaction.

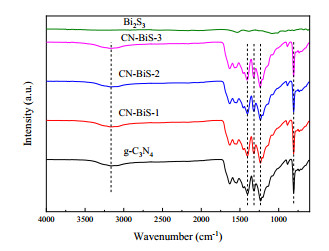

Fig. 3. FTIR spectra of g-C3N4, Bi2S3 and g-C3N4/Bi2S3 heterojunction samples.

Then, STEM and EDS mapping images were tested to explore the morphology and structure of CN-BiS-2. According to Fig. 4(a), Bi2S3 particles (the bright part) in CN-BiS-2 were about 50 nm with irregular morphology. Some of the Bi2S3 particles were at the surface of g-C3N4 nanosheets, while the others were sandwiched in the g-C3N4 layers. As for g-C3N4, it showed a soft layer structure. The EDS mapping could further confirm the component and morphology of this sample.

Fig. 4. The STEM image (a) and the EDS mapping images of Bi (b), C (c), N (d) and S (e) of CN-BiS-2.

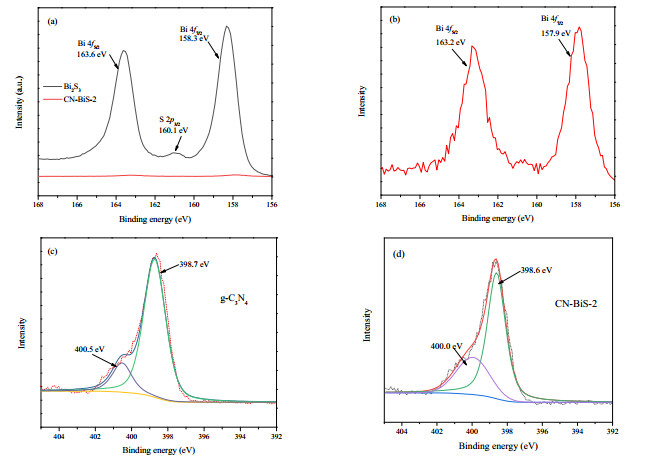

Fig. 5(a) is the XPS narrow spectra of Bi and S of Bi2S3 and CN-BiS-2. For the low spectra intensity of CN-BiS-2, we enlarged this image and showed it in Fig. 5(b). In Bi2S3, two distinct peaks at 163.6 and 158.3 eV can be assigned to the 4f5/2 and 4f7/2 of Bi3+, respectively [13]. The weak peak at 160.1 eV is the 2p3/2 of S2- [60]. For the peaks of Bi 4f5/2 and 4f7/2 of CN-BiS-2, the binding energy shifted to 163.2 and 157.9 eV, which is probably caused by the strong interaction between Bi2S3 and g-C3N4. As the concentration of Bi2S3 in sample CN-BiS-2 is quite low, it is difficult to judge the narrow spectra of S from this image. As shown in Fig. 5(c), N1s has two peaks. The peak at 400.5 eV is attributed to the bridging N atoms in N(C)3 or N bonded with H atoms. The other peak at 398.7 eV is assigned to the sp2 hybridized N involved in triazine rings of g-C3N4. Due to the interaction between Bi2S3 and g-C3N4, the binding energy of N1s peaks of CN-BiS-2 also showed some shift.

Fig. 5. XPS narrow spectra of Bi and S of Bi2S3 and CN-BiS-2 (a), and enlarged spectrum of CN-BiS-2 (b). XPS narrow spectra of N of g-C3N4 (c) and CN-BiS-2 (d).

Based on the above results, we can conclude that g-C3N4/Bi2S3 heterojunction samples are successfully fabricated. The Bi2S3 particles were either at the surface of g-C3N4 nanosheets or sandwiched in the g-C3N4 layers. After sonicated with Bi2S3 in water and ethanol solution, the crystallinity of the g-C3N4 clearly decreased. The effect of ultrasonic and solution can further nanosize the g-C3N4 and the Bi2S3 nanoparticles have a positive effect on the tailor of g-C3N4.

3.2 Photocatalytic activity

MB was used as molecular probes to evaluate the photocatalytic activity of prepared samples. Fig. S1 shows the concentration change of MB under simulated solar light irradiation. It is obvious that the concentration of MB solution gradually decreased during the time course. Among all the samples, CN-BiS-2 had the highest photocatalytic activity and the total removal of MB is 92.11% in 6 h. The pseudo-first-order rate constant k of CN-BiS-2 is 0.521 h‒1, which is 2.05-fold as g-C3N4 and 4.42-fold as Bi2S3 (Fig. 6(a)). To further confirm the mineralization of MB, the TOC was tested. As shown in Fig. 6(b), during 6 h, the TOC of MB reduced 82.03% by CN-BiS-2 and it is much higher than that of g-C3N4. However, the reduce of TOC is lower than the removal of MB concentration, indicating there are some intermediate and incompletely mineralized products. Then, LC-MSMS was employed to analyze the degradation products (Fig. S2) and a possible degradation path was proposed (Fig. 7). There are two major degradation pathways of MB by CN-BiS-2. Firstly, the oxygen in water can form S=O with MB [61]. Then a C-N is broken and 2, 5-diamino-4-hydroxybenzenesulfinate was formed, which may be further degraded to ((2E, 4Z)-5-amino-4-hydroxypenta-2, 4-dien-2-yl) amide and 2, 4-dimethylpent-2-en-3-ide. With increasing reaction time, these organic molecules can finally be converted to CO2 and H2O. In the other pathway, MB firstly lose two -CH3 and then form 5λ4-phenothiazin-3-ol. It may also be gradually mineralized by the photocatalytic active species.

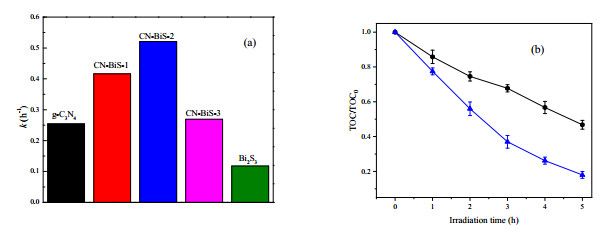

Fig. 6. Photocatalytic activity of g-C3N4, Bi2S3 and CN-BiS composite samples. (a) pseudo-first-order rate constant k; (b) the TOC removal of g-C3N4 and CN-BiS-2.

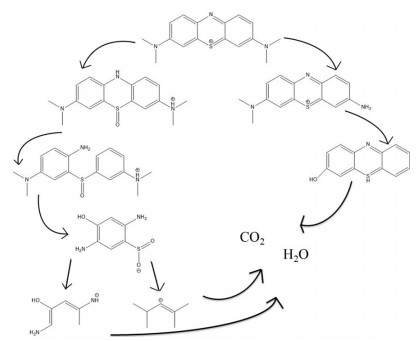

Fig. 7. A possible degradation path of the methylene blue molecule.
3.3 Photocatalytic mechanism

Solar light utilization ratio has crucial influence on the application of photocatalysts. Firstly, UV-vis DRS was employed to test the light absorption ability of prepared samples. Fig. 8 is the UV-vis DRS of g-C3N4, Bi2S3 and CN-BiS heterojunction samples. The g-C3N4 could only absorb the light lower than 460 nm and its bandgap was about 2.7 eV. When Bi2S3 was introduced to g-C3N4 nanosheets, the light absorption of the composite samples improved significantly both in the ultraviolet and visible light region. Besides, the absorption edges of the composite samples showed an obvious red-shift, which was caused by the strong interaction between g-C3N4 and Bi2S3. The wave-band absorption in the visible light region was also enhanced. The stronger light absorption can favor the samples to utilize more solar energy.

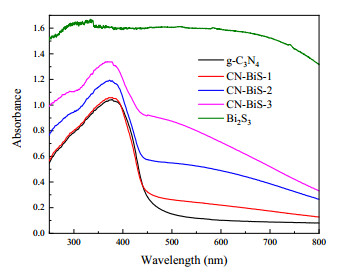

Fig. 8. UV-vis DRS of g-C3N4, Bi2S3 and CN-BiS composite samples.

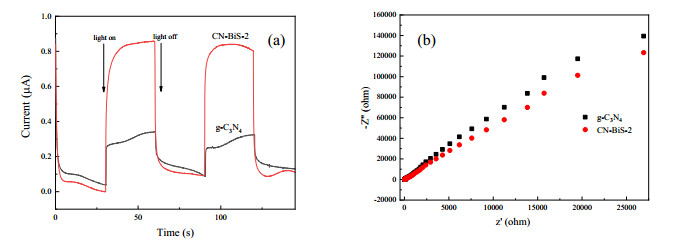

Photocurrent is an efficient way to prove the separation and transfer efficiency of photogenerated charge carriers. Fig. 9(a) is the photocurrent of g-C3N4 and CN-BiS-2. It was obvious that both g-C3N4 and CN-BiS-2 have strong photocurrent response when the light was turned on. The photocurrent intensity of CN-BiS-2 was much higher than that of g-C3N4, indicating that the separation and transfer efficiency of electrons was enhanced. Moreover, the EIS Nyquist plots arc radius of CN-BiS-2 was smaller than that of g-C3N4 (Fig. 9(b)), which could further confirm the higher separation and transfer efficiency of photogenerated electron as well as hole pairs.

Fig. 9. Photocurrent response (a) and EIS Nyquist plots (b) of g-C3N4 and CN-BiS-2 in 0.1 M Na2SO4 solution.

Afterwards, PL spectra were used to further determine the separation and transfer efficiency of photogenerated charge carriers. As shown in Fig. 10(a), the CN-BiS-2 showed much lower PL spectra intensity than g-C3N4, illustrating that the introduction of Bi2S3 can restrain the recombination of photogenerated electron and hole pairs.

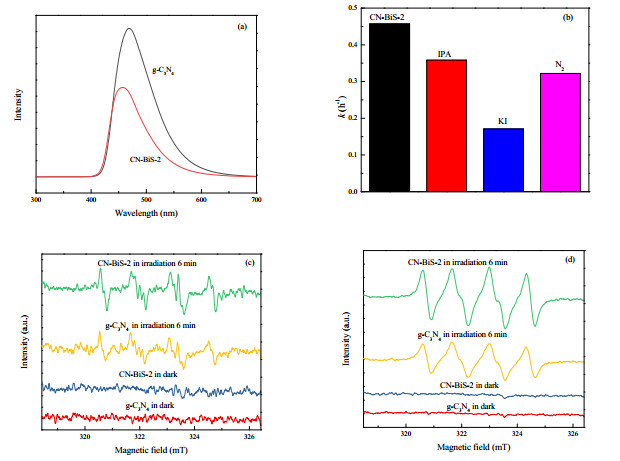

Fig. 10. (a) Photoluminescence spectra of g-C3N4 and CN-BiS-2; (b) radical trapping experiment results of CN-BiS-2 during the photodegradation process of MB; ESR spectra of hydroxyl radicals (c) and superoxide radicals (d) trapped by DMPO

Then radical trapping experiments were also carried out to explore the main radicals in the photochemical reaction process of CN-BiS-2 (Fig. 10(b)). When IPA or N2 was added to the reaction system, the photocatalytic activity reduced, while the extent was minor. In contrast, KI had a distinct influence on the photocatalytic performance of CN-BiS-2, which meant that holes were the most important radicals during the photodegradation process of CN-BiS-2.

After that, ESR spectra were used to compare the effect of hydroxyl radicals and superoxide radicals of g-C3N4 and CN-BiS-2 (Figs. 10(c) and 10(d)). In a dark environment, neither g-C3N4 nor CN-BiS-2 showed obvious ESR signal. After light irradiation, both the samples had hydroxyl radical and superoxide radical ESR signal. The hydroxyl radical ESR spectra intensity and superoxide radical ESR spectra intensity of CN-BiS-2 were both stronger than that of g-C3N4, which indicated that CN-BiS-2 can provide more electrons and holes. As a result, more radicals were generated.

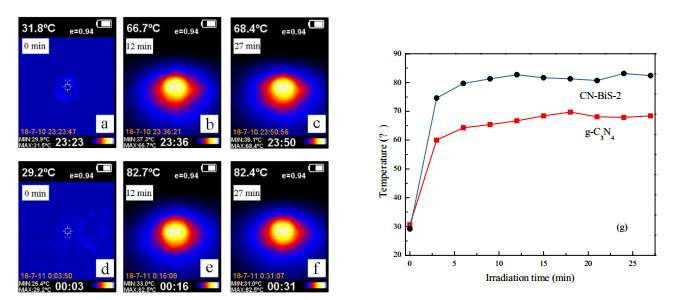

Photothermal conversion materials can accumulate solar radiation energy and convert it to thermal energy. Under solar light irradiation, Bi2S3 can absorb light energy and improve its temperature [49]. Fig. 11 is the temperature-time curve of g-C3N4 and CN-BiS-2 under simulated solar light irradiation. The temperature of g-C3N4 and CN-BiS-2 both increased rapidly, and it gradually became stable. At 27 min, the temperature of CN-BiS-2 reached about 82.4 ℃, while that of g-C3N4 was about 68.4 ℃. These results indicated that the introduction of Bi2S3 is beneficial to the photothermal conversion effect of CN-BiS-2, which can provide more energy to electrons and make them transfer much faster to vitally enhance photocatalytic reaction [62, 63].

Fig. 11. Thermal images of g-C3N4 (a‒c) and CN-BiS-2 (d‒f) under simulated solar light irradiation for 0, 12 and 27 min; (g) the temperature-time curve of g-C3N4 and CN-BiS-2 under simulated solar light irradiation in 27 min.

In brief, the UV-vis DRS of CN-BiS-2 had obvious red-shift and it can confirm the light utilization is greatly enhanced. The stronger photocurrent response, the smaller EIS Nyquist plots arc radius, and the lower intensity of PL all indicated the separation and transfer of photogenerated charge carriers was clearly improved. The results of trapping experiments concluded that the most important active species in the photodegradation process are holes. The hydroxyl radical ESR spectra intensity and superoxide radical ESR spectra intensity of CN-BiS-2 were both stronger than that of g-C3N4, which indicates that CN-BiS-2 can provide more electrons and holes, as a result, more radicals are generated. Due to the photothermal effect of Bi2S3, the carrier mobility was enhanced, which was also important for the photocatalytic reaction.

Based on all the above results, a possible mechanism for why g-C3N4/Bi2S3 heterojunction showed better photocatalytic performance was proposed (Fig. 12). The conduction band (CB) and valence band (VB) of g-C3N4 are at -1.13 and +1.57 eV respectively [24]. The CB of Bi2S3 is 0.10 eV and its VB is +1.45 eV [51]. Generally, electrons carry negative charges and trend to migrate to more positive potential; holes carry positive charges and trend to migrate to more negative potential. Judging from the band structure of g-C3N4 and Bi2S3, electrons and holes both have the tendency to transfer to the CB and VB of Bi2S3, which may lead to reduction of the redox ability. As a result, g-C3N4 and Bi2S3 may not form a highly efficient heterojunction. However, when high-energy electrons are produced, this circumstance can be changed [64, 65]. Based on the results of photocurrent, EIS, PL and ESR, it can be concluded that the transfer and separation of photogenerated charge carriers are accelerated, besides the photocatalytic performance of CN-BiS-2 is 2.05-fold as g-C3N4 and 4.42-fold as Bi2S3. The gap between the VB top of Bi2S3 and the CB bottom of g-C3N4 is 2.58 eV, corresponding to the light energy of about 480 nm, which means that high-energy electrons of Bi2S3 excited by light shorter than 480 nm can energetically transfer to the CB of g-C3N4. The light range of xenon lamp we used is 200‒1100 nm, indicating that the electrons on the VB of Bi2S3 can be excited to the maximum of ‒4.73 eV.

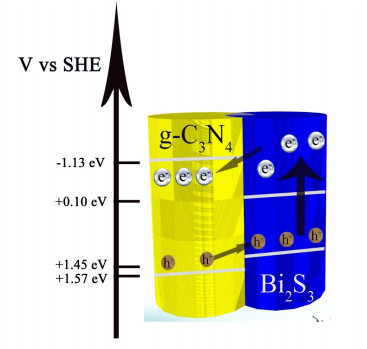

Fig. 12. Schematic diagram for possible charge separation in g-C3N4/Bi2S3 heterojunctions.

Firstly, under simulated sunlight irradiation, both g-C3N4 and Bi2S3 are excited; electrons can transfer to the CB and holes are produced on the VB. Electrons can react with oxygen to produce superoxide radicals. Holes can react with water and produce hydroxyl radicals. Superoxide radicals, hydroxyl radicals and hole are all strong oxidative species in photocatalytic reactions. Due to the high energy of simulated sunlight, a lager quantity of high-energy electrons are produced, which can transfer to the CB of g-C3N4, at the same time holes can migrate from the VB of g-C3N4 to the VB of Bi2S3. As a result, the separation of photogenerated charge carriers is accelerated. Besides, the introduction of Bi2S3 greatly enhanced the light absorption both in the ultraviolet and visible light region (Fig. 8). Finally, the photothermal effect of Bi2S3 can provide more energy to electrons and make them transfer much faster. Based on the above results, the g-C3N4/Bi2S3 heterojunction materials exhibit better photocatalytic performance.

4 Conclusions

In this work, a series of g-C3N4/Bi2S3 heterojunction materials with effective photocatalytic performance was constructed. The results of photocurrent, EIS, PL and ESR can confirm that transfer and separation of photogenerated charge carriers were promoted. The introduction of Bi2S3 can enhance the absorption of light energy and convert it to thermal energy, which can provide more energy to electrons and make them transfer much faster. Due to the high energy of simulated sunlight, a large quantity of high-energy electrons were produced, which can transfer to the CB of g-C3N4, at the same time holes can migrate from the VB of g-C3N4 to the VB of Bi2S3. As a result, the separation of photogenerated charge carriers is accelerated. The findings of this work provide a new facile way to develop highly efficient heterojunction photocatalysts via high-energy electrons and photothermal effect.
