Phosphorus vacancy-engineered Ru,Pv-CoP as a hydrogen spillover catalyst for enhanced industrial alkaline water electrolysis

doi:10.1016/S1872-2067(26)65195-9

Abstract

Abstract:

Developing industrial-grade electrocatalysts based on the hydrogen spillover (HSo) mechanism is a key approach for translating lab-scale performance into industrial applications. Herein, a novel HSo catalyst (Ru,P_v-CoP/CF) was constructed by introducing phosphorus vacancies (P_v) into a CoP support decorated with Ru nanocrystals (Ru NCs) and Ru single atoms (Ru SAs) via defect-engineering strategy. The creation of P_v modulates the interfacial properties between Ru species and CoP, enabling electronic coupling between Ru and Co through phosphorus bridging and forming a “Ru-Co” donor-acceptor electron pair. Multidimensional in-situ electrochemical measurements reveal that P_v accelerates the polarization/dissociation of water molecules and the capture/migration of adsorbed hydrogen (H*). Further density functional theory calculations underscore that P_v narrows the work function difference between Ru NC and Ru_SA-CoP, which enhances the electron supply from Ru NC to Co, thereby triggering an efficient H* cross-phase transmission. Specifically, Ru NCs primarily facilitate H₂O dissociation, and the generated H* subsequently spillover to adjacent Co sites for H₂ desorption. Benefiting from the P_v-mediated relay catalysis, the Ru,P_v-CoP/CF catalyst exhibits top-level HER properties in 1.0 mol L^-1 KOH, requiring only 86 mV at an industrial current density of 1.0 A cm^-2 with exceptional durability over 1200 h. This work advances the fundamental understanding of vacancy-guided HSo mechanism, providing unique insights for designing transition metal phosphides-based electrocatalysts for industrial alkaline water electrolysis.

Key words: Hydrogen spillover, Phosphorus vacancies, Ru nanocrystals, Transition metal phosphides, Industrial alkaline water electrolysis

Juan Xiao, Tingting Huang, Xia Liu, Yuying Feng, Guancheng Xu, Li Zhang. Phosphorus vacancy-engineered Ru,P_v-CoP as a hydrogen spillover catalyst for enhanced industrial alkaline water electrolysis[J]. Chinese Journal of Catalysis, 2026, 91: 192-209.

×
share this article

Add to citation manager EndNote|Ris|BibTeX

URL: https://www.cjcatal.com/EN/10.1016/S1872-2067(26)65195-9

https://www.cjcatal.com/EN/Y2026/V91/I12/192

Figures/Tables 8

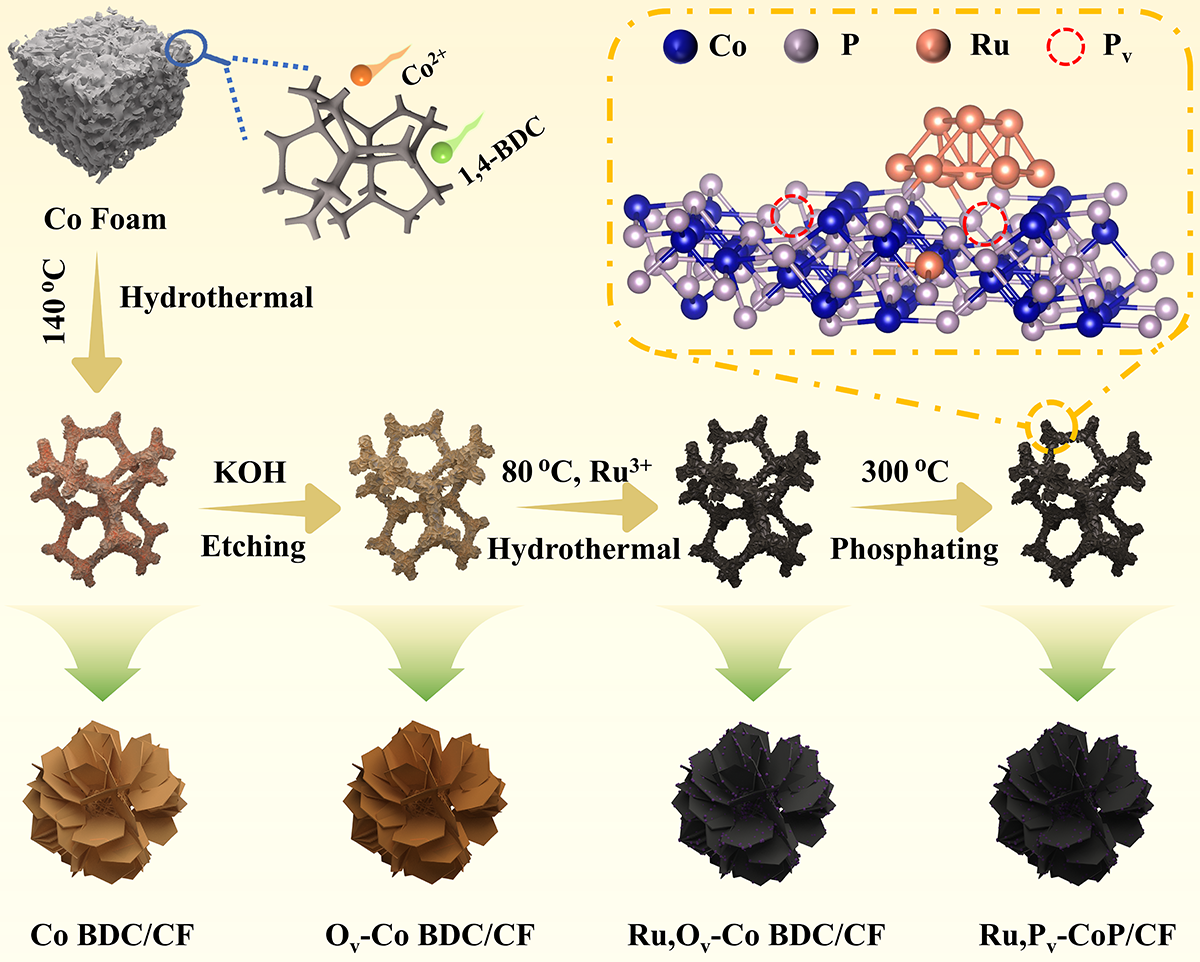

Scheme 1. Schematic illustration of the synthesis of Ru,Pv-CoP/CF.

Fig. 1. XRD (a), SEM (b,c), TEM (d), AC-STEM (e-h), EELS (i), and TEM-elemental mapping (l-p) images of Ru,Pv-CoP/CF.

Fig. 2. High-resolution XPS spectra of Co 2p (a), P 2p (b) for Ru,Pv-CoP/CF and CoP/CF. (c) Ru 3p for Ru,Pv-CoP/CF and Ru-CoP/CF. EPR spectra (d), the normalized Co K-edge XANES spectra (e) and FT-EXAFS spectra (f) of Ru,Pv-CoP/CF, Ru-CoP/CF, CoP/CF, Co foil and Co2O3. WT-EXAFS spectra for Co K-edge (g), the normalized Ru K-edge (h) XANES spectra, the FT-EXAFS spectra (i-j) of Ru,Pv-CoP/CF, Ru-CoP/CF, Ru foil, RuCl3 and RuO2. WT-EXAFS spectra for Ru K-edge (k) and the R space comparison chart (l) for Ru,Pv-CoP/CF and Ru-CoP/CF. (m) Schematics of the electronic coupling in the Ru-Pv··-Co bridge.

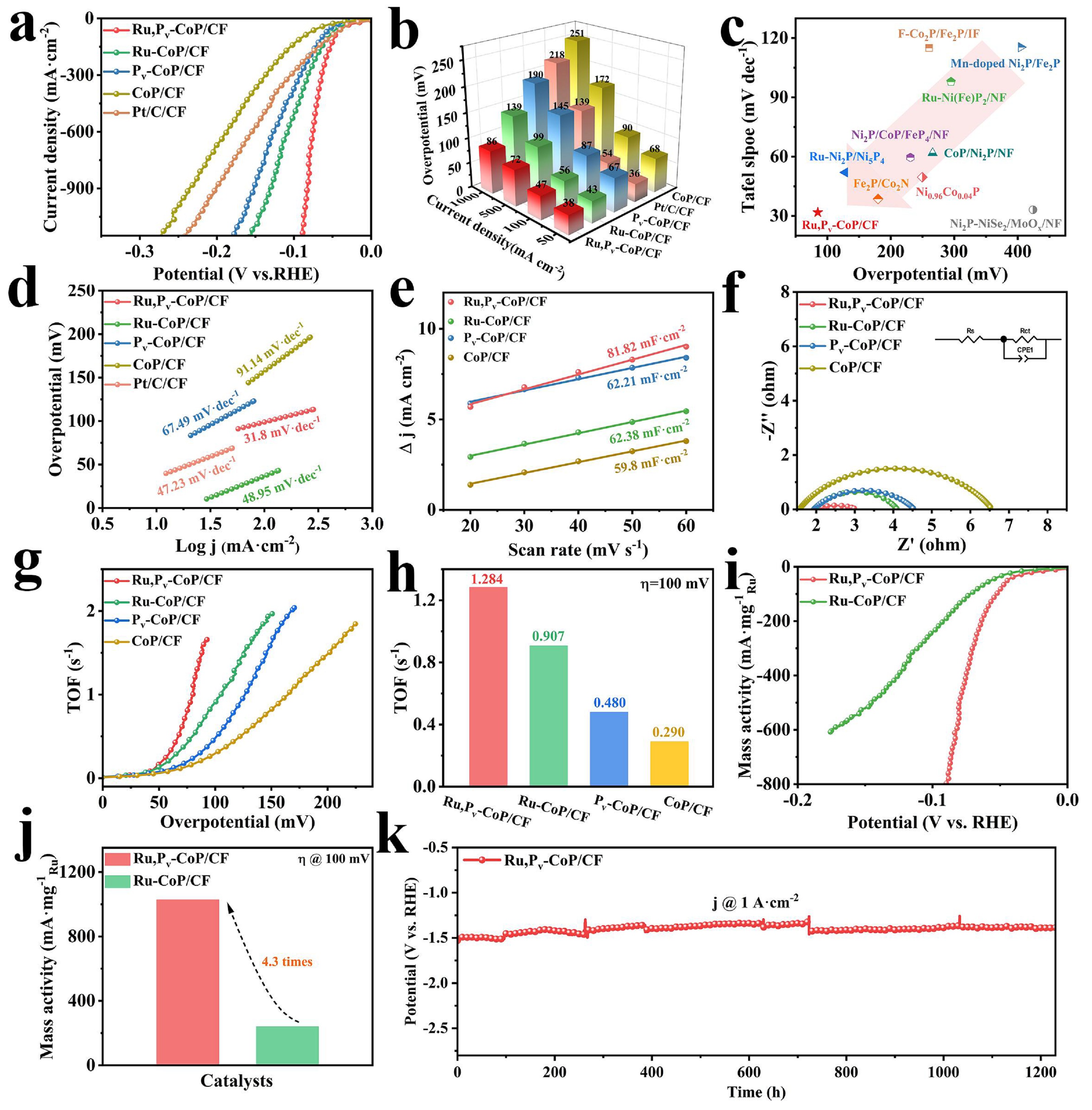

Fig. 3. (a) iR-corrected LSV curves of HER. (b) Overpotentials at current density of 50, 100, 500 and 1000 mA cm-2. (c) Comparison of overpotentials (at 1 A cm-2) and Tafel slopes of various reported self-supported TMP-based HER catalysts. Tafel slope plots (d), double-layer capacitances (e), Nyquist plots (f), and TOF curves (g) of Ru,Pv-CoP/CF, Ru-CoP/CF, Pv-CoP/CF and CoP/CF. (h) TOF values comparison at an overpotential of 100 mV. (i) Mass activity of Ru,Pv-CoP/CF and Ru-CoP/CF. (j) Mass activity comparison at an overpotential of 100 mV. (k) Chronopotentiometric E-t test of Ru,Pv-CoP/CF.

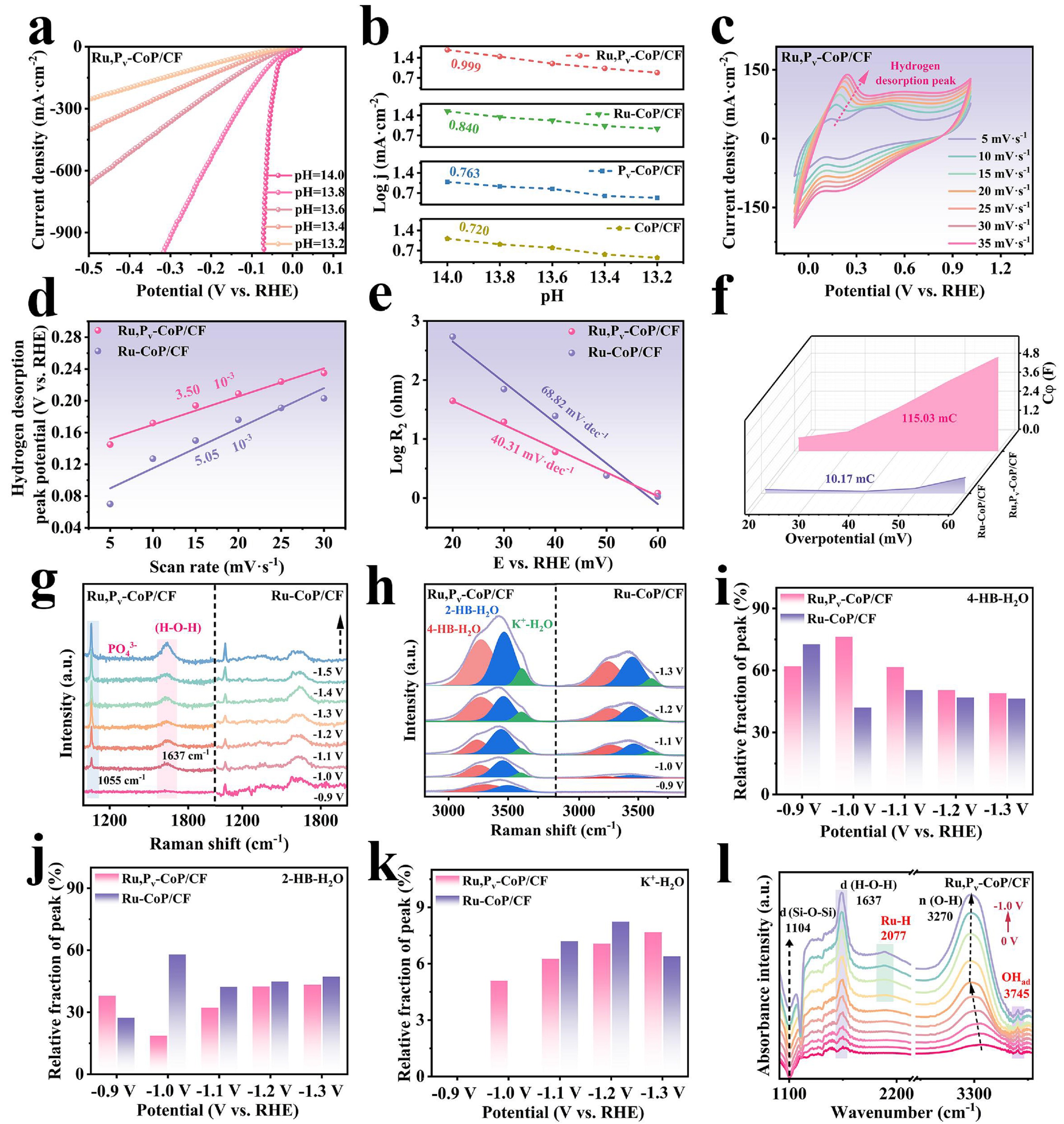

Fig. 4. (a) HER LSV curves of Ru,Pv-CoP/CF in 1.0 mol L-1 KOH electrolyte with various pH. (b) The linear plots of log|j@-50 mV vs. RHE| versus pH for Ru,Pv-CoP/CF, Ru-CoP/CF, Pv-CoP/CF and CoP/CF. (c) CV curves of Ru,Pv-CoP/CF. (d) Plots of hydrogen desorption peak position versus scan rates of the Ru,Pv-CoP/CF and Ru-CoP/CF. (e) EIS-derived Tafel plots. (f) Plots of Cϕ versus η. (g,h) In-situ Raman of Ru,Pv-CoP/CF and Ru-CoP/CF catalysts in 1.0 mol L-1 KOH under various potentials (V vs. RHE). (i-k) Evolution of interfacial water configurations at the interface of Ru,Pv-CoP/CF and Ru-CoP/CF with applied potentials. (l) In-situ ATR-FTIR spectra of Ru,Pv-CoP/CF in 0.1 mol L-1 KOH solution.

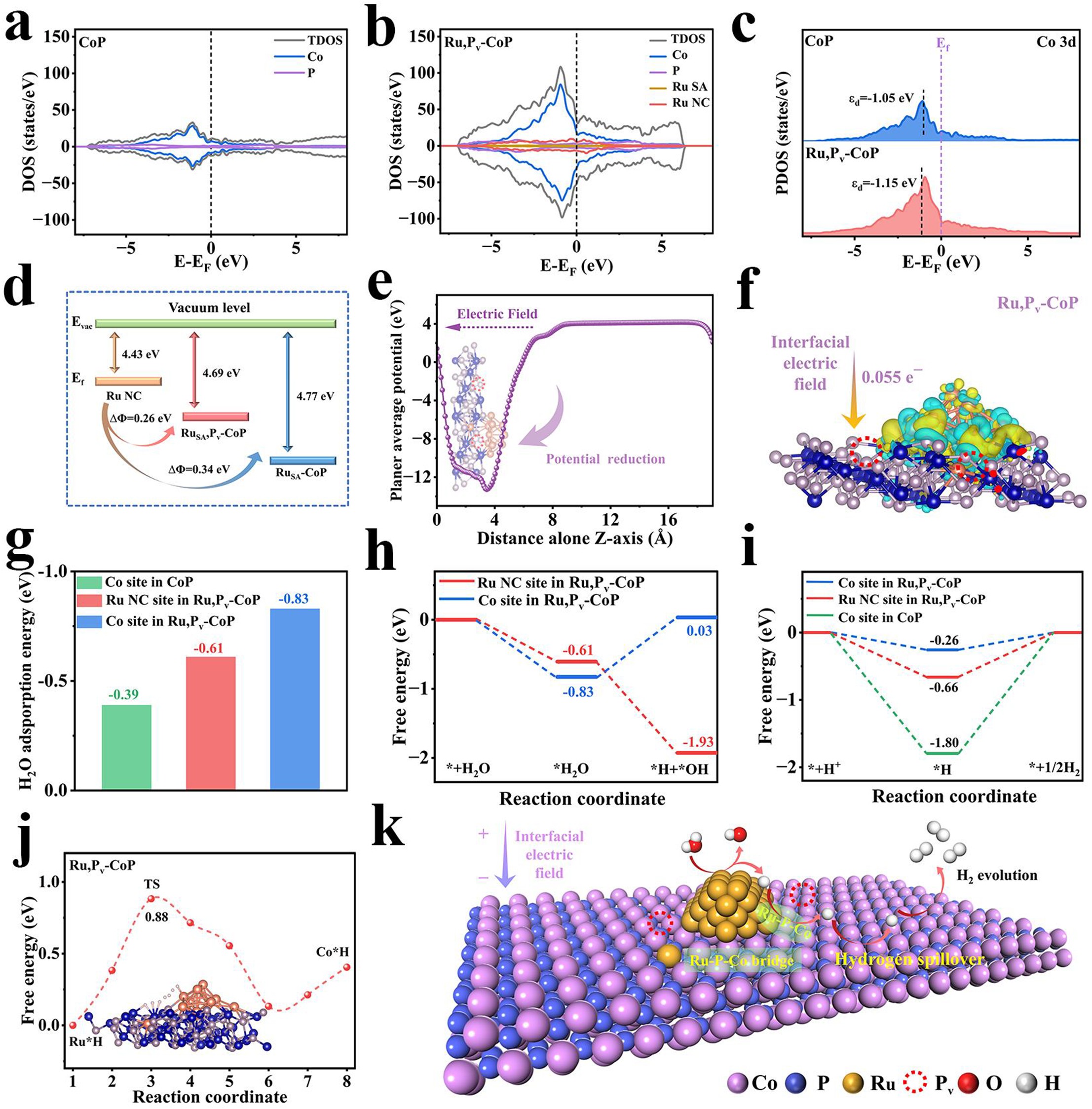

Fig. 5. Calculated DOS plots of CoP (a), Ru,Pv-CoP (b). (c) PDOS of Co 3d orbitals of CoP and Ru,Pv-CoP. (d) The work function between the Ru NC, RuSA-CoP and RuSA,Pv-CoP. (e) Planar average potential along the Z-direction. (f) The charge-density difference at the interface. H2O adsorption energy (ΔEH2O*) (g), H2O dissociation (h) and H-adsorption (i) of each system. (j) Hydrogen adsorption transfer pathway diagram. (k) Schematic diagram of the enhanced HER mechanism for Ru,Pv-CoP.

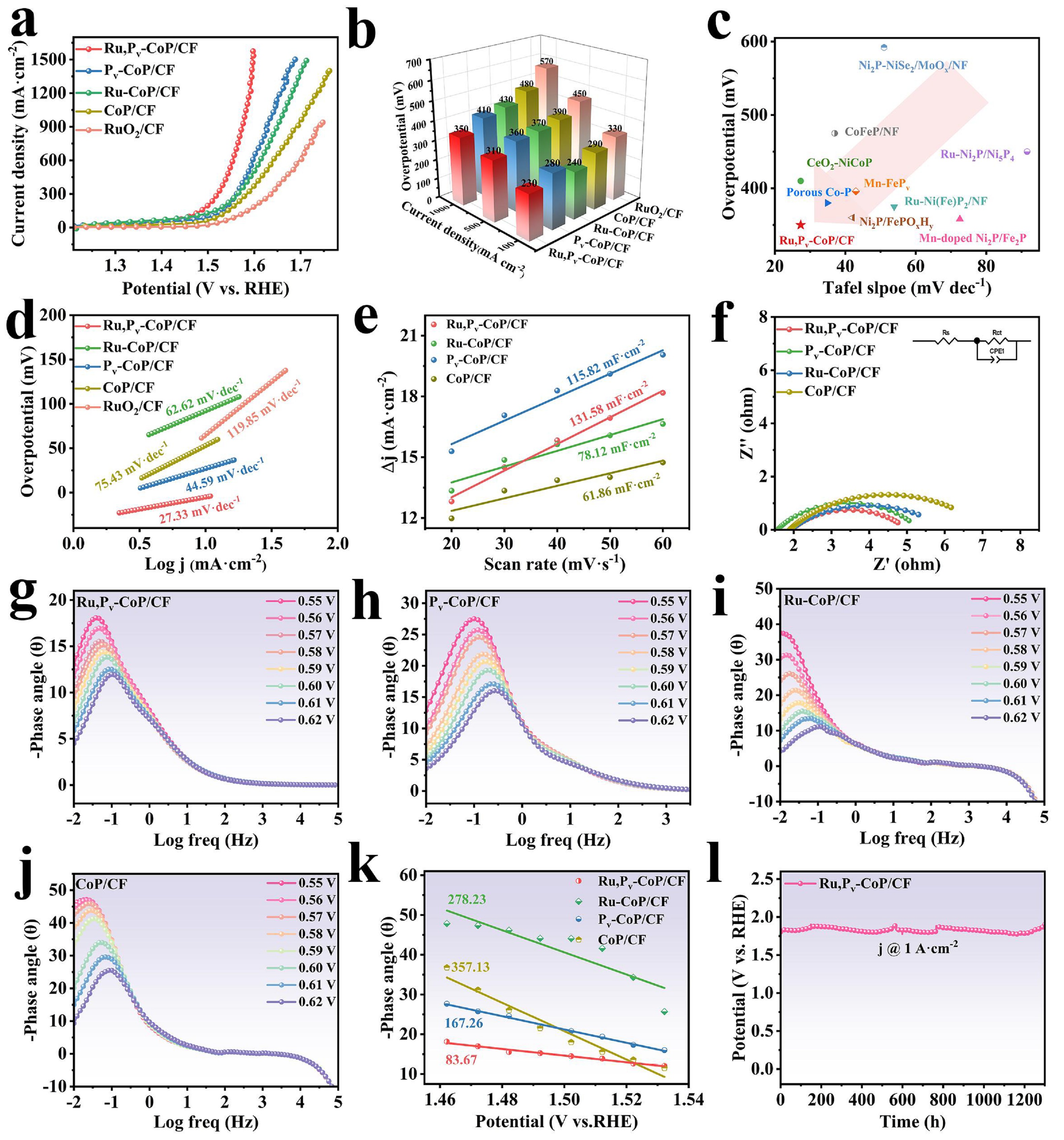

Fig. 6. (a) iR-corrected LSV curves of OER. (b) Overpotentials at current density of 50, 100, 500 and 1000 mA cm-2. (c) Comparison of overpotentials (at 1 A cm-2) and Tafel slopes of various reported self-supported TMP-based OER catalysts. Tafel slope plots (d), double-layer capacitances (e), Nyquist plots (f), operando-EIS tests (g-l) of Ru,Pv-CoP/CF, Ru-CoP/CF, Pv-CoP/CF and CoP/CF. (m) Potential dependence of the phase angle. (n) Chronopotentiometric E-t test of Ru,Pv-CoP/CF.

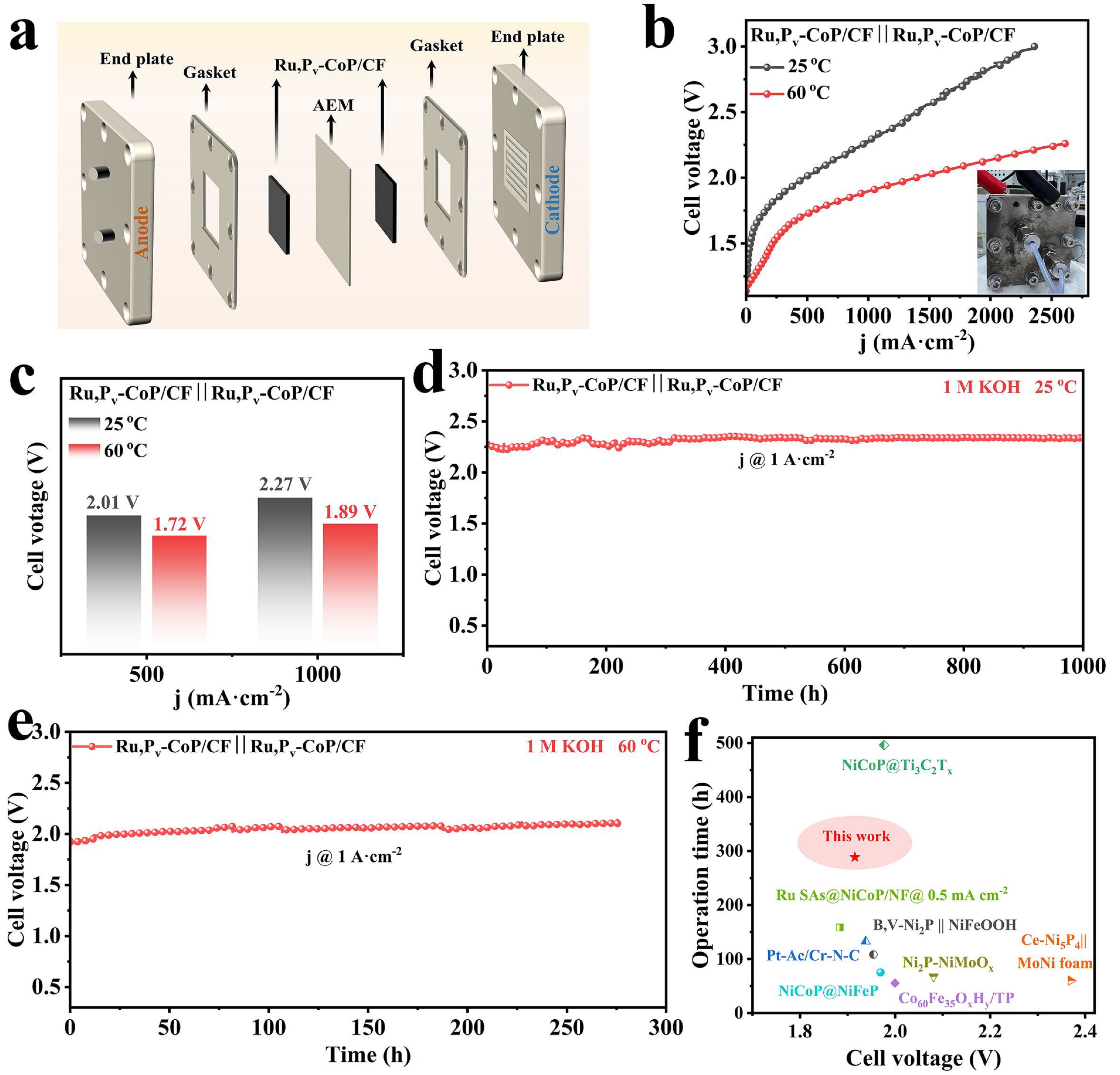

Fig. 7. AEMWE device performance. (a) Schematic of the AEMWE device. (b) Polarization curves of Ru,Pv-CoP/CF‖Ru,Pv-CoP/CF paired electrodes for AEMWE under 25 °C and 60 °C. (c) The voltage comparison at different current densities. (d,e) Long-term stability of the AEMWE system at 1 A cm-2 under 25 and 60 °C. (f) The comparison of the AEMWE performance of this work with other electrocatalysts reported to date.

References

[1]	M. Batool, A. Hameed, M. A. Nadeem, Coord. Chem. Rev., 2023, 480, 215029.
[2]	J. Cai, H. Huang, W. Chen, Y. Peng, L. Fu, S. Wang, Z. Zou, Z. Fu, X. Wang, Z. Xie, S. Xie, Sci. China Mater., 2025, 68, 2388-2396.
[3]	C. Yang, Y. Huang, W. Song, M. Wu, J. Nie, Y. Wang, L. Wu, X. Ge, T. Xu, Sci. China Mater., 2025, 68, 3657-3666.
[4]	X.-Y. Zhang, H. Yin, H.-H. Liu, Y.-D. Ge, C.-C. Dang, S.-H. Zheng, Z.-Y. Gu, J.-M. Cao, D.-H. Liu, X.-L. Wu, ACS Catal., 2026, 16, 528-541.
[5]	M. Wang, Y. Xu, C.-K. Peng, S.-Y. Chen, Y.-G. Lin, Z. Hu, L. Sun, S. Ding, C.-W. Pao, Q. Shao, X. Huang, J. Am. Chem. Soc., 2021, 143, 16512-16518.
[6]	K. Bhunia, M. Chandra, S. Kumar Sharma, D. Pradhan, S.-J. Kim, Coord. Chem. Rev., 2023, 478, 214956.
[7]	J. Dai, Y. Zhu, Y. Chen, X. Wen, M. Long, X. Wu, Z. Hu, D. Guan, X. Wang, C. Zhou, Q. Lin, Y. Sun, S.-C. Weng, H. Wang, W. Zhou, Z. Shao, Nat. Commun., 2022, 13, 1189.
[8]	J. Zhang, Y. Gu, Y. Lu, C. Zhu, G. Liu, C. Wang, D. Sun, Y. Tang, H. Sun, Appl. Catal. B, 2023, 325, 122316.
[9]	T. Chao, W. Xie, Y. Hu, G. Yu, T. Zhao, C. Chen, Z. Zhang, X. Hong, H. Jin, D. Wang, W. Chen, X. Li, P. Hu, Y. Li, Energy Environ. Sci., 2024, 17, 1397-1406.
[10]	S. Zhao, Z.-H. Wang, J.-Y. Wang, P.-F. Wang, Z.-L. Liu, J. Shu, T.-F. Yi, Coord. Chem. Rev., 2025, 524, 216321.
[11]	Y. Liu, Y. Chen, Y. Tian, T. Sakthivel, H. Liu, S. Guo, H. Zeng, Z. Dai, Adv. Mater., 2022, 34, 2203615.
[12]	J. Jiang, G. Xu, B. Gong, J. Zhu, W. Wang, T. Zhao, Y. Feng, Q. Wu, S. Liu, L. Zhang, Adv. Funct. Mater., 2025, 35, 2412685.
[13]	C. Li, C. Tian, H. Tang, M. Liu, L. Zheng, F. Huang, G.-R. Li, Q. Li, ACS Energy Lett., 2023, 8, 5161-5169.
[14]	S. Huang, T. Jin, J. Zhang, Y. Jiang, J. Hu, H. Niu, A. Naseri, K. Uvdal, Z. Hu, J. Zhang, Adv. Sci., 2025, 12, e13610.
[15]	X. Liu, X. Wang, K. Li, J. Tang, J. Zhu, J. Chi, J. Lai, L. Wang, Angew. Chem. Int. Ed., 2024, 63, e202316319.
[16]	L. He, Z. Cai, C. Wang, L. Yang, W. Yong, Z. Jin, Adv. Funct. Mater., 2026, 36, e14592.
[17]	L. Jiang, L. Jiang, X. Luo, R. Li, Q. Zhou, L. Wang, L. Chen, S. Mu, Chem. Eng. J., 2024, 502, 157952.
[18]	X. Wang, X. Liu, S. Wu, K. Liu, X. Meng, B. Li, J. Lai, L. Wang, S. Feng, Nano Energy, 2023, 109, 108292.
[19]	Y. Sun, J. Dai, H. Lv, L. Dong, Z. Wang, H. Feng, B. Meng, Z. Li, Adv. Funct. Mater., 2025, 35, 2505867.
[20]	Y. Luo, Z. Zhang, M. Chhowalla, B. Liu, Adv. Mater., 2022, 34, 2108133.
[21]	X. Jin, H. Jang, N. Jarulertwathana, M. G. Kim, S.-J. Hwang, ACS Nano, 2022, 16, 16452-16461.
[22]	Y. Gao, H. Ding, X. Fan, J. Xiao, L. Zhang, G. Xu, J. Colloid Interface Sci., 2023, 648, 745-754.
[23]	L. Zhang, X. Wang, A. Li, X. Zheng, L. Peng, J. Huang, Z. Deng, H. Chen, Z. Wei, J. Mater. Chem. A, 2019, 7, 17529-17535.
[24]	Y. Wang, S. Li, X. Hou, T. Cui, Z. Zhuang, Y. Zhao, H. Wang, W. Wei, M. Xu, Q. Fu, C. Chen, D. Wang, Adv. Mater., 2024, 36, 2412598.
[25]	X. Zhao, H. Zheng, H. Sun, M. Chen, B. Wang, Q. Lu, B. Xiao, T. Zhou, D. Li, G. Qiu, J. Zhang, Y. Zhang, F. Liu, T. He, H. Pan, C. Wang, Q. Liu, Nano Energy, 2025, 142, 111201.
[26]	L. Zhuang, Y. Jia, H. Liu, X. Wang, R. K. Hocking, H. Liu, J. Chen, L. Ge, L. Zhang, M. Li, C.-L. Dong, Y.-C. Huang, S. Shen, D. Yang, Z. Zhu, X. Yao, Adv. Mater., 2019, 31, 1805581.
[27]	B. Liu, B. Zhong, F. Li, J. Liu, L. Zhao, P. Zhang, L. Gao, Nano Res., 2023, 16, 12830-12839.
[28]	G. Yuan, D. Liu, X. Feng, M. Shao, Z. Hao, T. Sun, H. Yu, H. Ge, X. Zuo, Y. Zhang, Adv. Mater., 2022, 34, 2108985.
[29]	H. Zhang, W. Liu, Z. Li, L. Qiao, K. Chi, X. Guo, D. Cao, D. Cheng, Adv. Sci., 2024, 11, 2401398.
[30]	Z. Zhang, F. Zhang, Y. Cui, W. Luo, M. Shu, S. Wang, Z. Lu, Y. Hou, R. Hao, J. Am. Chem. Soc., 2025, 147, 23617-23624.
[31]	T. Xu, D. Jiao, L. Zhang, H. Zhang, L. Zheng, D. J. Singh, J. Zhao, W. Zheng, X. Cui, Appl. Catal. B, 2022, 316, 121686.
[32]	J. Zhang, L. Li, M. Du, Y. Cui, Y. Li, W. Yan, H. Huang, X.-A. Li, X. Zhu, Small, 2023, 19, 2300402.
[33]	L. Guo, J. Chi, T. Cui, J. Zhu, Y. Xia, H. Guo, J. Lai, L. Wang, Adv. Energy Mater., 2024, 14, 2400975.
[34]	S. Li, T. Liu, W. Zhang, M. Wang, H. Zhang, C. Qin, L. Zhang, Y. Chen, S. Jiang, D. Liu, X. Liu, H. Wang, Q. Luo, T. Ding, T. Yao, Nat. Commun., 2024, 15, 3416.
[35]	J. Xiao, T. Huang, J. Jiang, Y. Feng, G. Xu, L. Zhang, Adv. Funct. Mater., 2025, 35, e07040.
[36]	Y. Chen, Y. Liu, W. Zhai, H. Liu, T. Sakthivel, S. Guo, Z. Dai, Adv. Energy Mater., 2024, 14, 2400059.
[37]	T. Zhao, B. Gong, G. Xu, J. Jiang, L. Zhang, Chin. J. Catal., 2024, 61, 269-280.
[38]	T. Huang, J. Xiao, X. Liu, Y. Feng, J. He, G. Xu, L. Zhang, Small, 2025, 21, e06911.
[39]	T. Huang, J. Xiao, X. Liu, X. Liu, J. He, J. Jiang, G. Xu, L. Zhang, Chem. Eng. J., 2025, 509, 161348.
[40]	Y. Zhu, K. Fan, C.-S. Hsu, G. Chen, C. Chen, T. Liu, Z. Lin, S. She, L. Li, H. Zhou, Y. Zhu, H.-M. Chen, H. Huang, Adv. Mater., 2023, 35, 2301133.
[41]	R. Sanchis-Gual, D. Hunt, C. Jaramillo-Hernandez, A. Seijas-Da Silva, M. Mizrahi, C. Marini, V. Oestreicher, G. Abellan, ACS Catal., 2023, 13, 10351-10363.
[42]	M. Qin, J. Ye, G. Ma, Z. Fan, L.-F. Huang, X. Xin, Small, 2025, 21, 2502054.
[43]	J. Xiao, Y. Gao, X. Liu, G. Xu, L. Zhang, J. Mater. Chem. A, 2025, 13, 33716-33728.
[44]	H. Ze, Z.-L. Yang, M.-L. Li, X.-G. Zhang, A. Yao-Lin, Q.-N. Zheng, Y.-H. Wang, J.-H. Tian, Y.-J. Zhang, J.-F. Li, J. Am. Chem. Soc., 2024, 146, 12538-12546.
[45]	Y. Liu, R. Zhang, L. Lin, Y. Wang, C. Liu, R. Mu, Q. Fu, Nat. Commun., 2023, 14, 613.
[46]	Y. Chen, Y. Liu, L. Li, T. Sakthivel, Z. Guo, Z. Dai, Adv. Funct. Mater., 2024, 34, 2401452.
[47]	J. Li, Y. Tan, M. Zhang, W. Gou, S. Zhang, Y. Ma, J. Hu, Y. Qu, ACS Energy Lett., 2022, 7, 1330-1337.
[48]	S. Pan, C. Li, T. Xiong, Y. Xie, F. Luo, Z. Yang, Appl. Catal. B, 2024, 341, 123275.
[49]	Y. Yan, J. Du, C. Li, J. Yang, Y. Xu, M. Wang, Y. Li, T. Wang, X. Li, X. Zhang, H. Zhou, X. Hong, Y. Wu, L. Kang, Energy Environ. Sci., 2024, 17, 6024-6033.
[50]	Z.-W. Wei, H.-J. Wang, C. Zhang, K. Xu, X.-L. Lu, T.-B. Lu, Angew. Chem. Int. Ed., 2021, 60, 16622-16627.
[51]	K. Deng, Z. Lian, W. Wang, J. Yu, Q. Mao, H. Yu, Z. Wang, L. Wang, H. Wang, Appl. Catal. B, 2024, 352, 124047.
[52]	J. Chen, C. Chen, M. Qin, B. Li, B. Lin, Q. Mao, H. Yang, B. Liu, Y. Wang, Nat. Commun., 2022, 13, 5382.
[53]	J. H. Nie, J. H. Shi, L. Li, M.-Y. Xie, Z.-Y. Ouyang, M.-H. Xian, G. Huang, H. Wan, W. Hu, W.-Q. Huang, Nano Energy, 2025, 138, 110873.
[54]	S. Liu, Z. Li, Y. Chang, M. Gyu Kim, H. Jang, J. Cho, L. Hou, X. Liu, Angew. Chem. Int. Ed., 2024, 63, e202400069.
[55]	P. Yan, T. Yang, M. Lin, Y. Guo, Z. Qi, Q. Luo, X.-Y. Yu, Adv. Funct. Mater., 2023, 33, 2301343.
[56]	Y.-H. Wang, S. Zheng, W.-M. Yang, R.-Y. Zhou, Q.-F. He, P. Radjenovic, J.-C. Dong, S. Li, J. Zheng, Z.-L. Yang, G. Attard, F. Pan, Z.-Q. Tian, J.-F. Li, Nature, 2021, 600, 81-85.
[57]	L. Jiang, X. Chen, L. Jiang, X. Luo, R. Li, Q. Zhou, X. Mu, L. Chen, B. Li, J. Yu, S. Mu, ACS Catal., 2025, 15, 14380-14391.
[58]	T. Lu, J. Li, C. Wang, H. Liu, S. Ye, X. Jia, L. Zhang, D. Zhang, D. Sun, Y. Gu, Q. Wang, B. Da, L. Wei, Y. Zhang, H. Li, Y. Tang, ACS Catal., 2026, 16, 2827-2839.
[59]	H. Yao, X. Wang, K. Li, C. Li, C. Zhang, J. Zhou, Z. Cao, H. Wang, M. Gu, M. Huang, H. Jiang, Appl. Catal. B, 2022, 312, 121378.
[60]	Z. Yan, S. Tao, J. Wang, X. Lu, T. Lu, Adv. Mater., 2024, 36, 2411942.
[61]	Q. Sun, X. Yue, L. Yu, F.-Z. Li, Y. Zheng, M.-T. Liu, J.-Z. Peng, X. Hu, H.-M. Chen, L. Li, J. Gu, J. Am. Chem. Soc., 2024, 146, 35295-35304.
[62]	Y. Liu, H. You, C. Bai, J. Yu, E. Hu, D. Zhao, J. Zhang, Z. Chen, Adv. Energy Mater., 2025, 15, e03695.
[63]	H. Zhao, B. Ni, Y. Pan, Y. Li, J. Li, G. Wang, Z. Zou, K. Jiang, Q. Cheng, L. Zu, H. Yang, Adv. Mater., 2025, 37, 2503221.
[64]	Y. Liu, L. Li, L. Wang, N. Li, X. Zhao, Y. Chen, T. Sakthivel, Z. Dai, Nat. Commun., 2024, 15, 2851.
[65]	X.-Y. Zhang, H. Yin, C.-C. Dang, H. Nie, Z.-X. Huang, S.-H. Zheng, M. Du, Z.-Y. Gu, J.-M. Cao, X.-L. Wu, Angew. Chem. Int. Ed., 2025, 64, e202425569.
[66]	C. Luan, J. Angona, A. Bala Krishnan, M. Corva, P. Hosseini, M. Heidelmann, U. Hagemann, E. Batsa Tetteh, W. Schuhmann, K. Tschulik, T. Li, Angew. Chem. Int. Ed., 2023, 62, e202305982.
[67]	J. Nie, J. Shi, T. Huang, M.-Y. Xie, Z.-Y. Ouyang, M.-H. Xian, G.-F. Huang, H. Wan, W. Hu, W.-Q. Huang, Adv. Funct. Mater., 2024, 34, 2314172.
[68]	H. Zhong, Q. Zhang, J. Yu, X. Zhang, C. Wu, Y. Ma, H. An, H. Wang, J. Zhang, X. Wang, J. Xue, Adv. Energy Mater., 2023, 13, 2301391.
