Autogenous force-mediated assembly: A general strategy for constructing single-atom architectures in hierarchical hybrid electrocatalysts

doi:10.1016/S1872-2067(26)65155-8

Abstract

Abstract:

The design of efficient and pH-universal ruthenium (Ru) single-atom catalysts (SACs) remains a pivotal challenge for hydrogen economy systems. Here, inspired by tubular capillary phenomena, a novel approach is introduced—autogenous force-mediated assembly—enabled by a unique asymmetric N-doped carbon nanotubes (NCNTs) scaffold with a Co-embedded sealed end. The confined geometry drives a spontaneous, directional outward migration of Co²⁺ species at room temperature, which deposit as amorphous or poorly crystalline cobalt-based compounds at the outer surface while concurrently capturing and stabilizing Ru species in single-atom configurations. And these precursors transform into well-crystallized Co₃O₄ anchored with Ru single-atom upon calcination. This process yields a precisely organized three-dimensional architecture where metallic Co nanoparticles remain confined within the NCNTs, while atomically dispersed Ru sites are firmly anchored on the exterior Co₃O₄ lattice. The gradual migration-deposition process is inherently self-limiting, ensuring uniform dispersion of Ru single-atoms (SAs). The resulting lattice confinement induces a strong electronic metal-support interaction (EMSI), which effectively suppresses atomic aggregation and optimizes the electronic structure of the active sites. The integrated system—coupling the conductive Co@NCNT with the EMSI-enhanced Ru-Co₃O₄ interface—delivers outstanding hydrogen evolution reaction performance. This work establishes a generalizable synthesis paradigm that leverages internally generated forces for the precise spatial organization of active components, presenting a versatile route toward high-performance SACs for sustainable energy conversion.

Key words: Single-atom catalysts, Hydrogen evolution reaction, Metal-support interaction, Carbon nanotubes, Three-dimensional hierarchical, material

Ting Li, Xiaohui Chen, Xiaolin Li, Qi Xiao, Hongqun Luo, Nianbing Li. Autogenous force-mediated assembly: A general strategy for constructing single-atom architectures in hierarchical hybrid electrocatalysts[J]. Chinese Journal of Catalysis, 2026, 89: 232-245.

×
share this article

Add to citation manager EndNote|Ris|BibTeX

URL: https://www.cjcatal.com/EN/10.1016/S1872-2067(26)65155-8

https://www.cjcatal.com/EN/Y2026/V89/I10/232

Figures/Tables 5

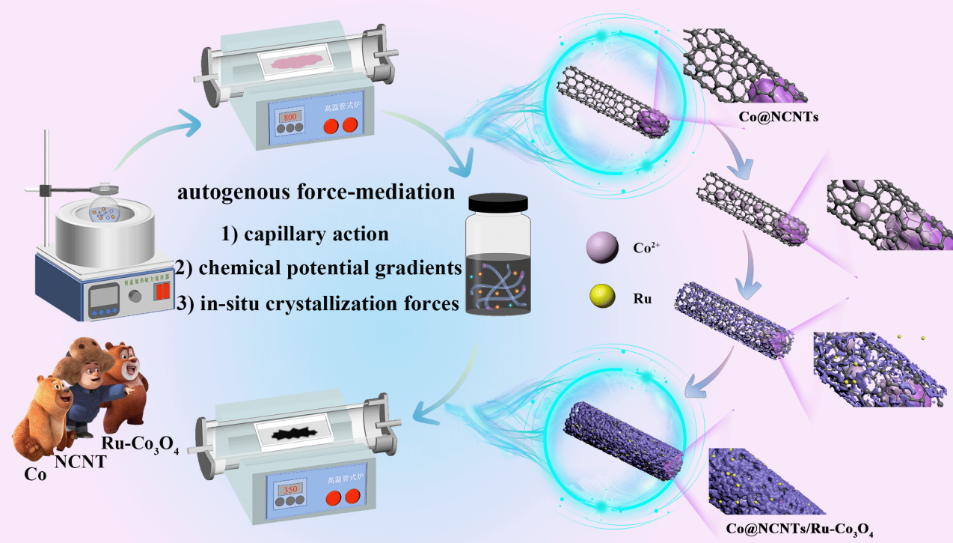

Fig. 1. The synthetic process of Co@NCNTs/Ru-Co3O4.

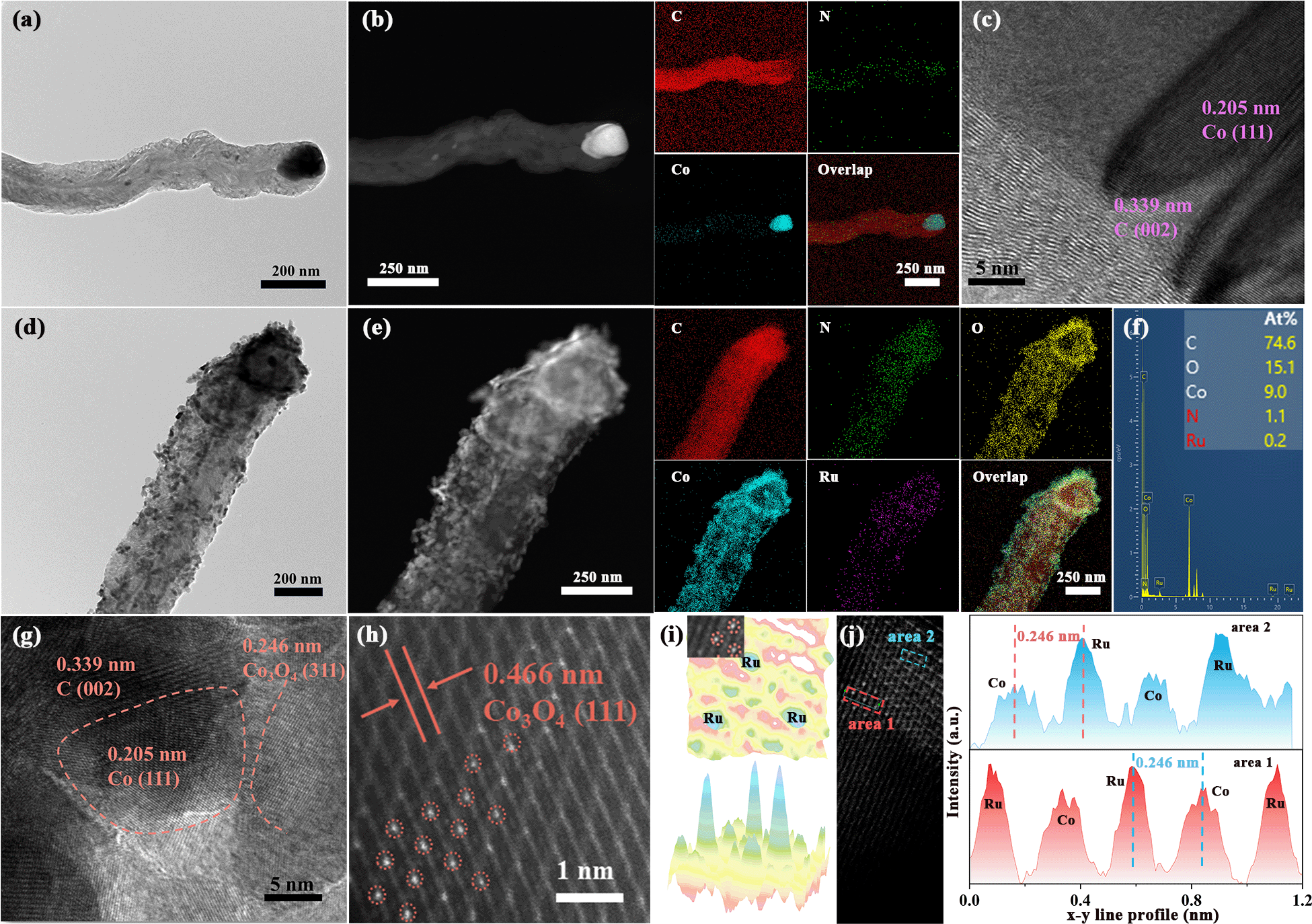

Fig. 2. TEM image (a), elemental mapping images (b), and HRTEM image (c) of Co@NCNTs. TEM image (d), elemental mapping images (e), EDS mapping (f), HRTEM image (g), AC HAADF-STEM image (h), 3D atom-overlapping Gaussian function fitting mapping (i) of the dashed square in (i), and the intensity profiles along the dashed rectangles in AC HAADF-STEM image (j) of Co@NCNTs/Ru-Co3O4.

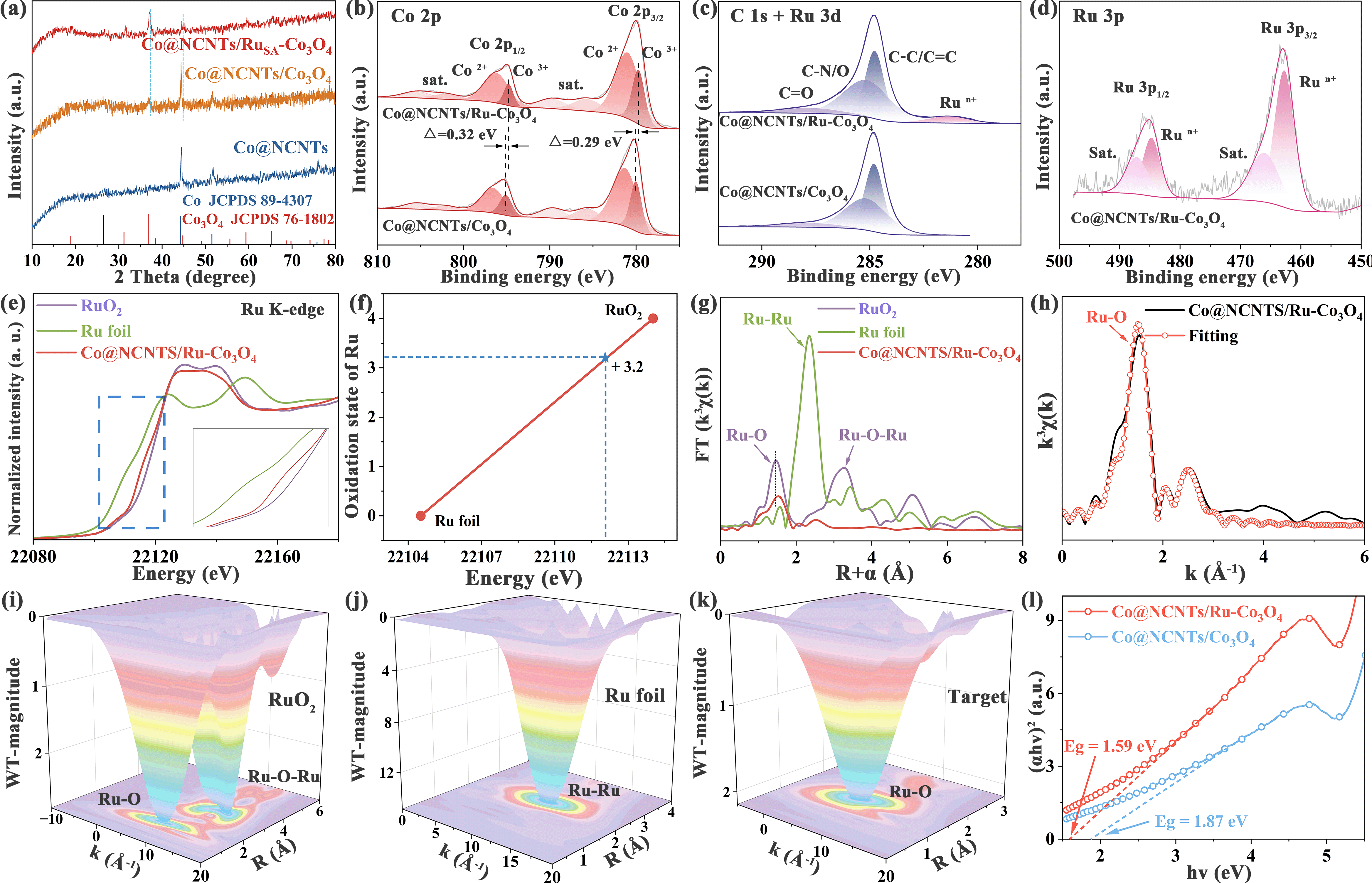

Fig. 3. (a) XRD patterns of Co@NCNTs/Ru-Co3O4, Co@NCNTs/Co3O4, and Co@NCNTs. High resolution XPS spectra of Co 2p (b) and C 1s + Ru 3d (c) for Co@NCNTs/Ru-Co3O4 and Co@NCNTs/Co3O4. (d) High resolution XPS spectra of Ru 3p for Co@NCNTs/Ru-Co3O4. (e) Ru L3-edge XANES spectra of Co@NCNTs/Ru-Co3O4, Ru foil, and RuO2. (f) Calculation of oxidation state of Ru in Co@NCNTs/Ru-Co3O4 from Fig. 3(e). (g) EXAFS spectra of Co@NCNTs/Ru-Co3O4, Ru foil, and RuO2. (h) FT-EXAFS fitting curves of Co@NCNTs/Ru-Co3O4 at the R space. WT-EXAFS of RuO2 (i), Ru foil (j), and Co@NCNTs/Ru-Co3O4 (k). (l) Tauc plots of Co@NCNTs/Ru-Co3O4 and Co@NCNTs/Co3O4 obtained from UV-vis spectroscopy.

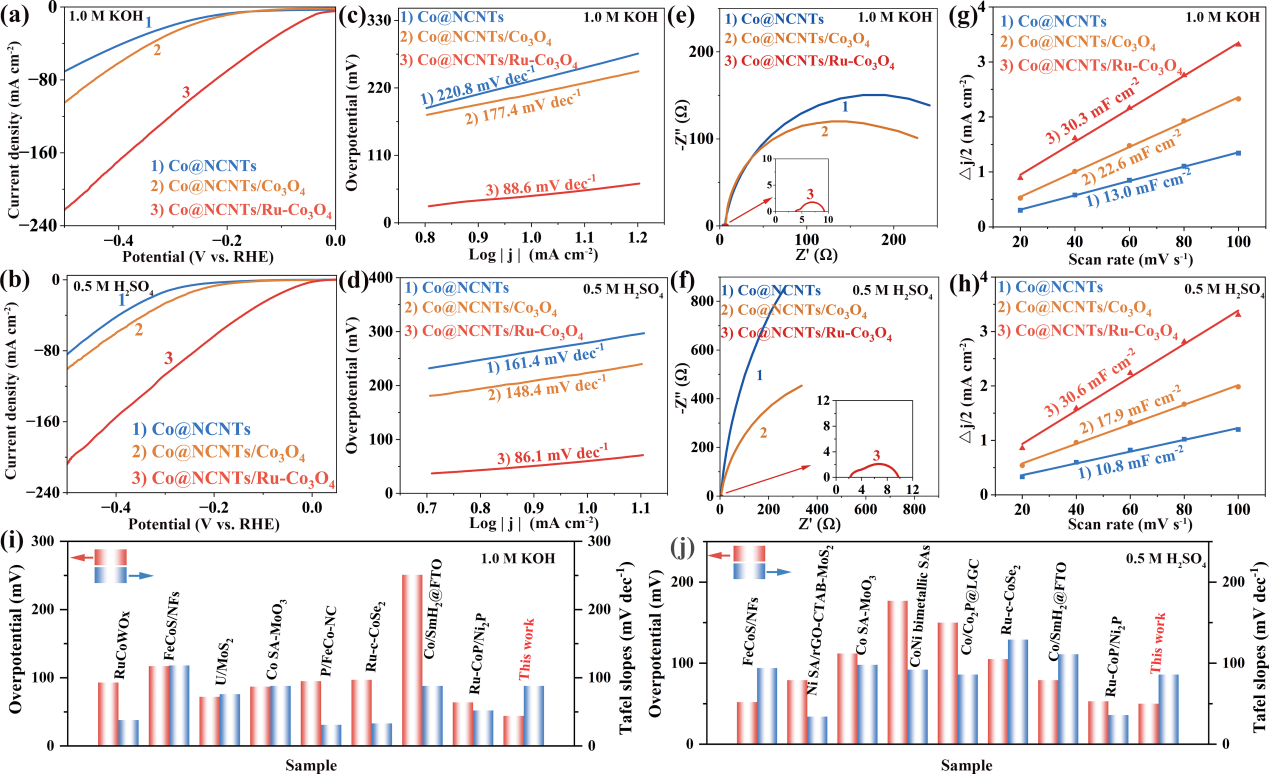

Fig. 4. HER performance evaluation. LSV curves (a,b), Tafel slopes (c,d), Nyquist plots (e,f), and Cdl curves (g,h) of Co@NCNTs/Ru-Co3O4, Co@NCNTs/Co3O4, and Co@NCNTs in 1.0 mol L-1 KOH and in 0.5 mol L-1 H2SO4, respectively. Comparison of overpotentials at 10 mA cm-2 in 1.0 mol L-1 KOH (i) and 0.5 mol L-1 H2SO4 (j) [50,55-68].

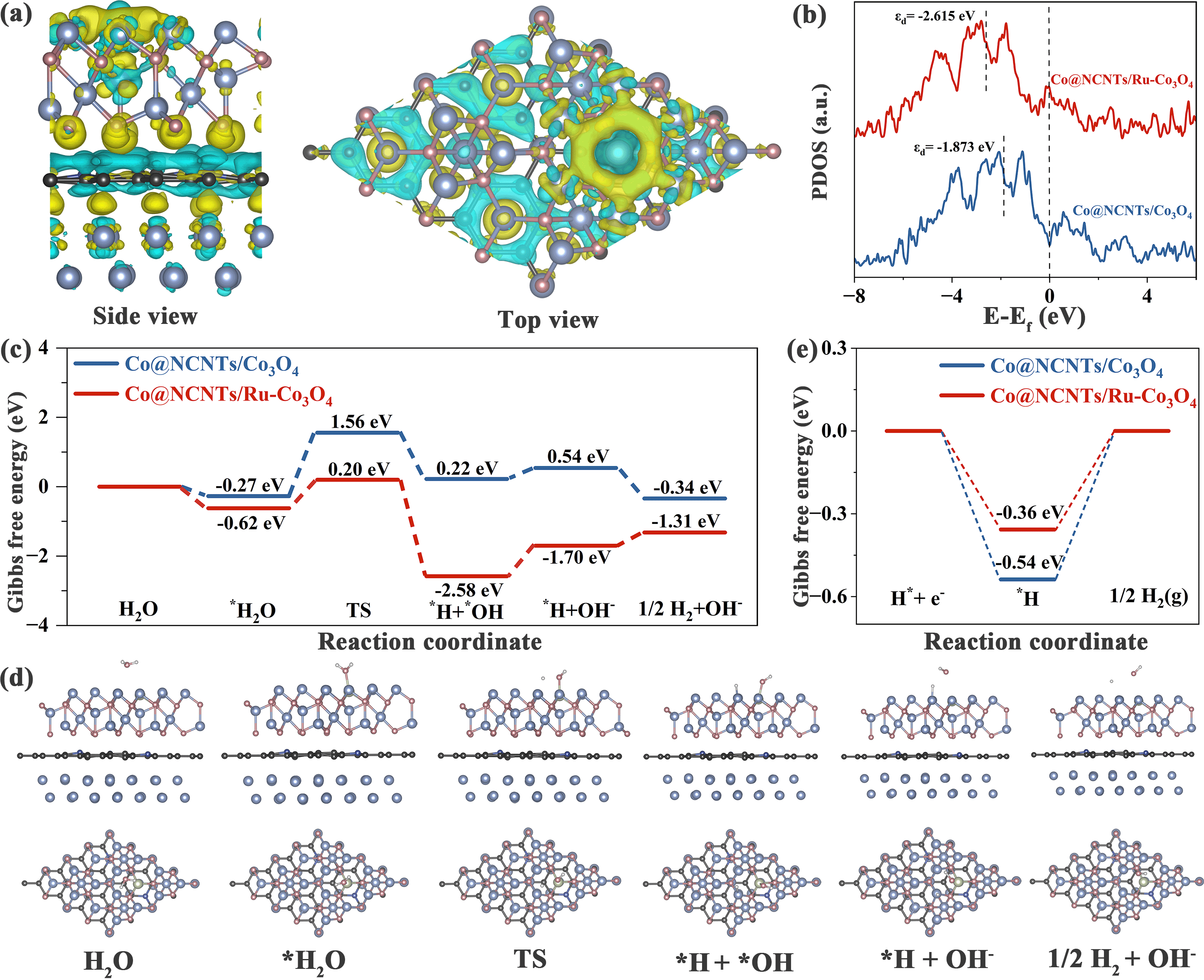

Fig. 5. (a) Charge density difference of Co@NCNTs/Ru-Co3O4 with a side view and a top view. The Co, Ru, O, C, and N atoms are represented by light blue, light green, pink, black, and blue spheres, respectively. Yellow and cyan regions represent electron accumulation and depletion, respectively. (b) PDOS of Co@NCNTs/Ru-Co3O4 and Co@NCNTs/Co3O4 with aligned Fermi level. The vertical lines mark the positions of d-band center. (c) The Gibbs free energy diagrams for complete alkaline HER over Co@NCNTs/Ru-Co3O4 and Co@NCNTs/Co3O4. (d) The schematic illustrations for each step of the alkaline HER process over the Co@NCNTs/Ru-Co3O4. The *H2O, *H + *OH, *H + OH- indicate the adsorbed H2O on the catalyst, the adsorbed H and the adsorbed OH on the catalyst, the adsorbed H is still on the catalyst while the OH is undergoing the process of desorption, respectively. (e) The H adsorption energies on the Co@NCNTs/Ru-Co3O4 and Co@NCNTs/Co3O4, respectively.
